Week 7-Long Piston With Cam
Objective-
To perform a transient analysis on a piston and cam mechanism model. You need to run the analysis with Frictionless contact, Frictional with 0.1 and 0.2 as the frictional contact for a total of 3 cases. Find out the Equivalent Stress, Directional Deformation and Equivalent Elastic Strain and compare them for all the three cases.
Solution -
First we add the material needed from the engineering library.

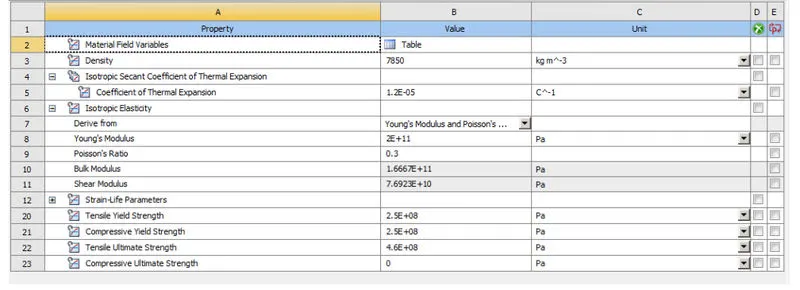

Material Properties for Structural Steel
Now we upload the model to the geometryand open it in space clam and see if there are any discontinuities in the model.
Update the model to the mechanical module. And Opening the module.

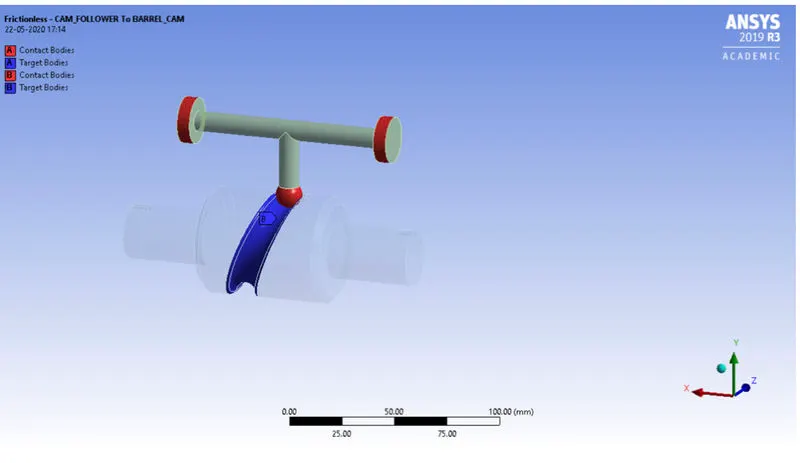

Now in connections we add contacts between the cam and the barrel and cam and cam shaft. The contact is kept as friction less.

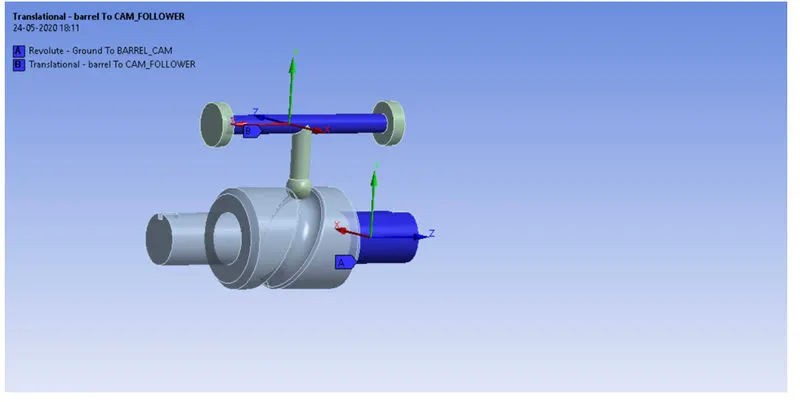

We add the joints to the model fixed to ground for the barrel, revolute for the cam shaft and translational for the cam follower.

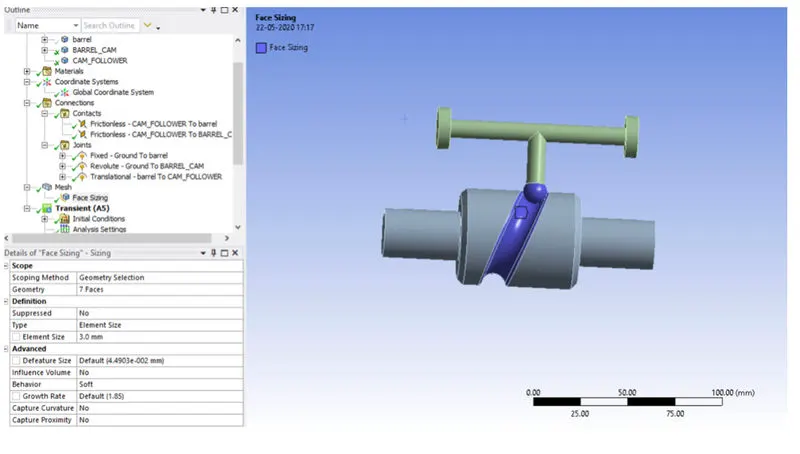

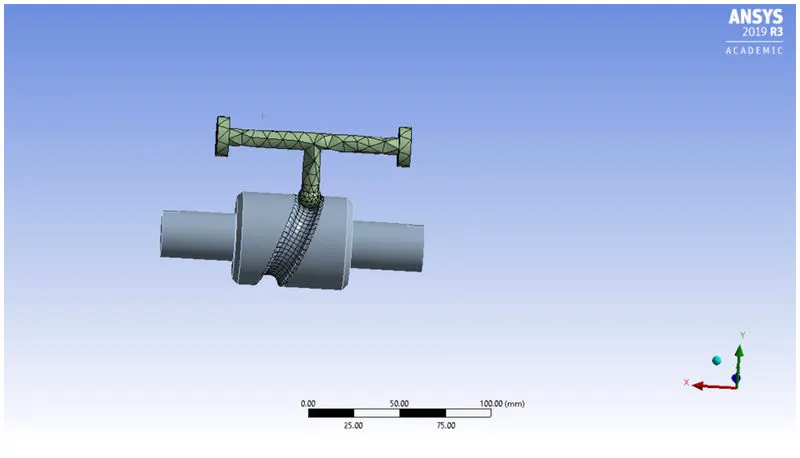

We generate face sizing where there is contact with a mesh element size of 3 mm
Inside of the barrel is also meshed

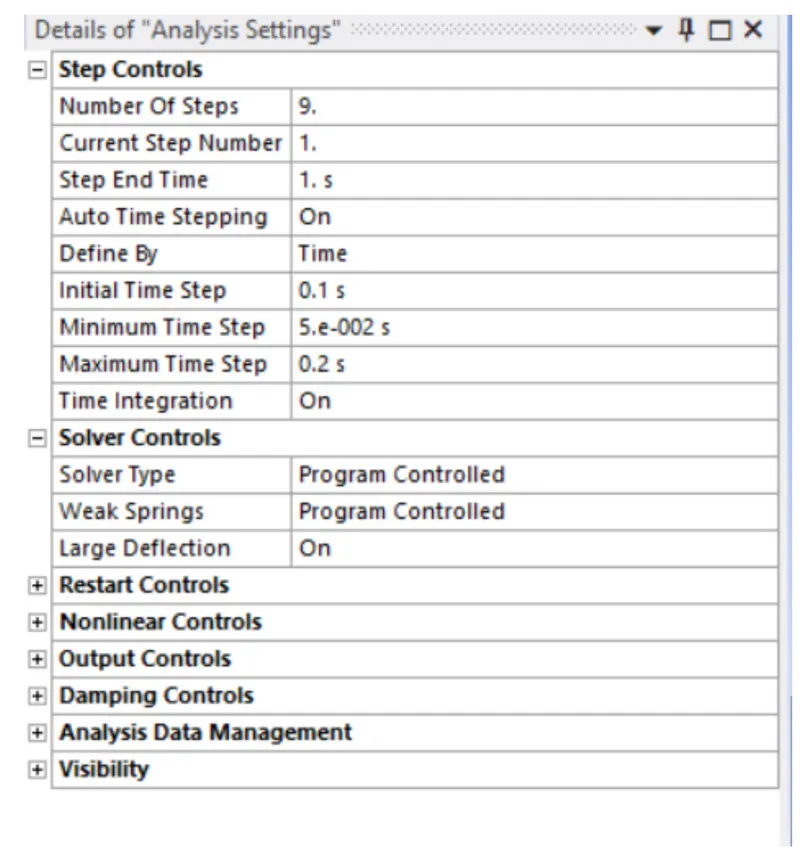

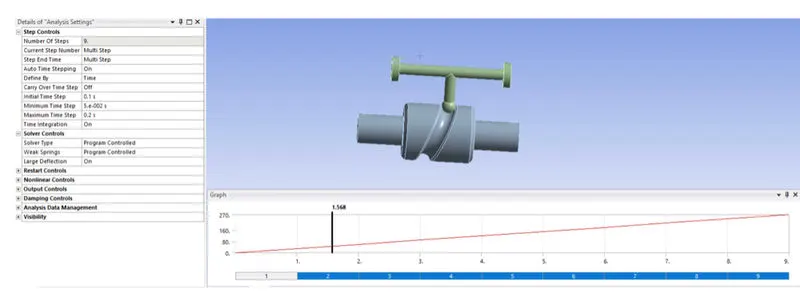

For analysis settings we use total 9 steps for the st step the settings are
For steps 2 to 8

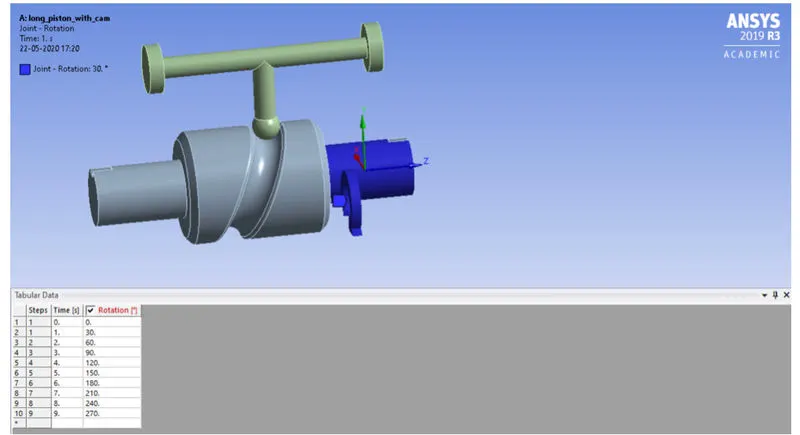

Now we add a joint load of rotation type and input the rotation degrees
After setting up the problem insert the desired results in the solution and solve.
Friction less

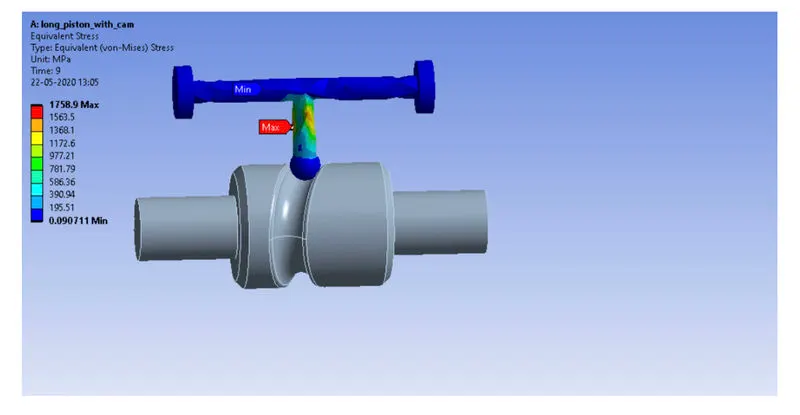

Equivalent Stress

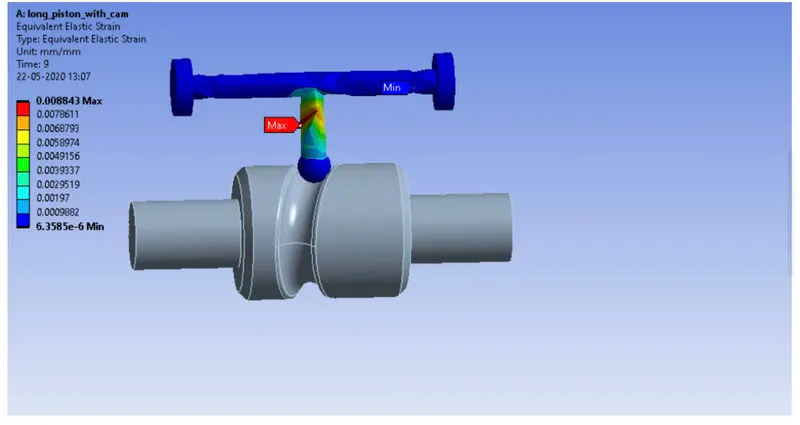

Equivalent strain

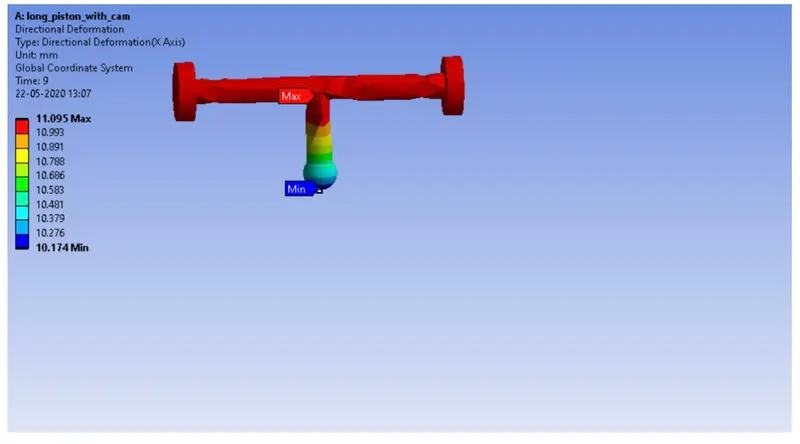

Directional Deformation
Frictional coefficient 0.1

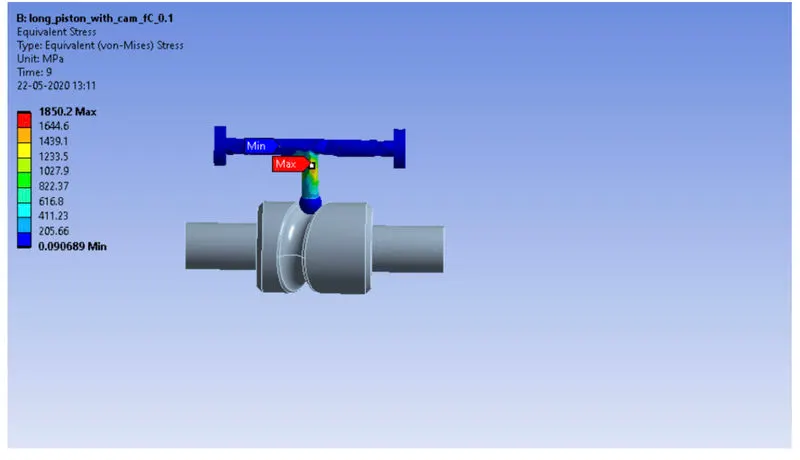

Equivalent Stress

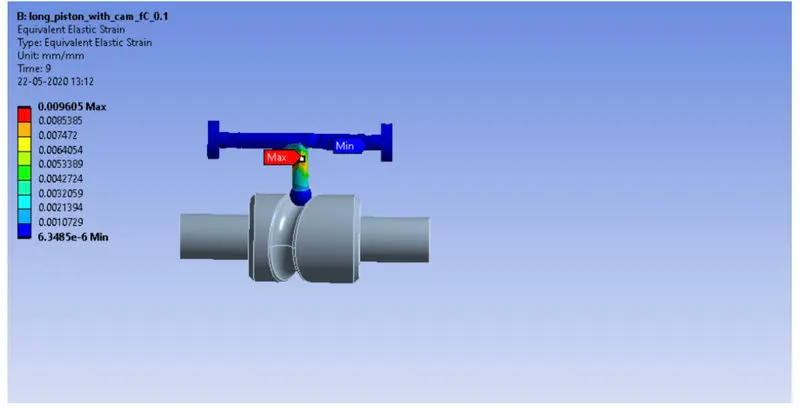

Equivalent strain

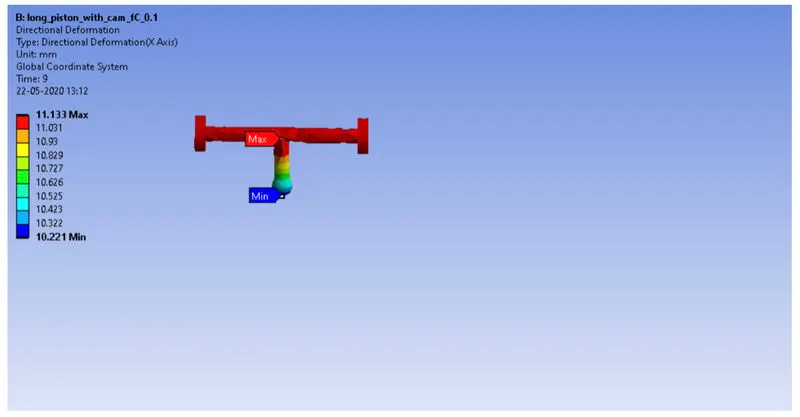

Directional Deformation
Frictional coefficient 0.2

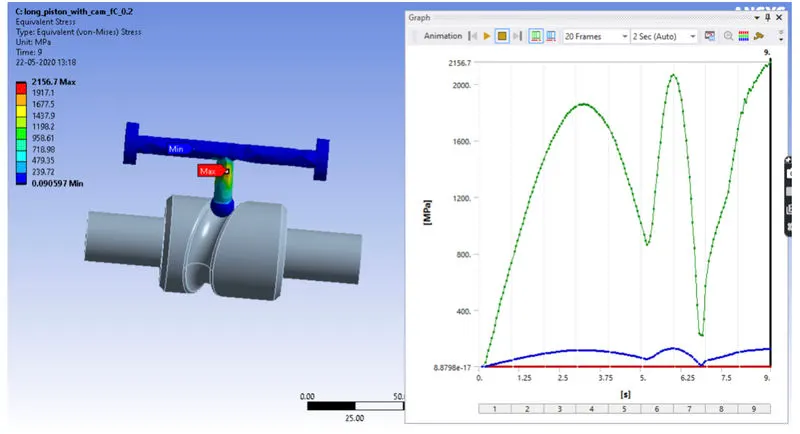

Equivalent Stress

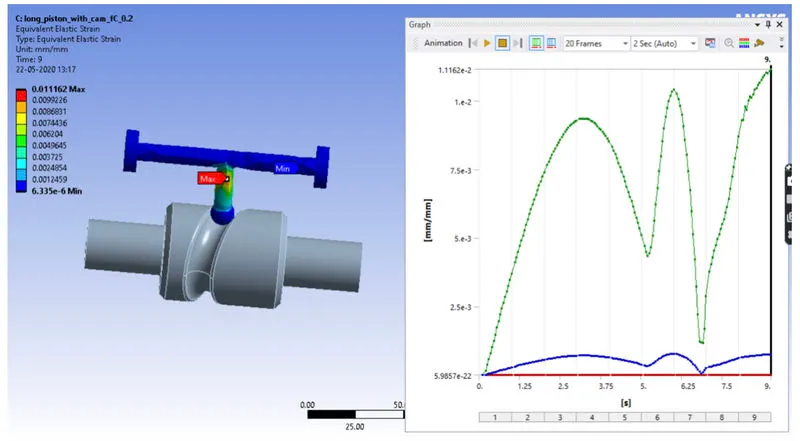

Equivalent strain

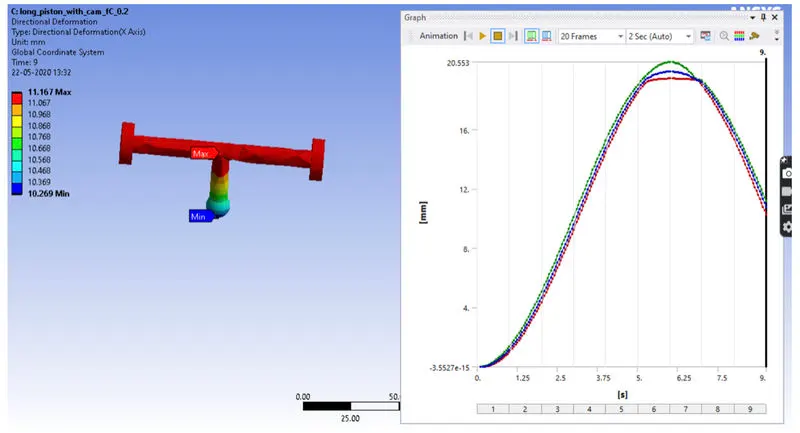

Directional Deformation
Conclusion -
From the above table we can see that as the frictional co-efficient increases the equivalent stress, strain and Directional deformation increases. As there is friction the energy required also increases hence the stress and strain also increases. Total
deformation remains constant for all three cases.
More force is required to over come the friction and force is directly proportional to stress thus the stress increases.
Stress is directly proportional to strain and thus strain
