Week-7 Challenge: DC Motor Control

Q1. (A) EXPLAIN A MATLAB DEMO MODEL NAMED 'SPEED CONTROL OF A DC MOTOR USING BJT H-BRIDGE'.

SOLUTION:-

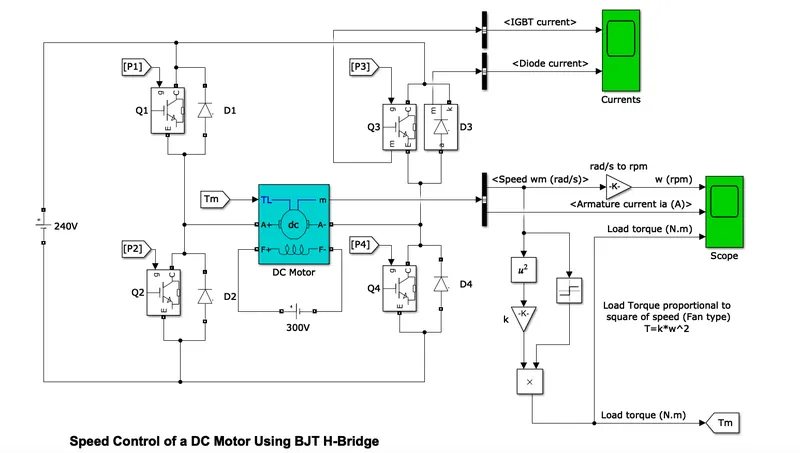

Speed control of a DC motor using BJT H-bridge:-

Description:-

The Bipolar Junction Transistor (BJT) when used for power switching applications, operates as an IGBT. When it is conducting (BJT operating in the saturated region), a forward voltage Vf is developed between collector and emitter (in the range of 1 V). Therefore, the IGBT block can be used to model the BJT device.

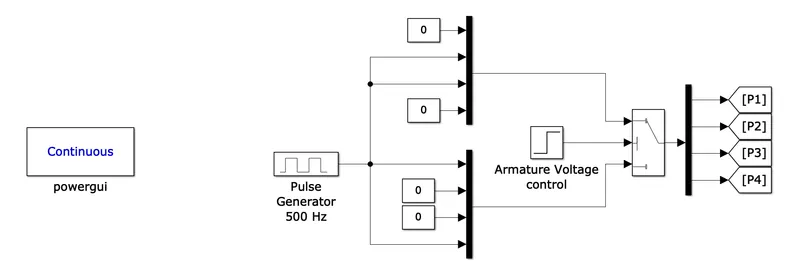

The IGBT block does not simulate the gate current controlling the BJT or IGBT. The switch is controlled by a Simulink® signal (1/0). The DC motor uses the preset model (5 HP 24V 1750 rpm). It simulates a fan-type load (where Load torque is proportional to the square of speed). The armature means voltage can be varied from 0 to 240 V when the duty cycle (specified in the Pulse Generator block) is varied from 0 to 100%.

The H-bridge consists of four BJT/Diode pairs (BJT simulated by IGBT models). Two transistors are switched simultaneously: Q1 and Q4 or Q2 and Q3. When Q1 and Q4 are fired, a positive voltage is applied to the motor, and diodes D2-D3 operate as free-wheeling diodes when Q1 and Q4 are switched off. When Q2 and Q3 are fired, a negative voltage is applied to the motor, and diodes D1-D4 operate as free-wheeling diodes when Q2 and Q3 are switched off.

Simulation:-
The motor starts in a positive direction with a duty cycle of 75% (mean DC voltage of 180V). At t= 0.5 sec., the armature voltage is suddenly reversed and the motor runs in the negative direction.

(B) COMMENT ON THE ARMATURE CURRENT SHOOT-UP FROM THE SCOPE RESULTS.

SOLUTION:-

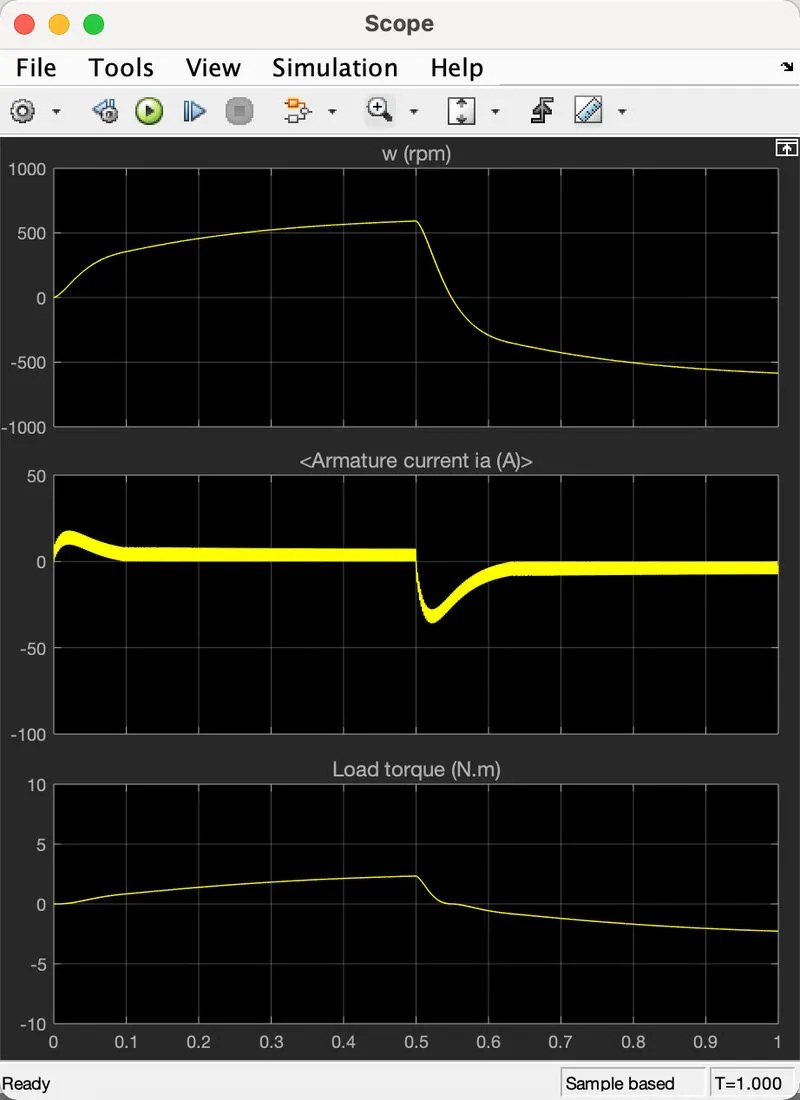

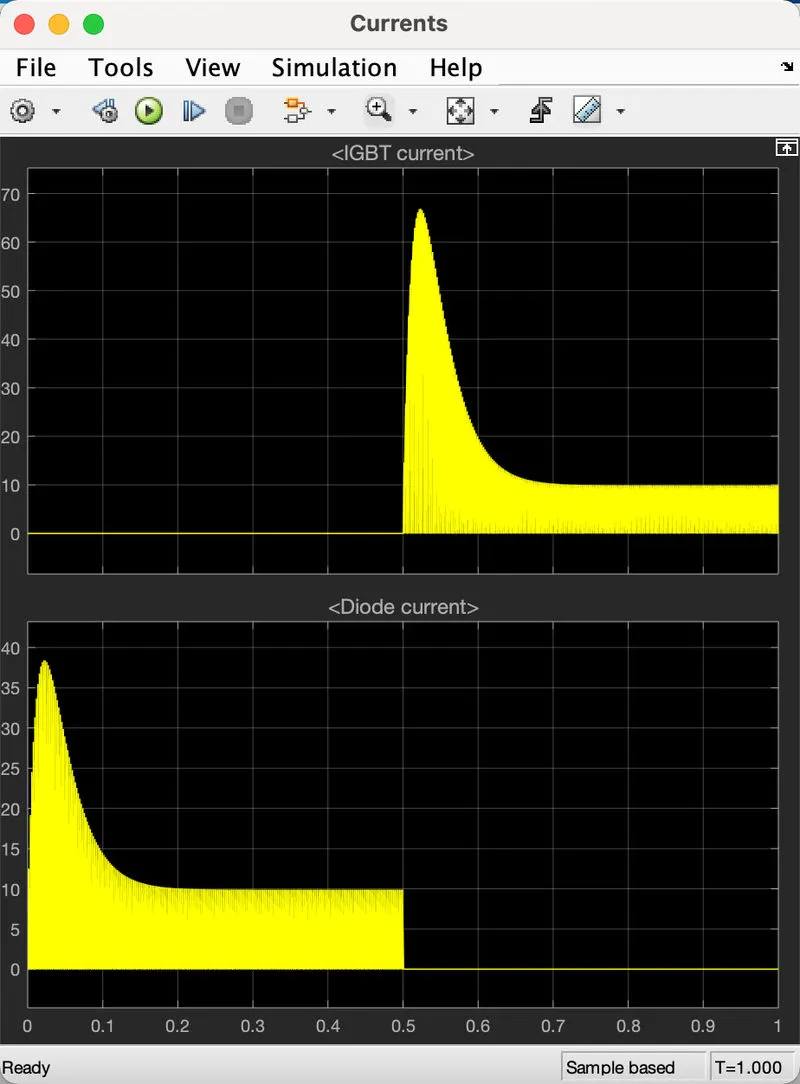

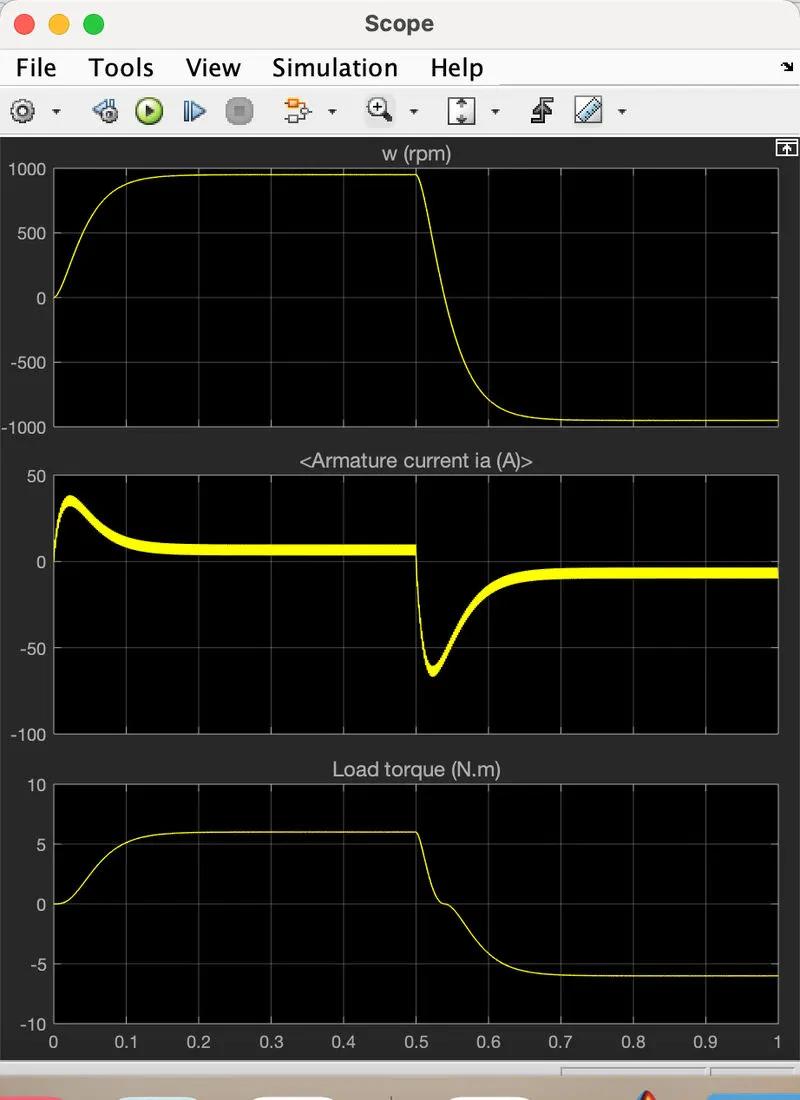

'Scope' shows motor speed, armature current, and load torque and 'Currents' shows currents flowing in BJT Q3 and diode D3.

Changing the pulse width to see the change in current shoot up:-

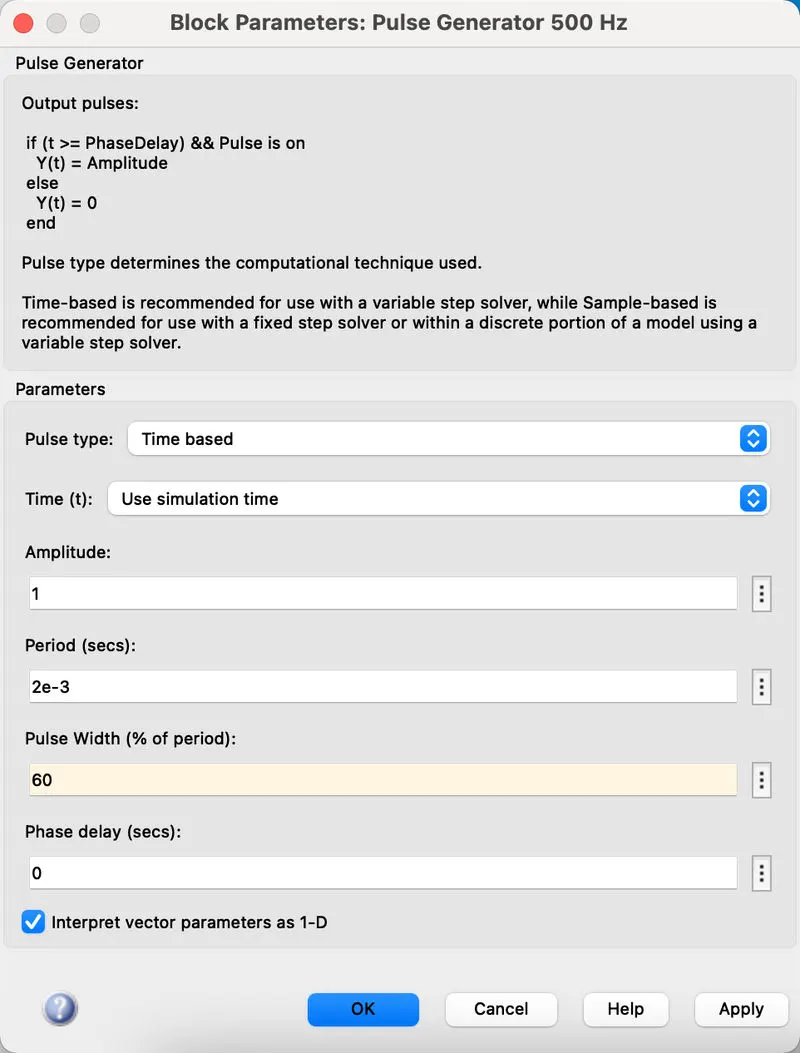

Pulse width 60%:-

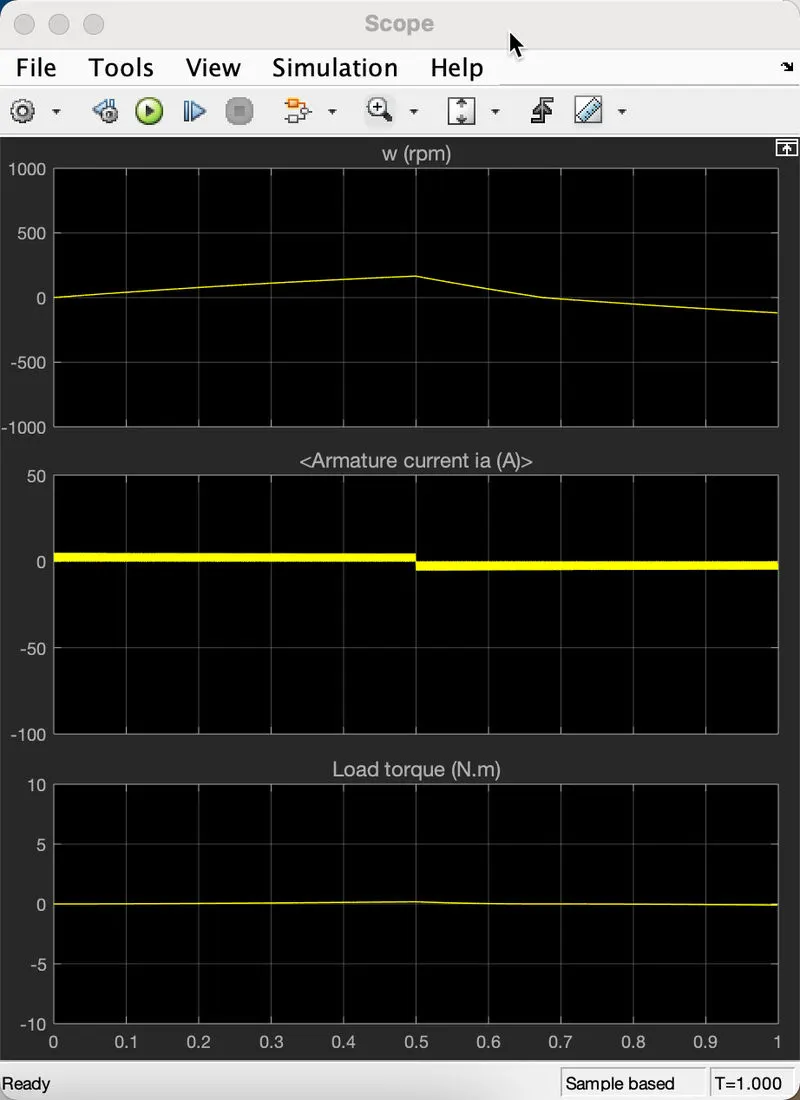

Pulse Width 30%:-

The Armature current is reduced when the values of the duty cycle are reduced.

(C) REFER TO THE HELP SECTION OF 'THE FOUR-QUADRANT CHOPPER DC DRIVE (DC7) BLOCK'. COMPARE IT WITH THE H-BRIDGE MODEL.

SOLUTION:-

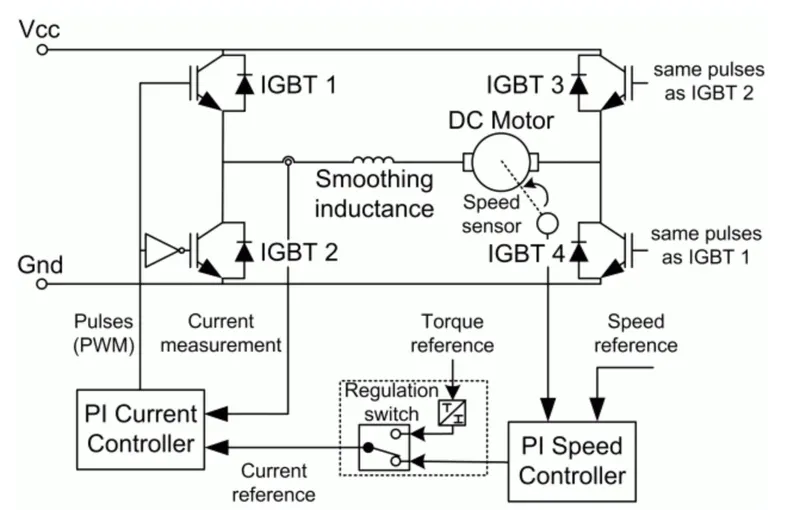

The Four-Quadrant Chopper DC Drive (DC7) block:-

The Four-Quadrant Chopper DC Drive (DC7) block represents a four-quadrant, DC-supplied, chopper (or DC-DC PWM converter) drive for DC motors. This drive features closed-loop speed control with a four-quadrant operation. The speed control loop outputs the reference armature current of the machine. Using a PI current controller, the chopper duty cycle corresponding to the commanded armature current is derived. This duty cycle is then compared with a sawtooth carrier signal to obtain the required PWM signals for the chopper.

The main advantage of this drive, compared with other DC drives, is that it can operate in all four quadrants (forward motoring, reverse regeneration, reverse motoring, and forward regeneration). In addition, due to the use of high switching frequency DC-DC converters, a lower armature current ripple (compared with thyristor-based DC drives) is obtained. However, four switching devices are required, which increases the complexity of the drive system.

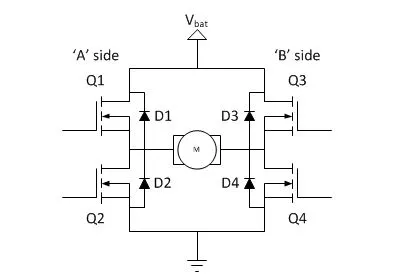

H-Bridge model:

-H bridge is an electronic device that switches the polarity of a voltage applied to a load.Most DC to AC converters,AC to DC converters,motor controllers etc .. uses H bridge.Theses circuits are often used in robotics,automotive industry where DC motor is made to run forward and backward.

-In H bridge the switches will only in 2 quadrant.The switching q1 and q4 are usually bipolar or FET transistor in some high voltage application IGBTs are used.Q1 and Q2 will not be connected together as it may create short circuit with input supply,similarly Q3 and Q4 will not be connected together.

-Advantage is that it has higher efficiency,low losses and is also small iin size while comparing with 4 quadrant chopper.

Result:-

-The difference between H-bridge block and 4 quadrant block was explained properly.

Q2. DEVELOP A 2-QUADRANT CHOPPER USING SIMULINK & EXPLAIN THE WORKING OF THE SAME WITH THE RELEVENT RESULTS. (Refer to article - Multiquadrant operation of motor )

SOLUTION:-

Two Quadrant Chopper (Circuit diagram)

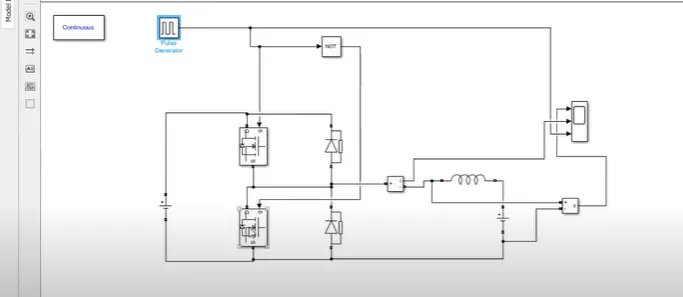

SIMULINK MODEL:-

BLOCKS USED:-

• POWER GUI
• VOLTAGE MEASUREMENT
• CURRENT MEASUREMENT
• DC VOLTAGE
• MOSFET
• PULSE GENERATOR
• DIODE
• SERIES RLC
• SCOPE
• LOGICAL OPERATOR

OPERATION:-

As we know that, a Class-A and Class-B chopper operates in first and second quadrant respectively. Therefore, if we connect both these types of chopper in parallel then it is possible to have chopper operation in first as well as second quadrant.

In fact, Class-C or Type-C chopper is obtained by the parallel connection of Class-A and Class-B chopper. Figure below shows the circuit diagram of this type of chopper.

Carefully observe the circuit diagram. You will notice that chopper CH1, free-wheeling diode (FD) and loa are forming Class-A Chopper whereas chopper CH2, D2 and Load are forming Class-B chopper. Both these choppers are connected in parallel. To obtain first quadrant operation we should switch ON chopper CH1 and for getting second quadrant operation we should switch ON chopper CH2. Let us discuss this in detail.

Case-1: When CH1 is switched ON / OFF

When chopper CH1 is switched ON, source V_s directly gets connected to the load and hence, load voltage V_o is equal to source voltage. The direction of load current is from source to load as shown in the circuit diagram which is assumed positive.

When CH1 is switched OFF, the free-wheeling diode FD comes into the circuit as it gets forward biased and hence shorts the load. Therefore, the output voltage V_o becomes zero. However, the i_o continues to die down through the FD and L in the same direction as shown in circuit diagram. Thus, the average output voltage V_o and current I_o are positive and hence operation of chopper is in first quadrant. In fact, this is the Class-B mode of operation.

Case-2: When CH2 is switched ON / OFF

When chopper CH2 is switched ON, load DC source E drives current through CH2 and load. The direction of this current i_o will be opposite to that shown in circuit diagram and hence is assumed negative. Output voltage V_o is zero during this time. When CH2 is made OFF, diode D2 gets forward biased and hence the current into the source from the load. The output voltage is V_s in this time as the load is connected to the source through D2 during OFF time of chopper CH2. Thus, the load current is always negative i.e. operation of chopper is within second quadrant. In fact, this is the Class-B mode of operation.

From the above two cases, we can conclude the following points:

• The output voltage V_o is zero when chopper CH2 is ON or free-wheeling diode FD conducts.
• The output voltage V_o is equal to source voltage V_s when chopper CH1 is ON or diode D2 conducts.
• The load current flows in the direction shown in circuit diagram i.e.i_o is positive when CH1 is ON or FD conducts.
• The load current flows opposite to the direction shown in circuit diagram i.e.i_o is negative when CH2 is ON or D2 conducts.

The average load voltage is always positive but the average load current may be positive or negative. Therefore, power flow may be from source to load (first quadrant operation) or load to source (second quadrant operation). The operating region of Class-C or Type-C chopper is shown below by hatched area.

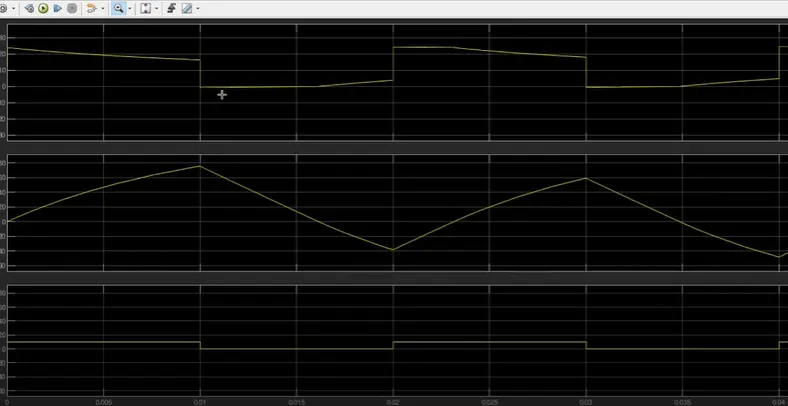

RESULTS:-

We can observe that voltage pulse is not going below 0 i.e only +ve voltage is seen. But the current continuously changes from +ve to -ve. And amplitude we can set to our own for better view of steps.

Q3. EXPALIN IN BRIEF ABOUT OPERATION OF BLDC MOTOR.

SOLUTION:-

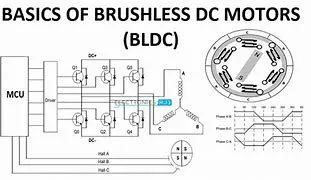

A brushless DC electric motor (BLDC motor or BL motor), also known as an electronically commutated motor (ECM or EC motor) or synchronous DC motor, is a synchronous motor using a direct current (DC) electric power supply. It uses an electronic closed loop controller to switch DC currents to the motor windings producing magnetic fields which effectively rotate in space and which the permanent magnet rotor follows.

The controller adjusts the phase and amplitude of the dc current pulses to control the speed and torque of the motor. This control system is an alternative to the mechanical commutator (brushes) used in many conventional electric motors.

BLDC MOTOR:-(CONSTRUCTION)

Basically a BLDC motor can be constructed in two ways- by placing the rotor outside the core and the windings in the core and another by placing the windings outside the core. In the former arrangement, the rotor magnets act as an insulator and reduce the rate of heat dissipation from the motor and operate at low current. It is typically used in fans. In the latter arrangement, the motor dissipates more heat, thus causing an increase in its torque. It is used in hard disk drives.

(OPERATION):-

4 Pole 2 Phase Motor Operation

The brushless DC motor is driven by an electronic drive that switches the supply voltage between the stator windings as the rotor turns. The rotor position is monitored by the transducer (optical or magnetic) which supplies information to the electronic controller and based on this position, the stator winding to be energized is determined. This electronic drive consists of transistors (2 for each phase) which are operated via a microprocessor.

he magnetic field generated by the permanent magnets interacts with the field induced by the current in the stator windings, creating a mechanical torque. The electronic switching circuit or the drive switches the supply current to the stator so as to maintain a constant angle of 0 to 90 degrees between the interacting fields. Hall Sensors are mostly mounted on the stator or on the rotor. When the rotor passes through the hall sensor, based on the North or South Pole, it generates a high or low signal. Based on the combination of these signals, the winding to be energized is defined. In order to keep the motor running, the magnetic field produced by the windings should shift position, as the rotor moves to catch up with the stator field.

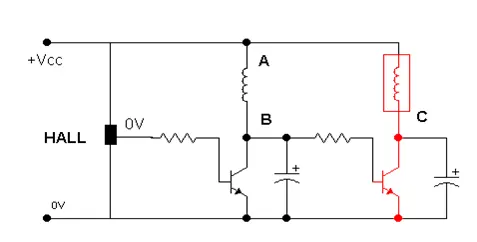

In a 4 pole, 2 phase brushless dc motor, a single hall sensor is used, which is embedded on the stator. As the rotor rotates, the hall sensor senses the position and develops a high or low signal, depending on the pole of the magnet (North or South). The hall sensor is connected via a resistor to the transistors. When a high voltage signal occurs at the output of the sensor, the transistor connected to coil A starts conducting, providing the path for the current to flow and thus energizing coil A. The capacitor starts charging to the full supply voltage. When the hall sensor detects a change in polarity of the rotor, it develops a low voltage signal at its output and since the transistor 1 doesn’t get any supply, it is in cutoff condition. The voltage developed around the capacitor is Vcc, which is the supply voltage to the 2^nd transistor, and coil B is now energized, as current passes through it.

BLDC motors have fixed permanent magnets, which rotate and a fixed armature, eliminating the problems of connecting current to the moving armature. And possibly more poles on the rotor than the stator or reluctance motors. The latter may be without permanent magnets, just poles that are induced on the rotor then pulled into an arrangement by timed stator windings. An electronic controller replaces the brush/commutator assembly of the brushed DC motor, which continually switches the phase to the windings to keep the motor turning. The controller performs comparative timed power distribution by using a solid-state circuit instead of the brush/commutator system.

Advantages:-

1. Brushless motors are more efficient as its velocity is determined by the frequency at which current is supplied, not the voltage.
2. As brushes are absent, the mechanical energy loss due to friction is less which enhanced efficiency.
3. BLDC motor can operate at high-speed under any condition.
4. There is no sparking and much less noise during operation.
5. More electromagnets could be used on the stator for more precise control.
6. BLDC motors accelerate and decelerate easily as they are having low rotor inertia.
7. It is high performance motor that provides large torque per cubic inch over a vast sped rang.
8. BLDC motors do not have brushes which make it more reliable, high life expectancies, and maintenance free operation.
9. There is no ionizing sparks from the commutator, and electromagnetic interference is also get reduced.
10. Such motors cooled by conduction and no air flow are required for inside cooling.

Disadvantages:-

1. BLDC motor cost more than a brushed DC motor.
2. The limited high power could be supplied to BLDC motor, otherwise, too much heat weakens the magnets and the insulation of winding may get damaged.
3. Not much availability of many intergrated electronic control solutions.
4. Requires complex drive circuitry.
