Week 7 Challenge - Assembly Workbench

1. QUICK RETURN MECHANISM

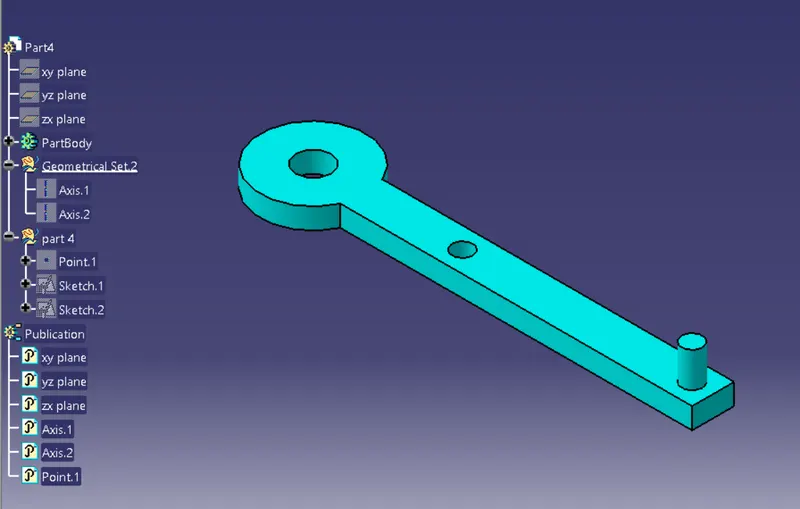

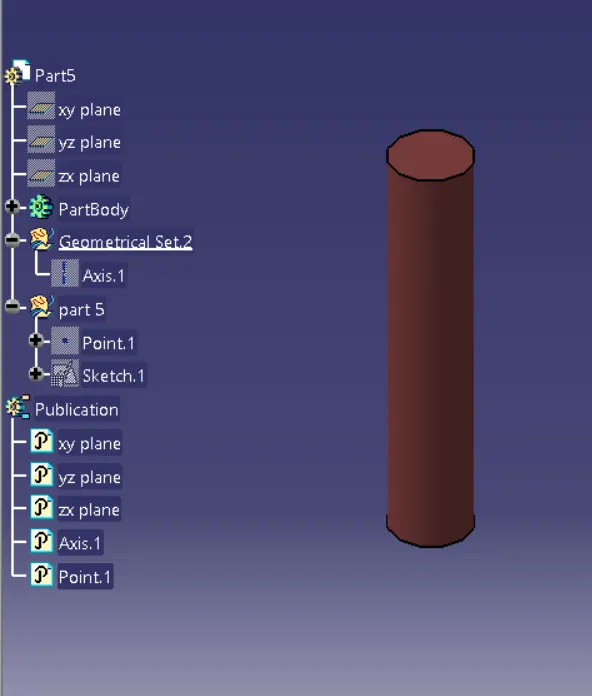

Initailly each body create seperate file as per given dimension in drawing like below mention image.

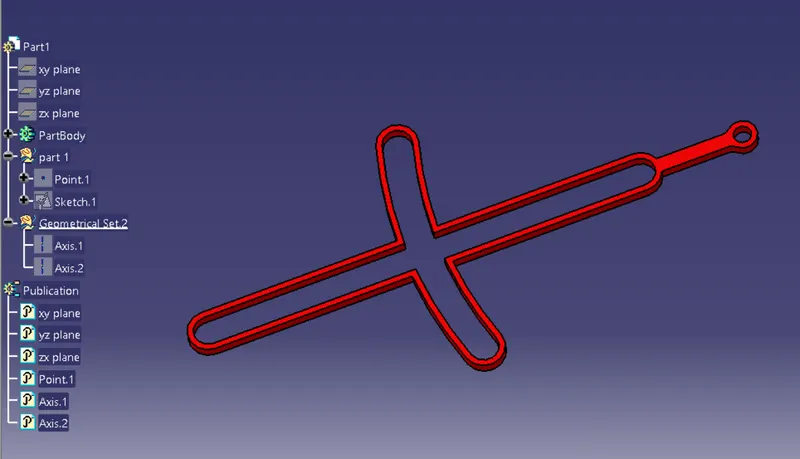

BODY-1

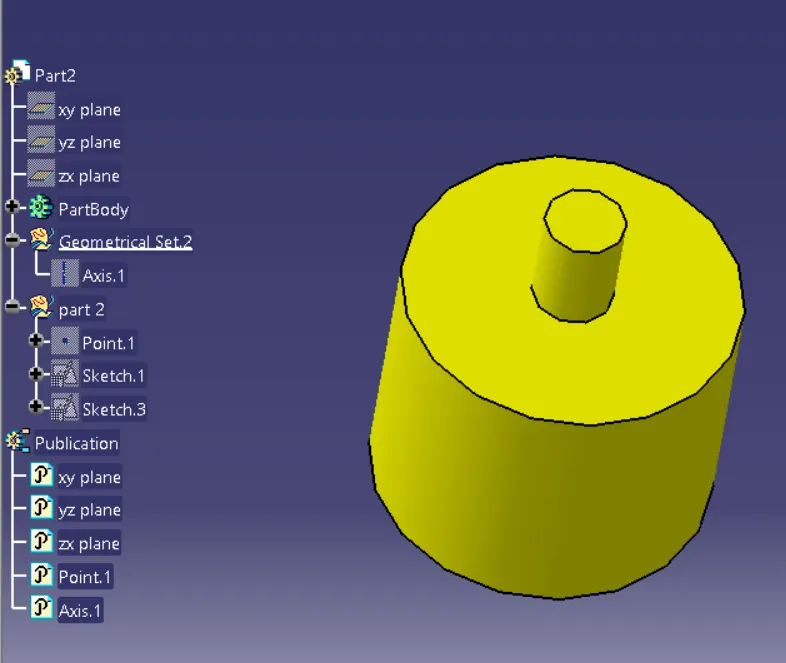

BODY-2

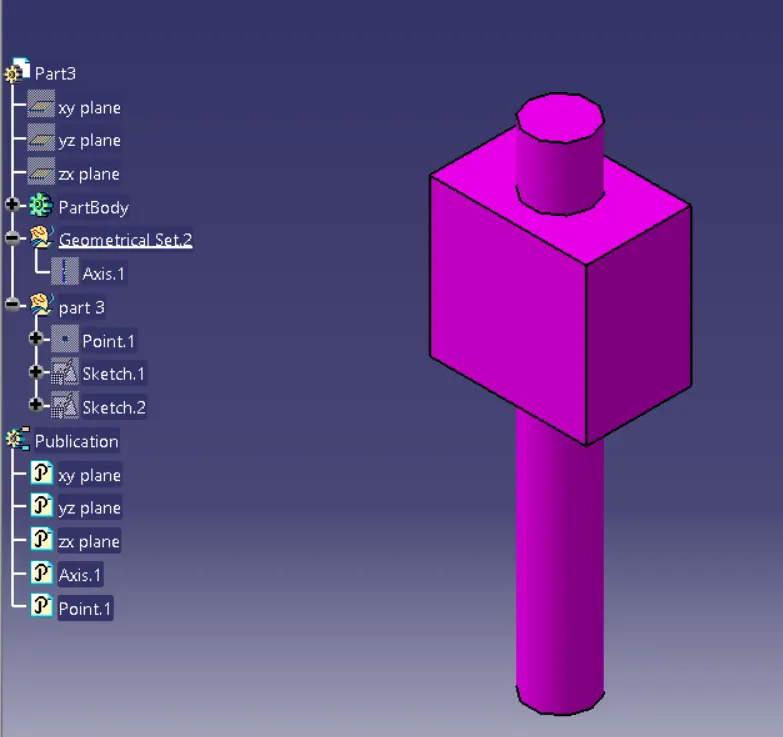

BODY-3

BODY-4

BODY-5

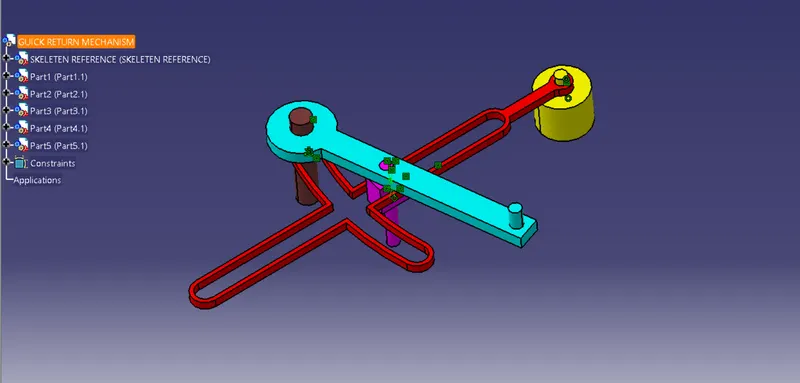

finally each body create to assembly with respective constraint

2. CV JOINT

Initailly each body create seperate file as per given dimension in drawing like below mention image.

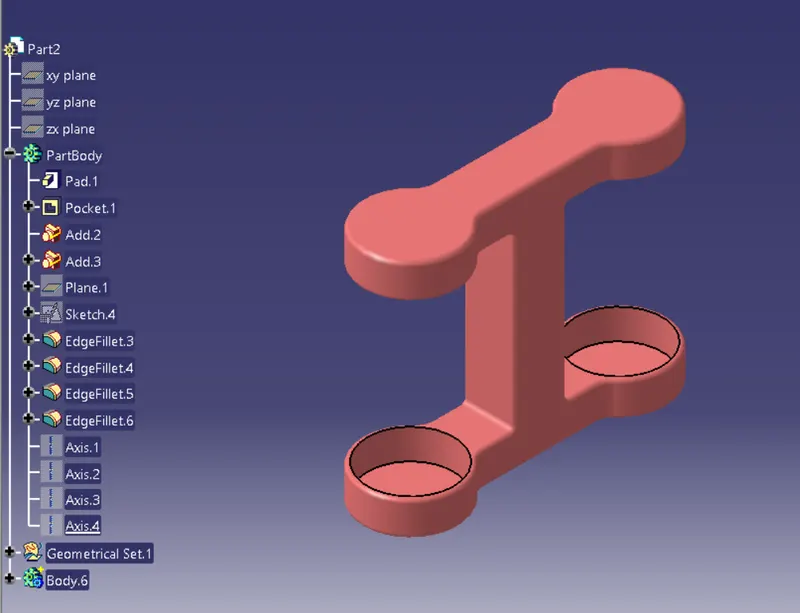

BODY-1

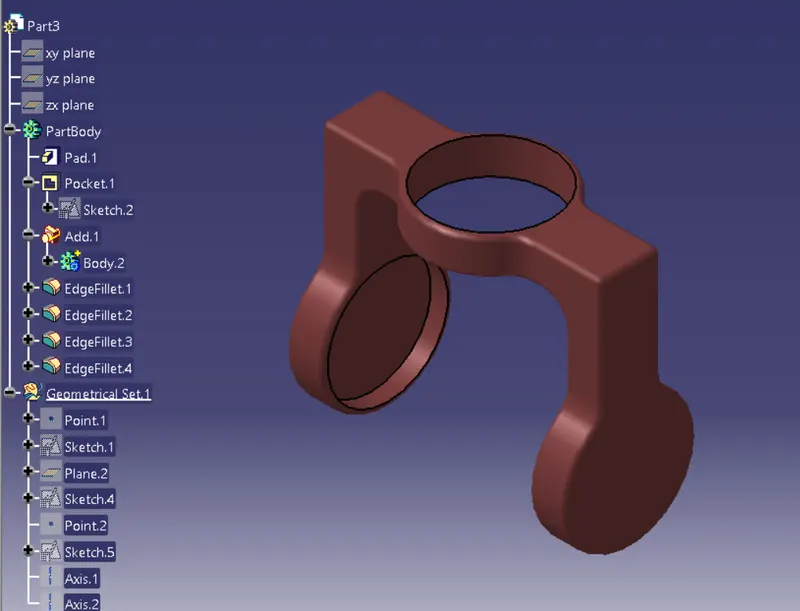

BODY-2

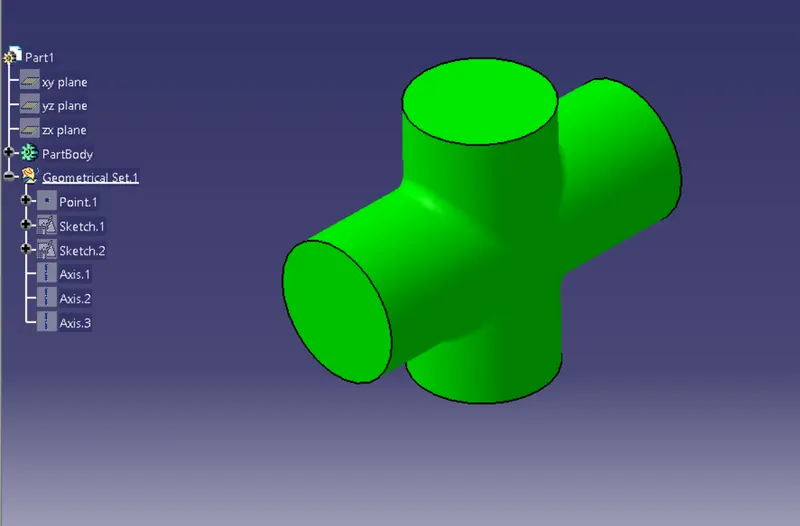

BODY3

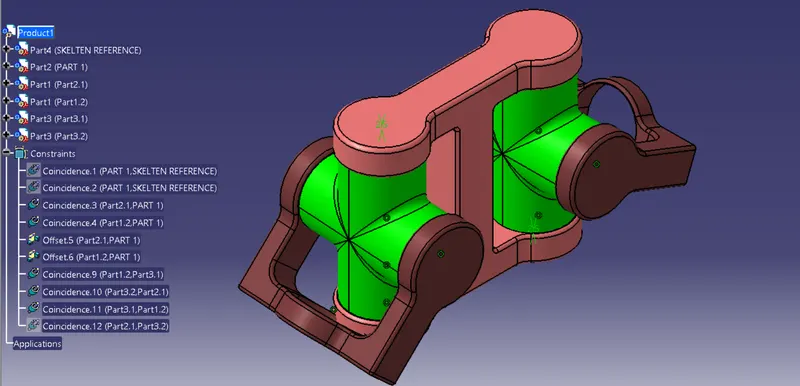

finally each body create to assembly with respective constraint.
