Week 7 Challenge - Assembly Workbench

Assemblying:

When the design of the product is complex or it contains many parts then we go for the assembly design

in wgch we desig sub parts in diffent files as pasrt design

then these are assemblied in the assembly product design

this makes the design simplier and the assembliy is aslso very simple

CV Joint:

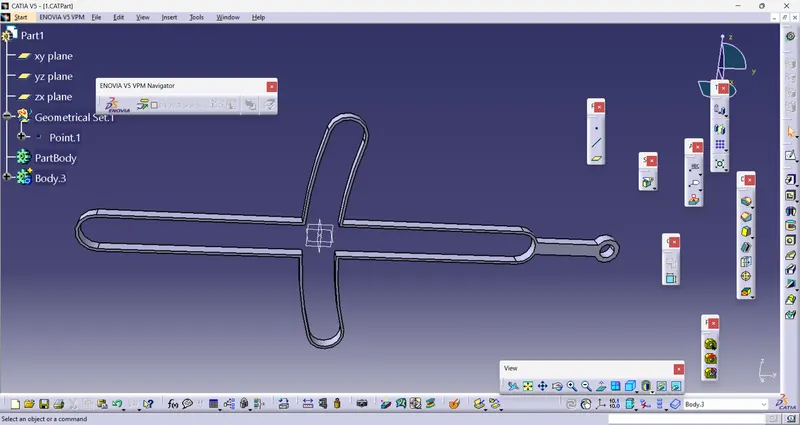

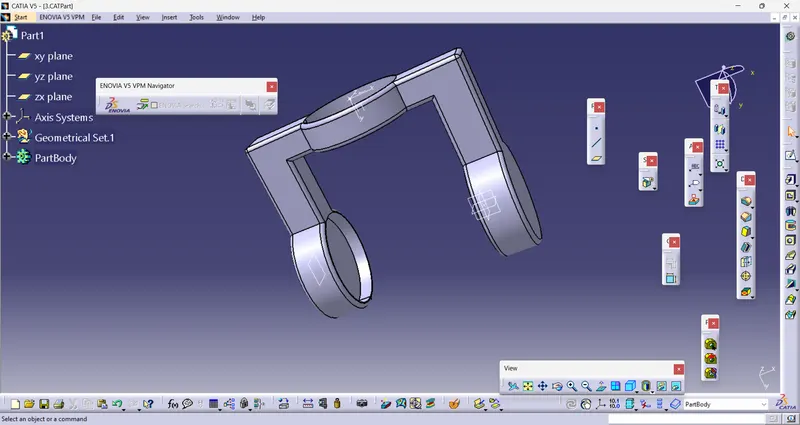

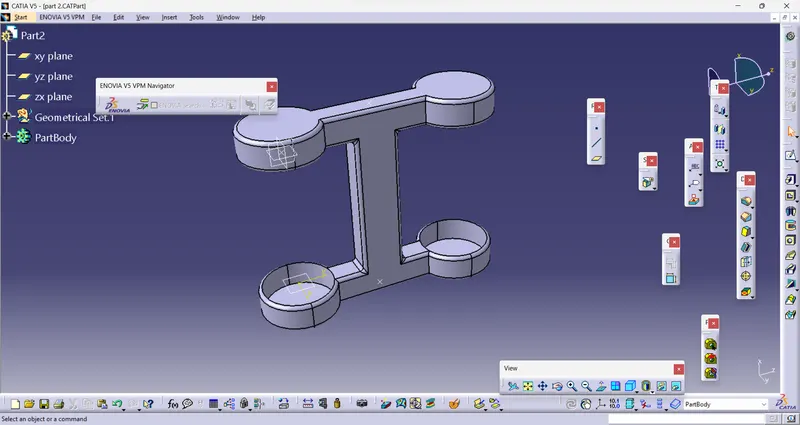

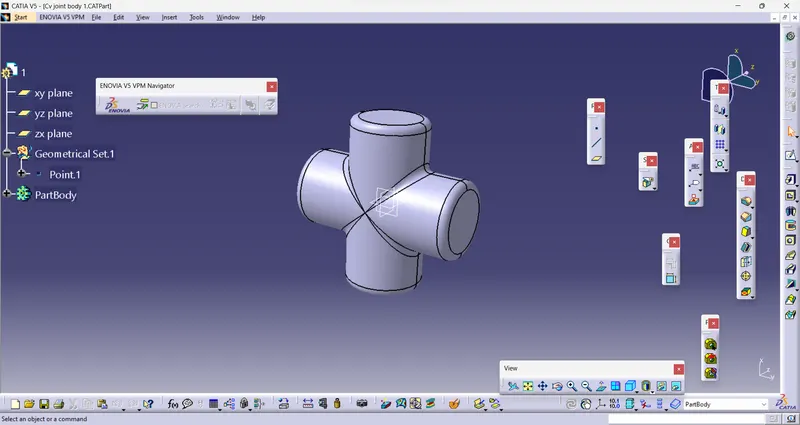

parts of the cv joint

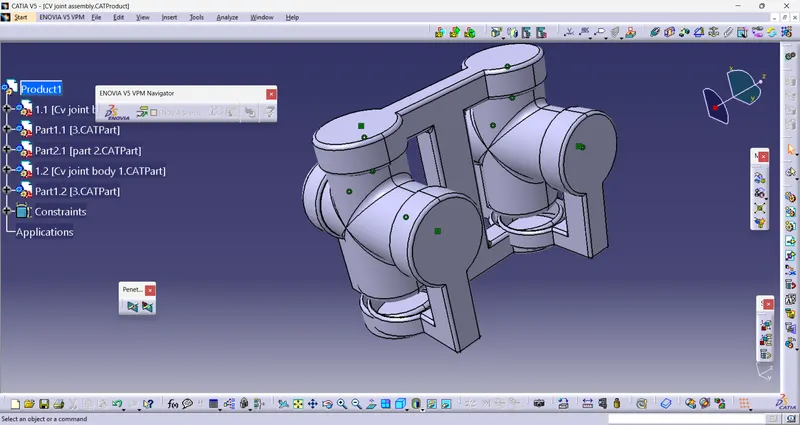

Assembly of the parts of the CV Joint:

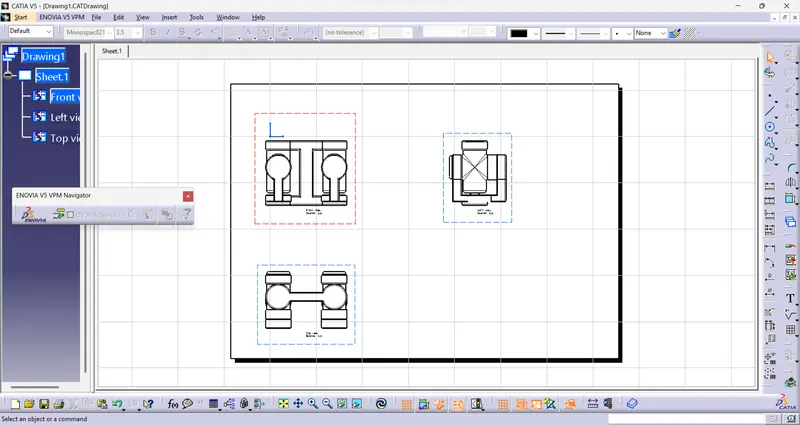

Convert of the 3D design into Views

Quick-Return Mechanism:

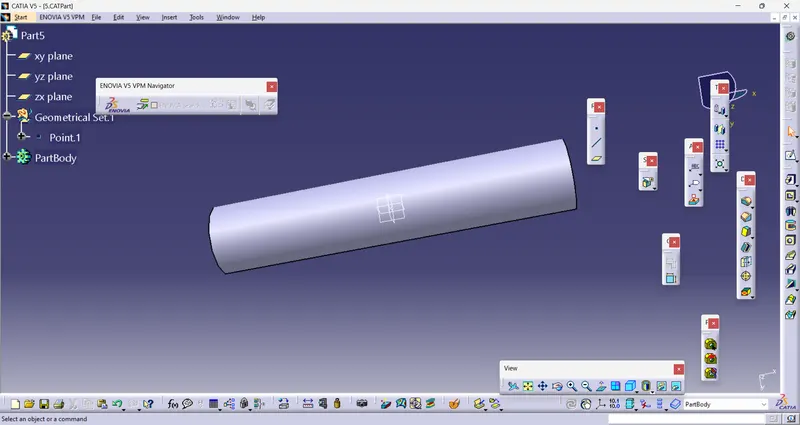

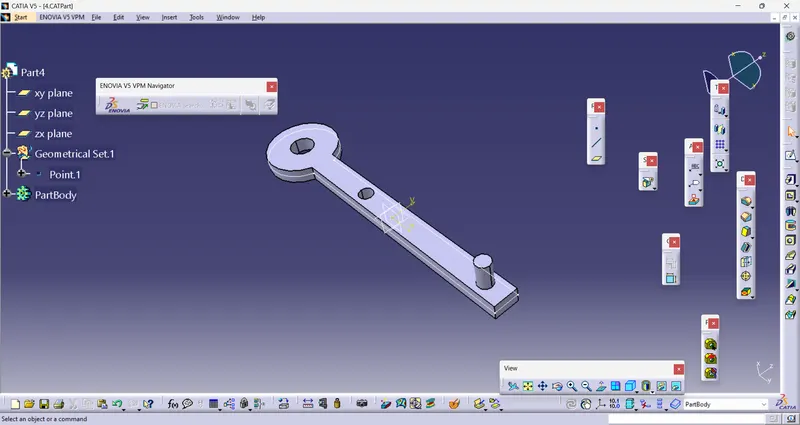

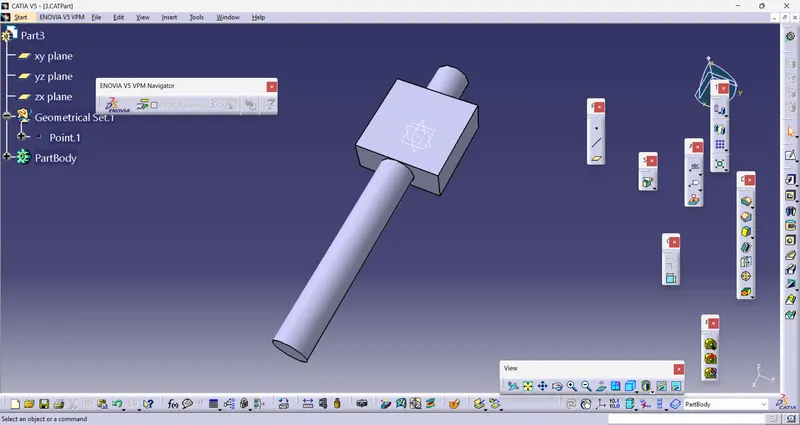

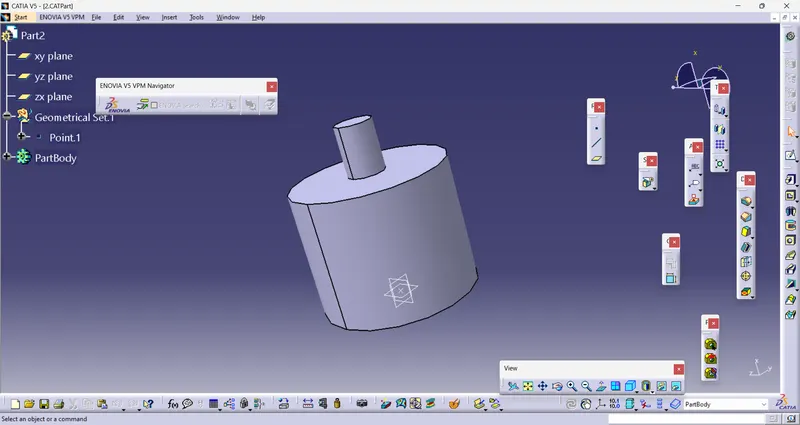

Parts of the quick-return mechanism

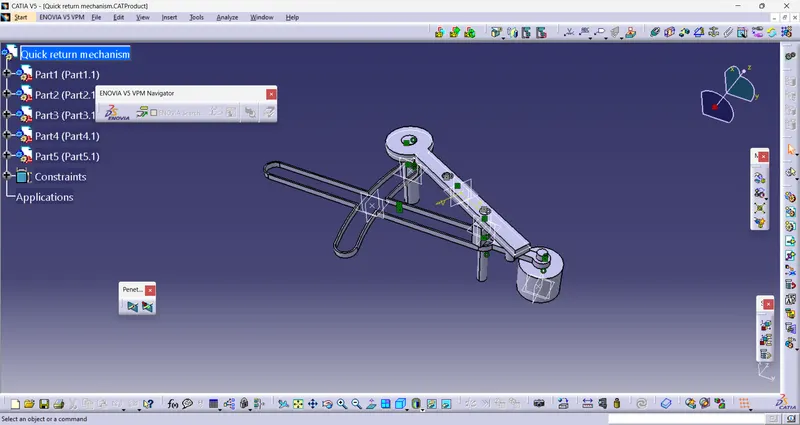

Assemble view of the parts:

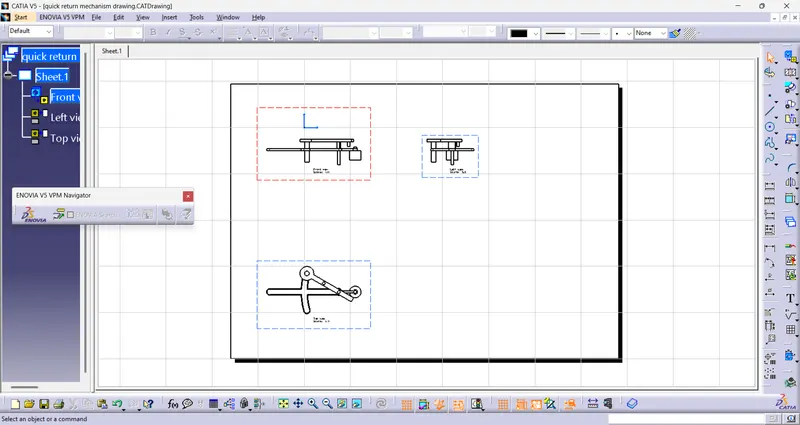

Convertion of the views of the assembled Quick-Return mechanism:
