Week 7 Challenge - Assembly Workbench

Aim: To create the assembly of the given file by the help of 2D drafting of indivisual part.

Assembly 1:

Given,

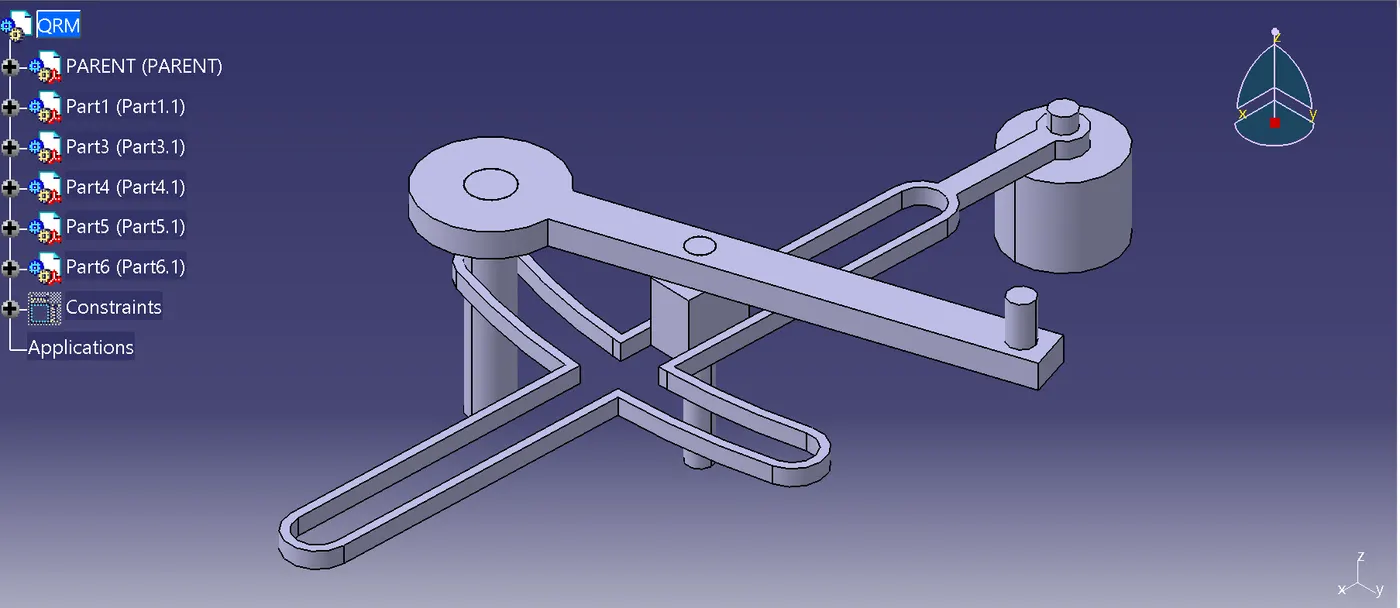

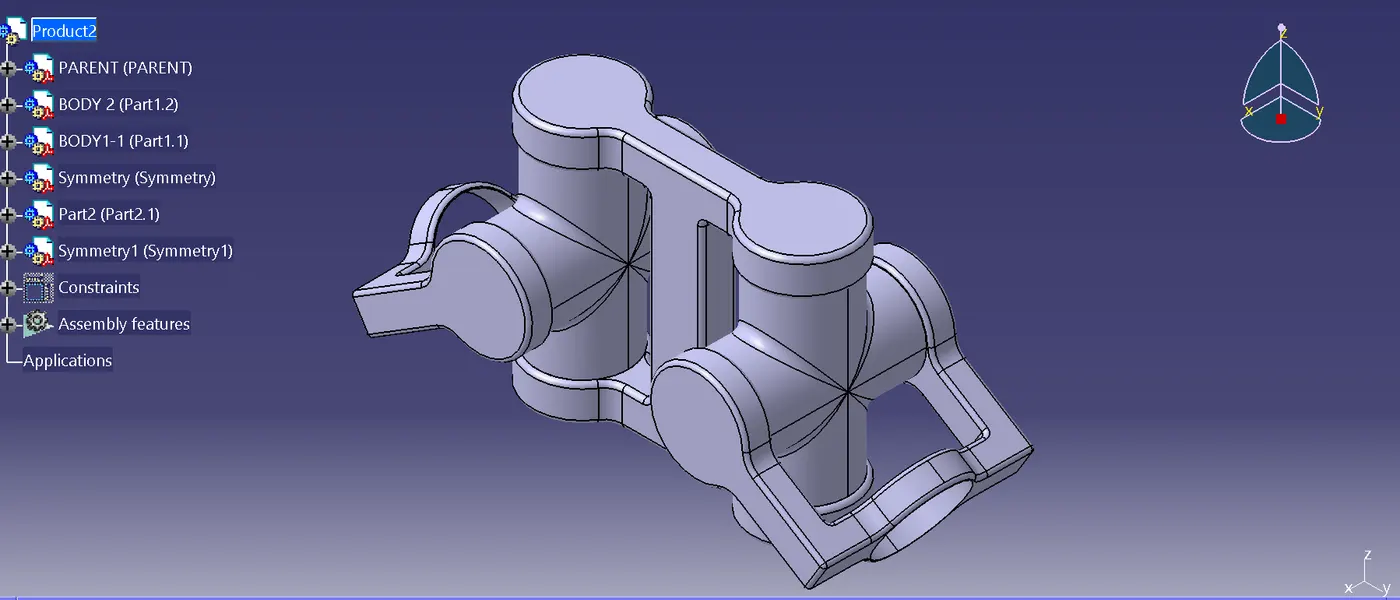

Assembly of the product,

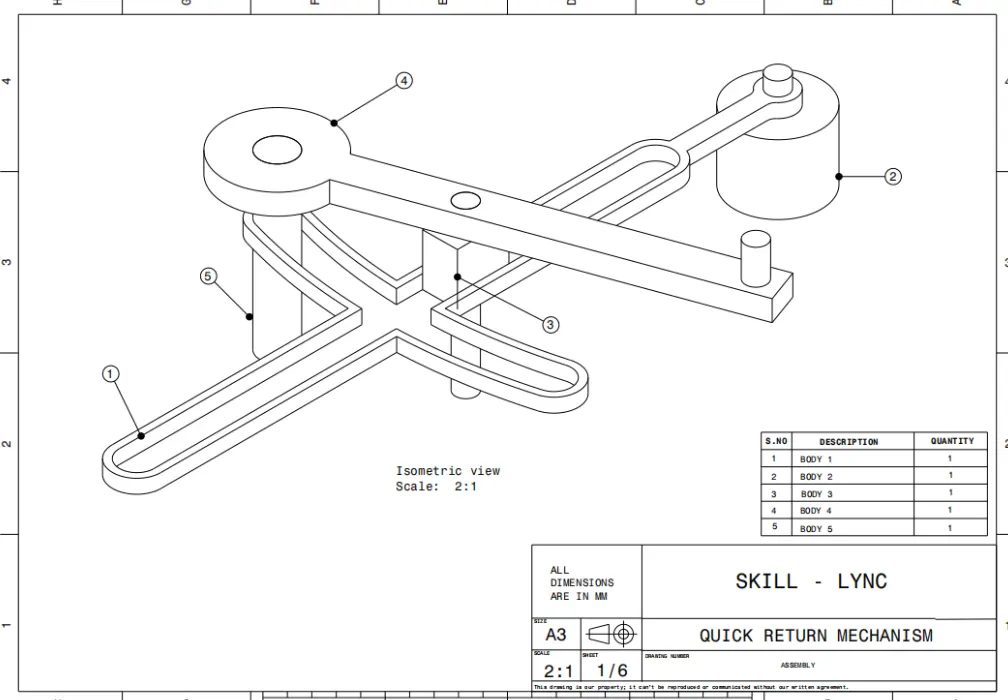

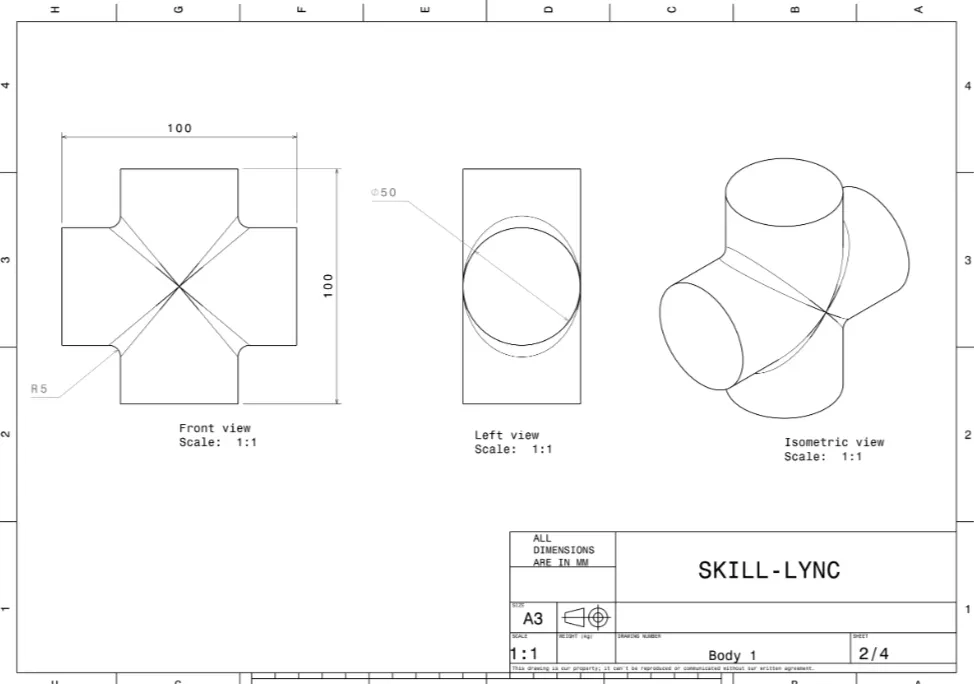

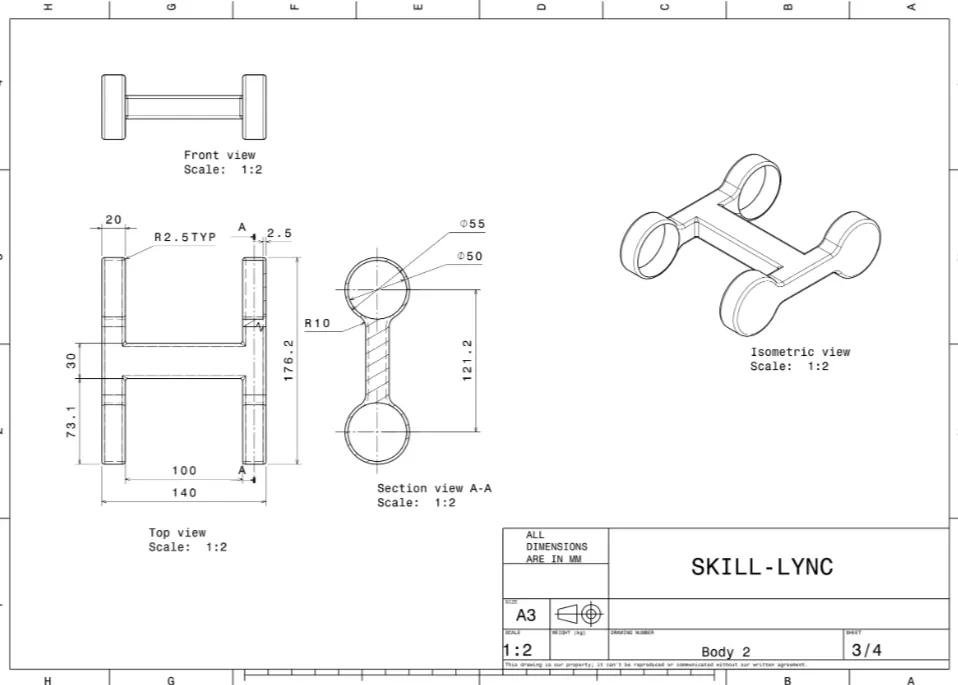

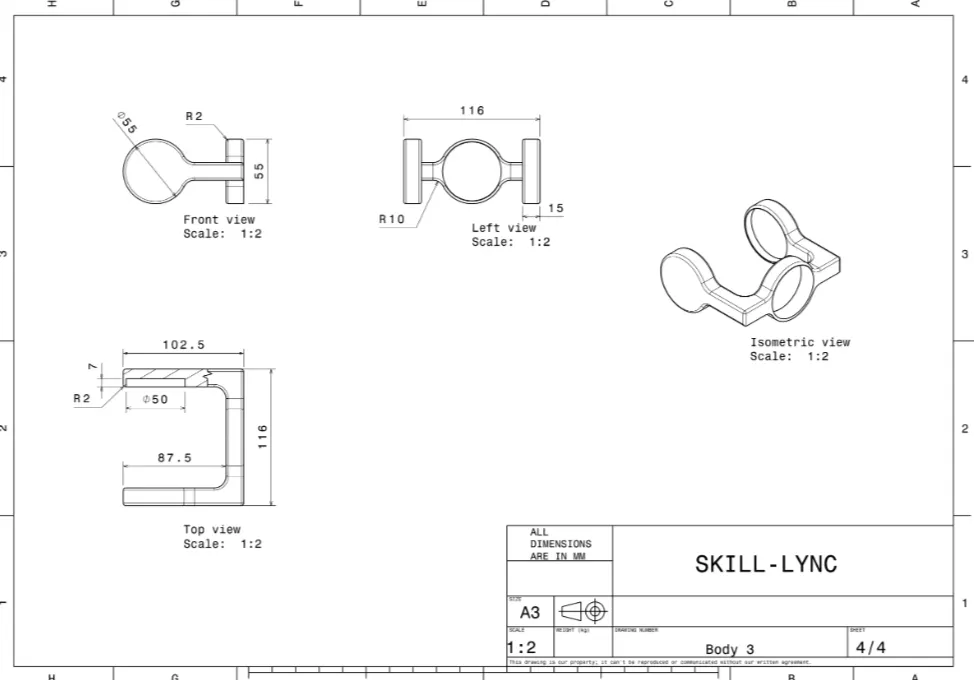

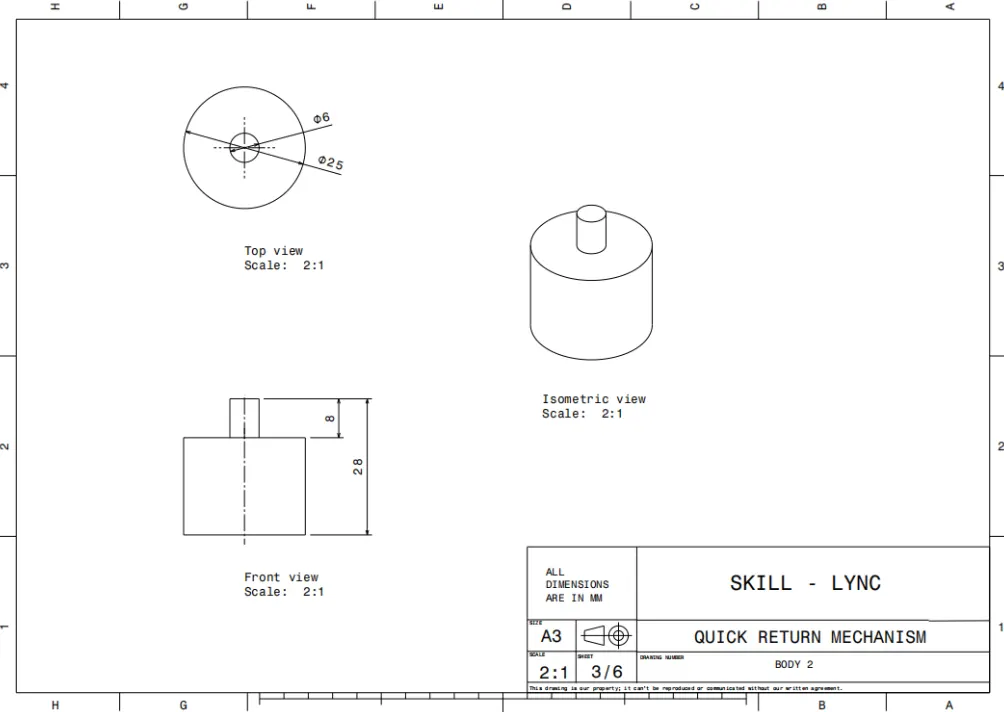

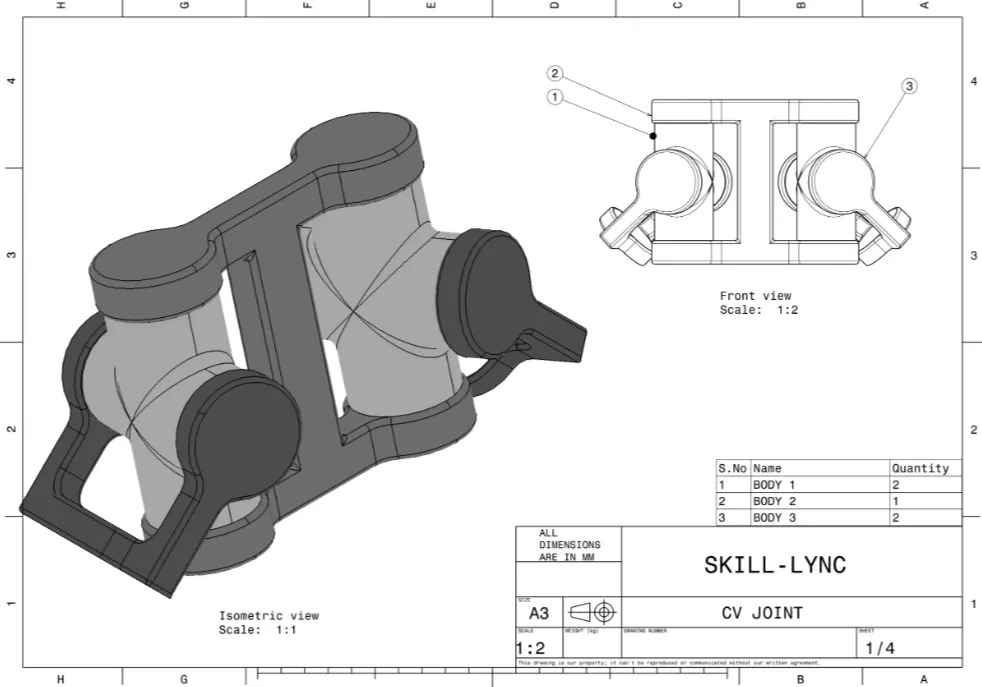

2D Drawing,

Assembly 2:

Given,

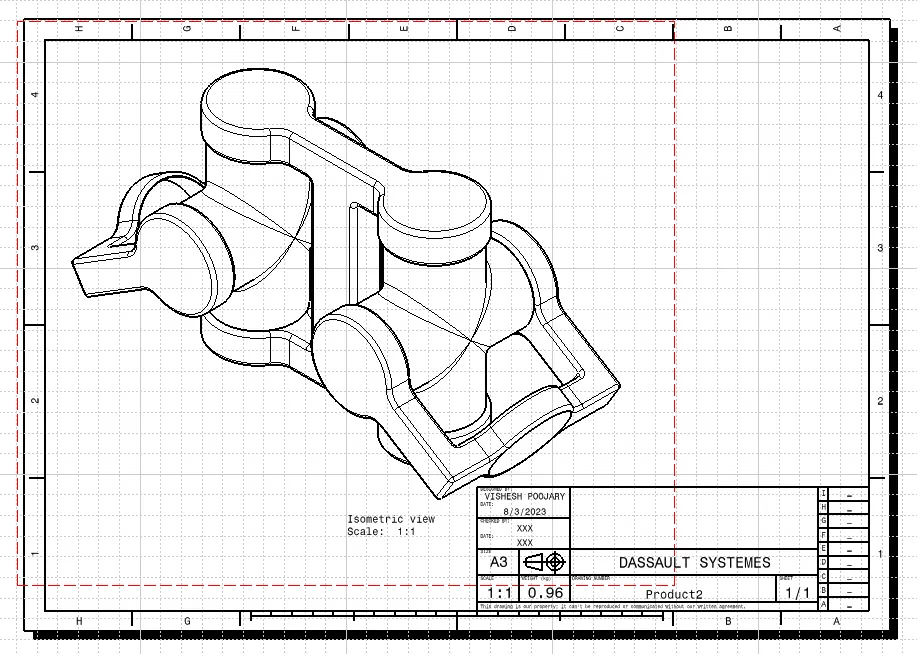

Assembly of the product:

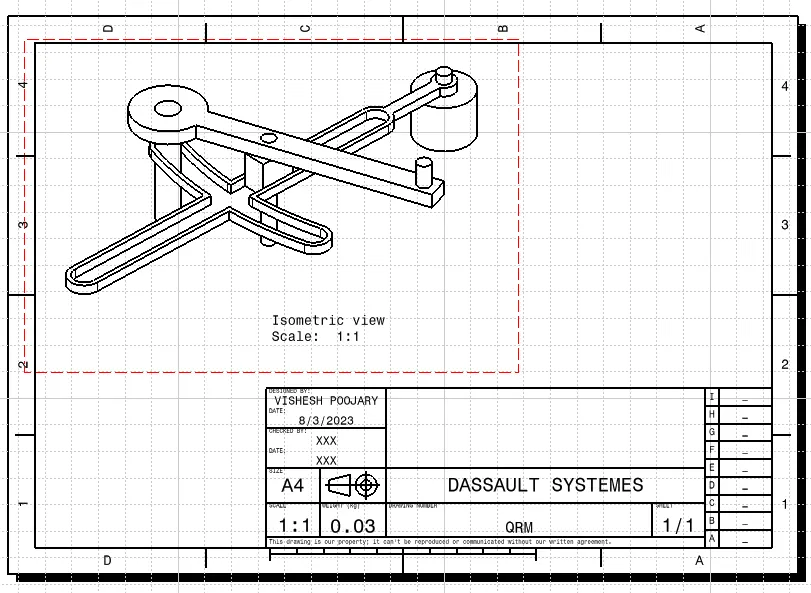

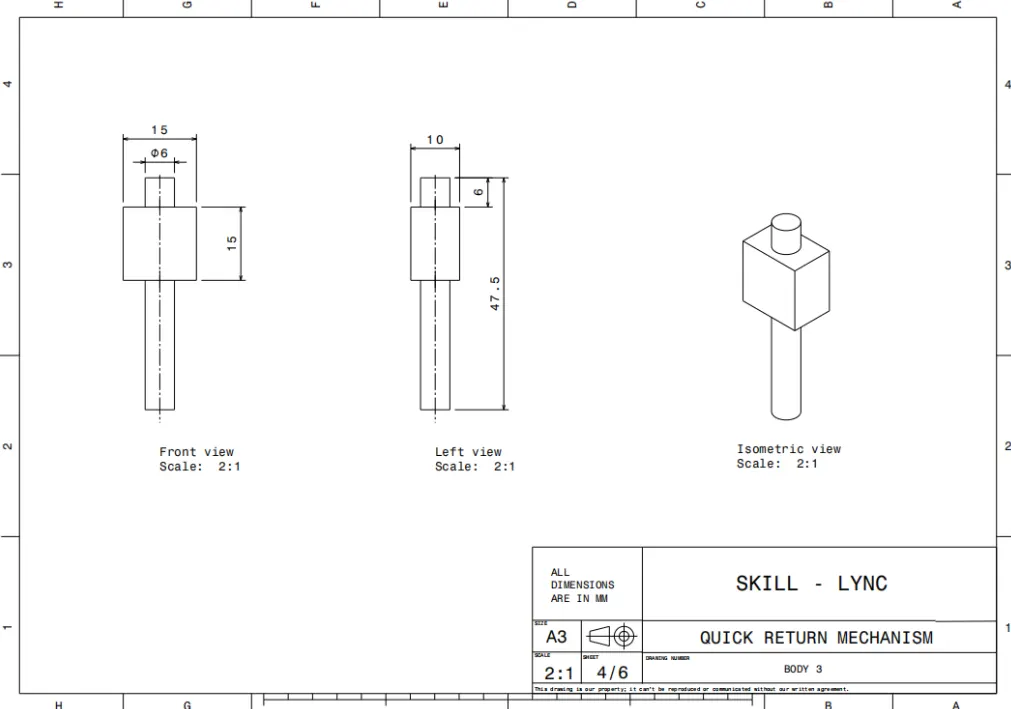

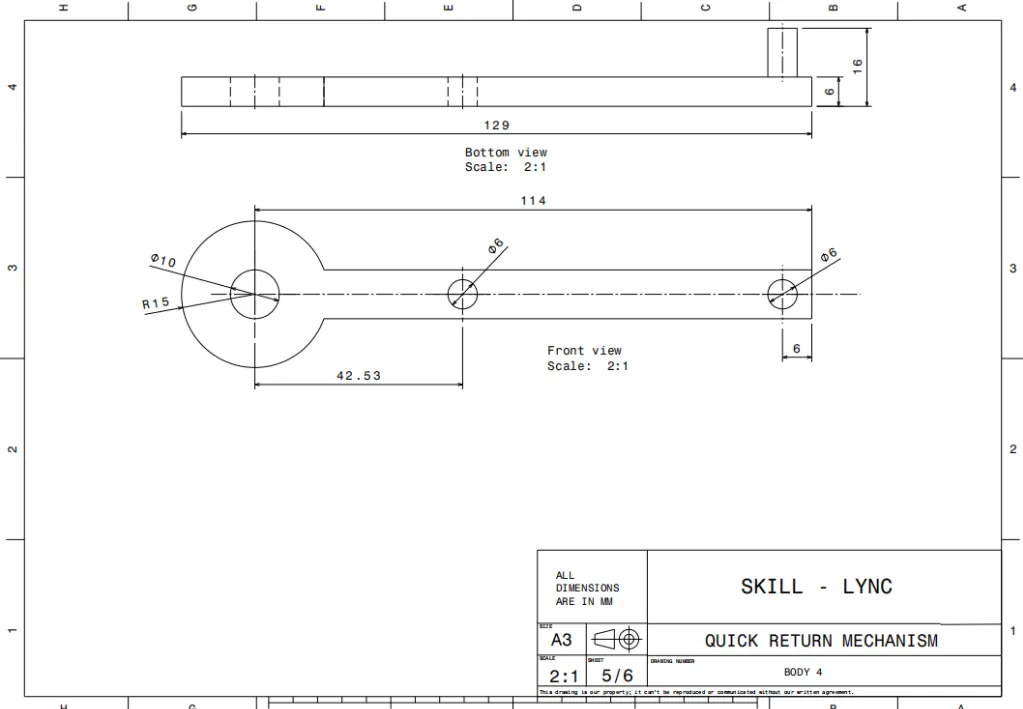

2D Drawing:

CONCLUSION: Hence the assembly of the 2 product is completed succesfully.
