Week 7 Challenge - Assembly Workbench

Aim: To assemble a quick return mechanism and CV joint parts.

Procedure:

1. I created the position sketches using the dimension given in the drawings on the sketcher workbench.
2. Then I created the part using the sketches I made on the part workbench with the help of boolean operation.
3. After creating all the parts I assemble all of them on Assembly workbench.
4. And then finally I created the drawings of the individual parts on the drafting workbench and framed and labeled them individually

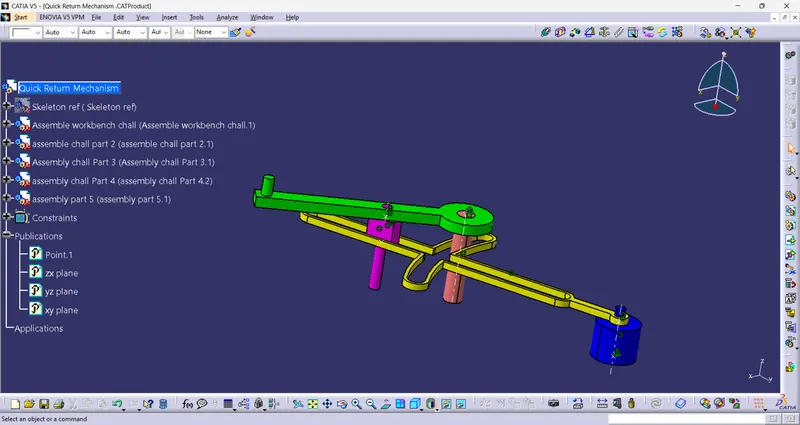

1. Quick Return Mechanism:-

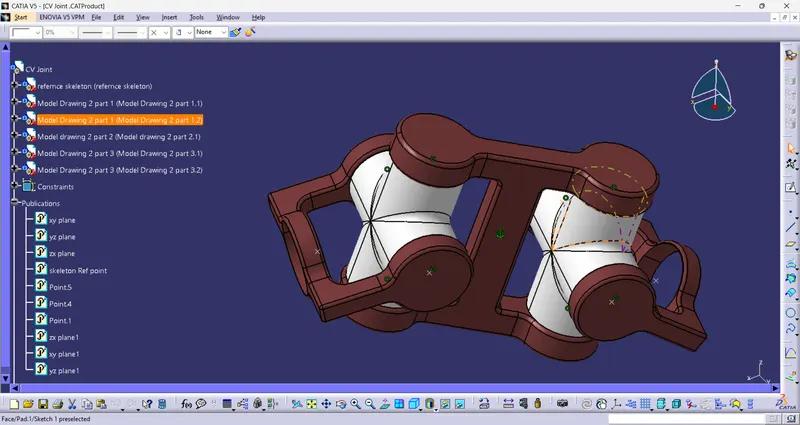

2. CV joint :-
