Week 7 Challenge - Assembly Workbench

process:

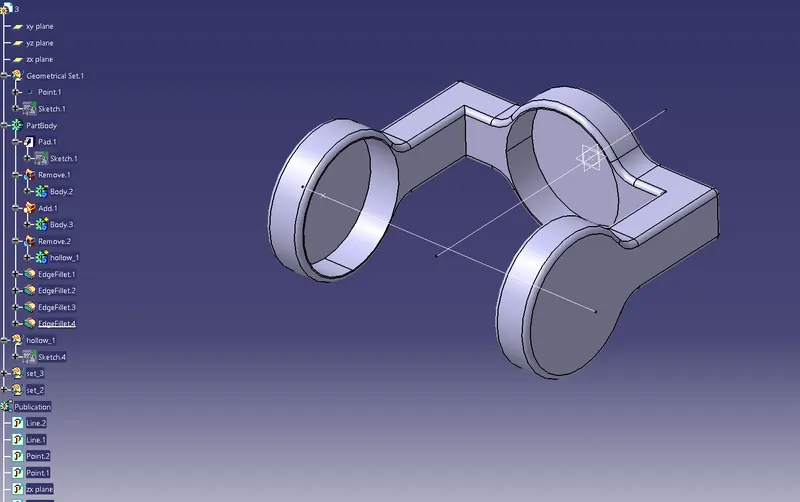

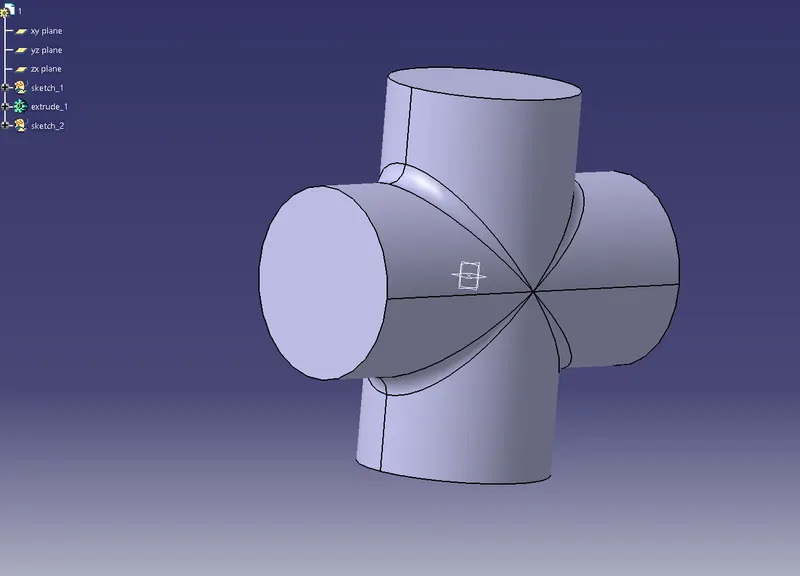

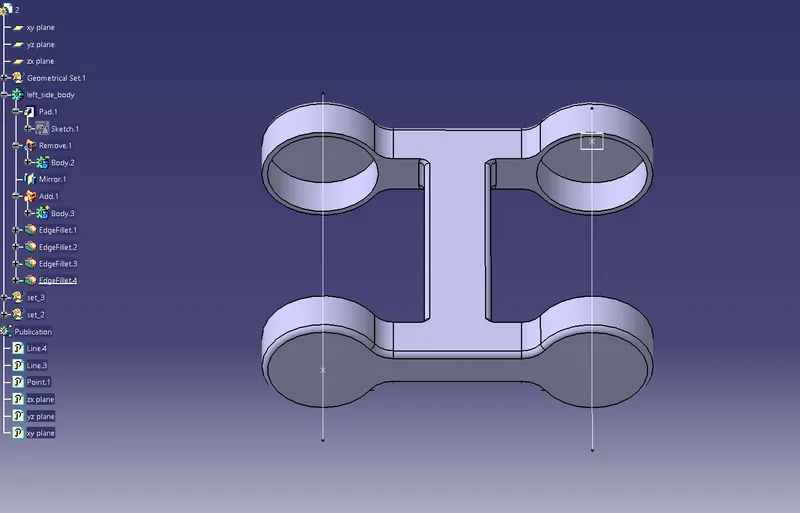

1. the parts were created in seperate CATPart files.

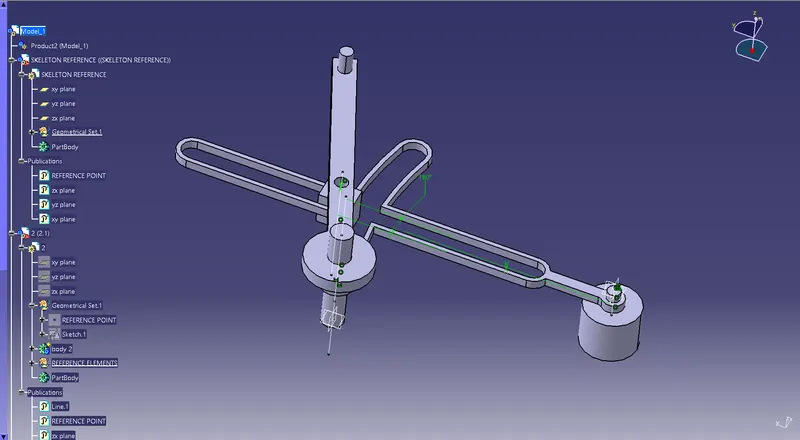

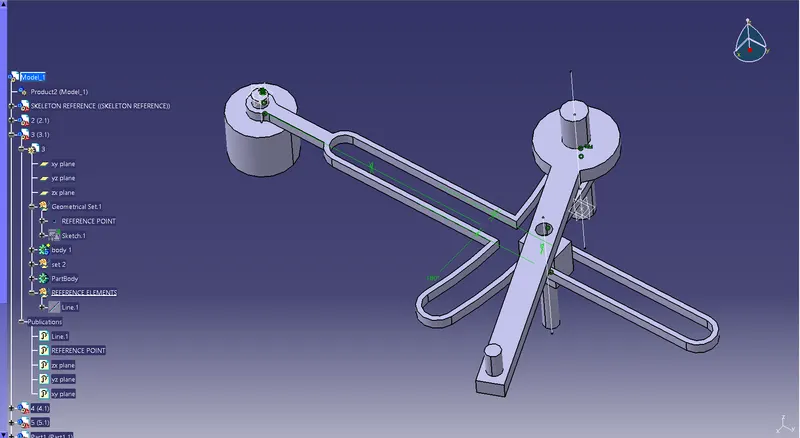

2. In the CATProduct file, all these files were copy pasted.

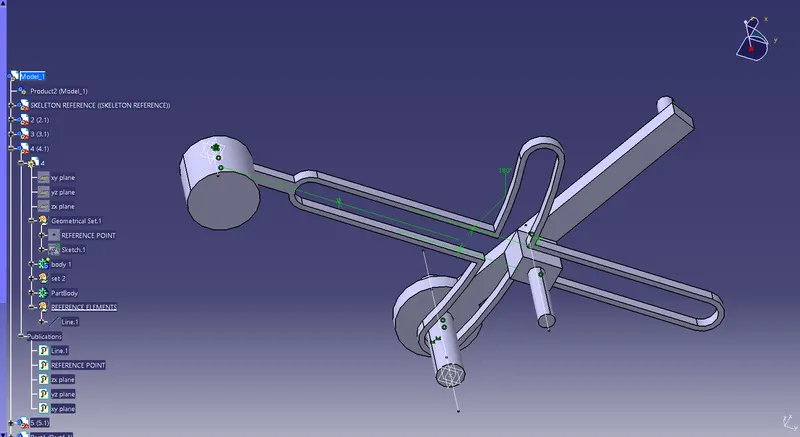

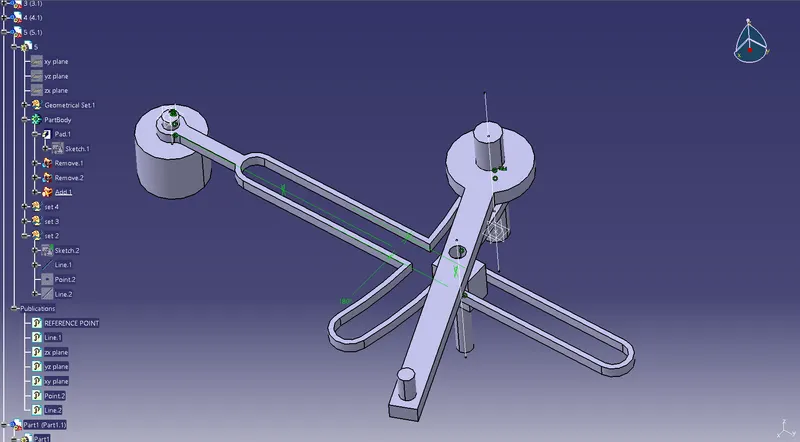

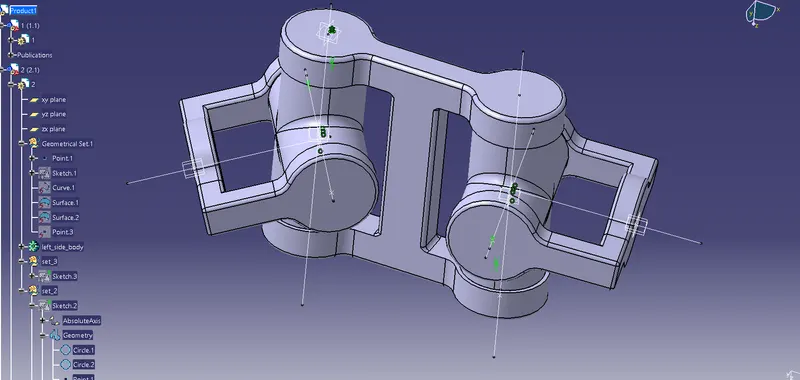

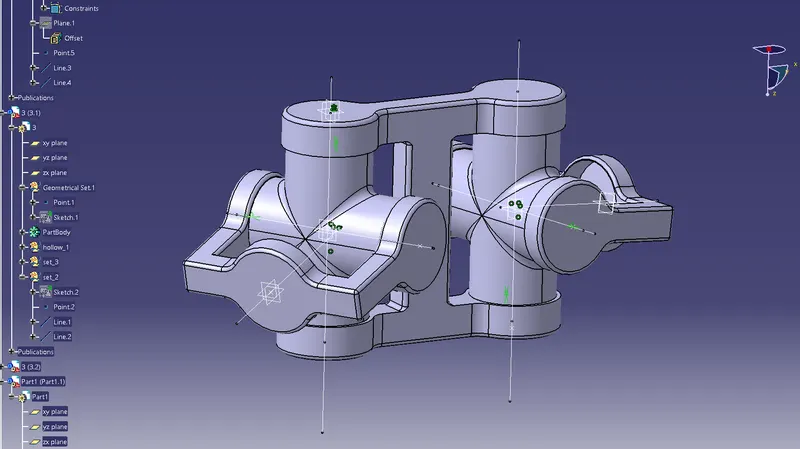

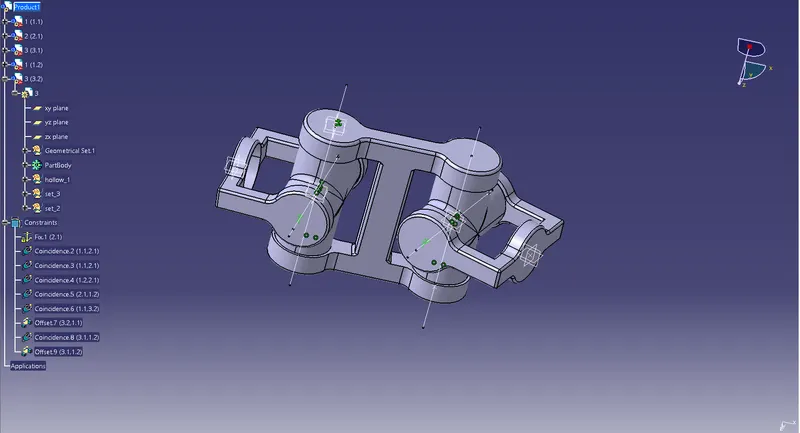

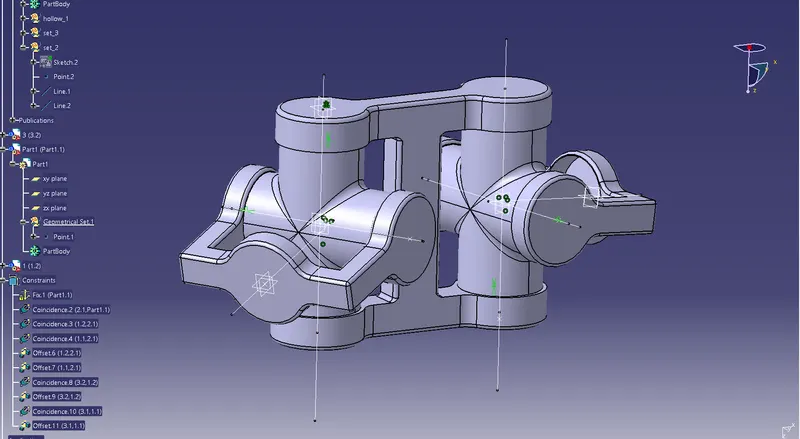

3. New assembly origin point was setup.

4. all these imported fiels were placed according to this fixed origin point.

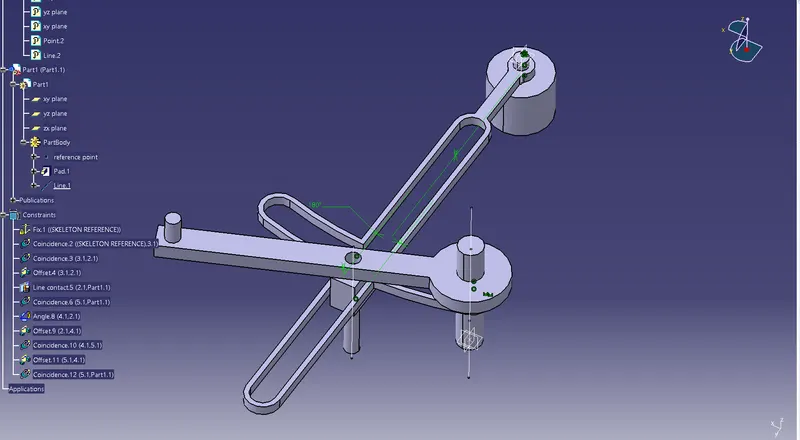

5. many constrains were used to place the part files.

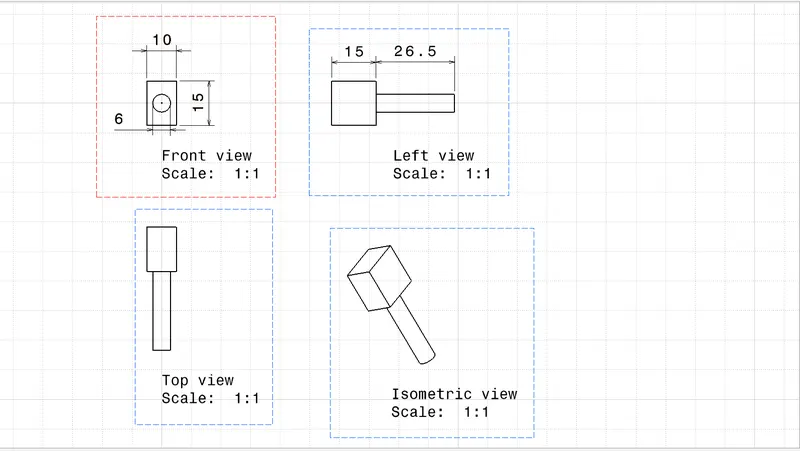

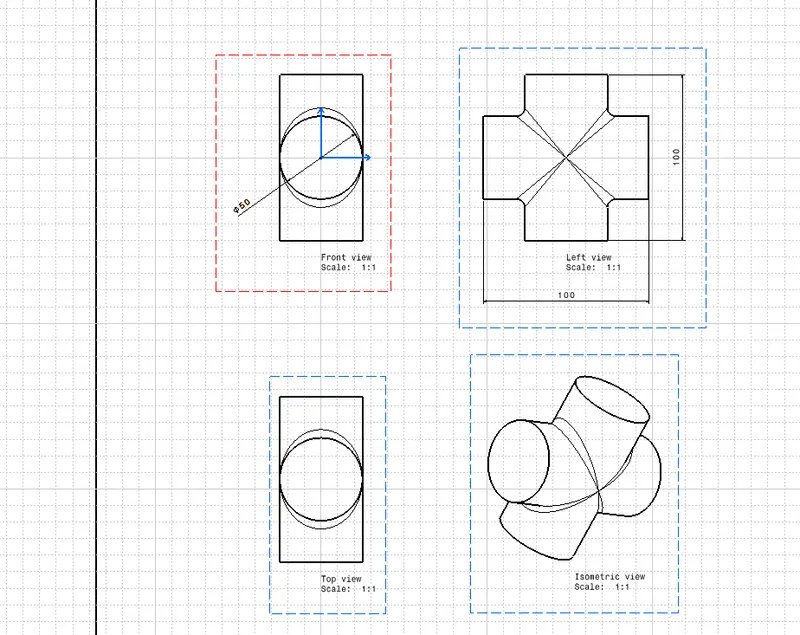

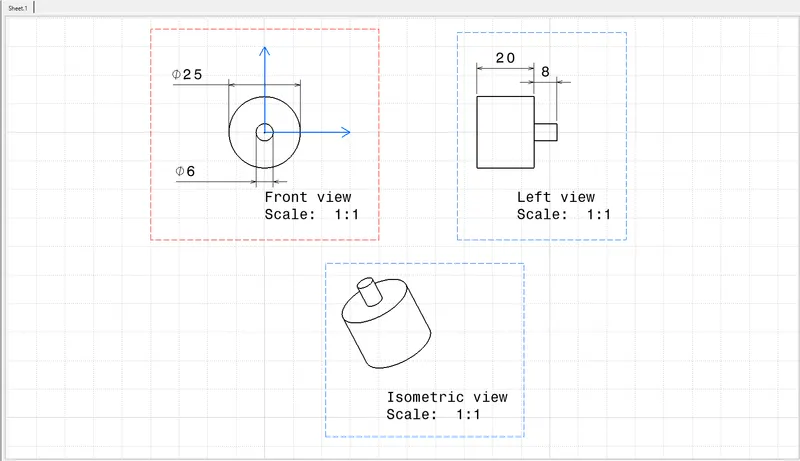

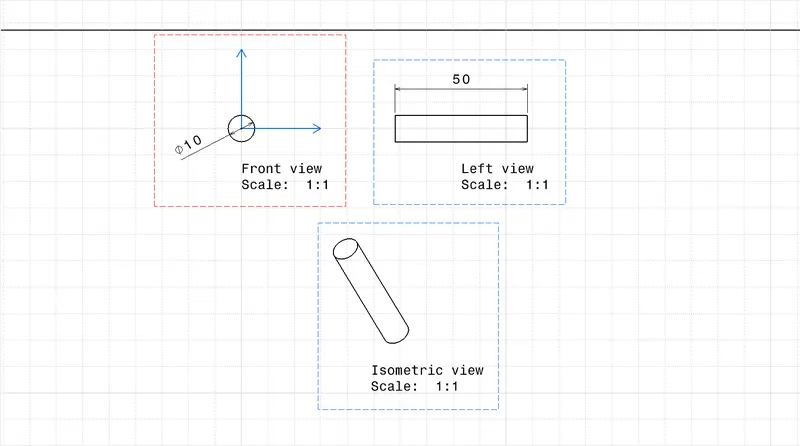

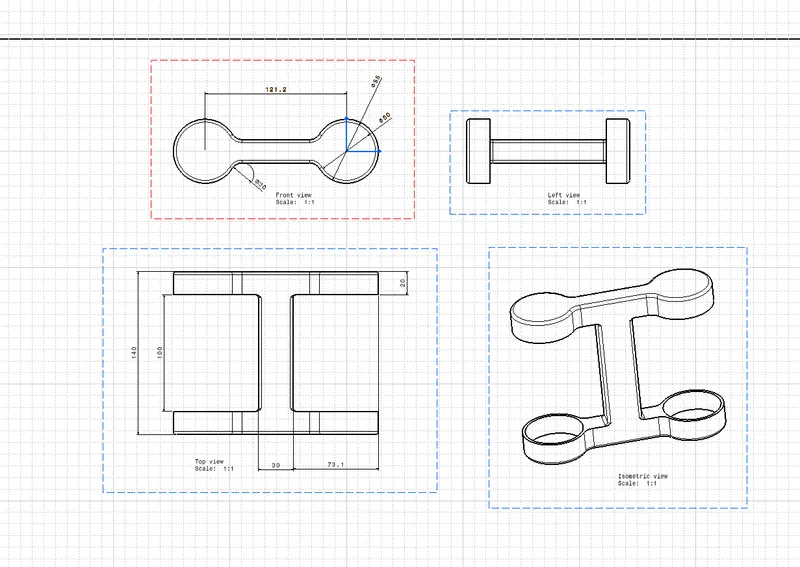

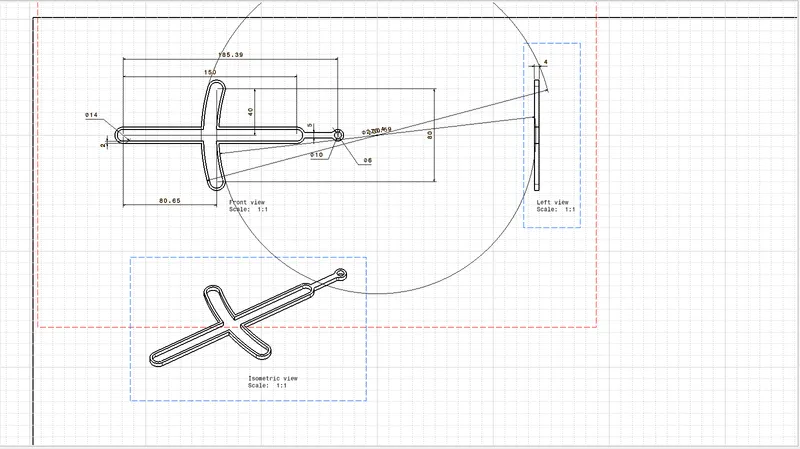

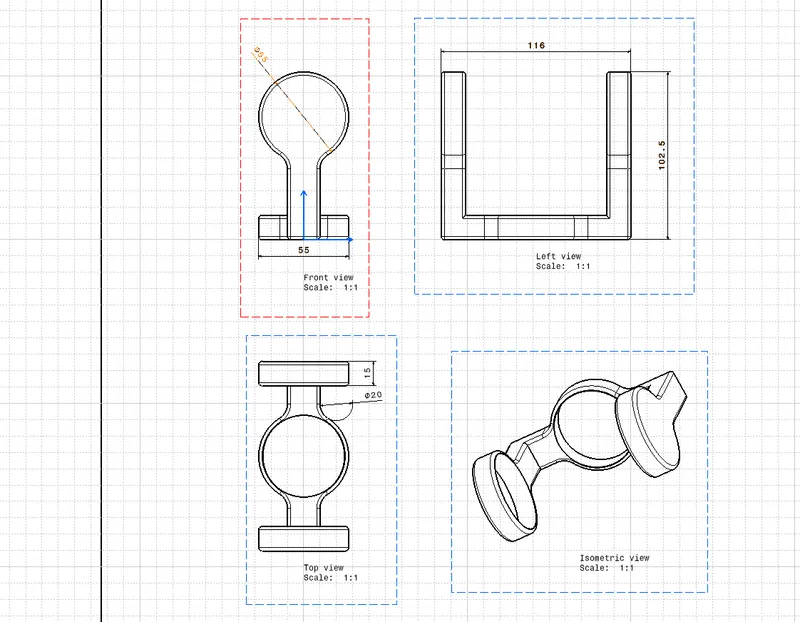

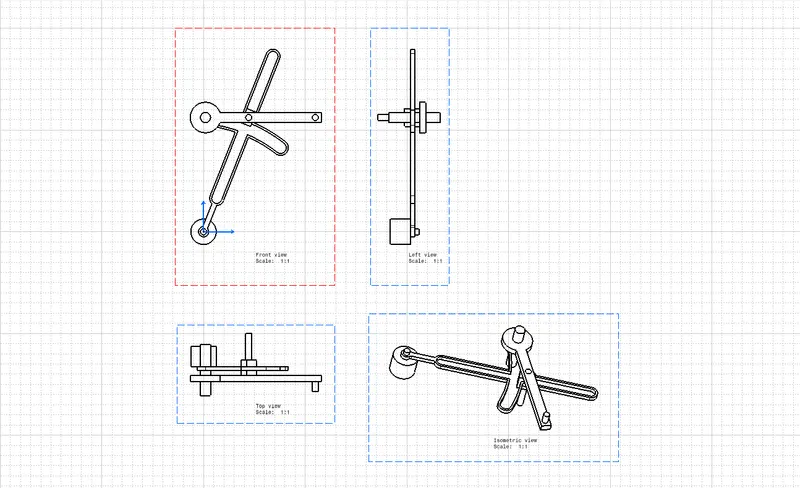

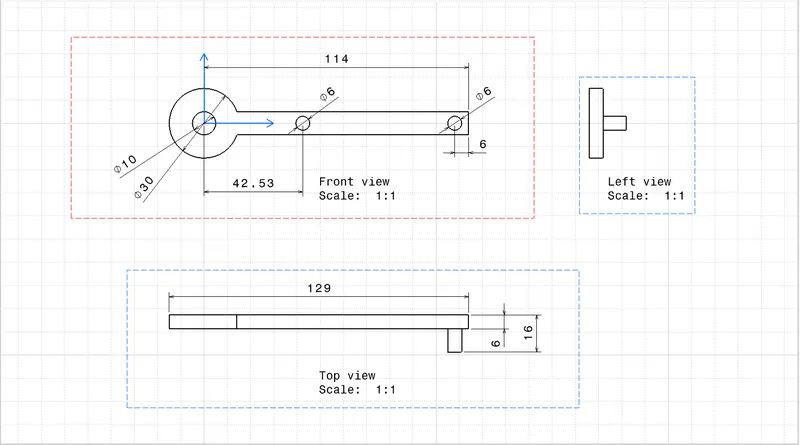

6. after the making of assembly, drawings were made for each part fiels and different views aere placed accordingly.
