Week 7 Challenge - Assembly Workbench

Report :

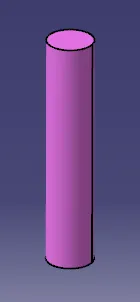

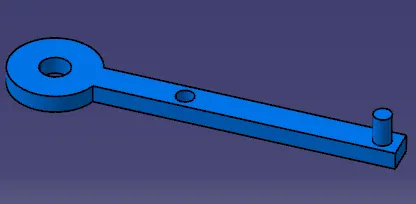

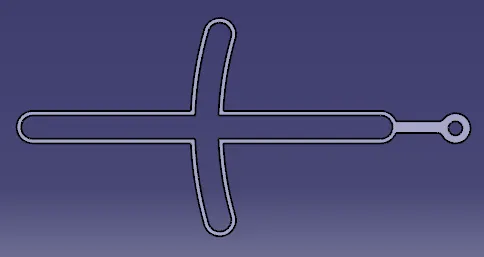

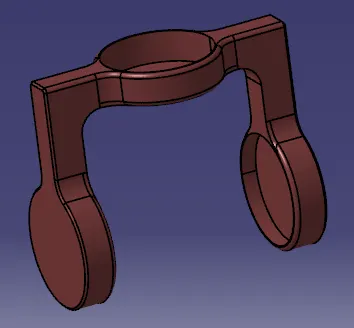

1) Each part is designed seperately.

2) All of them are copied into a Product file.

3) One part is fixed.

4) Constraints such as Offset, Contact, Coincidence are given as per requirement.

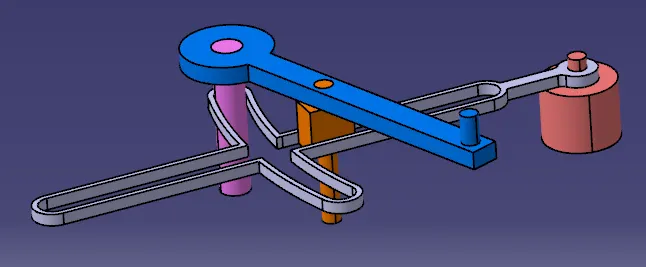

5) The final Product is obtained.

Report :

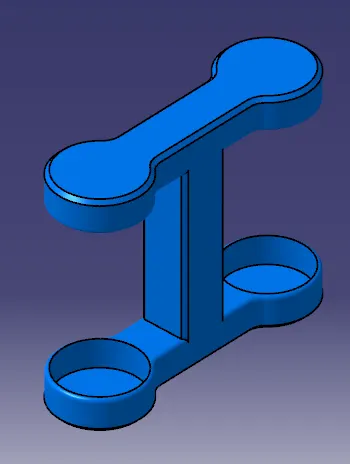

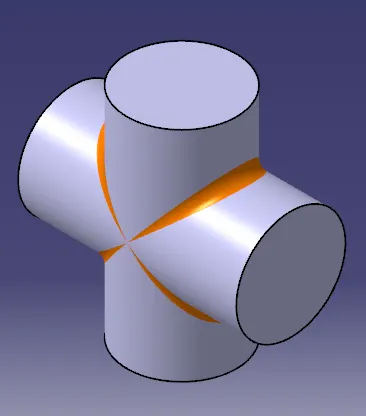

1) Each part is designed seperately.

2) All of them are copied into a Product file.

3) Two parts are copied twice because two of them are required to finish the product.

3) The basic Blue part is fixed.

4) Constraints such as Offset, Contact, Coincidence are given as per requirement.

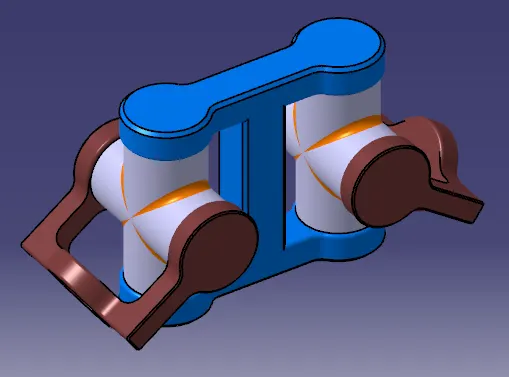

5) The final Product is obtained.
