ASSY WORKBENCH ASSIGNMENT

QUICK RETURN MECHANISM ASSEMBLY:

A quick return mechanism is an apparatus to produce a reciprocating motion in which the time taken for travel in return stroke is less than in the forward stroke. It is driven by a circular motion source (typically a motor of some sort) and uses a system of links with three turning pairs and a sliding pair.

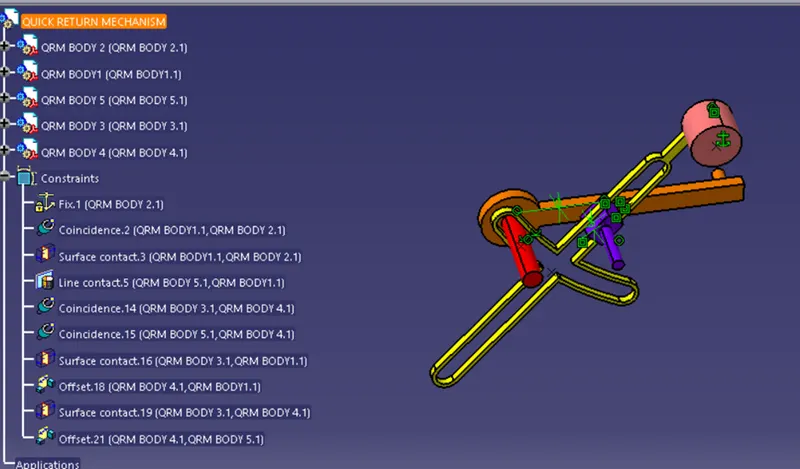

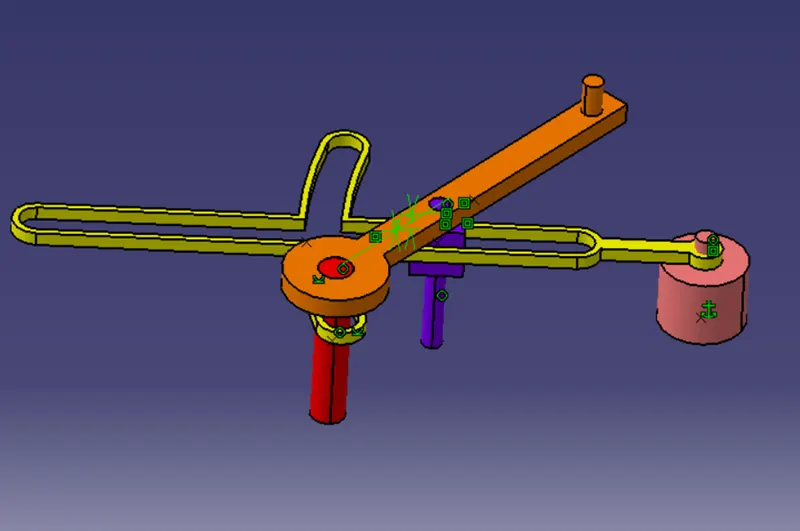

3D MODEL:

3D MODEL WAS CREATED USING THE BOOLEAN COMMANDS AND REQUIRED CONSTRAINTS ARE GIVEN TO CREATE THE ASSEMBLY.

CONSTRAINTS USED:

TREE STRUCTURE:

2D DRAWINGS:

CV JOINT ASSEMBLY:

Constant velocity joints, commonly known as CV joints, are located at each end of the drive shaft. They connect the wheels to the axles as well as to the transmission. CV joints shift torque at a controlled speed to the wheels. They are also responsible for the up and down motions of the suspension system.

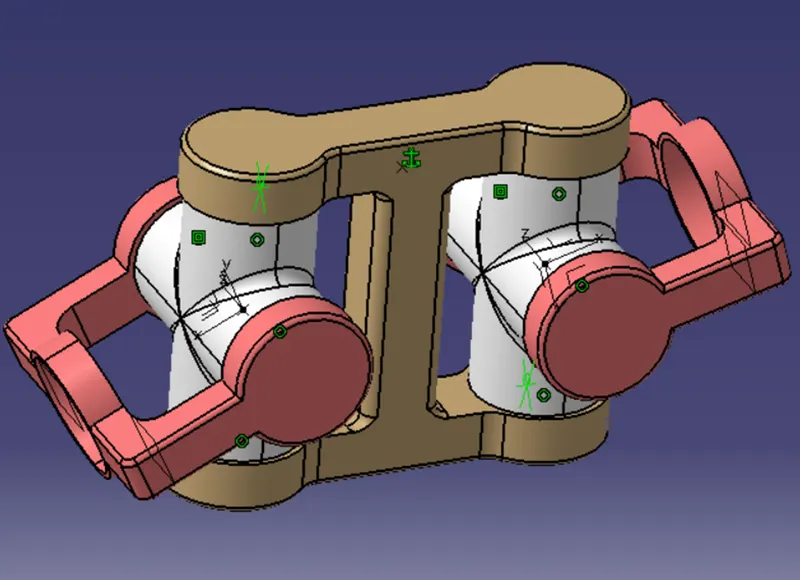

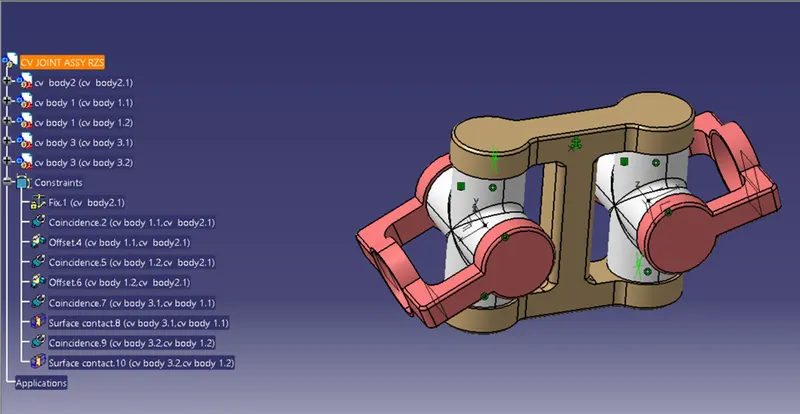

3D MODEL:

3D MODEL WAS CREATED USING THE BOOLEAN COMMANDS AND REQUIRED CONSTRAINTS ARE GIVEN TO CREATE THE ASSEMBLY.

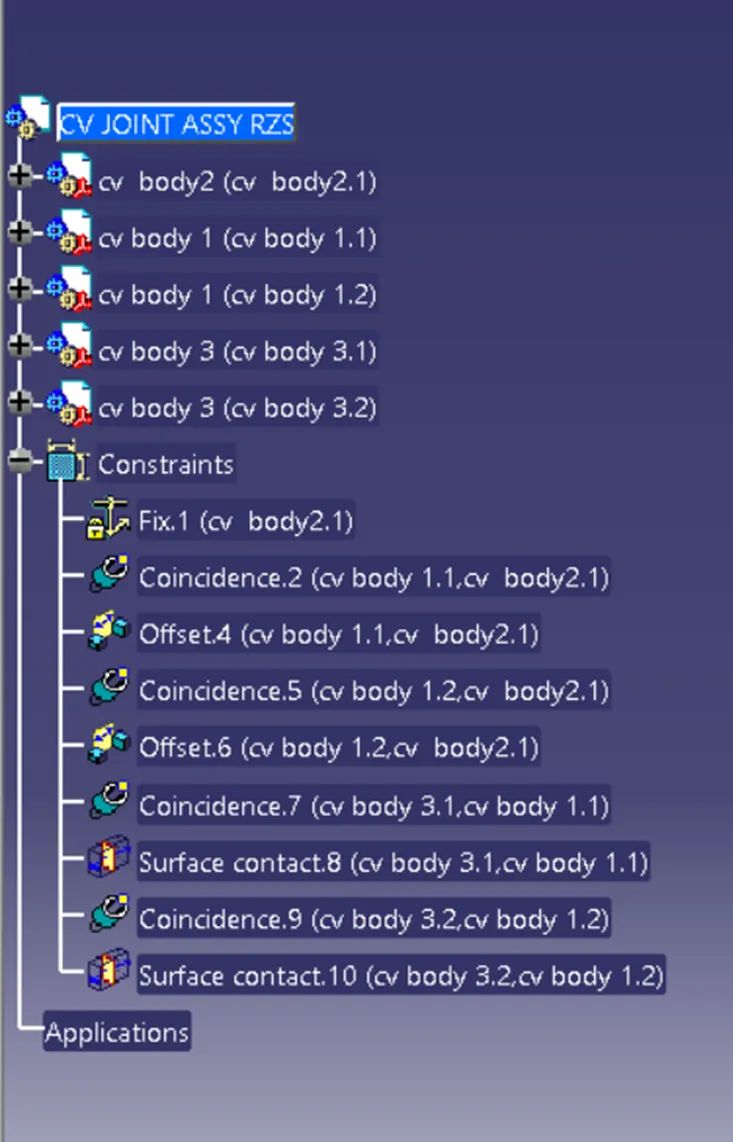

TREE STRUCTURE:

CONSTRAINTS USED:

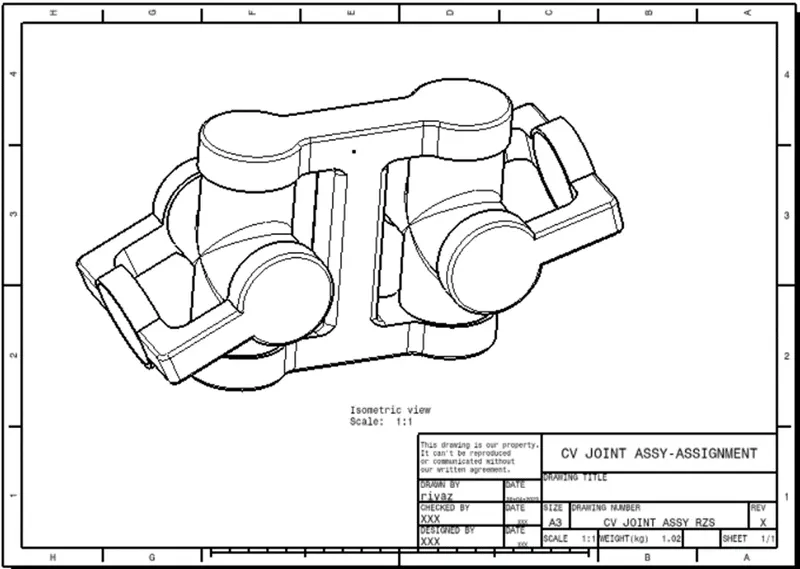

2D DRAWING:

ASSEMBLY PART,DRAWINGS AND PDF ARE ATTACHED.

THANK YOU.
