Week 7 Challenge - Assembly Workbench

Procedure:

• Draw the given @models using CATIA V5.
• create the 5 sketches for the 1st drawing.
• Then create another #sketches for the drawing2.
• after draw the sketches create an product file.
• then add all the sketches into given product using Existing component to import it.
• after adding the sketches create 1ref assembly point to start it and constraint all the sketches.
• for constraint the sketches create one axis line for all the sketches.
• then use the constraint tool bar to join all the points.
• this are the procedureto assemble the all sketches.

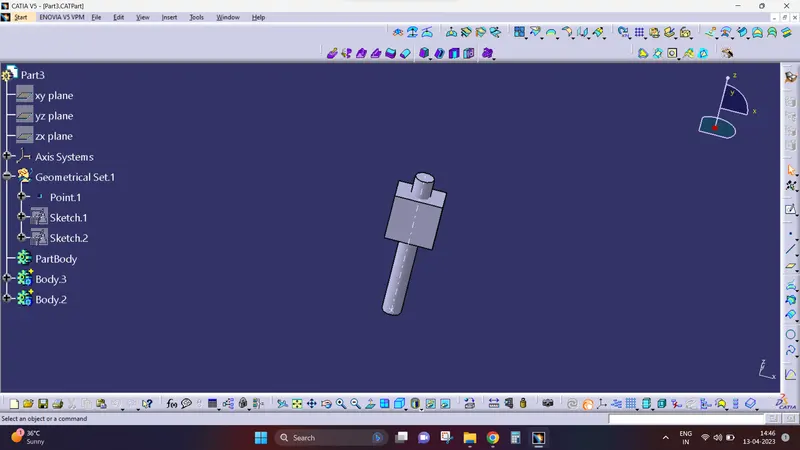

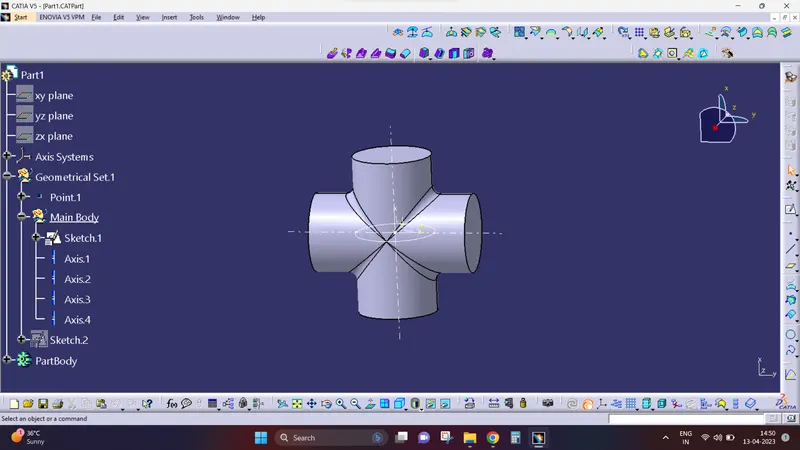

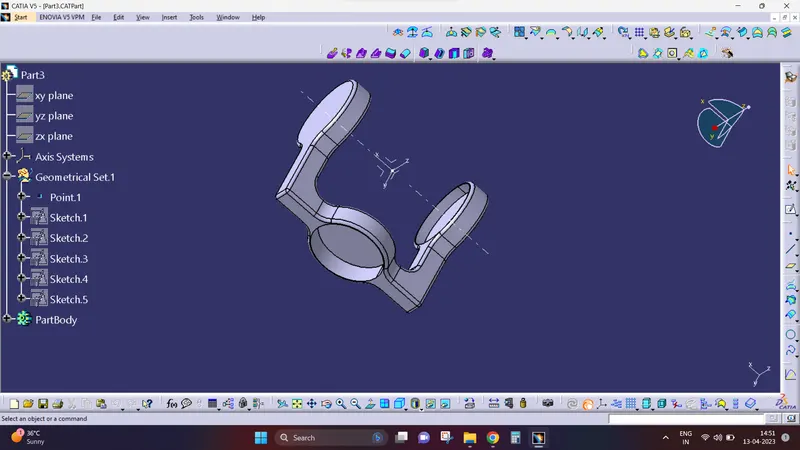

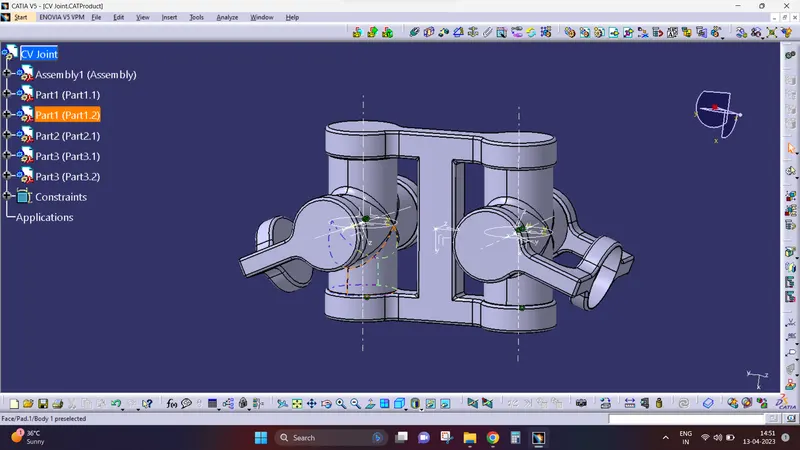

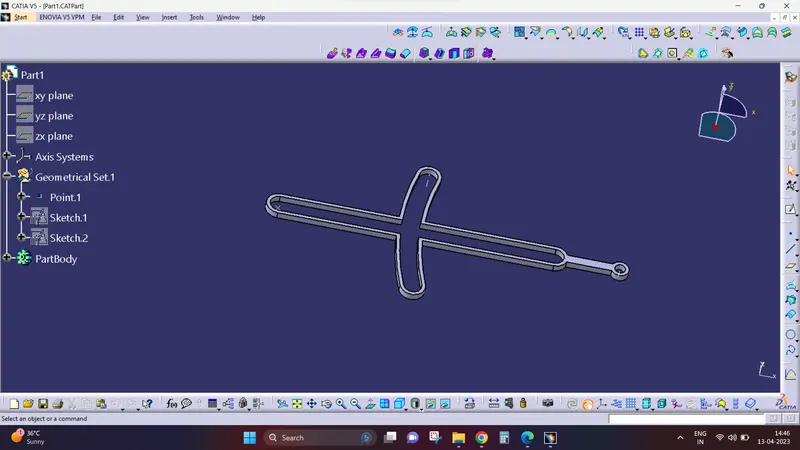

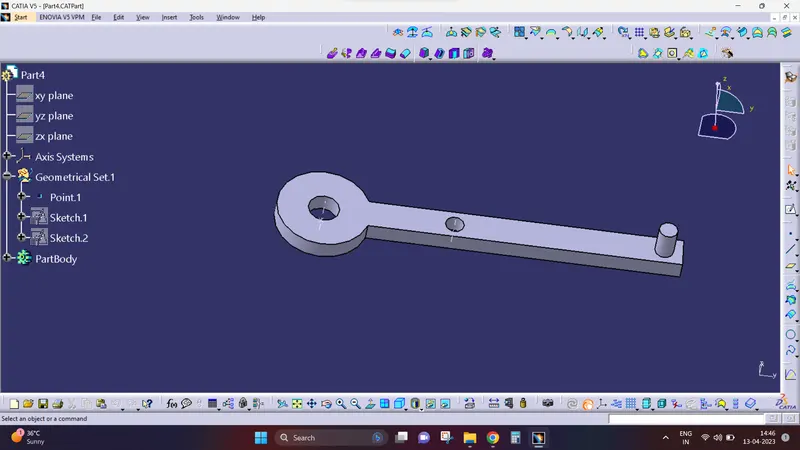

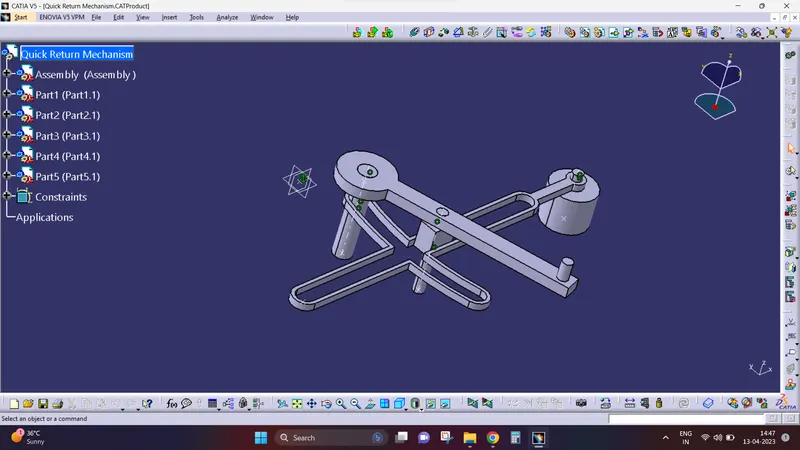

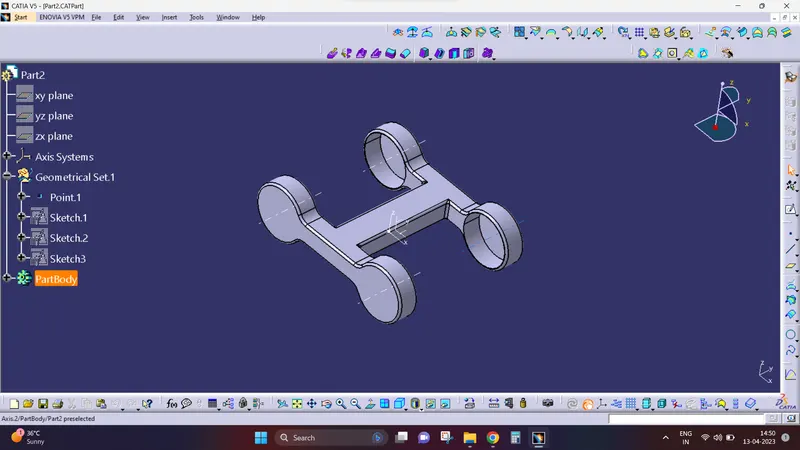

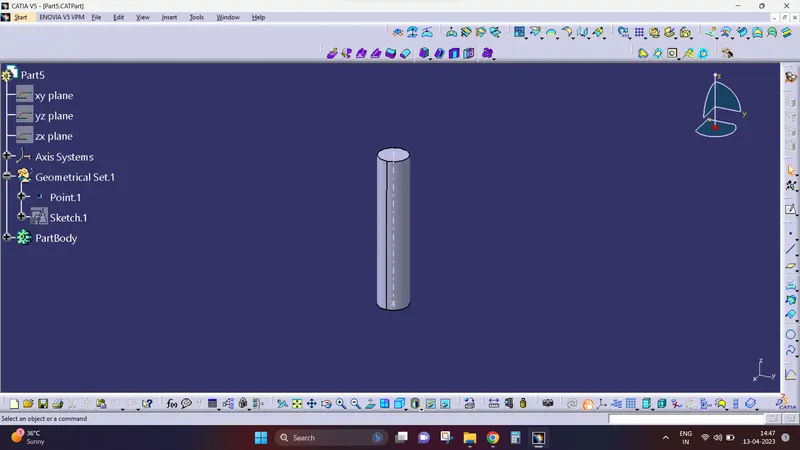

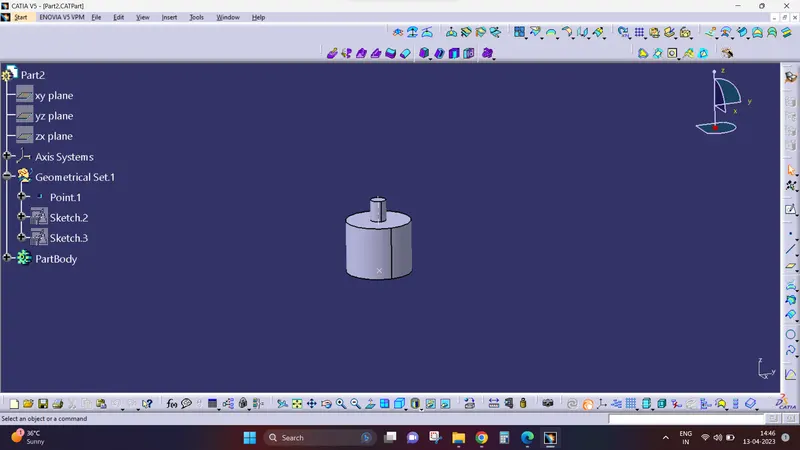

Screenshots:
