Week 7 Challenge

1. Setup model for RC building design and based on following parameters for cover

ANSWER

To open the new file in Tekla software.
Save the file at the appropriate location.

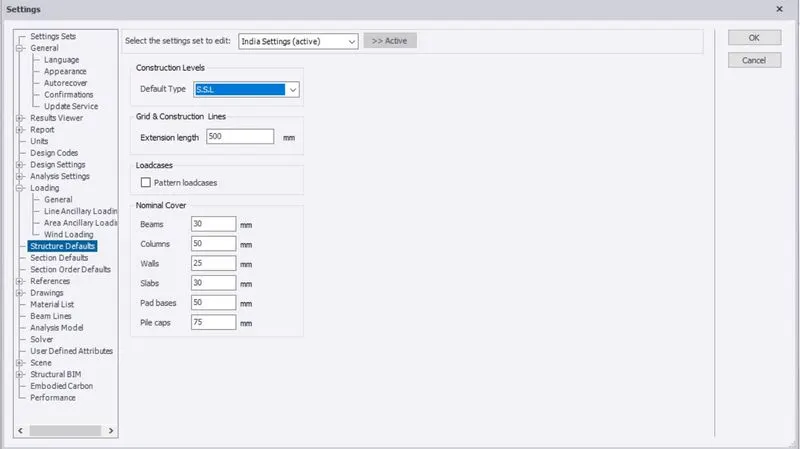

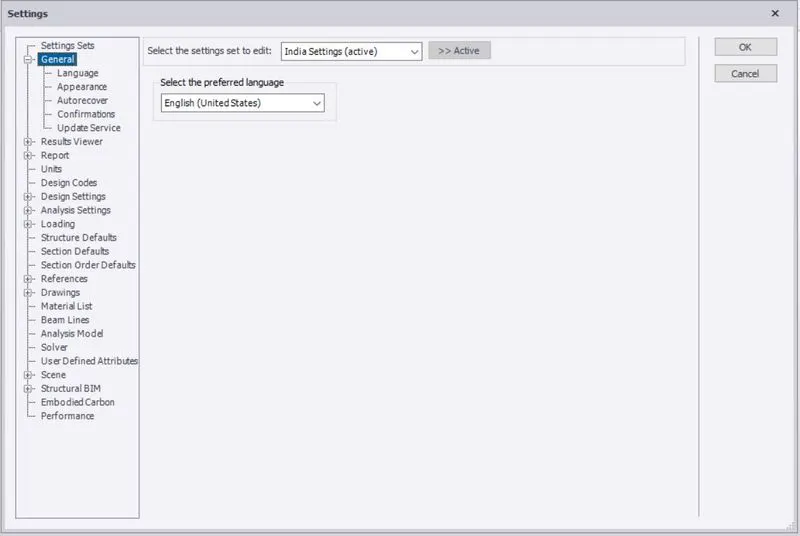

For Rc Building Design , before we check the setting in software at all general things are in Indian Standards.

To set the loading condition factors with structural and section @ given required Data.

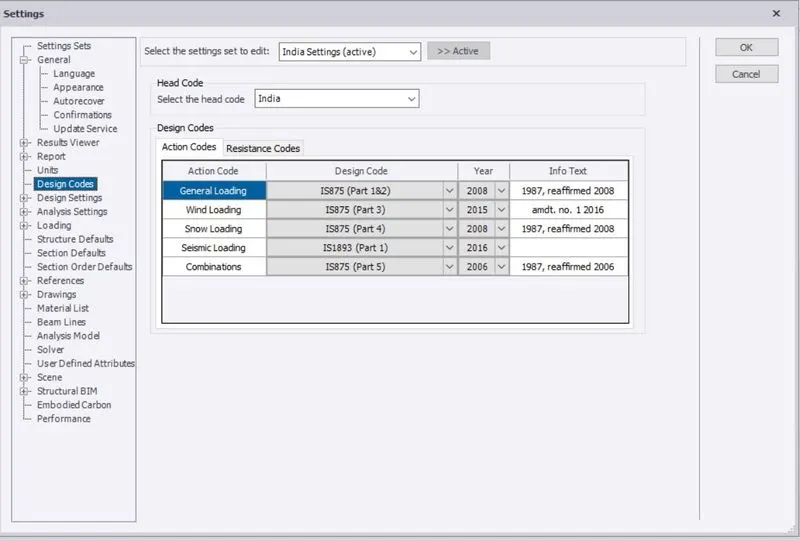

Also to check all design codes.

2. Model grids as per the attachment 2,2.1 and 2.2

ANSWER

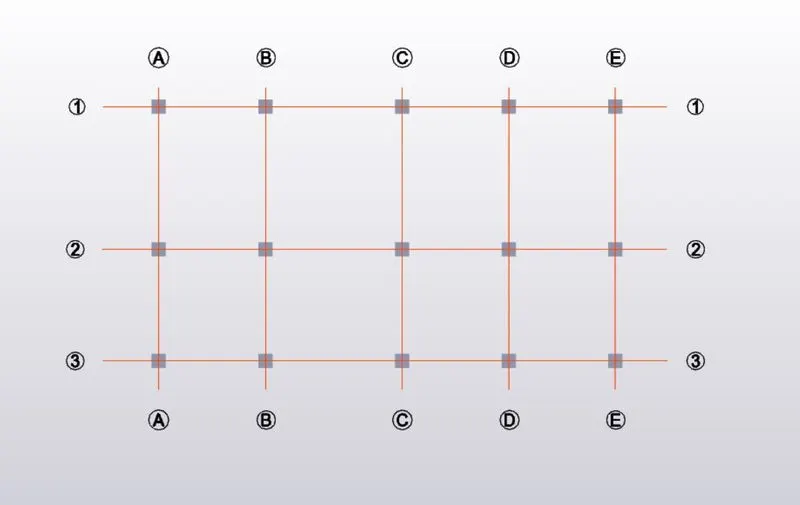

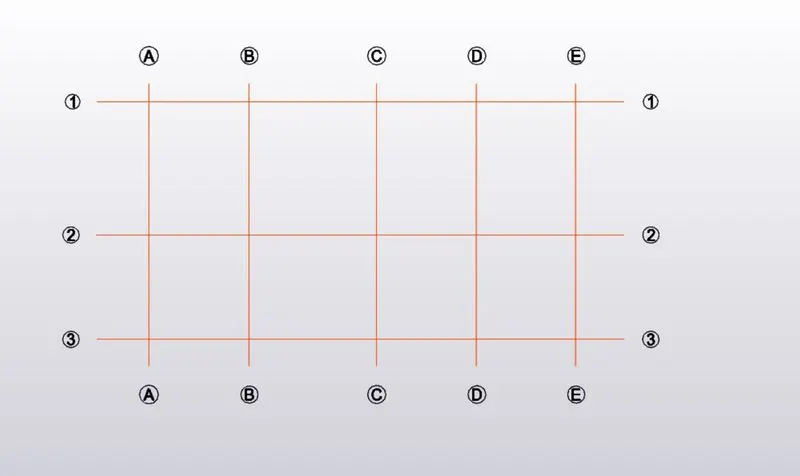

Next to prepare the Grid line for X and Y direction with a reference value from layout od each and every grid spacing.

3. Study the layout and write a summary for general arrangement of the structure

ANSWER

The given building model is G+1.
The plan of the building shows a Residential building.
For this plan should have a Staircase room.

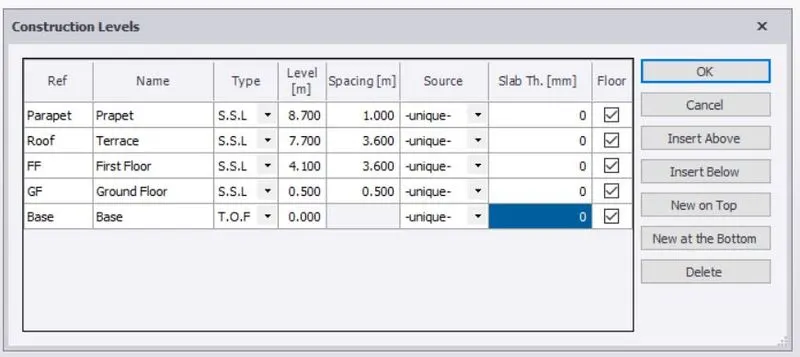

The construction level is defined as from a given layout of Each floor have a distance of 3.6m.
The parapet wall height is 1m.
The placing of elements starts with fixed-fixed supports at the base level.
Columns are placed Required location as per reference of layout, let we more consider to all boundary area, wall ends and the intersection of frames.
For here we considered a column size is 600mm x 600mm.

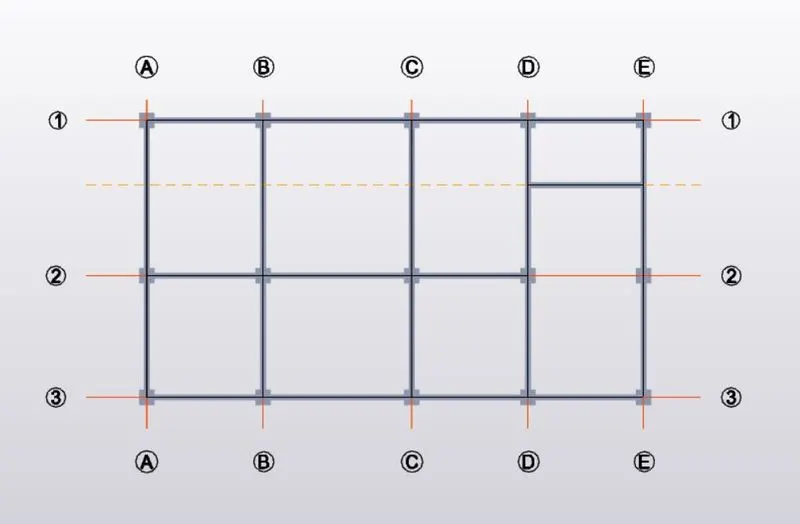

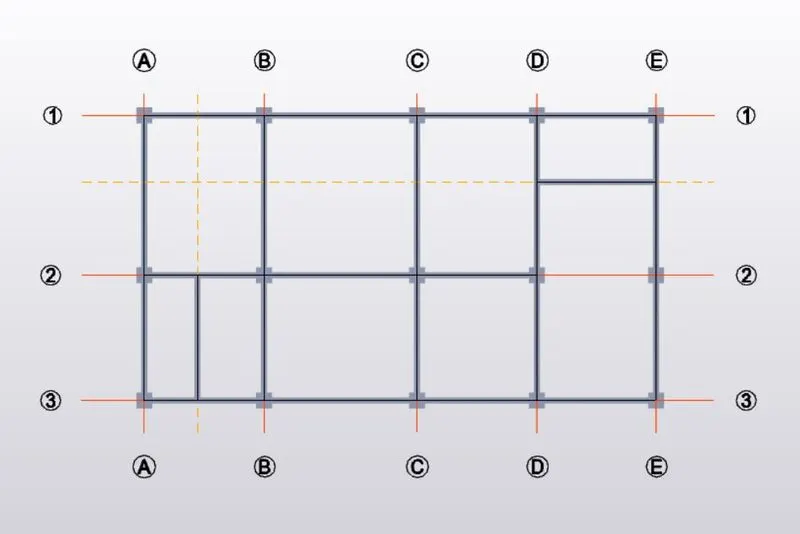

The beam is placed under the brick wall, supporting the frame area.

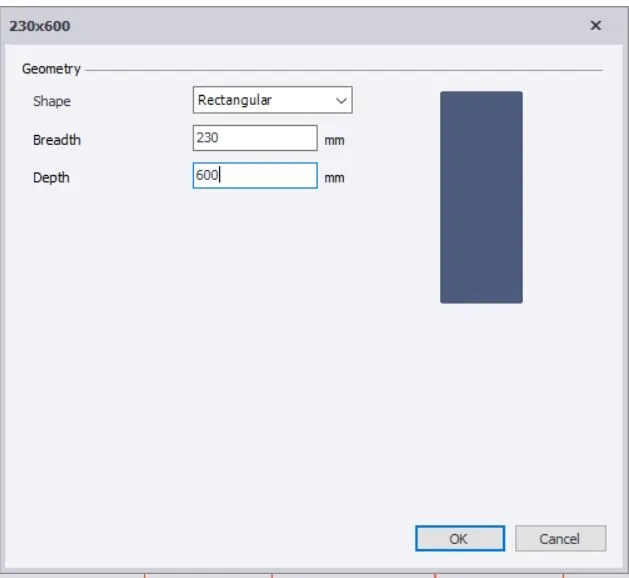

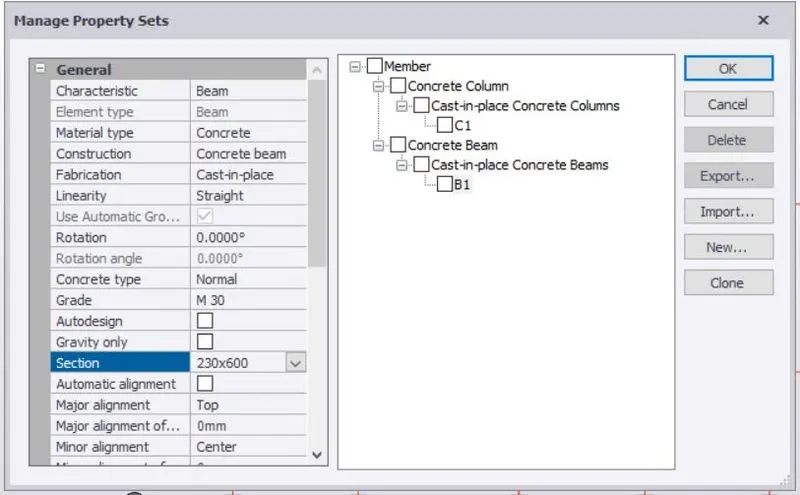

The size of the beam is 230mm x 600mm.

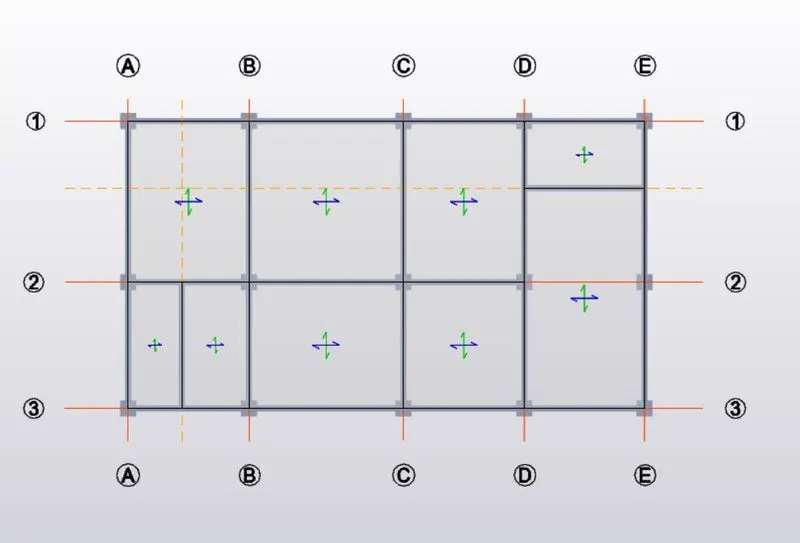

Next, we will model a slab, for here we considered a slab property of 200mm overall depth at the ordinary slab, 250mm overall depth at staircase slab.
The slab are classified as two way and oneway.

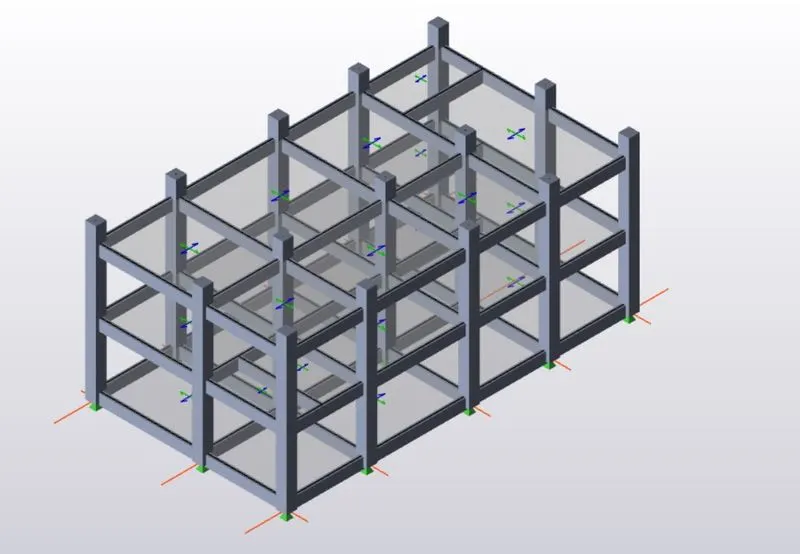

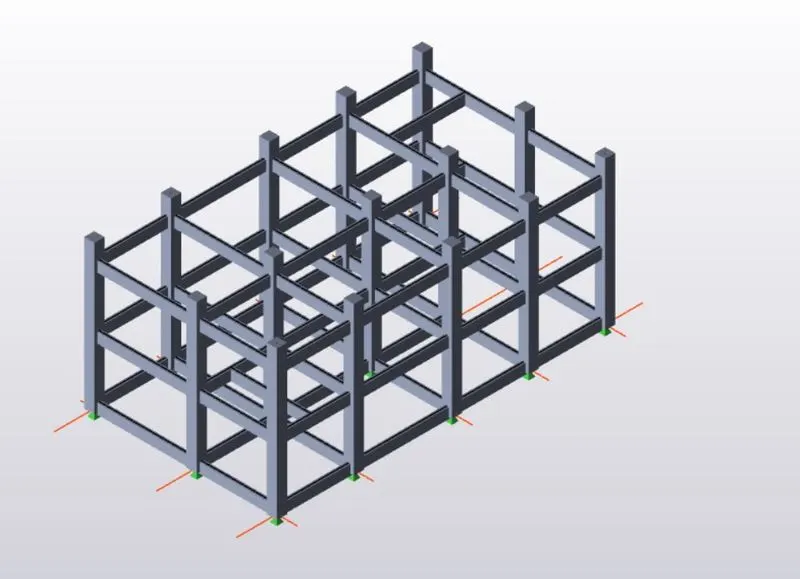

4. Model RC columns, beams and slabs as per your general arrangement

ANSWER

To add all properties of column, beam and slab.
First we add column properties.

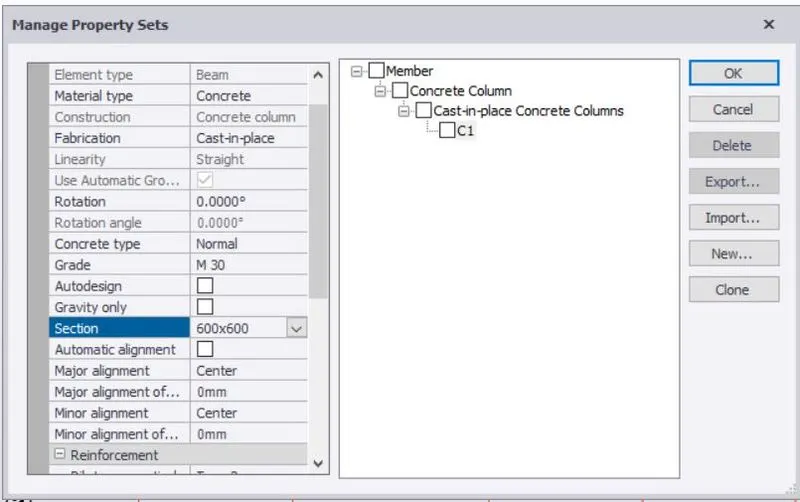

Go to Manage property sets > add member of concrete column > and to rename the column.
To create a properties of column with a size of 600 mm x 600mm.
Base level is Base and Top level is Parapet level.

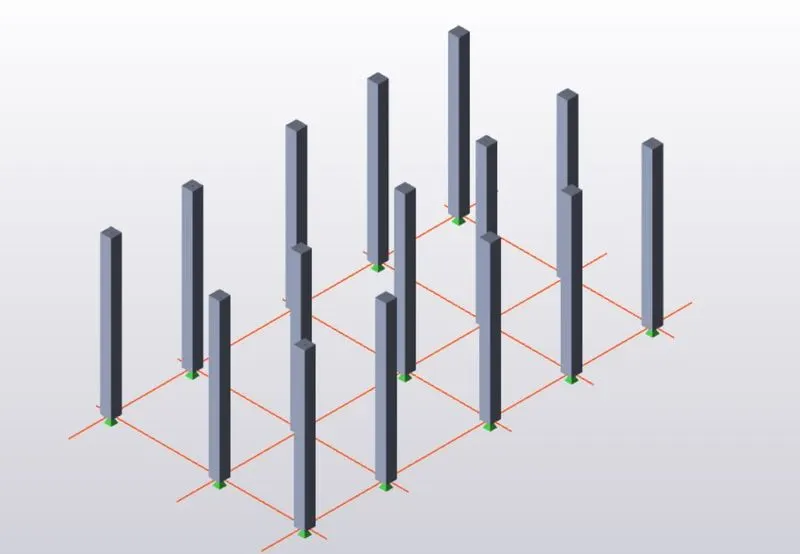

Go to model > choose concrete column option > then to add the column in Grids intersection at appropriate locations.

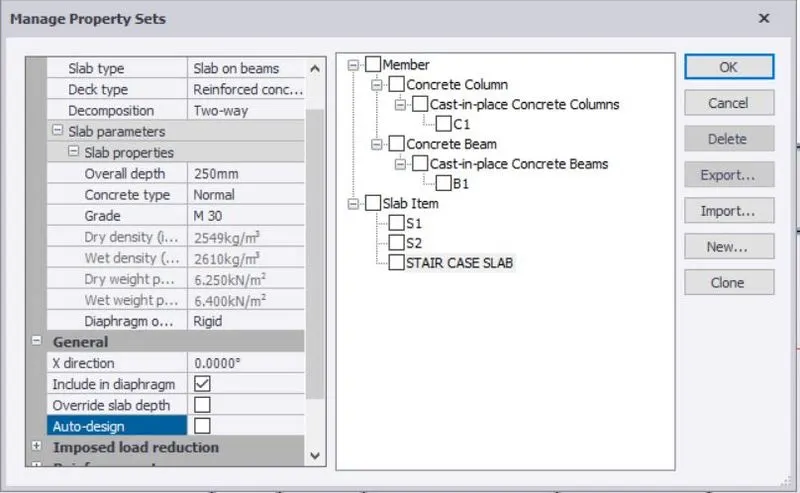

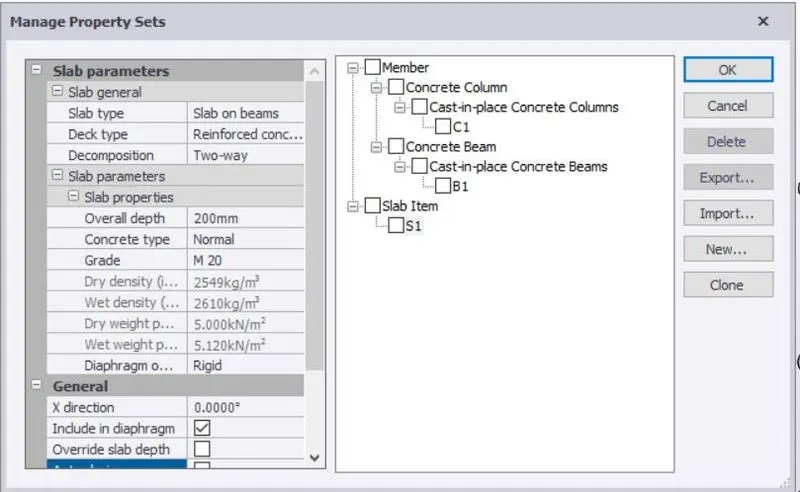

Next, to model a slab, before we add the slab properties for contributor different areas.
The slabs are varry under Ly/Lx > 2 = one way, Ly/Lx < 2 = Two way.
The over all depth is 250mm for staircase area and 200mm for other all slab area.
