Week 7-12-Creation of 1D Connectors Challenge

                                    Creation of 1D Connectors Challenge

Objective:- In this Project challenge, we will make the 2-D meshing with maintain given quality criteria and connect the 1D-connectors.

Use of steps:-

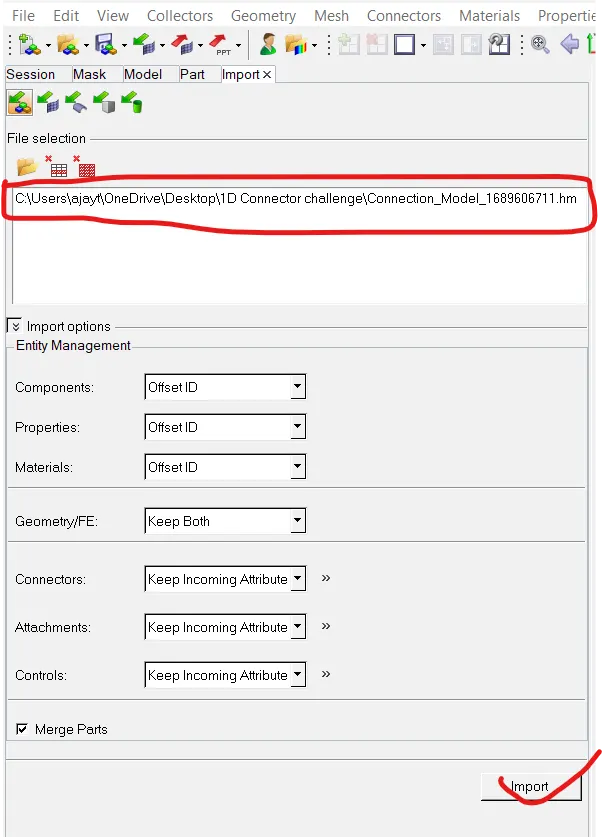

Step 1:- Import the geometry

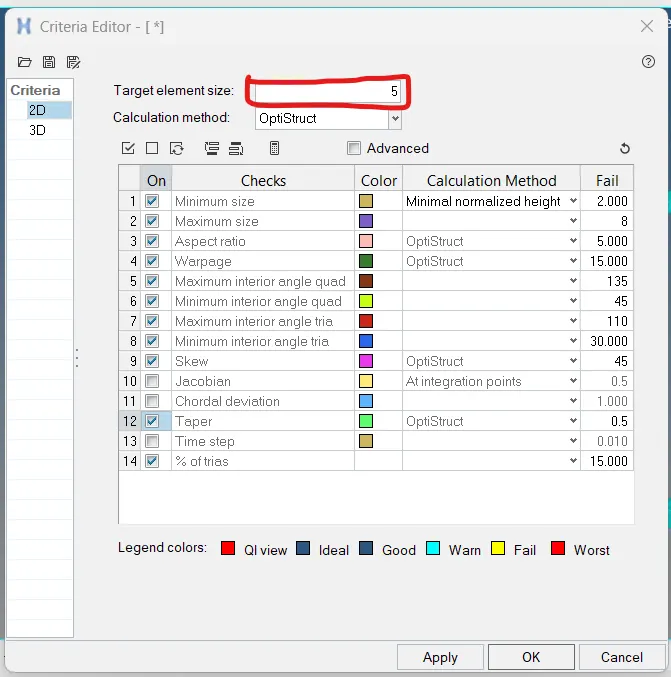

Step 2:- Set the given quality criteria

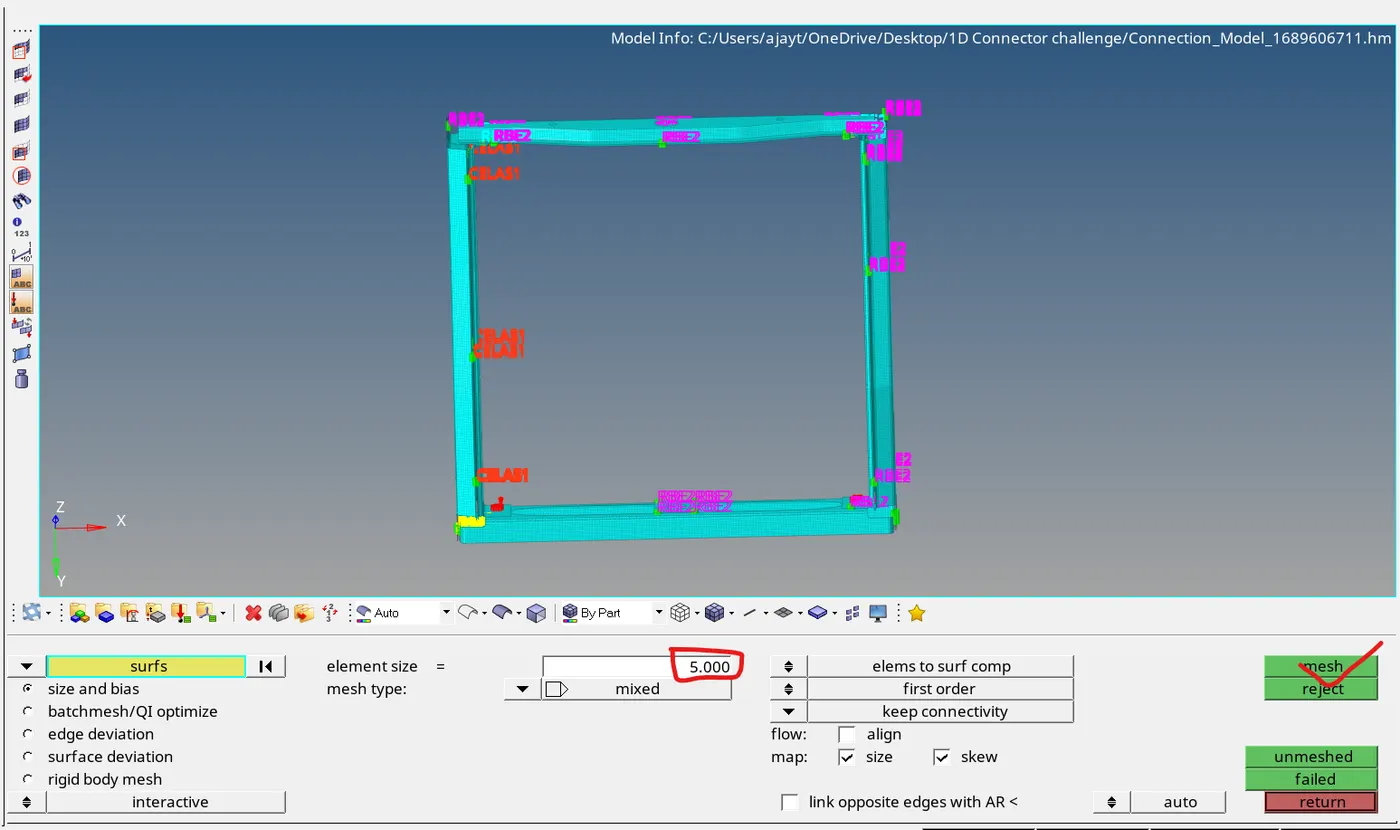

Step 3:- Make the 2D mesh by using automesh option

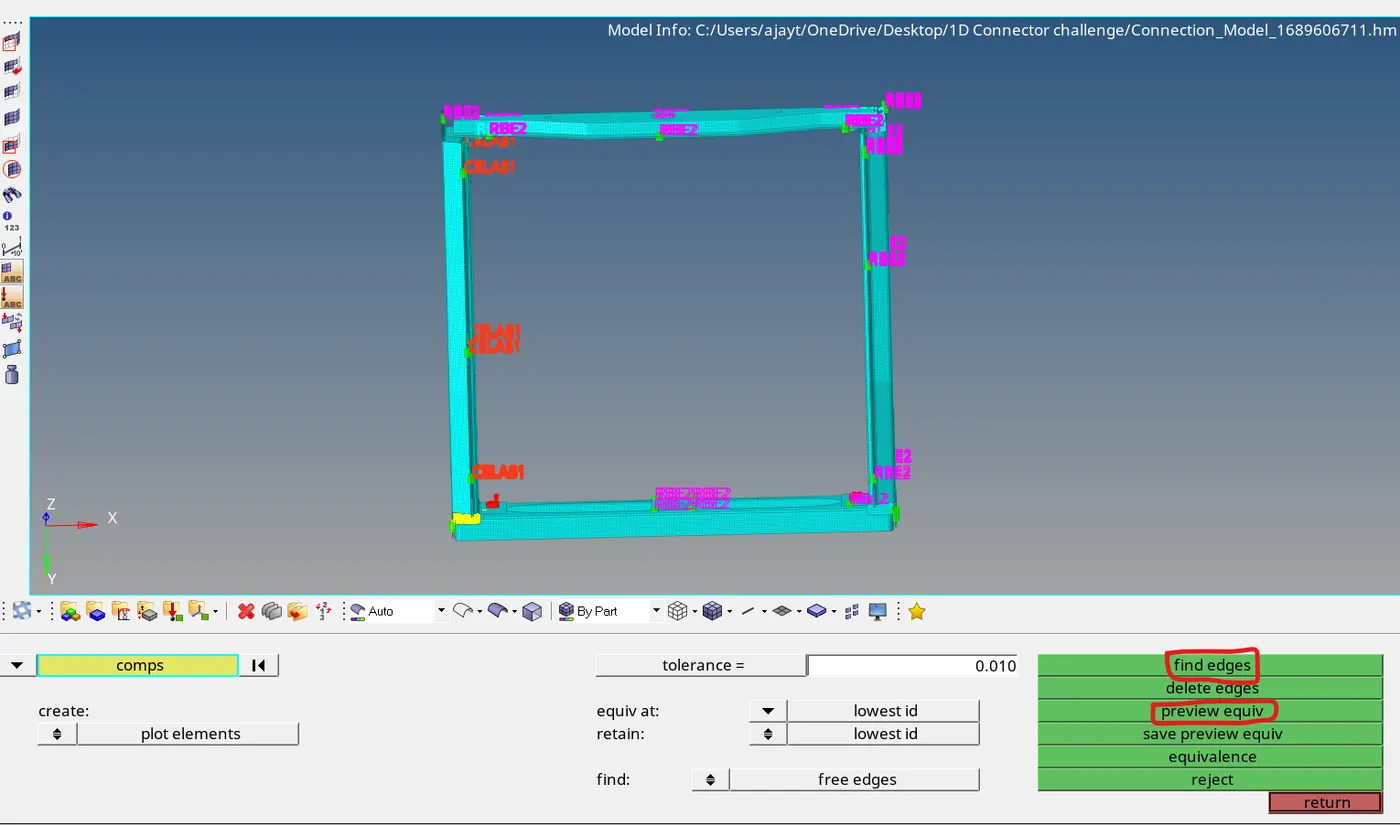

Step 4:- Check the free edge and preview equivalance and fix the unwanted free edge

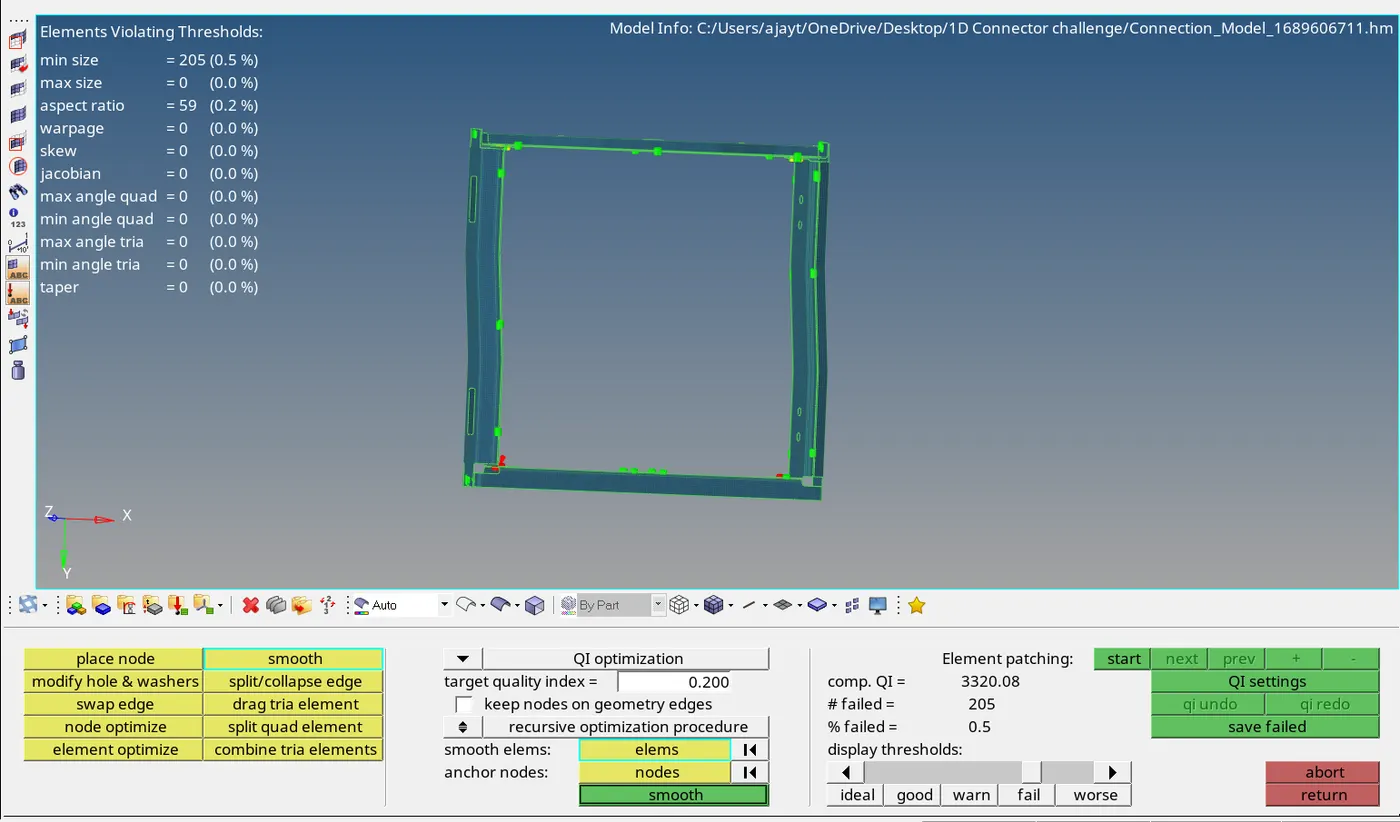

Step 5:- Check the quality criteria and fix the quality problems by using quality index option

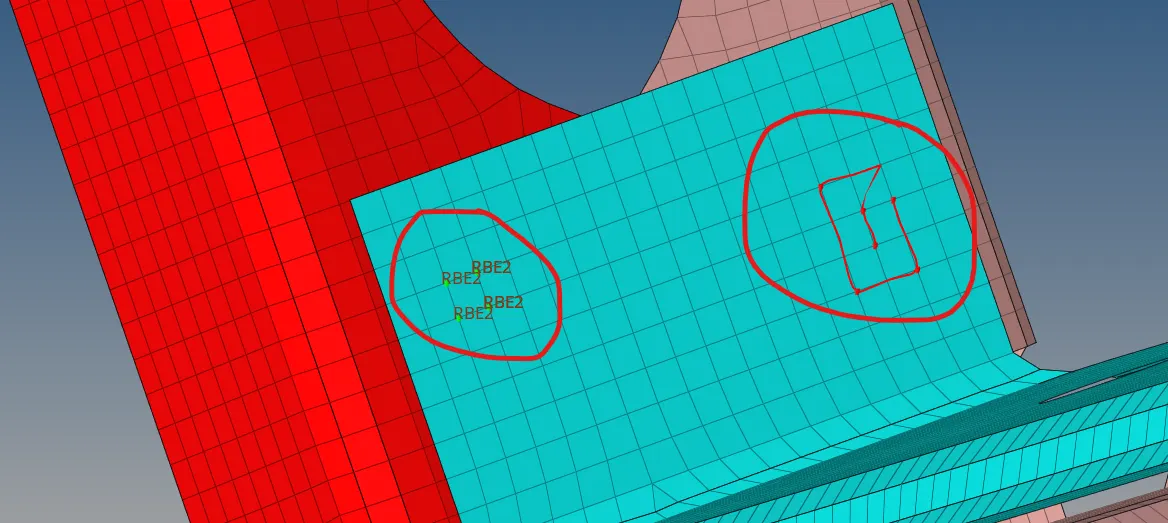

Step 6:- Creat the 1-D connectors as Seam, Spot and bolt joint as per given in project.

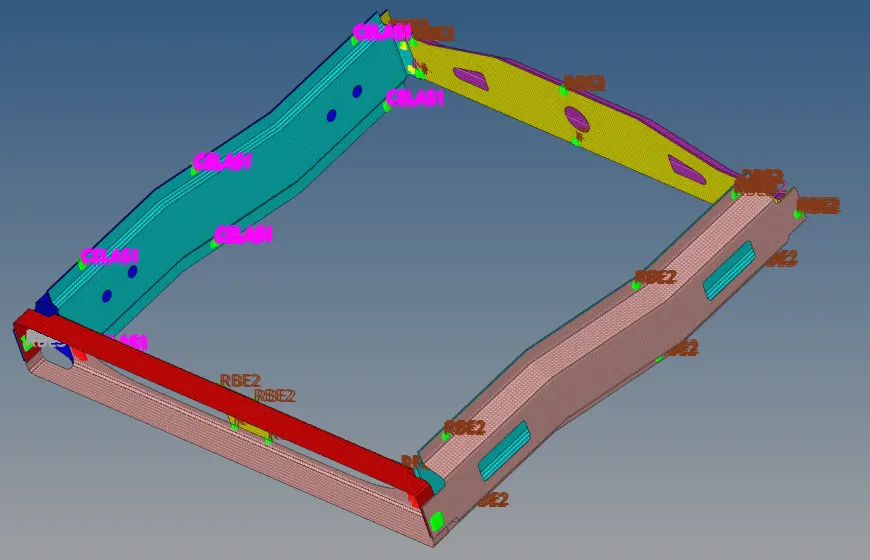

Step :- Final Model

Conclusion:-

In this project, we made the 2D mesh with given quality criteria and connect the 1-D connectors seam,spot,bolt joint as per given in project.
