Project-2-Meshing of Door Inner Panel Challenge

                                       Project 2-Meshing of Door Inner Panel Challenge

Objective:- In this Project challenge, we Will extract the mid surface , make the 2-D meshing with maintain given quality criteria and assign the thickness. .

Use of steps:-

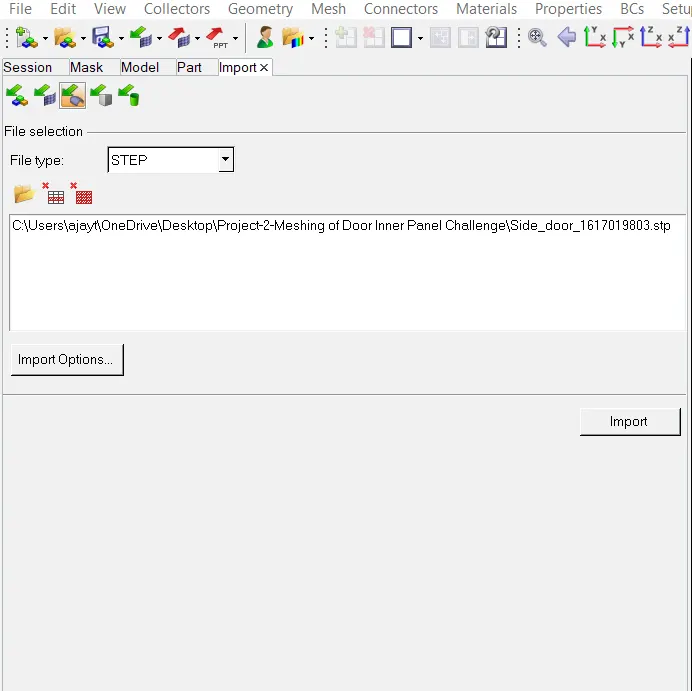

Step 1:- Import the geometry

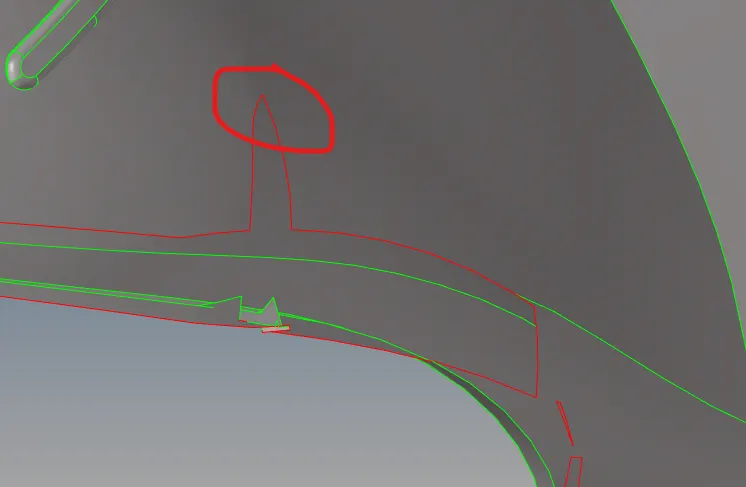

Step 2:- Before extract the mid-Surface fix the geometry

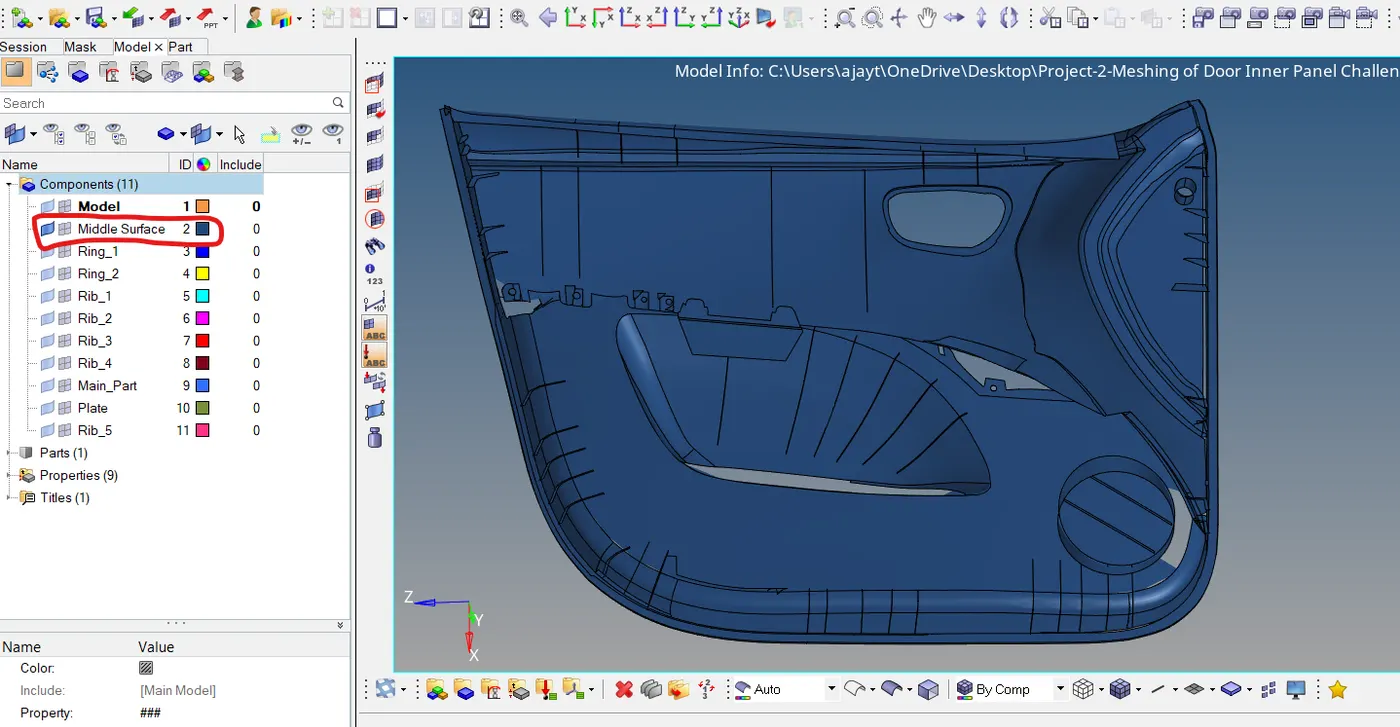

Step 3:-Extract the mid-surface by using mid-surface option

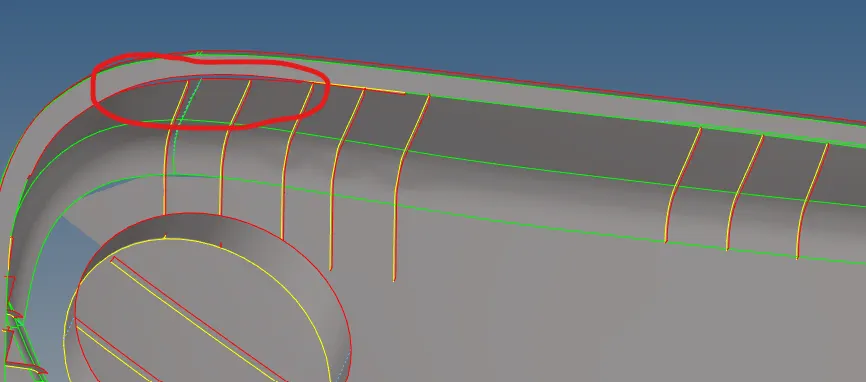

Step 4:-Geometry cleanup after extract the mid-surface

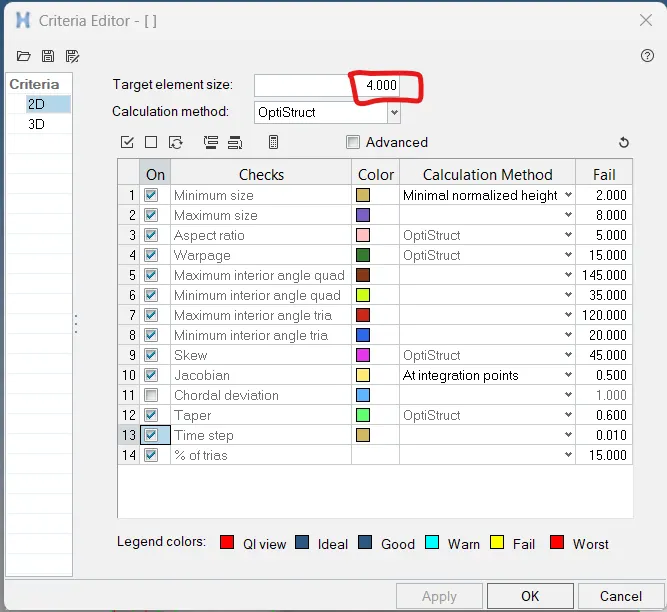

Step 5:- Set the given quality criteria

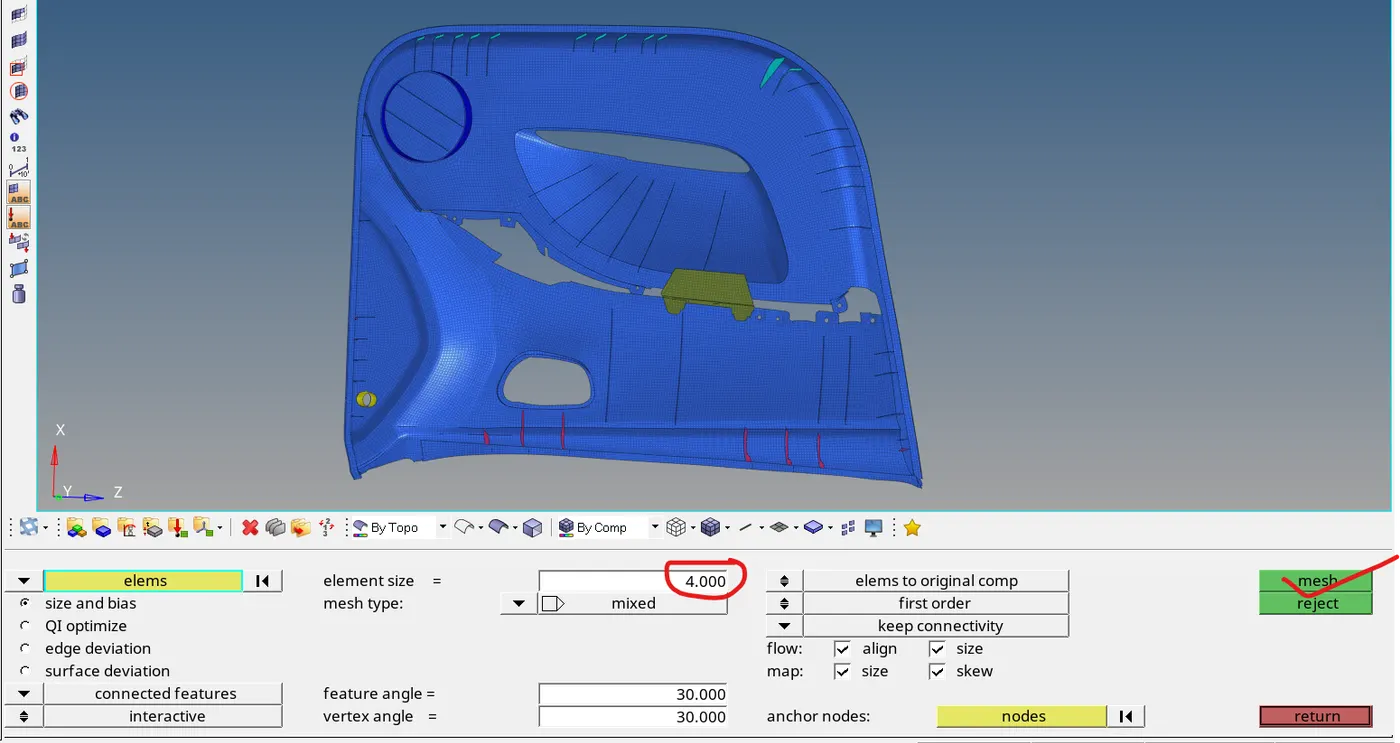

Step 6:- Make the 2D mesh by using automesh option

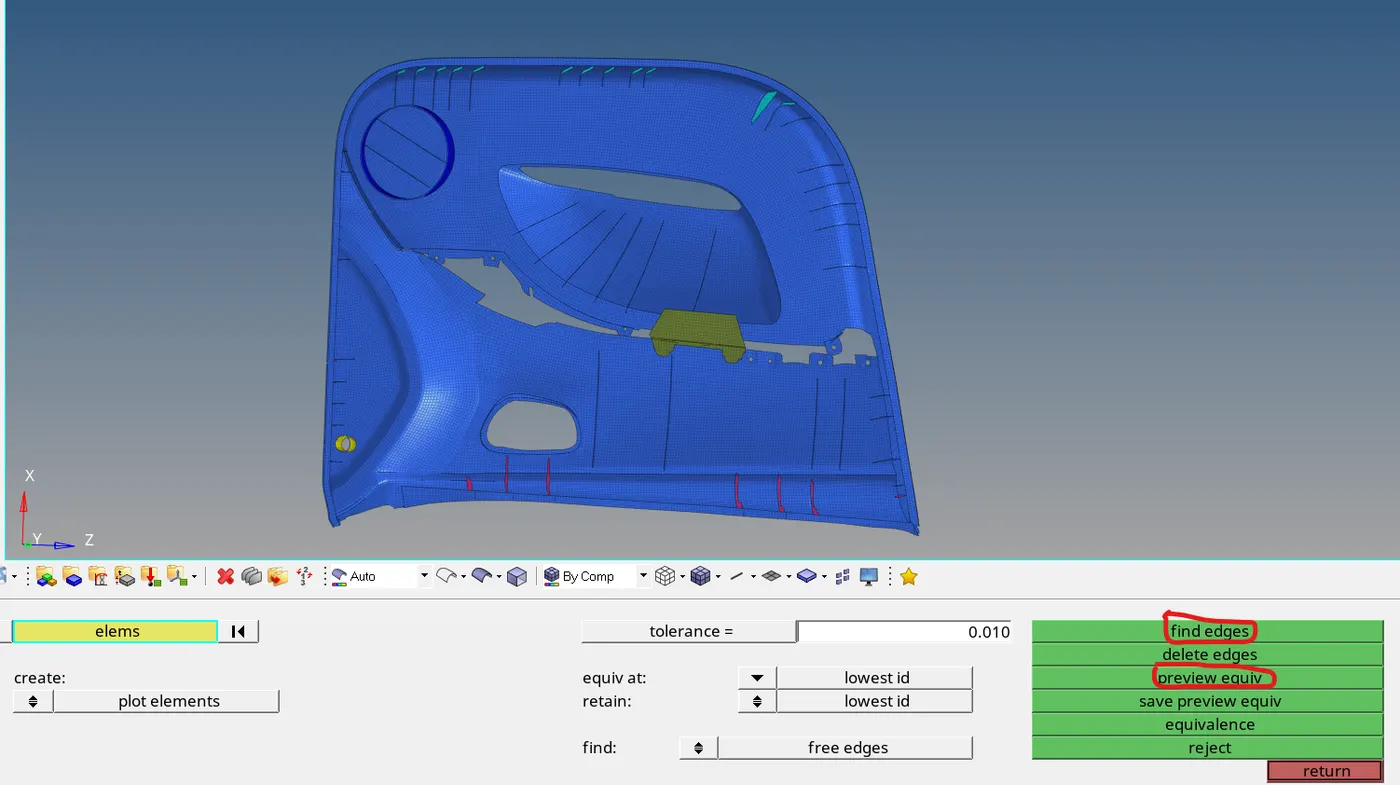

Step 7:- Check the free edge and preview equivalance and fix the unwanted free edge

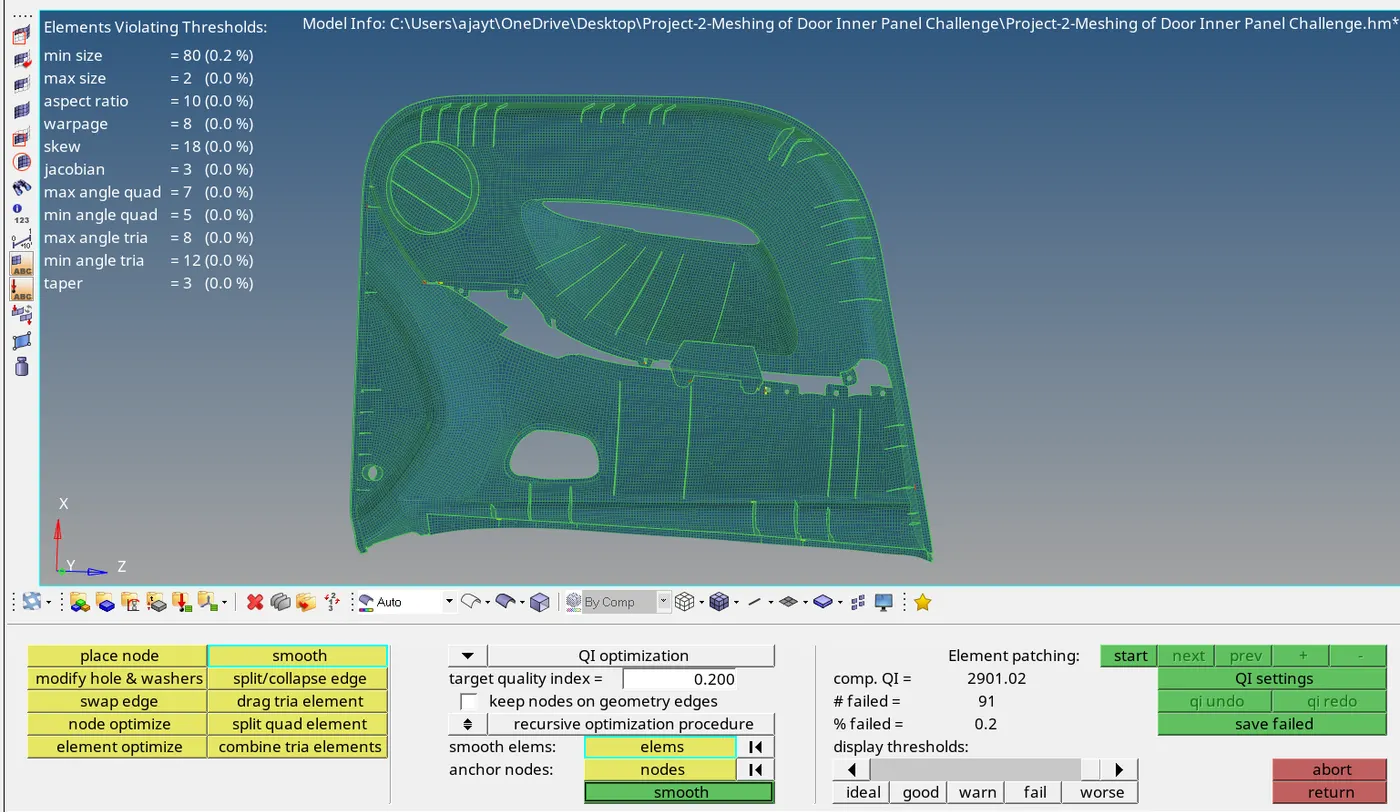

Step 8:- Check the quality criteria and fix the quality problems by using quality index option

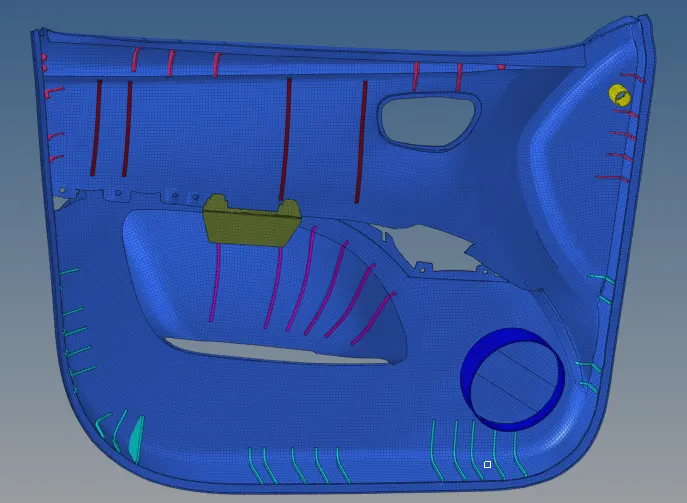

Step 9:- Final Model

Conclusion:-

In this project, we extracted the mid-surface with fix the geometry , made the 2D mesh with given quality criteria and Assign the thickness as per part geometry
