Week- 6 - Solid meshing

AIM:

• To Perform geometry refinement on the rearview mirror, integrate it seamlessly with the provided 2D element. At the same time, meeting specified quality standards, and generate a volumetric mesh using tetrahedral elements to create an unstructured mesh."

OBJECTIVE:

• The objective is to thoroughly analyze the provided model using ANSA software, focusing on geometric error identification and meshing procedures.
• The primary aim is to guarantee precise and top-notch surface meshes for all components while meeting the designated element quality criteria.
• By attaining this goal, our intention is to streamline subsequent analyses and simulations, thereby supporting dependable and effective engineering assessments.

PROCEDURE:

• Conducted essential geometry refinement procedures to rectify any irregularities, including gaps, overlaps, or absent surfaces. ANSA offers a suite of tools for rectifying and altering the geometry.

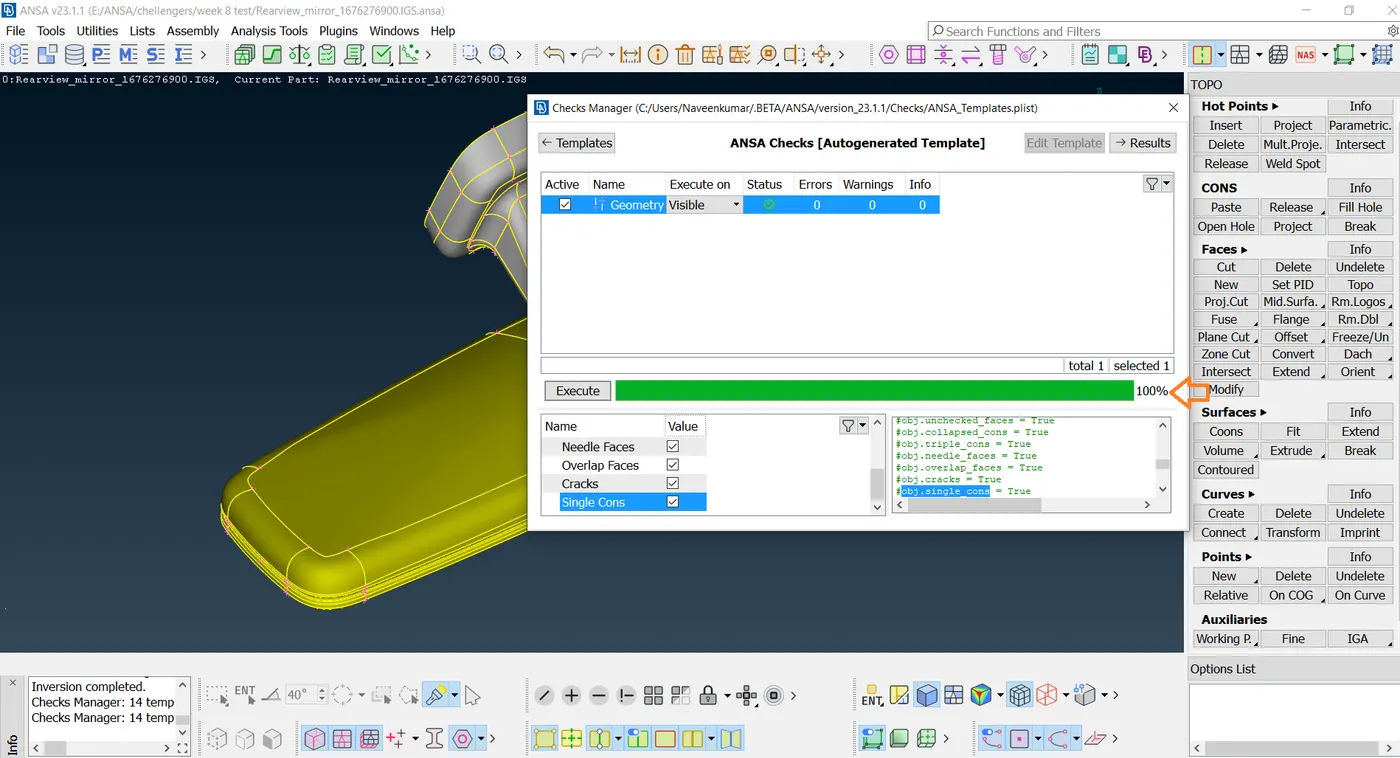

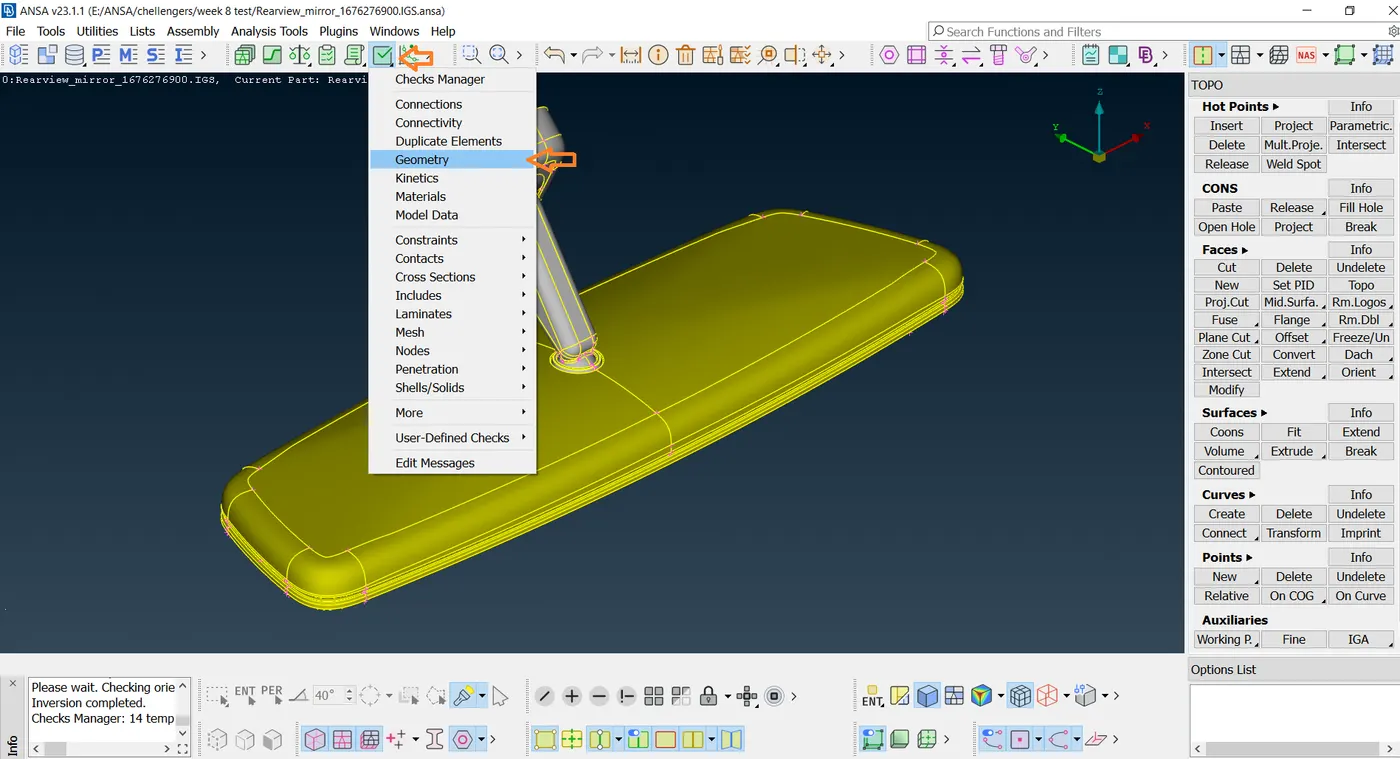

• I resolved similar geometry issues using the module buttons, rectifying triple connections, and adding missing faces as needed. Additionally, I conducted corrections through the Tools–Checks–Geometry feature.

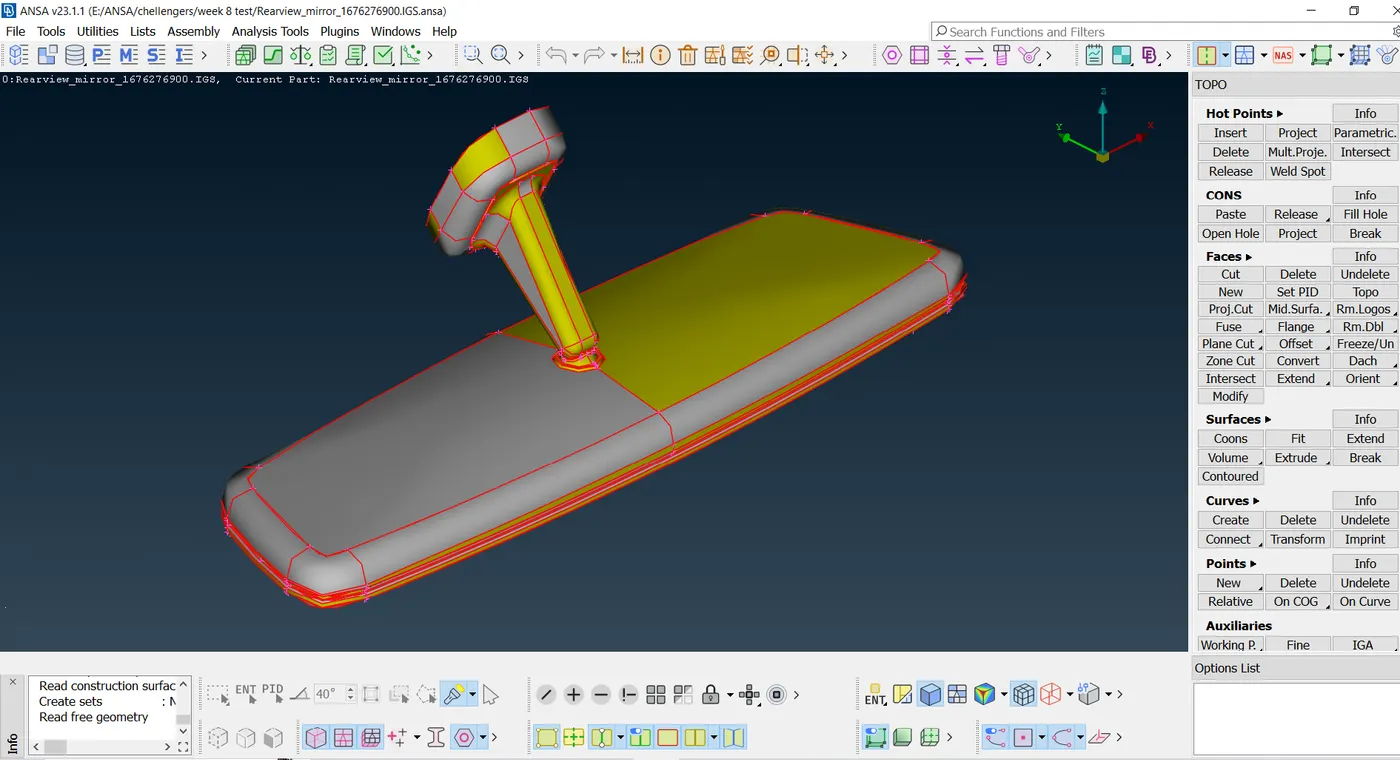

• If you wish to pinpoint the location of errors identified during the geometry checkup, you can select the pick tool and click on the connection to visualize its placement and preview the error in a single connection within the model.
• To identify the error location flagged during the geometry checkup.

• We can readily identify individual issues through the visibility tools, and we must address them using the FIX option by right-clicking to resolve them wherever they occur.

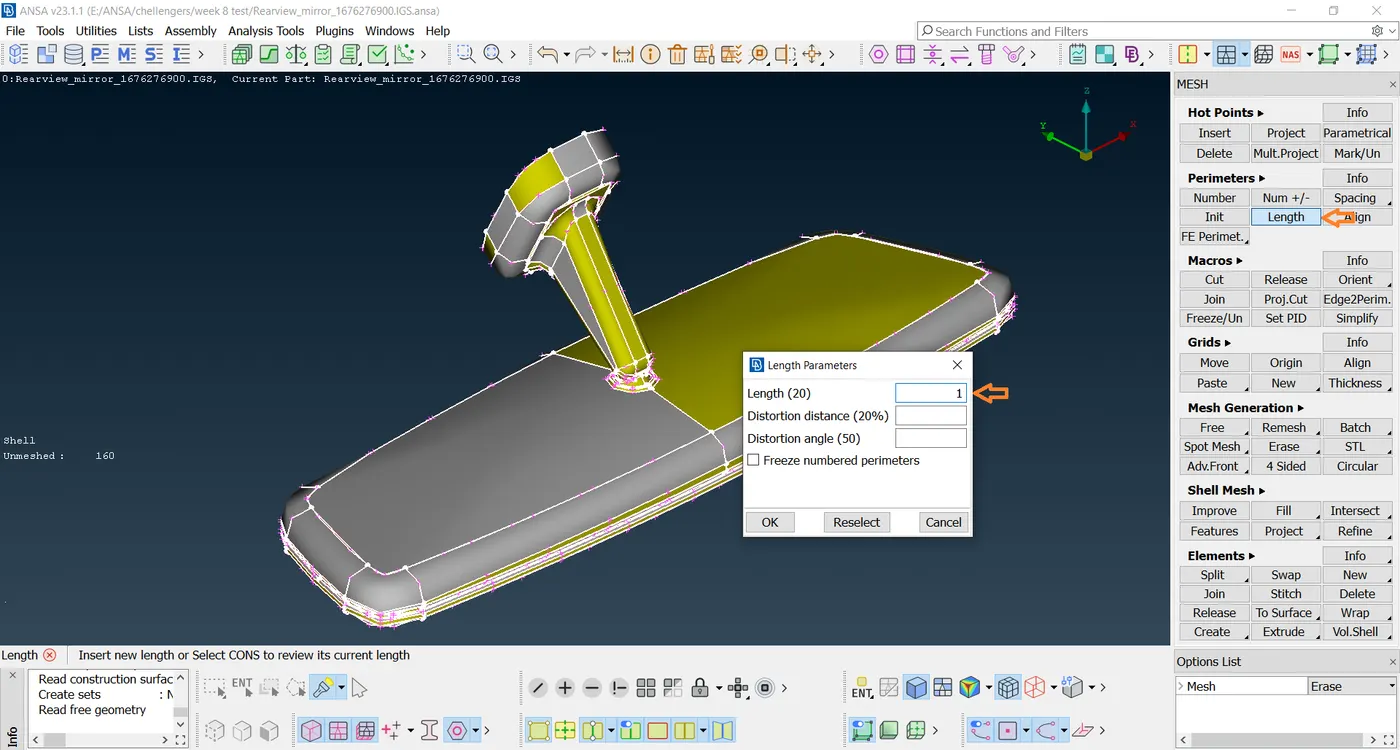

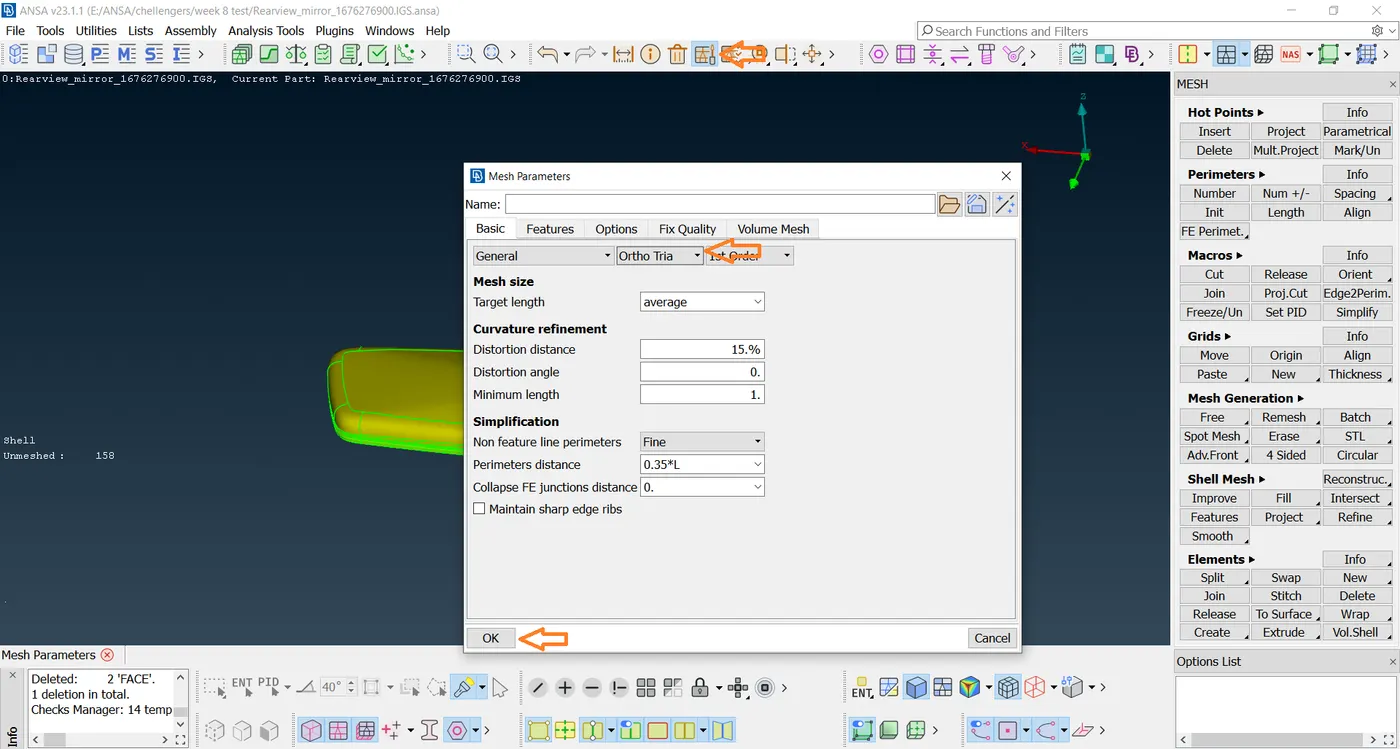

• ANSA provides various meshing methods, including automatic, manual, and hybrid approaches. In this method, we use spot mesh.
• Perform a mesh quality check to ensure that the generated mesh meets the desired quality criteria.
• ANSA offers tools to evaluate tet collapse and other metrics.
• Identified and resolved any mesh issues found.

• Perform a mesh quality check to ensure that the generated mesh meets the desired quality criteria.
• ANSA offers tools to evaluate tet collapse and other metrics. Identified and resolved any mesh issues found.
• Mesh Editing and Refinement performed mesh editing operations to modify and refine the mesh.node/element editing, and mesh smoothing.
• Use these tools to improve the mesh quality or capture specific details accurately.

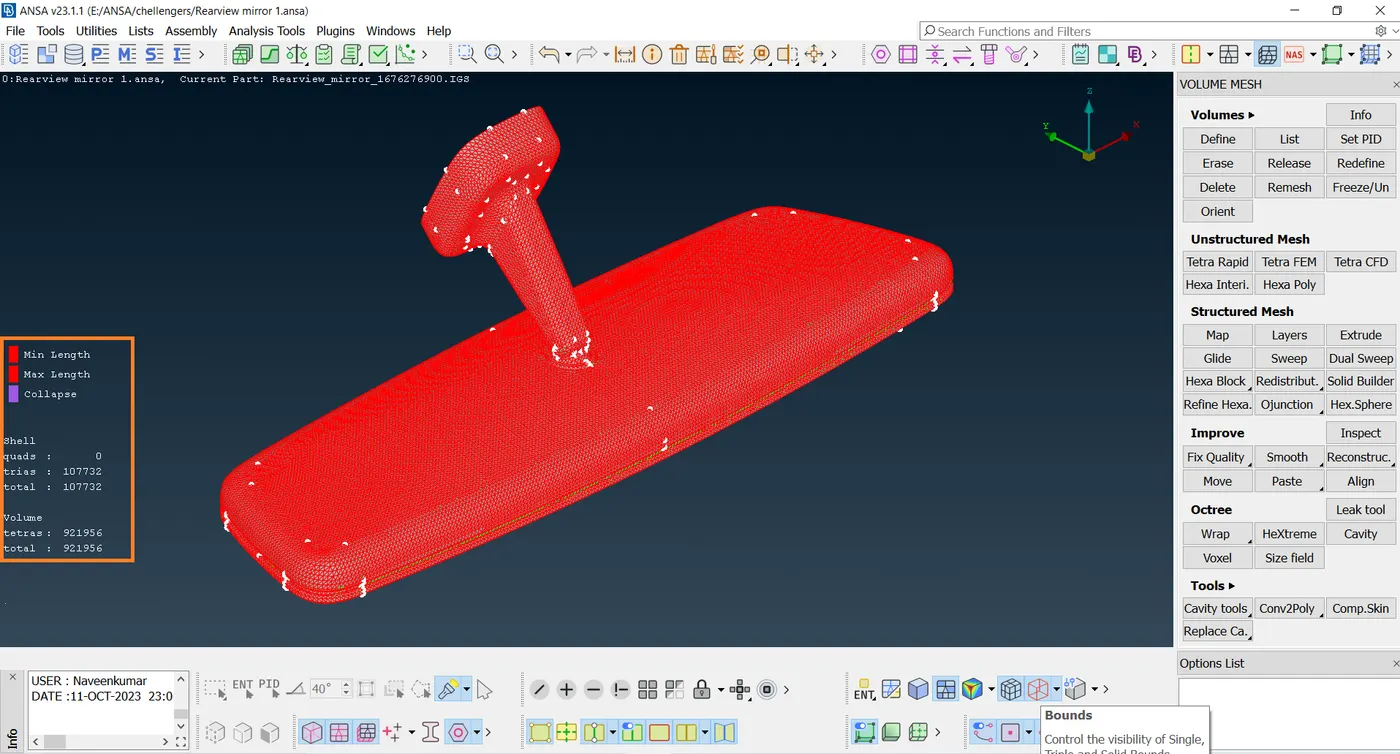

• After defining volumes go to the volume mesh tab select the list of volumes present then right-click and go for the tetra rapid algorithm for meshing the volumes Ansa will generate solid mesh.

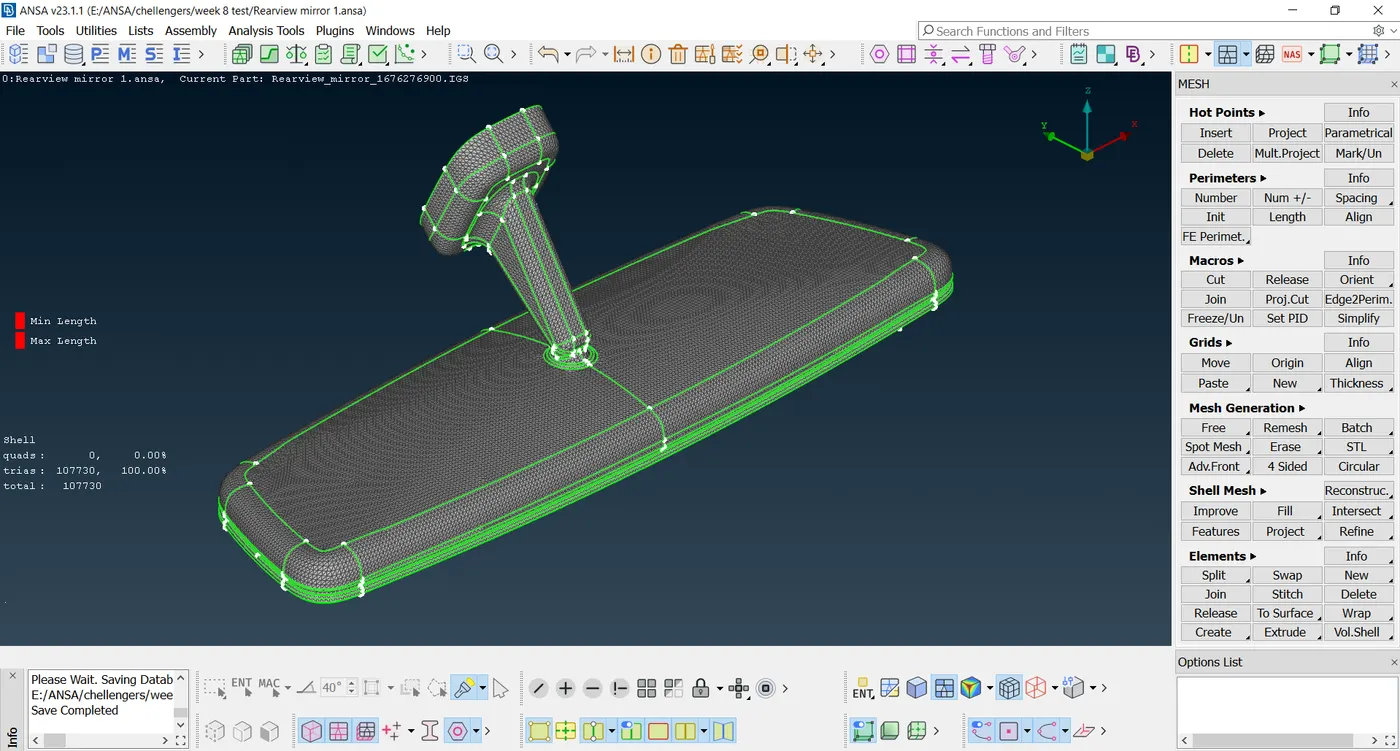

• SHELL: Quads:0, Trias=107732, Total=107732
• Volume: Tetras: 921956, Total: 921956

CONCLUSION

• After the completion of the mesh, the number of trial elements has been determined, and of elements are maintained at zero. And the component is meshed according to the criteria.
