Week 6-Meshing of Hood Challenge

AIM:TO FIND THE MID SURFACE AND MESH IT AND ALSO CHECK THE QUALITY CRITERIA OF THE HOOD.

PROCEDURE:

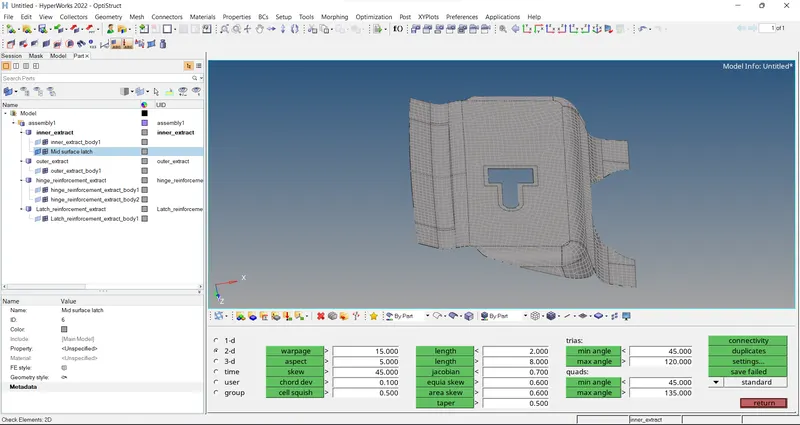

1.HIDE ALL THE COMPONENT EXCEPT THE LATCH.

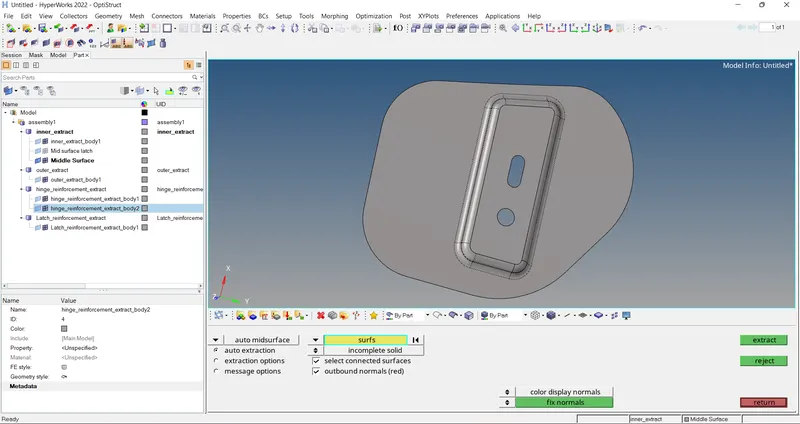

2.GO TO GEOMETRY>MID SURFACE.

3.HIDE THE COMPONENT.

4.AUTOMESH THE MID SURFACE.

5.RECREATE THE MESH FOR BETTER MESH.

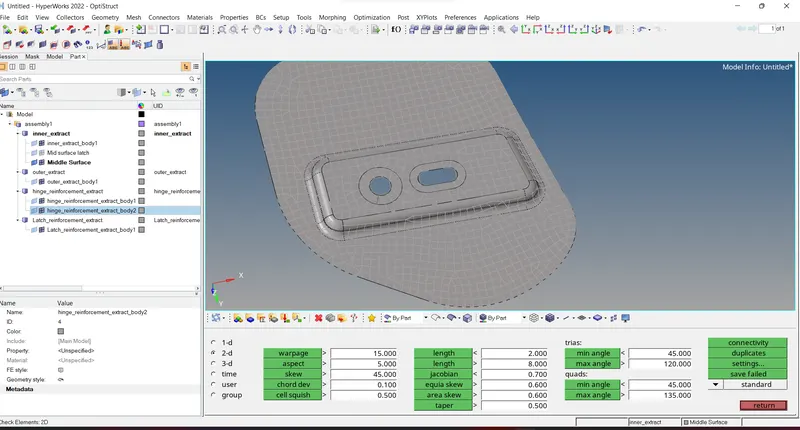

6.CHECK THE ELEMENT FOR QUALITY CRITERIA.

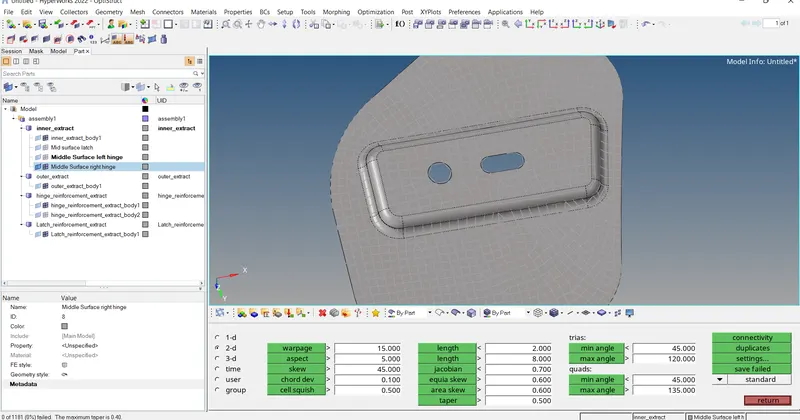

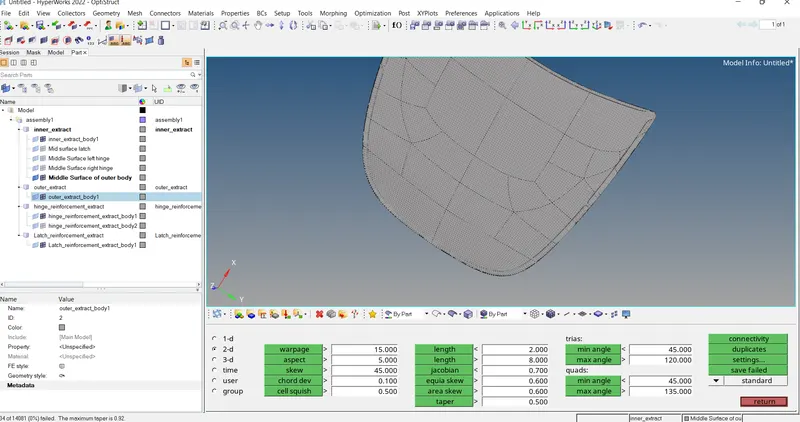

7.CHECK FOR WARPAGE,AND ALL THE QUALITY CRITERIAS.

8.AFTER CHECKING THE CRITERIAS ONE BY ONE WE HAVE TO REMESH OR REBUILD THE MESH FOR MORE ACCURACY.

9.OPTIMIZATION OF THE MESH IS REQUIRED SUCH THAT IT WILL PROPERLY RELOCATE ITSELF.

10.AS PER THE QUESTION WE HAVE TO MAKE MIXED MESH NOT QUAD MESH FOR PROPER ORIENTATION OF CURVES.

11.BUT THERE ARE FEW POINTS IN THE CORNER WHICH AREAS ARE TOO SMALL TO MESH GET MORE FAILURE IN QUALITY ,CORRECTING THEM ARE TOO DIFFICULT.

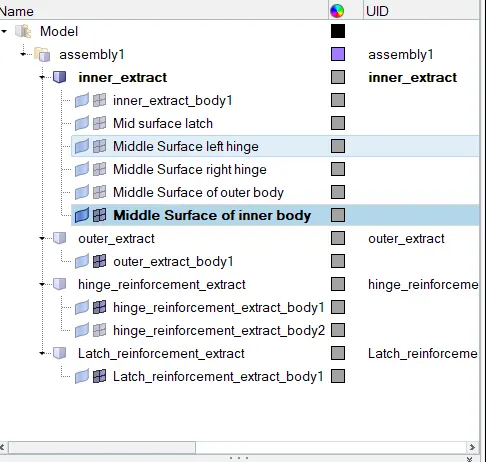

12.THE PROCESS IS CONTINUED FOR ALL THE COMPONENTS,SEPARATE THE MID SURFACE AND THE MESH SUCH THAT IT WILL BE VERY EASY..

13.THE MODEL HAS BEEN UPLOADED.

PROBLEM FACED:

1.THER CORNERS MESH IS NOT PROPERLY MESHING AND THE QUALITY CRITERIAS ARE FAILING.

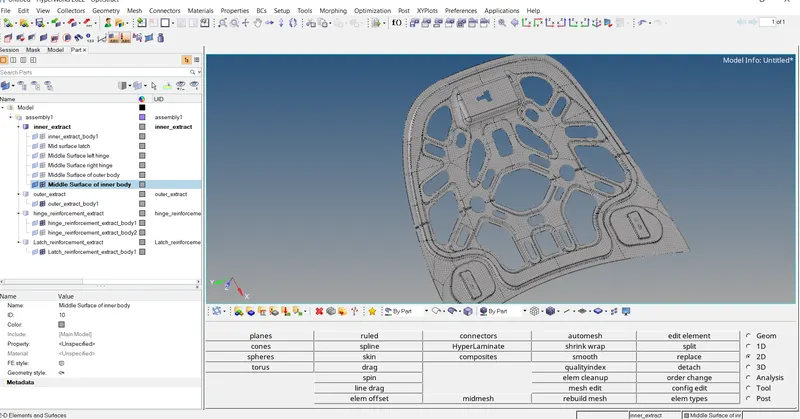

CONCLUSION:THE MODEL'S MID SURFACE HAS BEEN MESHED WITH SEPARATE COMPONENTS HAVING A QUALITY CRITERIA.

FEW OF THE MESH AT THE CORNERS ARE FAILING WHICH ARE NOT OREINTING WITH THE MESH OF OTHER PARTS.
