Week 6-Meshing of Hood Challenge

OBJECTIVE :

1. Meshing of Hood's componant with the Target Element Length of 5 Units .

2. Meshing should Pass the Mentioned Quality Criteria .

PRPCEDURE :

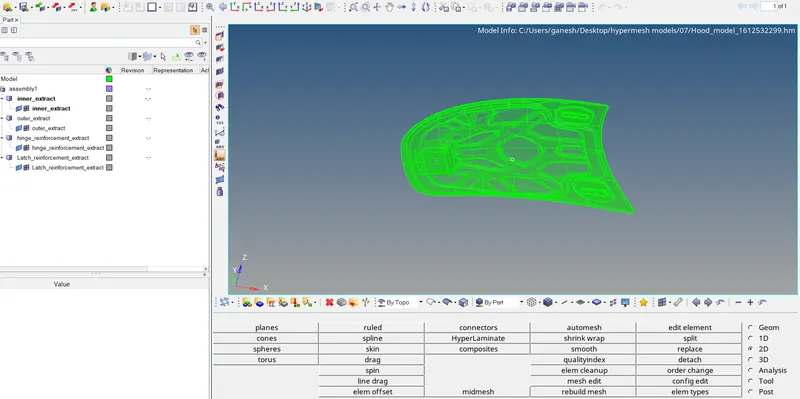

1. Initialy file is imported and converted into topological view as ,

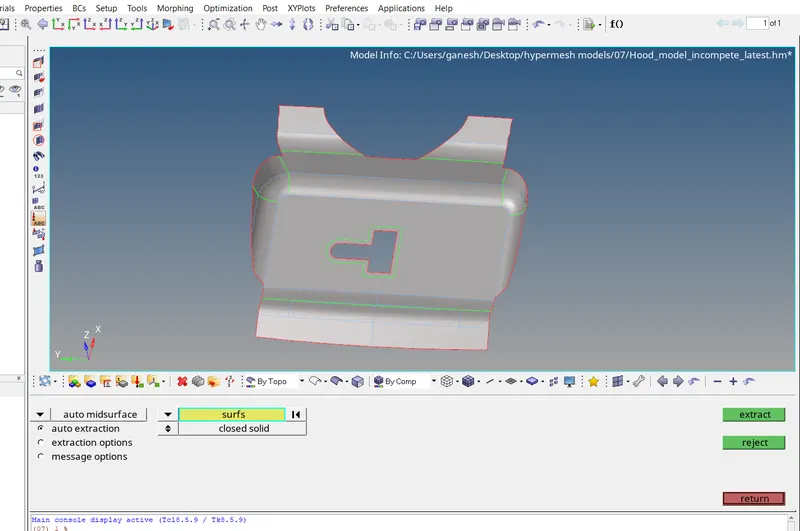

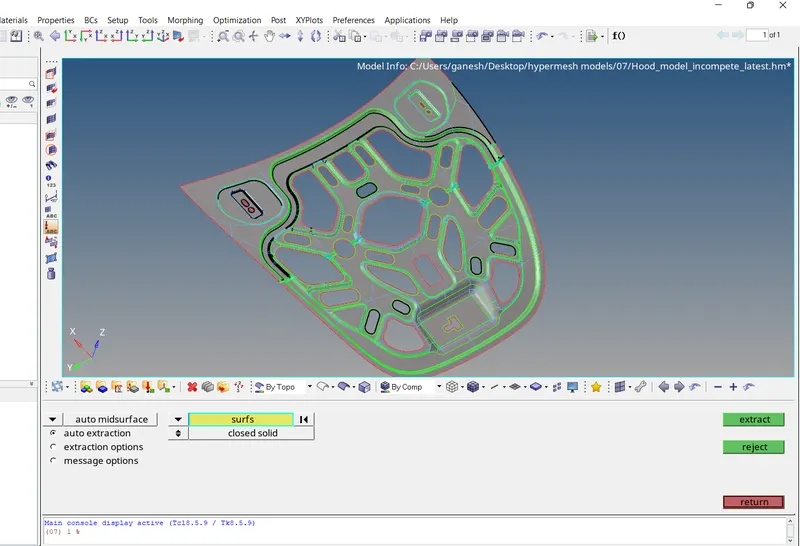

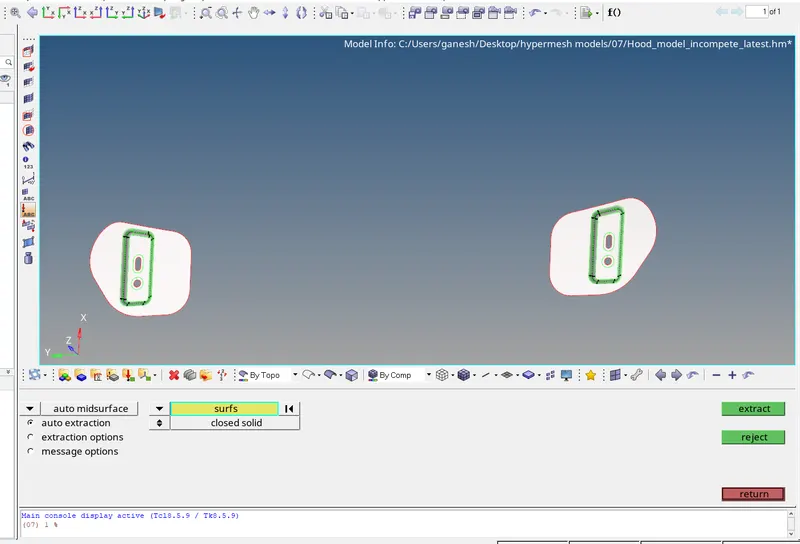

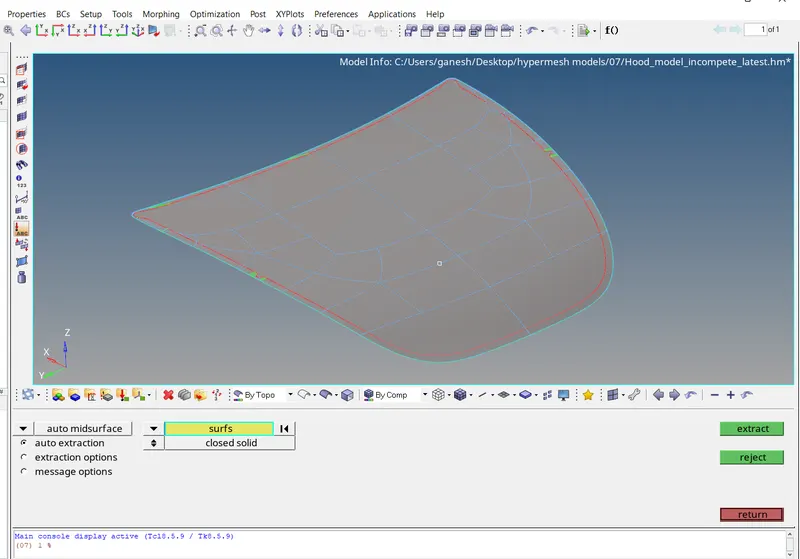

2. Then solid is deleted and Mid surface is extracted for each componant separately using the Geom - Midsurface - automidsurace Tool .

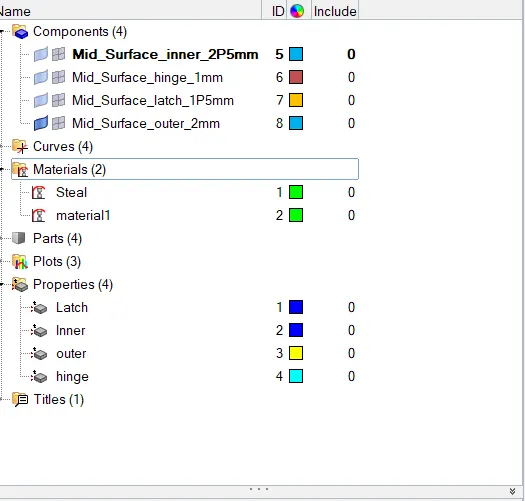

3. For each mid surface componant Material , Property and Thickness is assigned .

4. Then Geometry clean up is done using the Geom - Autocleanup Tool for each componant separately .

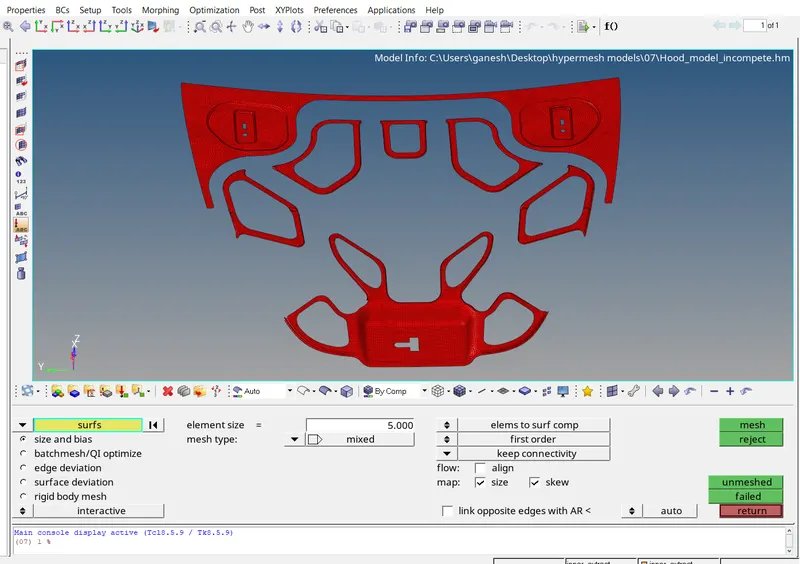

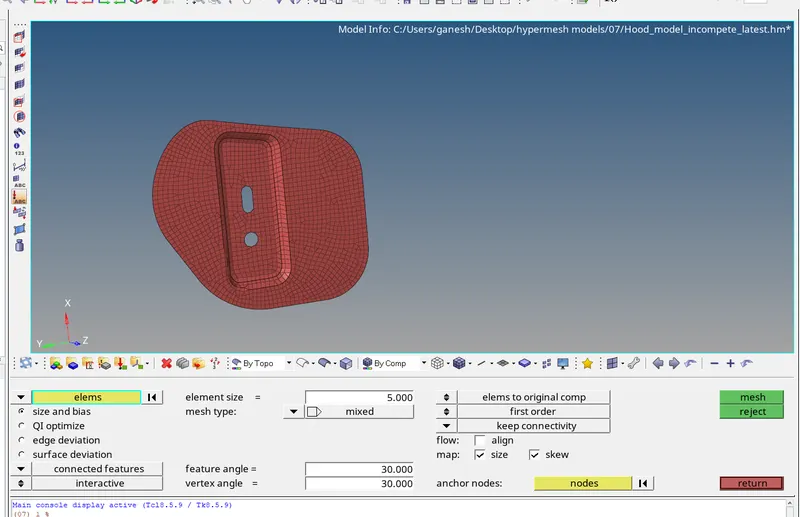

5. Firstly Meshing is done of Hing componant using Geom - mid-surface Tool with Targeted Elemenet size of 5 units as ,

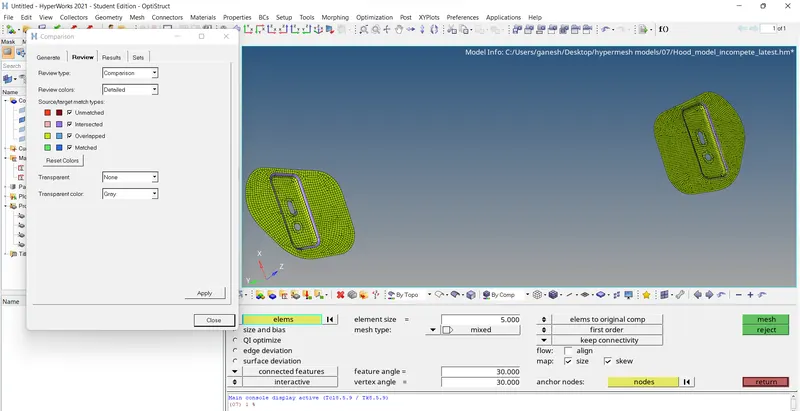

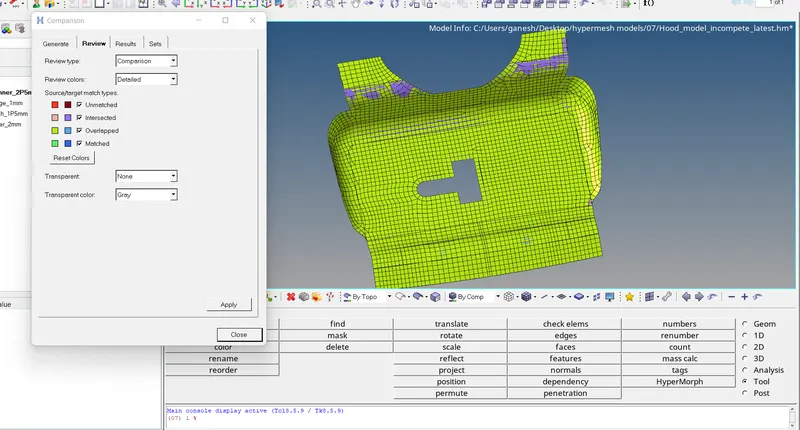

6. The Comparison of Hing componant for Element with Surface can be seen below as,

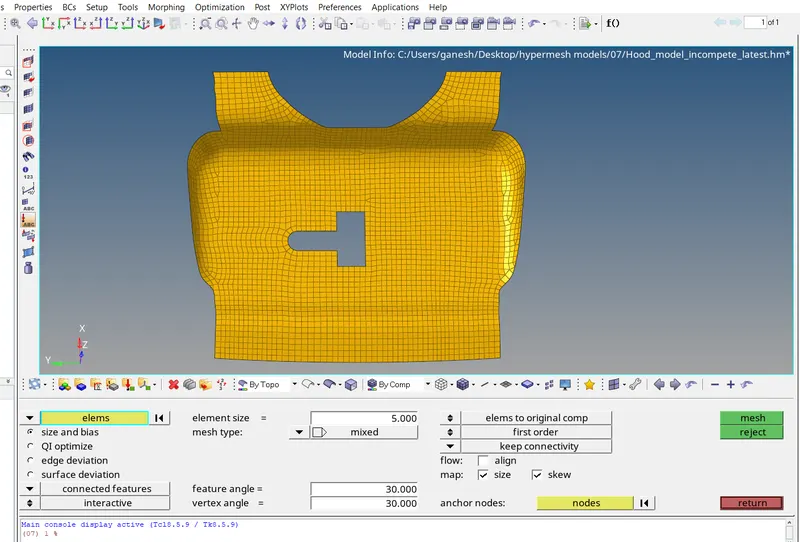

7. Meshing of Latch is done using the Element length of 5 units and then Mesh comparison also can be seen below for Elements and surface of Latch as ,

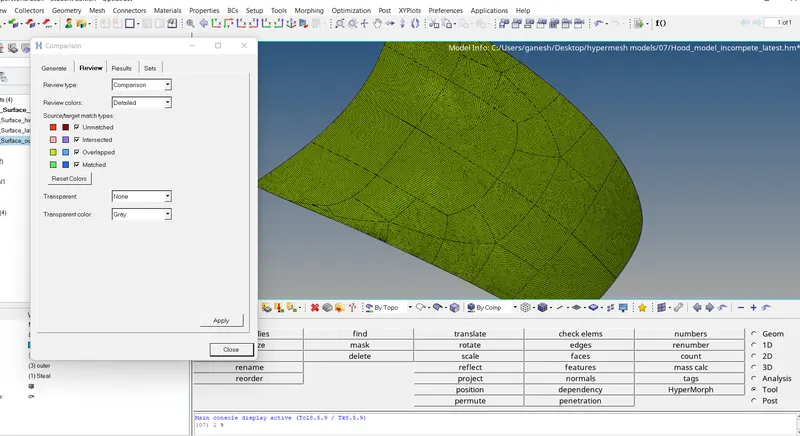

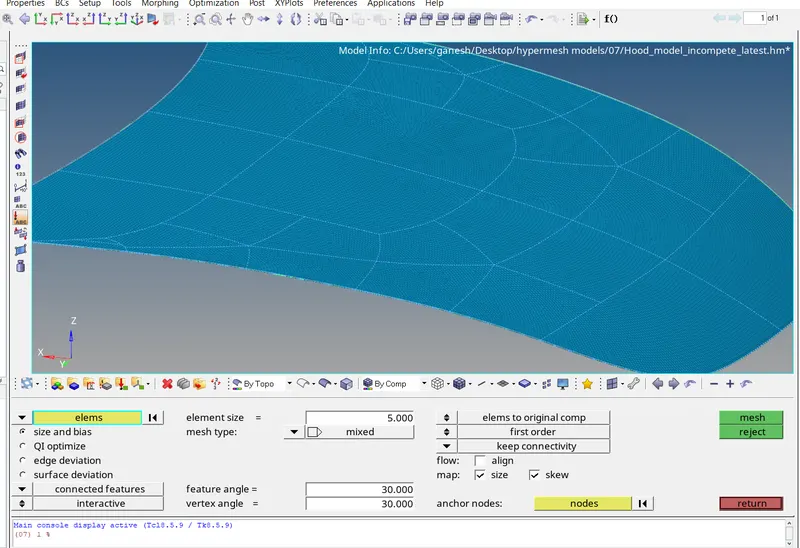

8. The Meshing of Upper extract componant of Hood using Element size of 5 units and the Mesh comparison between Elements and surface also can be seen below ,

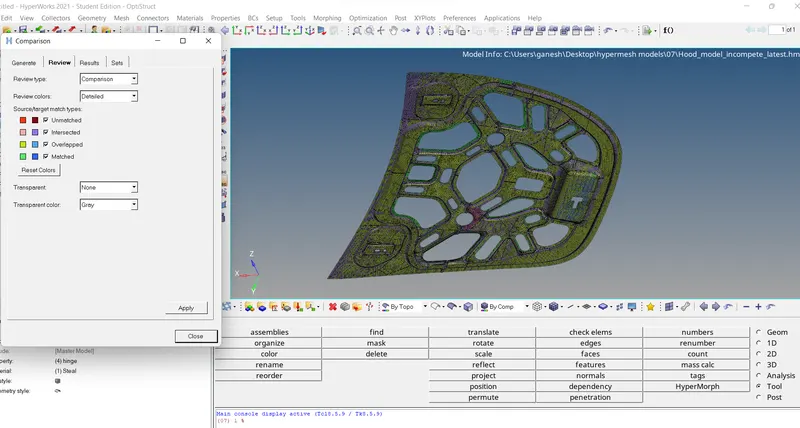

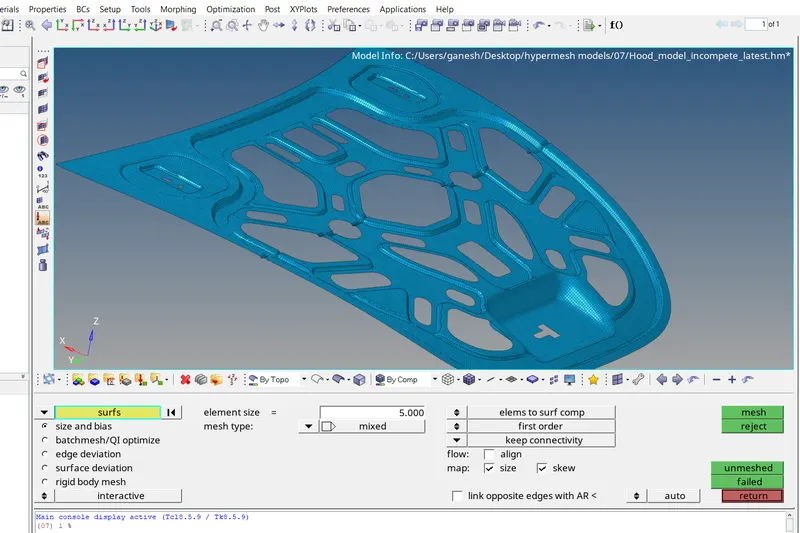

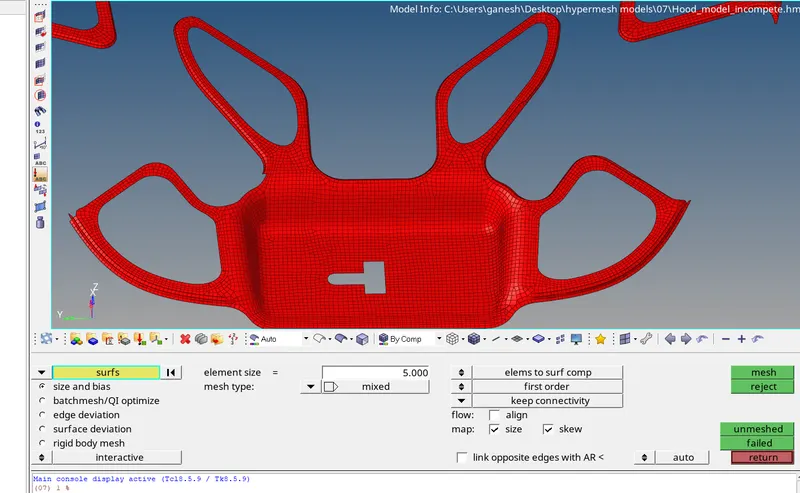

9. Meshing of Inner extract componant of Hood is done step by step choosing surface bu syrface for meshing using element length of 5 units and the Mesh comparison is also done between the Elements and surface as ,

RESULT :

1. Element Ckeck is done for each given componants with 0 failure .

2. The final result can be seen in below attached .
