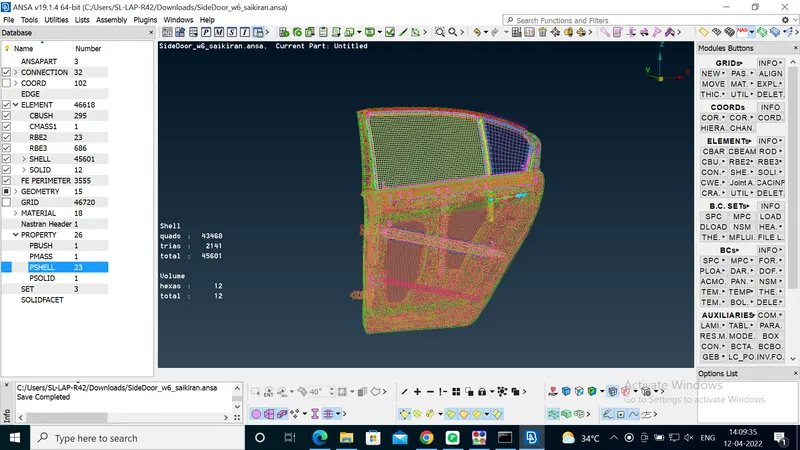

Week 6 - Creating connection for Rear door

Aim: To connect the model of the door assembly.

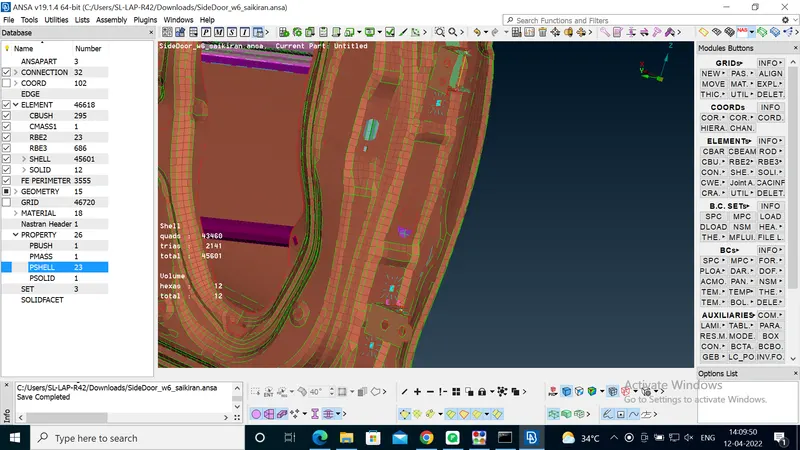

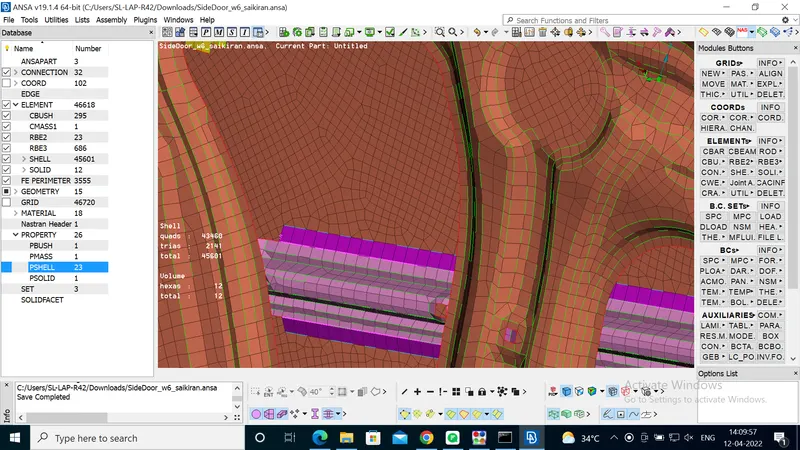

Procedure : Bolts, seam welds and spot welds are used to connect the components of the model accordingly .

Weather band is glued with spot line.

Free edges and overlapping shells are spot welded or seam welded at 45 degrees.

Bolt holes are connected using RBE2 elements for Head, thread and body.
