Week 6:- Clamp Unit & Pin-Clamp Unit Design Challenge
Week - 6 Clamp Unit Design
Parts that are required for Swivel Clamp Unit are:
- Clamp Cylinder:

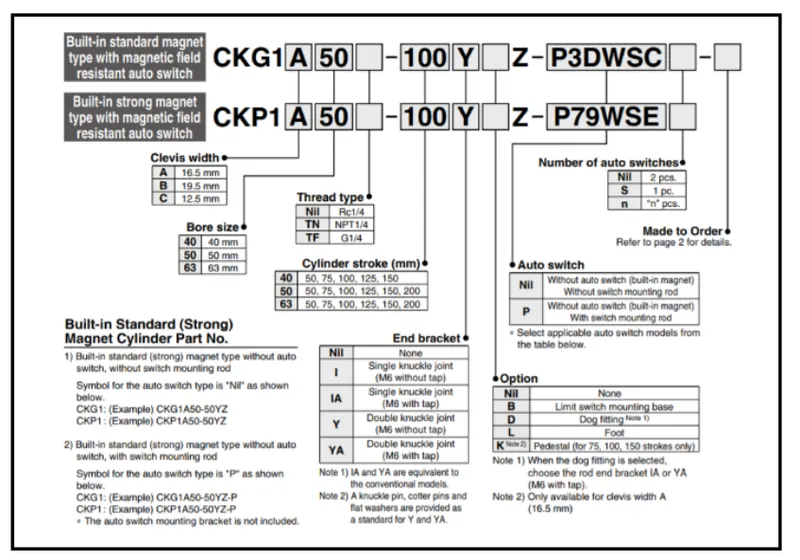

Configurations of the clamp cylinder are:
CKG1: Series of cylinder
B: Clevis width as 19.5 mm.
63: Bore size
100: Stroke of cylinder

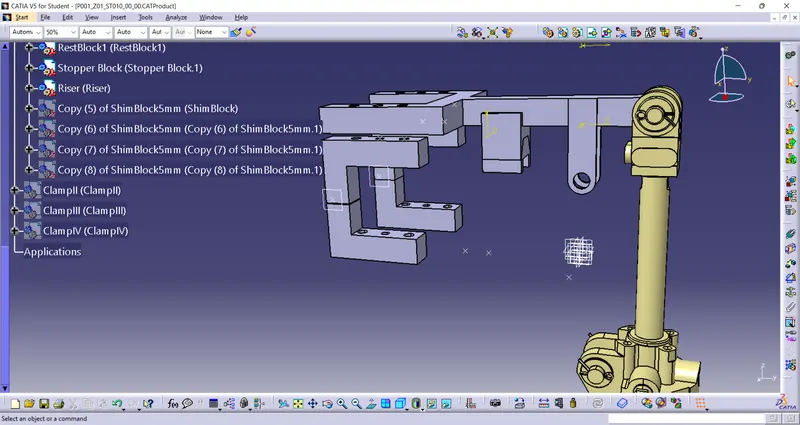

- Clamp Arm:
The clamp arm should be designed considering the stroke length of the cylinder. It also needs to accommodate clamp mylars, stopper block, and shims.
- Clamp and Rest Mylars.
- Shim

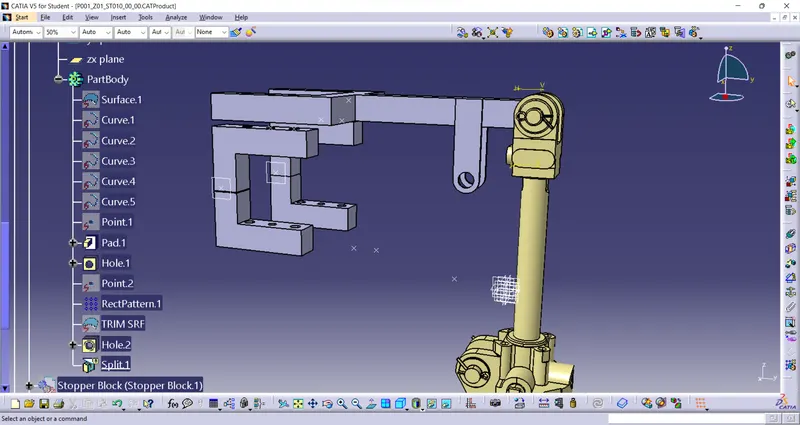

- Stopper Block

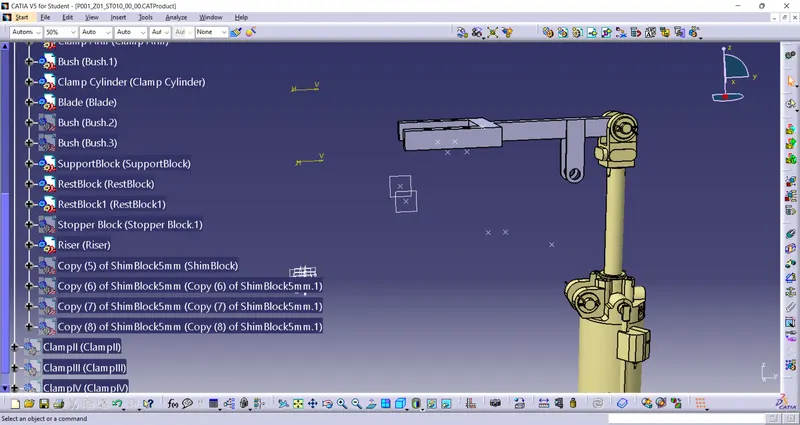

- Blade
Blade helps in connecting clamp arm, Cylinders, and riser together.

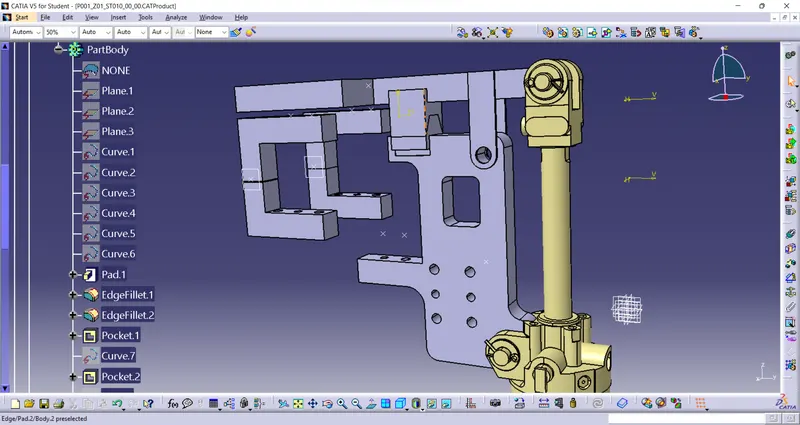

- Riser
L type Welded part that connects the base and the blade.

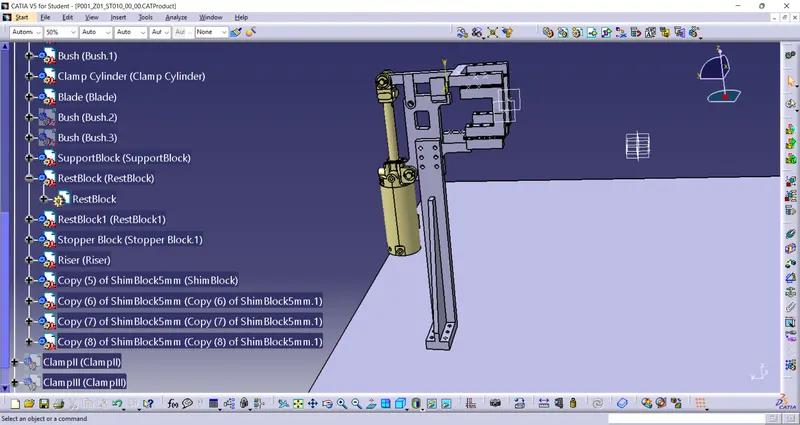

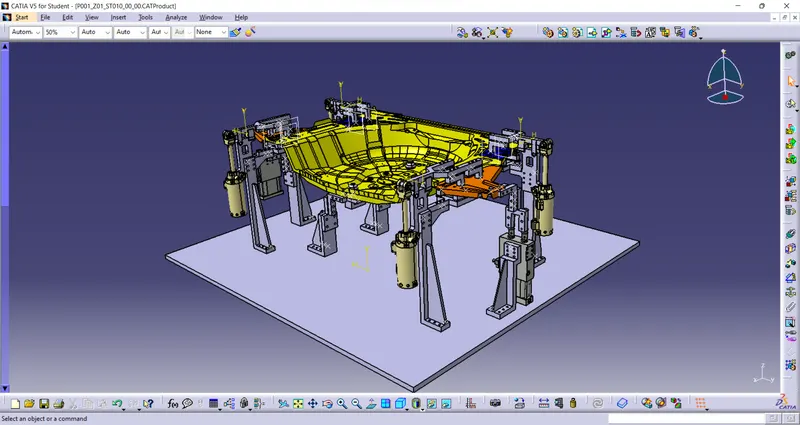

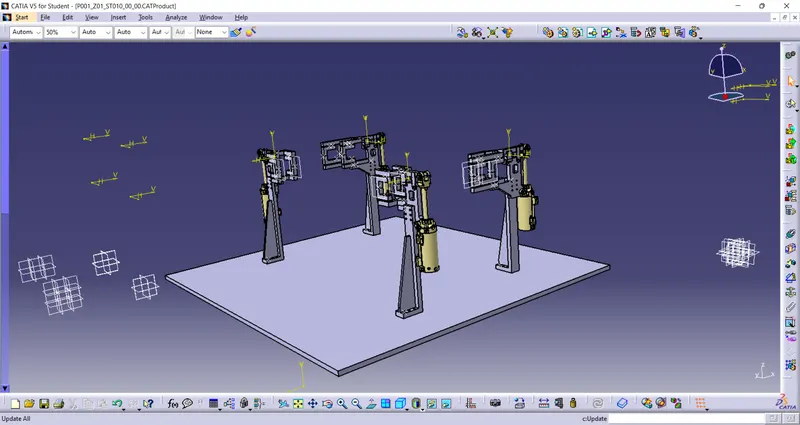

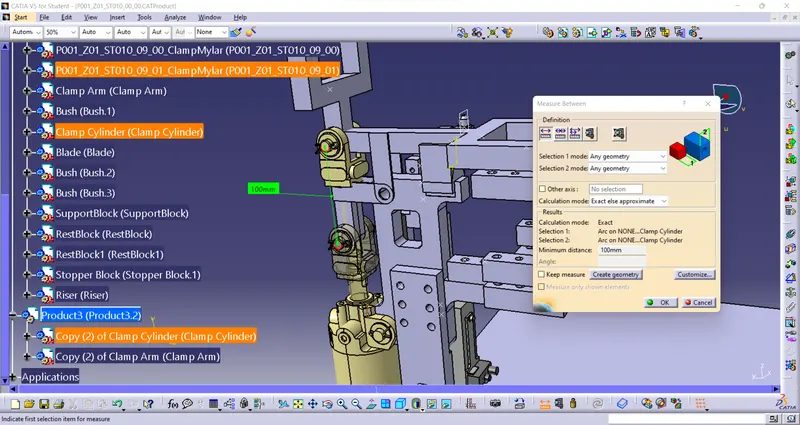

Final Assembly:
