Week 6- Challenge

OBJECTIVE:

To mesh the component given below and assign thickness in below-mentioned quality criteria.

Target Element Length = 5mm

S.N	Quality Criteria	Value
1	Aspect Ratio	5
2	Skewness	45
3	Warping	15
4	Taper	0.5
5	Min. Length	2mm
6	Max. Length	8mm
7	Min angle Quad	45
8	Max angle Quad	135
9	Min angle Tria	20
10	Max angle Tria	120
10	Tria %	10

CAD MODEL:

Hood.

1. Inner extract body.
2. Outer extract body.
3. Hinge reinforcement extract body 1
4. Hinge reinforcement extract body 2
5. Latch reinforcement extract body 1

PROCEDURE:

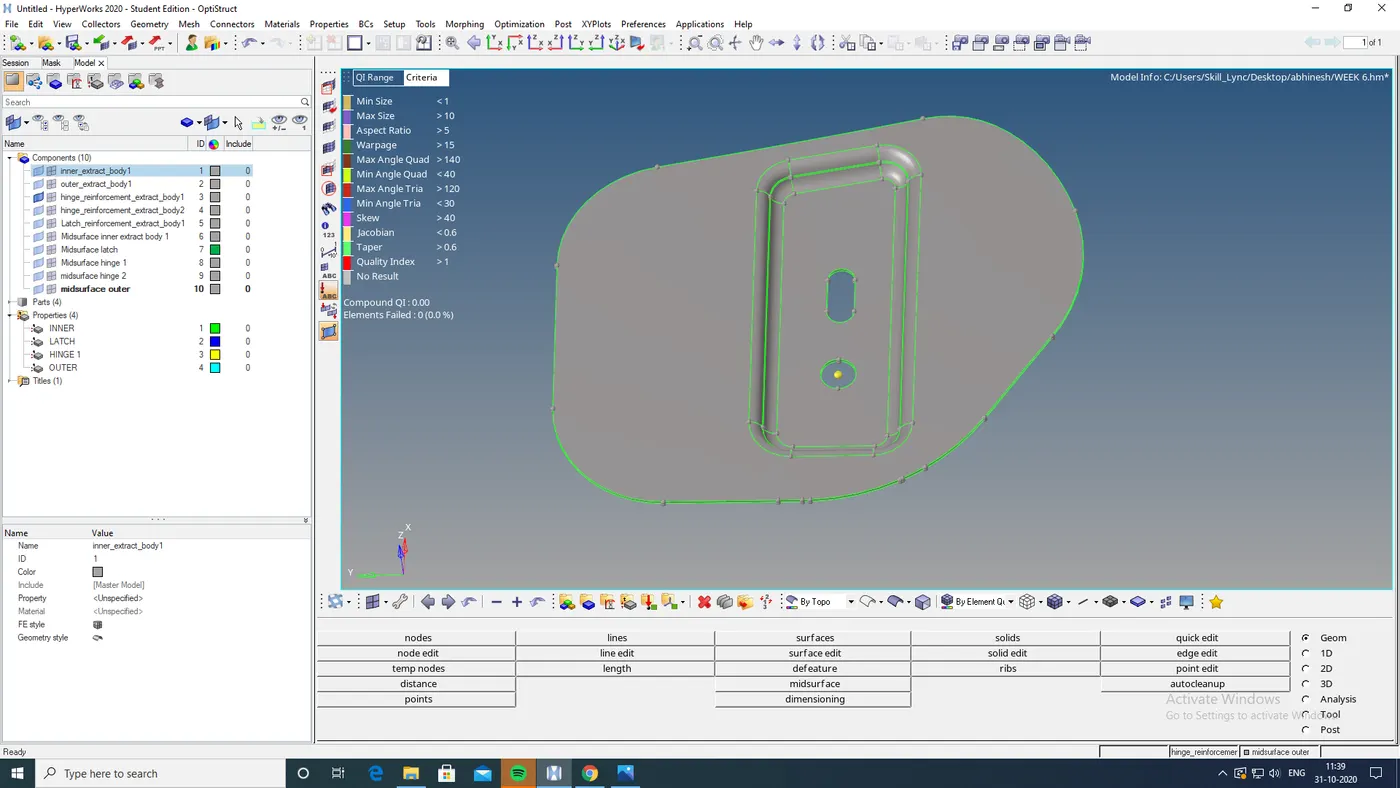

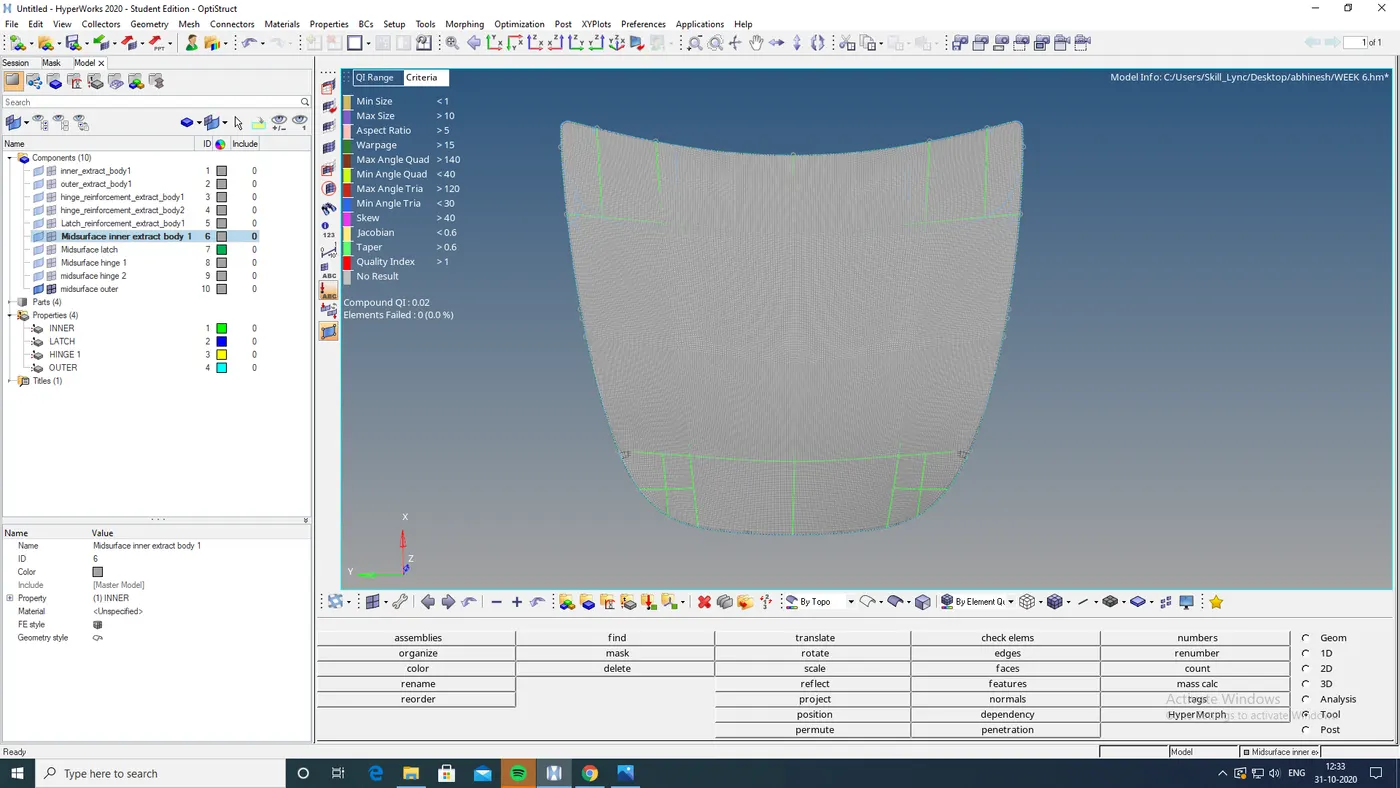

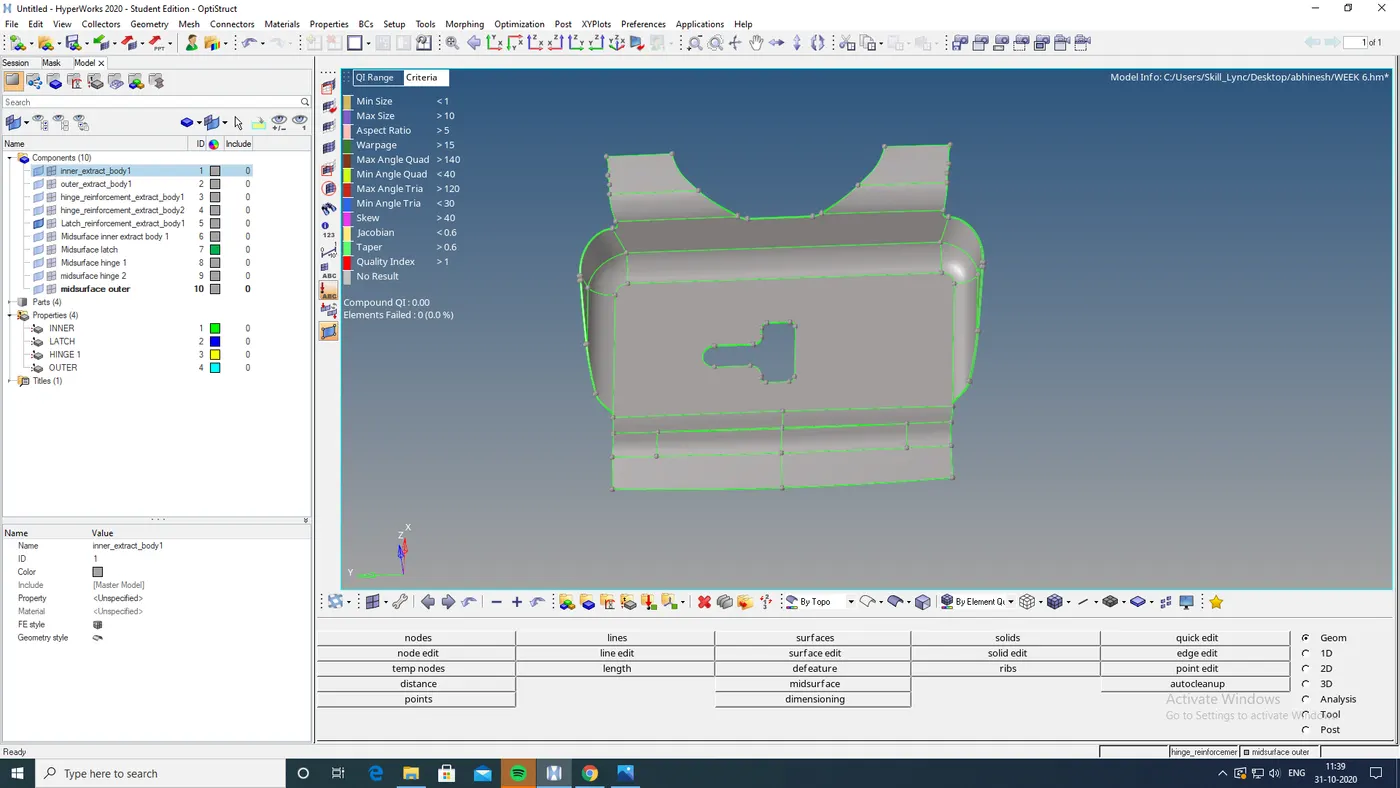

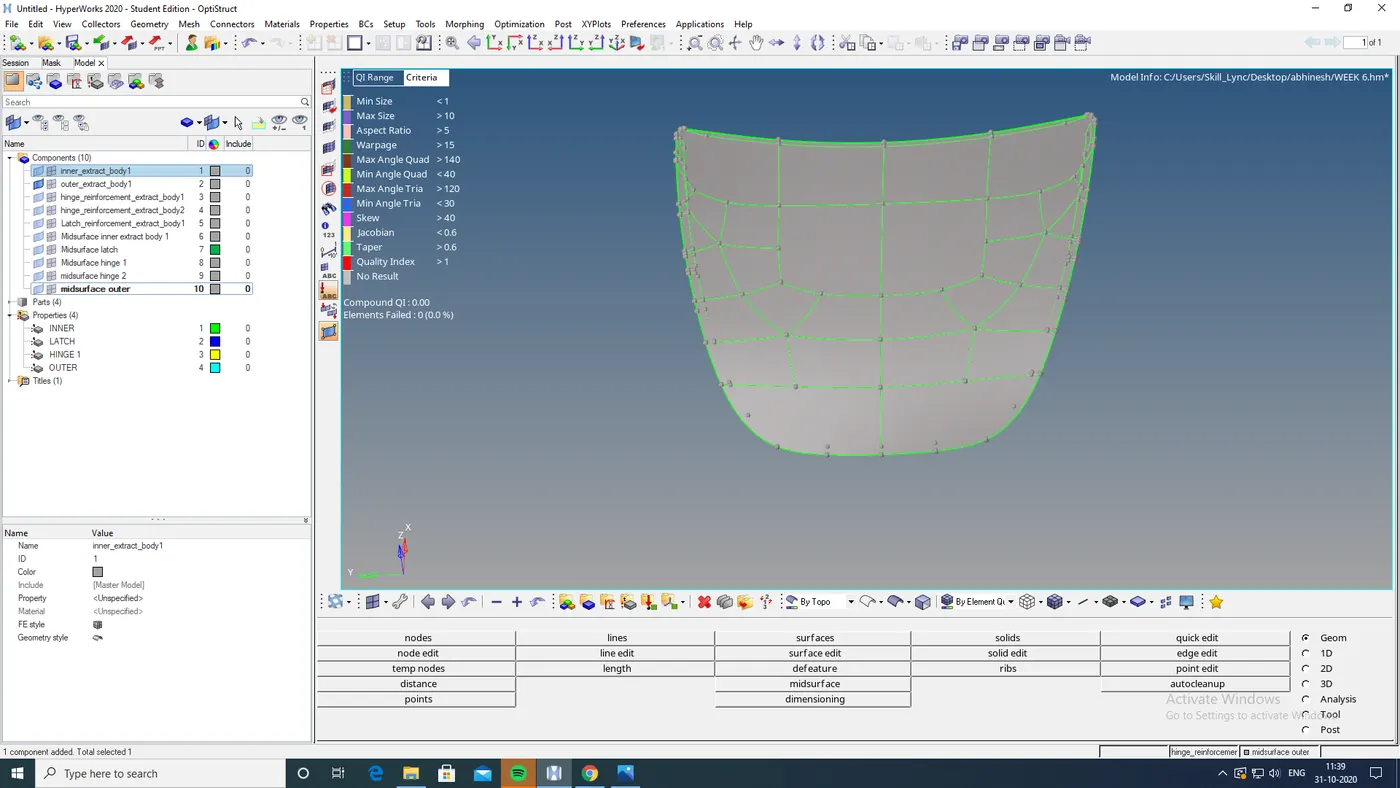

• First i deleted the soleds and i extracted the midsurface seperatly for each parts

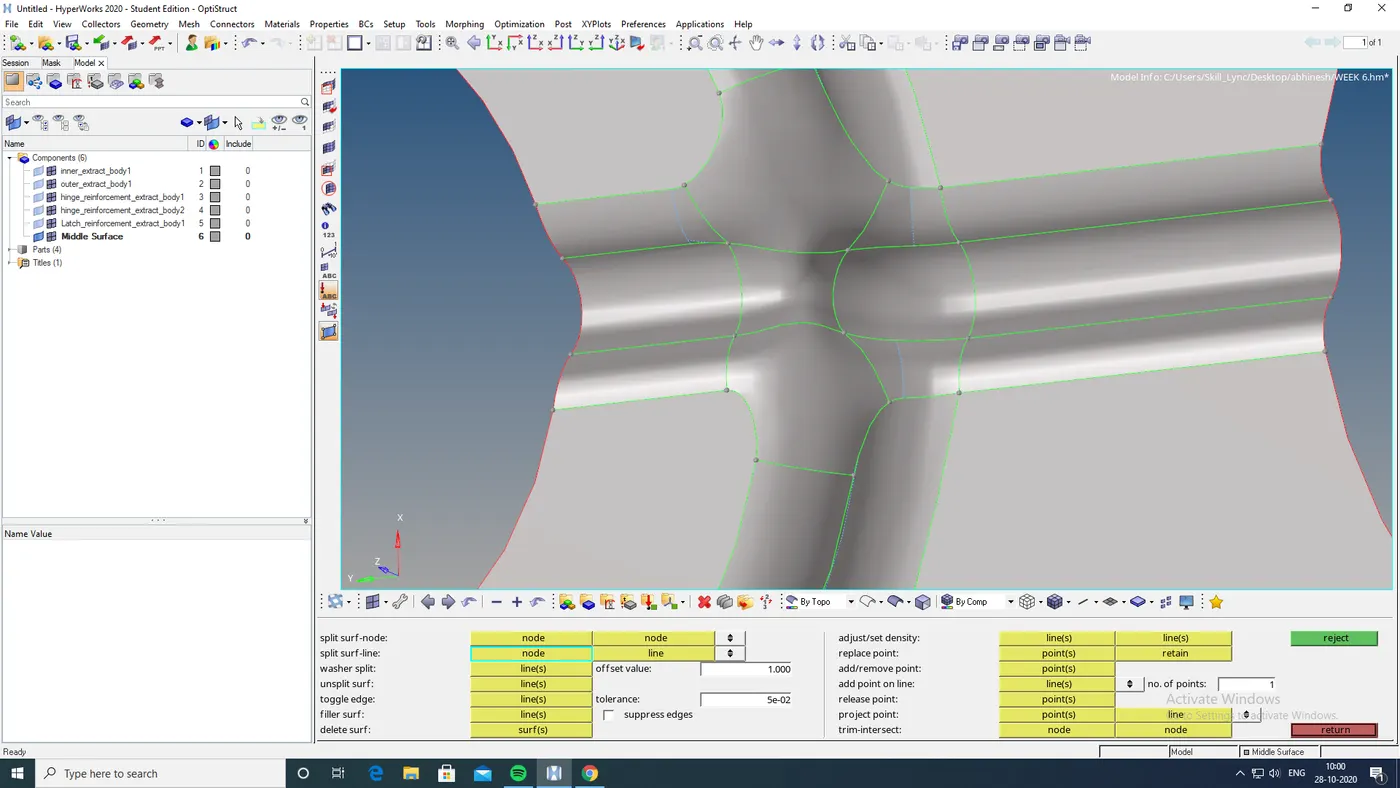

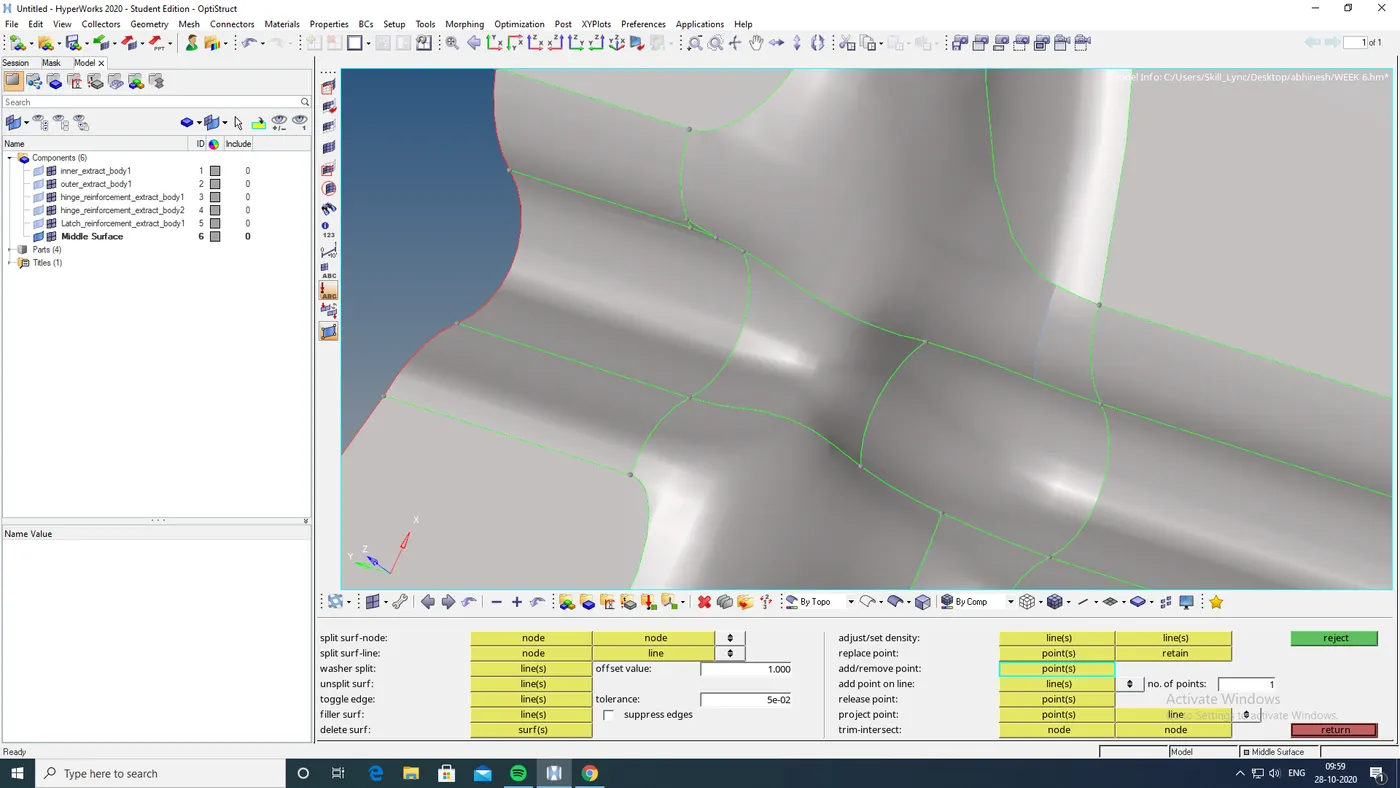

• Then i done the geometry clean up of all the section seperatly.

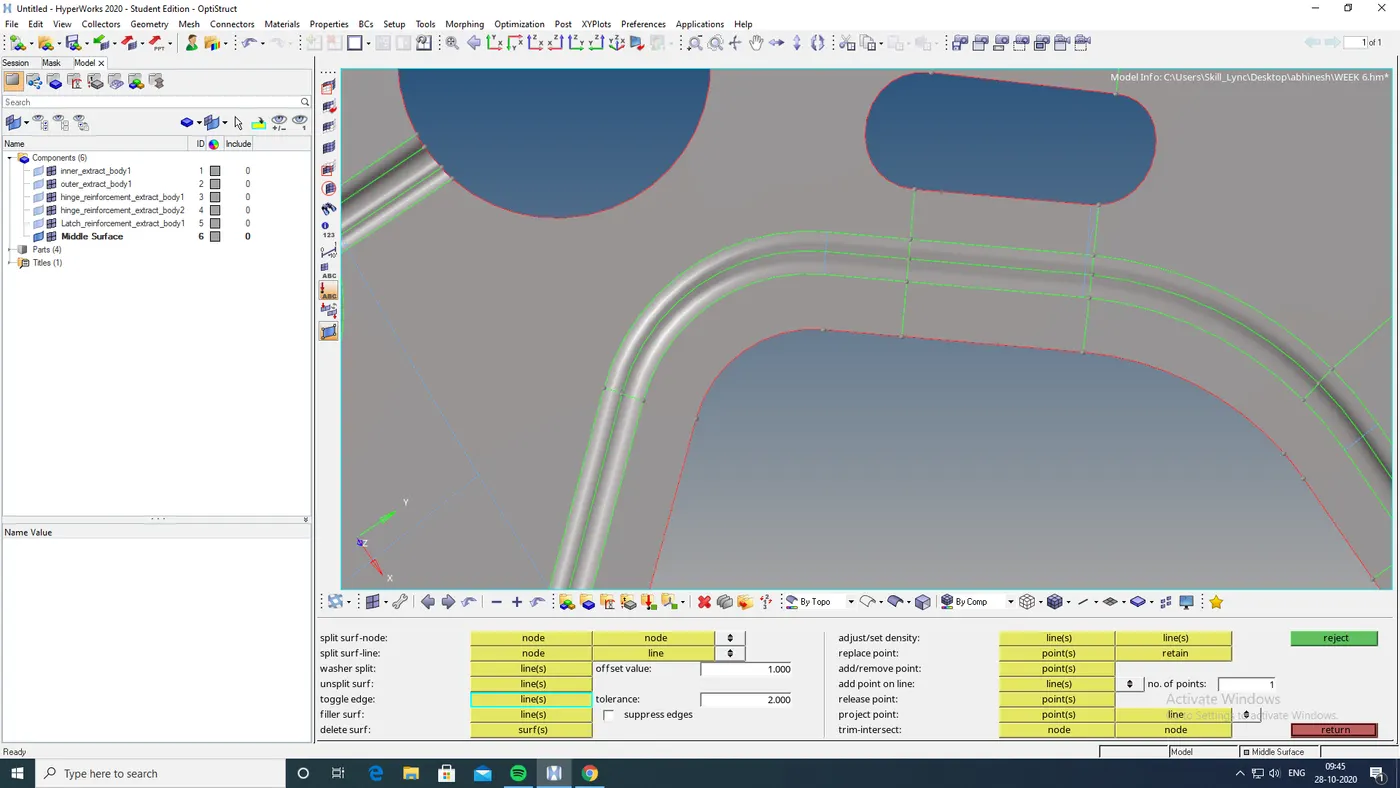

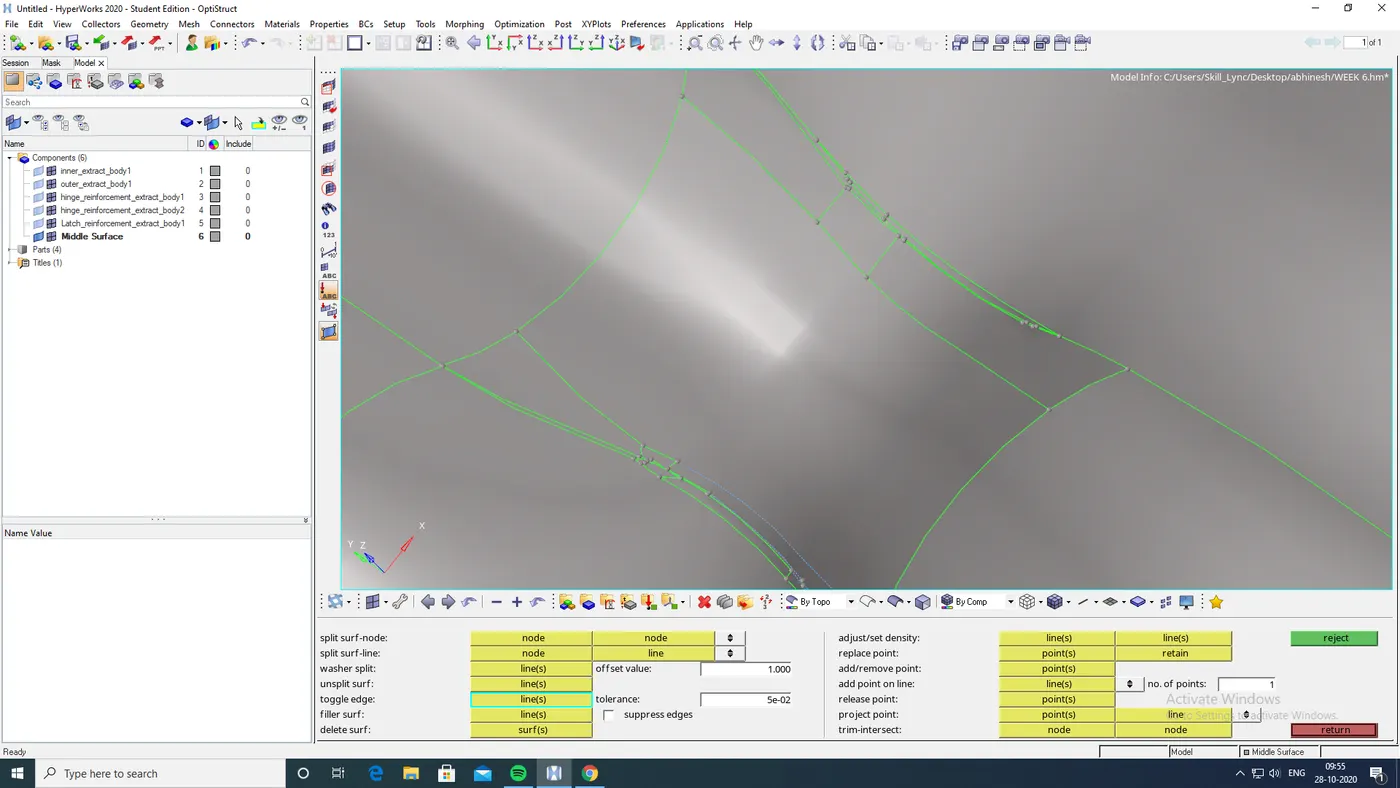

• inorder to do the geometry cleanup i toggled some unwanted lines and and given lines to specific area which need features.
•
•
•
•
• Then i deleted the outer and inner extract body into two and deleted the half of it as they are in symmetry at both sides
• After the completing of the geommetry clean up of each parts then i started meshing in each component.
• Before meshing i gave the creitera given for meshing as target length of the element 5.

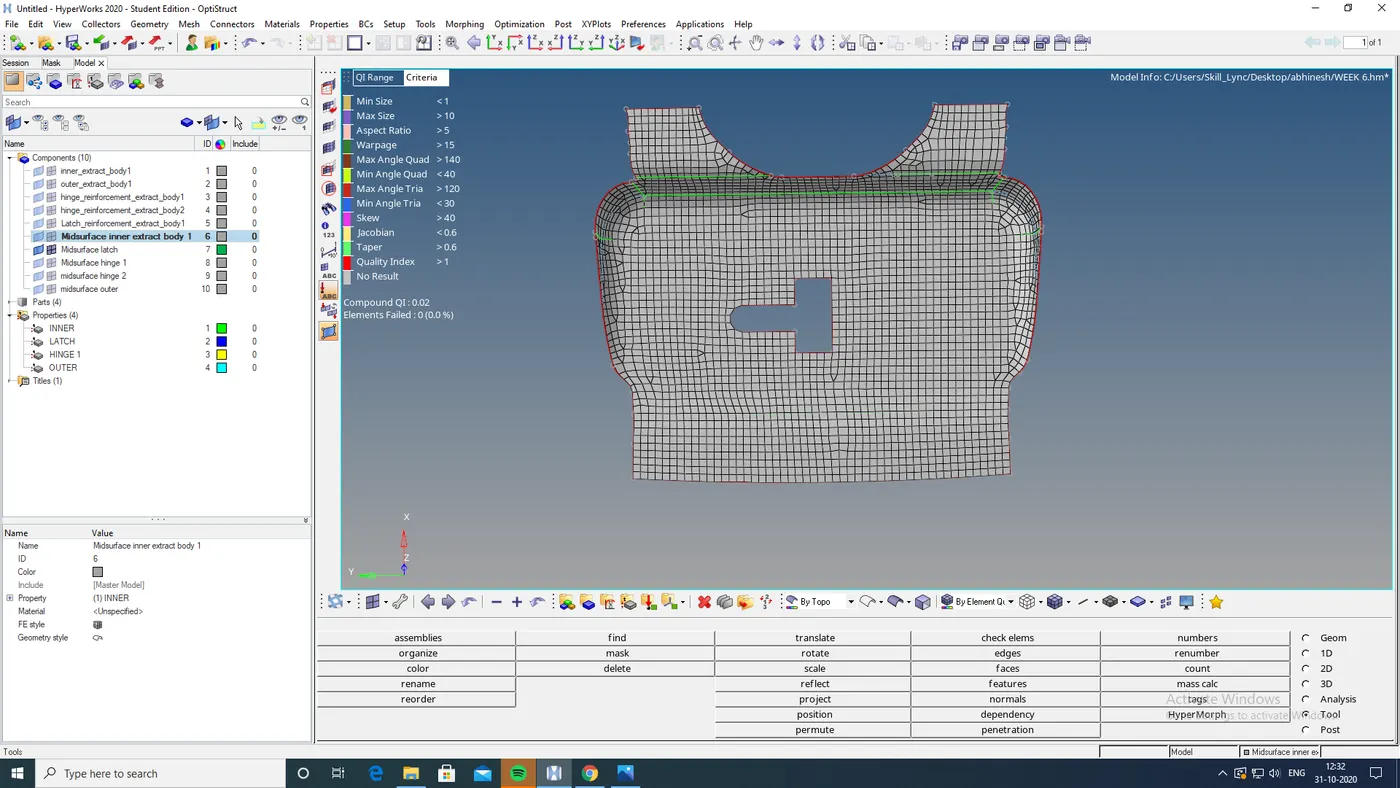

• Then i cleared all the elements errors as per given in the crietera in the meshing

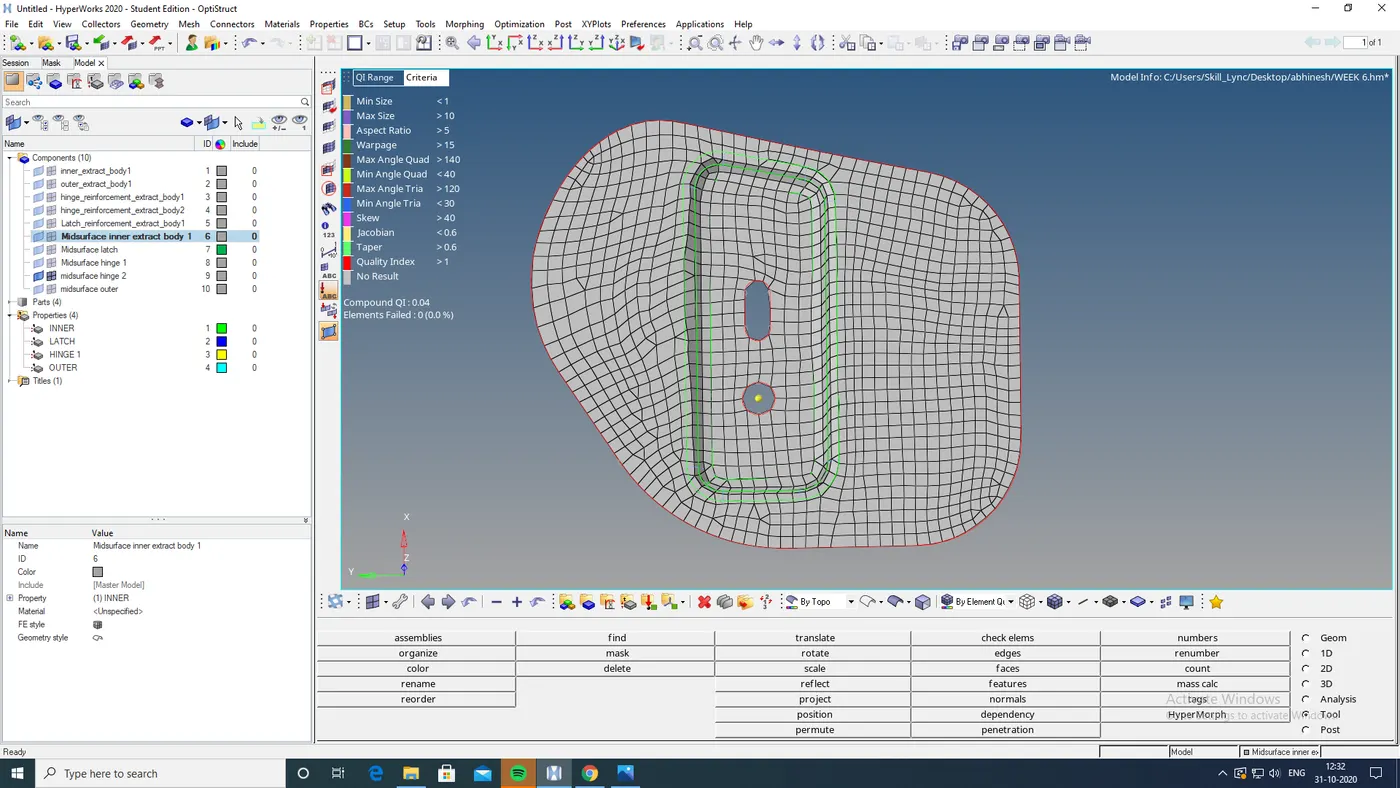

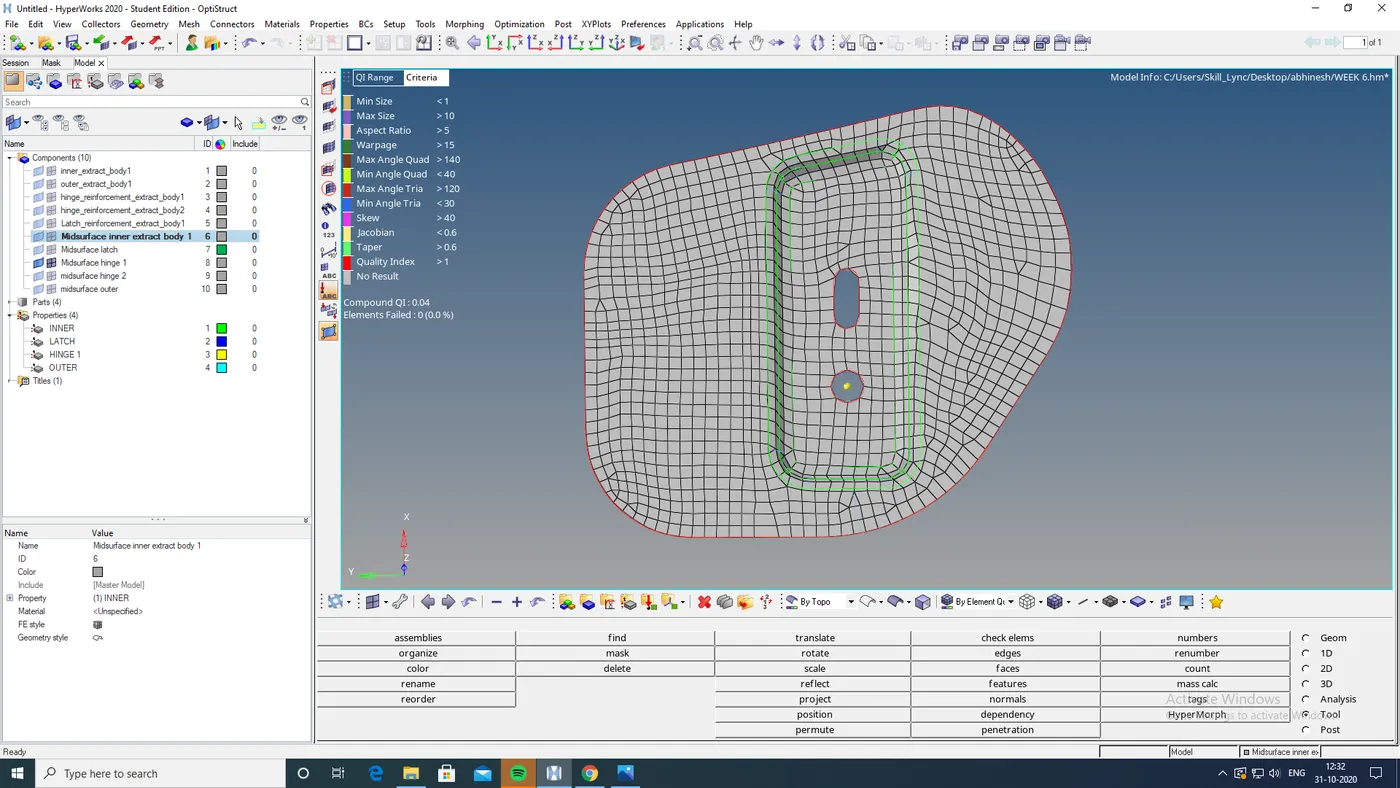

• Then i got a cleared mesh with zero errors as per following the crieteria.
• Then i duplicated the cuted half for outer and inner and duplicated the elements
• After then i equelenced the elements and toggled the free edges.
• And i given the thickness of the parent component to the meshed midsurface part so that i get a cleared component with zero errors and with the thckness.

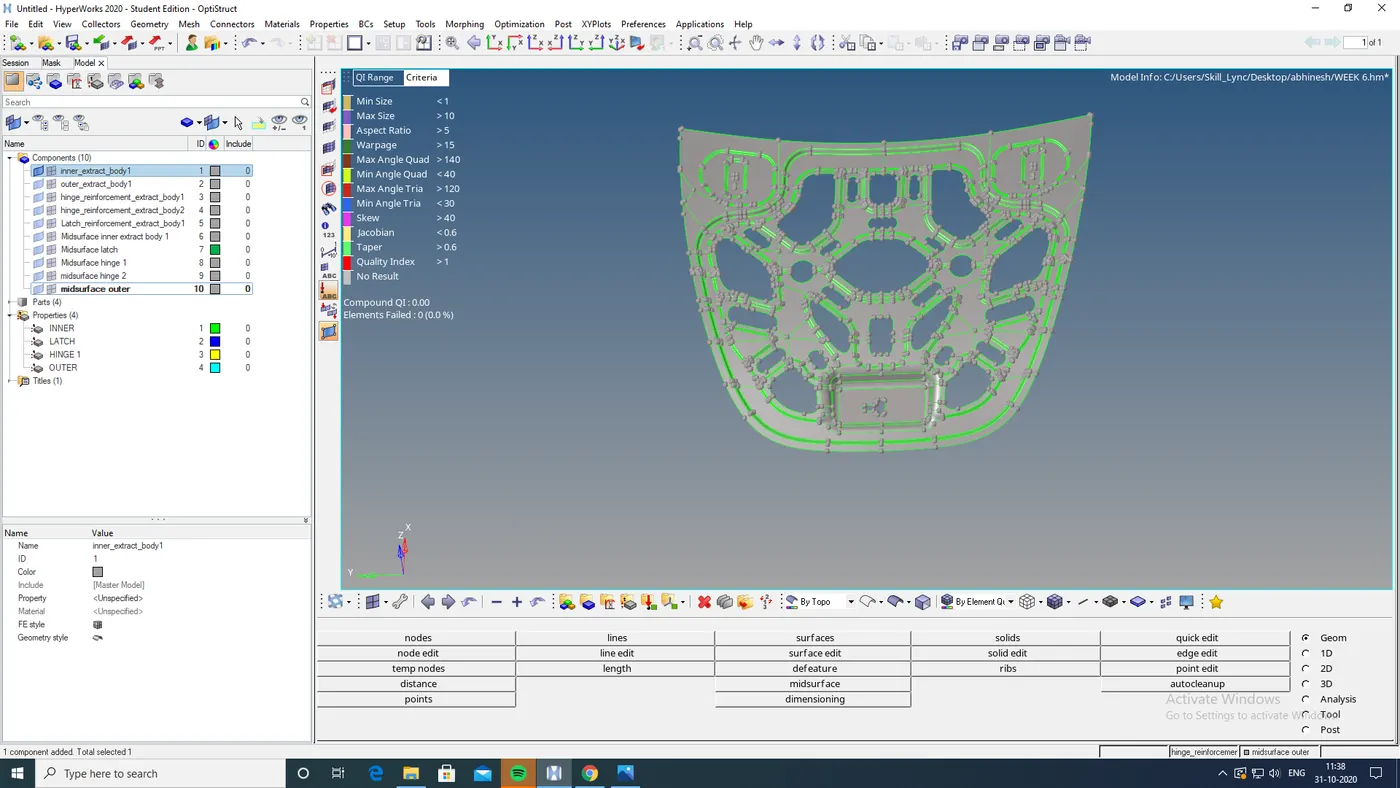

FINEL MODEL:

RESULT:

Meshed the given component given and assigned the thickness as mentioned in quality criteria.
