Week 6- Challenge

OBJECTIVE:

Follow the below-mentioned quality criteria, mesh the component given below and assign thickness:

Target Element Length = 5mm

S.N	Quality Criteria	Value
1	Aspect Ratio	5
2	Skewness	45
3	Warping	15
4	Taper	0.5
5	Min. Length	2mm
6	Max. Length	8mm
7	Min angle Quad	45
8	Max angle Quad	135
9	Min angle Tria	20
10	Max angle Tria	120
11	Tria %	10

CAD IMAGES:

STEP 1: IMPORT THE STEP FILE GEOMETRY AND START WITH MIDSURFACE EXTRACTION OF THE FIRST COMPONENT OUTER BODY EXTRACT.

OBJECTIVE:

Follow the below-mentioned quality criteria, mesh the component given below and assign thickness:

Target Element Length = 5mm

S.N	Quality Criteria	Value
1	Aspect Ratio	5
2	Skewness	45
3	Warping	15
4	Taper	0.5
5	Min. Length	2mm
6	Max. Length	8mm
7	Min angle Quad	45
8	Max angle Quad	135
9	Min angle Tria	20
10	Max angle Tria	120
11	Tria %	10

CAD IMAGES:

STEP 1: IMPORT THE STEP FILE GEOMETRY AND START WITH MIDSURFACE EXTRACTION OF THE FIRST COMPONENT OUTER BODY EXTRACT.

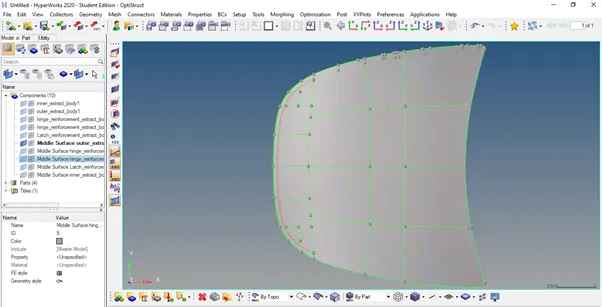

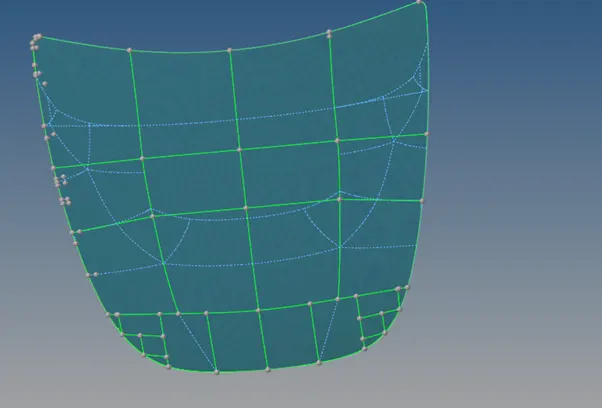

STEP 2: AFTER EXTRACTING THE MIDSURFACE SPLIT THE SURFACE USING SPLIT SURFACE NODE OPTION IN THE GEOM- QUICK EDIT OPTION.

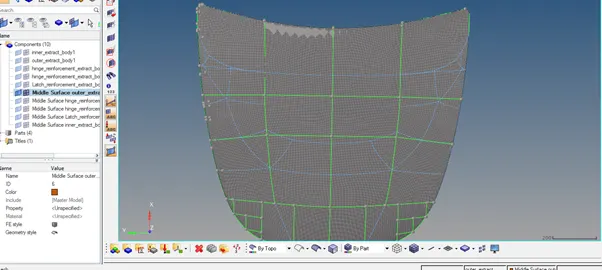

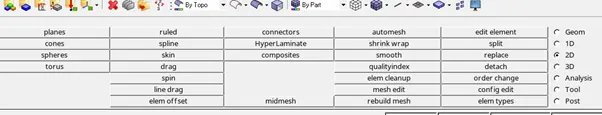

STEP 3: MESH EACH SURFACE BY USING F12 COMMAND AND ELEMENT SIZE BE 5 UNIT

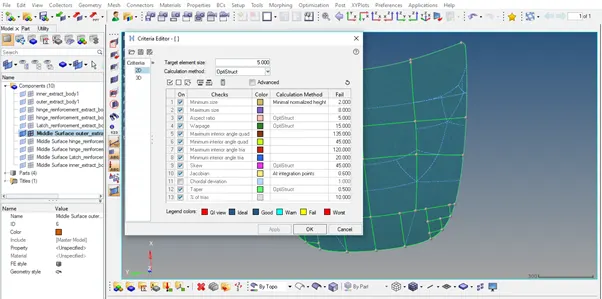

STEP 4: INSERT ALL QUALITY CRITERIA AS PER THE CHALLENGE REQUIREMENT

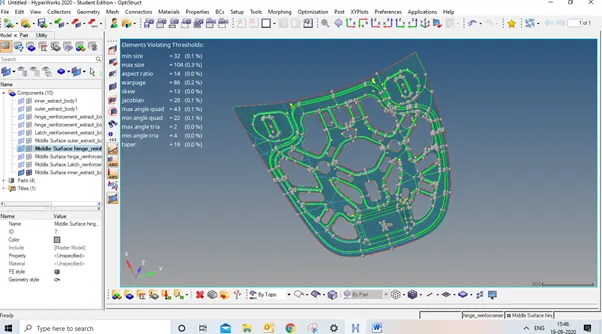

STEP 5: CHECK FOR QUALITY CRITERIA

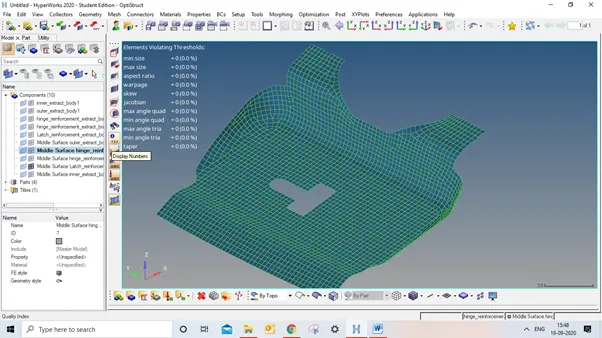

STEP 6 : FOLLOW ALL THE QUALITY CRITERIA NORMS AVOID ANY FALIURE OF ELEMENTS

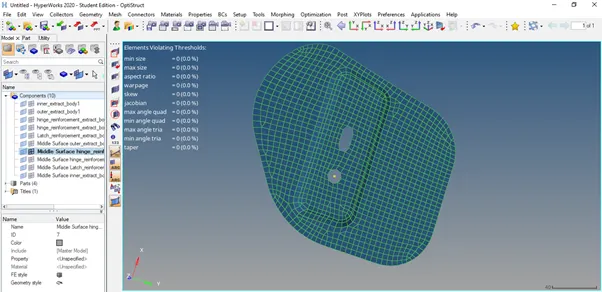

STEP 7 : FOLOW STEP 2 TO 6 FOR THE OTHER COMPONENTS AS LATCH AND HINGE AND OUTER BODY EXTRACT. GENERATE MIDSURFACE DO GEOMETRY CLEANUP AND MESHING
