Project 2
OBJECTIVE:
Follow the below-mentioned quality criteria, mesh the component given below and assign thickness:
Target Element Length = 5mm
| S.N | Quality Criteria | Value |
| 1 | Aspect Ratio | 5 |
| 2 | Skewness | 45 |
| 3 | Warping | 15 |
| 4 | Taper | 0.5 |
| 5 | Min. Length | 2mm |
| 6 | Max. Length | 8mm |
| 7 | Min angle Quad | 45 |
| 8 | Max angle Quad | 135 |
| 9 | Min angle Tria | 20 |
| 10 | Max angle Tria | 120 |
| 10 | Tria % | 10 |
STEP1 : IMPORT MODEL

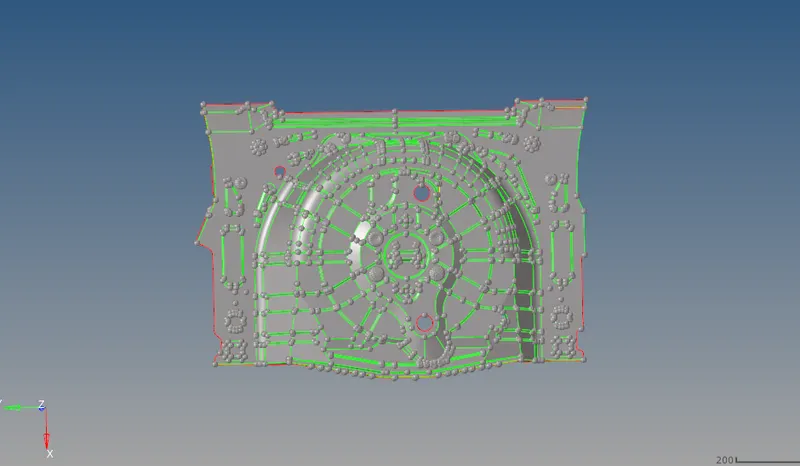

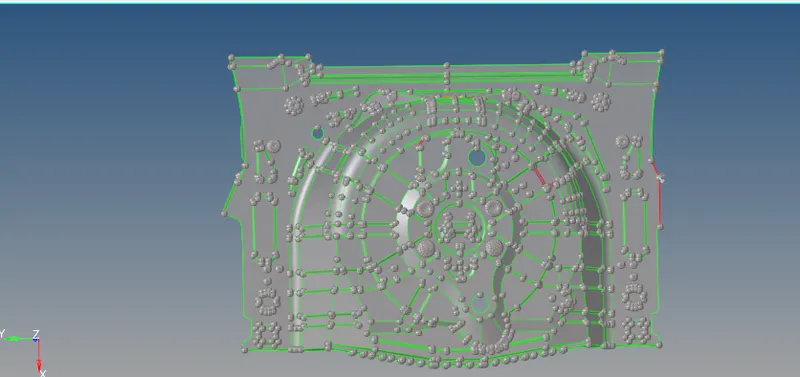

STEP 2: GENERATE MIDSURFACE AND PROPER GEOMETRY CLEANUP

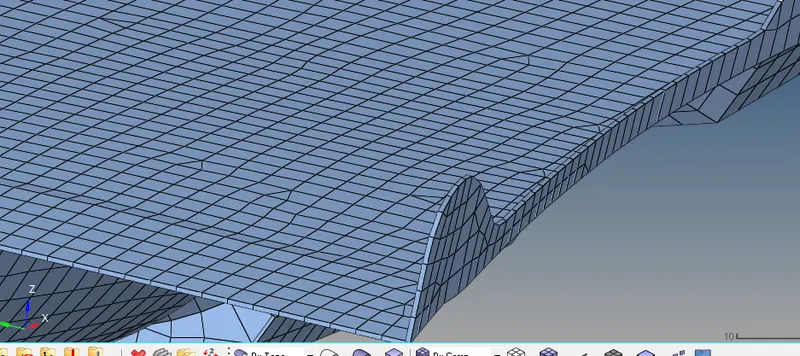

STEP3:MESHING THE SURFACE AS PER REQUIRED QUALITY CRITERIA.

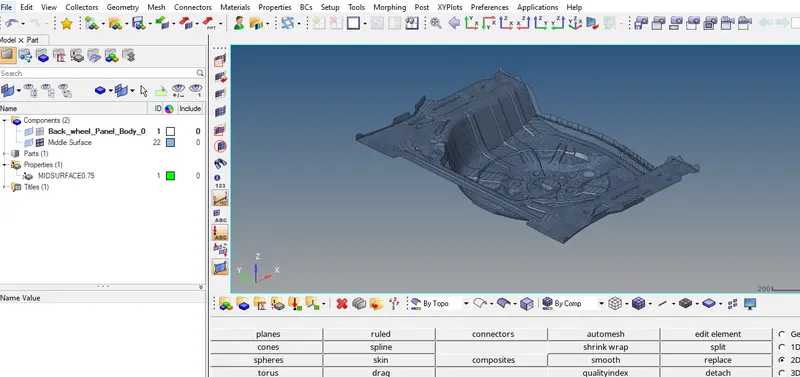

STEP4: ASSIGN THICKNESS BY CREATING PROPERTY

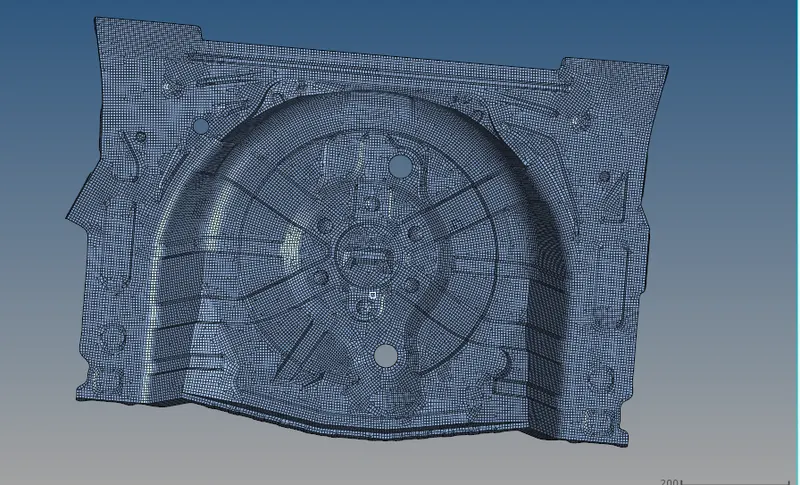

FINAL IMAGE OF THE PROJECT.
