Week 12 - Project-1
OBJECTIVE
ASSIGN THICHNESS TO ELEMENTS AS PER GEOMETRY.
Follow the Quality Criteria and mesh the following component and assign thickness:
Target Element Length = 4mm
| S.N | Quality Criteria | Value |
| 1 | Aspect Ratio | 5 |
| 2 | Skewness | 45 |
| 3 | Warping | 15 |
| 4 | Taper | 0.5 |
| 5 | Min. Length | 2mm |
| 6 | Max. Length | 6mm |
| 7 | Min angle Quad | 45 |
| 8 | Max angle Quad | 135 |
| 9 | Min angle Tria | 20 |
| 10 | Max angle Tria | 120 |
| 10 | Tria % | 10 |
CAD MODELS AND IMAGES

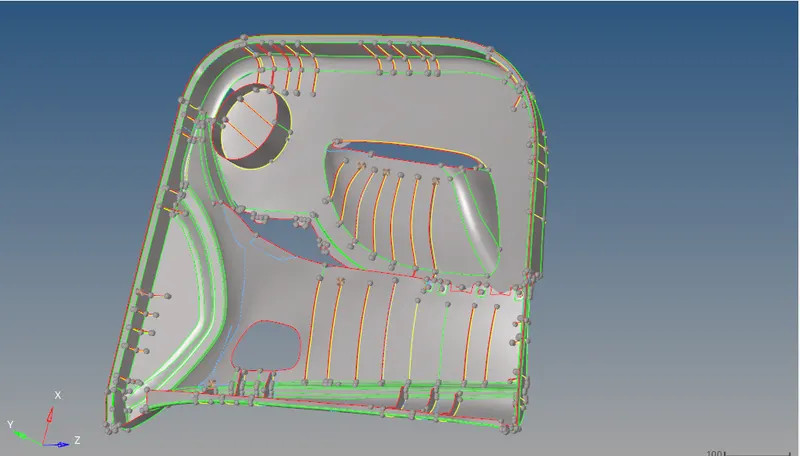

STEP:1 IMPORT SURFACE AND DO PROPER GEOMETRY CLEANUP

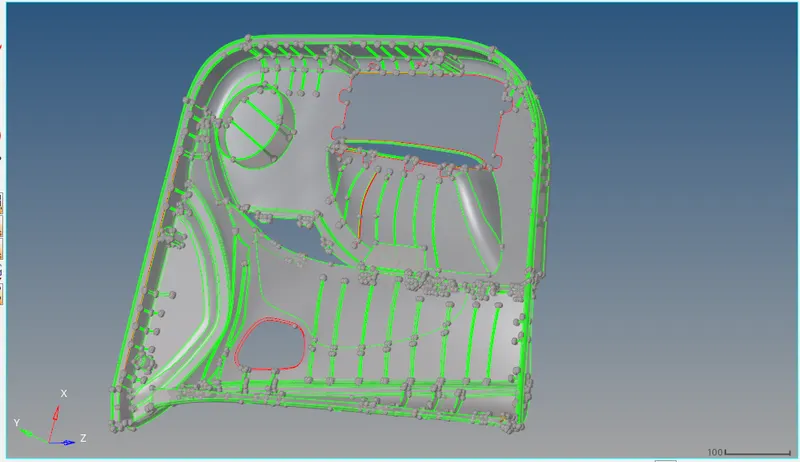

STEP:2 EXTRACT MIDSURFACE

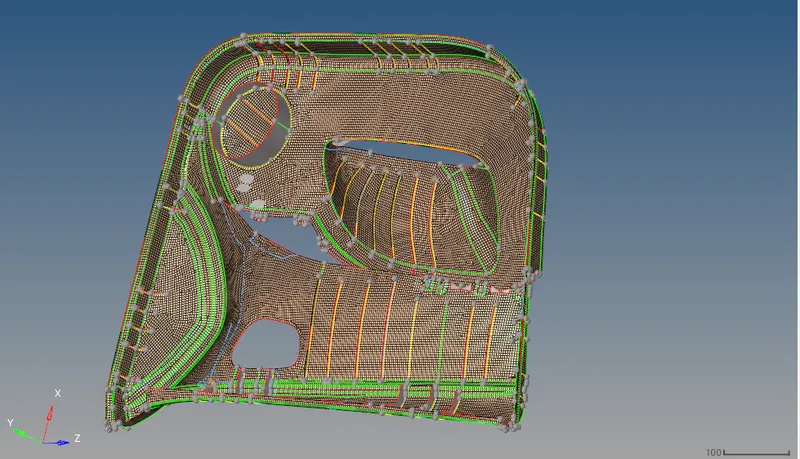

STEP:3 MESH THE COMPONENT AS PER DESIRED QUALITY CRITERIA.
ASPER THE THICHNESS OF DIFFERENT COMPONENTS TO BE CREATED AND ELEMTS WITH DIFFERENT THICNESSS TO BE ASIGNED

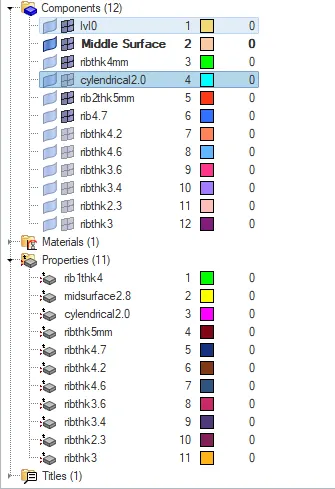

STEP4: ASSIGN THICHNES AS IN THE ORIGINAL GEOMETRY TO DIFFERENT PROPERTY

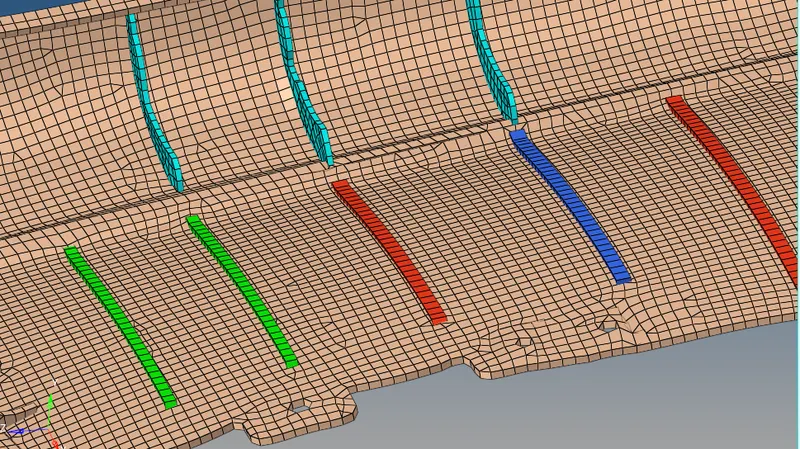

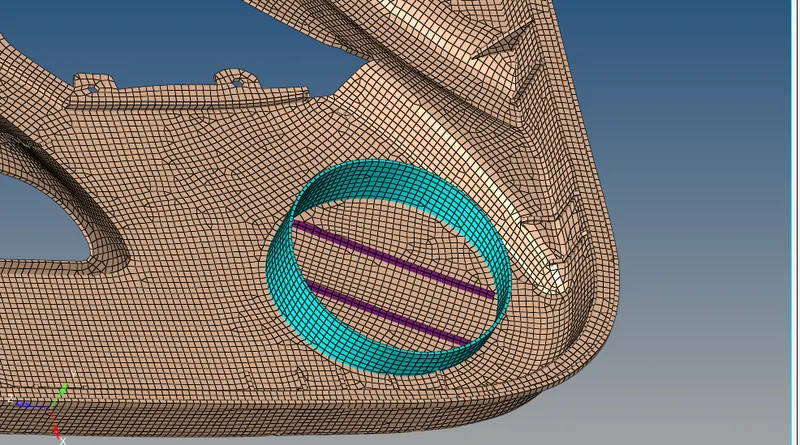

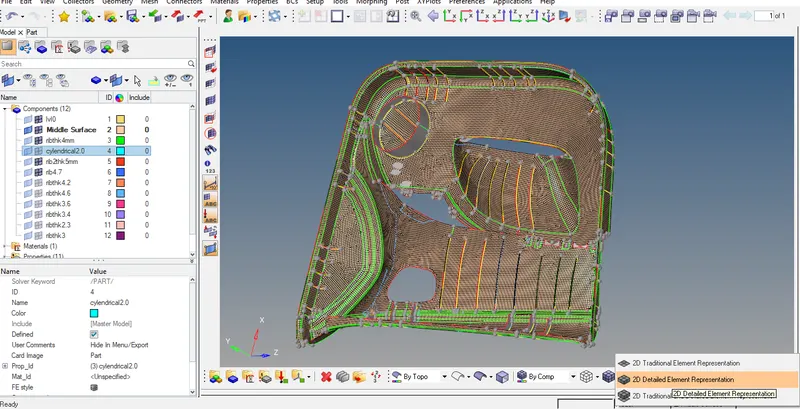

CAD IMAGES FOR COMPONENTS WITH DIFFERENT THICKNESS IN 2D REPRESENTATION

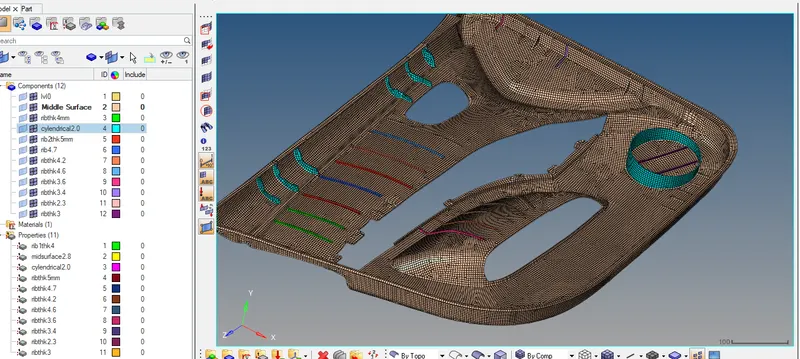

FINAL RESULT
