Week 8-Challenge
OBJECTIVE:
3D Meshing:
Elements sizes: Min- 2mm, Target- 5mm,Max- 7mm
Tet collapse: 0.15
- Create Teramesh for Housing
- For the given Model,
- Create 3D mesh with 6mm

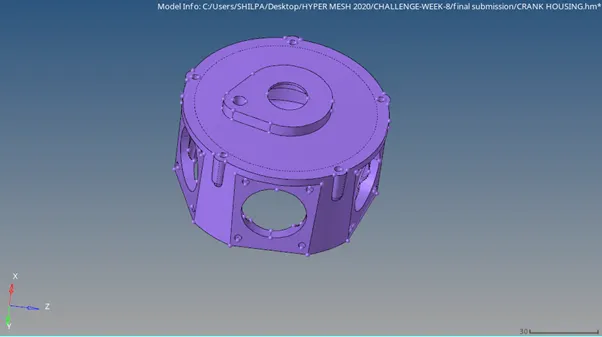

CAD IMAGE FOR HOUSING
STEP 1 : IMPORT THE GEOMETRY
STEP 2: REMOVE FILLETS DELETE SOLID AND DO GEOMETRY SYRFACE CLEANUP.
STEP 3: MESH THE MODE USING SURFACE TRIA ELEMENT MESH IN AUTOMESH FOR ELEMENT TARGET SIZE 5 AND 2<ELEMENT SIZE<7
STEP 4:USE TETRAMESH OPTION FOR 3D MESHING BY SELECTING ELEMENTS, FOR ELEMENT TARGET SIZE 5 AND 2<ELEMENT SIZE<7 WITH TET COLAPSE: 0.150
STEP 5:IF TETCOLAPSE ELEMENT VALUE MORE THAN 10 REMESH 3D ELEMENTS USING TETRA REMESH OPTION IN 3D SETTING PARAMETER OF TETCLOLAPSE AS 0.200

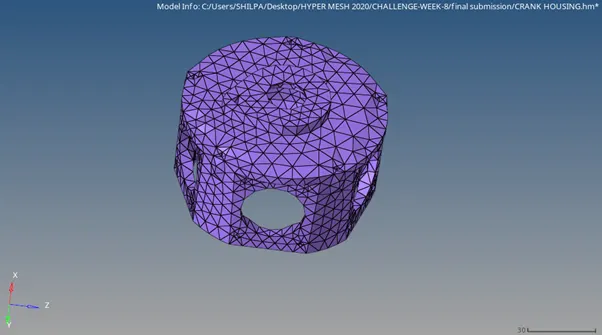

AFTER MESHING FINAL IMAGE

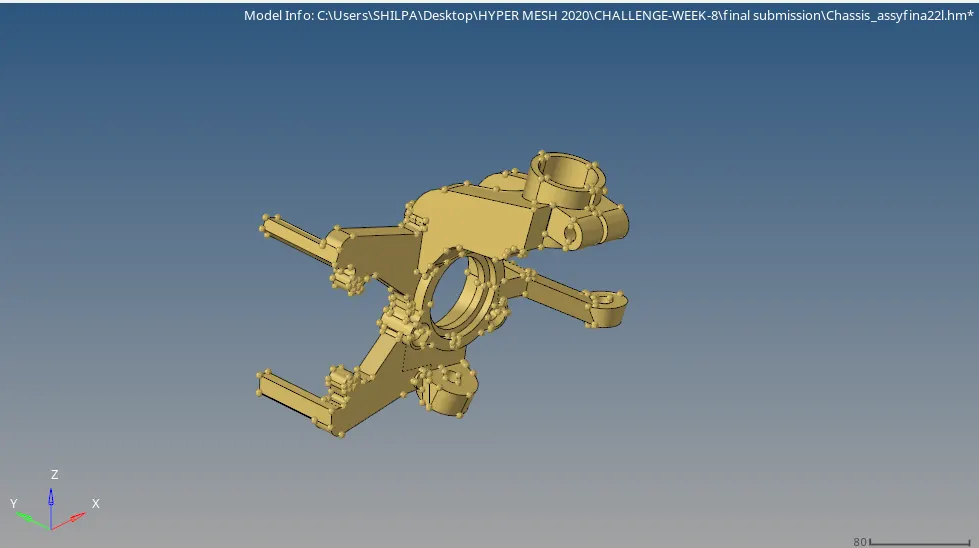

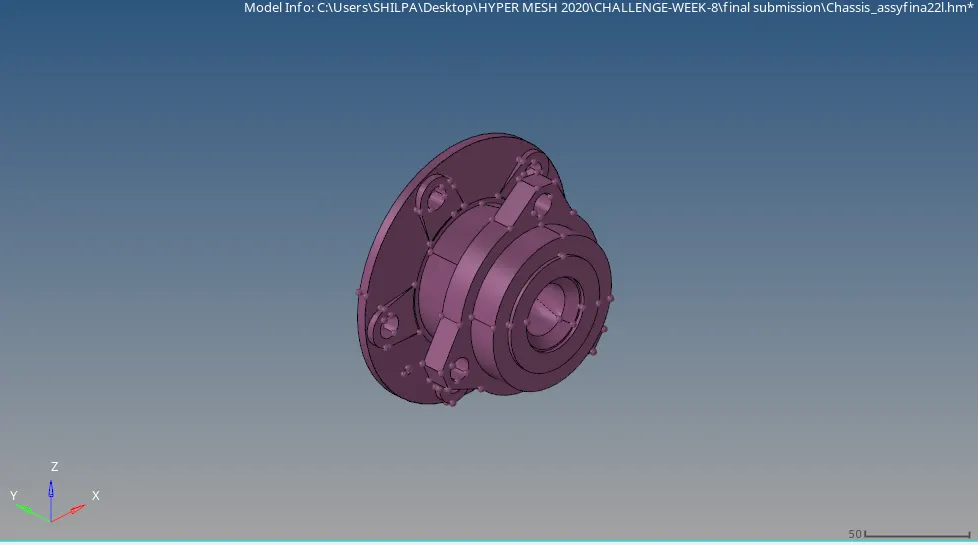

CAD IMAGE FOR FIRST MODEL
STEP 1 : IMPORT THE GEOMETRY
STEP 2: REMOVE FILLETS DELETE SOLID AND DO GEOMETRY SYRFACE CLEANUP.
STEP 3: MESH THE MODE USING SURFACE TRIA ELEMENT MESH IN AUTOMESH FOR ELEMENT TARGET SIZE 6
STEP 4:USE TETRAMESH OPTION FOR 3D MESHING BY SELECTING ELEMENTS, FOR ELEMENT TARGET SIZE 6 AND 2<ELEMENT SIZE<8 WITH TET COLAPSE: 0.150
STEP 5:IF TETCOLAPSE ELEMENT VALUE MORE THAN 10 REMESH 3D ELEMENTS USING TETRA REMESH OPTION IN 3D SETTING PARAMETER OF TETCLOLAPSE AS 0.200

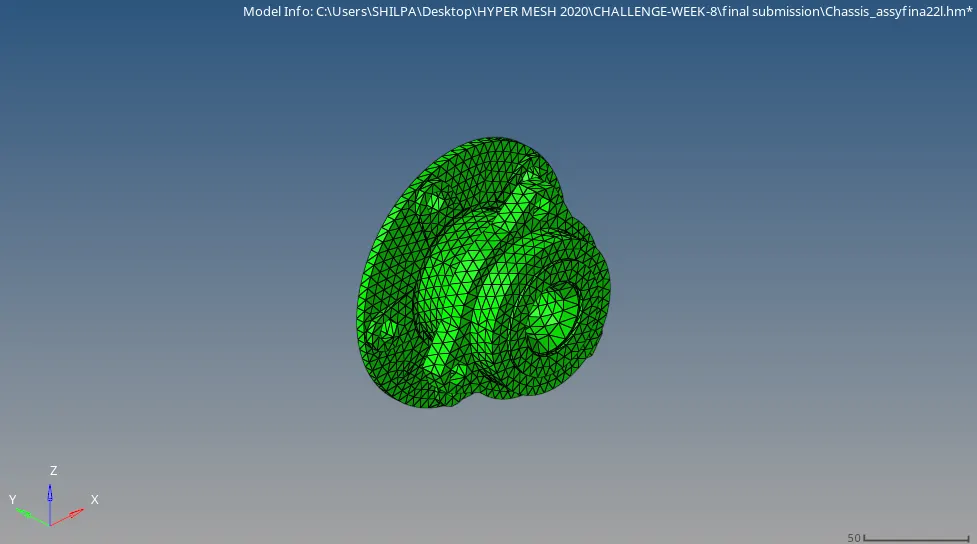

AFTER MESHING FINAL IMAGE

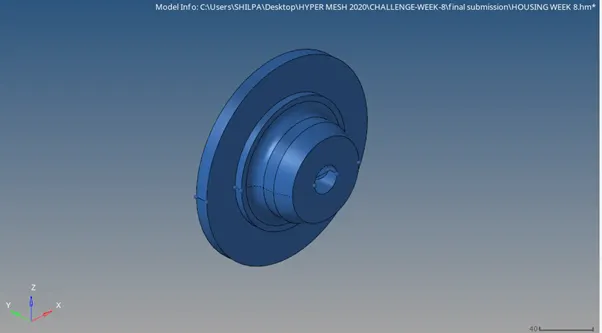

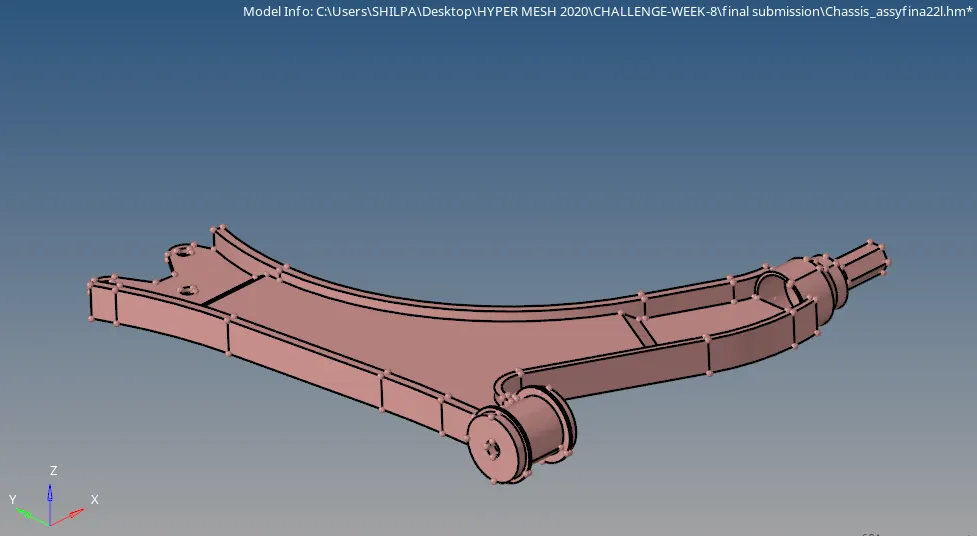

CAD IMAGE FOR SECOND MODEL
STEP 1: IMPORT THE GEOMETRY
STEP 2 : DELETE MODEL WITH THE SYMMETRICAL COMPONENTS TO REDUCE NUMBER OF NODE AS IT IS SYMETRICAL .
STEP 3: REMOVE FILLETS DELETE SOLID AND DO GEOMETRY SYRFACE CLEANUP.
STEP 4: MESH THE MODE USING SURFACE TRIA ELEMENT MESH IN AUTOMESH FOR ELEMENT TARGET SIZE 6
STEP 5:USE TETRAMESH OPTION FOR 3D MESHING BY SELECTING ELEMENTS, FOR ELEMENT TARGET SIZE 6 AND 2<ELEMENT SIZE<8 WITH TET COLAPSE: 0.150
STEP 6:IF TETCOLAPSE ELEMENT VALUE MORE THAN 10 REMESH 3D ELEMENTS USING TETRA REMESH OPTION IN 3D SETTING PARAMETER OF TETCLOLAPSE AS 0.200
USING DIFFETENT METHOD OF MESHING USE MOST SUITABLE AS PER THE GEOMETRY.

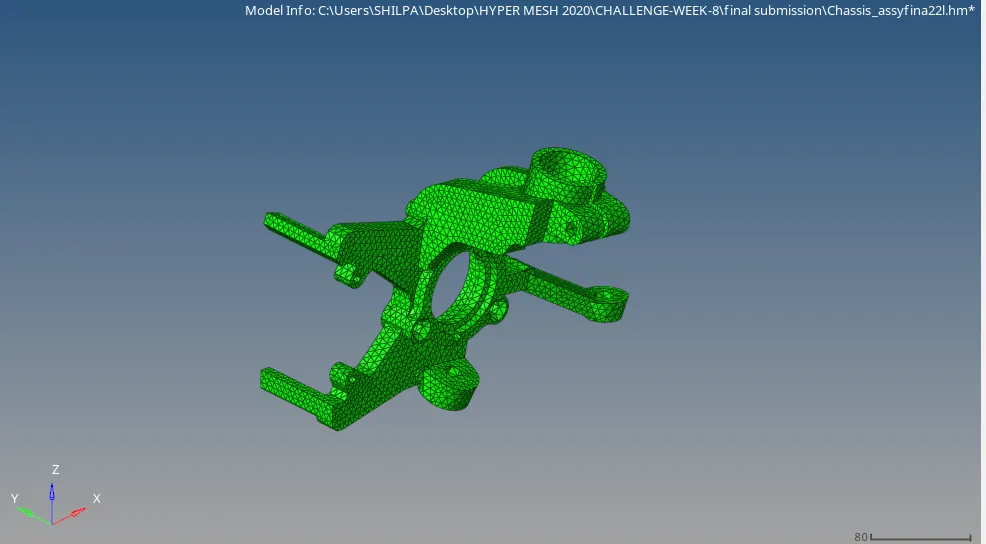

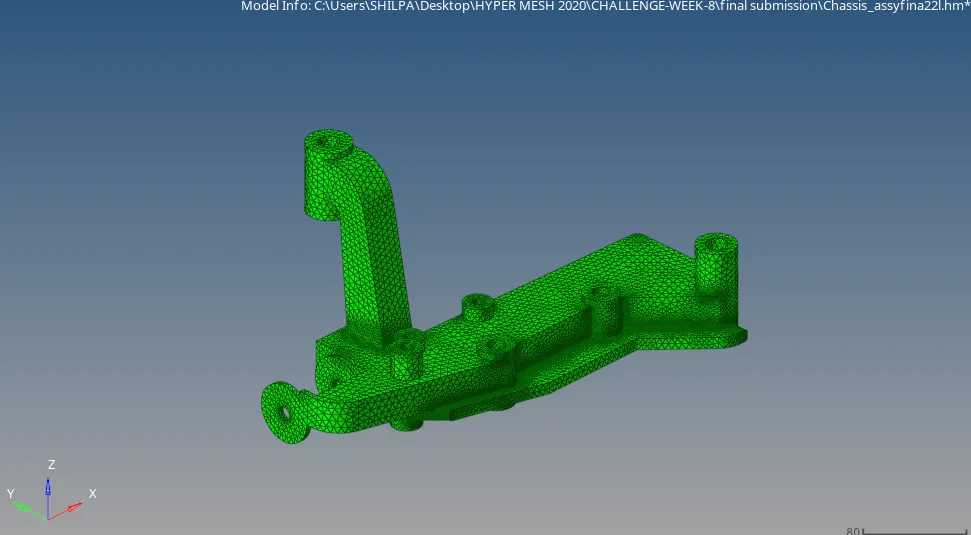

COMPONENT-1

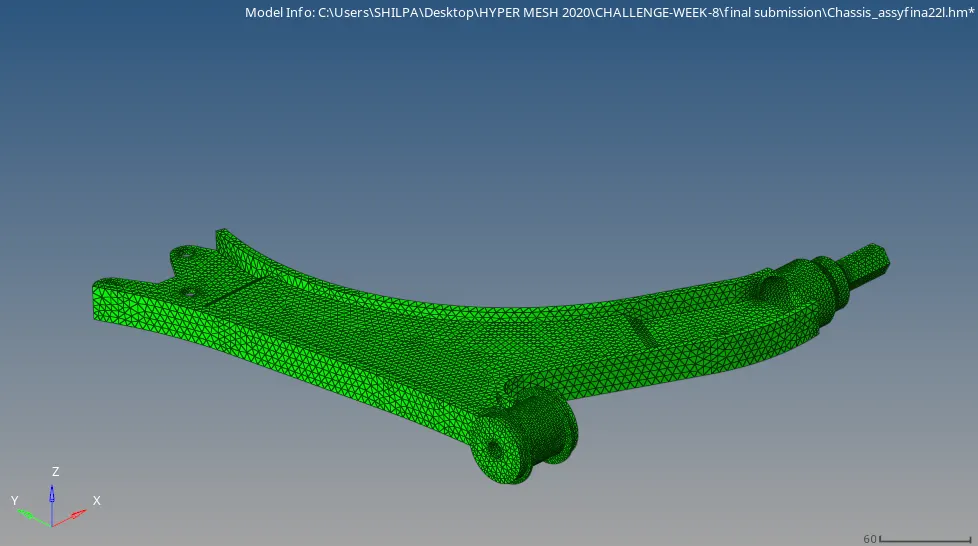

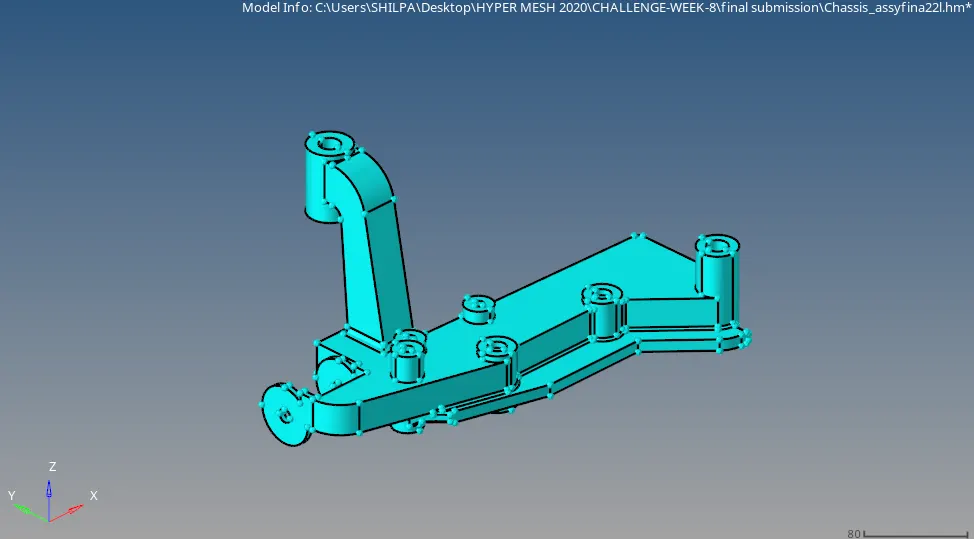

COMPONENT-2
COMPONENT-3
.
COMPONENT-4

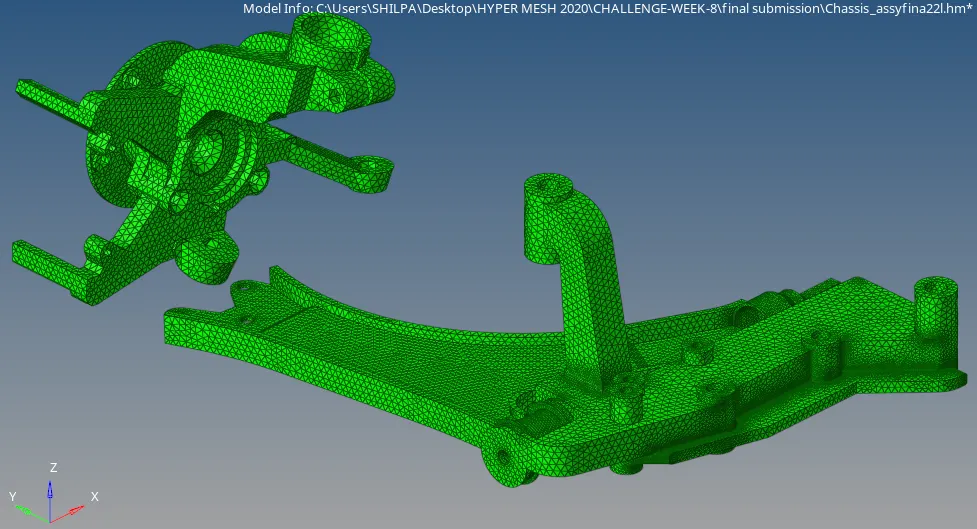

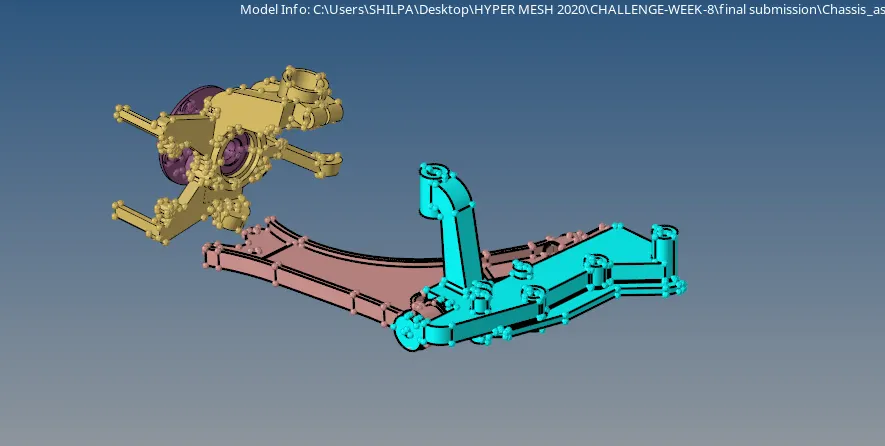

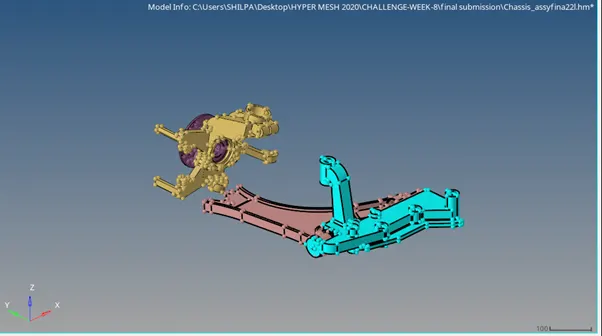

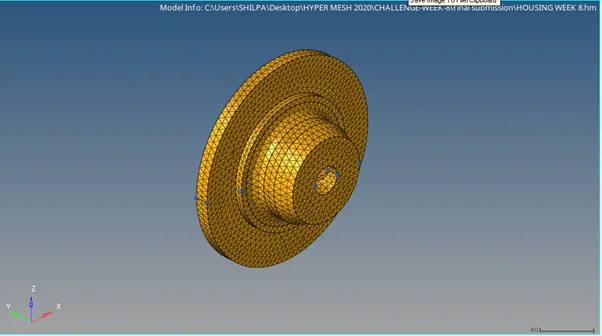

FINAL ASSEMBLY
