Week-6 Calculate the Stretch Ratio by comparing the ELFORM (-2,-1,1,2) with Ogden_Material Model.

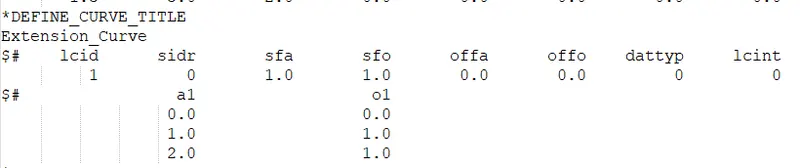

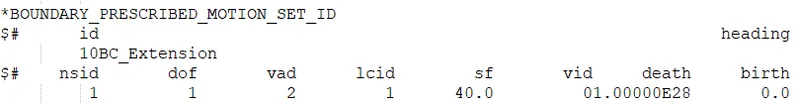

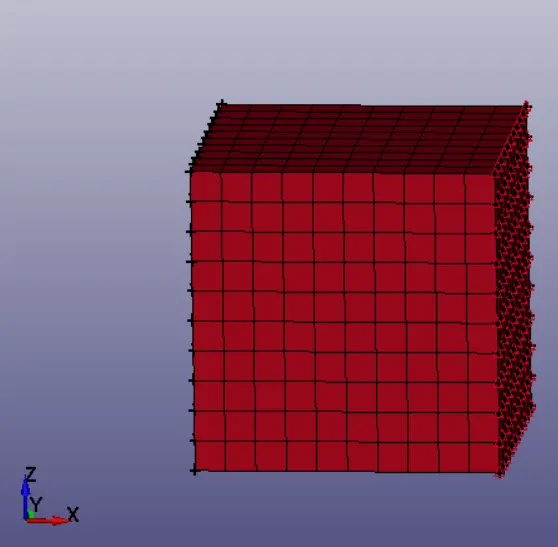

Left end fixed in all directions and right end given a prescribed motion of 40 mm in x-direction holding the nodes in y & z directions. 40 mm as stretch is 5 implying strain of 4 on the cube of dimension 10 mm.

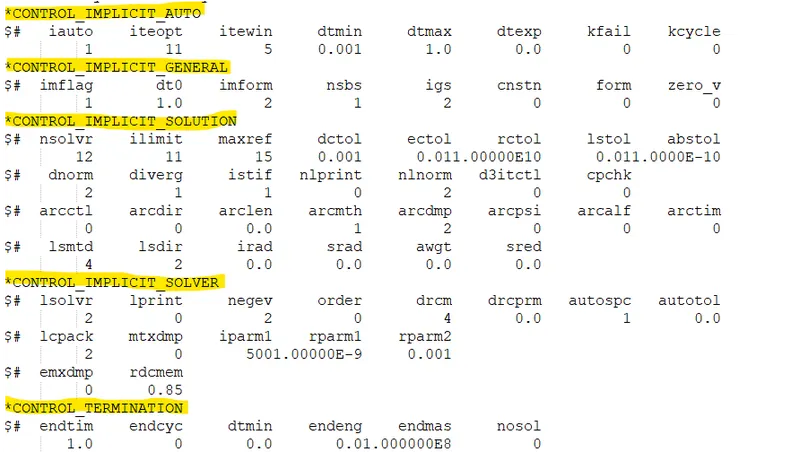

Implicit solver was used as loading is applied slowly dynamic effects are not important

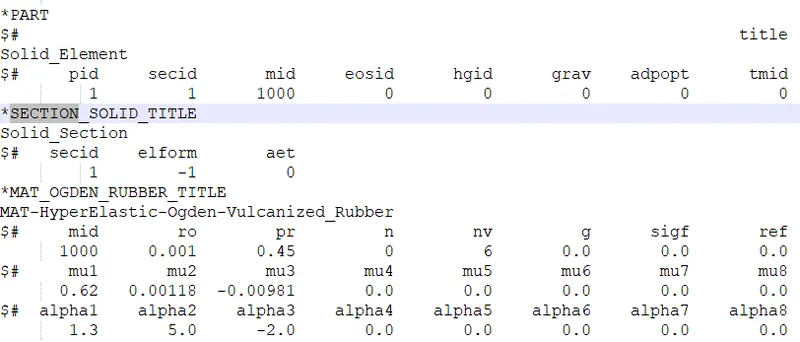

All elements are given ogden material and solid section element formulations of -1,-2,1,2

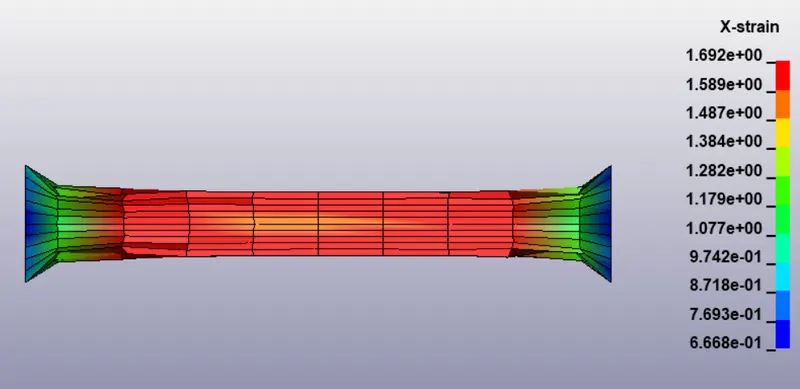

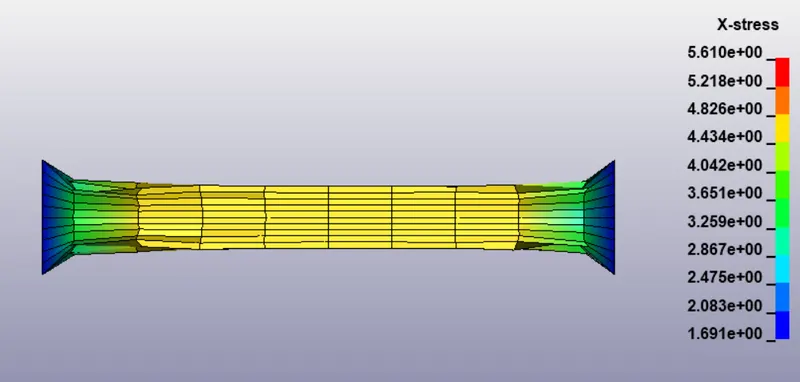

Results:

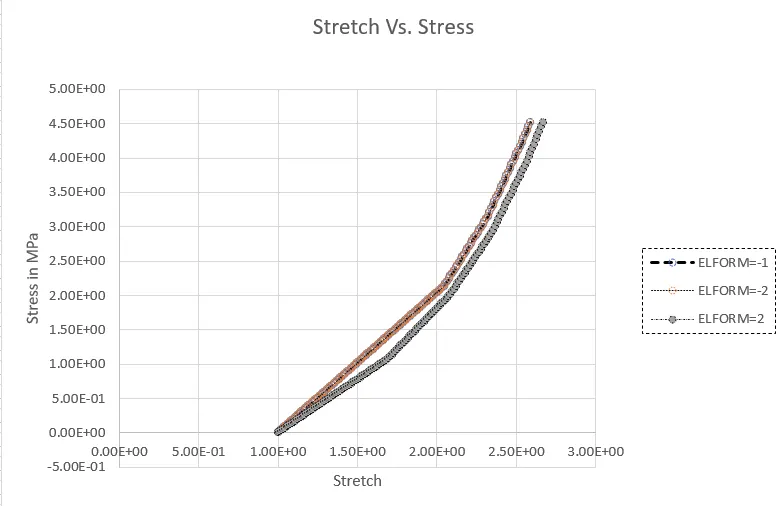

Strain Vs Stress Plots are done for a central element no: 305
