Week 6-3D Tetra Meshing Challenge

MODEL 1

AIM:

To Create a Teramesh for the Housing component with the following quality criteria.

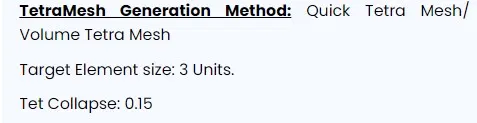

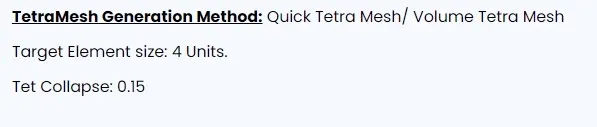

GIVEN DATA:

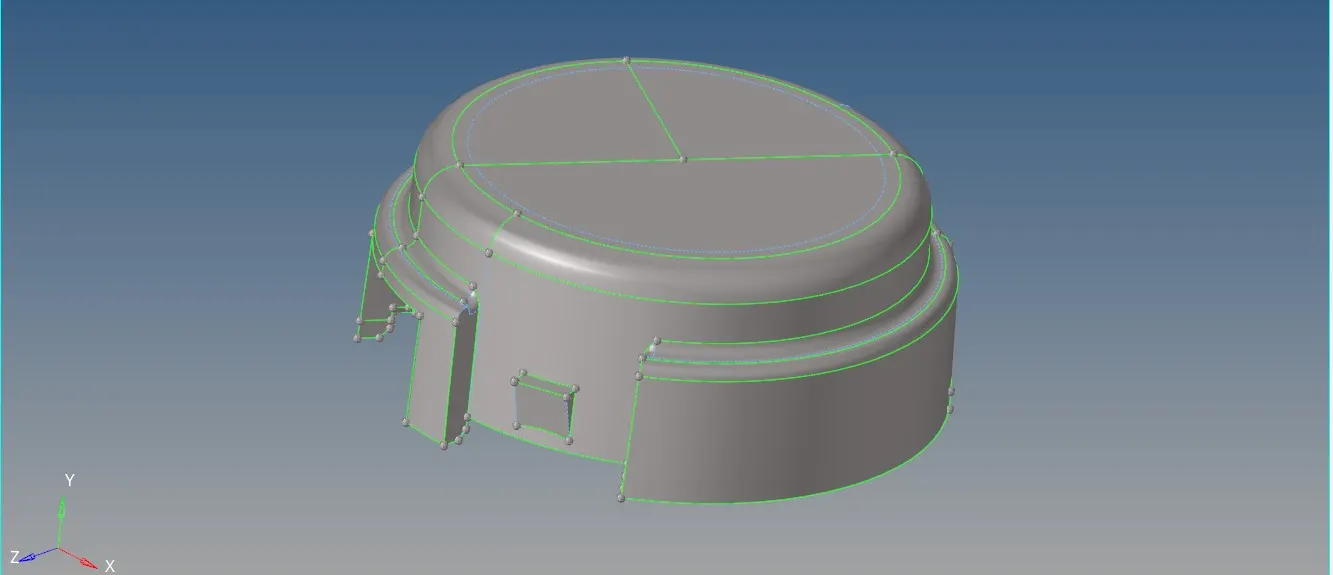

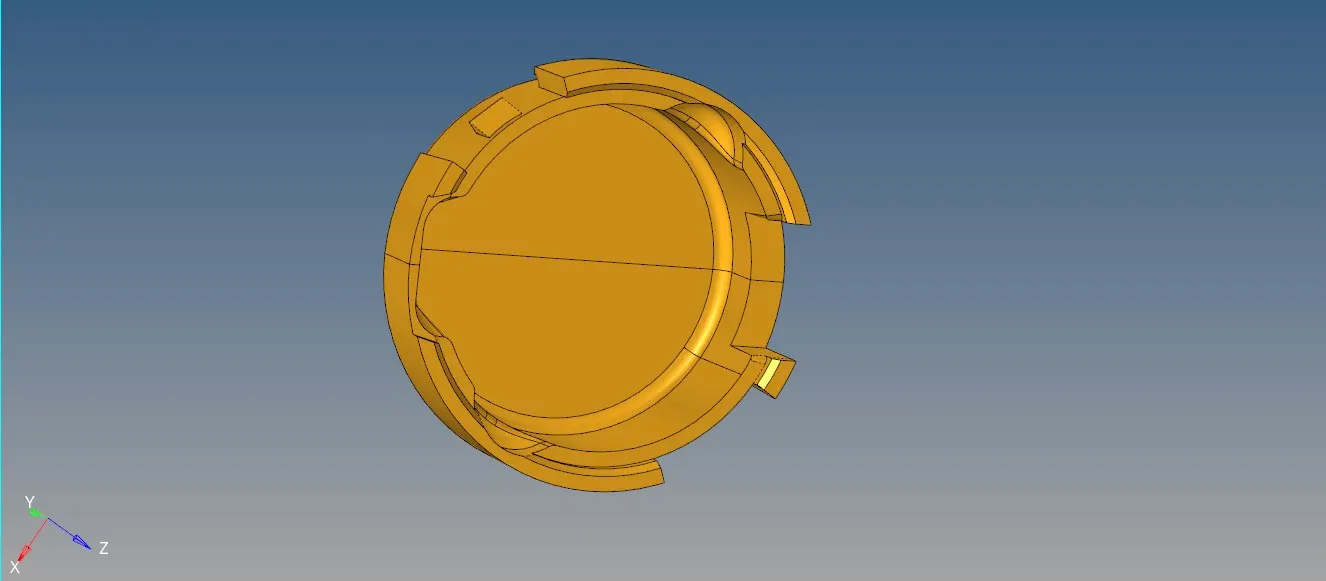

GIVEN MODEL:

The model consists of 2 components

STEP 1:

First we want to suppress all the cuts that are failing for minimum length criteria using F11- toggle edge. Removed all the free edges and prepare the model for meshing.

STEP 2:

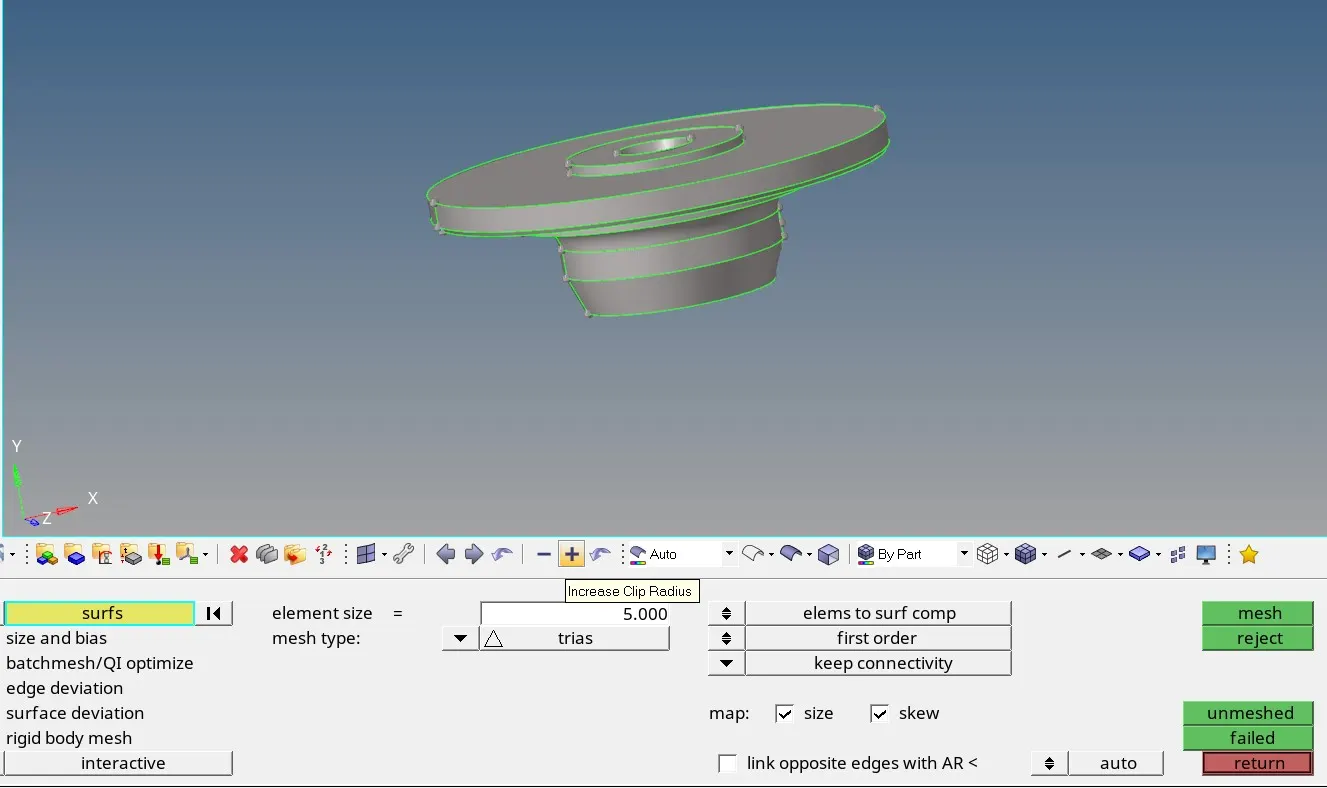

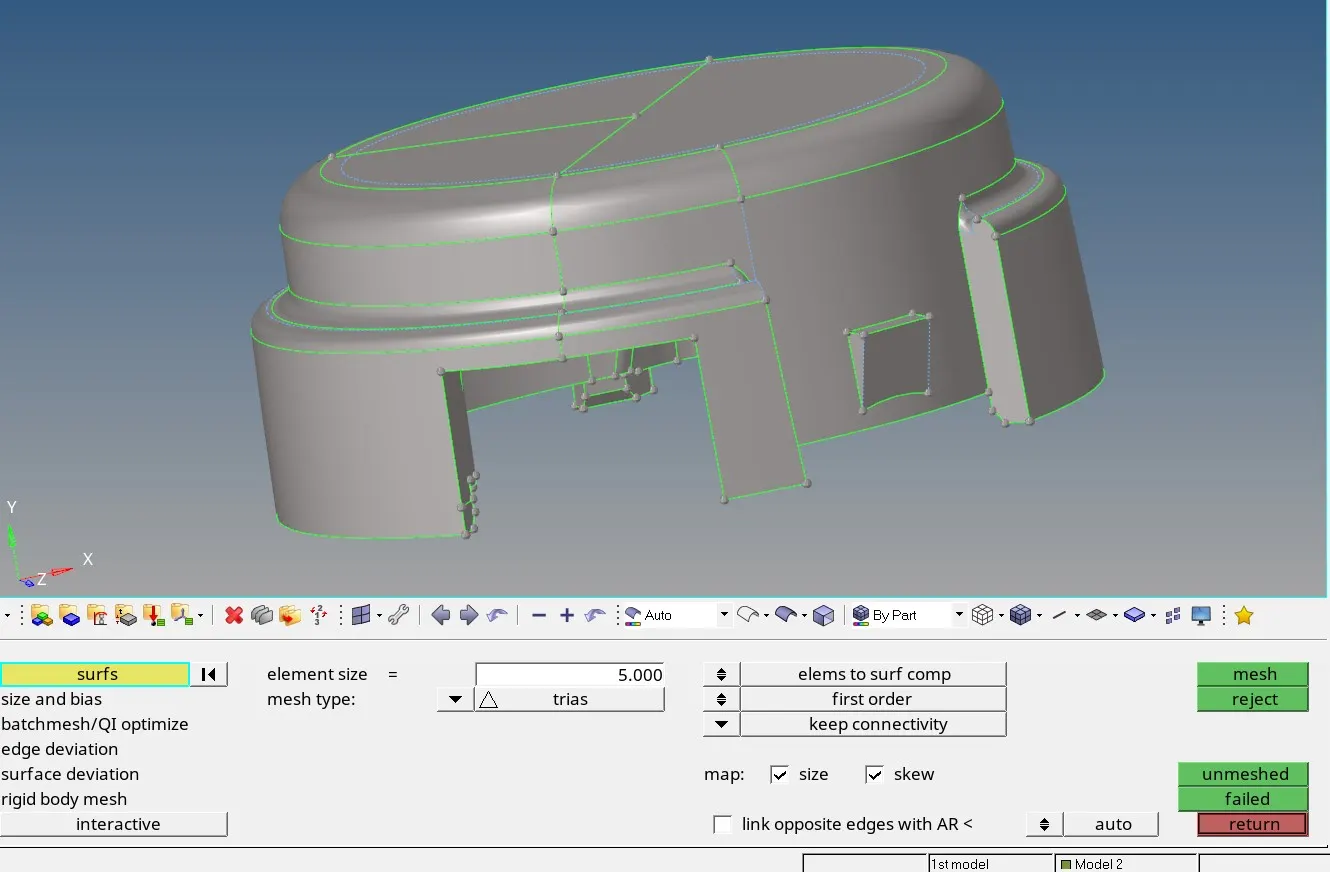

After suppressing the component we want to mesh the components with tria elements in given quality criteria.

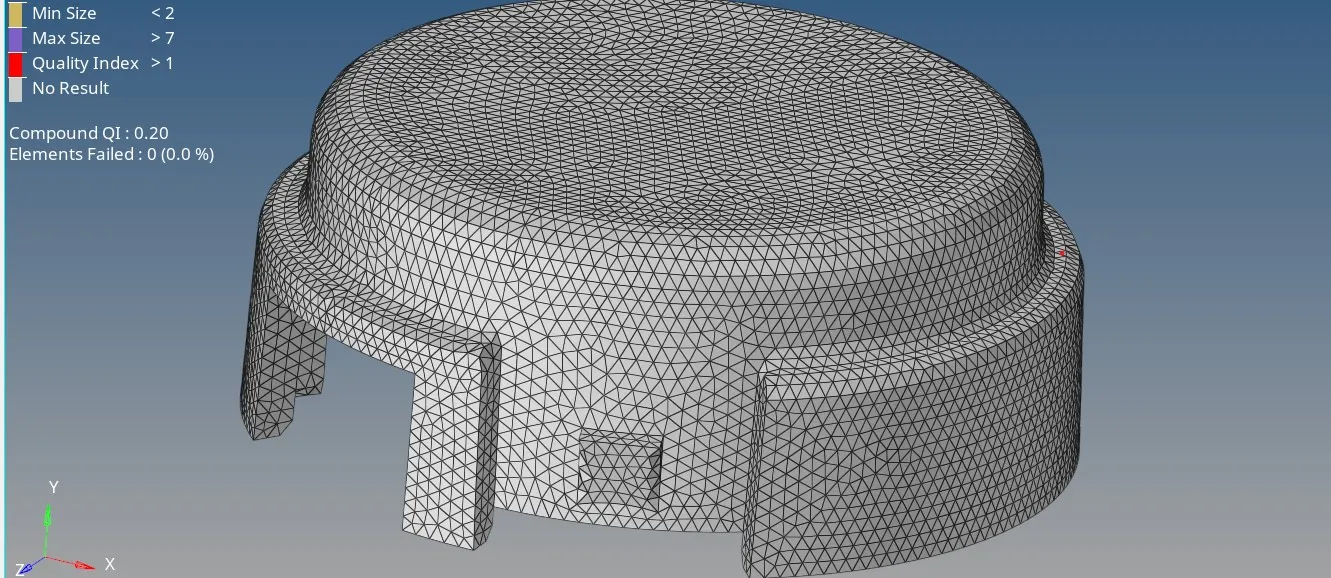

after meshing

STEP 3:

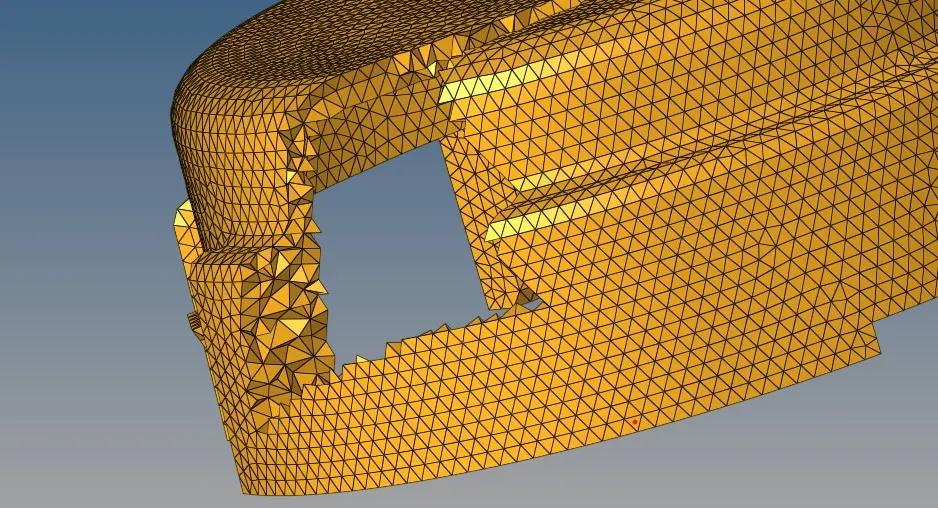

Now we want to convert this into 3D elements I used 3D- tetra mesh with tetcollapse 0.15. 3D Elements were successfully created.

2ND MODEL:

AIM:

To Create a Teramesh for the given component with the following quality criteria.

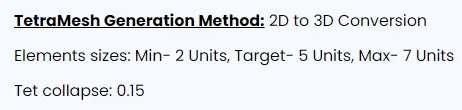

GIVEN DATA:

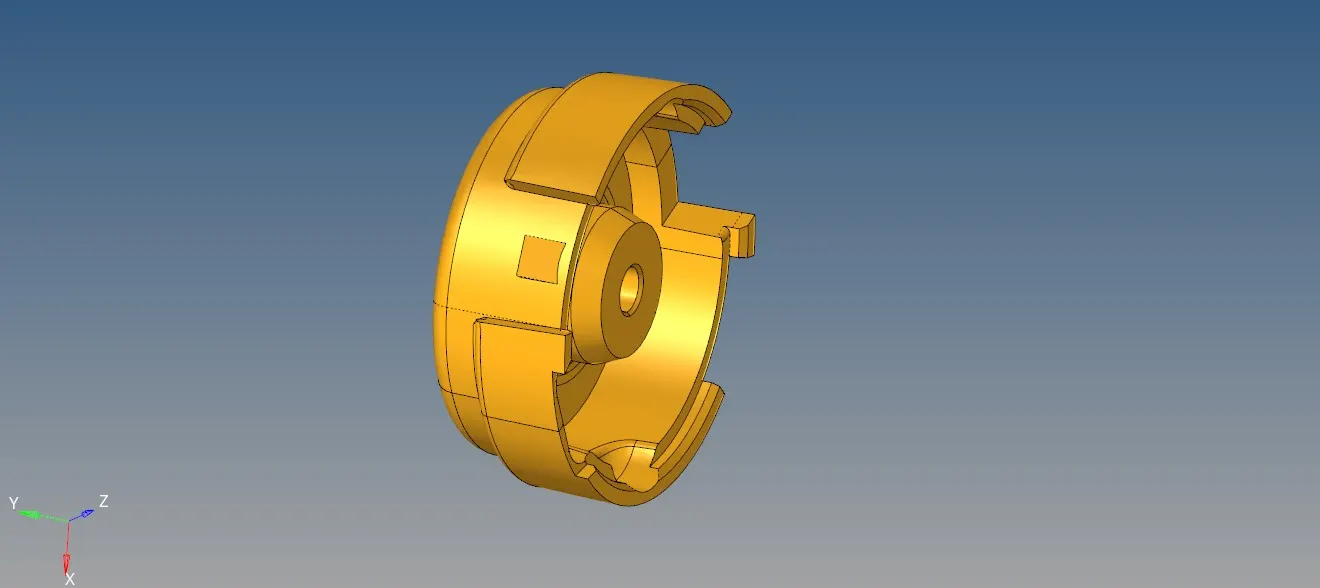

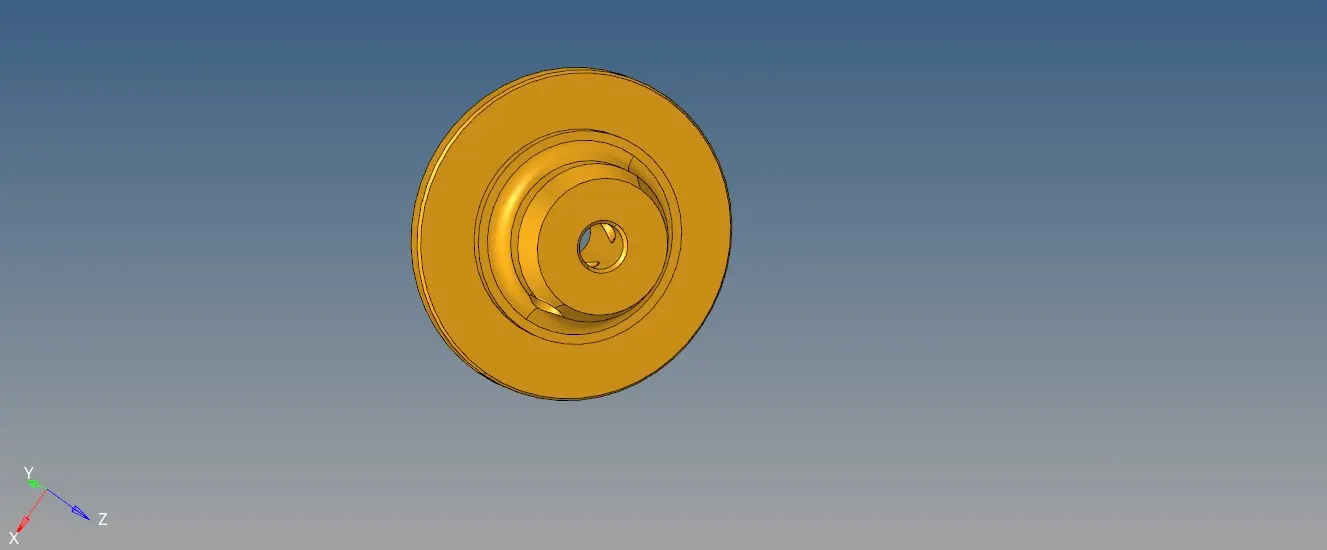

GIVEN MODEL:

STEP 1:

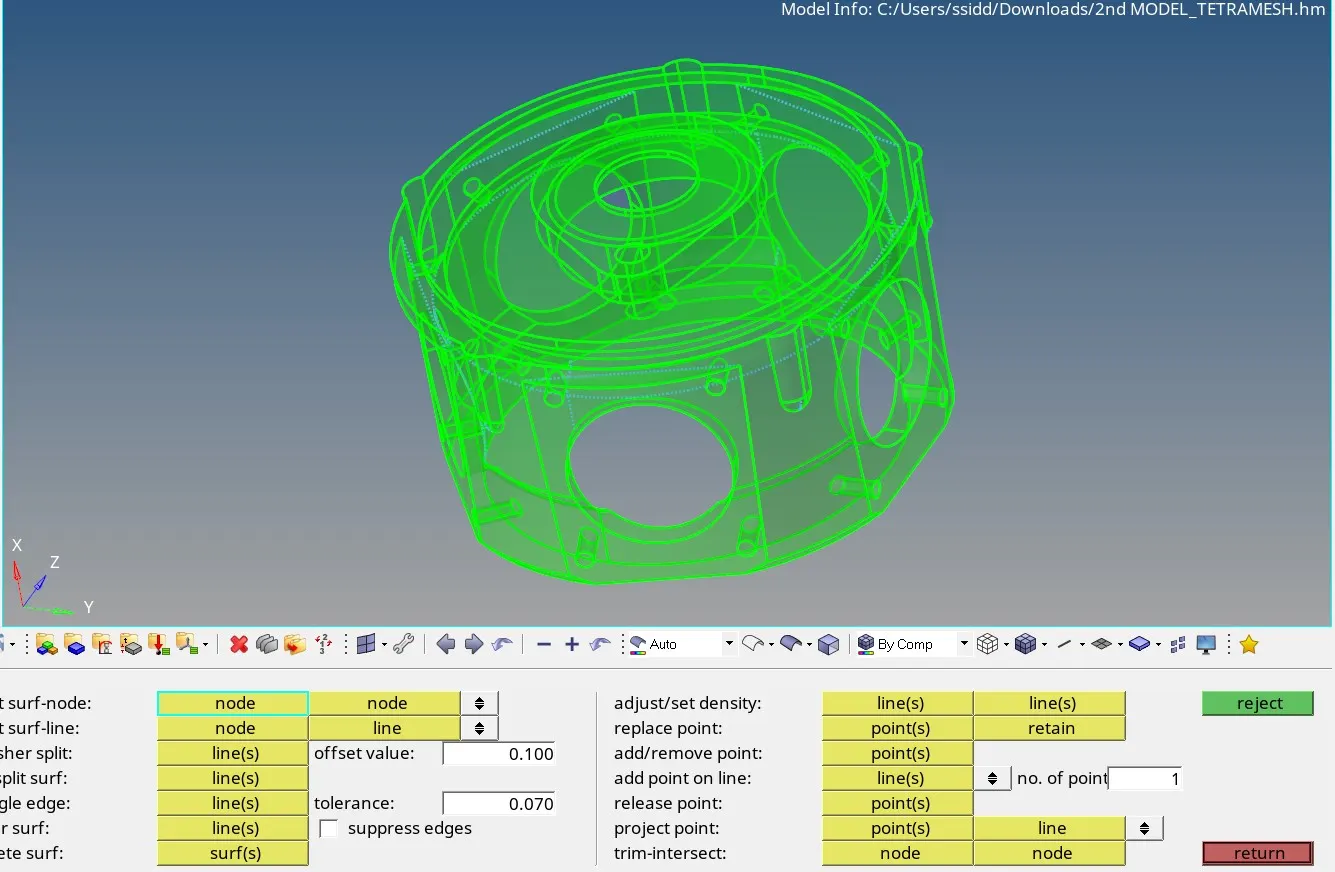

First we want to suppress all the cuts that are failing for minimum length criteria using F11- toggle edge. Removed all the free edges and prepare the model for meshing.

STEP 2:

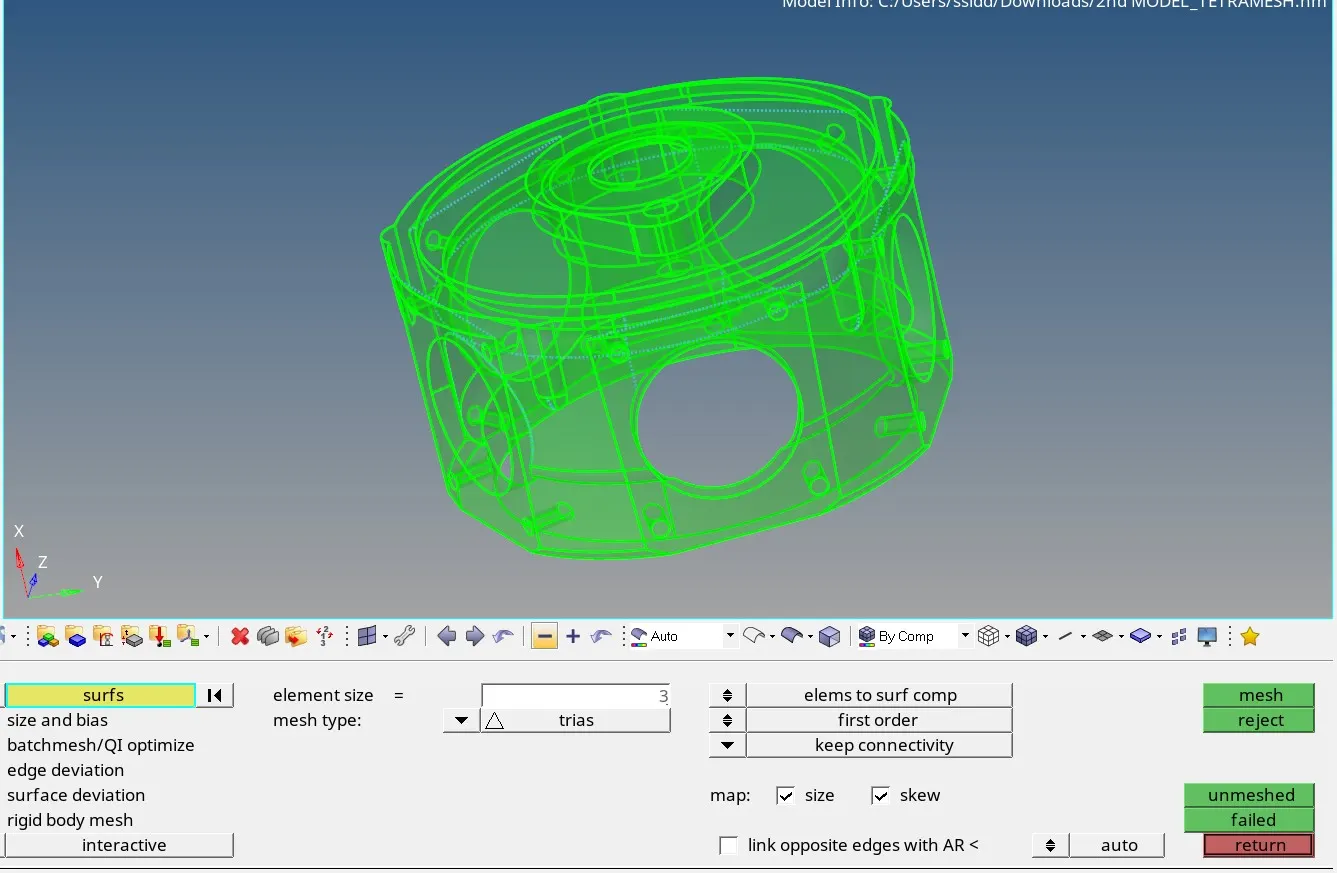

After suppressing the component we want to mesh the components with tria elements in given quality criteria.

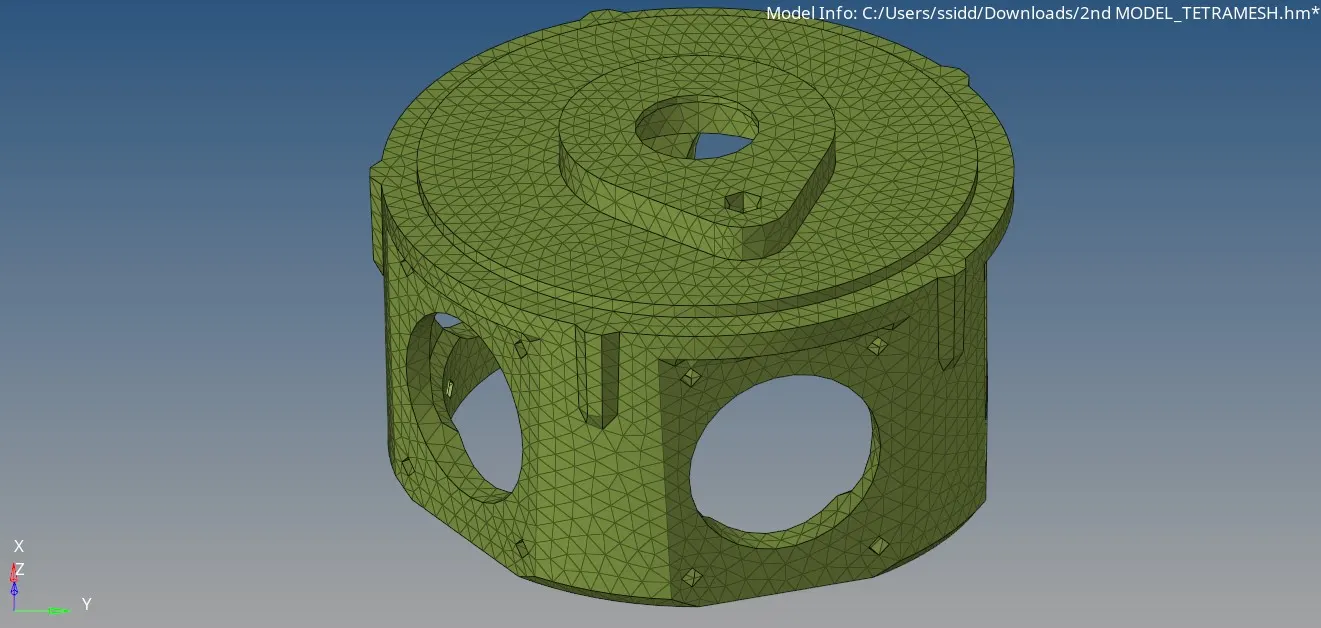

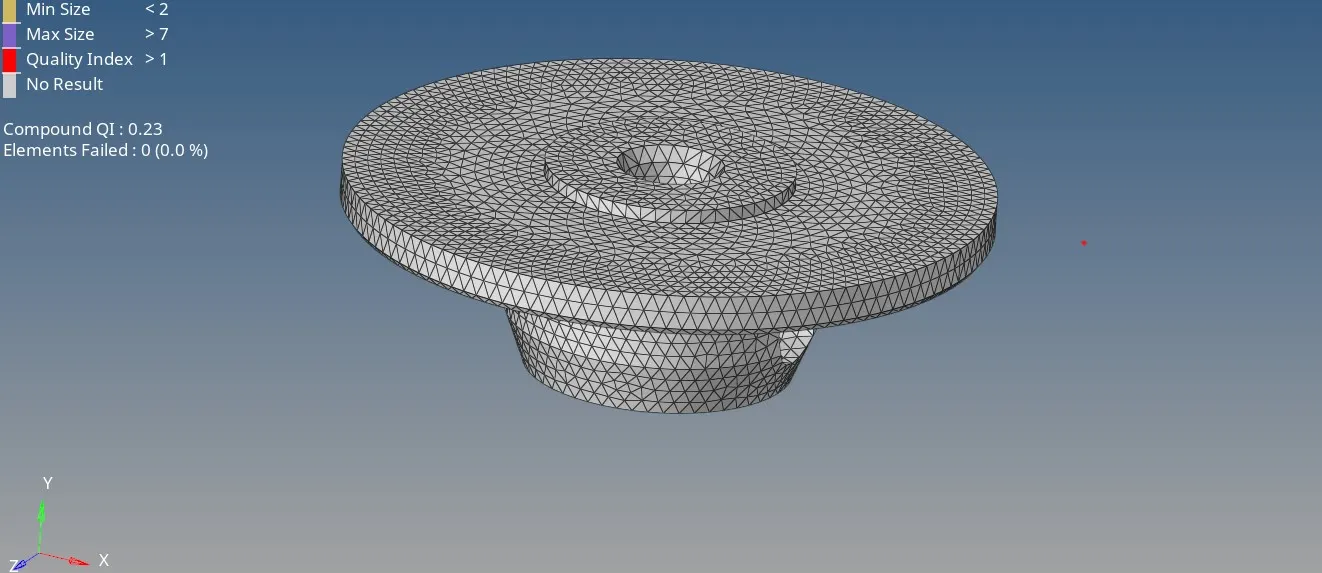

after meshing

STEP 3:

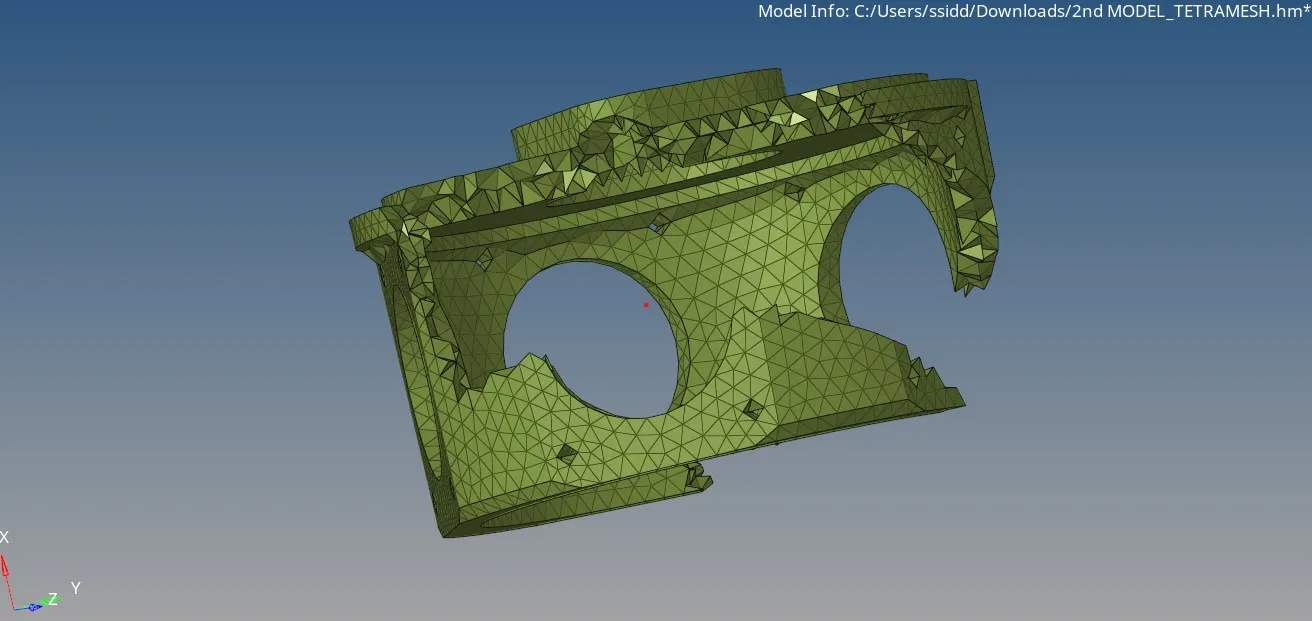

Now we want to convert this into 3D elements I used 3D- tetra mesh with tetcollapse 0.15. 3D Elements were successfully created.

3RD MODEL:

AIM:

To Create a Teramesh for the given component with the following quality criteria.

GIVEN DATA:

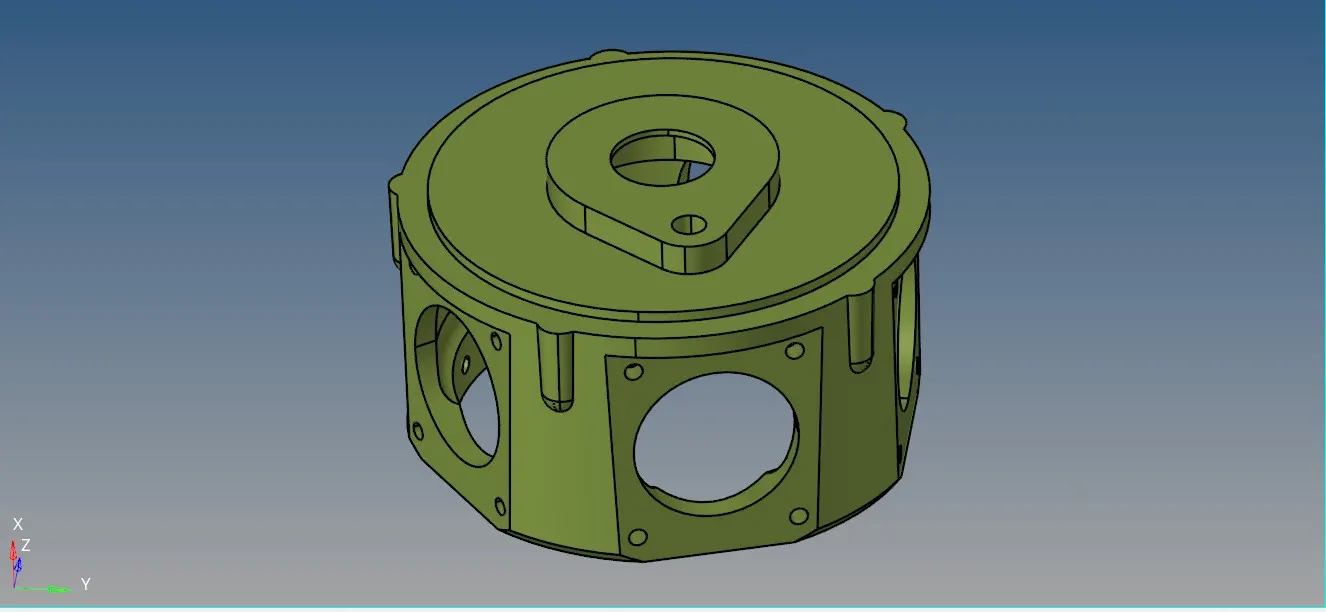

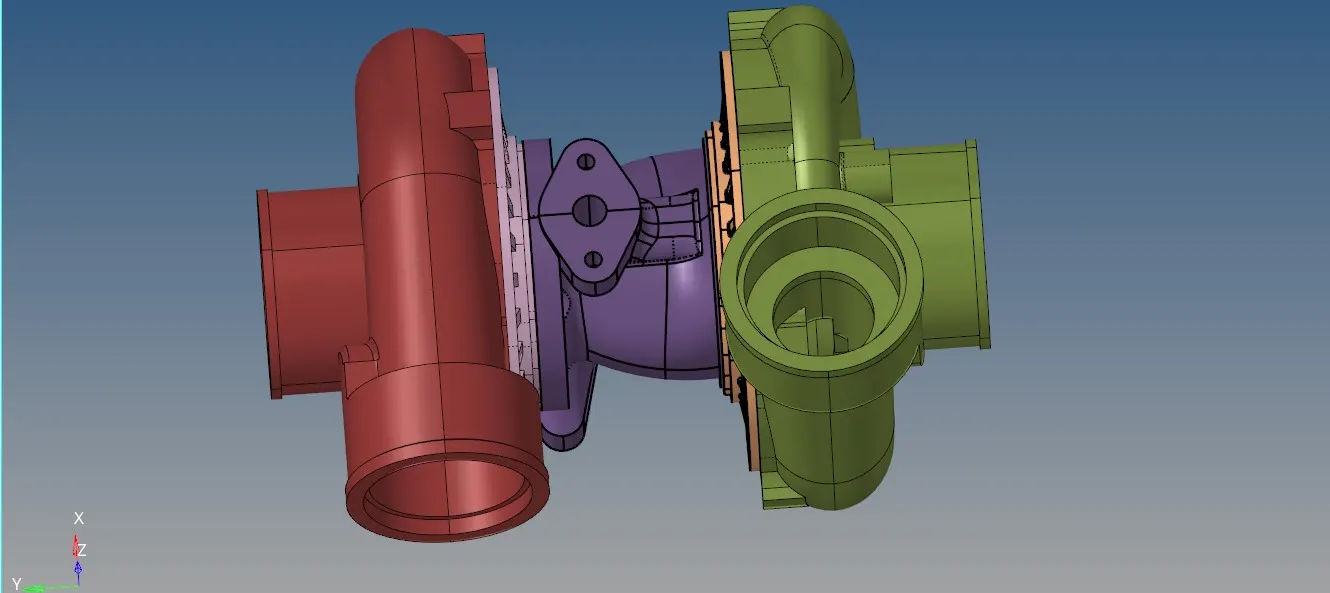

GIVEN MODEL:

The given model consists of 5 components

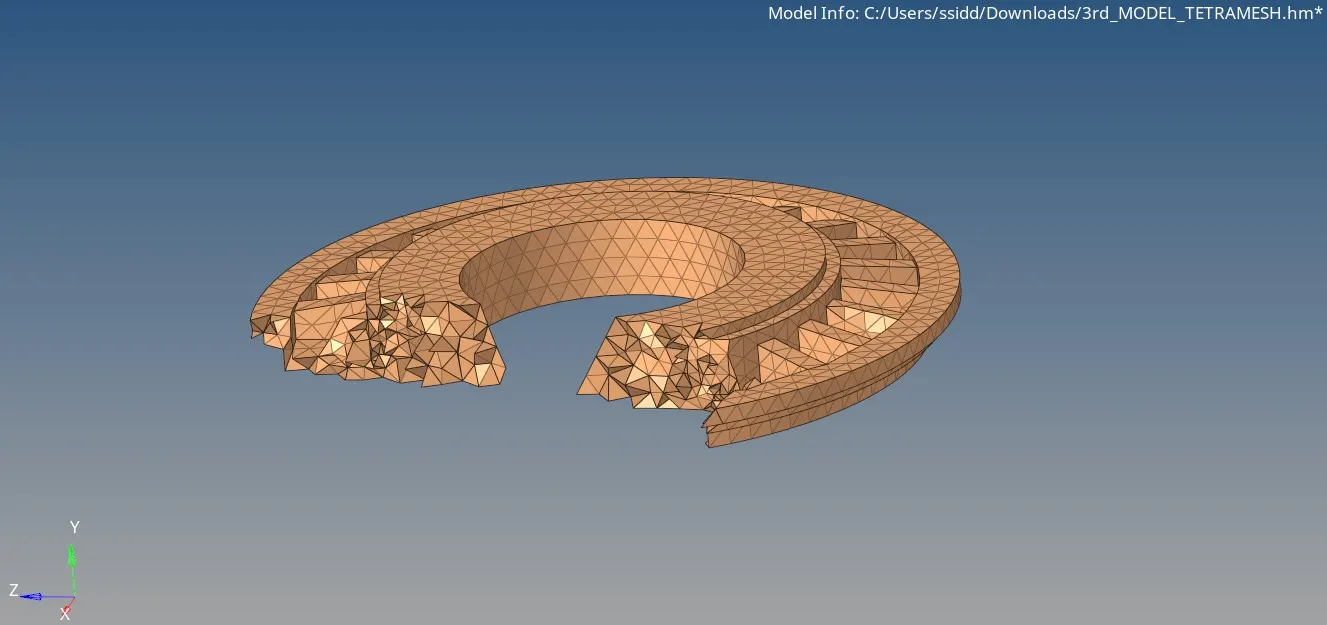

The same above mentioned steps are followed for 3d tetramesh.

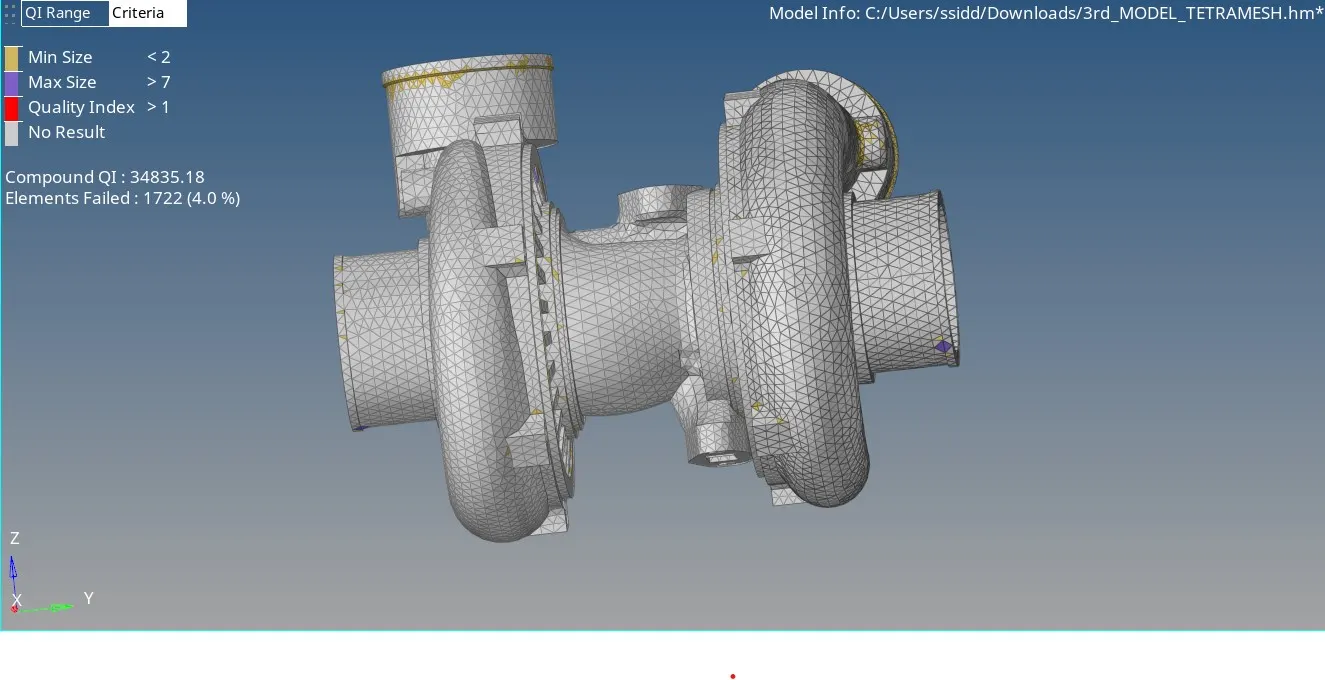

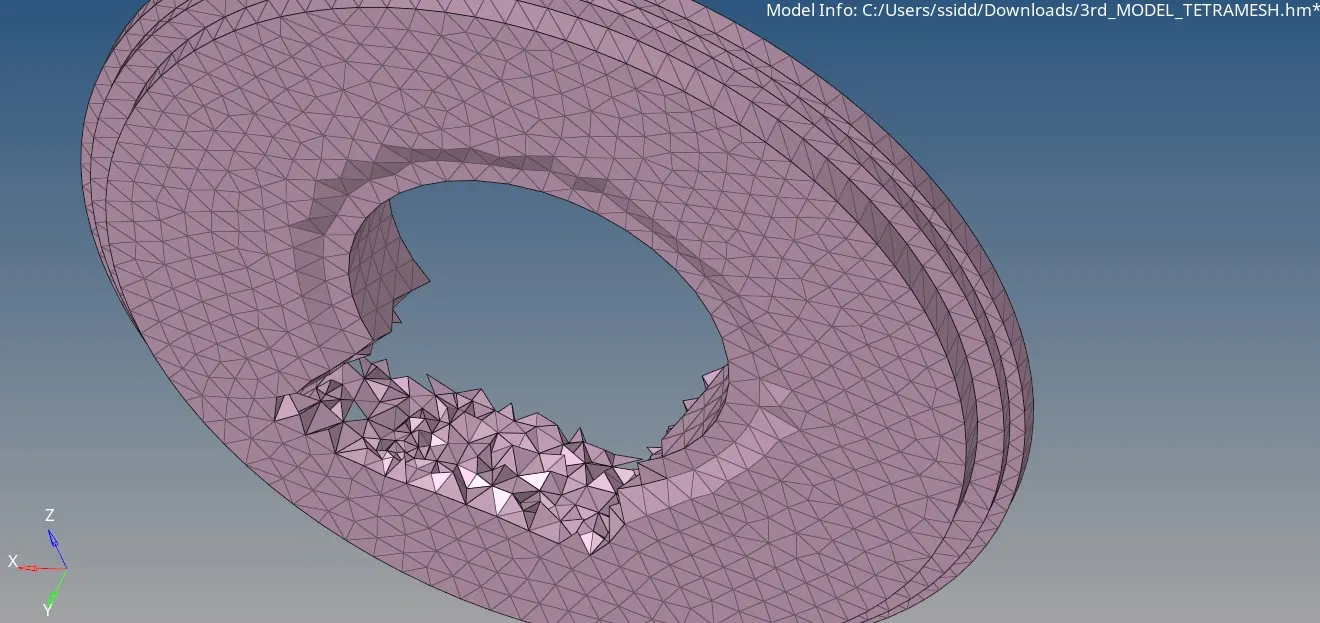

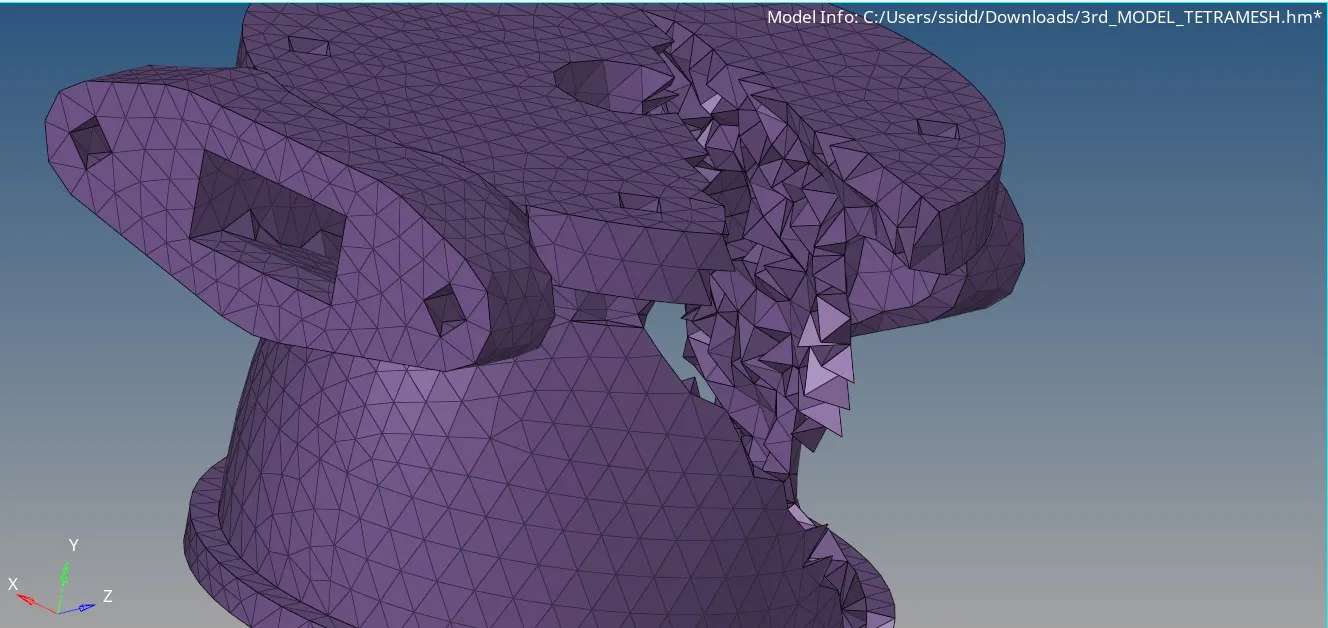

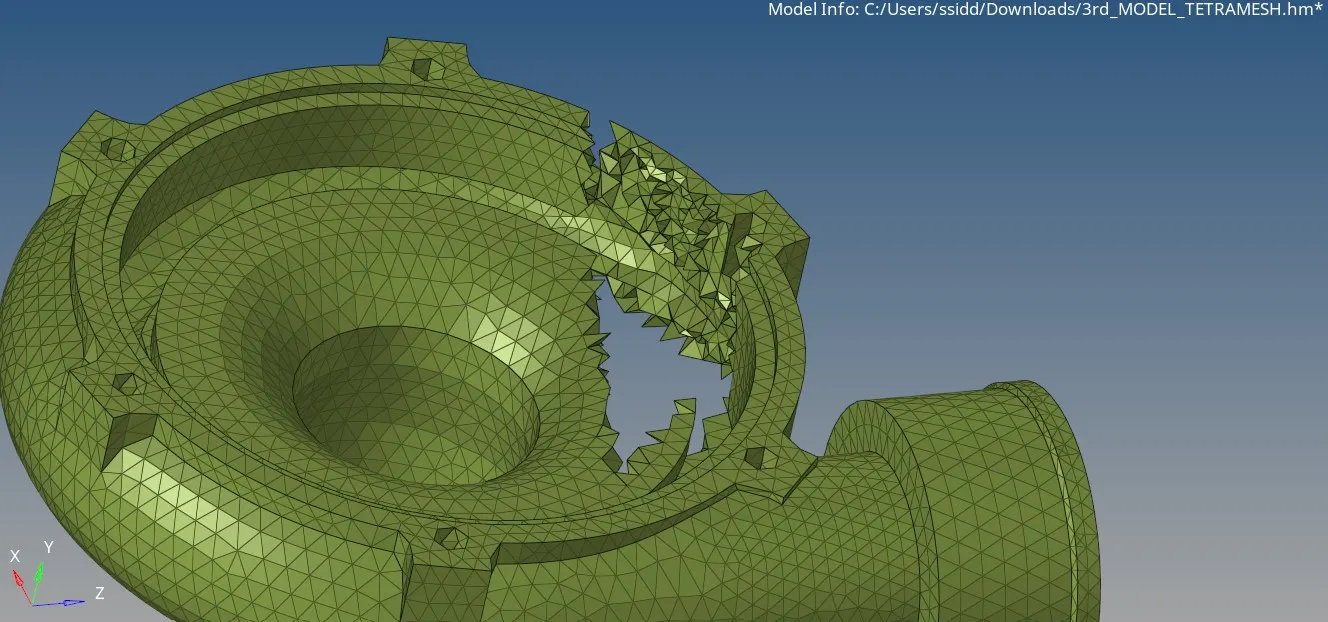

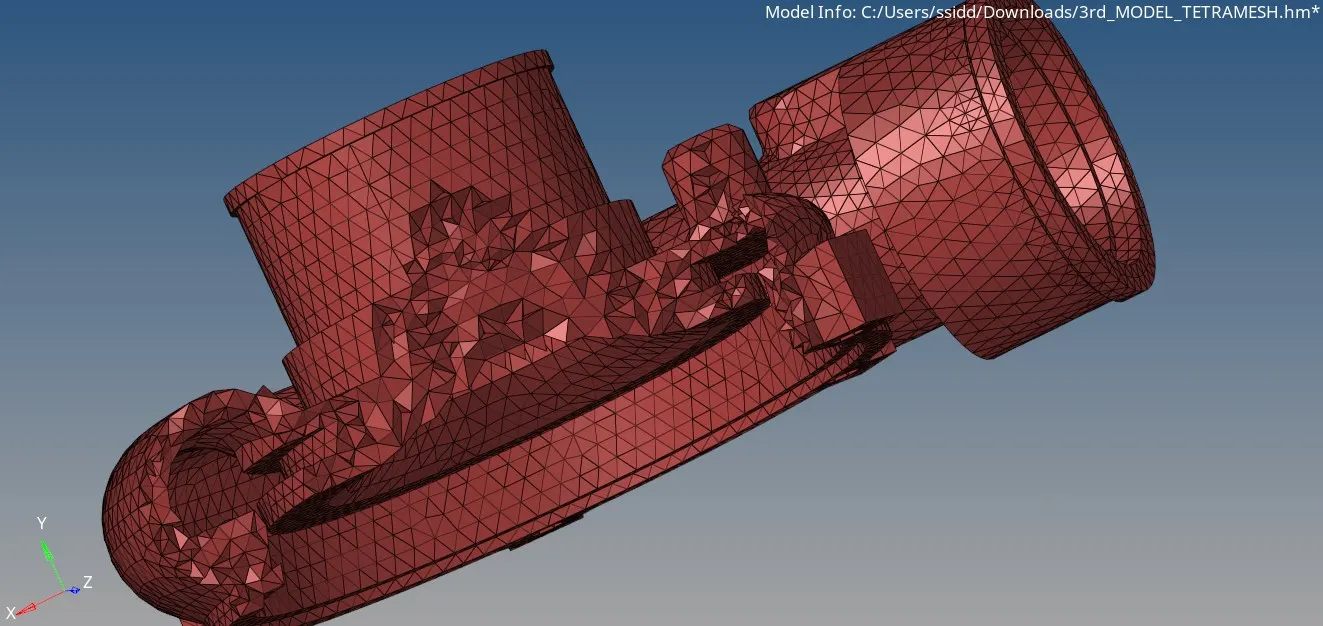

some elements are failing.

RESULT:

Successfully generated 3d tetra mesh for the given models.
