Week 5 Sphere pressing on a plate

OBJECTIVE

To perform the analysis to simulate a sphere pressing on a plate .Use structural steel for sphere and Structural steel Non Linear For plate

PRODECURE

Create Static Structural analysis and in engineering data select the material structural steel and structural steel Non linear

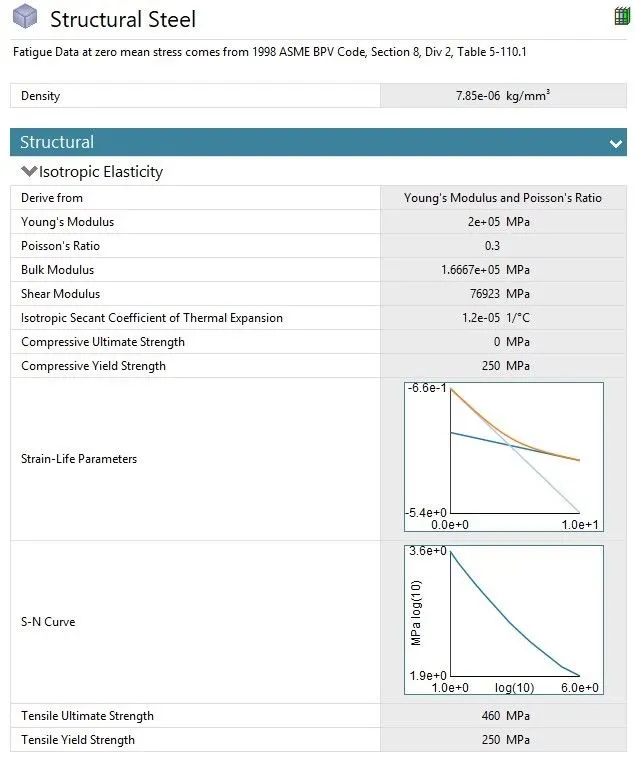

STRUCTURAL STEEL

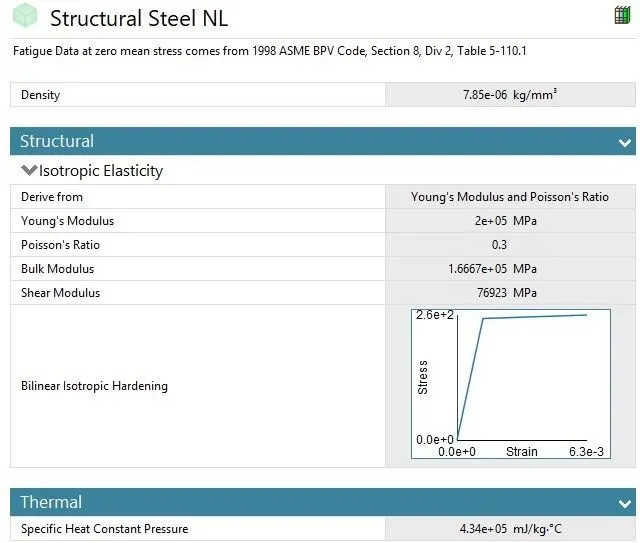

Structural Steel Non linear

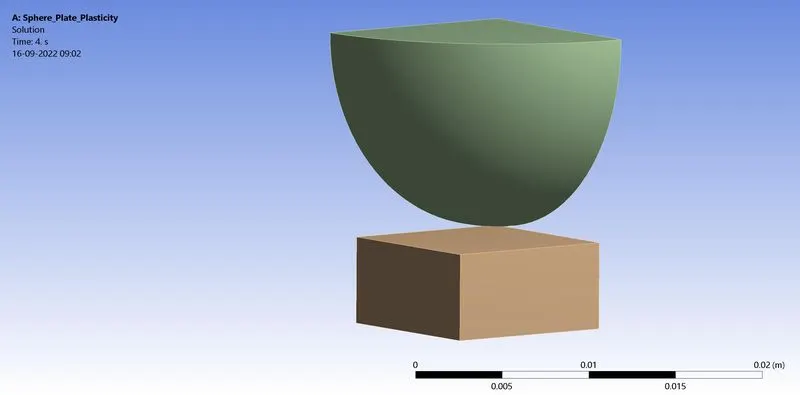

Import the geometry and check in space claim for any irregularties '

To reduce computation time only a quarter of the  geometry is used to simulate the loading .The results obtained are mirrored across defined Symetric regions

Then open ansys mechanical and rename the geometry as sphere and plate then assign the stuctural steel material to sphere and structural steel non linear to plate.

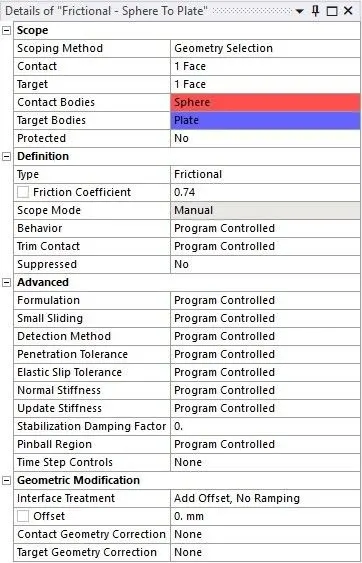

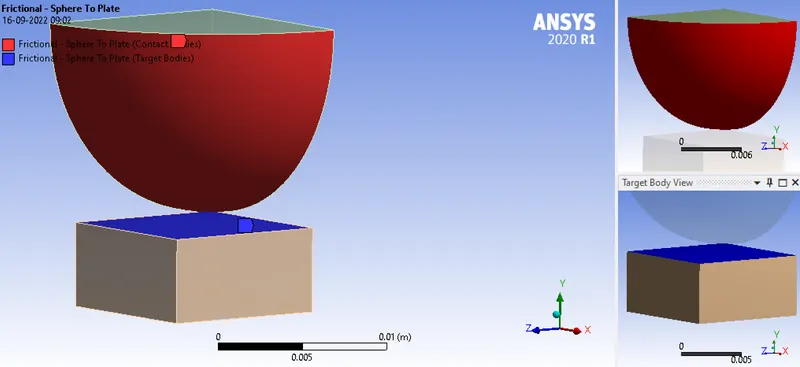

Contacts  One contacts created in the whole setup with frictional type with friction coefficient of 0.74 and interface treatment is set to add offset No ramping.

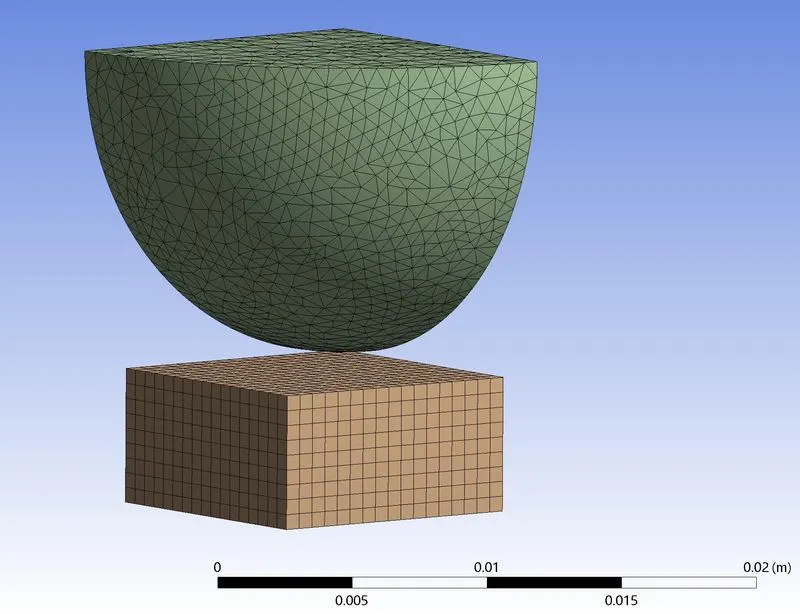

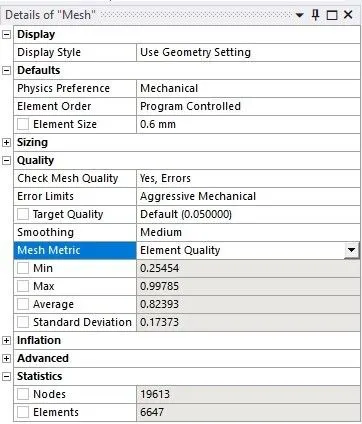

Mesh   Mesh the mode with element size of 0.6mm

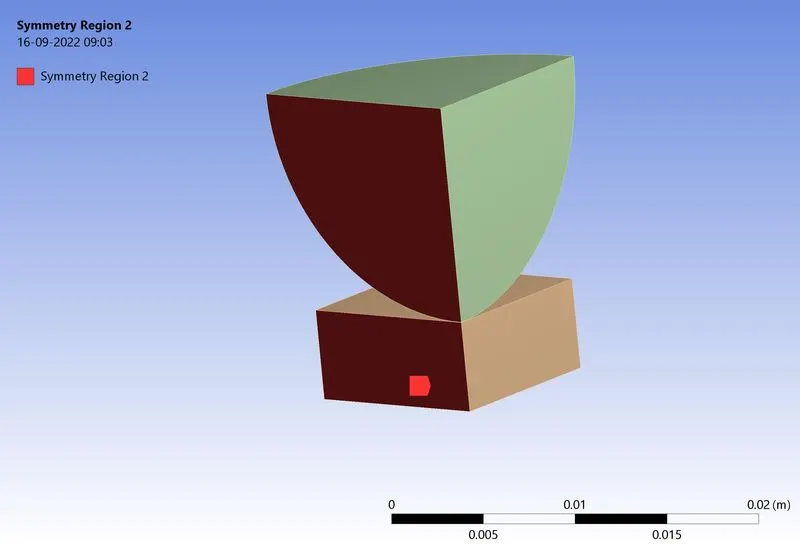

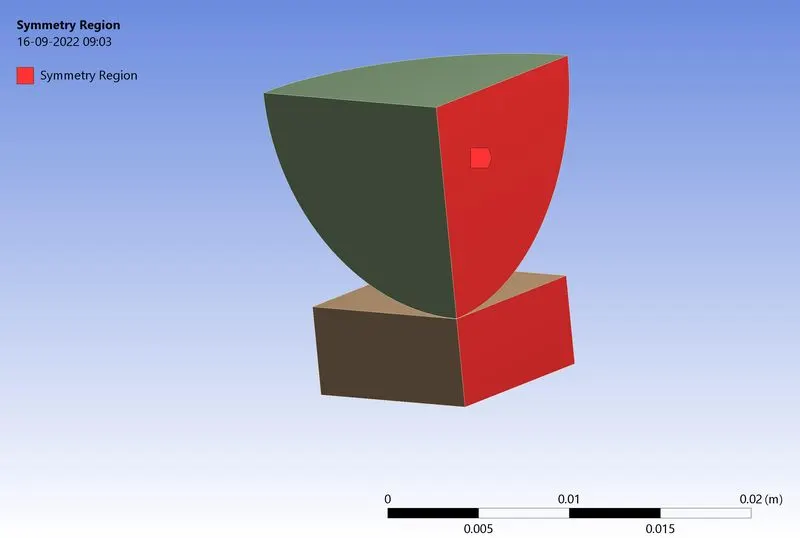

Symmetry

The simulation is carried out only on a quarter of the actual geometry reduce the computation time regions of symetry are defined along the x and the z axis

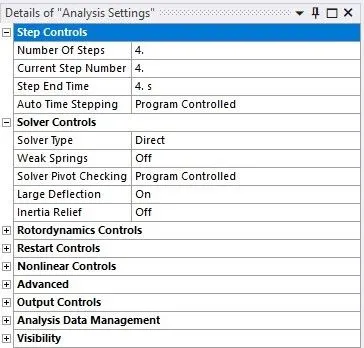

Analysis Setting

The simulation runs for 4 steps .So the number of steps is set as 4 solver type is set to direct large deflection is set on

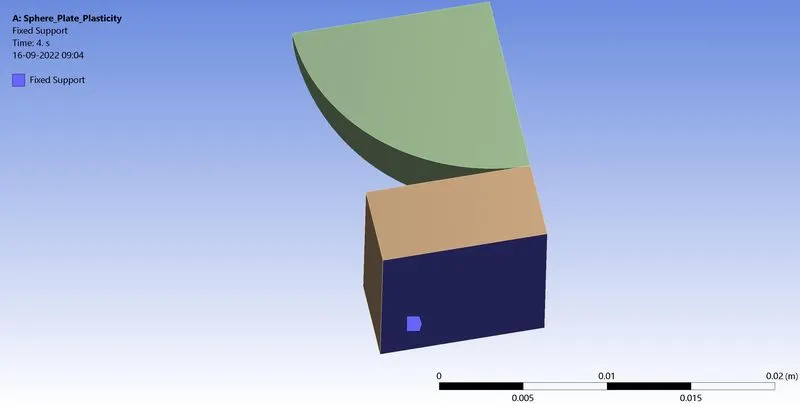

Fixed Support

The plate provides fixed support to constrain the movement under the load.

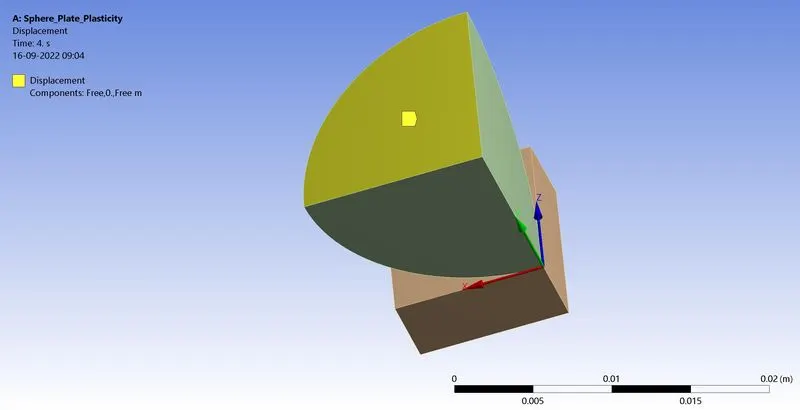

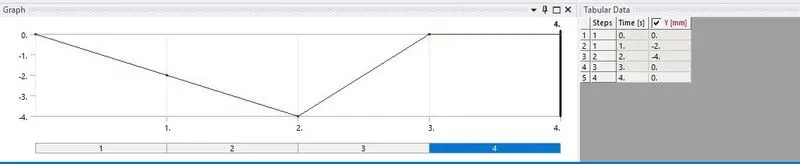

Displacement   The sphere is provided with a displacement of 4mm in negative y direction and also the sphere is set to retract back to its original position.





Result    The analysis  runs successfully and results obtained

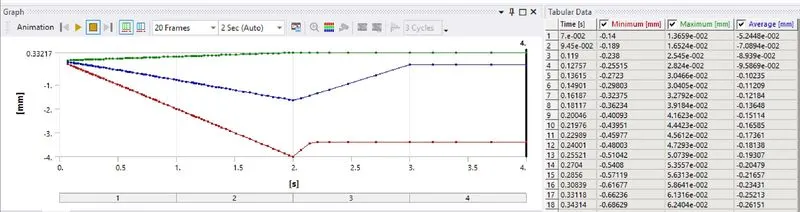

Directional Deformation in the Y axis Max - 0.33204 mm and min - 3.3983

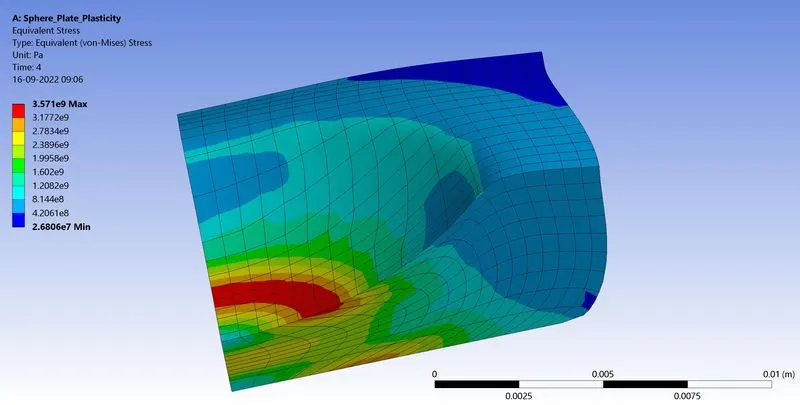

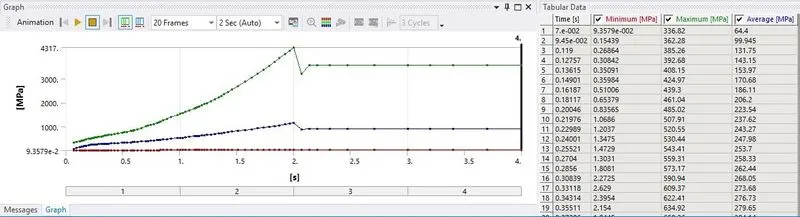

Equivalent Stress Max - 3571 Mpa

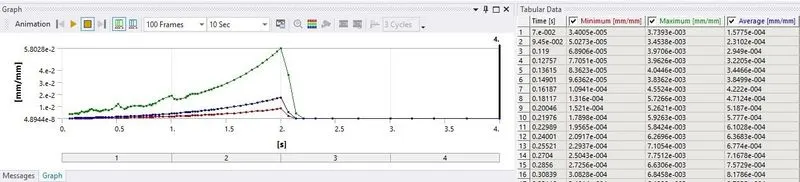

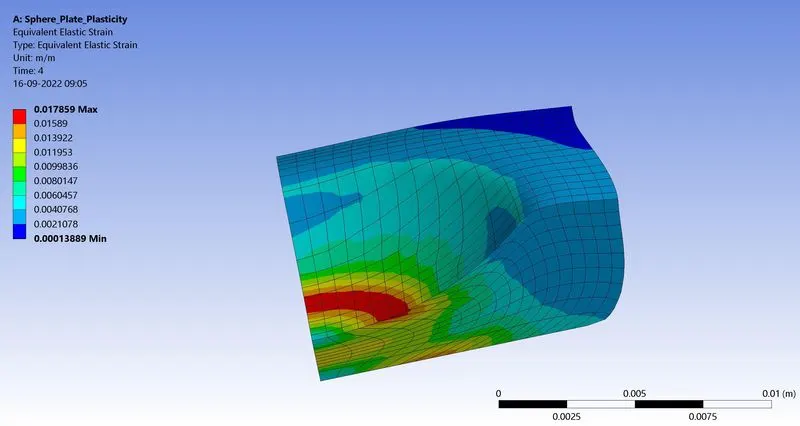

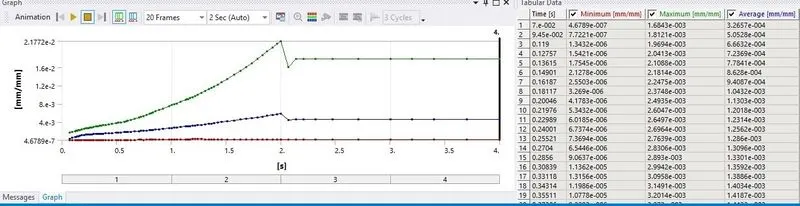

Equivalent Elastic Strain on Plate max - 0.017859 mm/mm

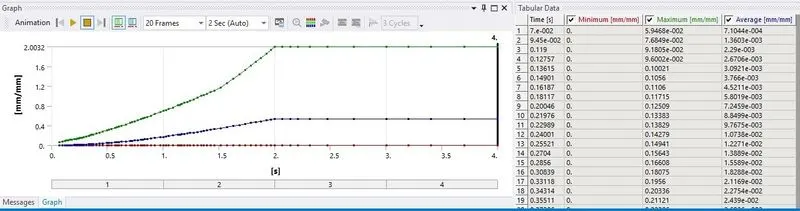

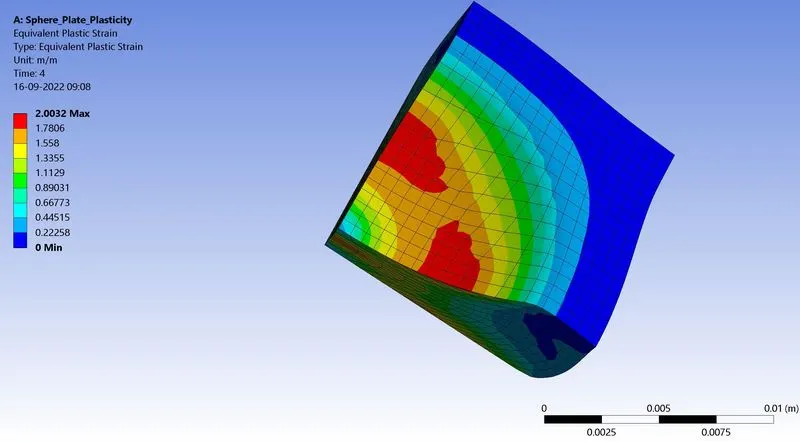

Equivalent Plastic strain on plate max - 2.0032 mm/mm

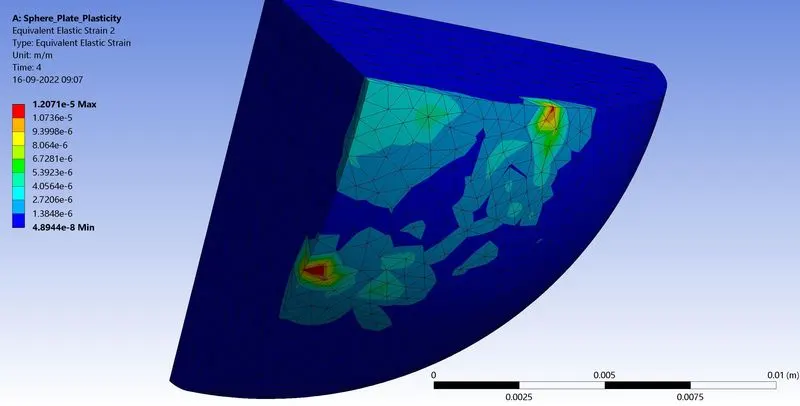

Equivalent Elastic Strain on Sphere max - 1.2071e-5 mm/mm

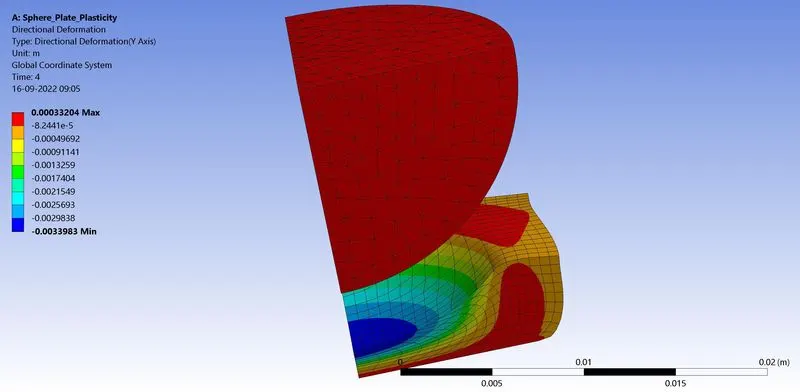

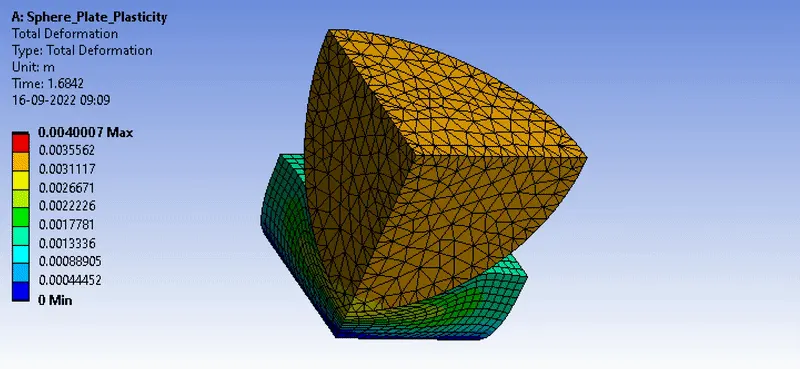

Directional Deformation in Y axis



Conclusion

• The maximum deformation on the plate for a displacement of 4 mmby the sphere is 3.3983 mm
• The maximum stress on plate occurs near the center of the plate where the deformation is the highest
• Similarly the elastic strain on plate also occurs near the center of the plate same as stress
• The maximum equivalent plastic strain on plate occurs at the edges of the plate
• The maximum elastic strain on the sphere is where there contact is with the plate.
