Week 5:- Rest Unit & Clamp Unit Design Challenge

Project: WEEK-5 Clamp and Rest unit design

Aim :

The motive of this project is to develop a clamp and rest unit for the given part using Mylars, Clamp Arm, Pneumatic Cylinder, L bocks, and Riser.

Bought out Parts used:

• Pneumatic cylinder and Clamp Arm Assembly.

The opening angle of the clamp arm changes from product to product.

Parts required:

• Mylars (Clamp Mylar and Rest Mylar)
• L Blocks
• Riser
• Shim block.

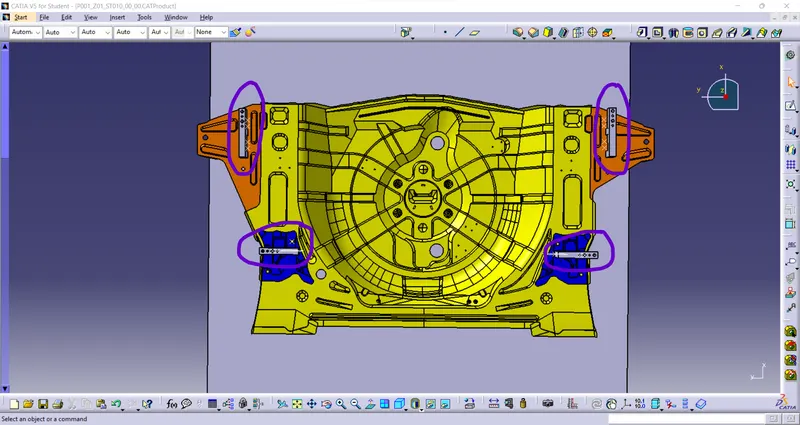

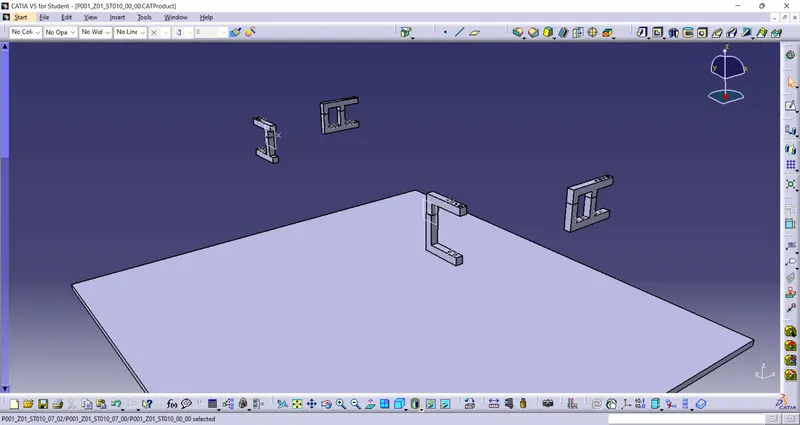

Clamp Mylar :

Clamp mylar is attached to the clamp arm of the pneumatic cylinder which gives force for the clamping of the panel.

Rest Mylar:

Rest Mylar is the fixed part that holds the panel and does not offer any motion to the panel.

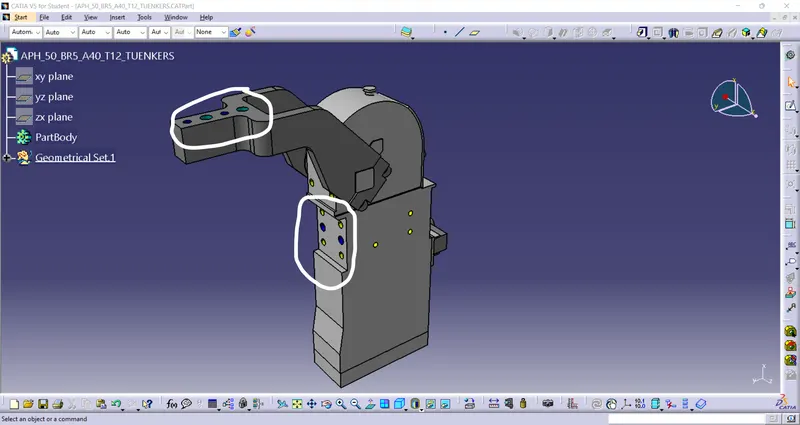

Pneumatic Cylinder:

The highlighted are the mounting holes for riser and clamp.

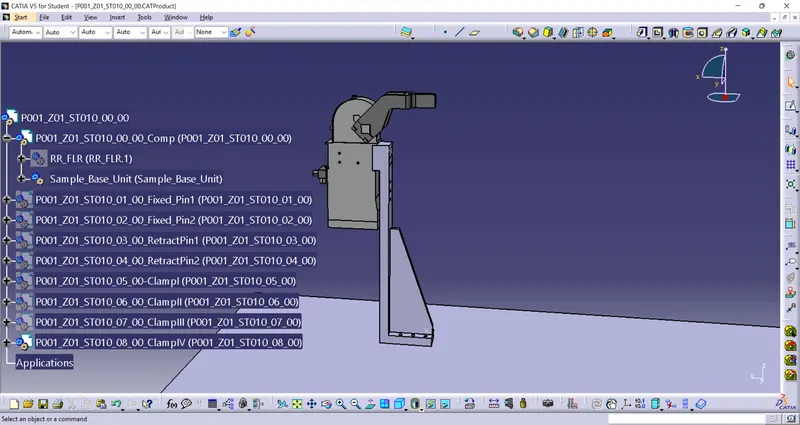

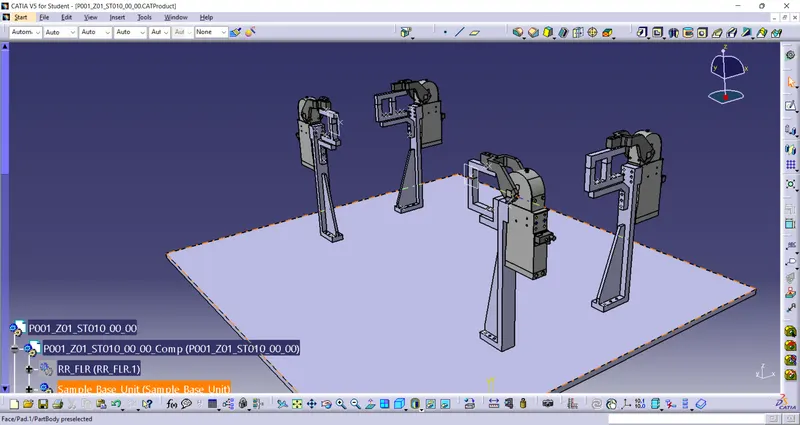

Riser:

The riser is part that connects the base and pneumatic cylinder and the height of the riser varies depending on the height requires.

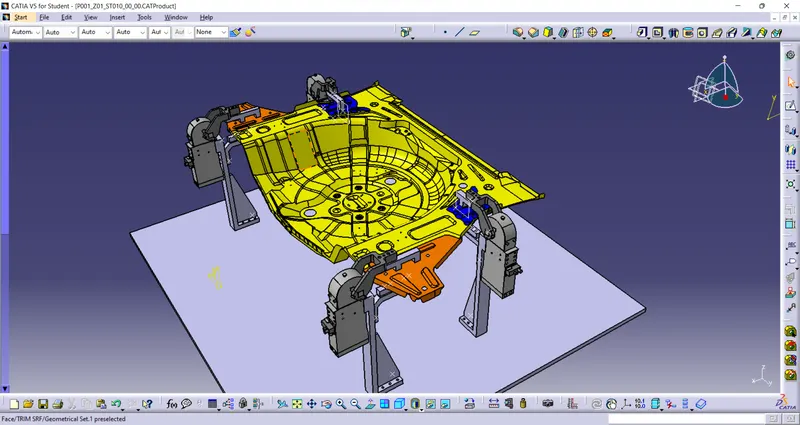

Assembly of Clamp and Rest unit:
