Week 5 - Curve fitting

AIM

To write codes in python to perform curve fitting

OBJECTIVE

• To write codes to fit a linear and cubic polynomial for the Cp data
• To plot the linear and cubic fit curves along with the raw data points
• To measure the fitness characterstics for both the curves

THEORY

Curve fitting is the way we model or represent a data spread by assigning a best fit function along the entire range .Ideally it will capture the trend in the data and allow us to make predection of how the data series will behave in the future

Types of curve fitting include

• Interpolation   Where you discover a function that is an exact fit to  the data points .Since this assumes no measurement error it has limited applicability ti real life scenarios
• Smoothing   is when we find a function that is an approximate fit to the data points but we give the error is minimized overall

Linear and Polynomial  Curve Fitting

Linear curve fitting

Linear regressionis when the data is fit to straight line. Althrough  there might be some curve to your data  a straight line provides a reasonable enough fit to make predictions

Since the equation of a generic straight line is always given by f(x)=ax+b the question becomes what a and b will give us the best fit line for our data

Considering the vertical distance from each point to a prospective line as  an error and summing them up over our range gives us a concrete number that expresses how far best the prospective line is. A line that provides a minimum error can be considered the best straight line

Since its the distance from our points to the line were interested in whether it is positive or negative distance is not relevant we square the distance in our error calculations .This also allows us to weight greater errors more heavily .So this method is called the least square approach

Polynomial curve fitting

Is when we fit our data to the graph of polynomial function .The same least squares method can be used to find polynomial of given degree that has a minimum total error

To choose the best fit to curve the following four parameters helps us to measure the goodness of fit criteria or how well the equations are representing the given data points

• The sum of squares due to error(SSE)
• R- square
• Adjusted R-Square
• Root mean squared error (RMSE)

GOVERNOR EQUATION

CODE

•  At first necessary modules such as math,matplotlib,numpy,scipy are imported to perform thier respective functions
• Two function are defined which return linear and cubic equations
• The following data is loaded into python by placing it in right directory and a function read_file is created for loop is used to run each line using open command with r to read it
• From the data obtained two individual column matrices of temperature and specific heat are derived
• For curve fitting popt and pcov are used as output for storing parameters obtained by curve_fit command which takes input as the required function linear or cubic temperature and Cp .Now another variable named fit_cap stores the new values of cp calculated by using temperature array
• Plots of both raw dataset and predicted dataset are made and compared to find fitness characterstics for both the curves for both linear and cubic polynomial
• To measure the fitness characterstics for both the curves various parameters such as SSE SSR SST R^2 RMSE are calculated .The plot which has highest R^2 or closet to 1 is considered to be good fit

# A program to measure fitness characteristics for the linear and cubic polynomial for the Cp data:
import math
import matplotlib.pyplot as plt
import numpy as np
from scipy.optimize import curve_fit

# Curve fit function
# Linear function
def function_0(t,a,b):
	return a*t + b
# Cubic function
def function_2(t,a,b,c,d):
	return a*pow(t,3) + b*pow(t,2) + c*t +d


# Reading thermodynamic data file
def read_file():
	temperature = []
	cp = []
	for line in open('data','r'):
		values = line.split(',')
		temperature.append(float(values[0]))
		cp.append(float(values[1]))

	return [temperature , cp]

# Main Program
temperature , cp = read_file()

popt, pcov = curve_fit(function_0,temperature,cp)
fit_cp_l = function_0(np.array(temperature), *popt)
plt.figure(1)
plt.plot(temperature,cp,'k--')
plt.plot(temperature,fit_cp_l,color='red',linewidth = 1)
plt.legend(['Actual data','Curve fit'])
plt.xlabel('Temperature (K)')
plt.ylabel('Cp')
plt.title('Linear Curve fitting')
plt.show()

popt, pcov = curve_fit(function_2,temperature,cp)
fit_cp_c = function_2(np.array(temperature), *popt)
plt.figure(3)
plt.plot(temperature,cp,'k--')
plt.plot(temperature,fit_cp_c,color='red',linewidth = 1)
plt.legend(['Actual data','Curve fit'])
plt.xlabel('Temperature (K)')
plt.ylabel('Cp')
plt.title('Cubic Curve fitting')
plt.show()


'''

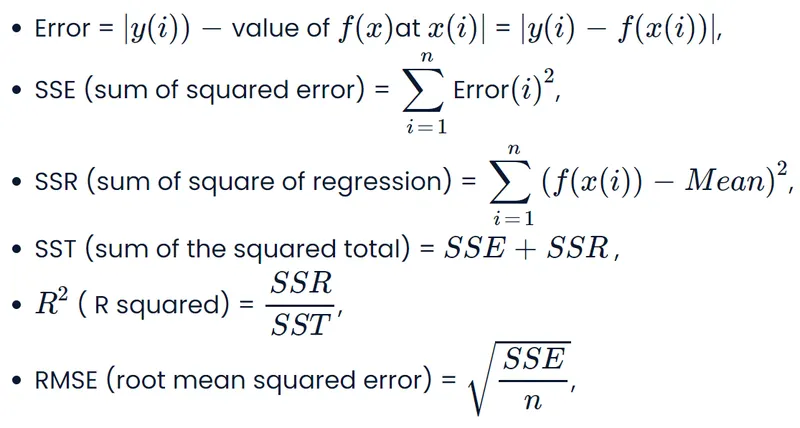

Measuring the fitness characetristics of the curves

 SSE (sum of error squared)
 SSR (sum of squares of the regression)
 SST = SSE + SSR
 R^2 = SSR/SST
 RMSE = (SSE/l)^0.5

 Finding mean of Cp data
 mean = ( sum of all elements)/(total number of elements)'''

s = np.sum(cp)
l = np.size(cp)
m = s/l
print('Mean of all cp :',m)
print('')
# For Linear curve fit

linear_sse = 0
linear_ssr = 0
for i in range(l):
    linear_error = abs((np.sum((cp[i] - fit_cp_l[i]))))
    linear_sse = linear_sse+pow(linear_error,2)
    linear_ssr = linear_ssr+ np.sum(pow((fit_cp_l[i] - m),2))


linear_sst = linear_sse + linear_ssr
print('linear_sst :',linear_sst)
linear_R2 = linear_ssr/linear_sst
print('linear_R2 :',linear_R2)
linear_rmse = pow((linear_sse/l),0.5)
print('linear_RMSE :',linear_rmse)
print('')


# For Cubic curve fit
cubic_sse = 0
cubic_ssr = 0
for j in range(l):
    cubic_error = abs(np.sum((cp[i] - fit_cp_c[i])))
    cubic_sse = cubic_sse+(pow(cubic_error,2))
    cubic_ssr = cubic_ssr+np.sum(pow((fit_cp_c[i] - m),2))


cubic_sst = cubic_sse + cubic_ssr
print('cubic_sst :',cubic_sst)
cubic_R2= cubic_ssr/cubic_sst
print('cubic_R2 :',cubic_R2)
cubic_rmse = pow((cubic_sse/l),0.5)
print('cubic_RMSE :',cubic_rmse)

RESULTS

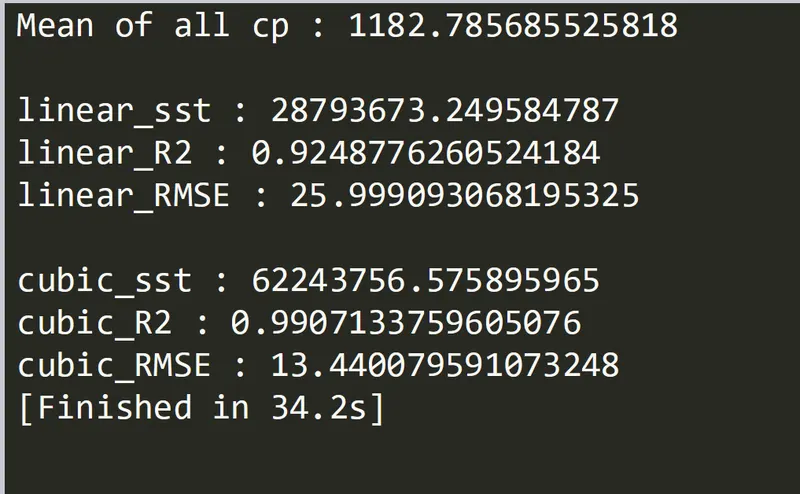

The following are output of the above program

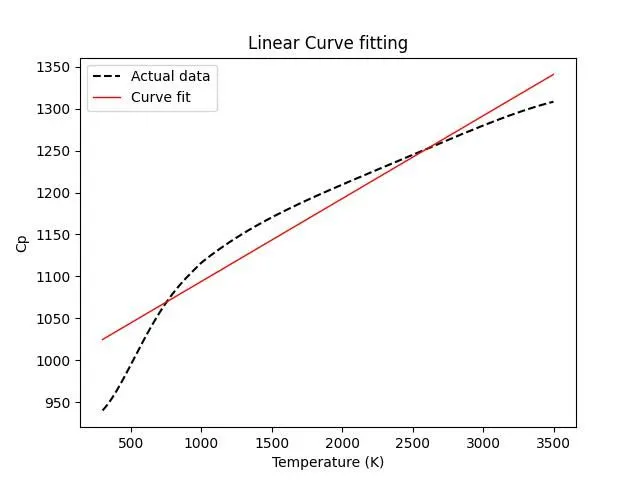

For linear curve fitting the plot obtained is

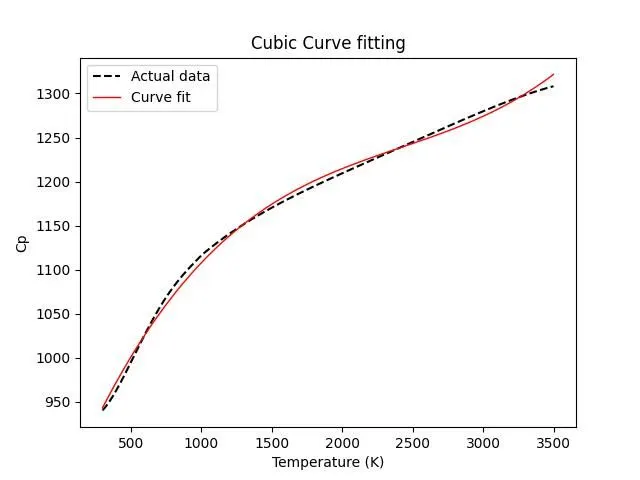

For cubic curve fitting the plot obtained is

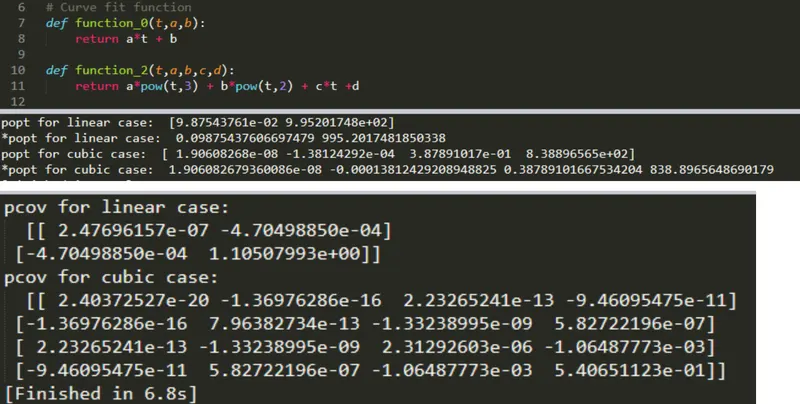

• What  does popt and pcov mean

Popt represent the matrix which stores and extracts the coefficients for the fitting functions according to the general equations defined

Popt : Array , optimal values for the parameters so that the sum of the squared residuals of f(xdata , *popt) - y data is minimized

Pcov represents the square matrix which stores the estimated values of covariance of the coefficient of the above .The diagonal element of this square matrix also represent variance of that coeffcient

Pcov : 2d array

The estimated covariance of popt .The diagonal provide the variance of the parameters estimate .To compute one standard deviation errors on the parameters use perr = np.sqrt (np.diag(pcov)) How the sigma parameter affects the estimated covariance depends on absolute sigma argument as if true sigma is used in an absolute sense and the estimate parameter covariance pcov reflects these absolute values .If false only the relative magnitudes of the sigma values matters.The returned parameter covariance matrix pcov is based on scaling sigma by a constant factor



• What does np.array (temperature)do

 This command converts each value of temperature in the data file into an array using numpy module

• What does the *in*popt mean

*,* popt indicates and returns each coefficient stored in popt array

• What needs  to be done in order to make the curve fit perfect

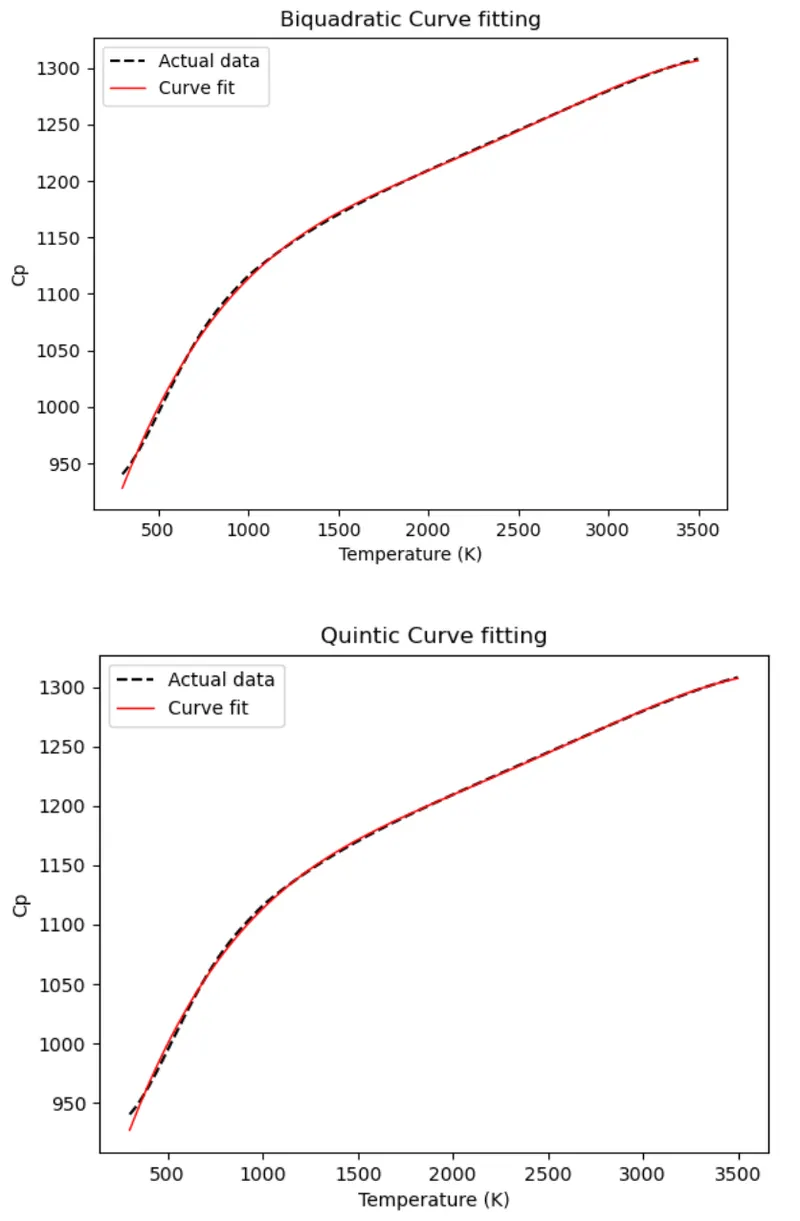

If we increase the order of the polynomial the error produced will be less and curve fit perfectly .On increasing the order of the polynomial the value of R^2 willbe close to 1 and is assumed to perfect fit



This method requires defining functions every time for another polynomial and can be considered lengthy.Instead of this method the one of the data say temperature can be spilit into multiple domains say temperature column has 5000 data in it we can split it into 10 domain of 500 values and if we plot them it will fit perfectly on curve

CONCLUSION

Hence we can conclude that to make curve fit good R^2 should be close to 1 .It can be found from the results obtained as for linear curve fit R^2 is approximately 0.93 and for cubic curve fit it is nearly 0.99 .So it can be said that polynomial fits better than linear polynomial .If the order of the polynomial increases the value of R^2 will inch towards 1 and fit will be assumed to be good
