Week 5 Challenge : Surface wrap on Automotive Assembly

Aim : For the given models to check for geometrical error and delete surfaces which are unwanted for surface wrap. After clearing geometry , merge all 3 models and perform surface wrap

Target length for Wrap = 3 mm
Write a detailed report on steps followed to finish this challenge.

Surface Wrap : The surafce wrap is used create a water tight surface mesh which replicates the orginal model and is used to perform external flow analysis without any internal components . The accuracy of surface mesh dependson element size of the mesh

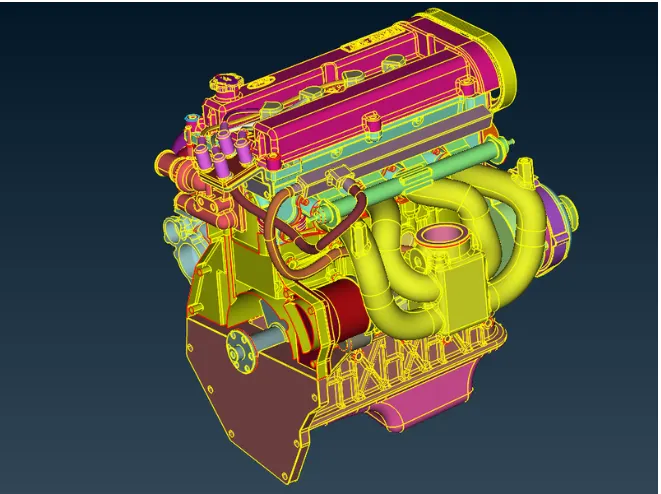

ENGINE:

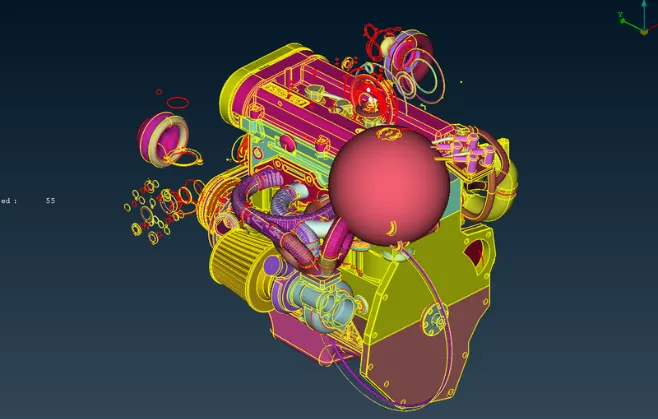

Now we delete al unwanted and overlapping surfaces from file and finally holes and unfilled surfaces are being closed by creating a new surface over there

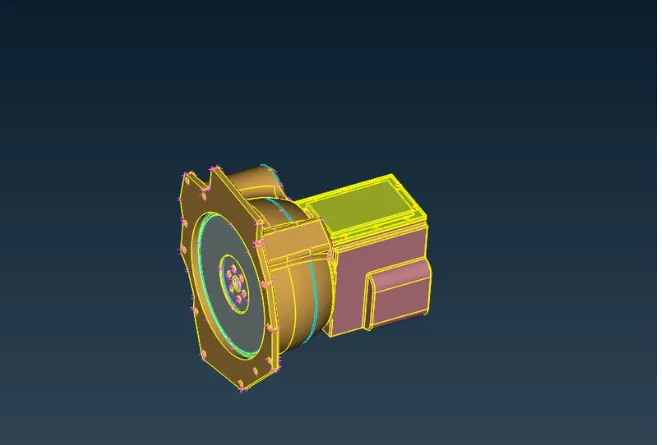

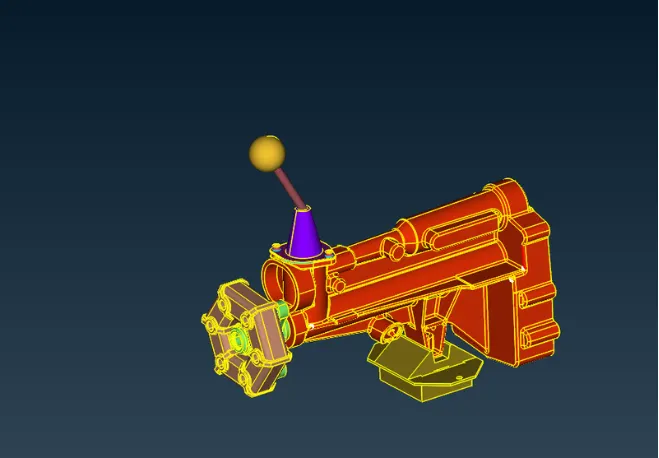

GEARBOX & TRANSMISSION SYSTEM

Only slight changes to be since the file is already clean

Merging the 3 Components :

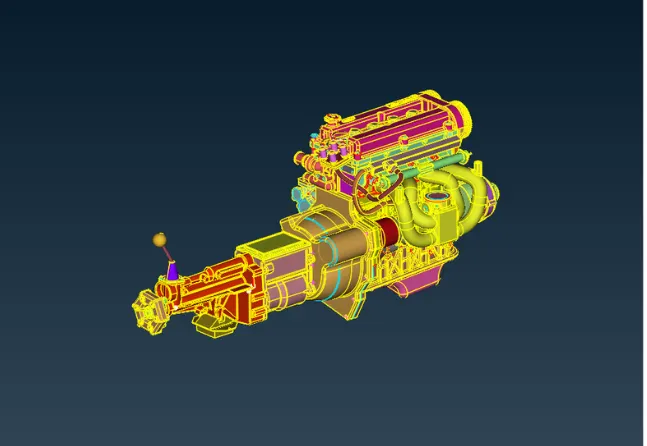

Now we merge all these files into one . To this within in the engine file , open the file and click on merge and select the needed component .Then we get a complete merge of those 3 componets

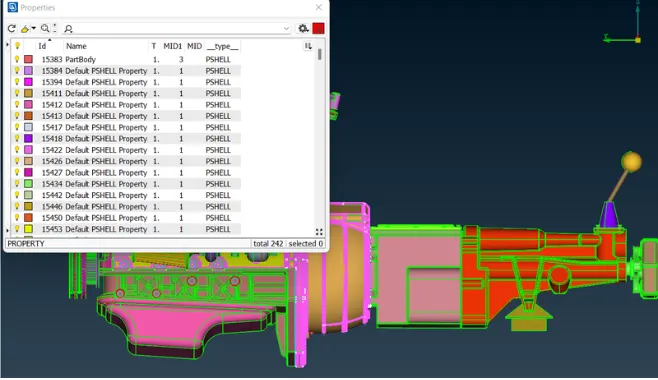

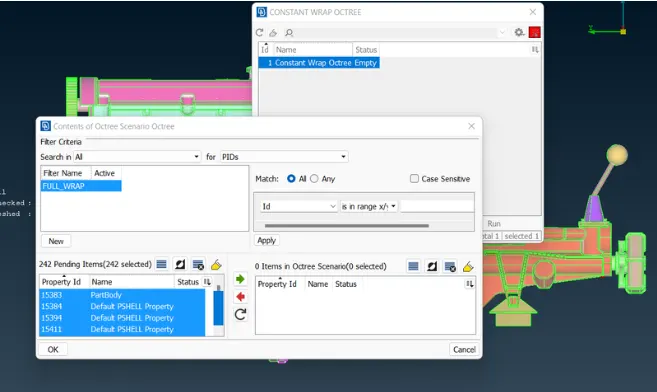

Now we need to compress all deleted PID's .After compressing its reduced to 242 files

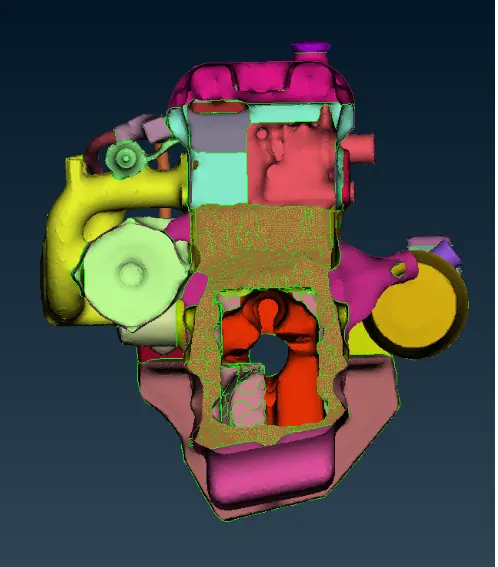

And finally surface meshing is done for 3 mm

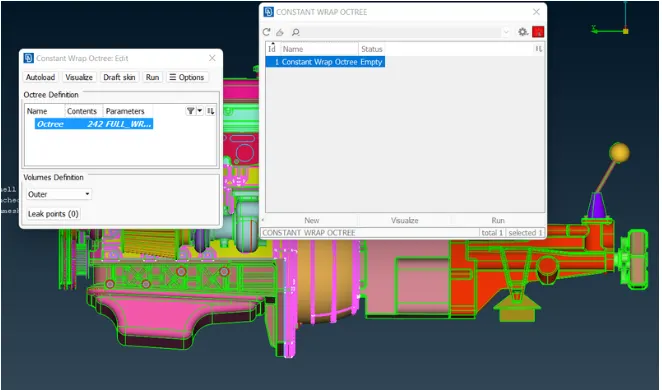

• Mesh >> mesh generation >> Element>> wrap >> constant wrap

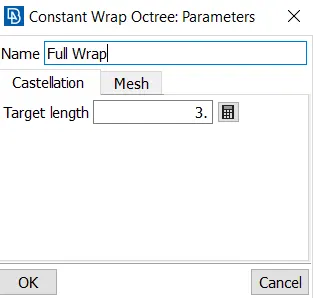

• Click on parameters section , enter the mesh length =3 mm

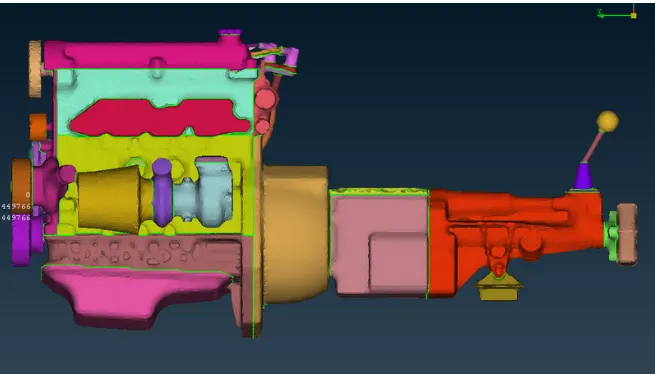

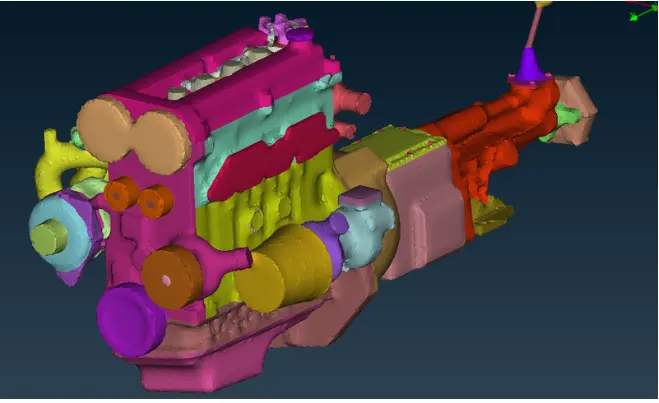

Result : Powertarin mesh is succesfuly meshed
