Week 5 Challenge : Surface wrap on Automotive Assembly

AIM: To create a surface wrap of 3mm and merge the engine, gearbox, & transmission.

PROCEDURE:

. Surface wrap is used for meshing the model from the outside. Basically, we are dealing here with external air or fluid flow.

2. We will not deal with components from inside the model.

3. Our task is to remove unnecessary surfaces from outside and patch our surface from outside so that the model doesn't have any dents or holes in it.

4. After that, we need to merge the three models and then go for surface wrapping.

5. We should compress the PIDs, as we do not need maximum PIDs, and then do surface wrapping.

6. After wrapping, remember that the model should be 1 volume; therefore, we should thoroughly check our model after surface wrapping.

Conclusion: Surface wrap is used to study external fluid analysis, and hence we have created our surface wrap (3mm).

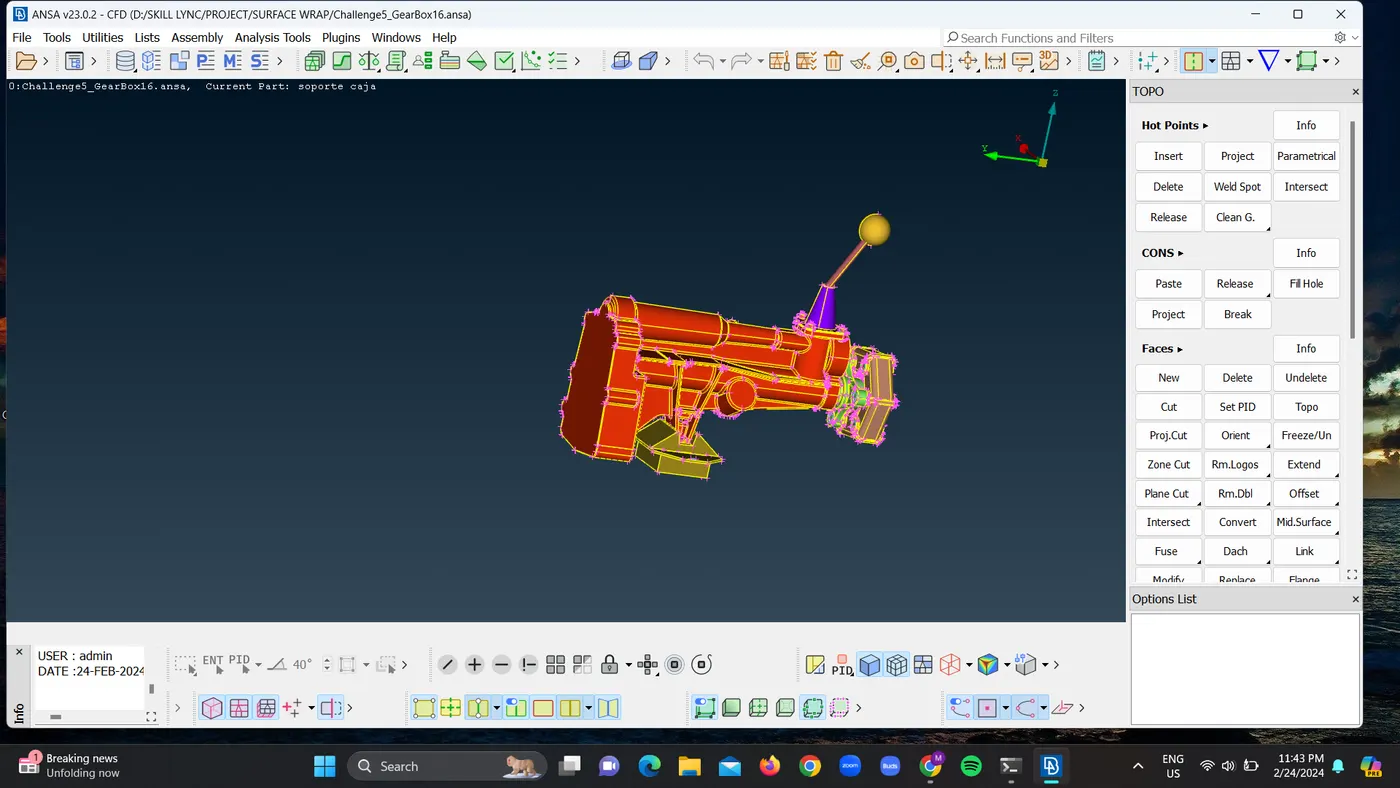

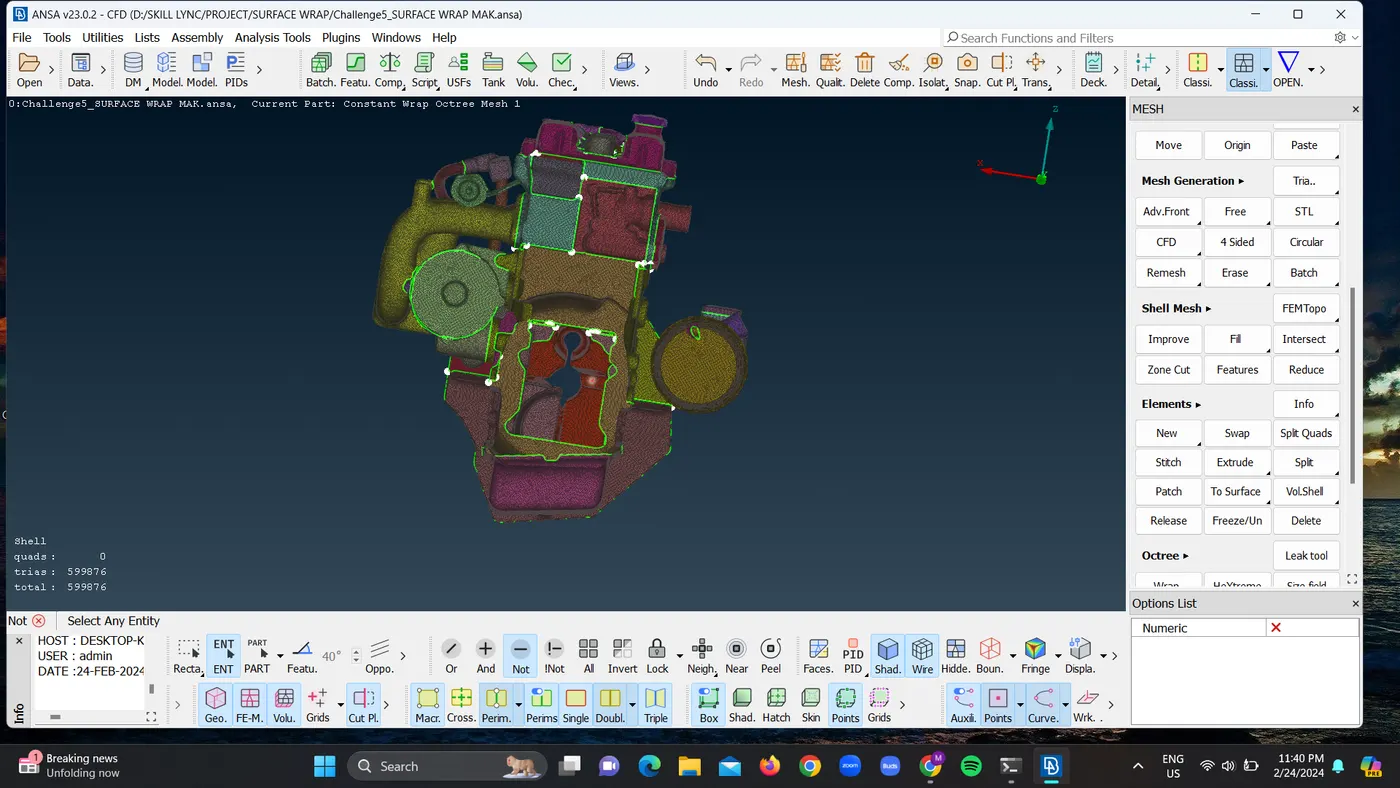

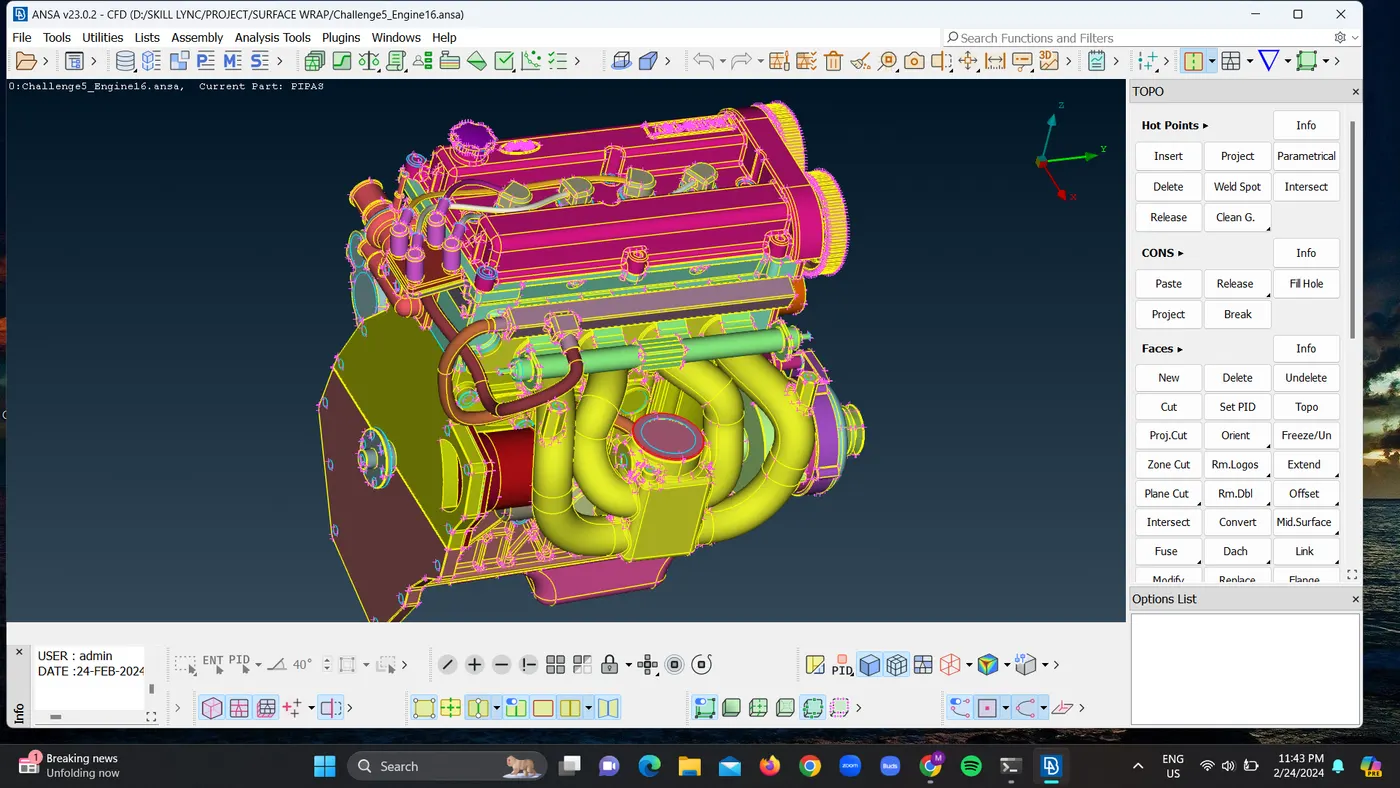

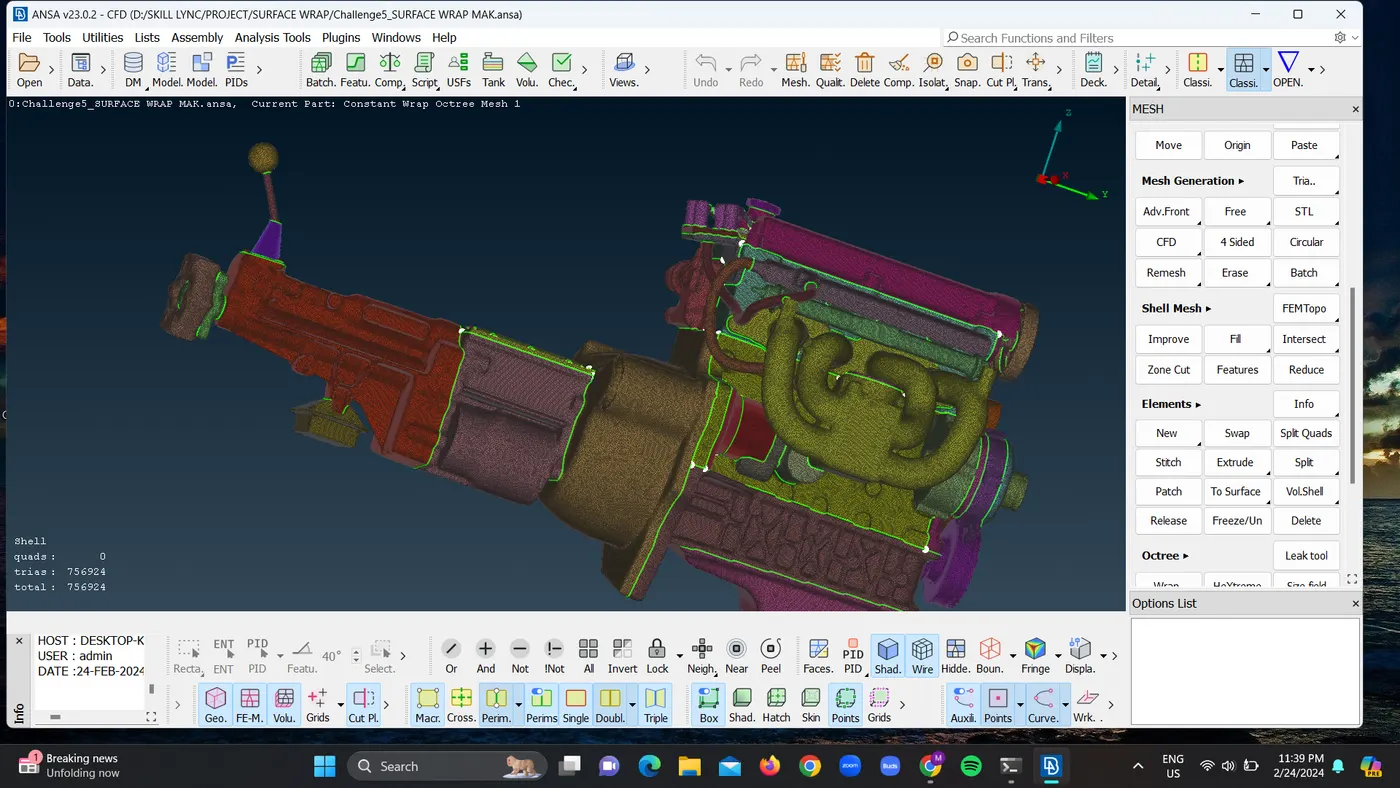

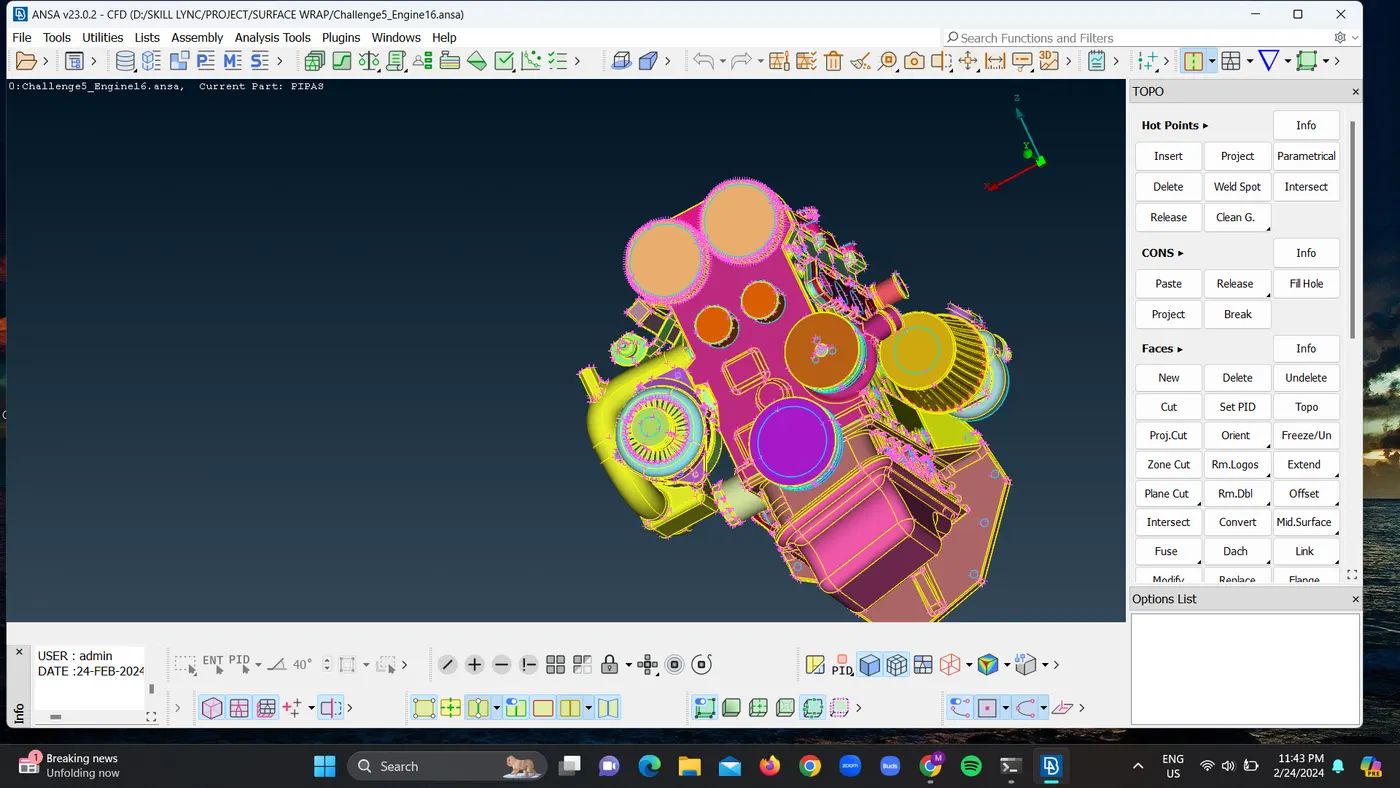

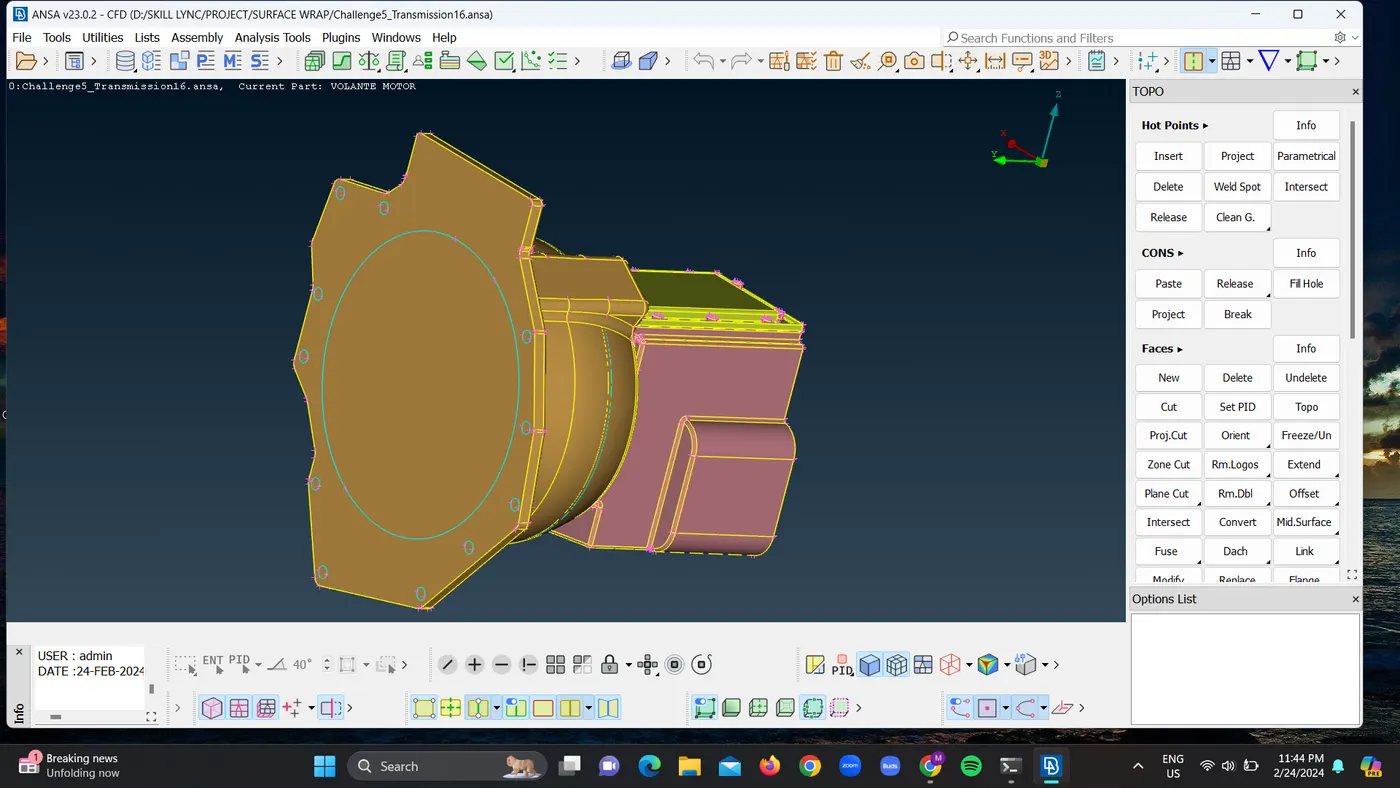

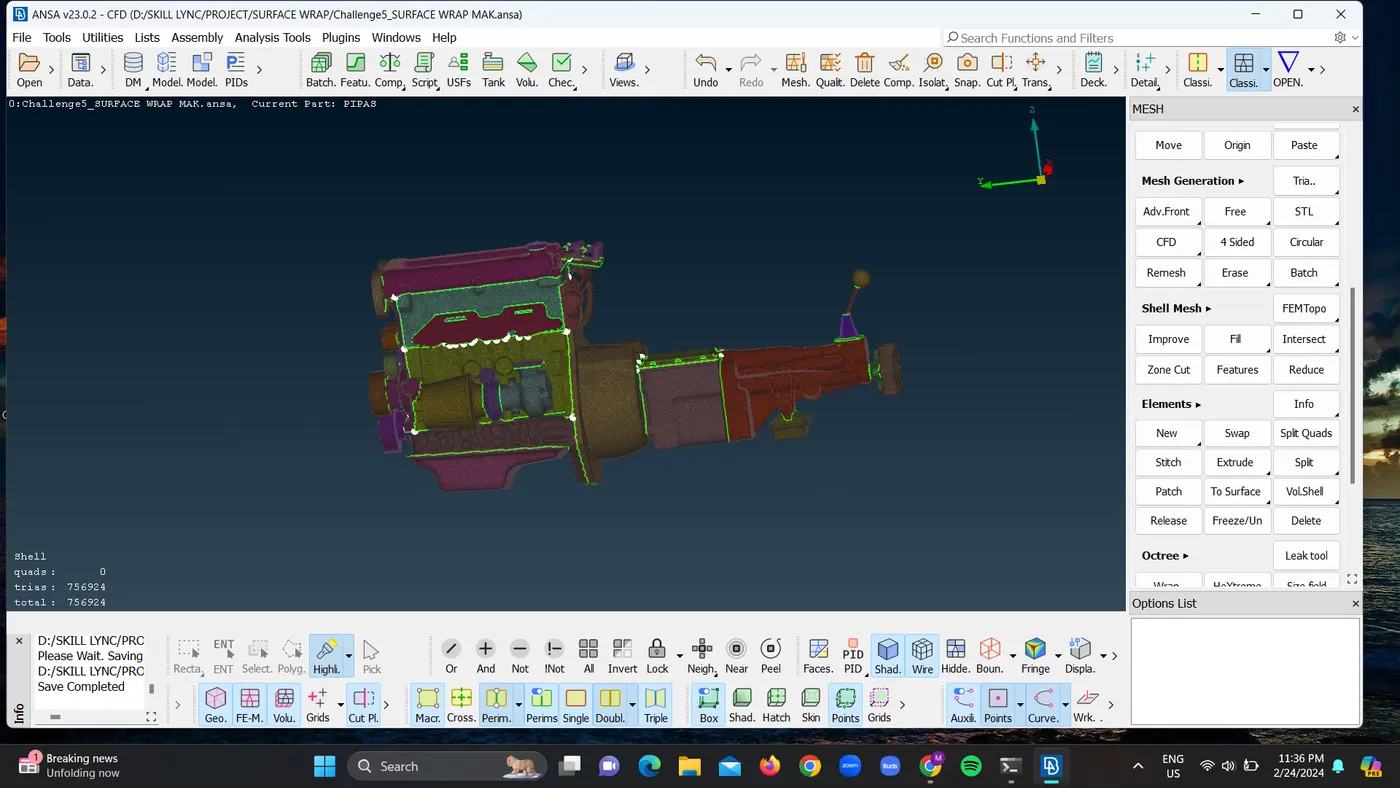

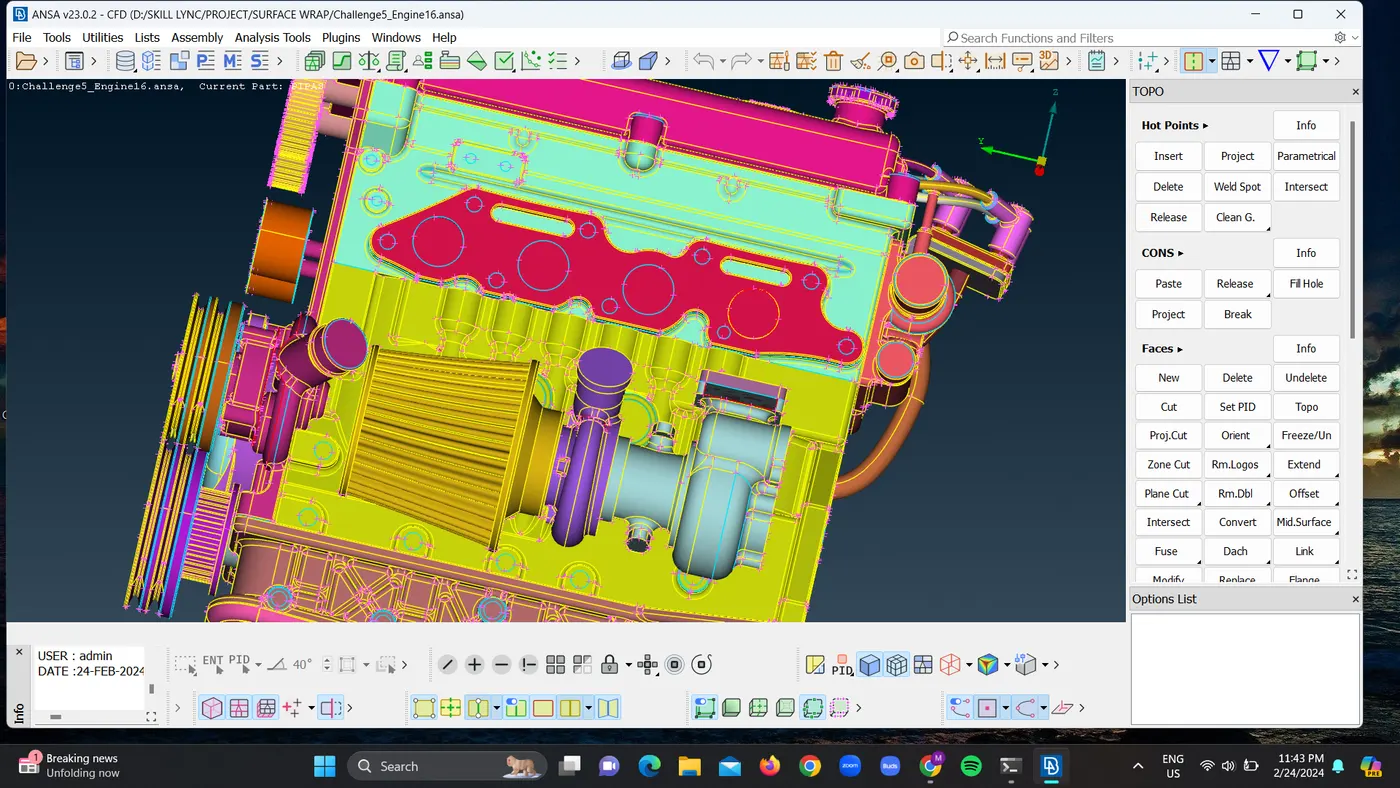

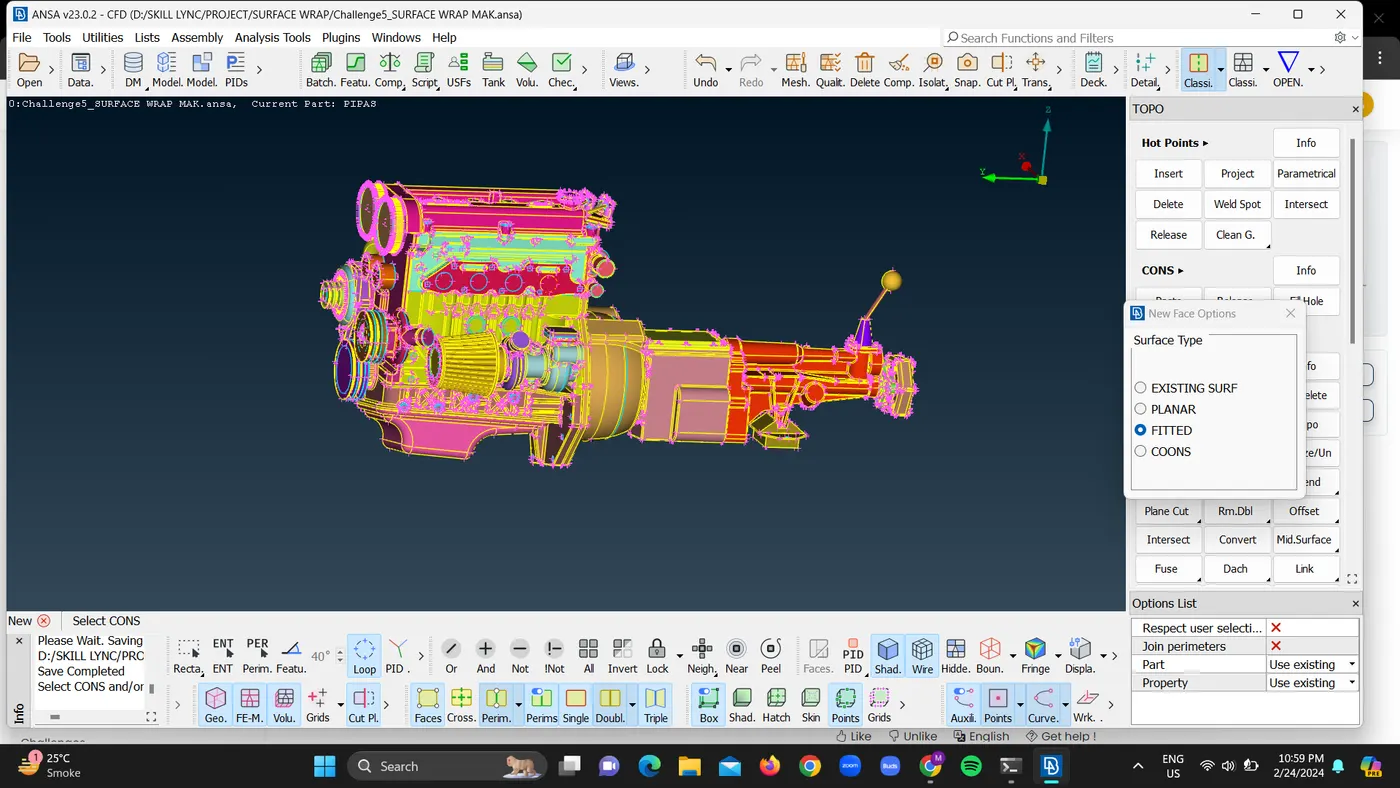

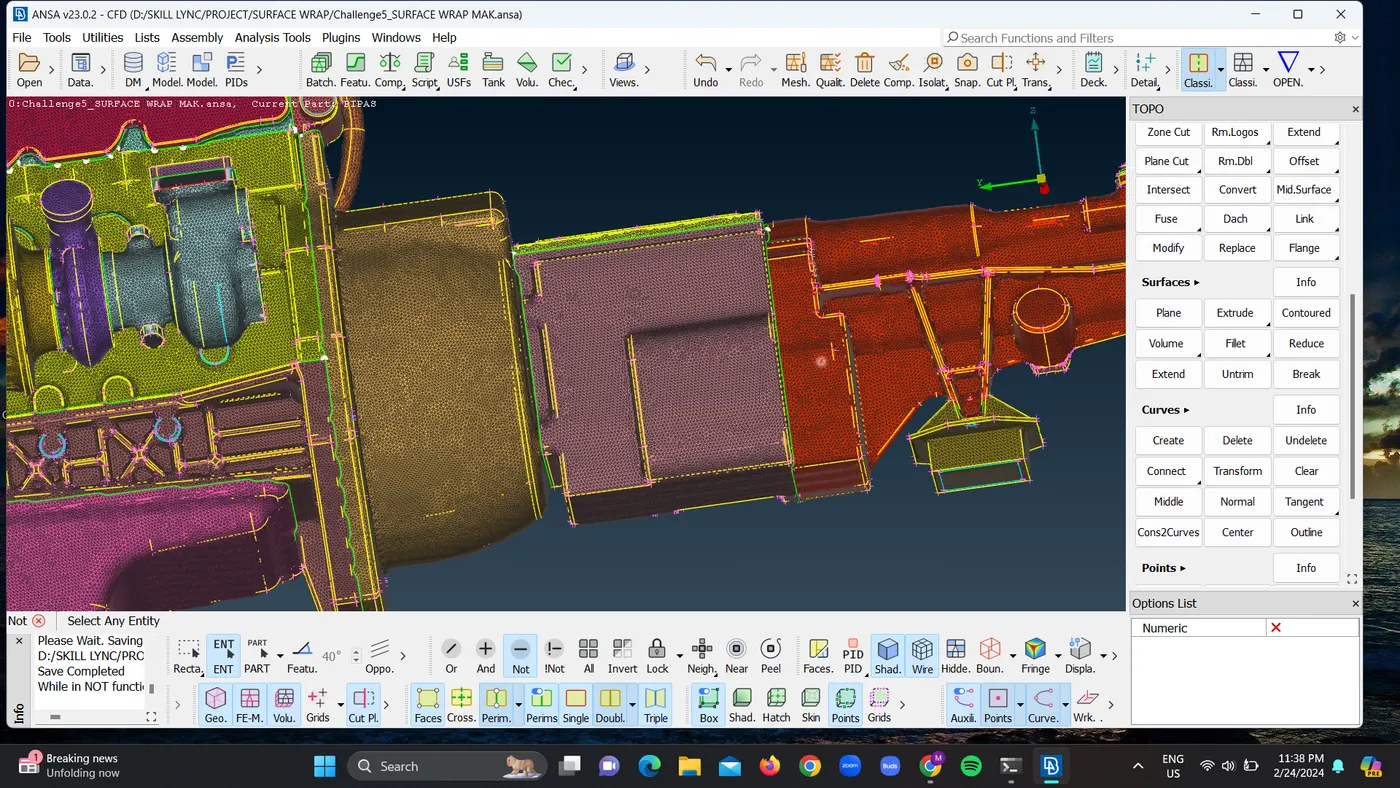

SNAPSHOTS:
