Week 5 Challenge : Surface wrap on Automotive Assembly

AIM: SURFACE WRAP ON AUTOMOTIVE ASSEMBLY

PROCEDURE:

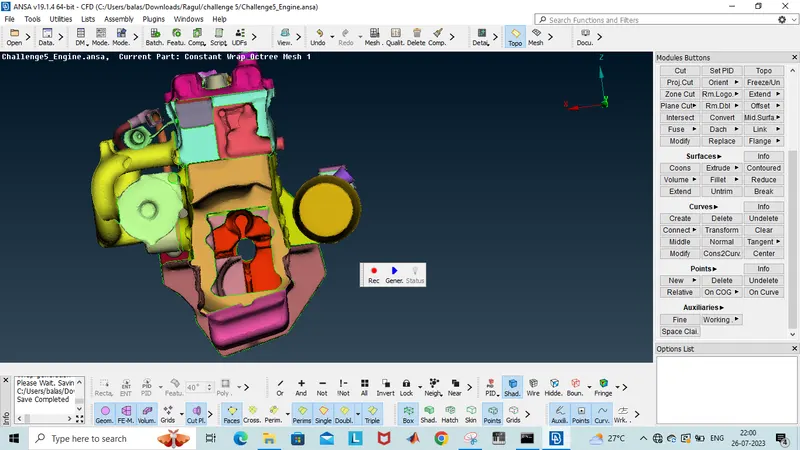

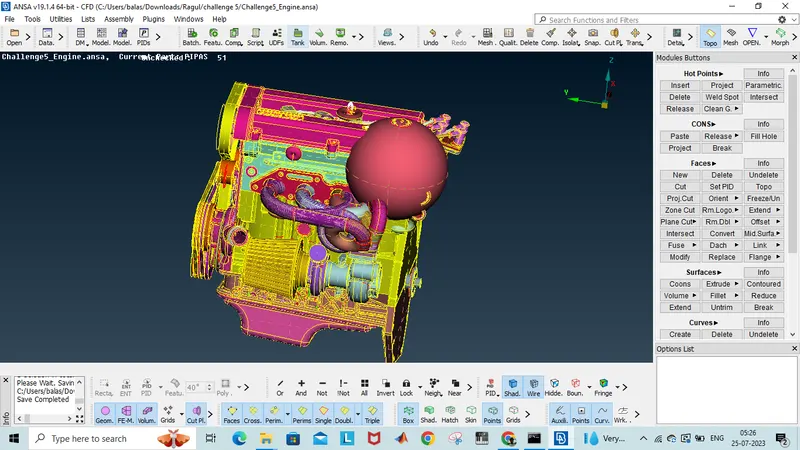

1)DELETE UNWANTED RING AROUND THE GIVEN MODEL

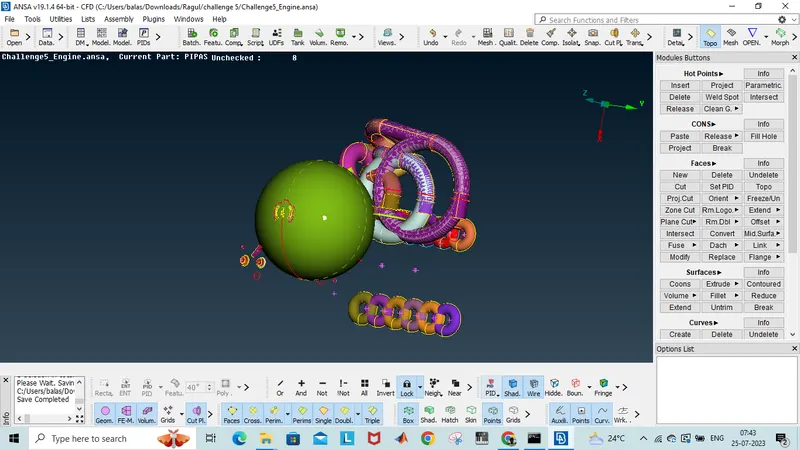

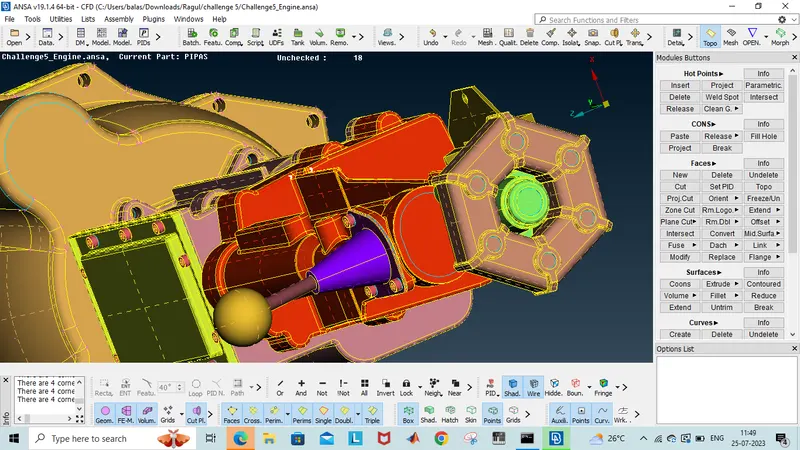

2)FINDING UNWANTED FEATURES INSIDE THE GIVEN MODEL

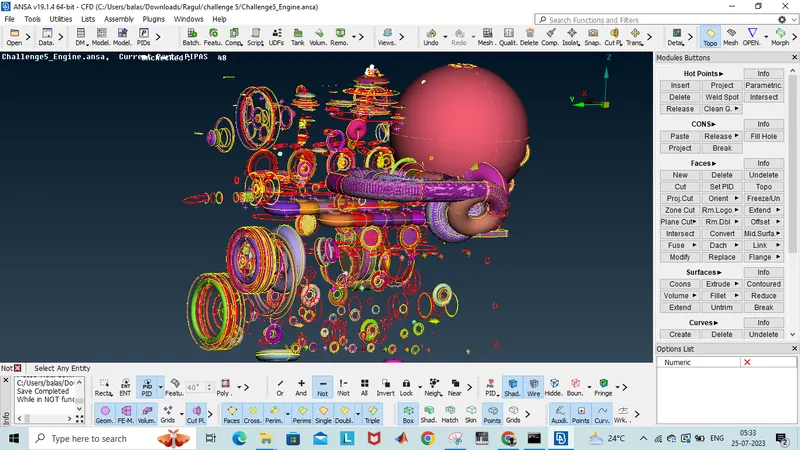

3)DELETING UNWANTED ELEMENTS AND SURFACES

4)CLOSING ALL THE HOLES

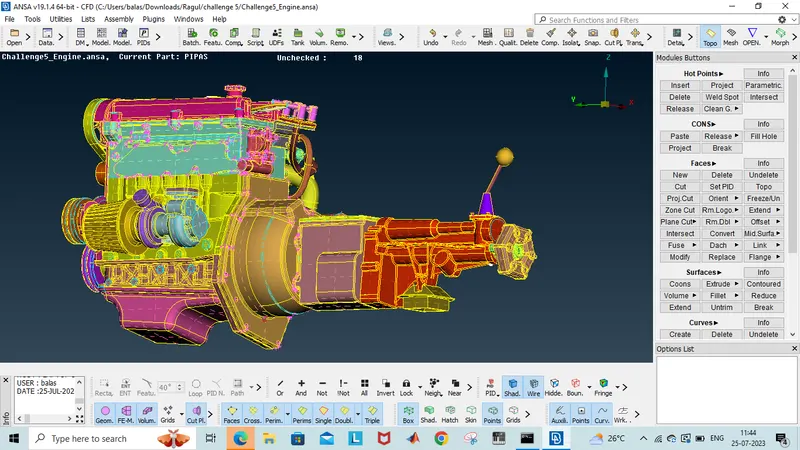

5)CHECKING UNWANTED ELEMENTS IN THE TRANSMISSION SYSTEM

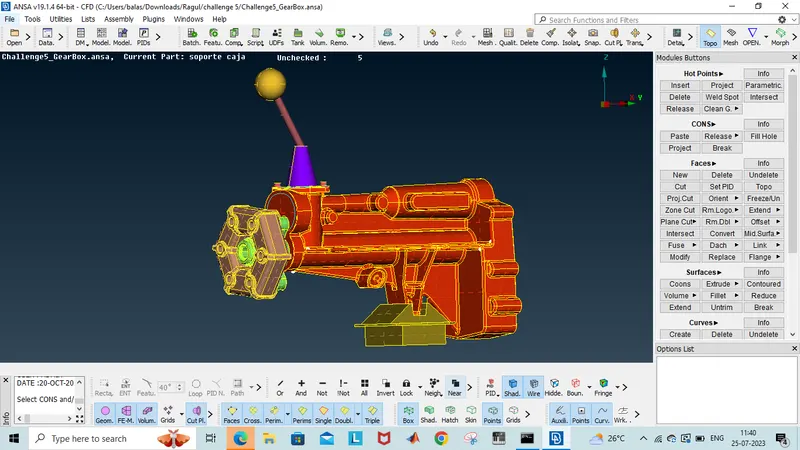

6)CHECKING UNWANTED ELEMENTS IN THE GEARBOX ASSEMBLY

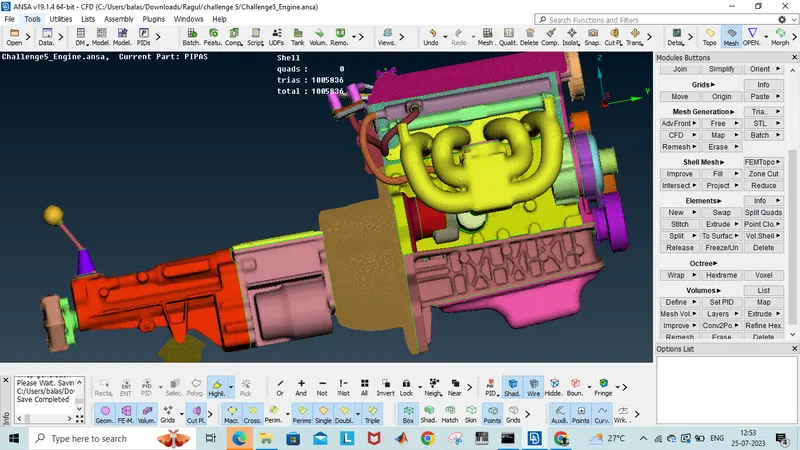

7)MERGING OF ALL THREE MODEL

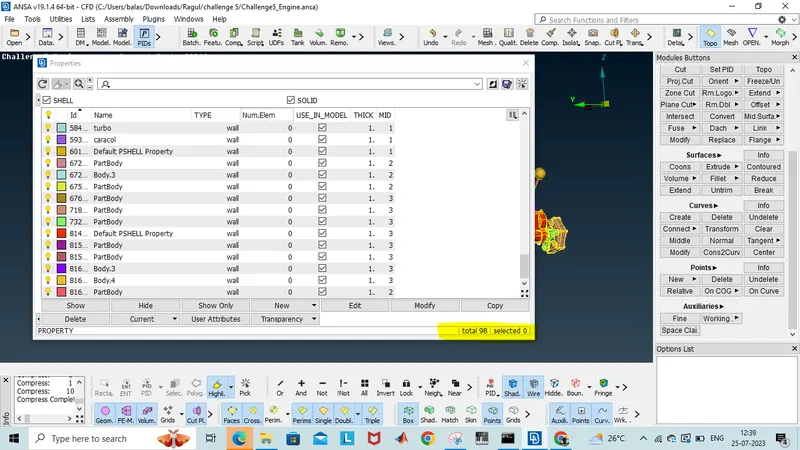

8)NUMBER OF PROPERTY IN THE PROPERTY MANAGER

9)AFTER COMPRESSING PROPERTY COUNT REDUCED

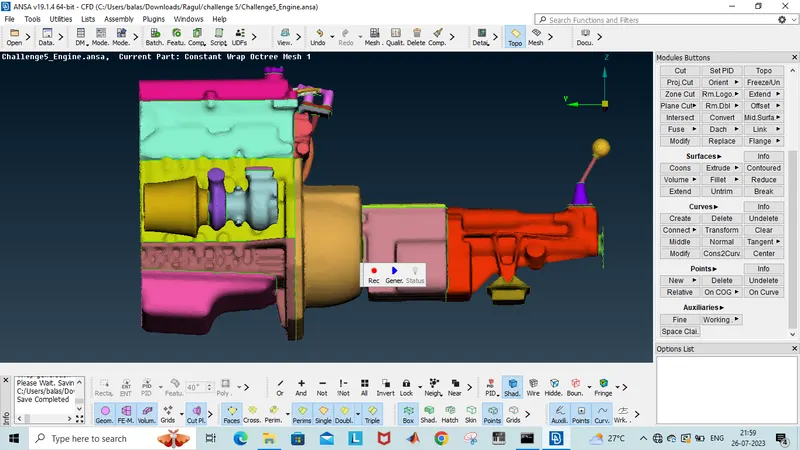

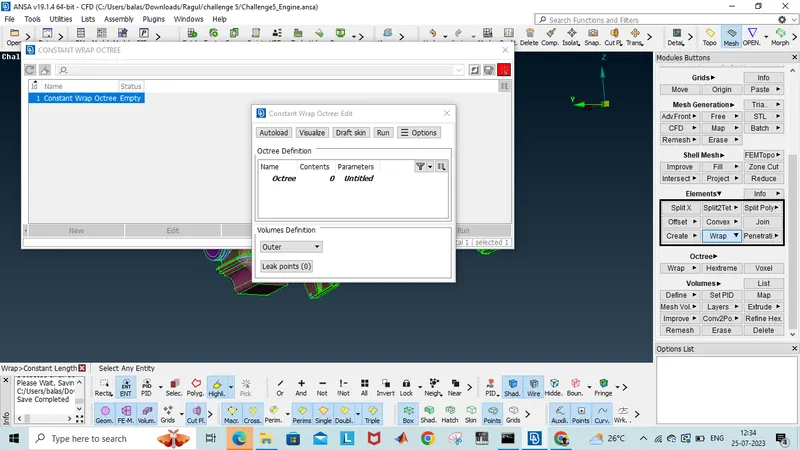

10)WRAPPING PROCESS

11)WRAPPING LENGTH

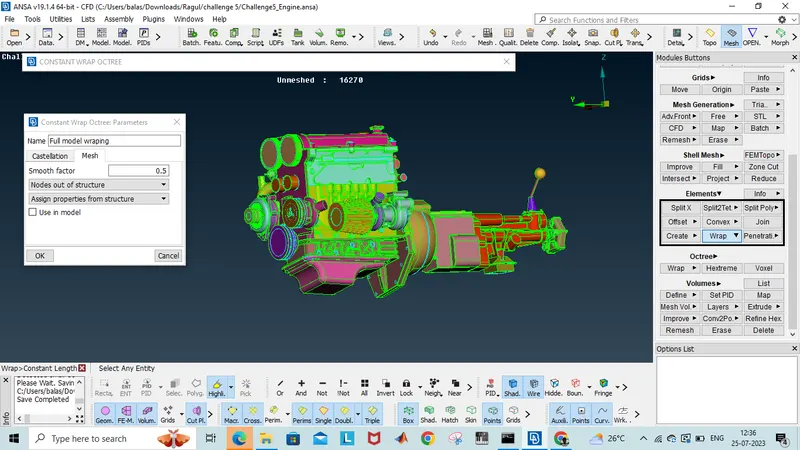

12)WRAP PARAMETERS

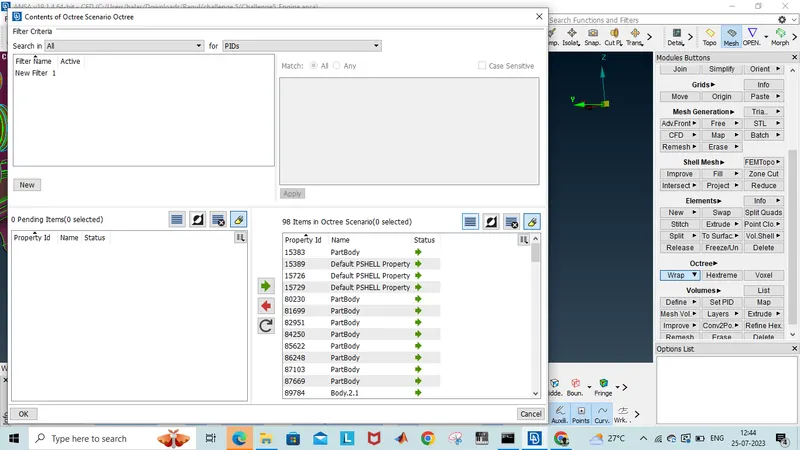

12)ALL PIDS ARE SELECTED FOR THE WRAPPING PROCESS

13)WRAPPING DONE

14)HIDING BOTH END SURFACE

15)VERIFING OUTER SURFACE ARE ONLY WRAPPED

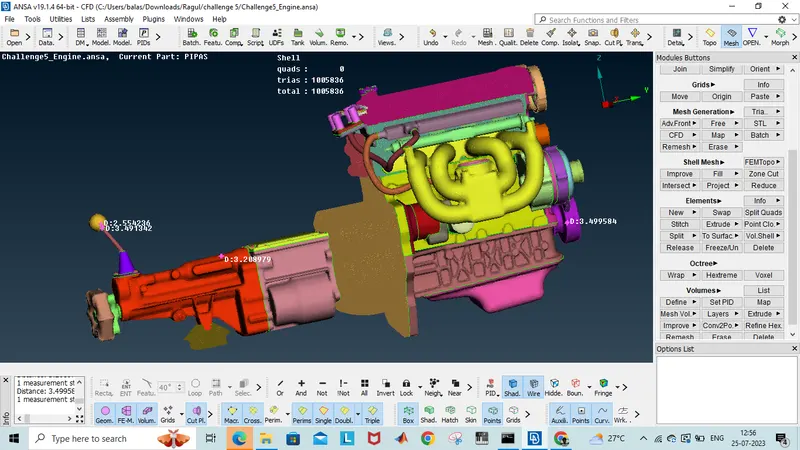

16)VERIFING WRAP LENGTH

CONCLUSION: THE GIVEN AUTOMOTIVE MODEL WAS WRAPPED SUCCESSFULLY BY USING GIVEN WRAP LENGTH 3MM
