Week 5 Challenge : Surface wrap on Automotive Assembly

SURFACE WRAP ON AUTOMOTIVE ASSEMBLY

PROBLEM STATEMENT :
For the given Engine, Gearbox, Transmission models, check for the geometrical errors and delete surfaces which are unwanted for Surface wrap . After clearing geometry, Merge all 3 models and perform surface wrap with Target length for Wrap = 3 mm .

AIM :
To perform the Geometry cleanup of engine , gearbox, transmission model and to merge the models for surface wrap of total assembly. Given Target length for Wrap = 3mm.

PROCEDURE :

1. Import all the models to ANSA GUI separately.

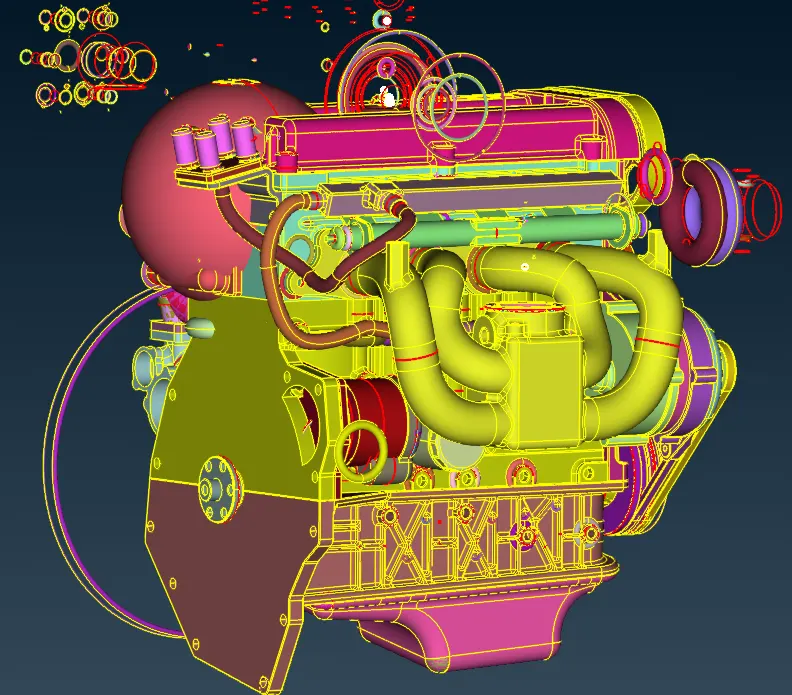

Fig : given Engine model

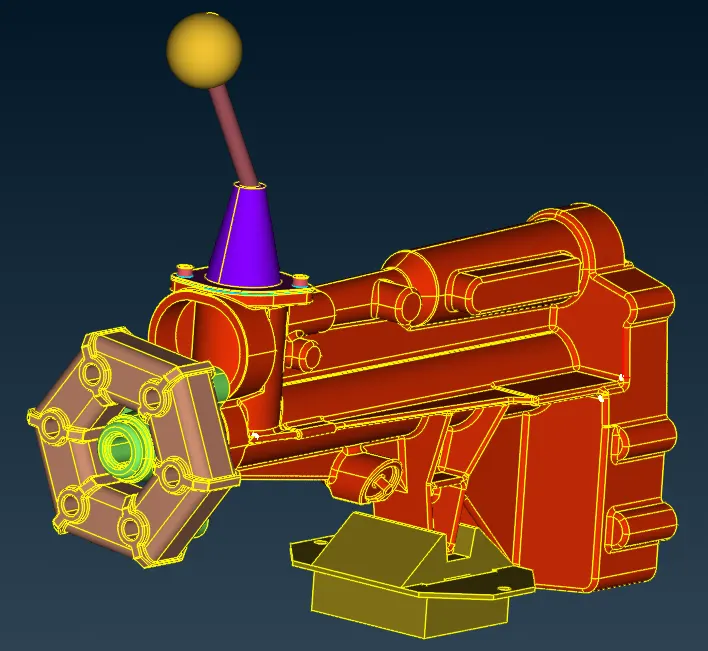

Fig : given Gearbox model

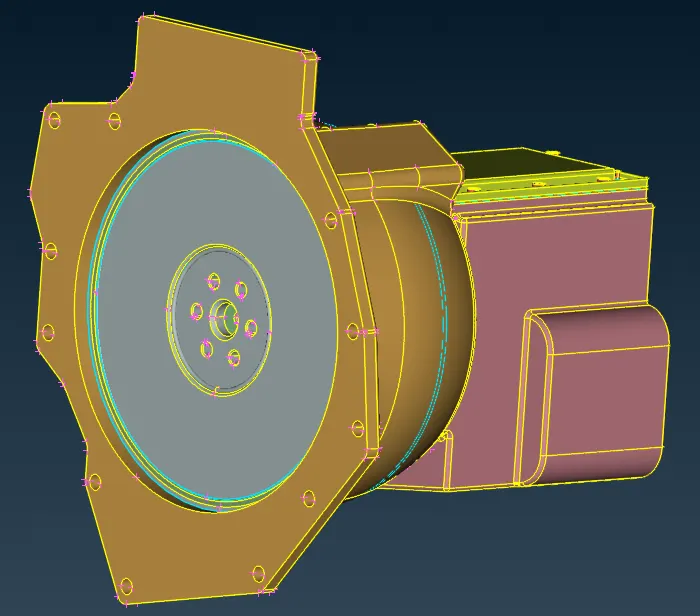

Fig : given Transmiision model

2. Firstly diagnosis of the geometry must be done for any unwanted surfaces like fillets , rings etc present on the surface of the geometry or inside must be removed in all the models .

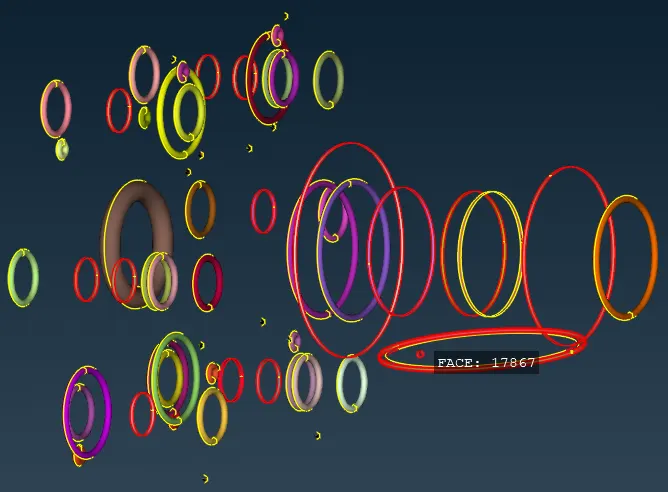

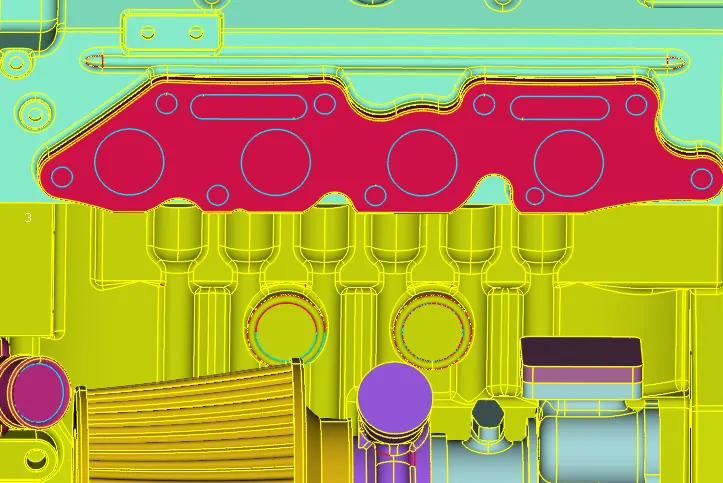

Fig : Unwanted surfaces present in the geometry

3. After the geometry cleaning the holes present in the geometry must be filled as it may create error while wrapping the surfaces .


Fig : Filled holes

4. After filling all the holes the model should be combied to create a final assembly inorder to wrap the geometry .

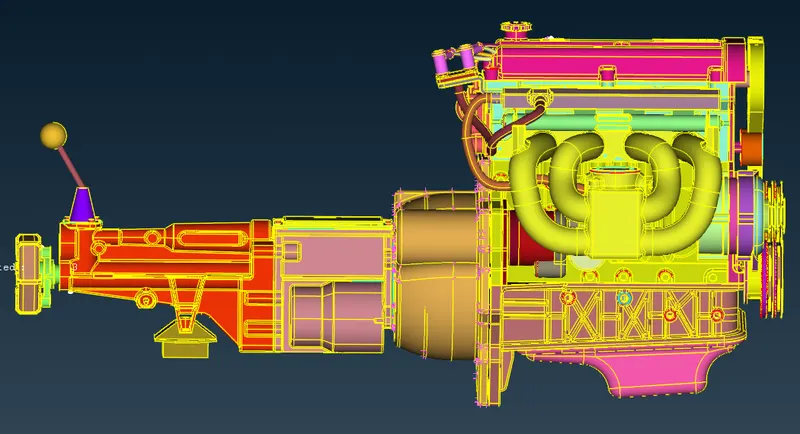

Fig : Final Automotive assembly

5. Before wrapping of the geometry the unwanted or deleted PIDs must be deleted either by directly deleting or by compressing.

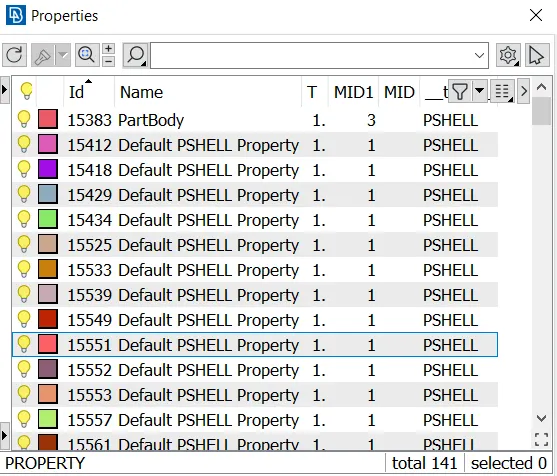

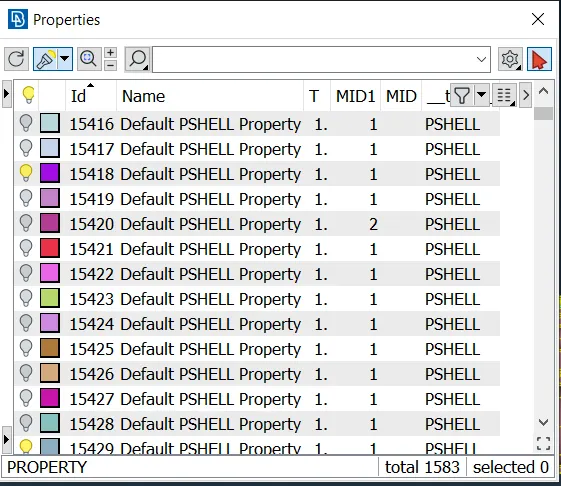

Fig : unwanted PIDs list Fig : Required PIDs

6. Finally the surfaces can be wrapped to create a common volume inside by using wrap option in MESH>ELEMENTS>WRAP>CONSTANT_LENGTH and the Octree parameters need to be assigned as well.

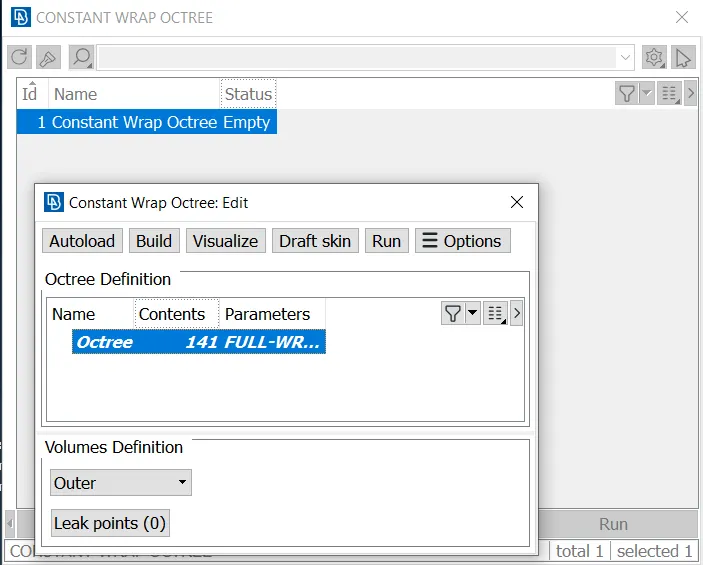

Fig : Wrap deck module

RESULT :

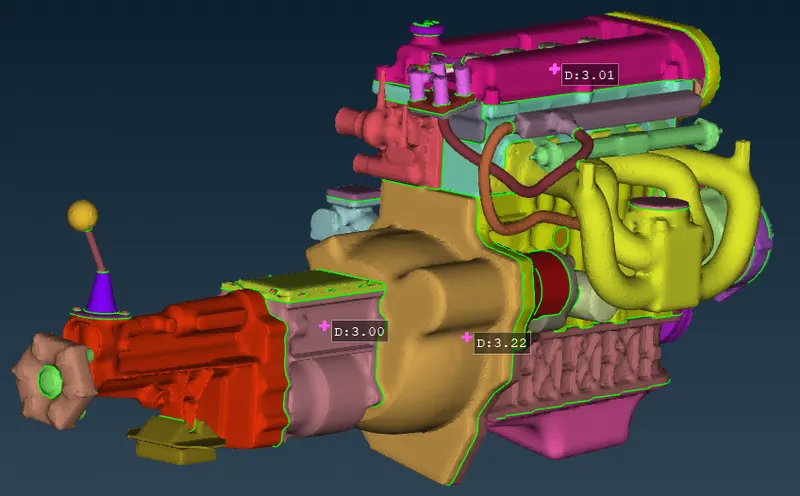

FIG : WRAP WITH TARGET LENGTH 3 mm

GOOGLE DRIVE LINK :
https://drive.google.com/file/d/1rQ_vm9g4c1YN-tkekjtjrX79jWa-jab0/view?usp=sharing
