Week 5 Challenge : Surface wrap on Automotive Assembly

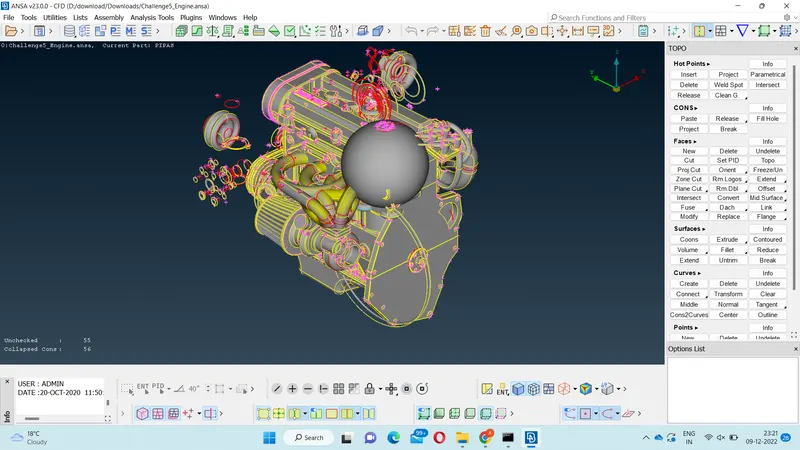

AIM :To set a target length and to check for the geometrical errors and delete surfaces which are unwanted for Surface wrap as shown in the videos.

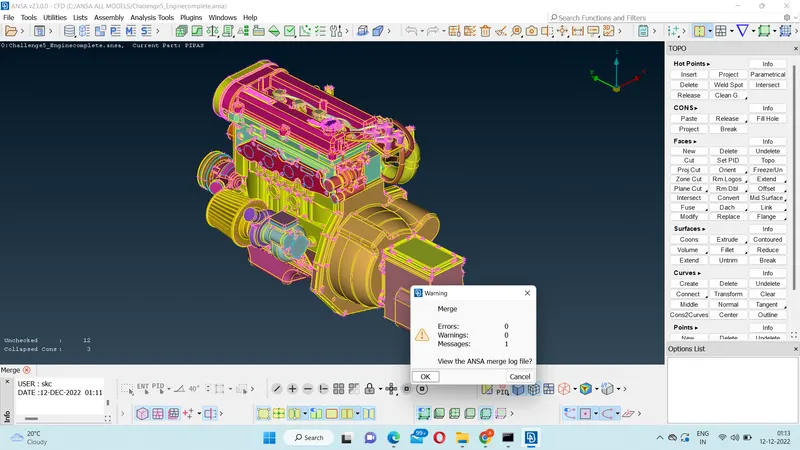

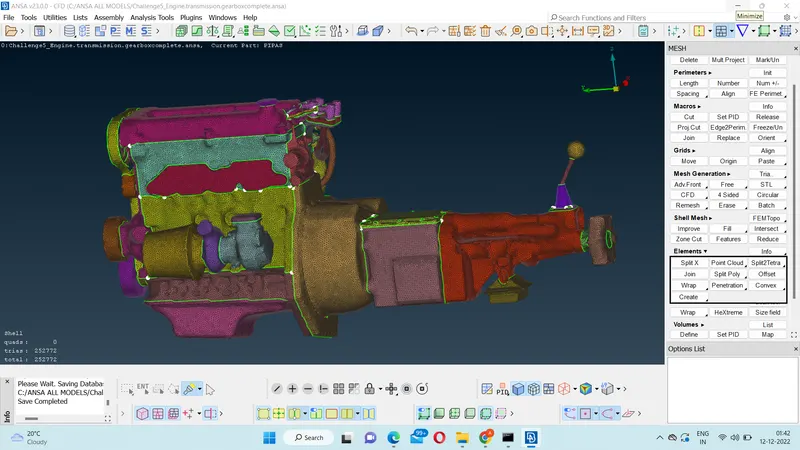

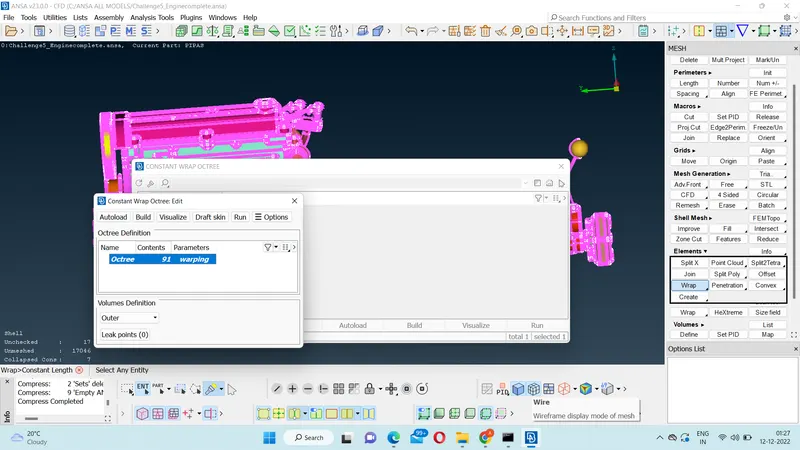

OBJECTIVE:After clearing geometry, Merge all 3 models and perform surface wrap. TO set aTarget length for Wrap = 3 mm,

INTRODUCTION:

SURFACE WRAPING:It is used for external flow analysis.

CONCLUSION:

To set a target length and to check for the geometrical errors and delete surfaces which are unwanted for Surface wrap as shown in the videos.After clearing geometry, Merge all 3 models and perform surface wrap. TO set aTarget length for Wrap = 3 mm Using ansa is completed.

note: im trying to select the file but the completed file is poping out,im not able to send the completed file.
