Project 1 : CFD Meshing for Tesla Cyber Truck

AIM : To check and solve all geometrical errors and to Assign appropriate PIDs. Perform meshing with the suitable Target length and element Quality criteria.

OBJECTIVE:To mesh the tesla cyber truck for the different parts of a model.

INTRODUCTION: Before starting with the any model should always check with the units are in millimeter(mm),then go with the resolution check.

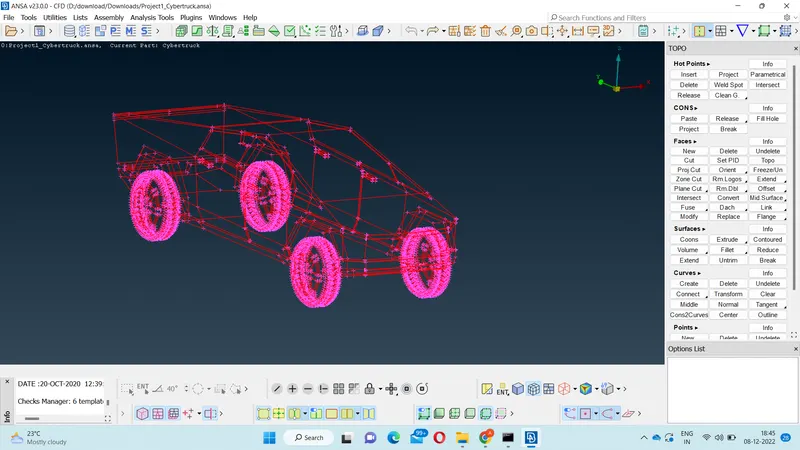

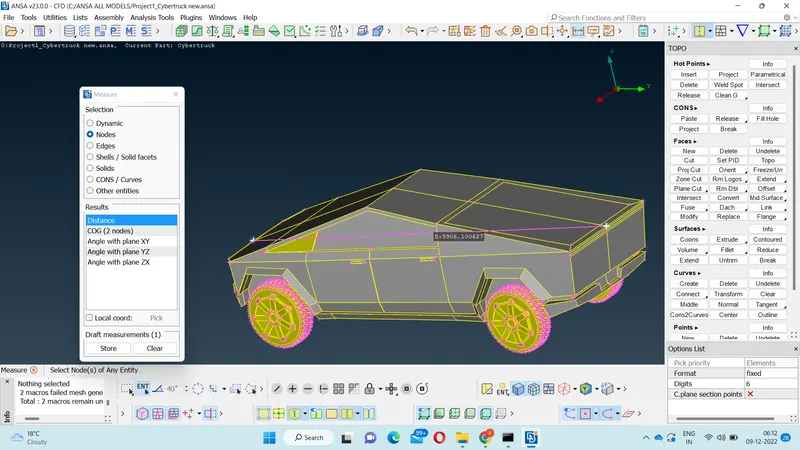

To complete the tesla cyber truck it has been divided into various parts and then the errors are cleared.

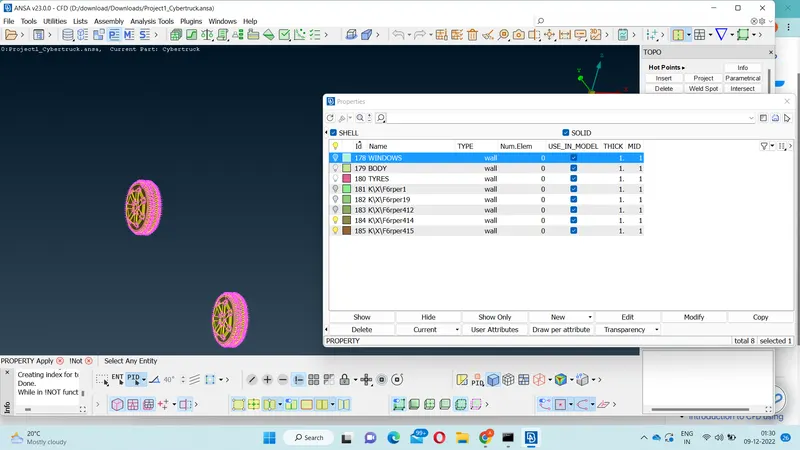

• BODY
• TYRES
• WINDOWS

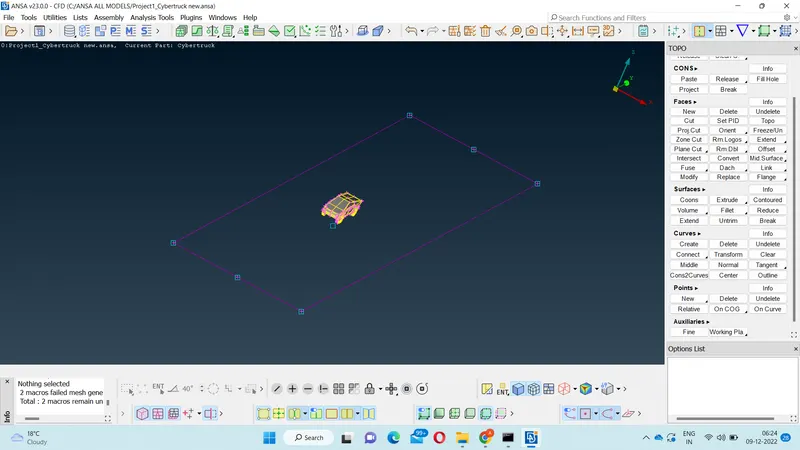

THE WIND TUNNEL CONSIST OF VARIOUS PARTS

• BOTTOM FACE
• TOP FACE
• SIDE FACE.

CONCLUSION:

To check and solve all geometrical errors and Assign appropriate PIDs. Perform meshing with the suitable Target length and element Quality criteria using ANSA is completed
