Week 4 Challenge : CFD Meshing for BMW car

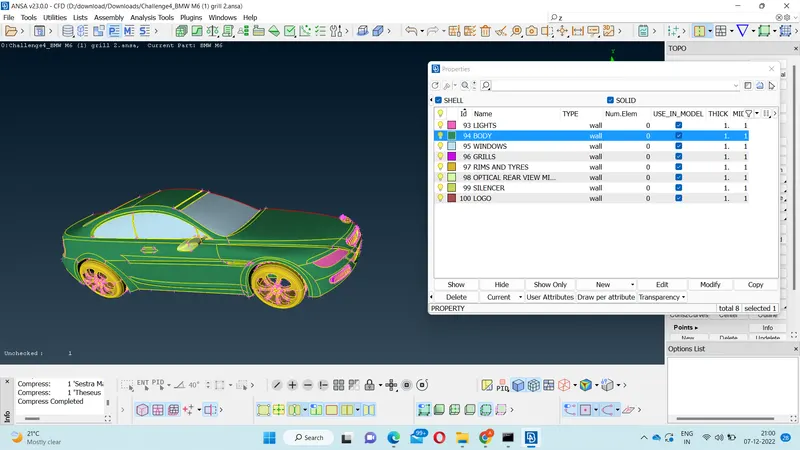

AIM:To set the target length to check and solve all geometrical errors on half portion and Assign appropriate PIDs. Perform meshing with the given Target length and element Quality criteria.

OBJECTIVE: After meshing the half model, Do symmetry to the other side and To complete the model using ansa.

INRODUCTION:

1.Before starting with the model should always check with the units such as millimeters(mm).

2.After checking with units then check with the resolution of model,using classic mesh.

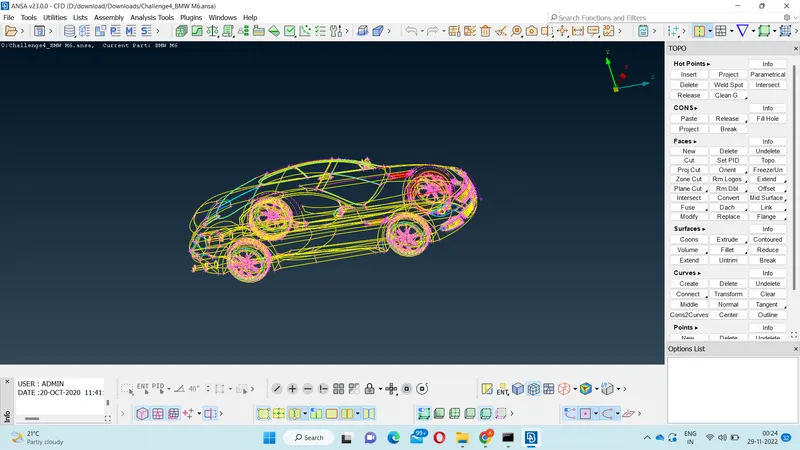

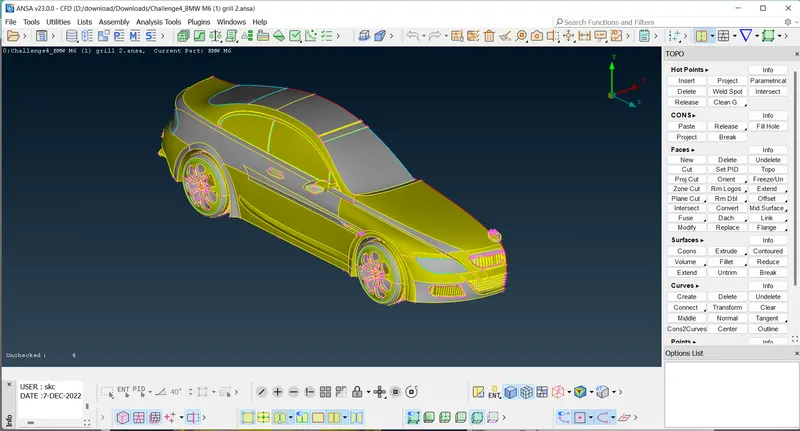

3.The BMW model is a symmetrical,so it can be half deleted and then it can be mirror to other half.

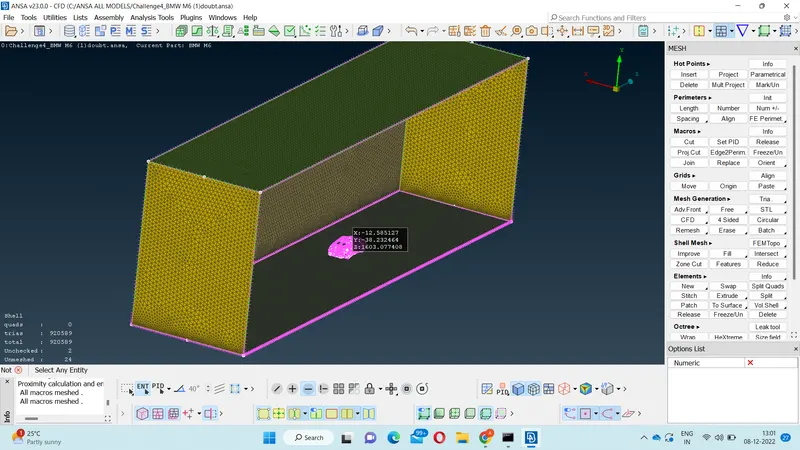

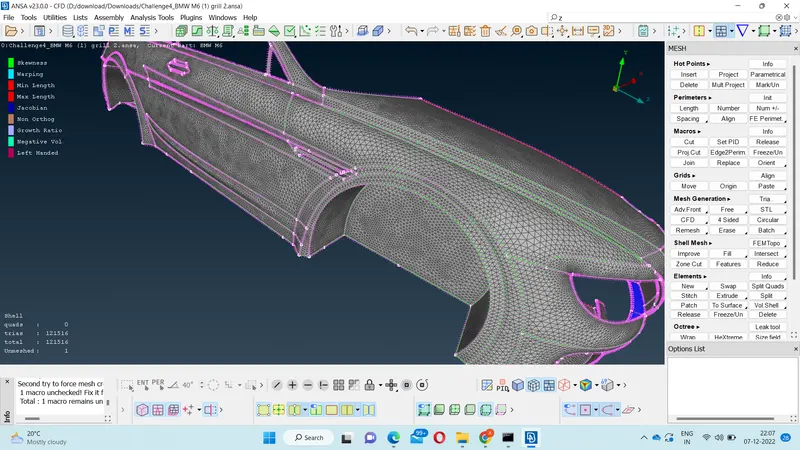

4.The BMW model is where we are completing the external flow analysis through surface meshing.

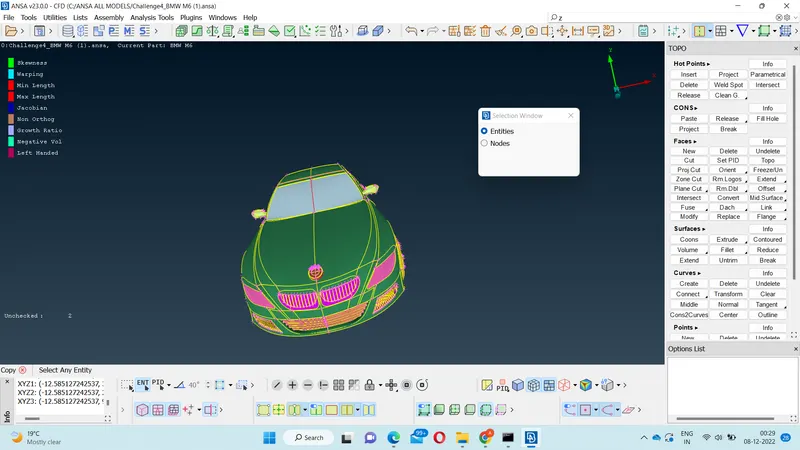

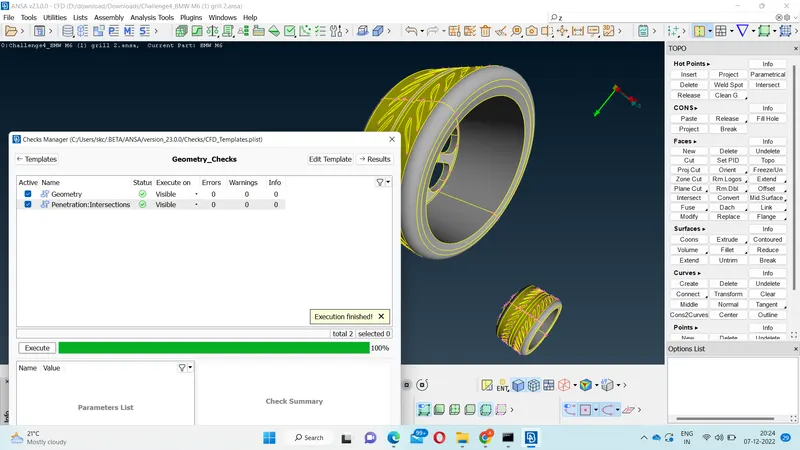

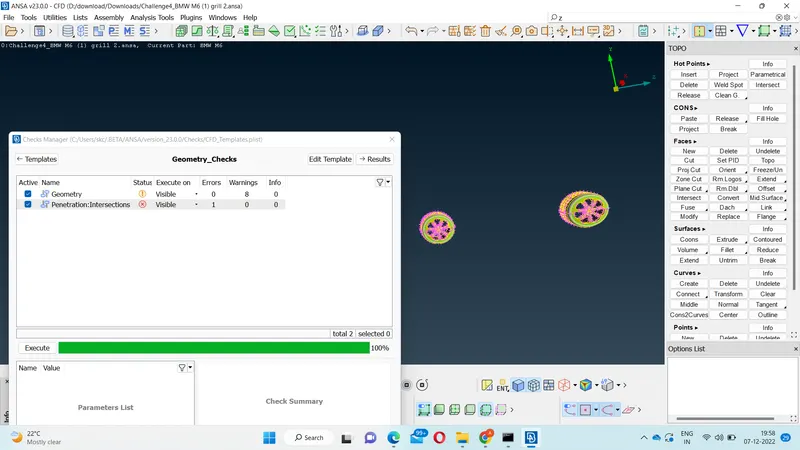

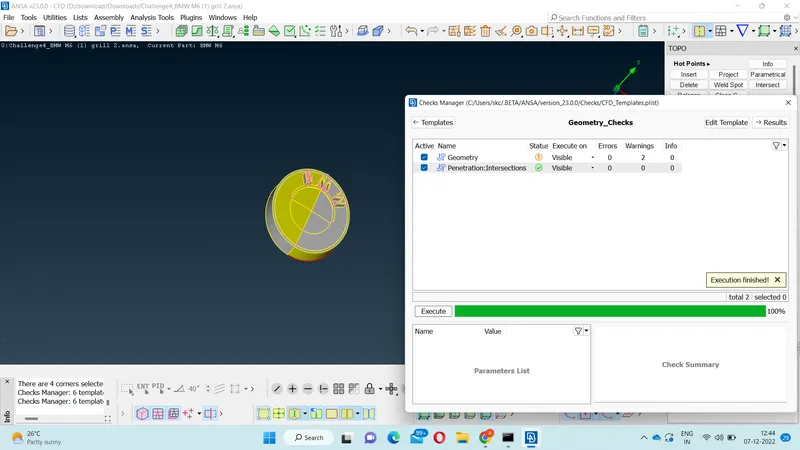

5.Then check all the errors from the geometric checks.

CONCLUSION:

TO check and solve all geometrical errors on half portion and Assign appropriate PIDs. Perform meshing with the given Target length and element Quality criteria. After meshing the half model, Do symmetry to the other side using ANSA is completed.
