Week 2 Challenge : Surface meshing on a Pressure valve
Aim: To set a target length and meshing the pressure valve.
Objective: To mesh the given pressure valve model by using element size as 5mm,3mm,1mm
INTRODUCTION:
pressure valve- The pressure valve is type of safety valve used to control or limit the pressure in a system; pressure might otherwise build up.
The first step is geometric checks

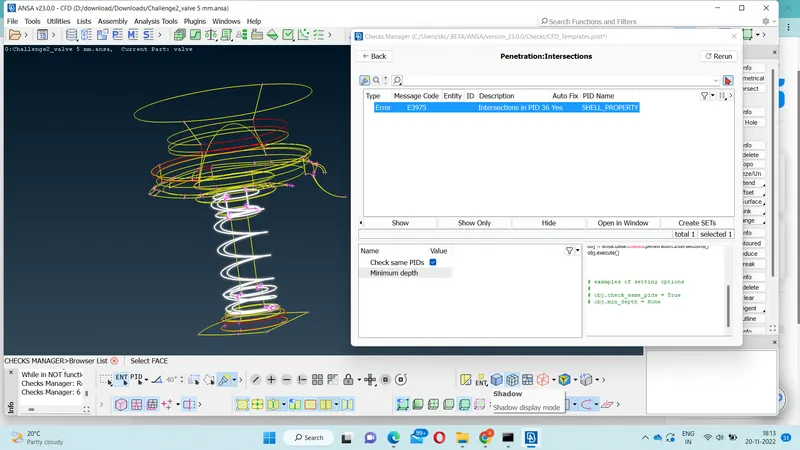

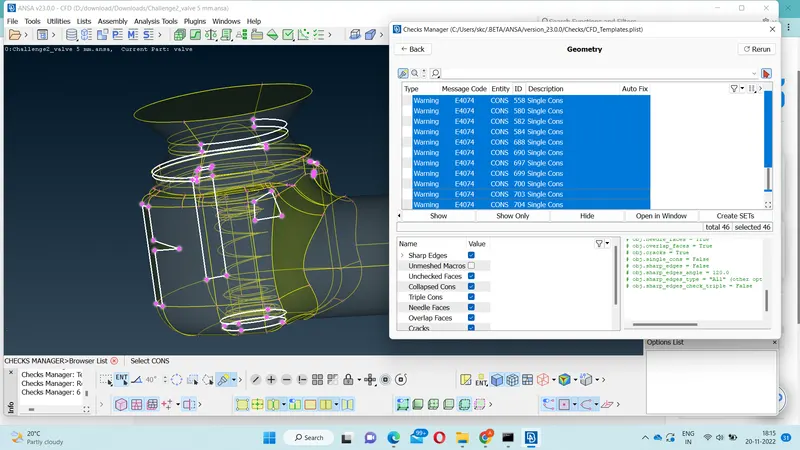

- The surface checks are where it is done checks manager,where under geometric checks model is being check and for also for intersection of surfaces.
SURFACE CLEANING:
(fig 1)
fig(1.1)
fig(1.2)

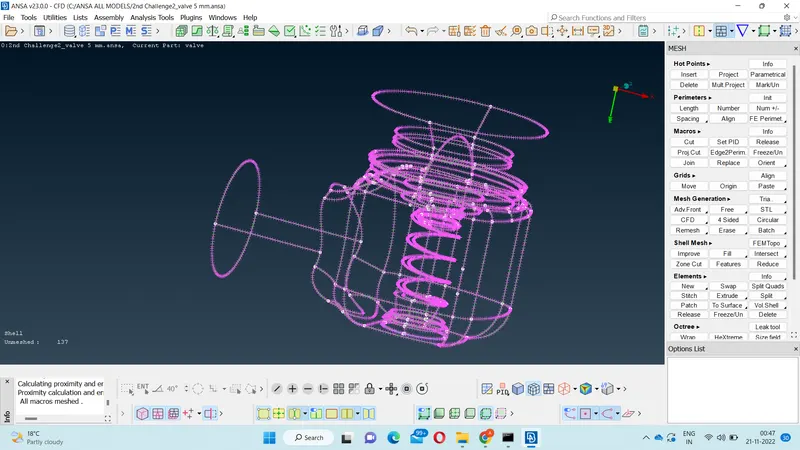

fig (2)
fig (2.1)

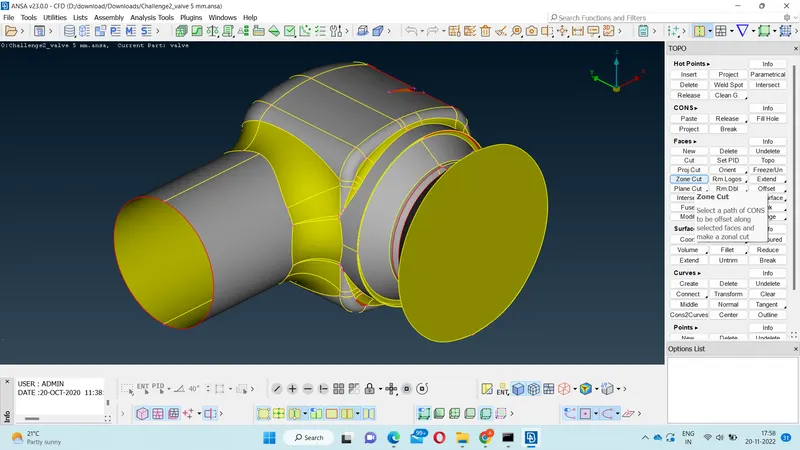

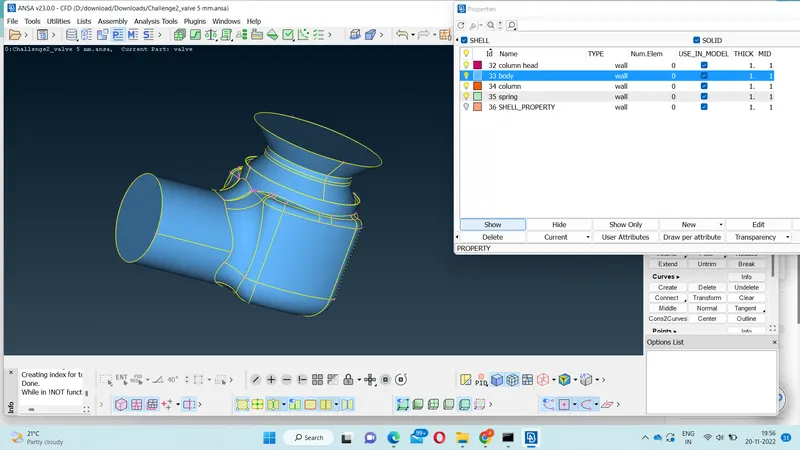

- After romoval of all error from both geometry checks and intersection,the surface finish is completed asshown in fig (2.1).
fig(2.2)
MESHING OF PRESSURE VALVE

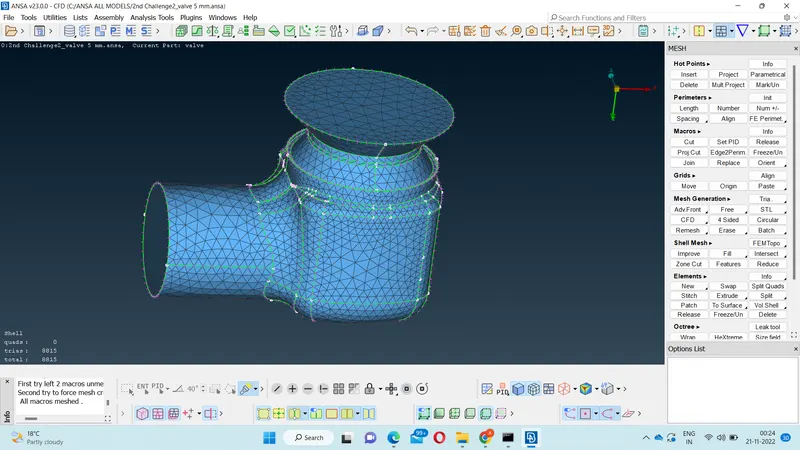

1. MESHING FOR 5MM
minimum target length:4.5
maximum target length:5.6

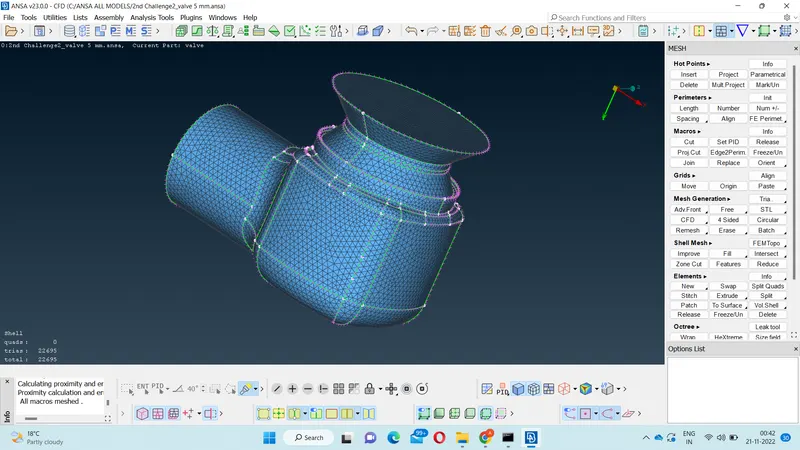

fig(2.3)
fig(3)

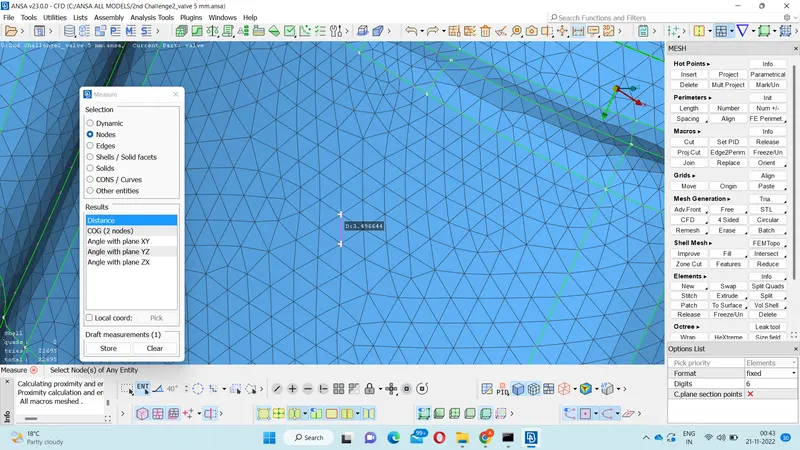

2.FOR Length 3mm
minimum length :2.5
maximum length: 3.5

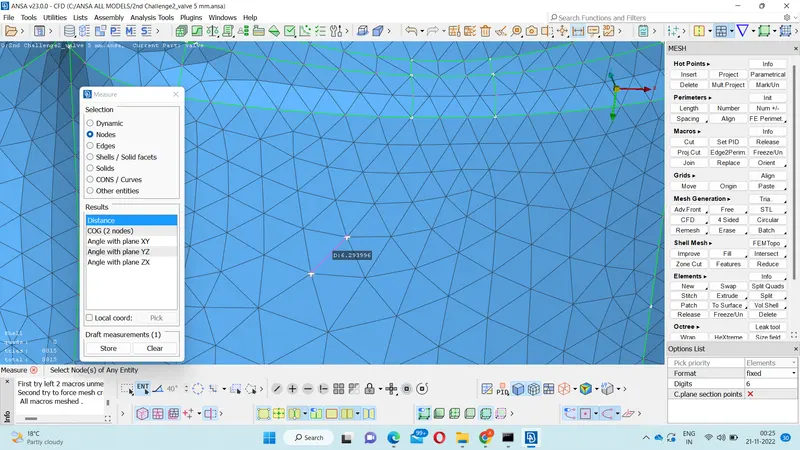

fig(3.1)

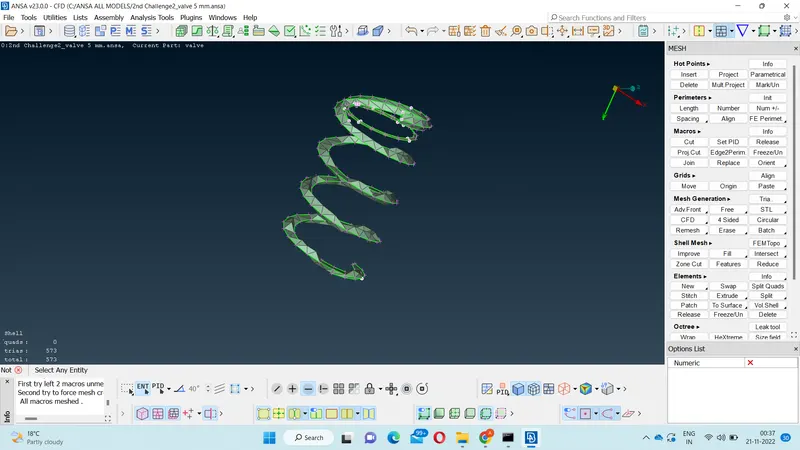

fig(3.2)

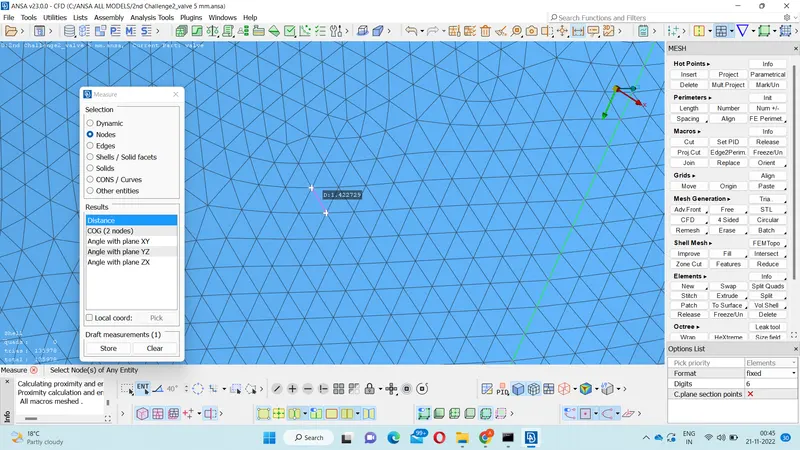

3. FOR length 1mm
minimum length: 0.5
maximun length : 1.5

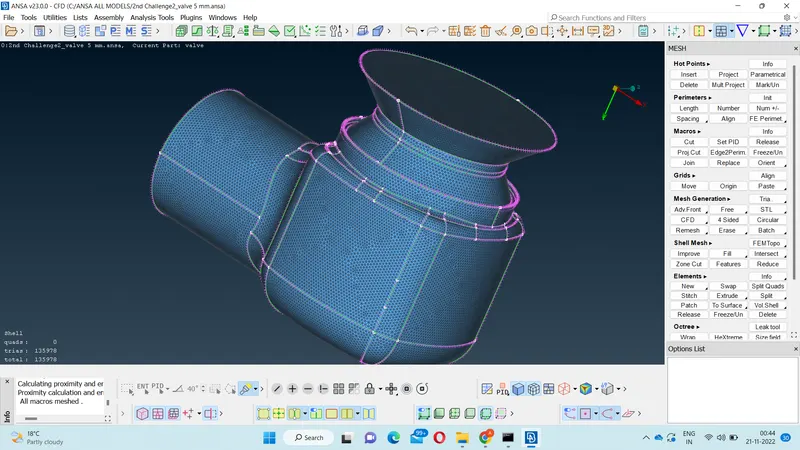

fig (3.3)
fig(4)
conclusion:
Hence to set a target length and meshing of pressure valve using various 5mm,3mm,1mm element size usng ansa is verified.
