Week 5 Challenge : Surface wrap on Automotive Assembly

Aim:

1. check for the geometrical errors and delete surfaces that are unwanted for Surface wrap.
2. After clearing geometry, Merge all 3 models and perform surface wrap.
3. Target length for Wrap = 3 mm

Procedure:

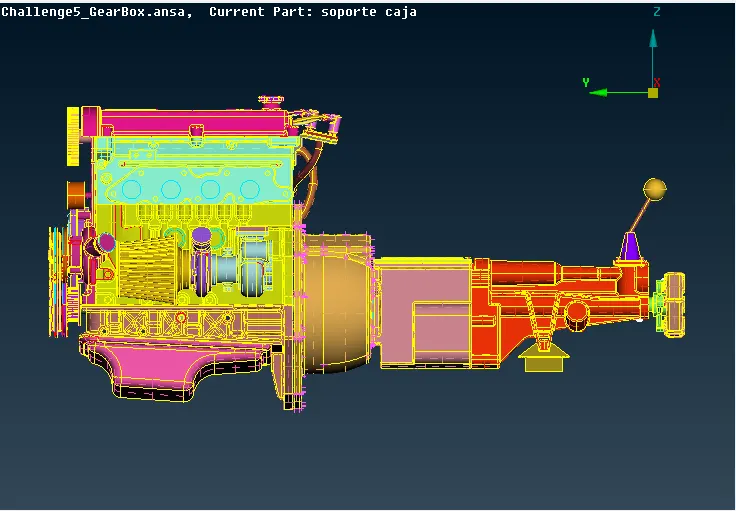

1. Geometry Cleanup : (Engine, Transmission & Gear Box) - Topo mode

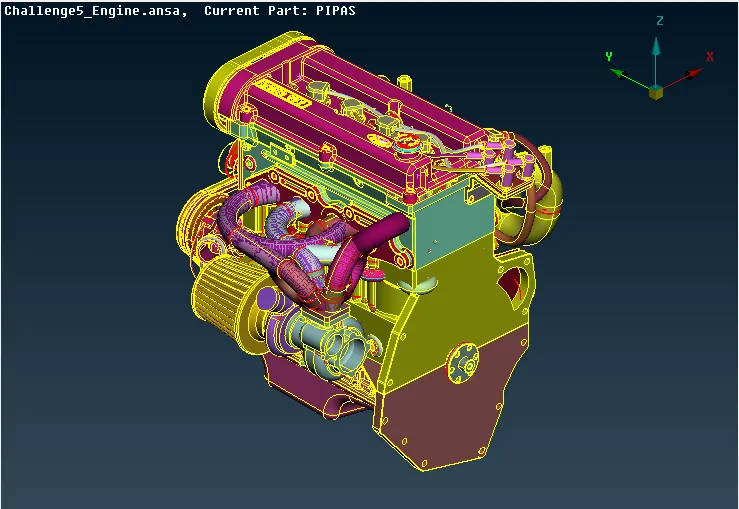

• Open Engine.ansa
•

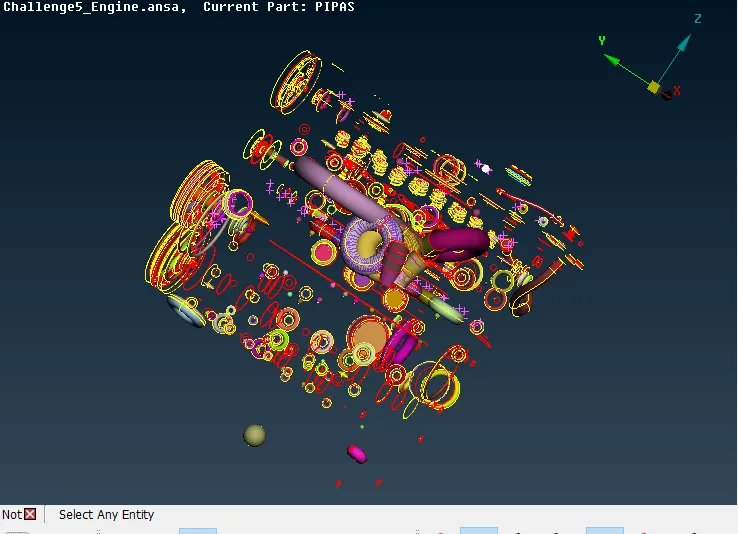

• Using NOT operation in PID mode, deselect all the necessary components to identify the closed volumes inside, outside, around and unnecessary surfaces
•
• Using the delete option, select the unnecessary surfaces and unchecked entities.
• Surface gleechings, triple cons, and single cons within the inside regions are not taken much into consideration as we are going to perform surface wrap
• Topo clean-up is highly concerned with the surface region as our major area of interest is surface wrap of this automotive assembly

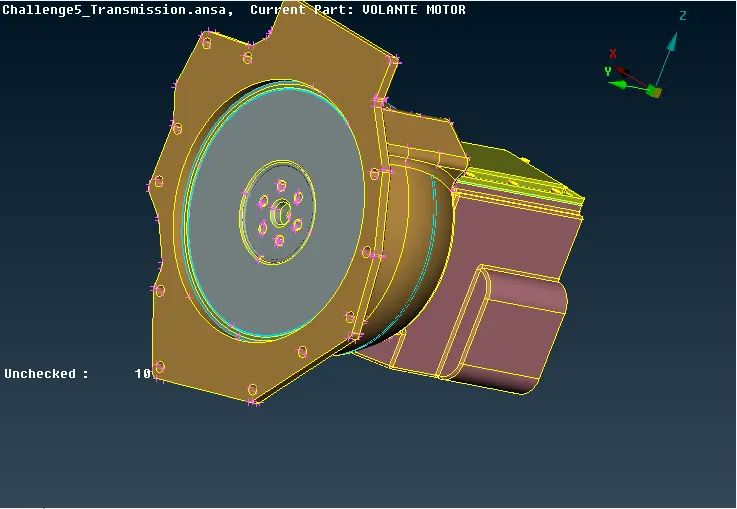

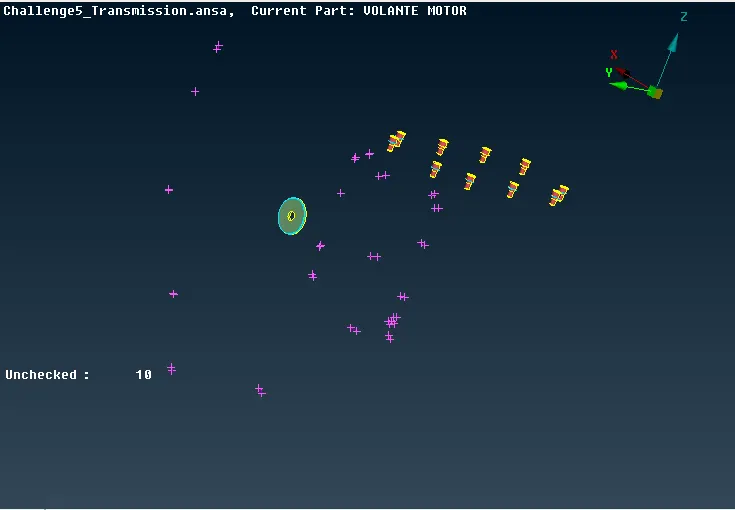

• Open the transmission.ansa
•
• NOT >PID MODE>
•
• Delete the unchecked and unwanted surfaces & volumes

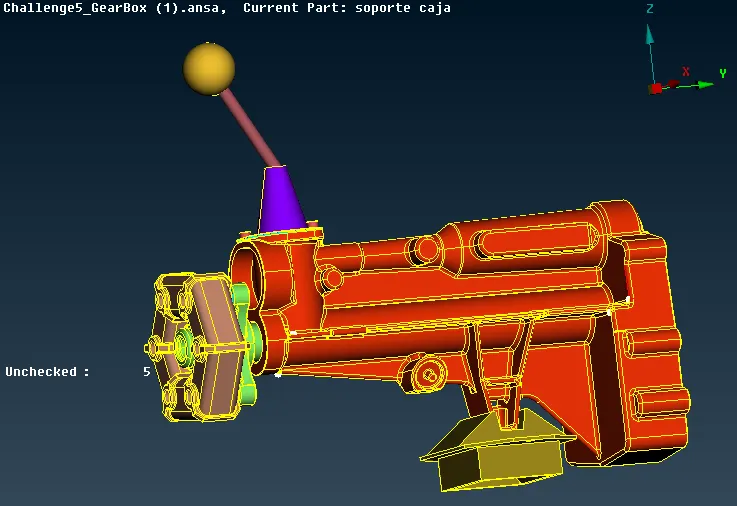

• Open the Gearbox.ansa
•
• Delete the unchecked surfaces & unnecessary volumes using delete option.

2. Merging of Automotive Assembly - Topo mode

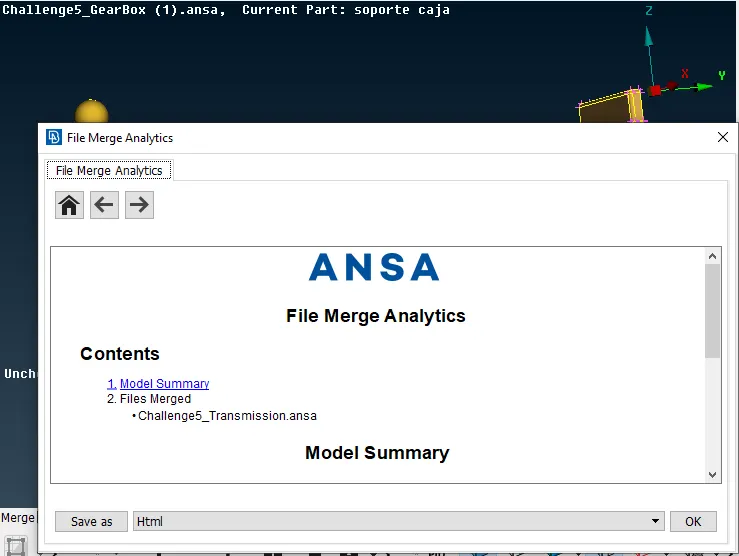

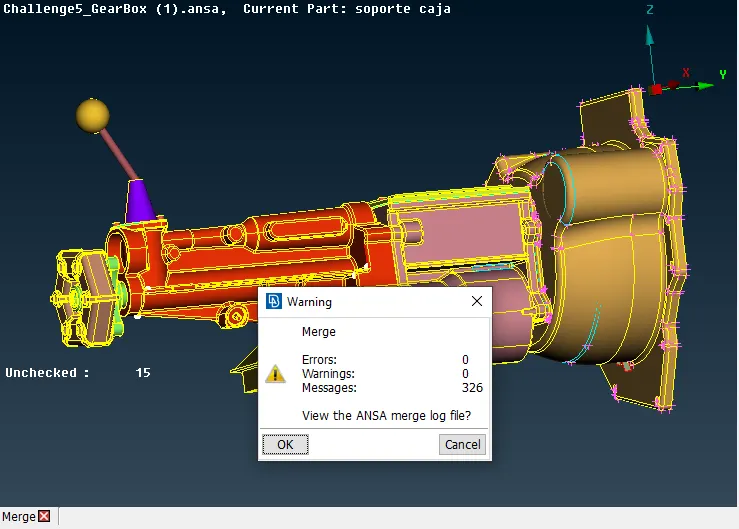

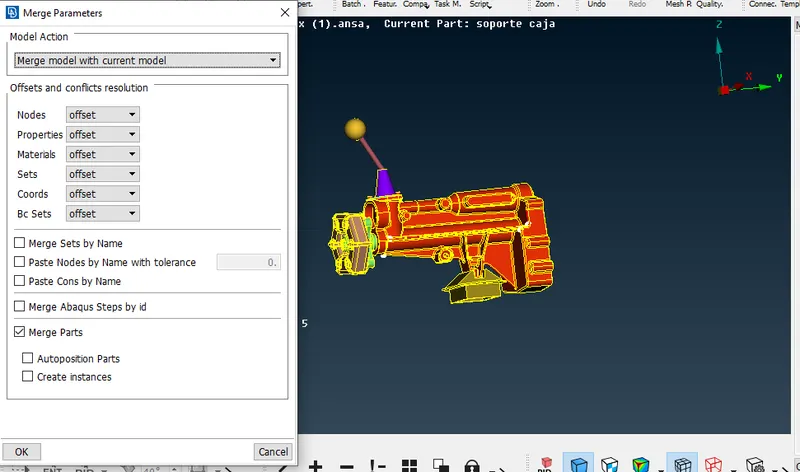

• Under file > Merge> Select the components (Gearbox, Engine, Transmission)
•
•

3. Surface Wrap of Automotive Assembly - Mesh Mode

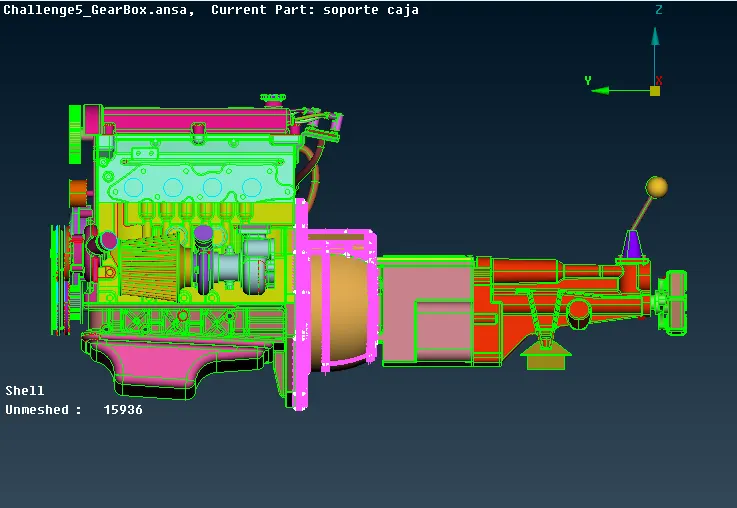

• Next follows the surface wrap operations ensuring there is no open volumes or unnecessary surface entities.

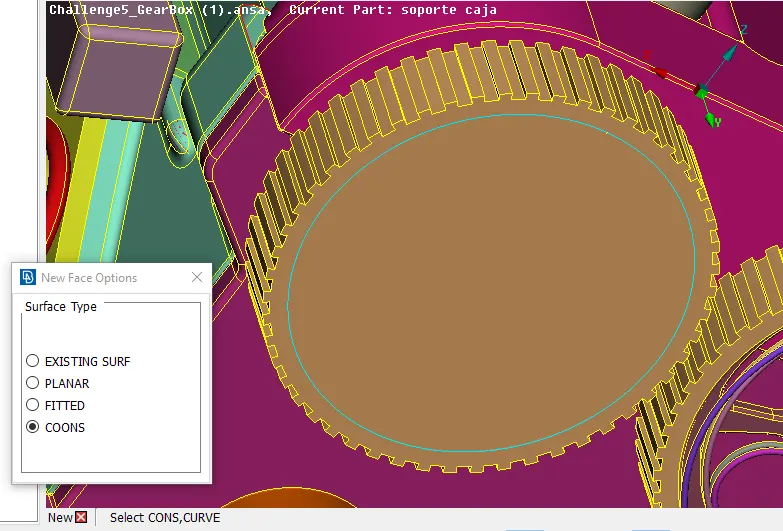

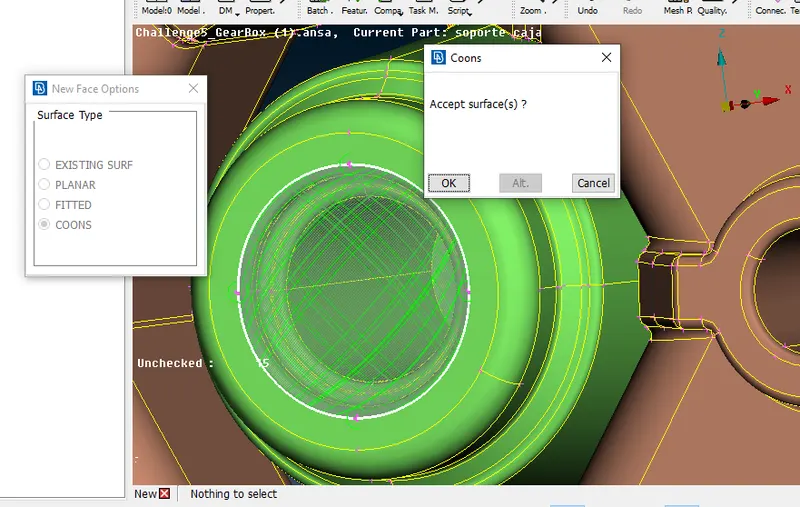

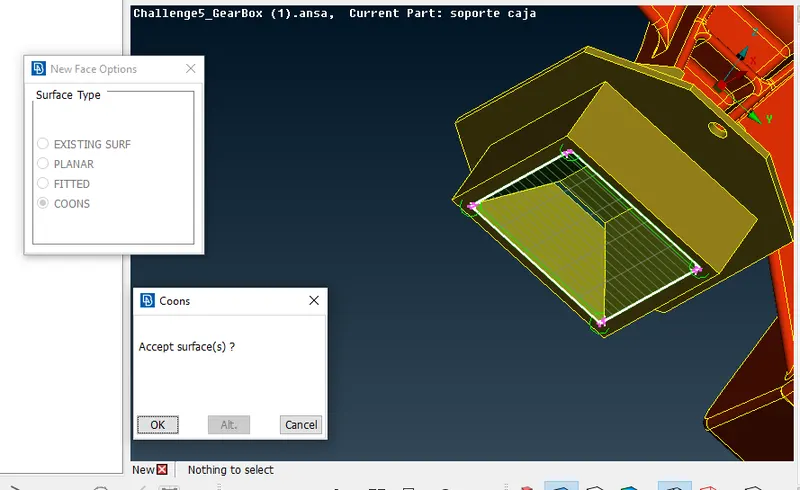

• The open surfaces are closed using creation of New surfaces (coons / fill hole).
•

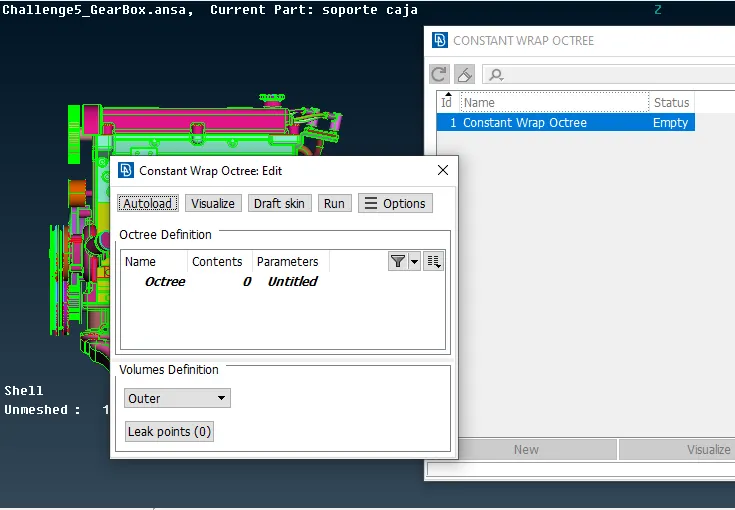

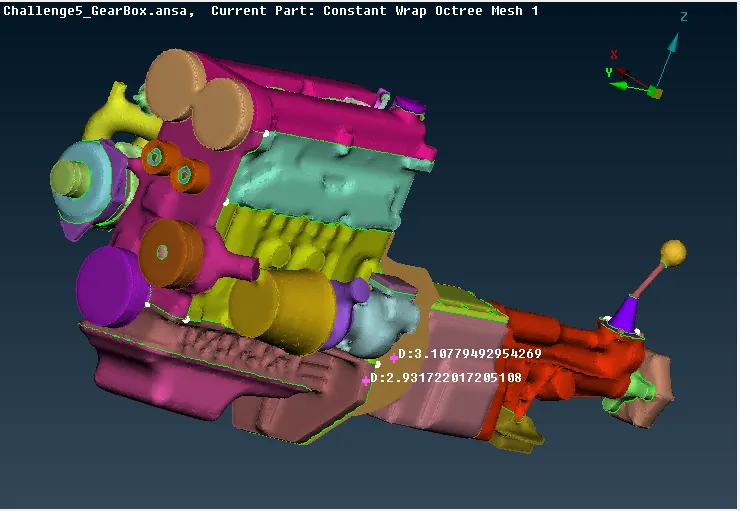

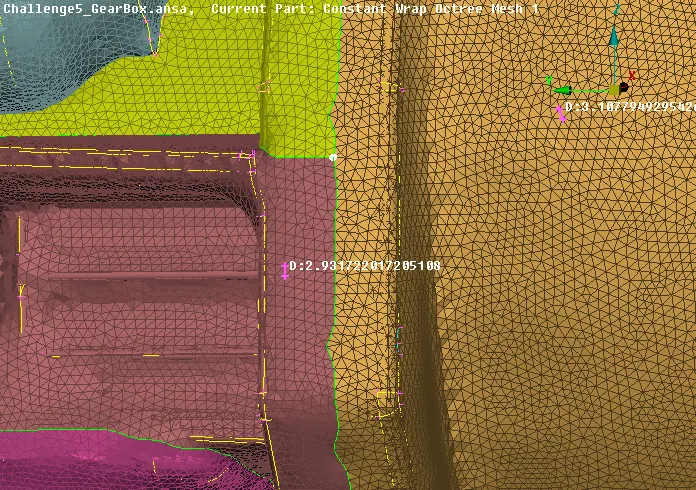

• Next is Wrap using Constant Length ( Elements > Wrap > Constant Length)
•
• The Whole assembly is selected and the target length =3mm and the smooth factors are assigned.
•

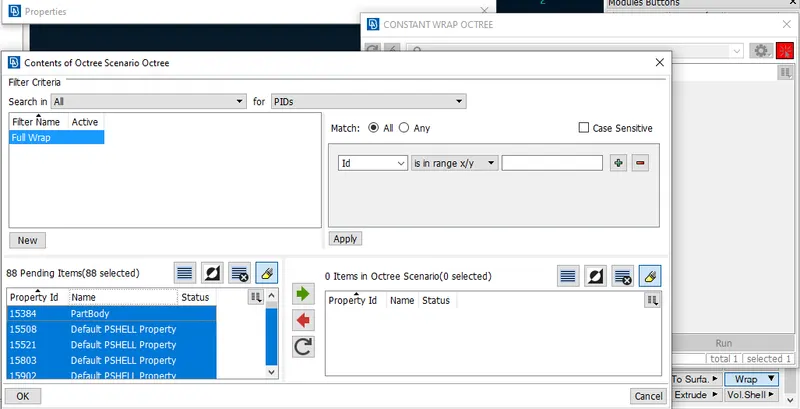

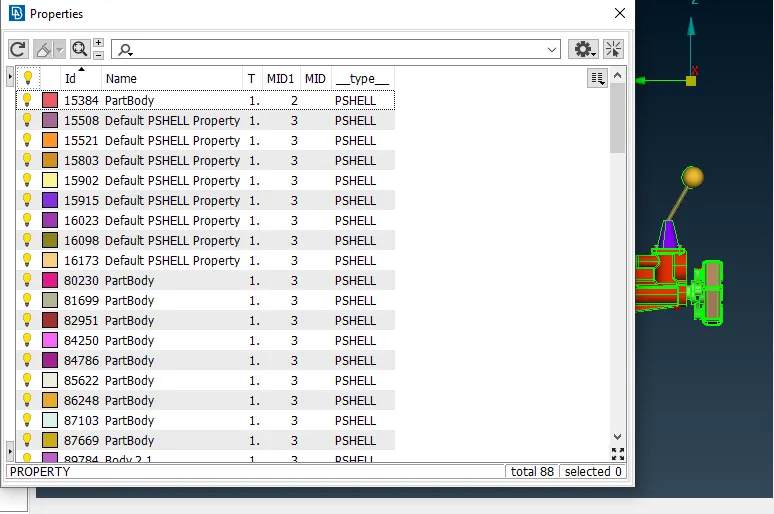

• PIDs are to be assigned in the octree for the surface wrap

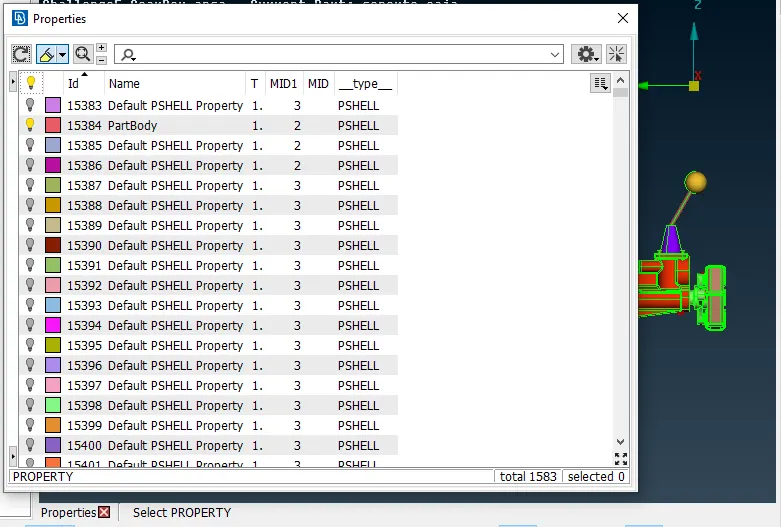

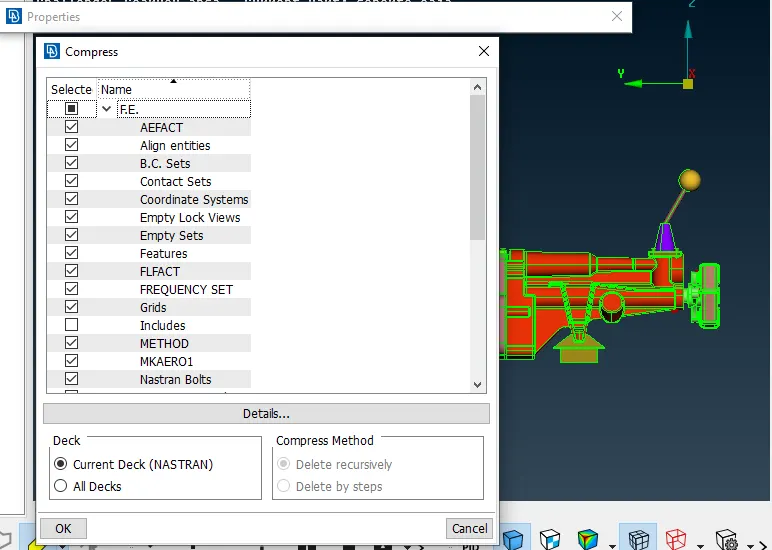

• The insignificant PIDs which are of no use are compressed executing COMPRESS tool.
•

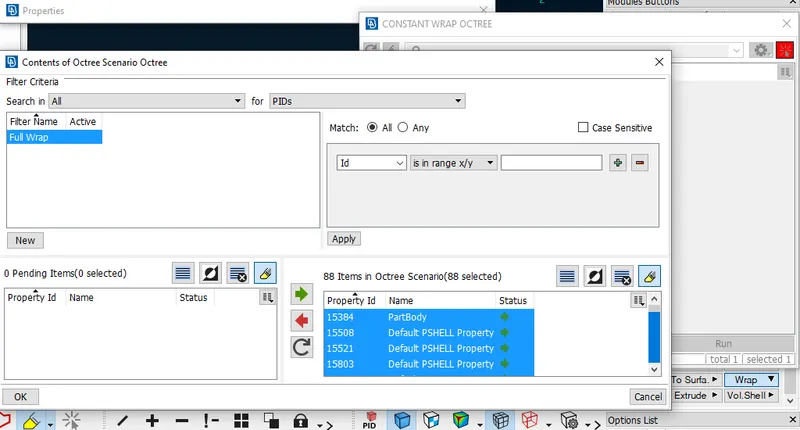

• the PIDs which has only significance are added into the OCTREE for suface wrap with naming it as FULL WRAP.
•

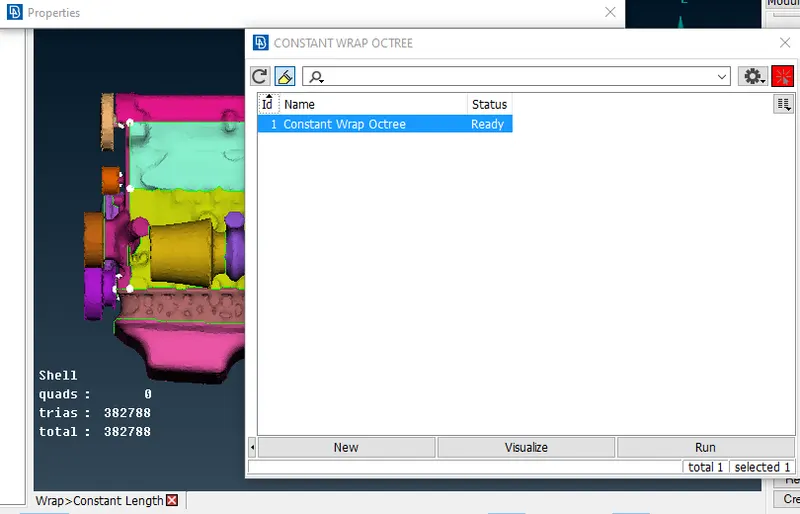

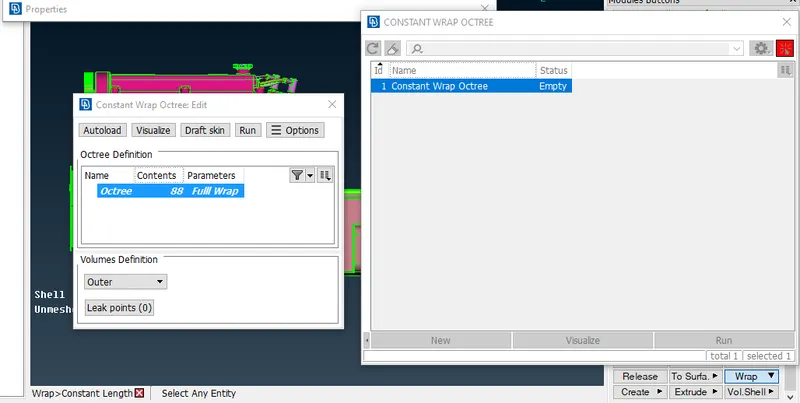

• Once the PIDs are incorporated, next is RUN.
•

Result :

• Thus the surface wrap for the automotive assembly has been performed assigning the target length as 3 mm
•
