Week 5 Challenge

DESIGN OF PLATE GIRDER

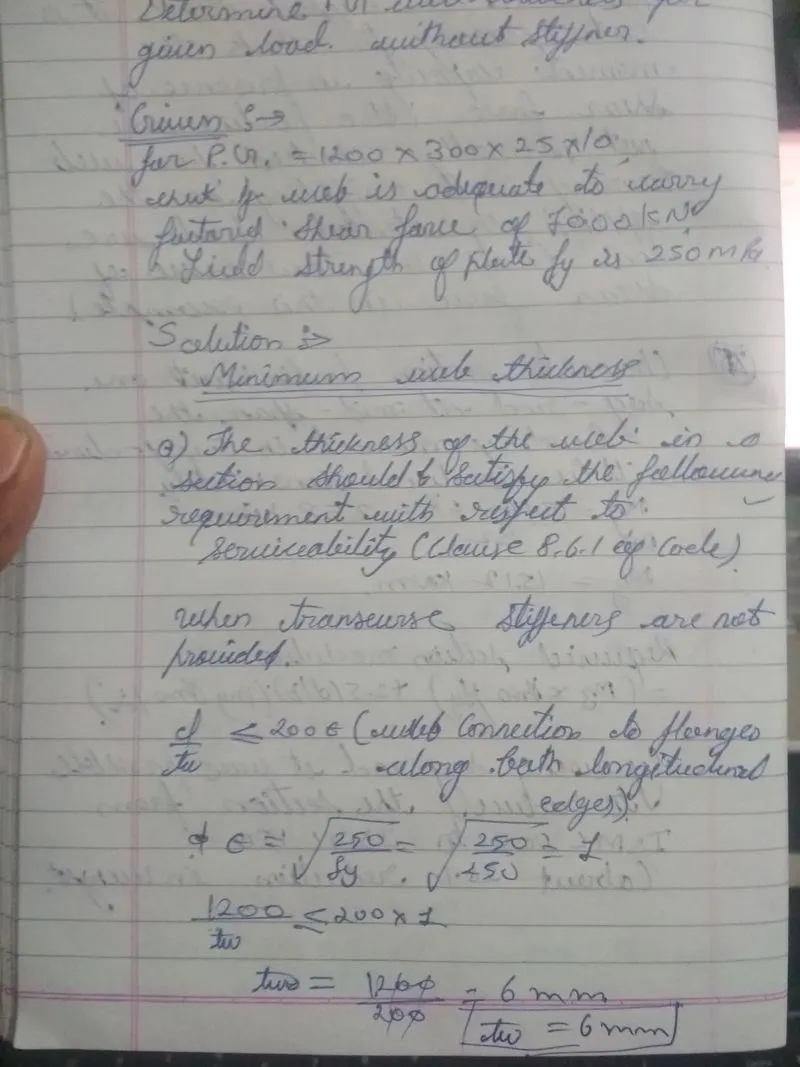

Aim ::- To determine the plate girder web thickness for load without stiffener.

Procedure ::-

Result ::- Web thickness of plate girder is 6mm.

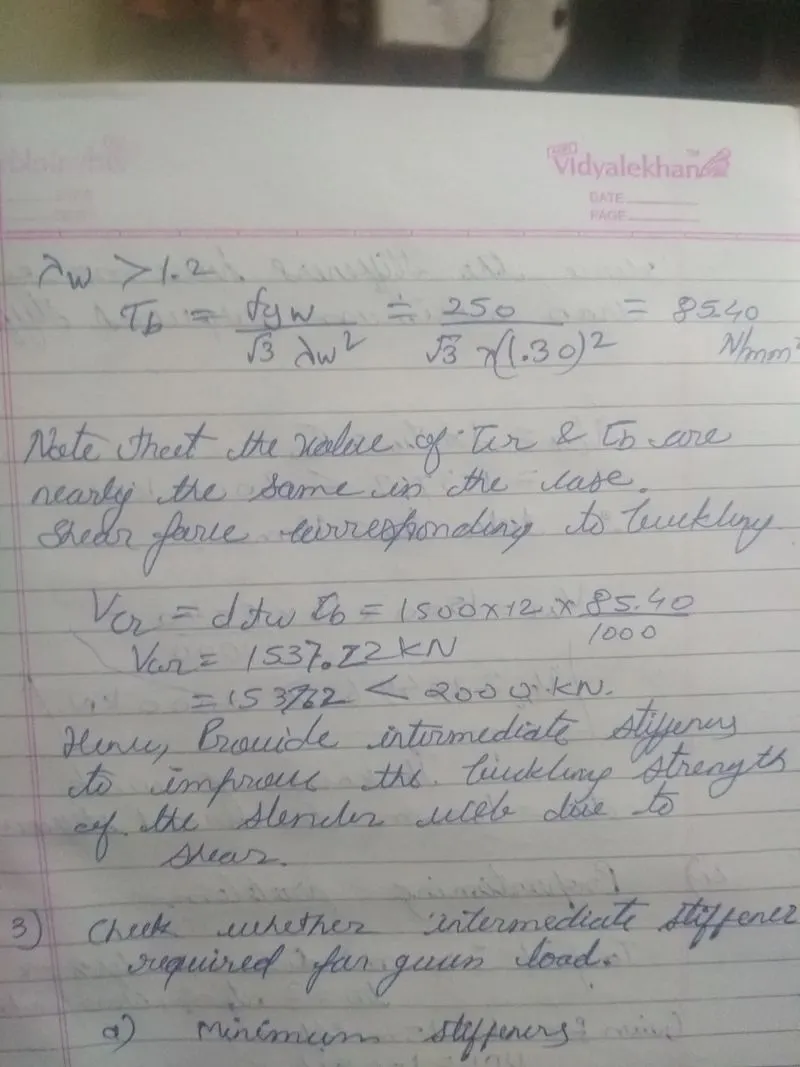

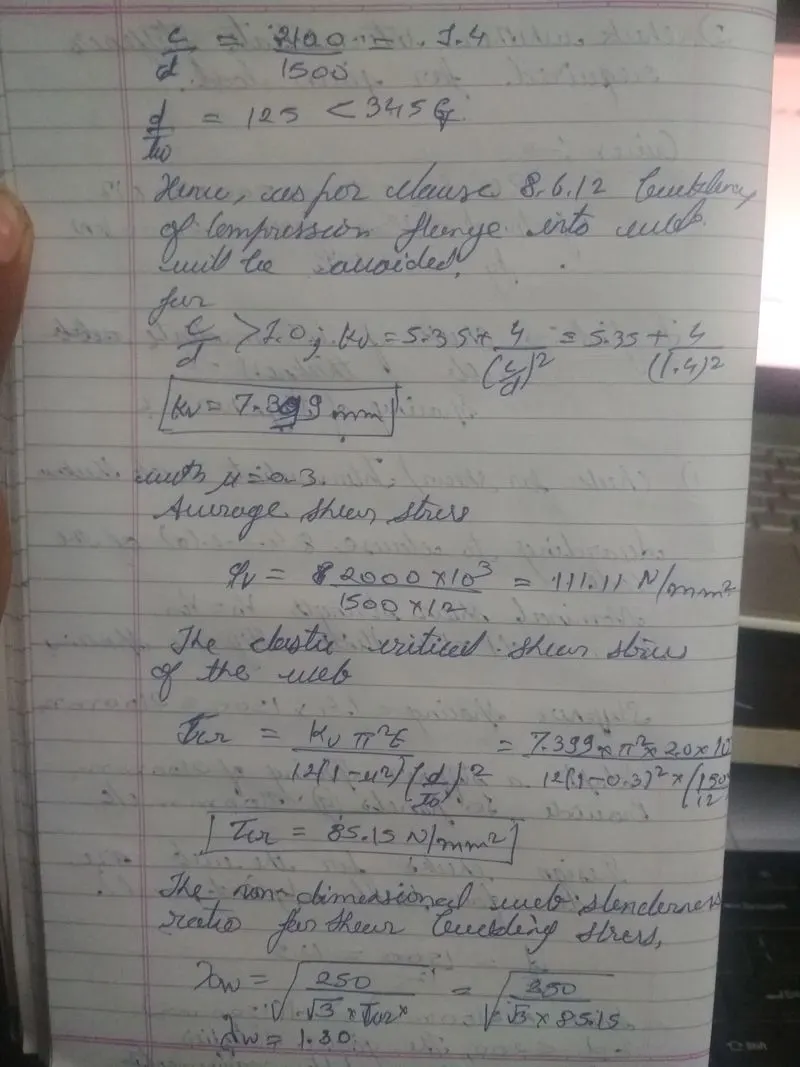

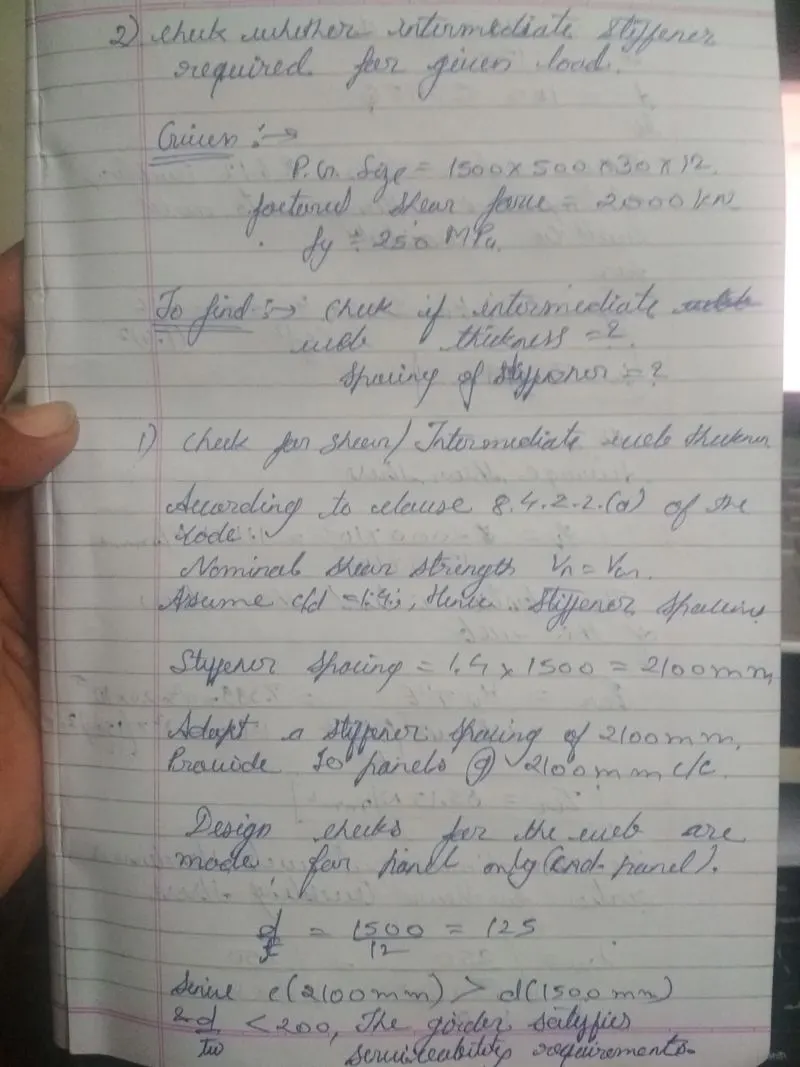

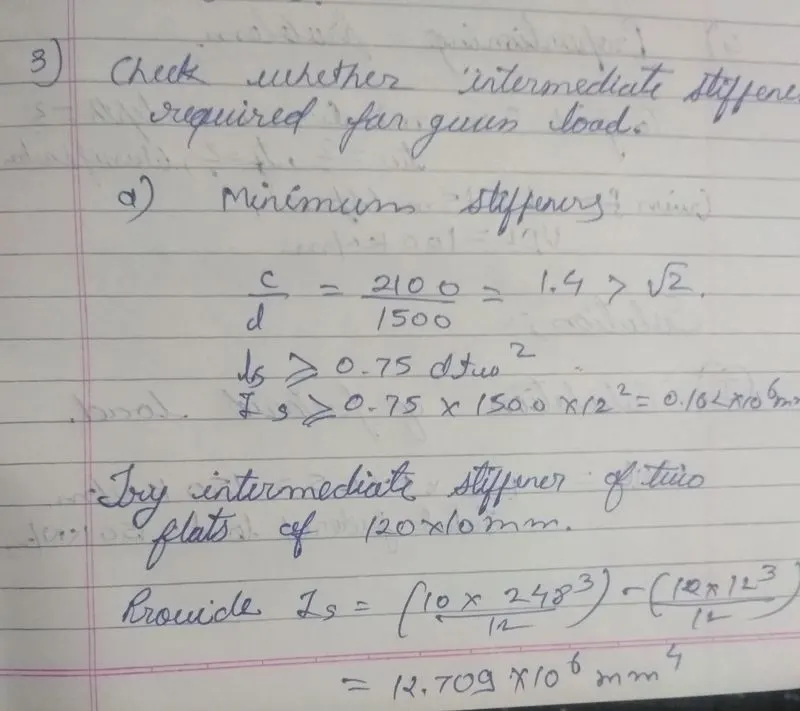

Aim ::- To check whether intermediate stiffener is required under given loading.

Procedure ::-

Aim ::- To find thickness of web to avoid stiffener.

Procedure ::-

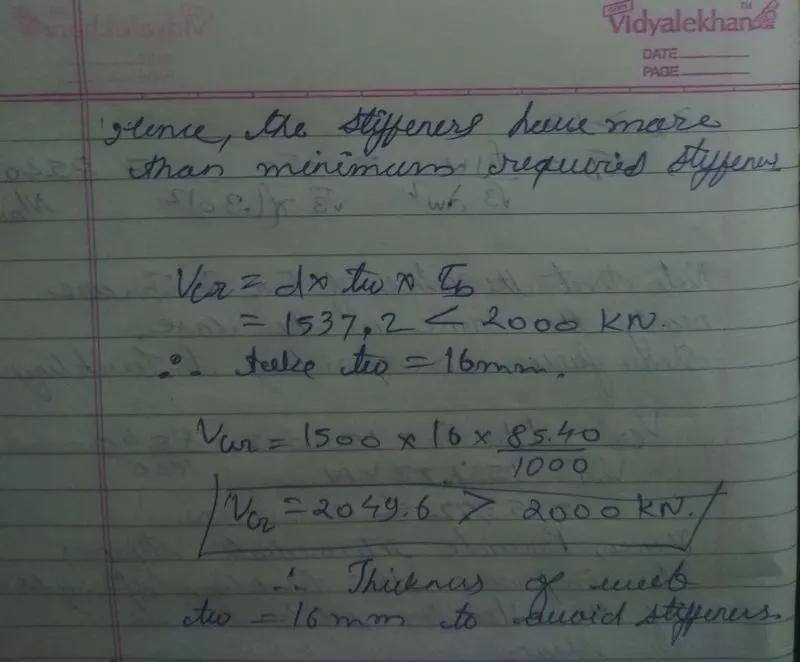

Result ::- To avoid stiffener thickness of the web must be 16mm under given conditions.

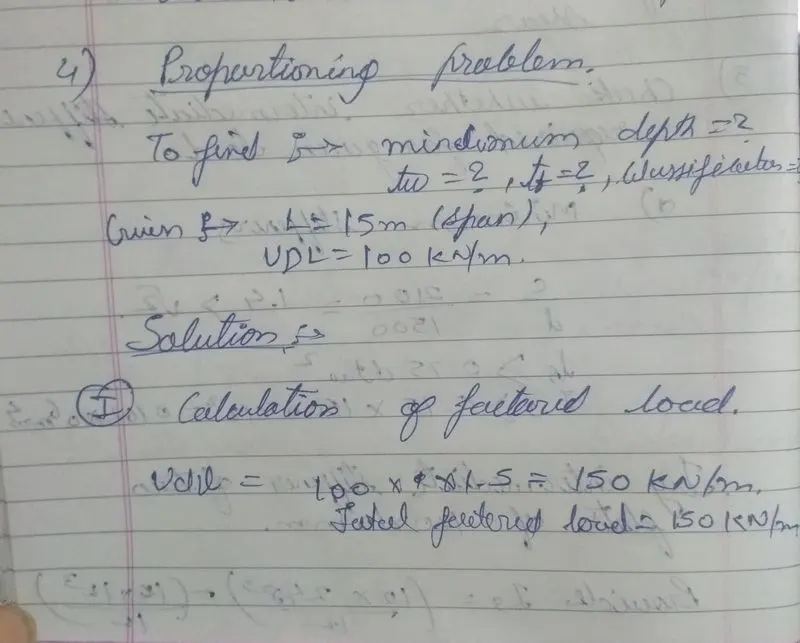

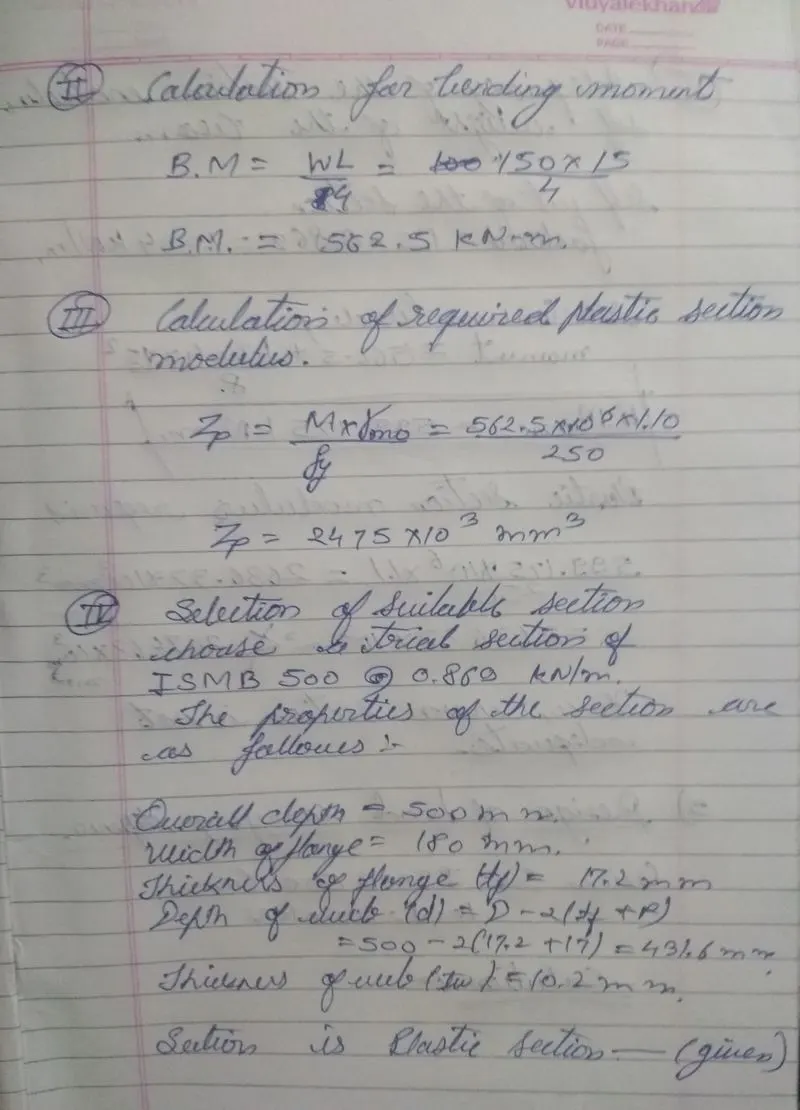

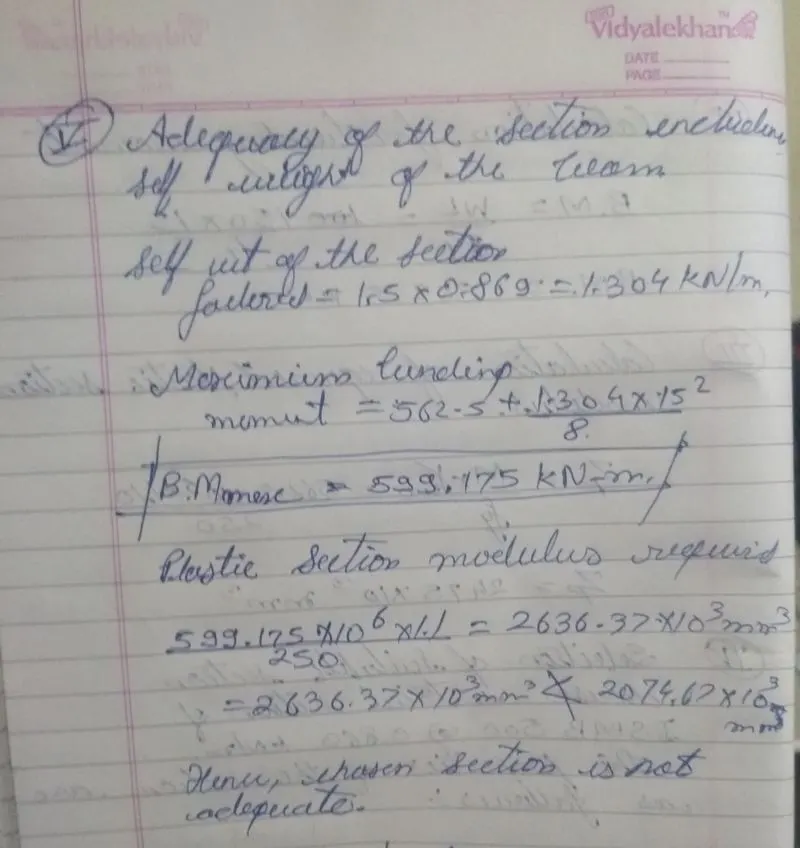

Aim ::- To calculate the minimum depth, web thickness, flange depth, thickness, adequacy of the section assumed.

Procedure ::-

Result ::- The assumed section is not adequate for the moment.
