Week 4 Challenge

QUESTION 1) design of beams

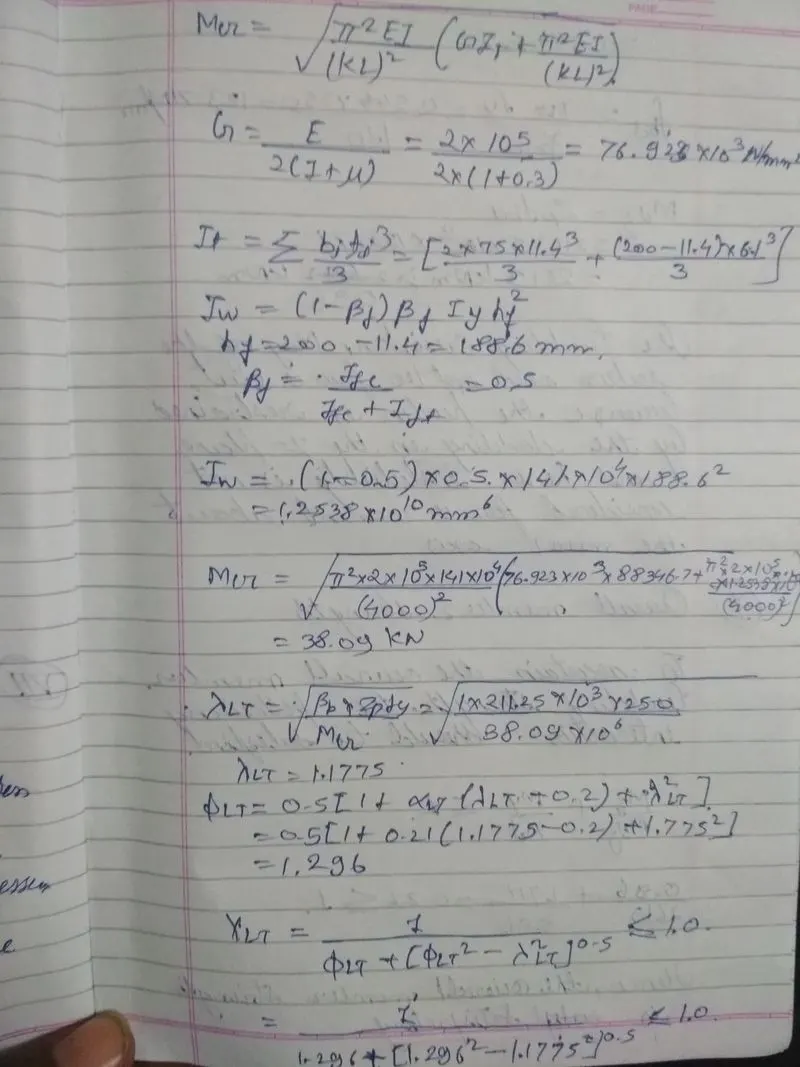

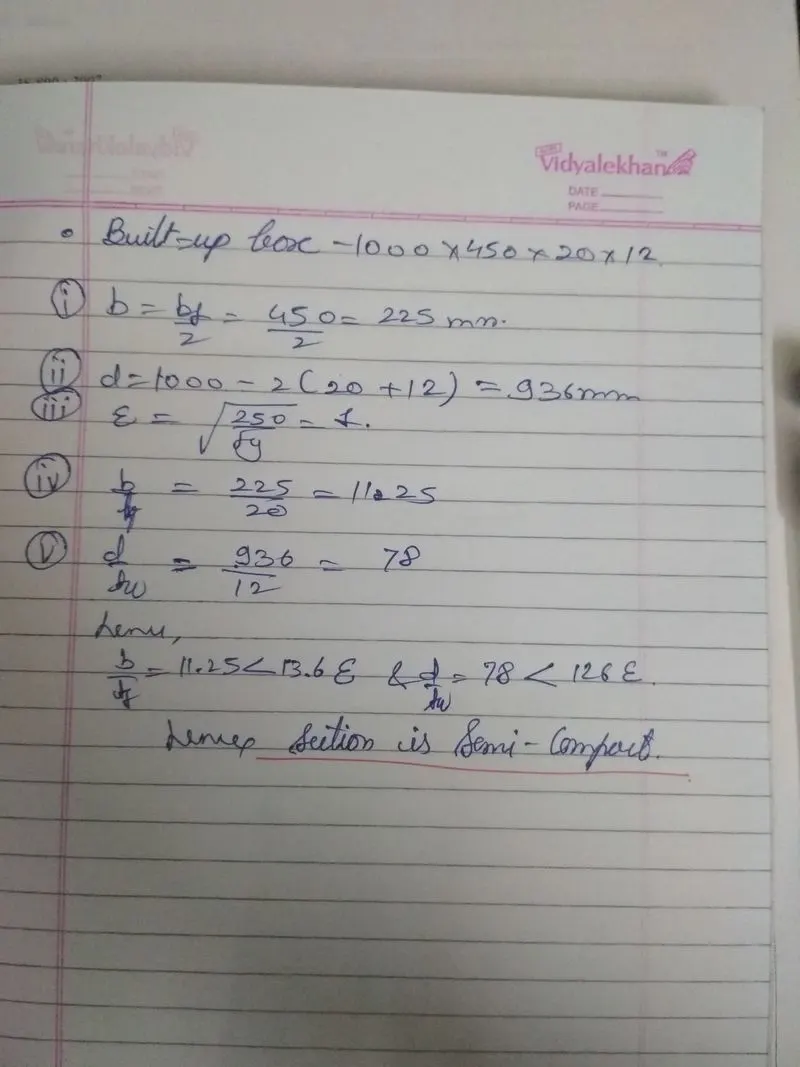

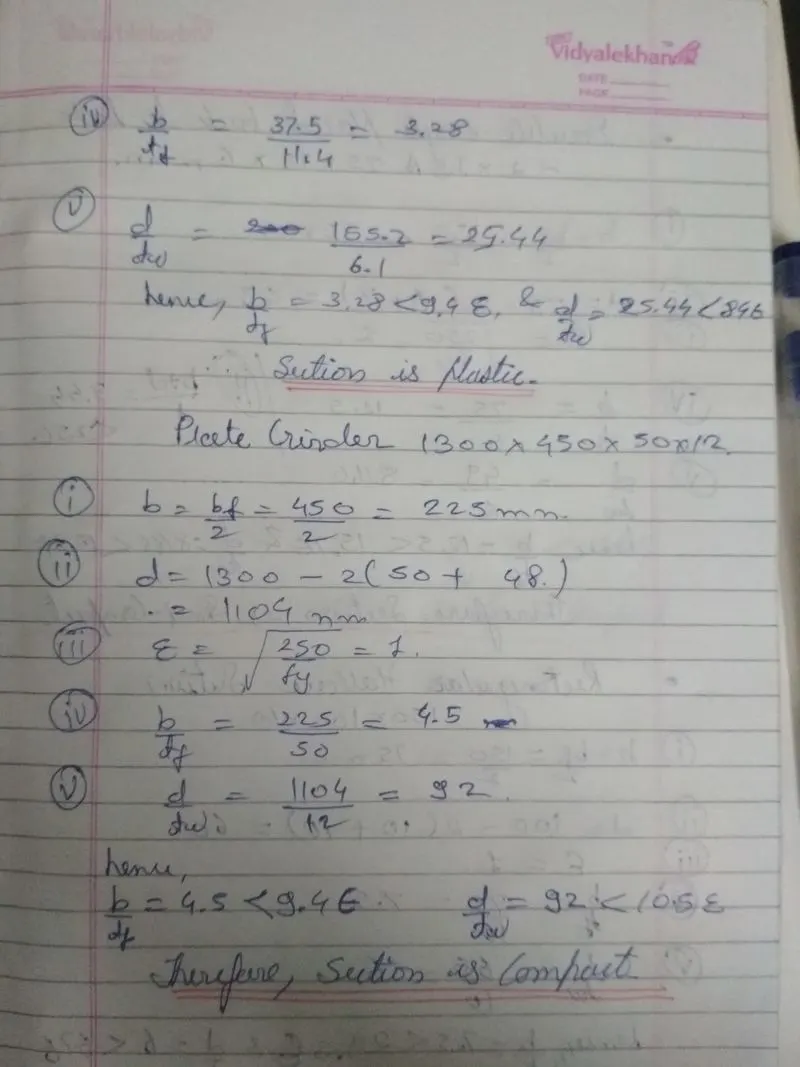

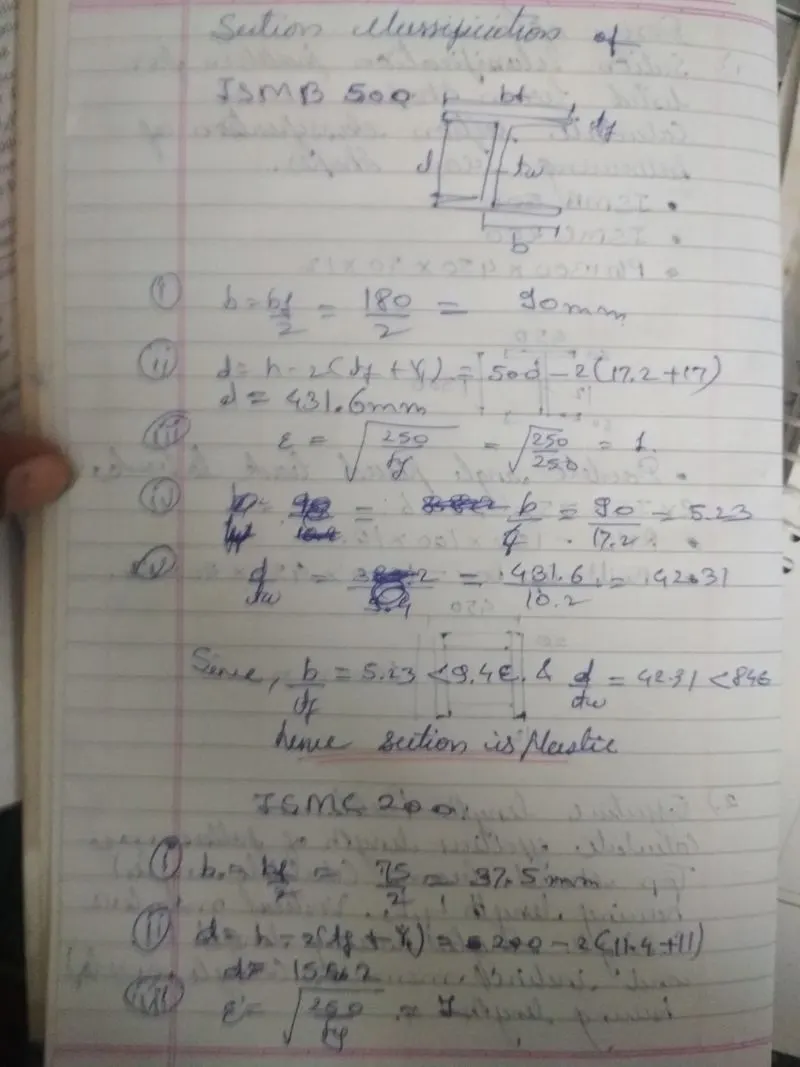

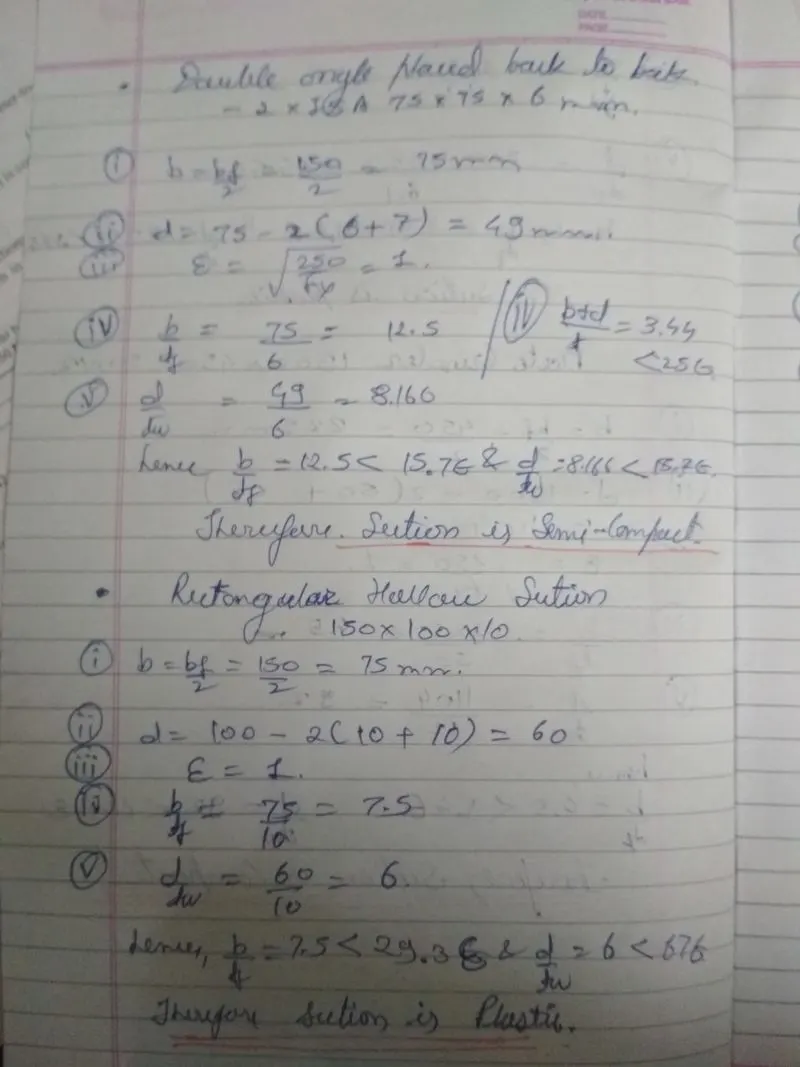

Aim :: - Classification of the sections given whether it is PLASTIC, COMPACT, SEMI-COMPACT.

Procedure ::-

Result ::- We understand about section classifications of different Hot rolled, plate girder etc.

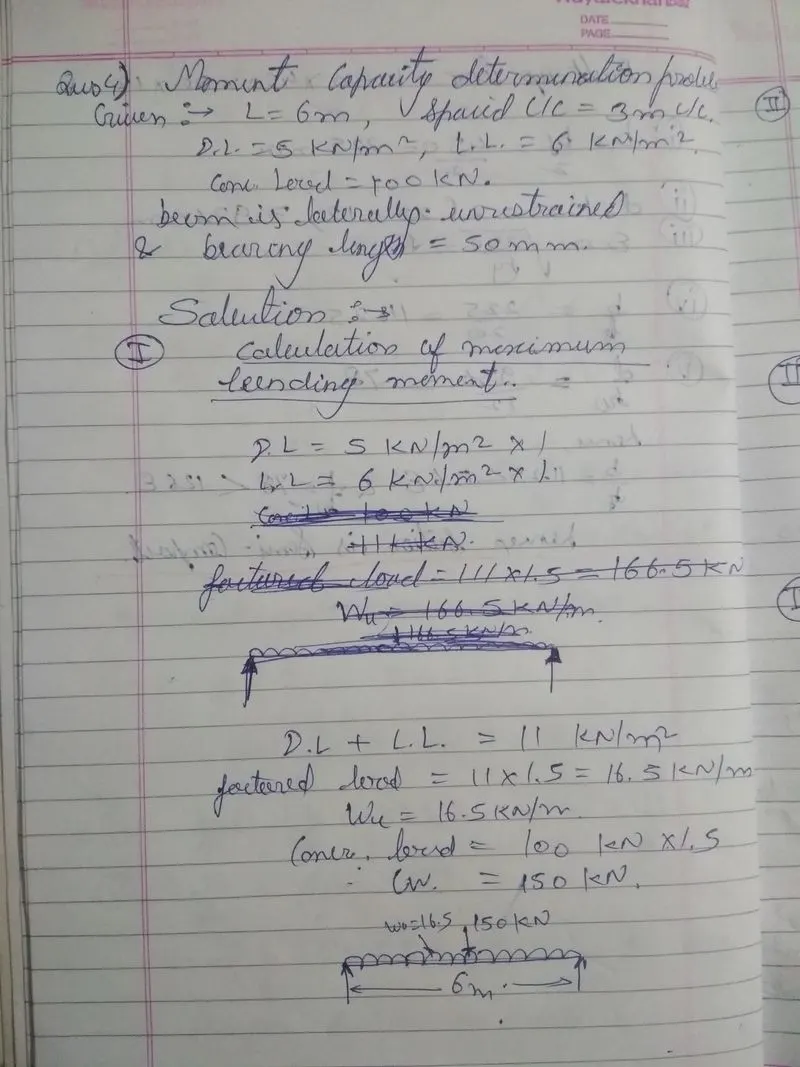

QUESTION 4) MOMENT CAPACITY DETERMINATION PROBLEM

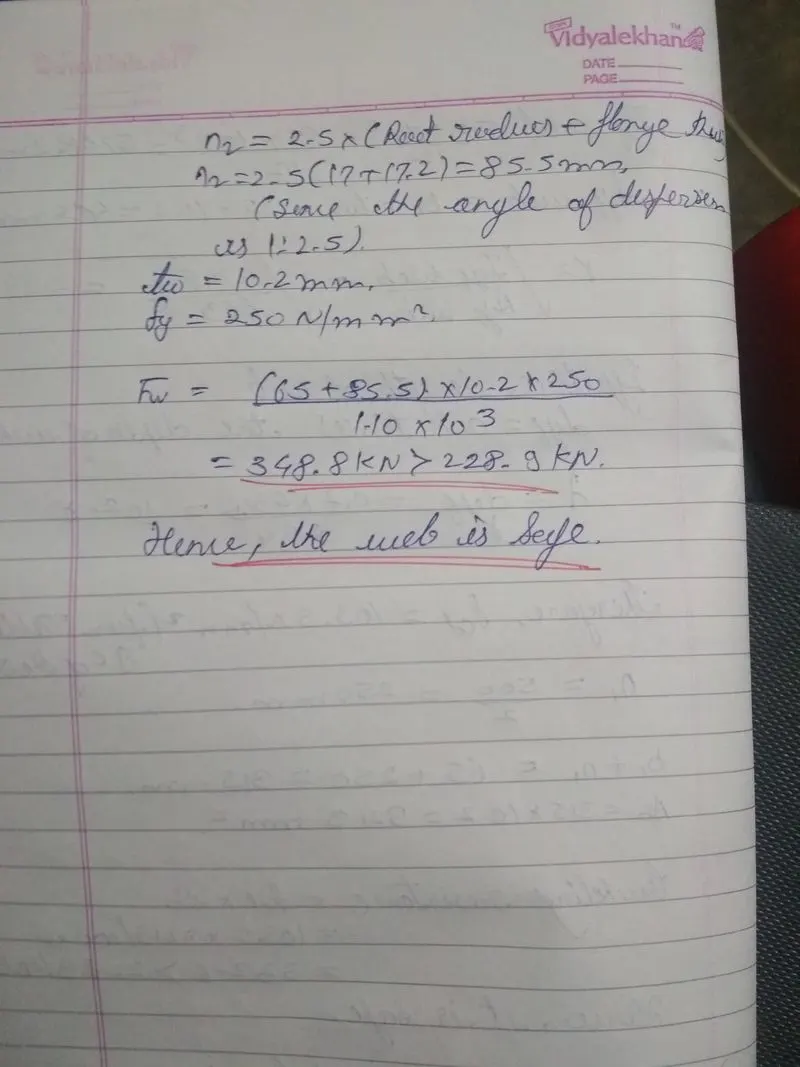

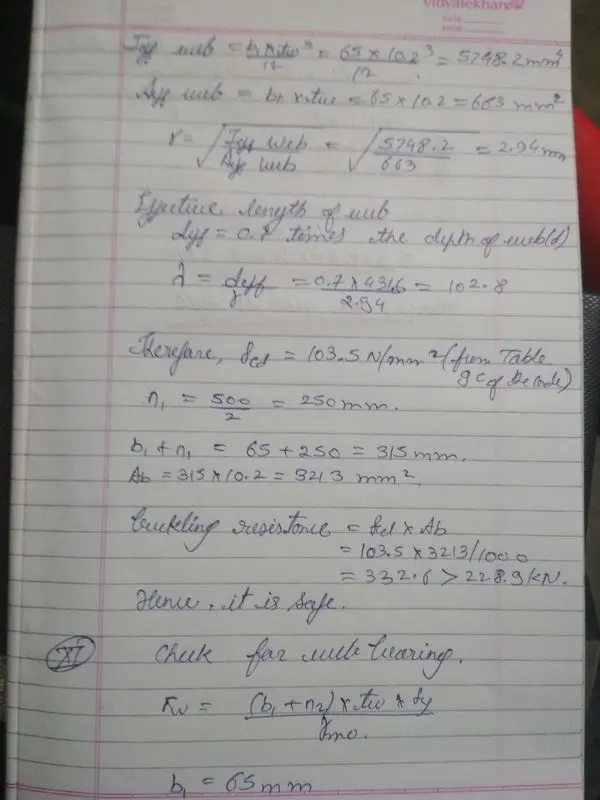

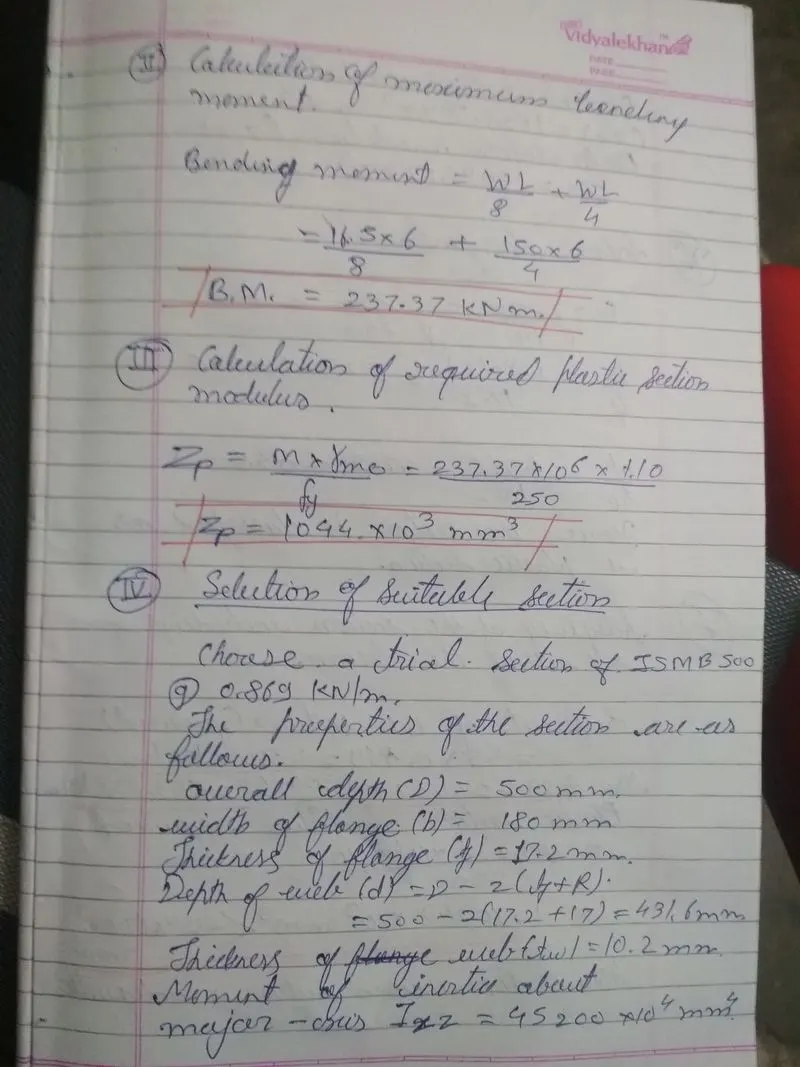

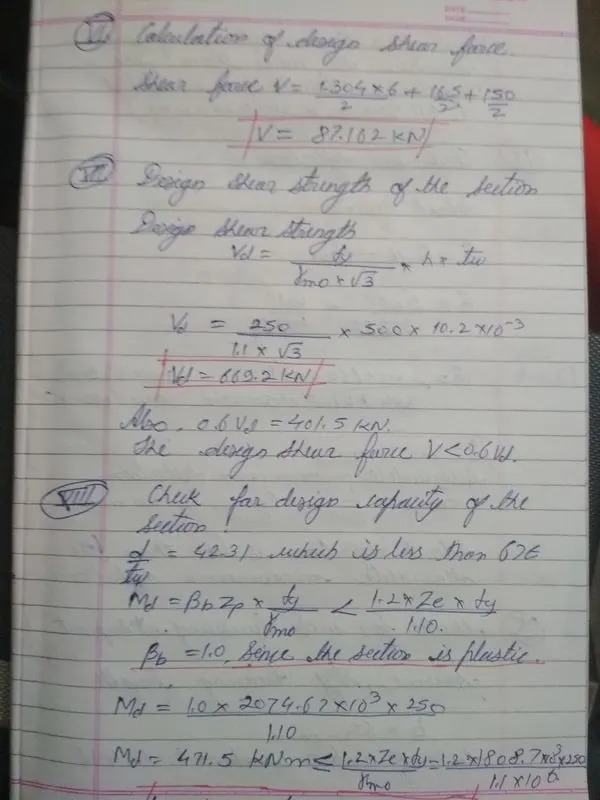

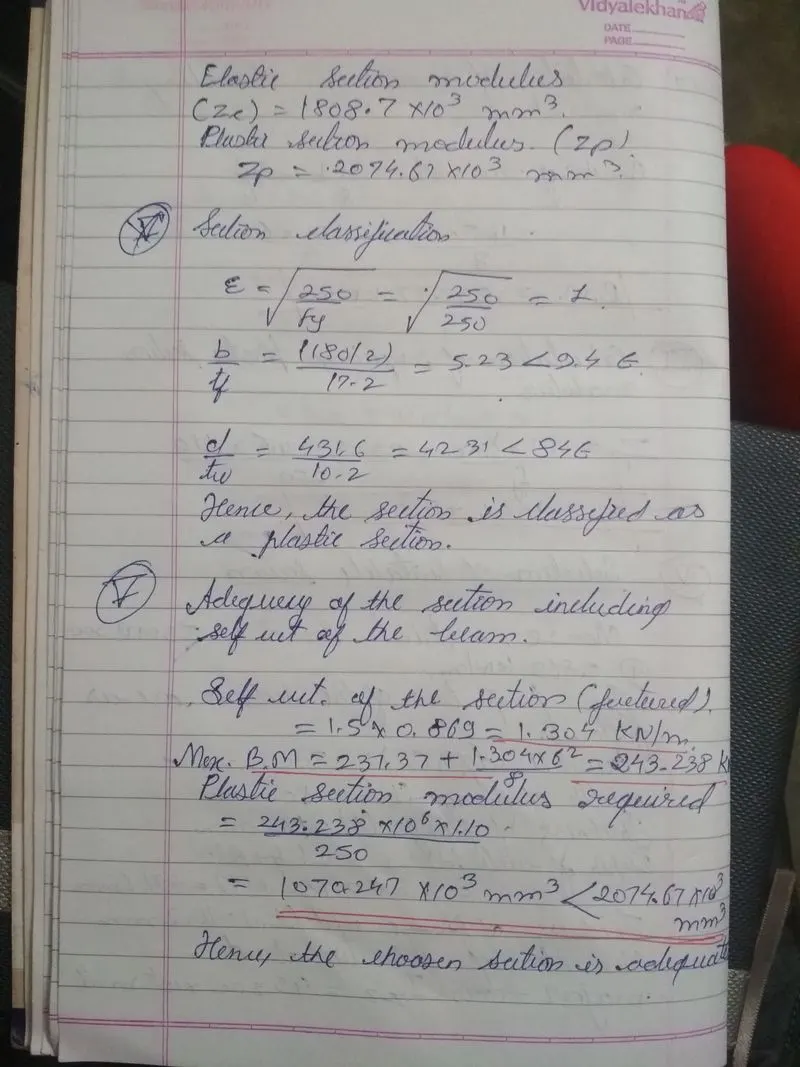

Aim ::- To calculate moment capacity of the beam under given loadings.

Procedure ::-

Result ::- Design of simply supported beam is safe.

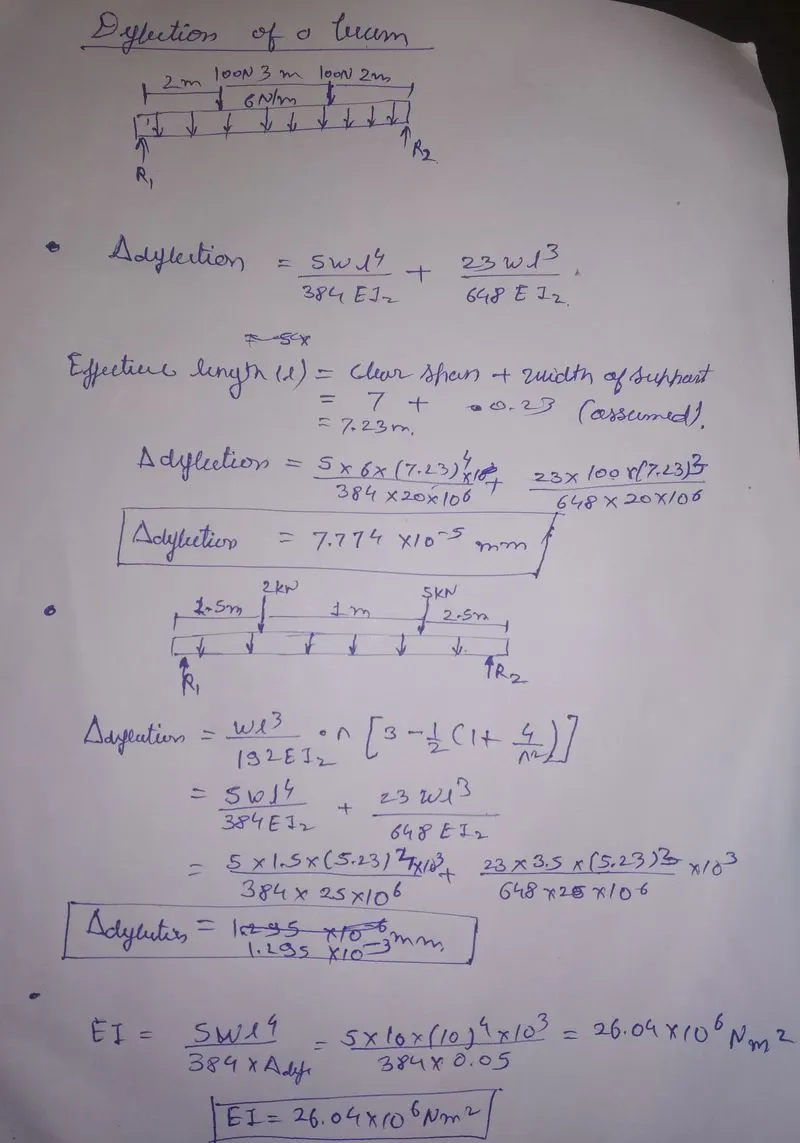

QUESTION 3) DEFLECTION OF BEAM PROBLEM

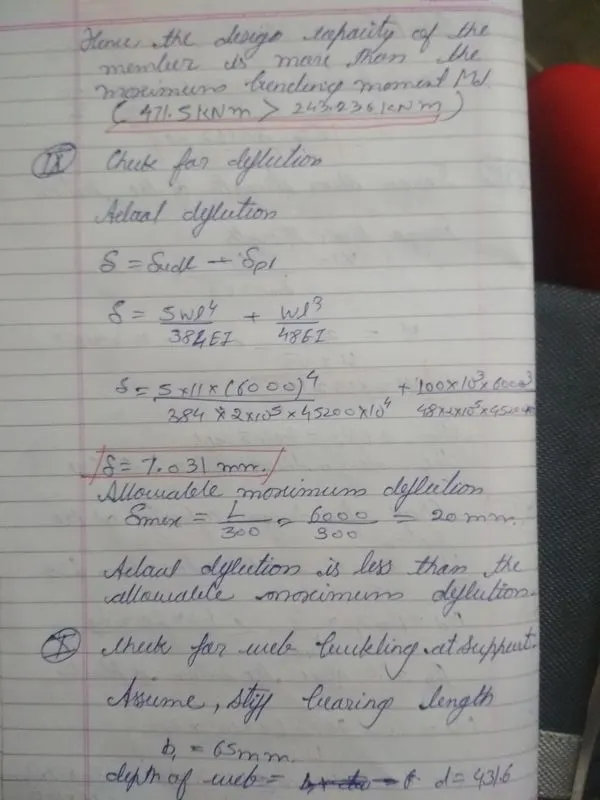

Aim ::- To calculate deflection of the beams given in this question.

Result ::- Deflection of the given beams are calculated.

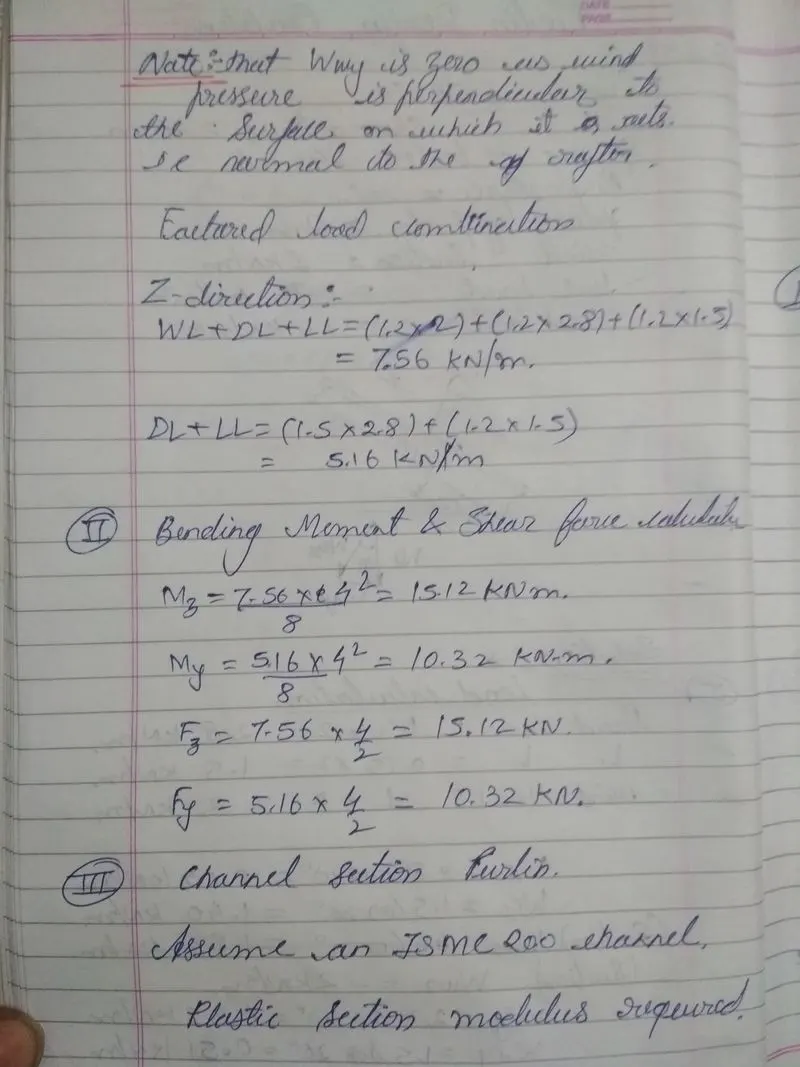

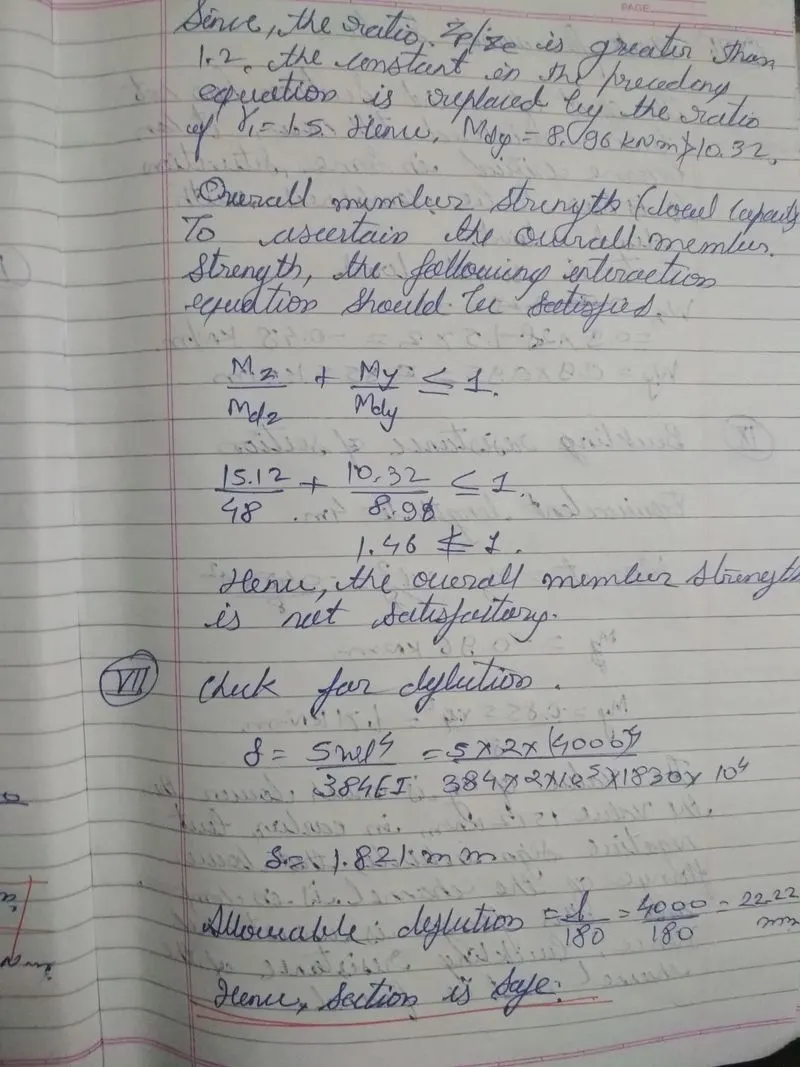

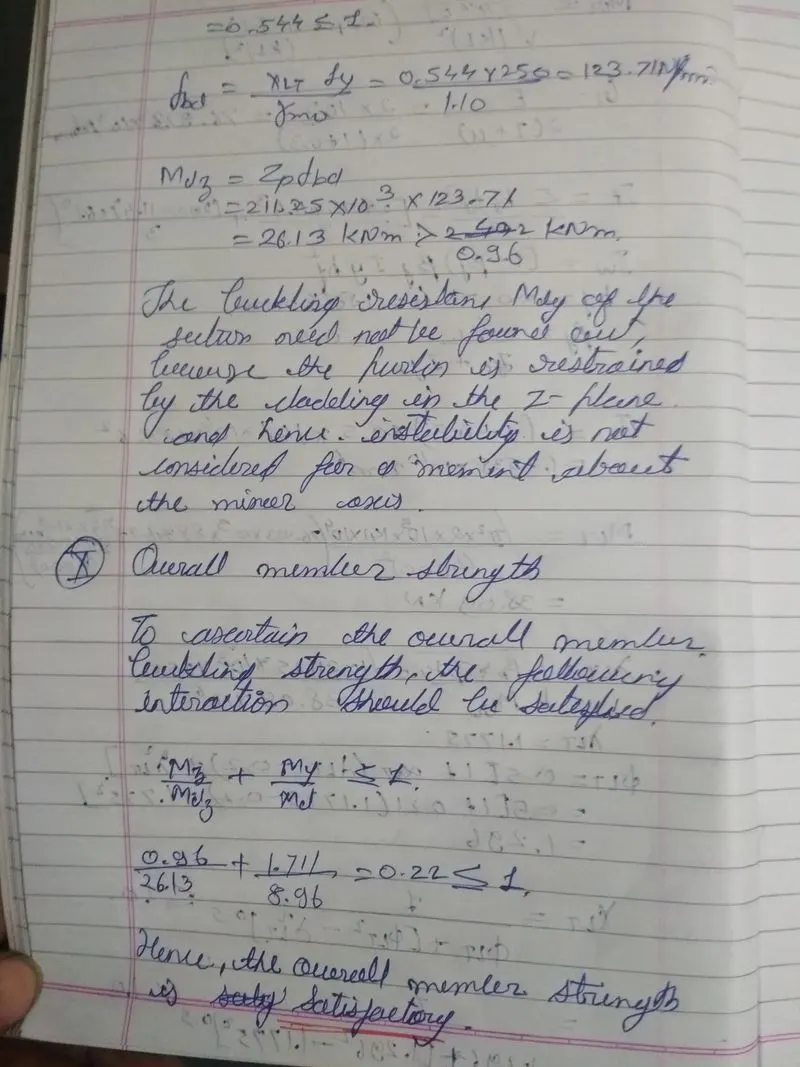

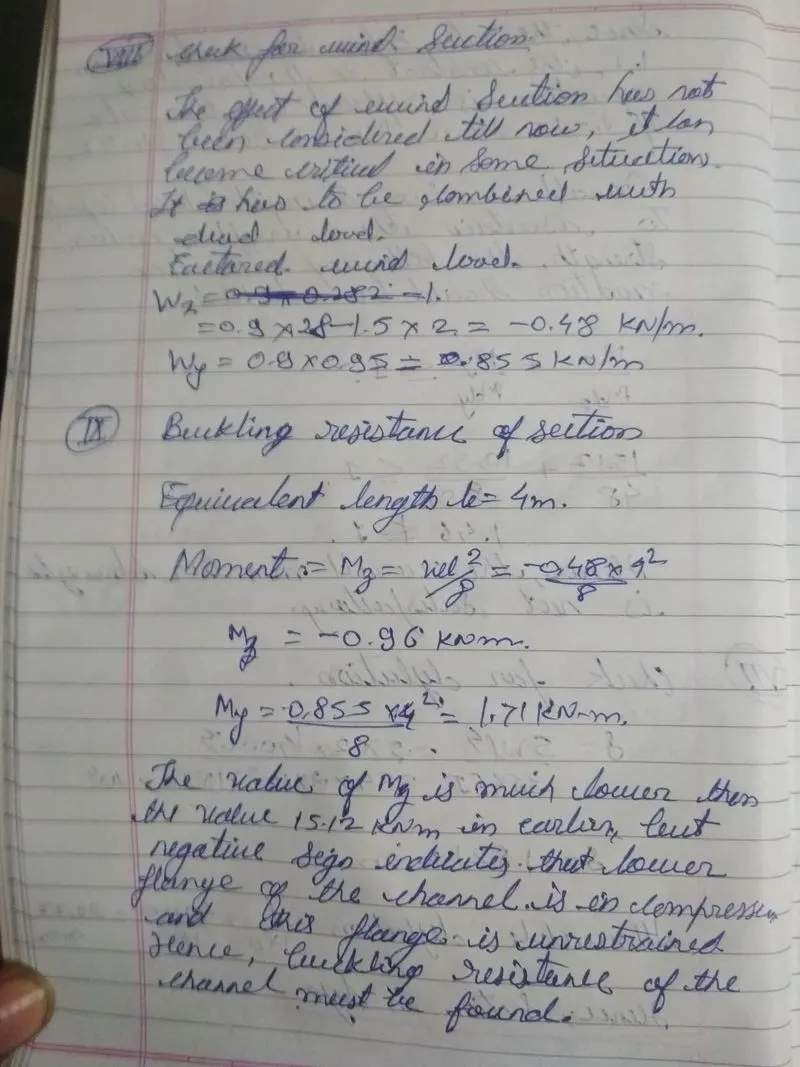

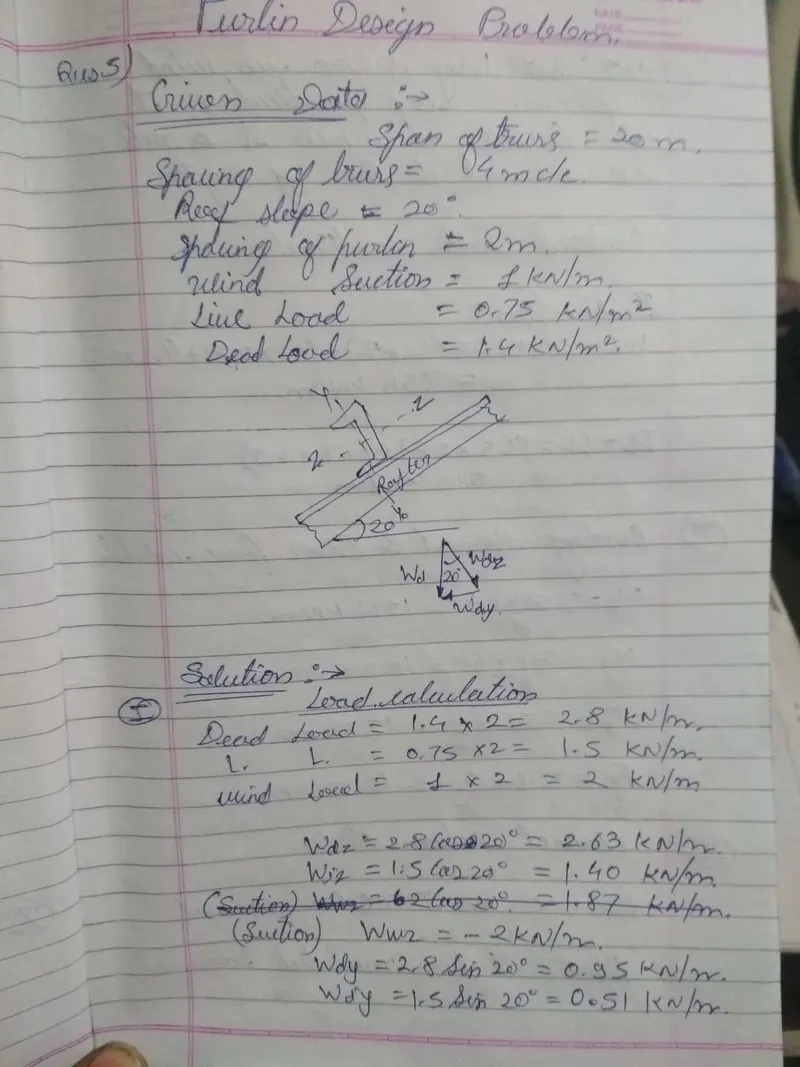

OUESTION 5) PURLIN DESIGN PROBLEM

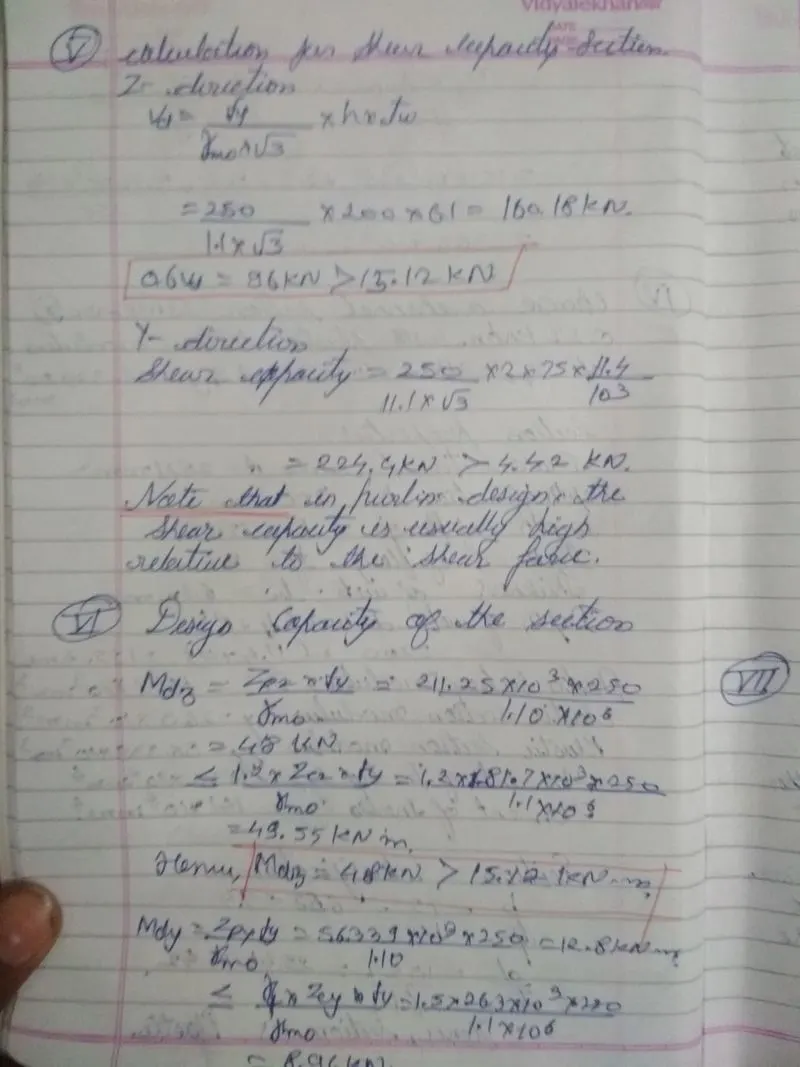

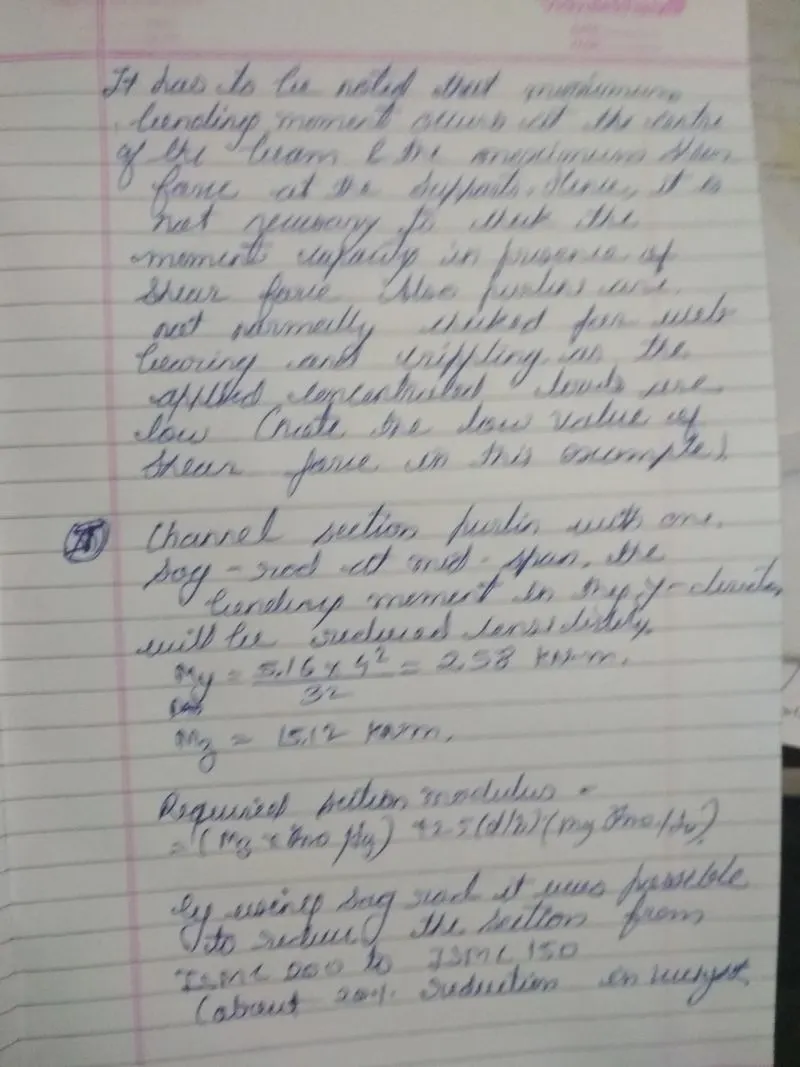

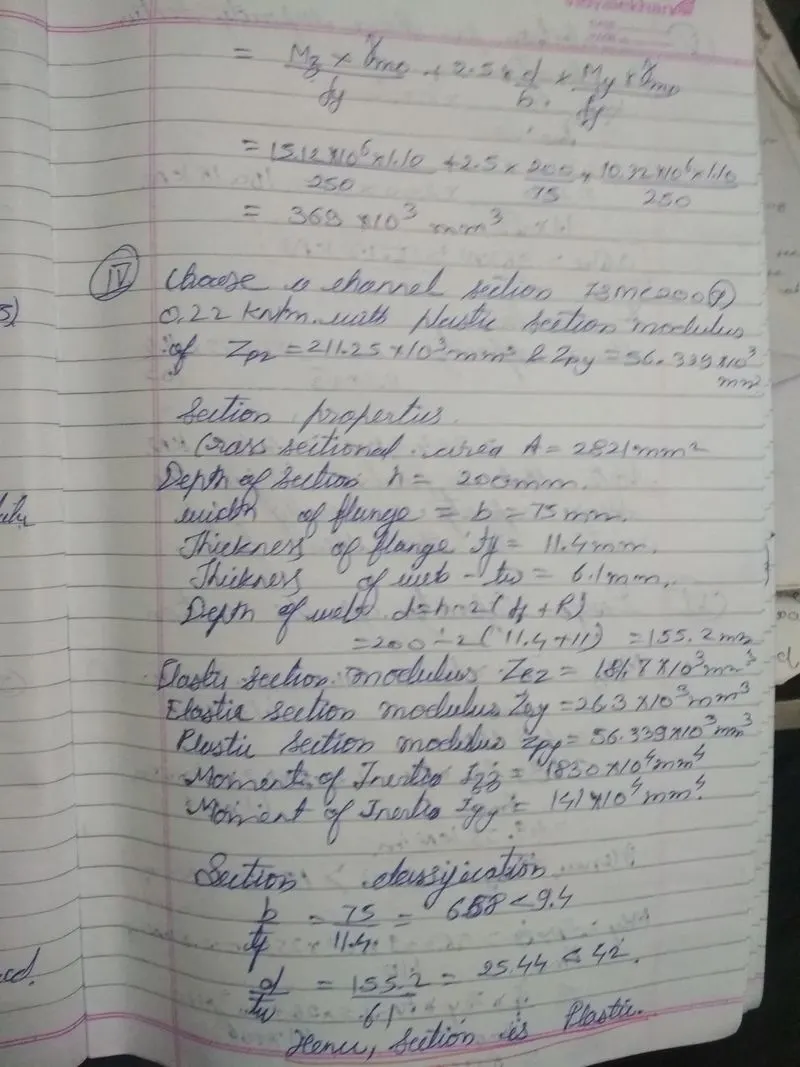

Aim ::- To design channel purlin.

Procedure ::-

Result ::- Design of purlin with sag rod at its mid is safe.
