Week 5 Challenge

Aim and Introduction:-

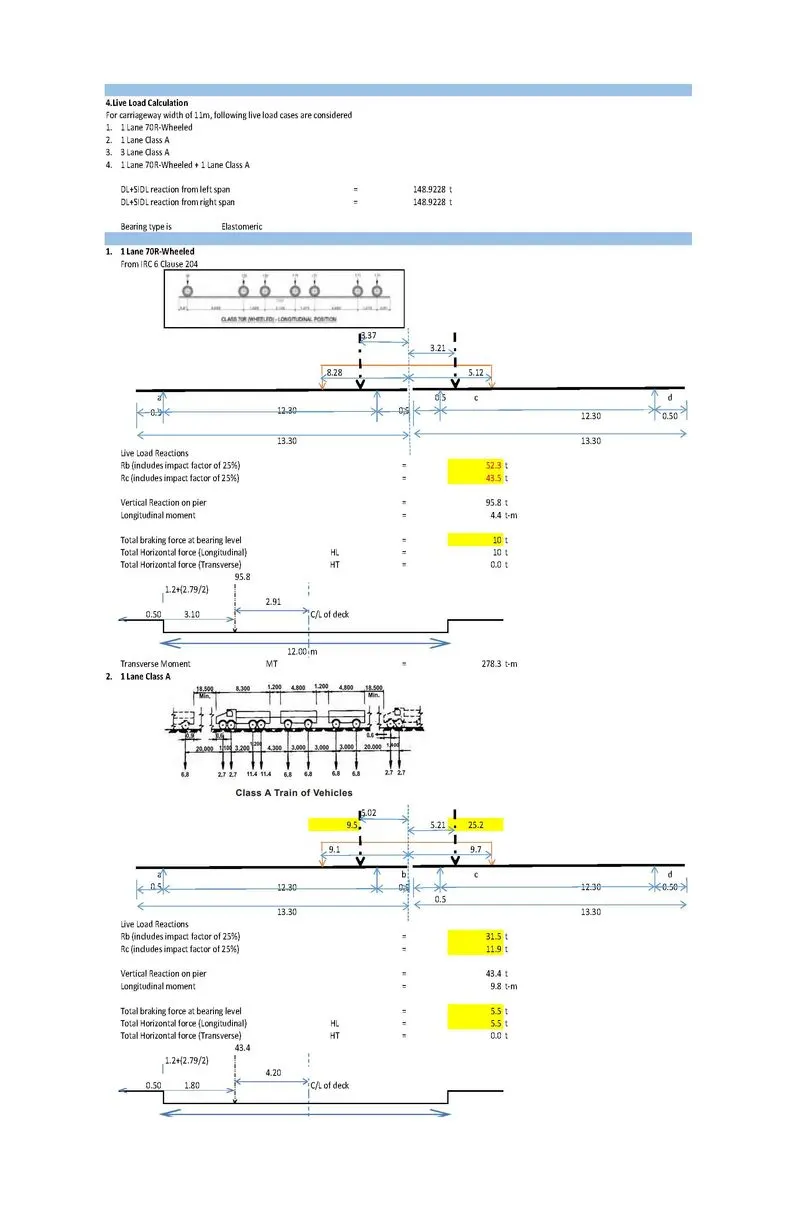

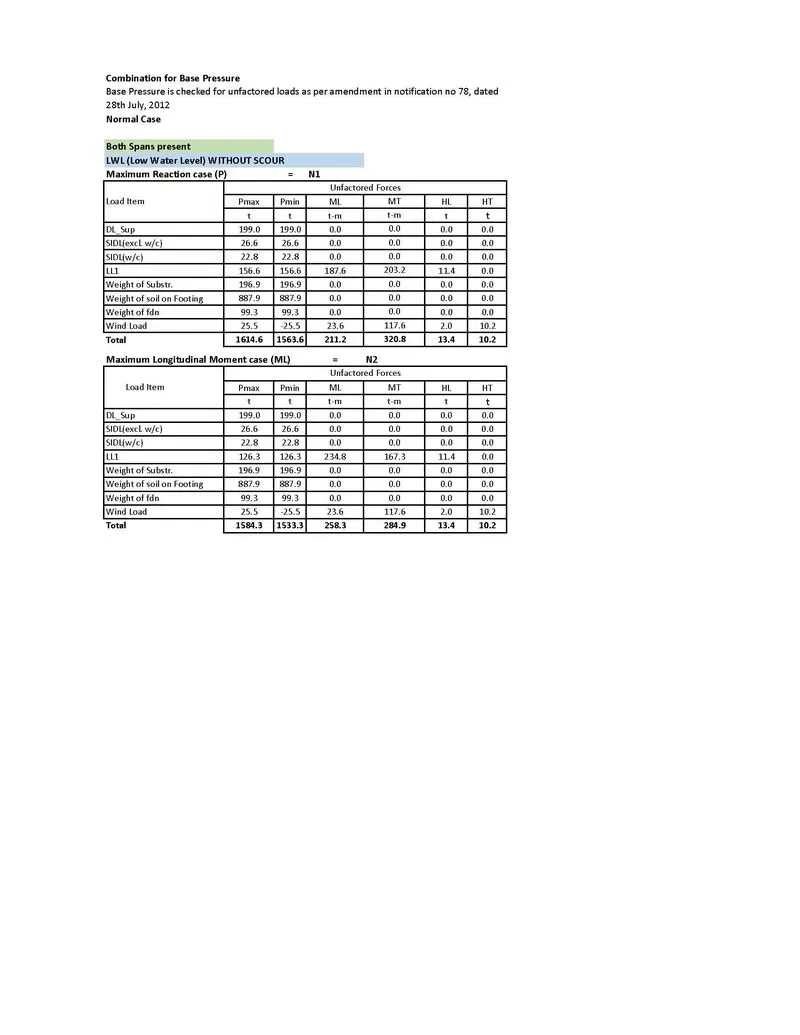

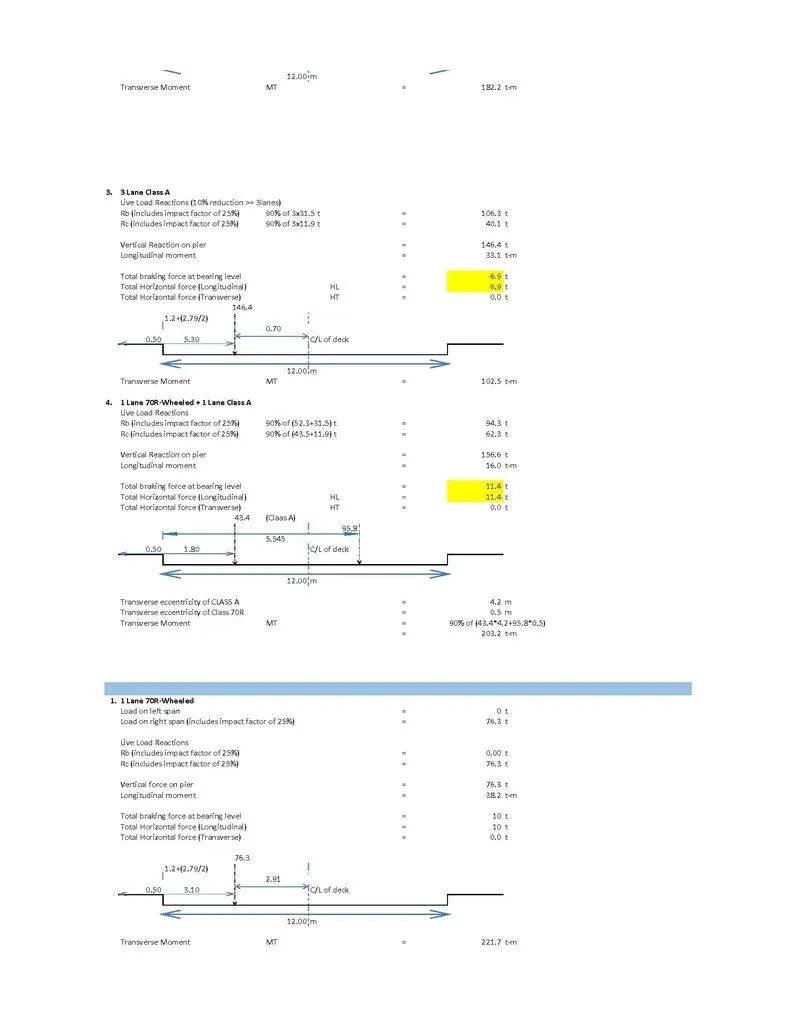

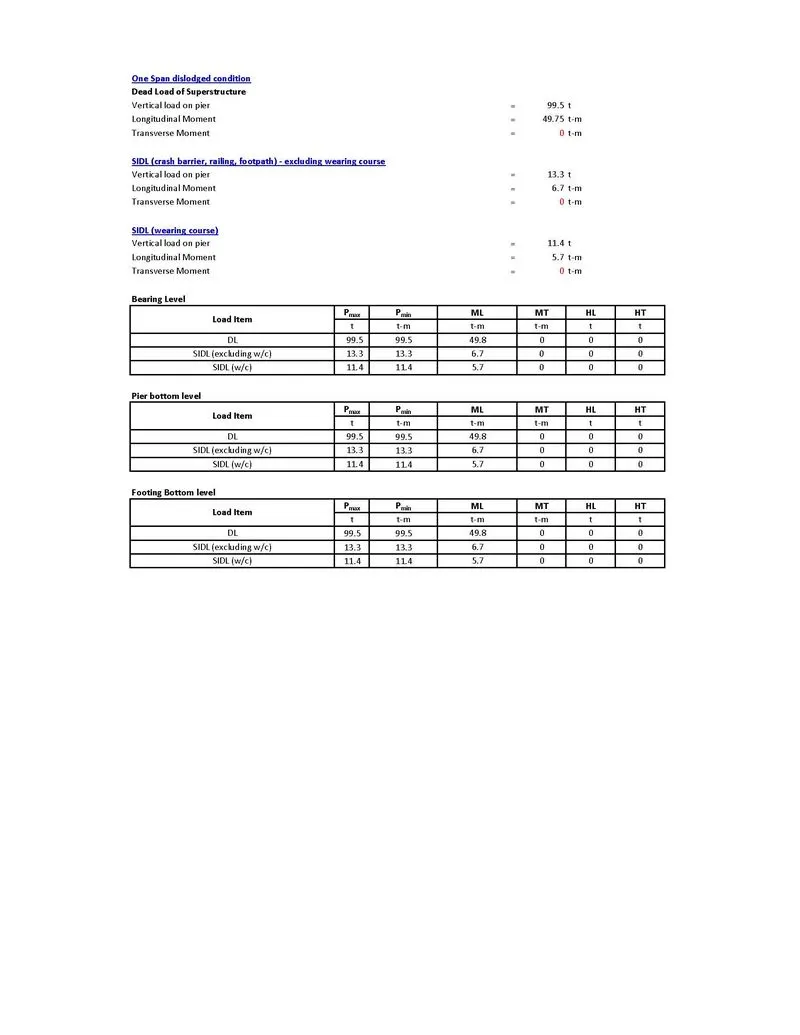

• The aim of this challenge is to determine the types of loads and forces acting on the pirer structure and to design with determining the detail reinforcement drawing for the pier structure by considering various loading criteria.
• So first of all the details components, levels with sizes specified from the given GAD has to be taken for the detail designing.

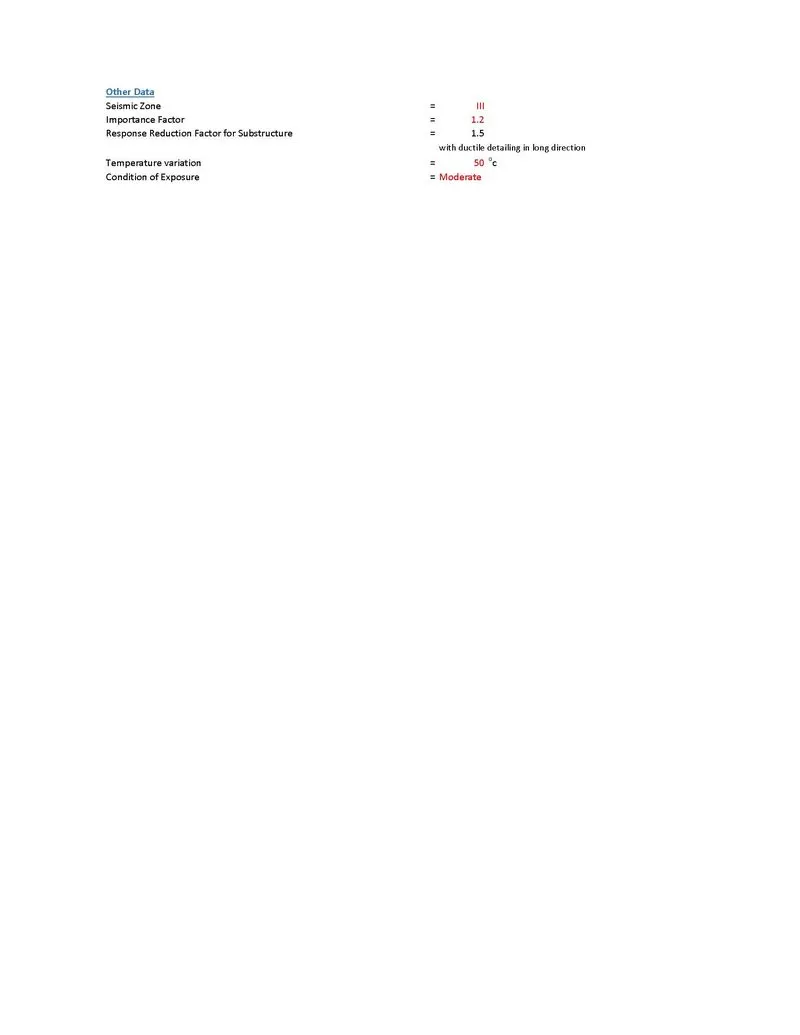

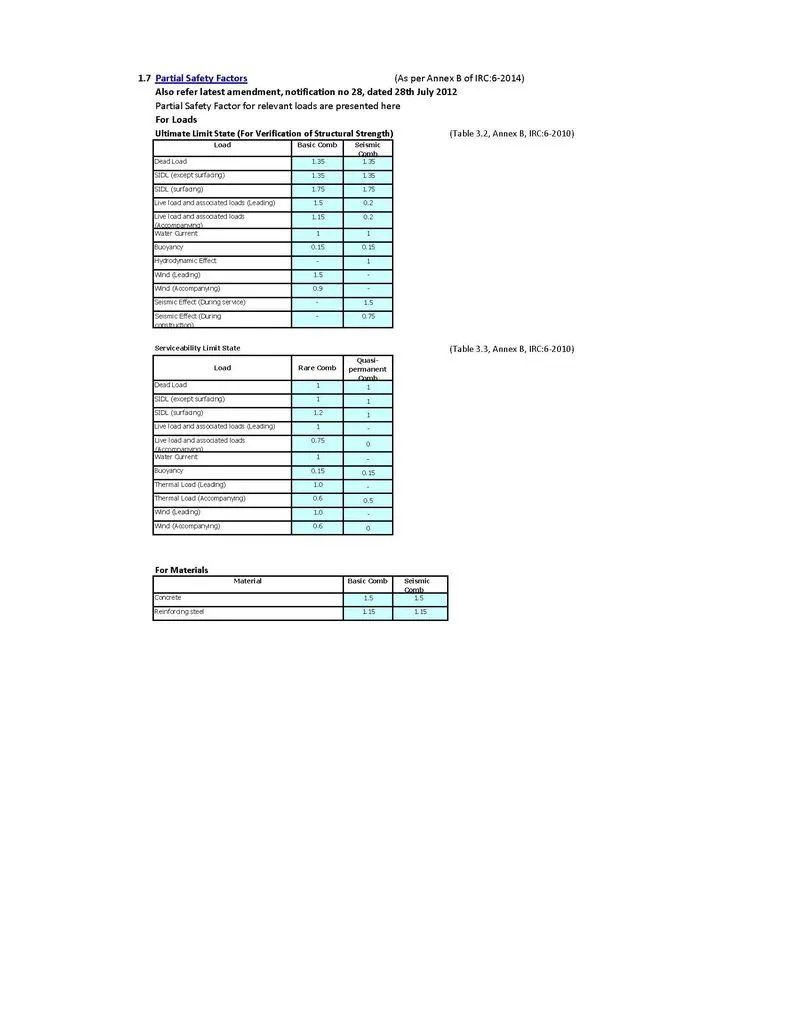

• For designing IRC 6 & IRC 112 has been reffered as follows.

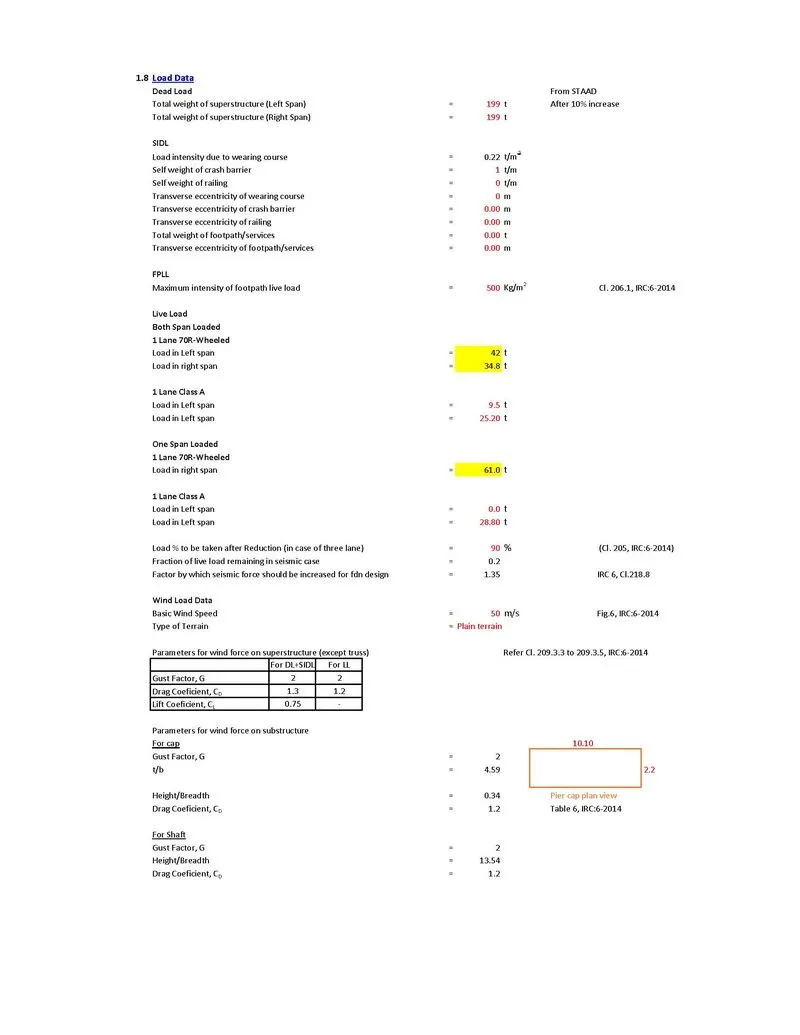

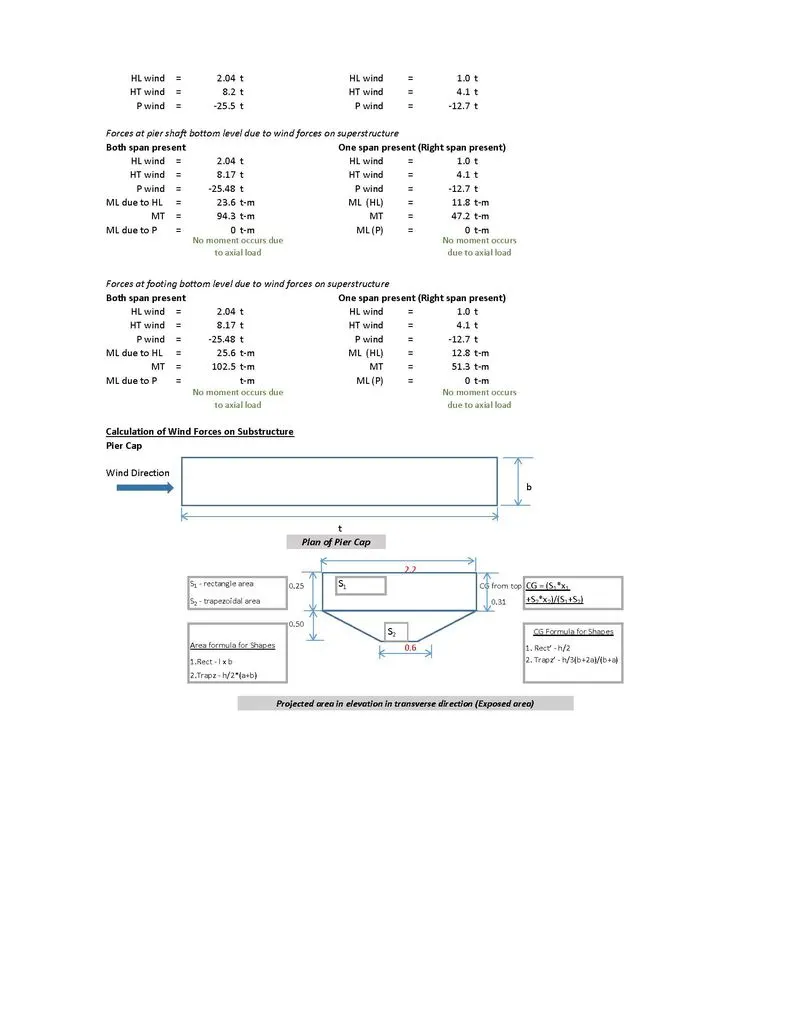

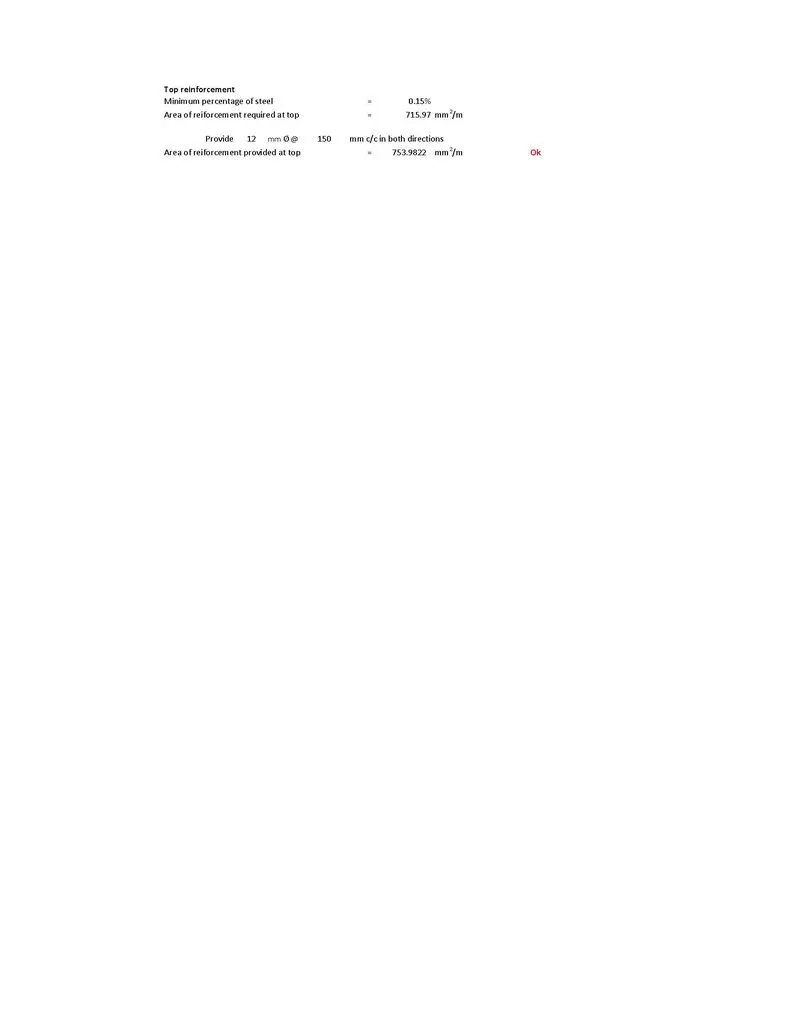

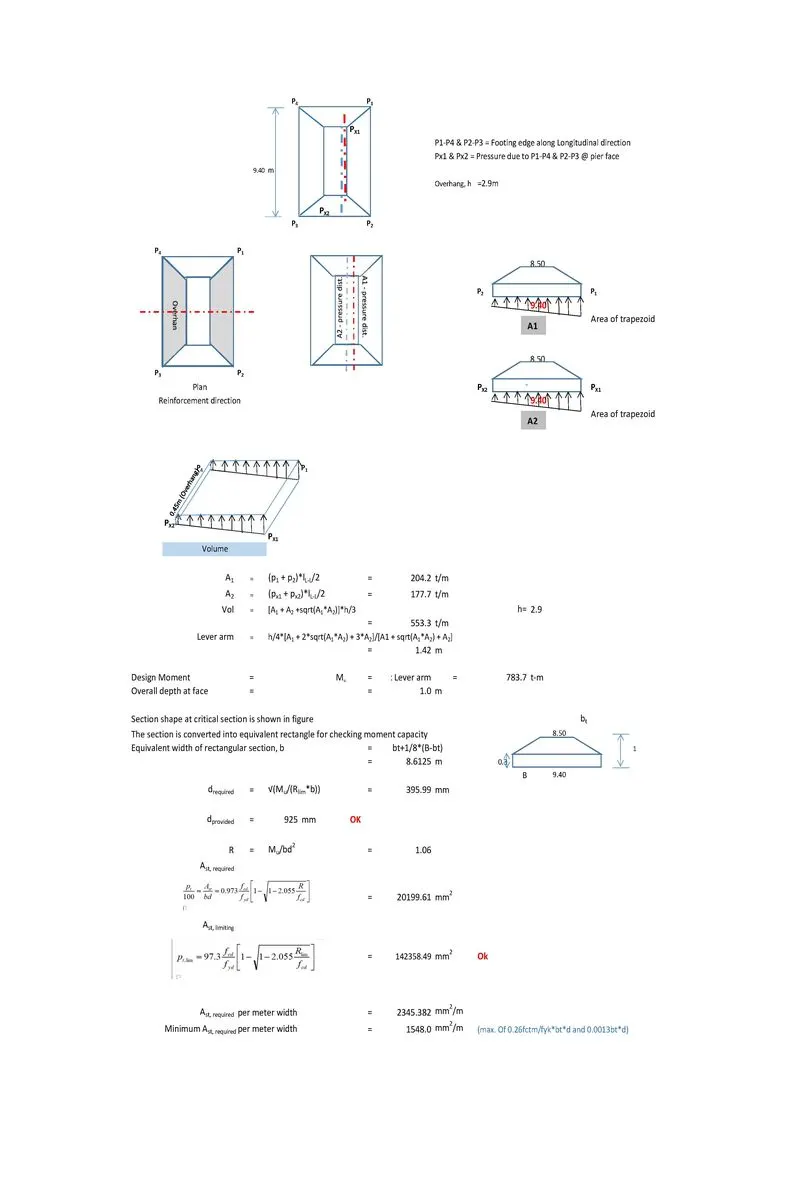

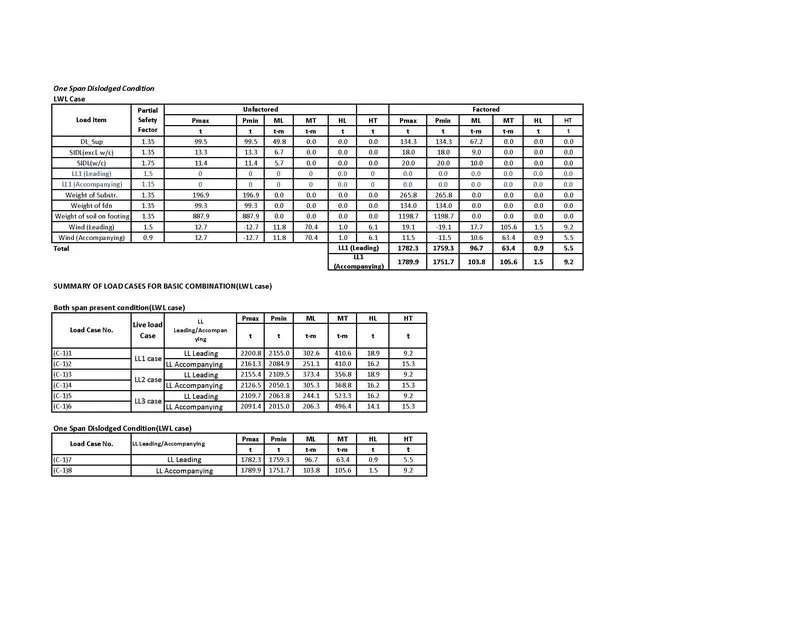

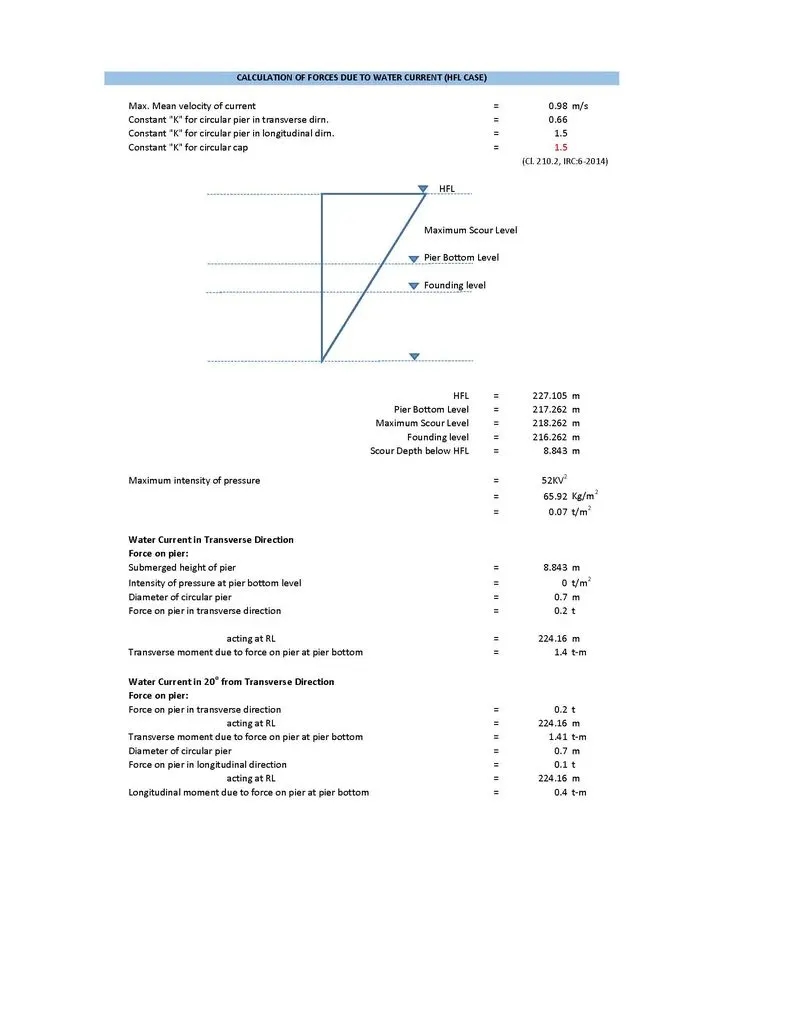

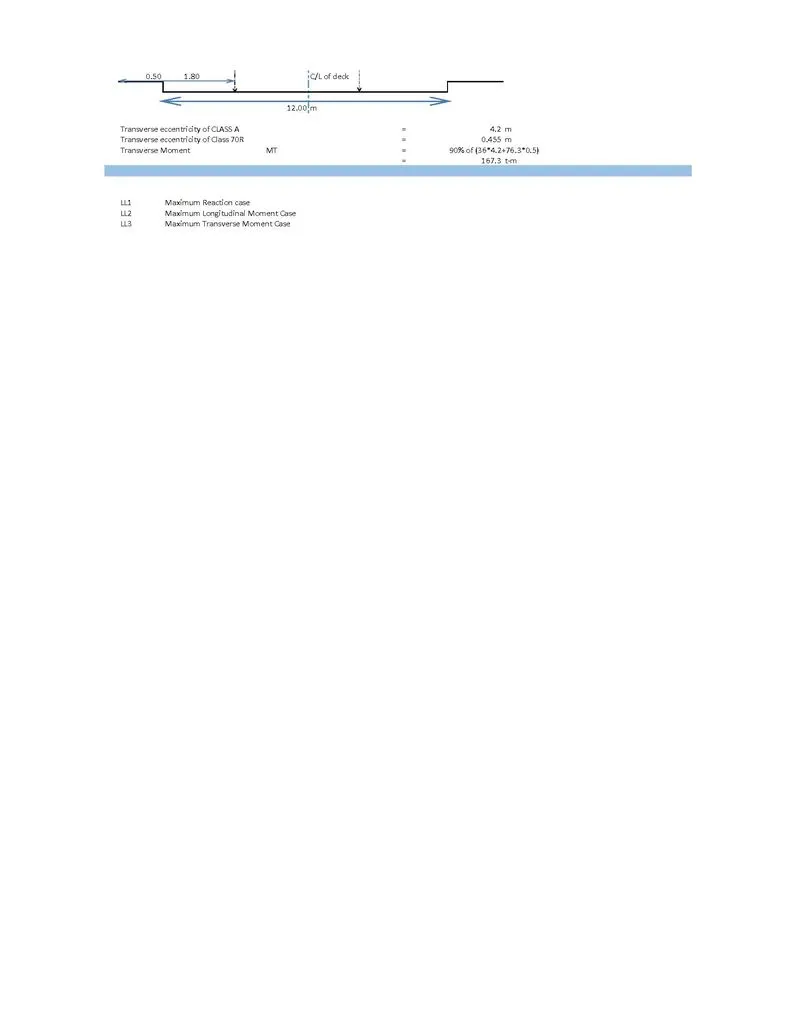

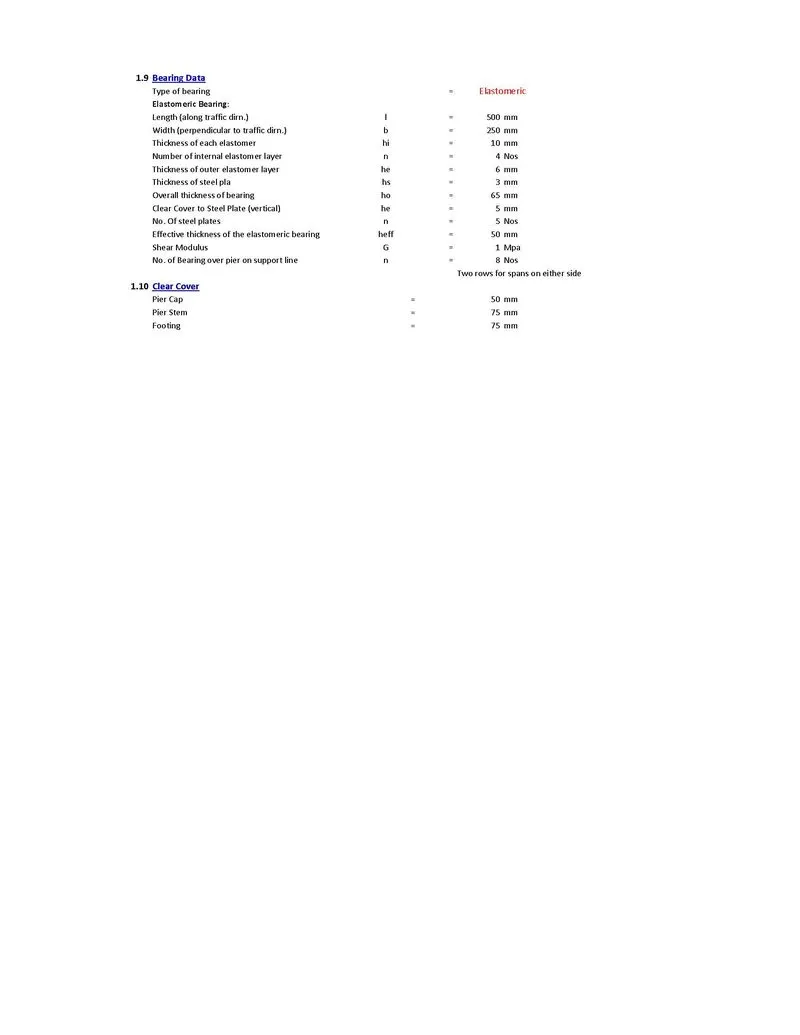

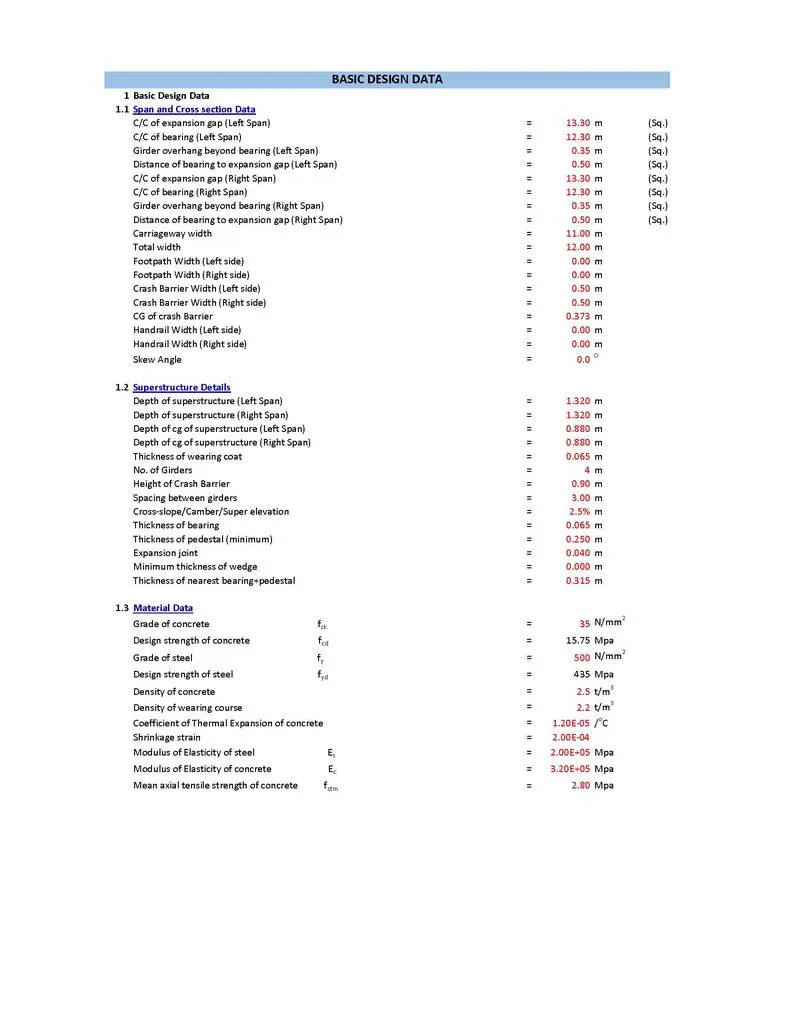

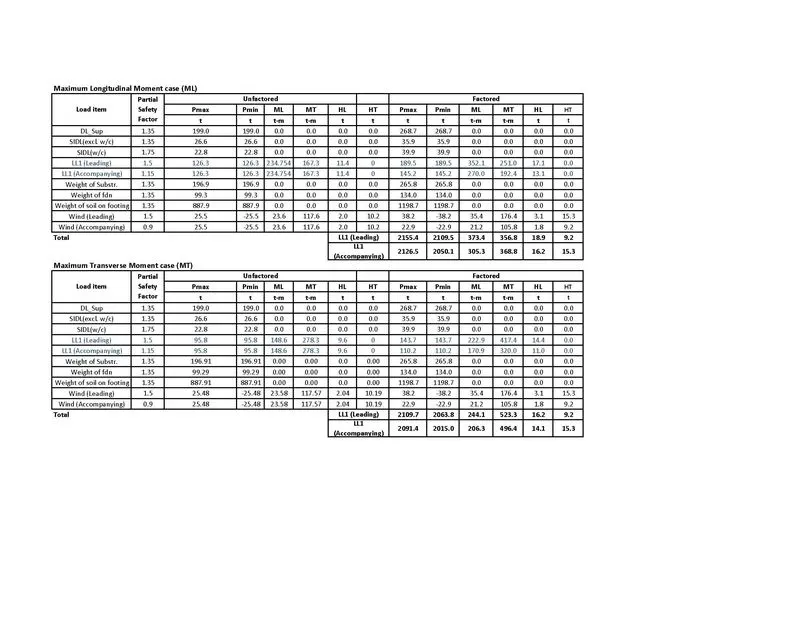

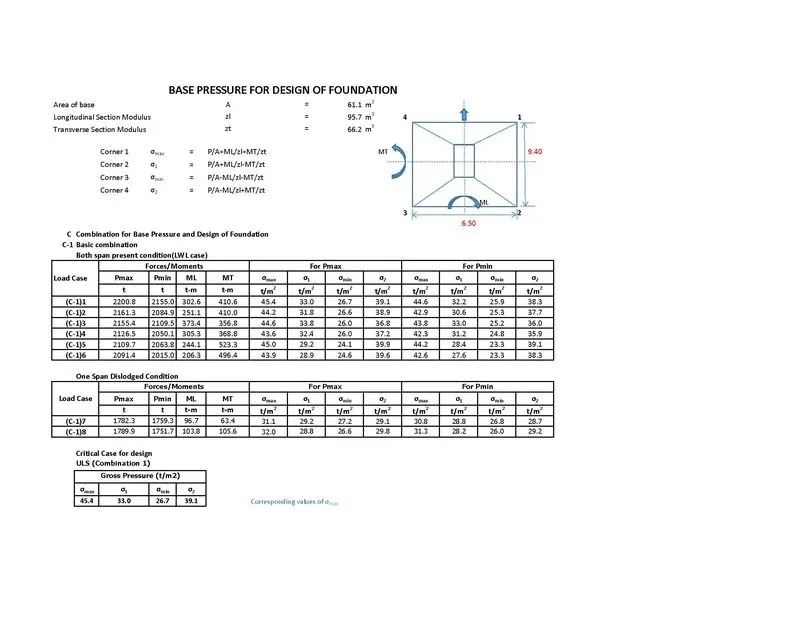

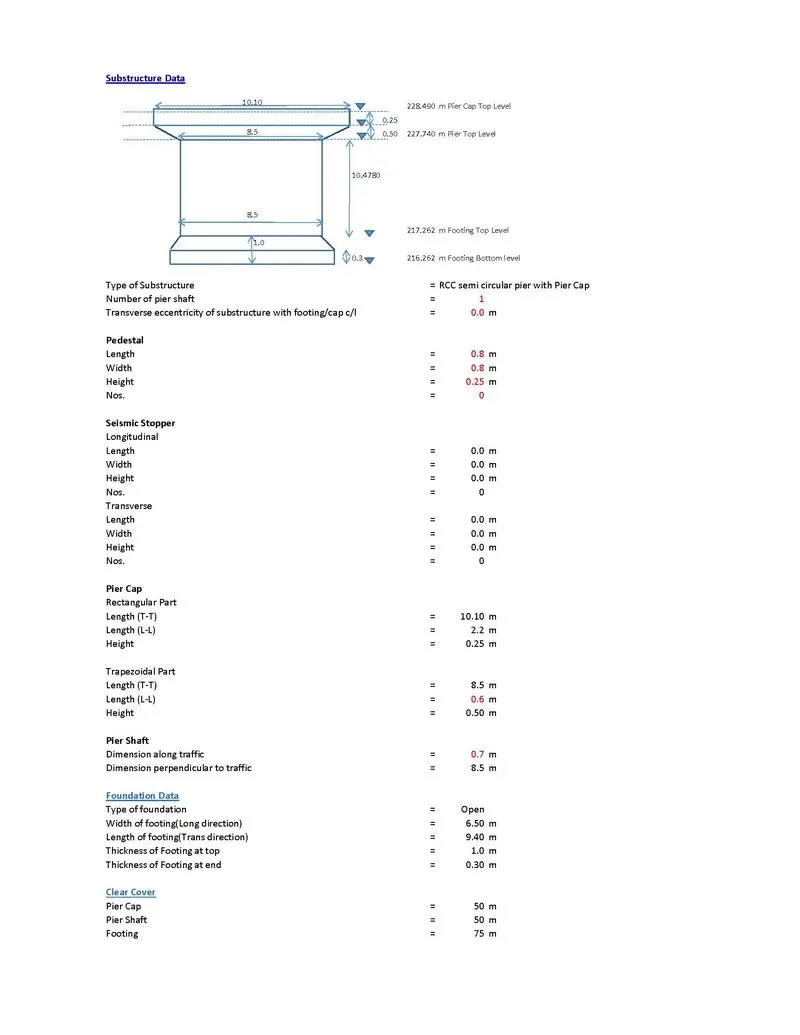

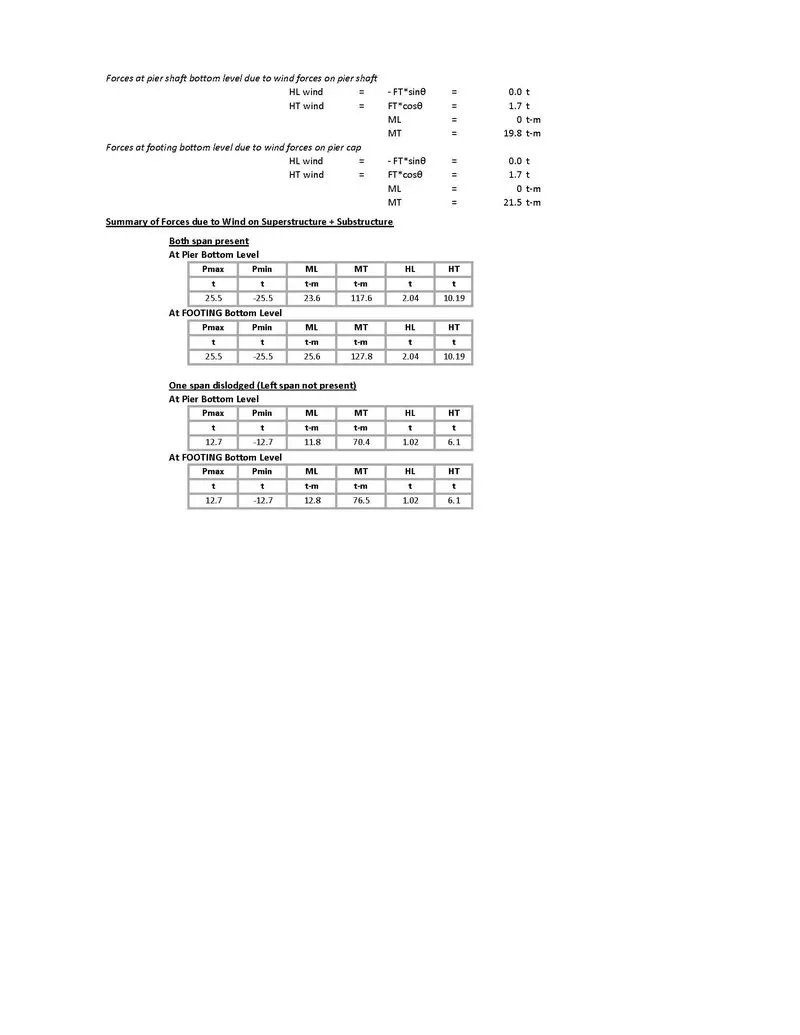

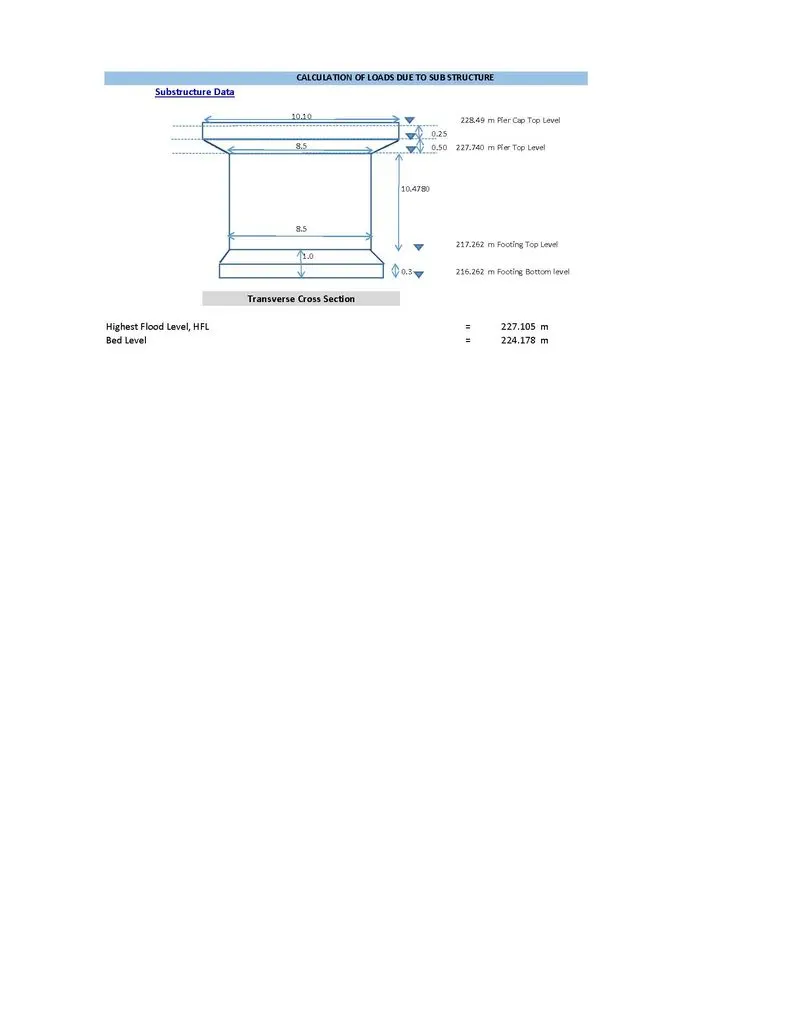

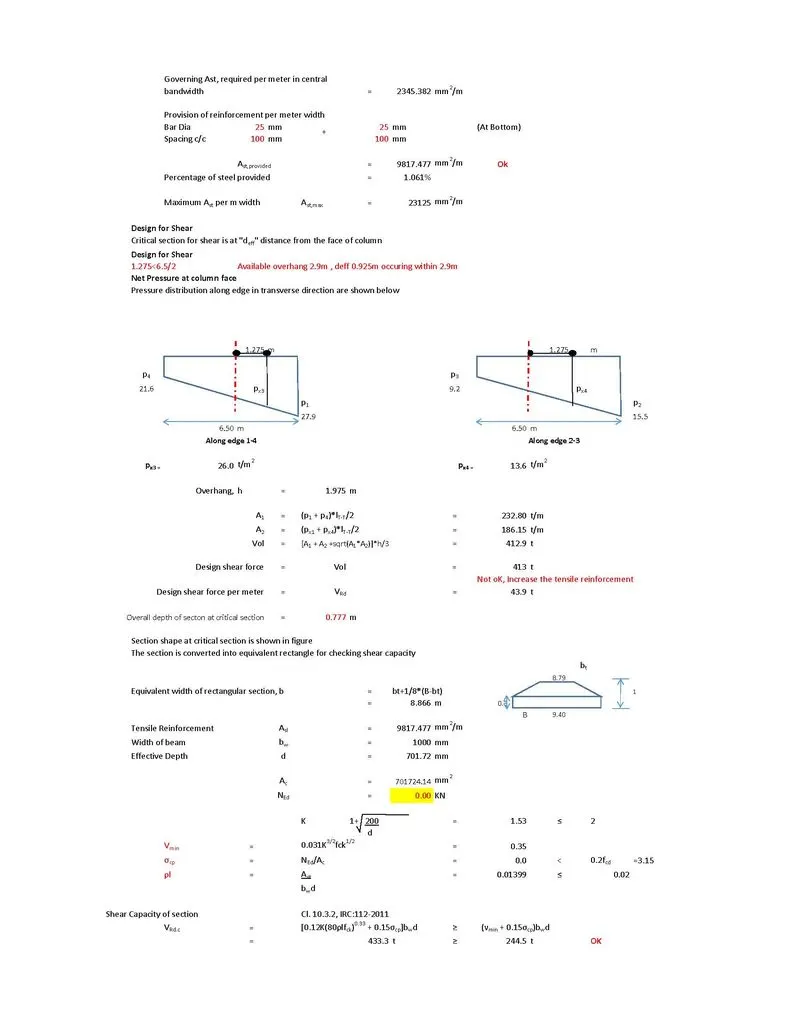

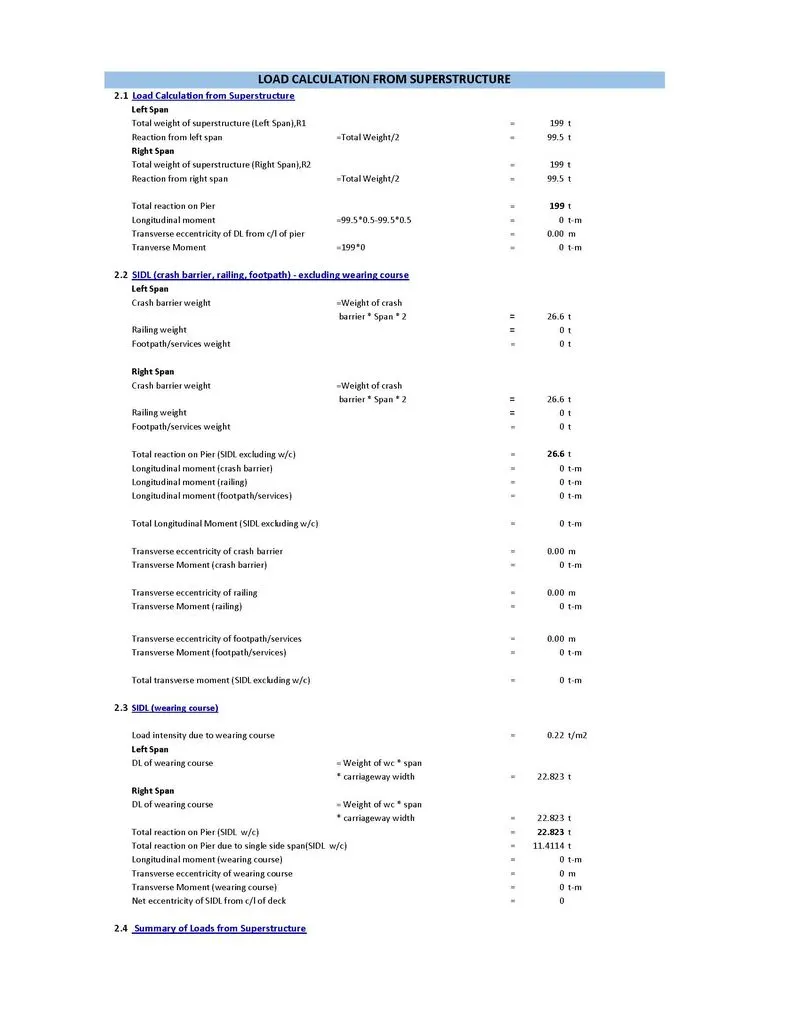

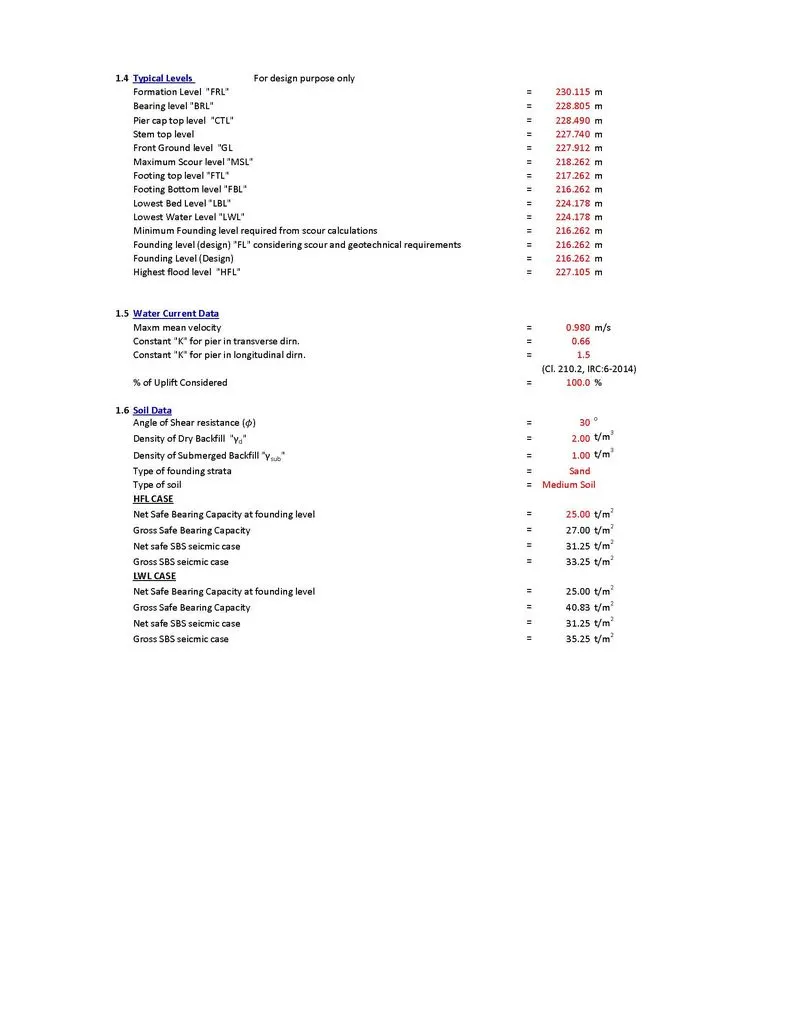

Design Calculation

•
•
•
•
•
•
•
•
•
•
•
•
•
•

Detailing

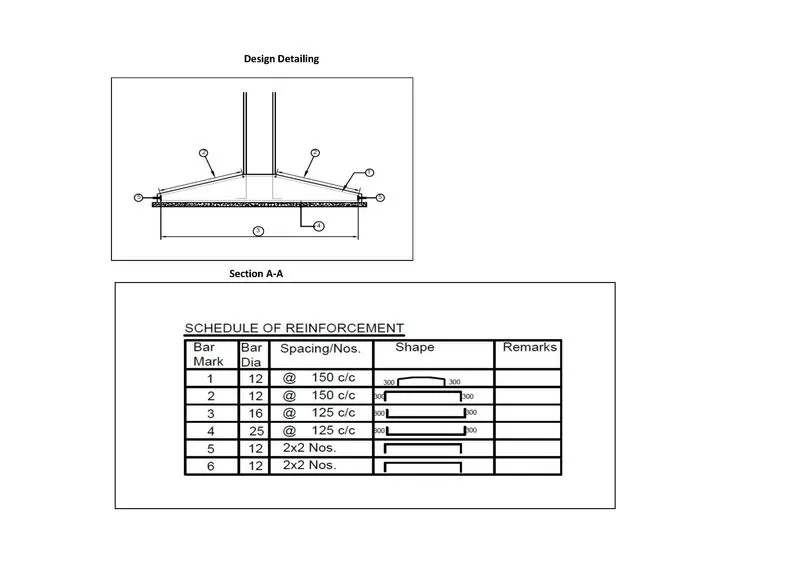

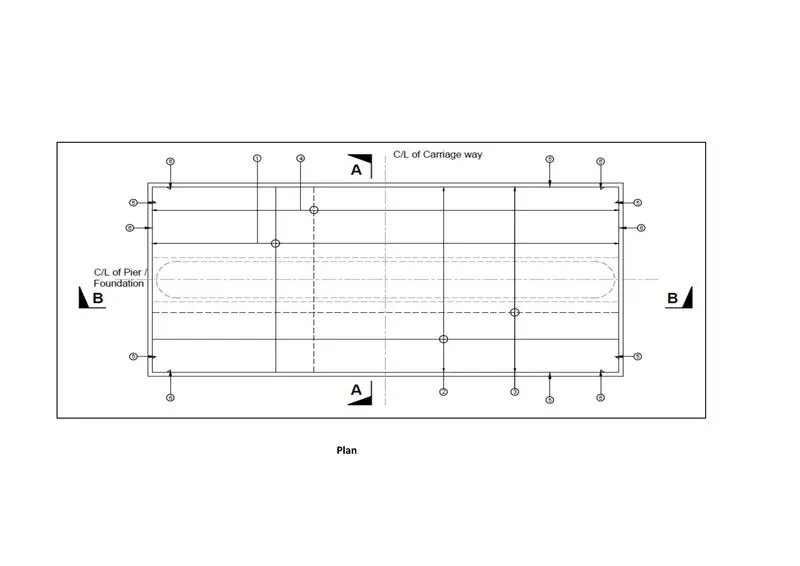

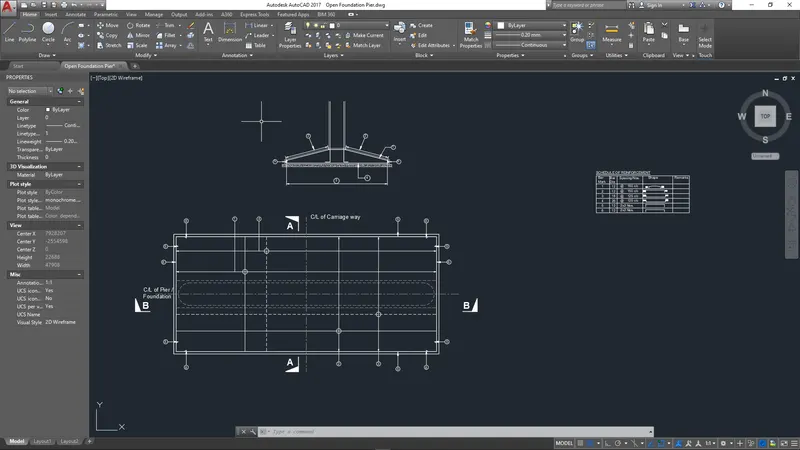

• The detailing of open foundation for pier drawing has been generated in autocad.

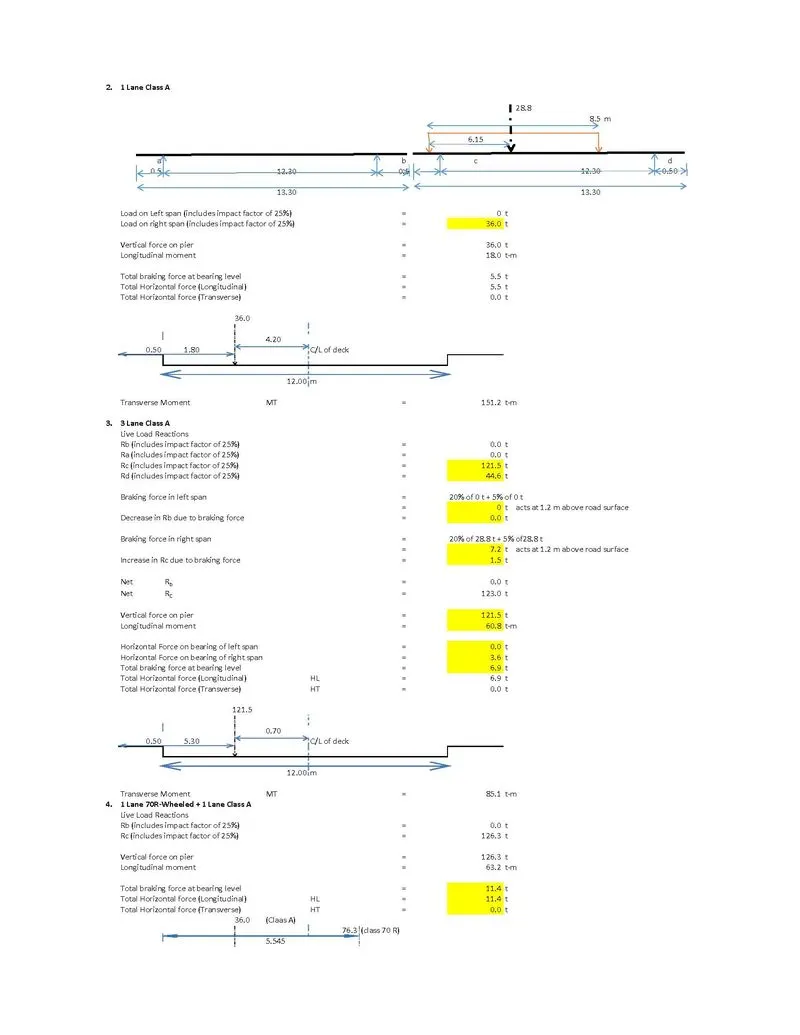

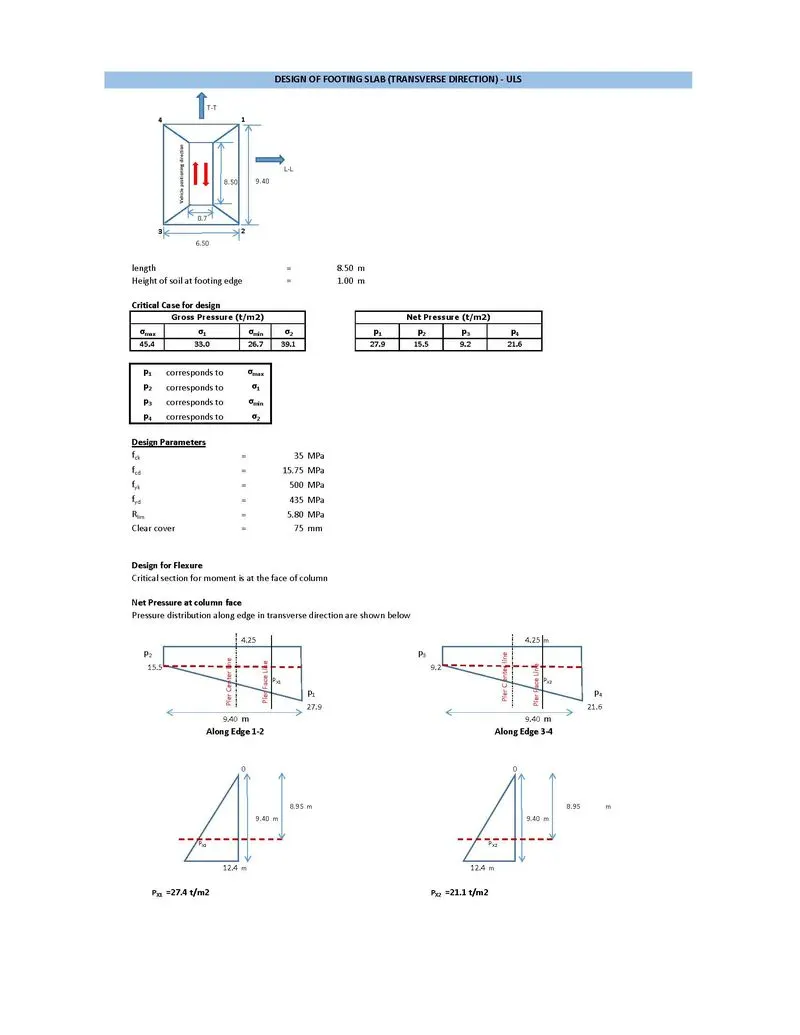

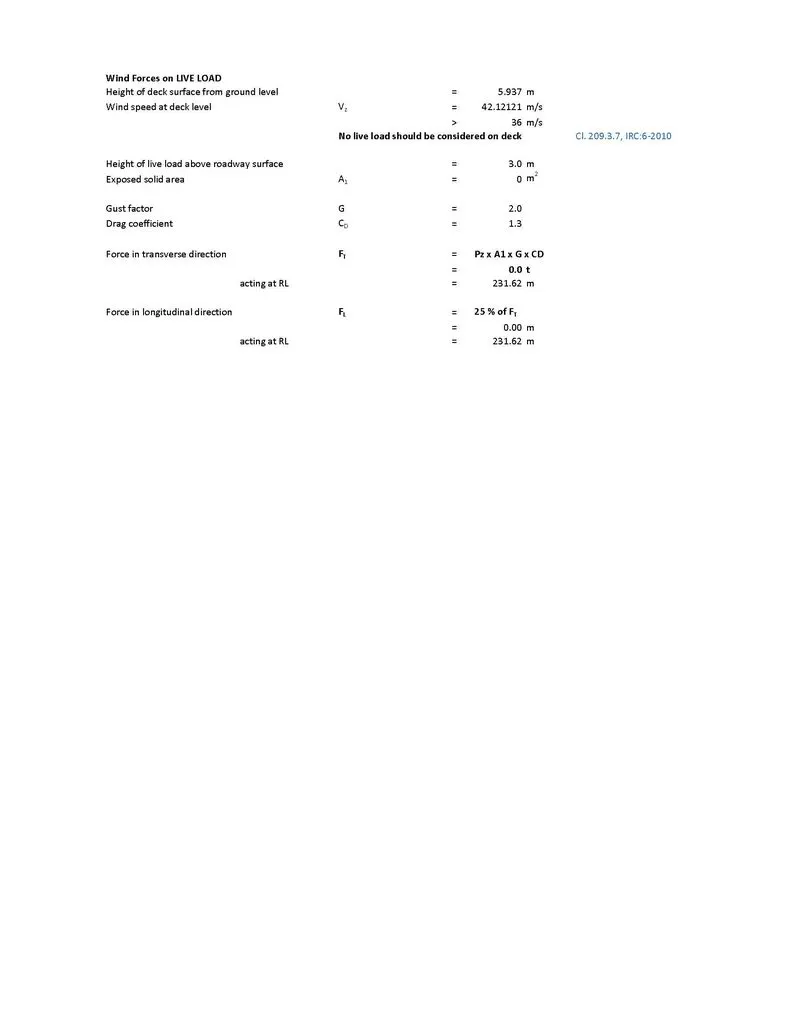

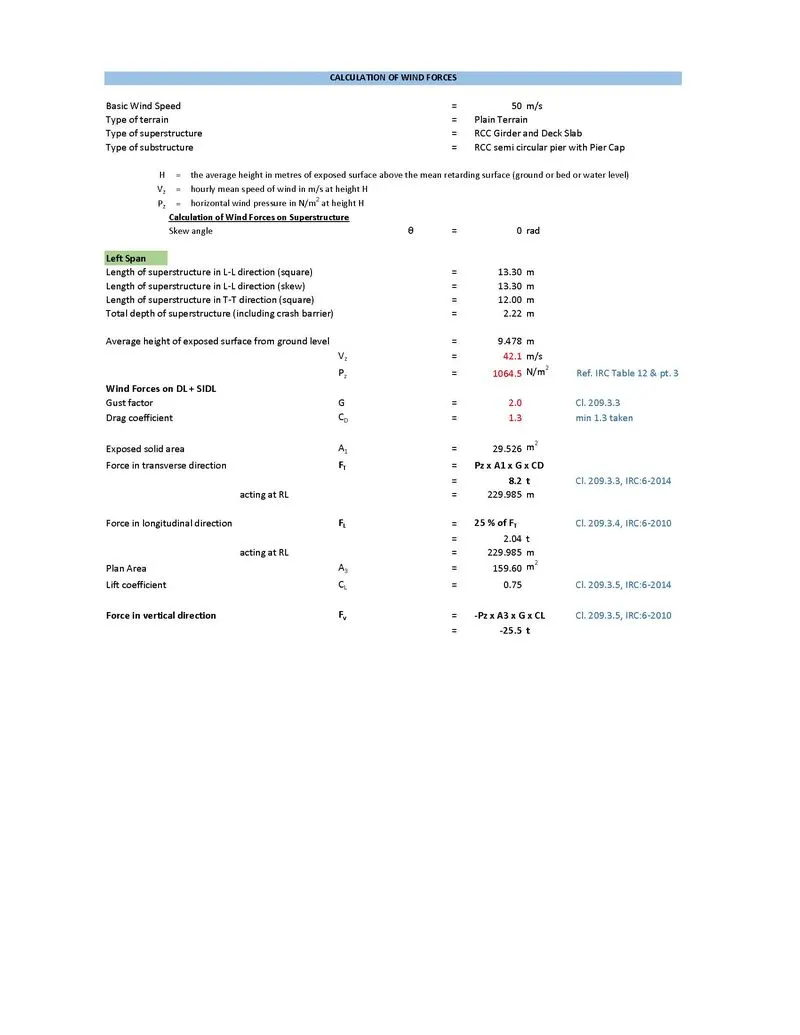

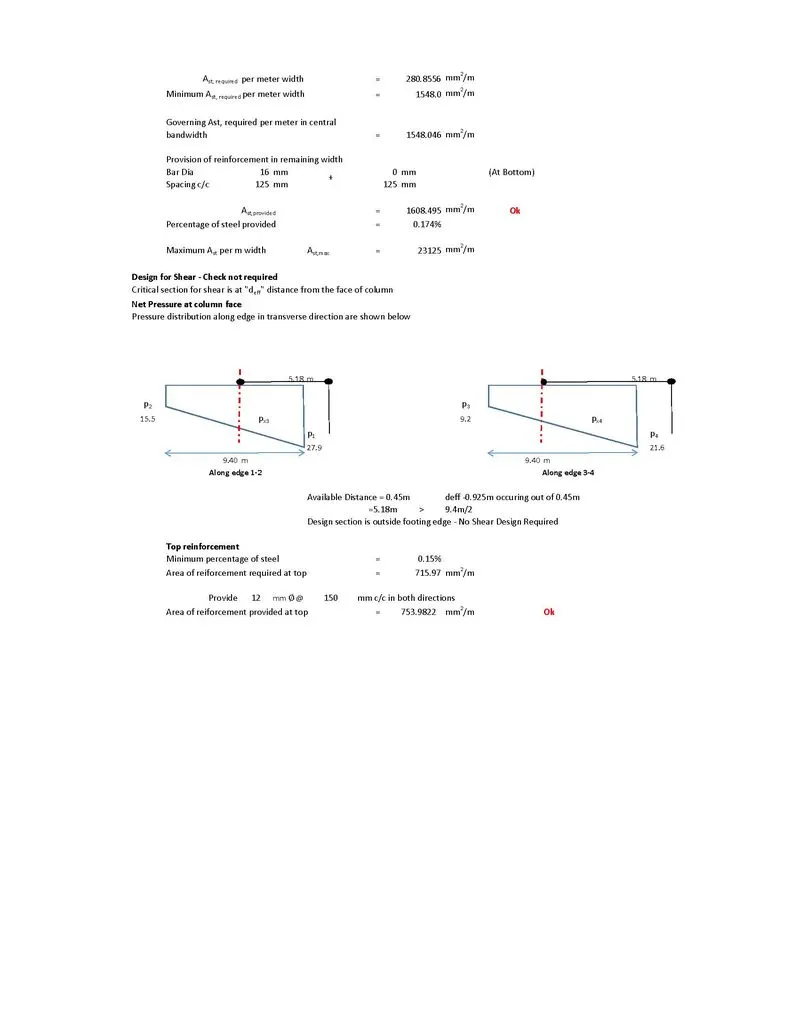

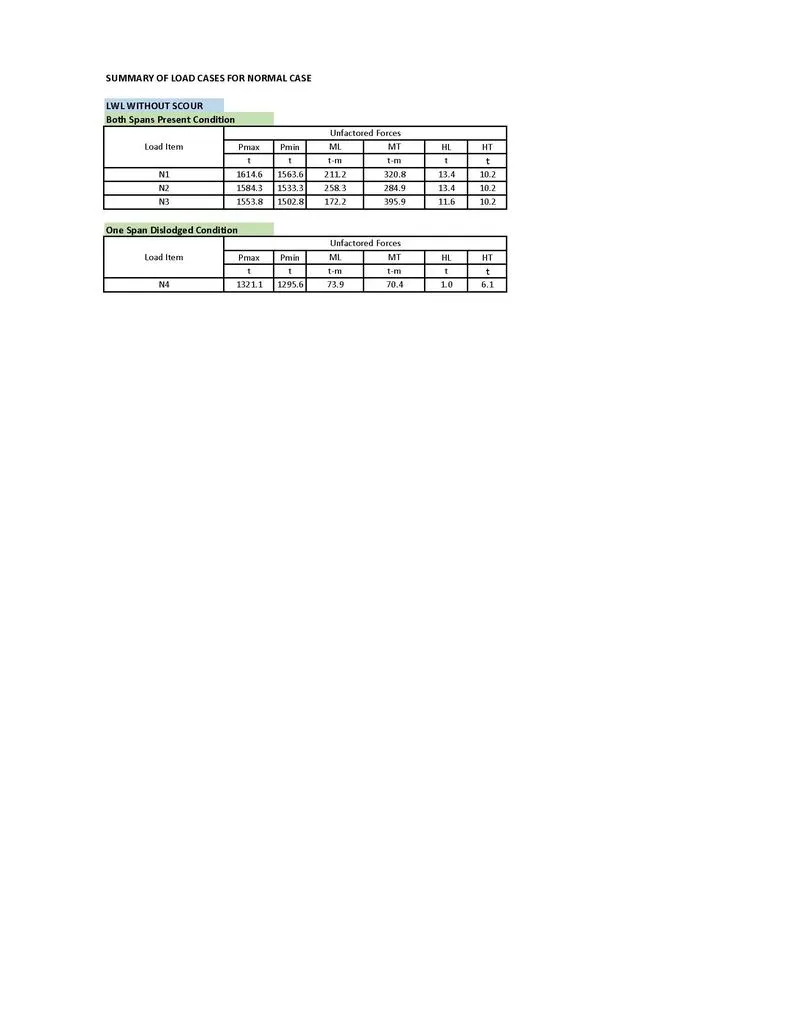

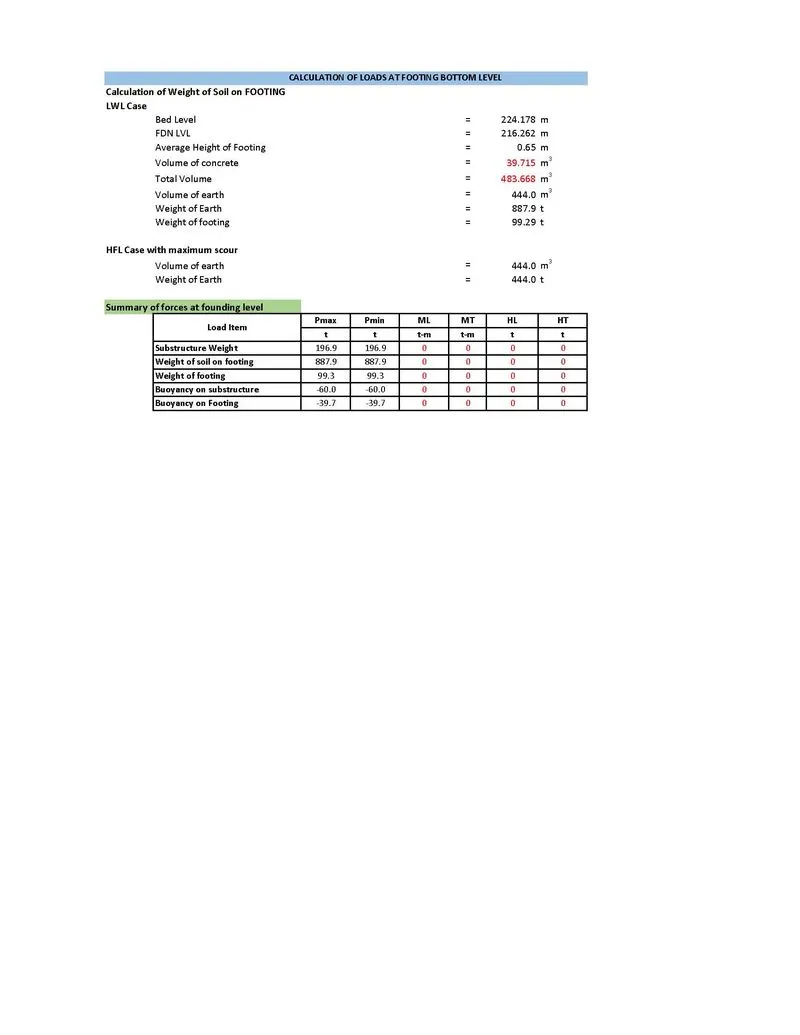

• The detail of the drawing has been shown separatedly as below.
