Week 5.3 - Forced convection Analysis
Aim --> Forced convection Analysis

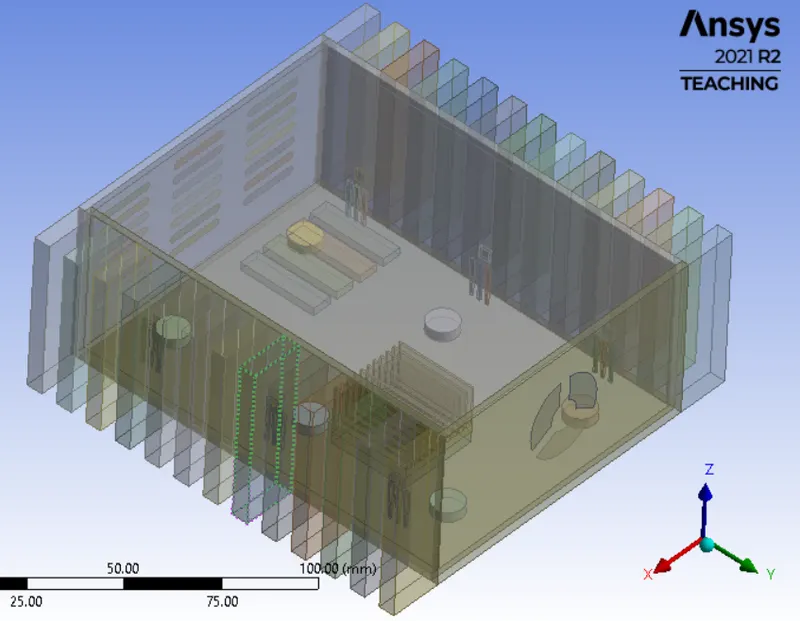

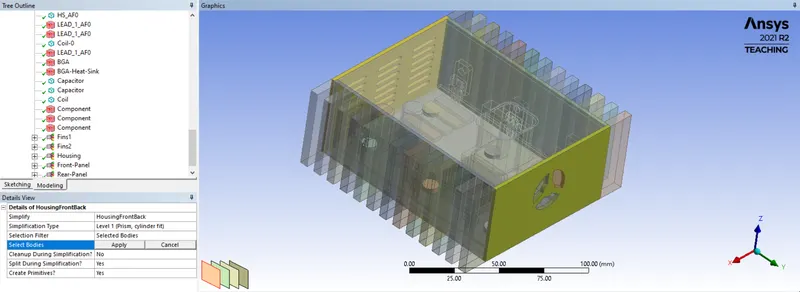

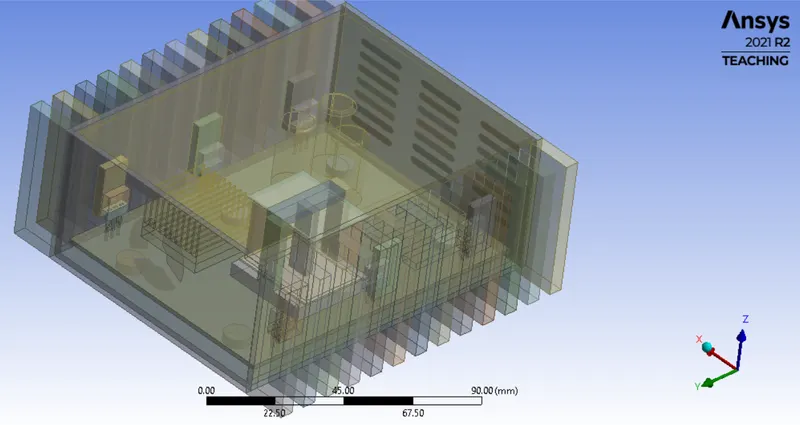

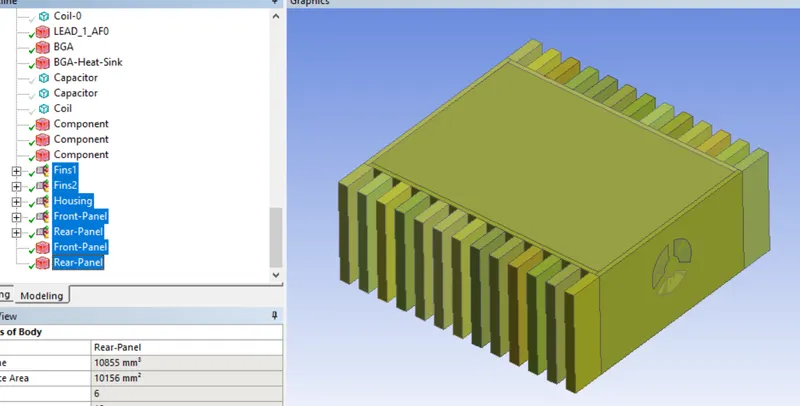

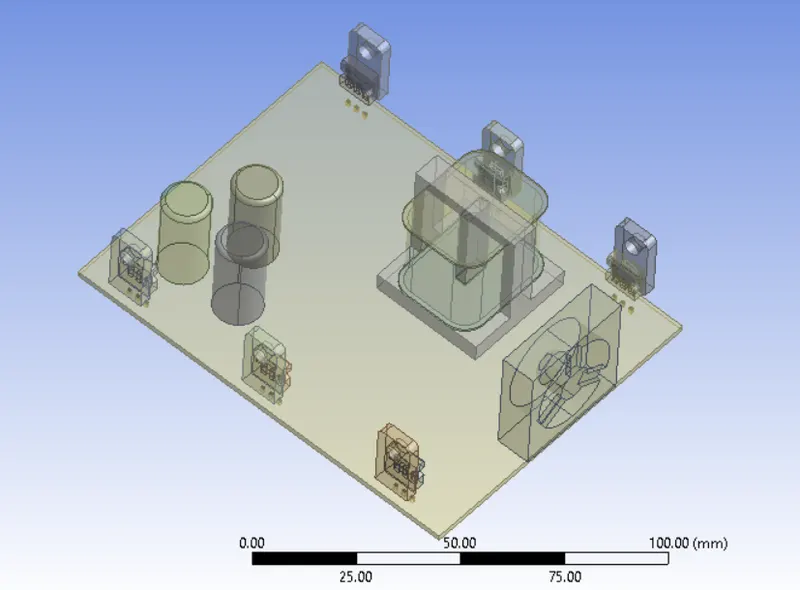

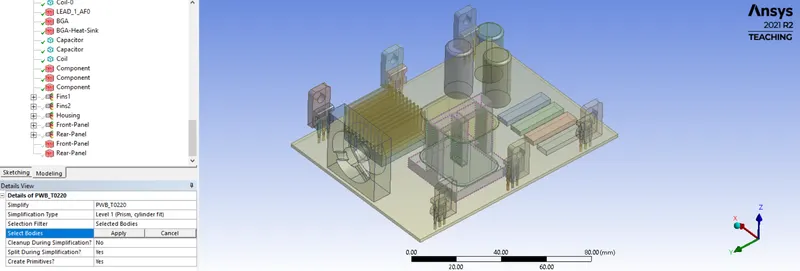

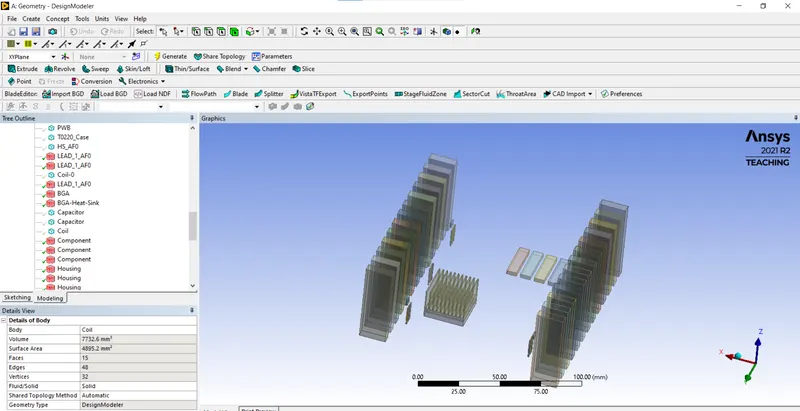

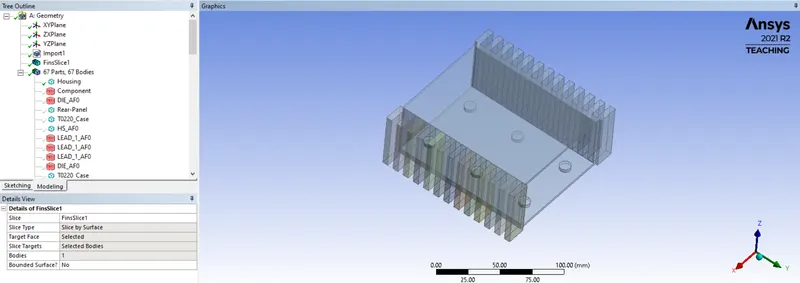

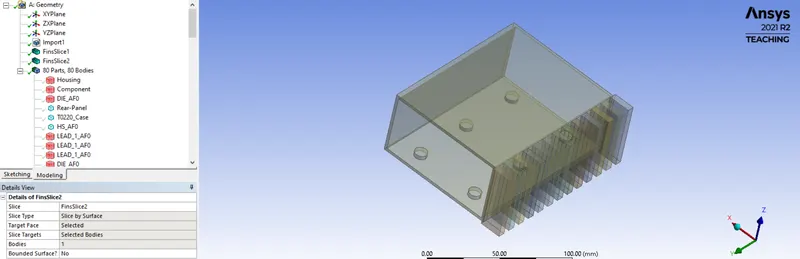

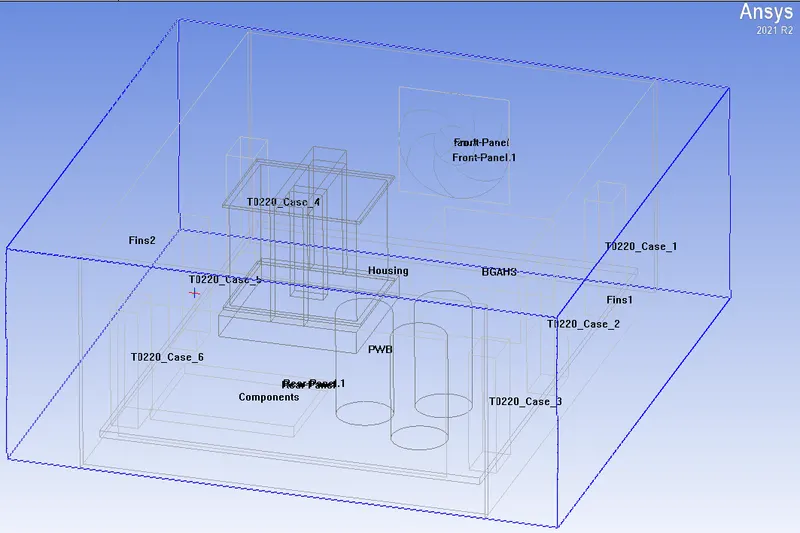

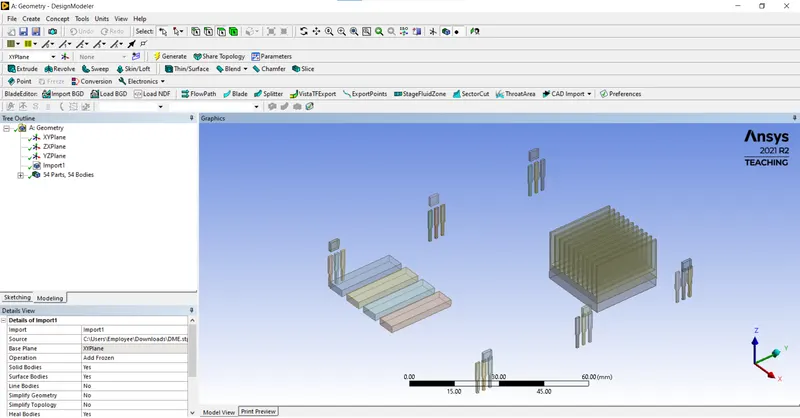

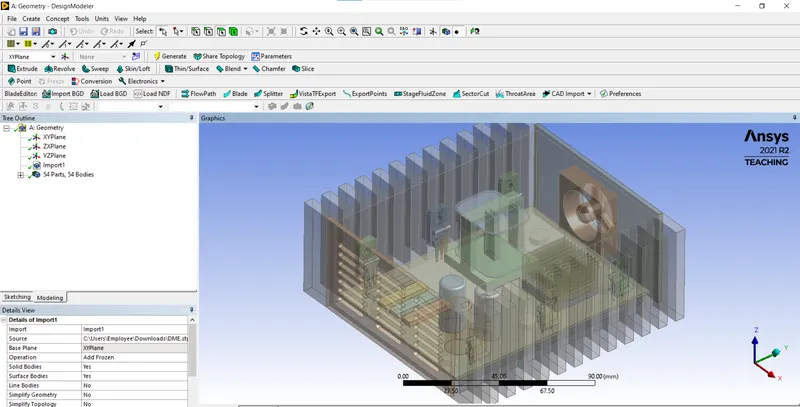

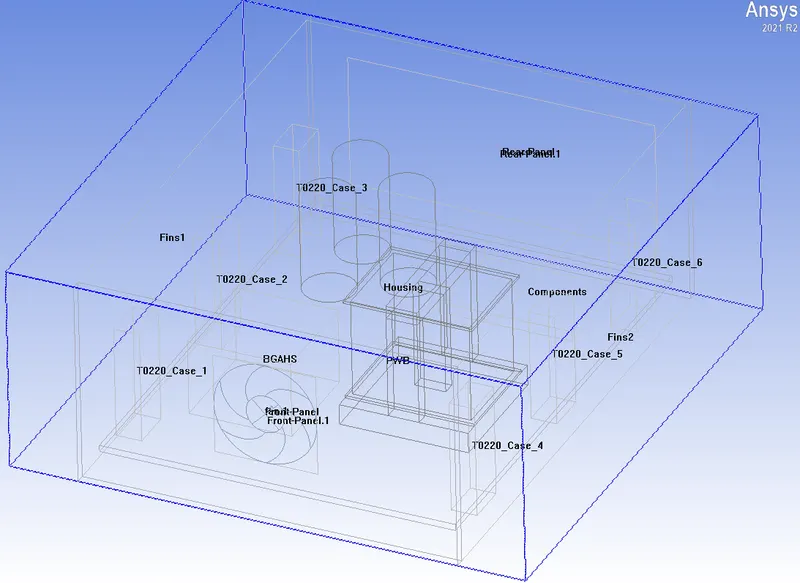

In this challenge, the CAD model of an Electronic enclosure assembly is provided. You are required to convert the same into ICEPAK objects. Then create assemblies where required and make a Non-conformal mesh for the model, Limit your cell count to a maximum of 10 million cells.

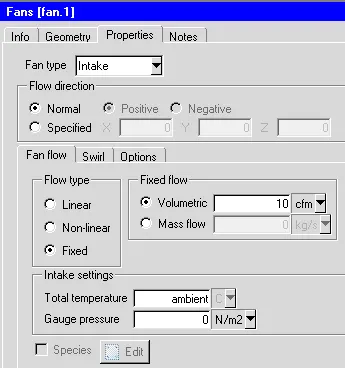

For the fan, Use the ICEPAK fan object for modeling the fan in the assembly. Use 10 CFM as the volumetric flow value.

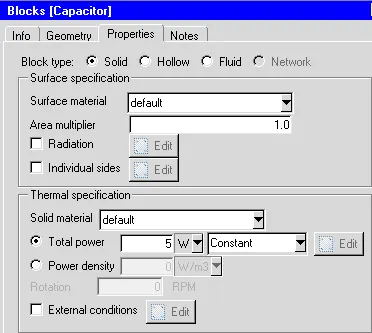

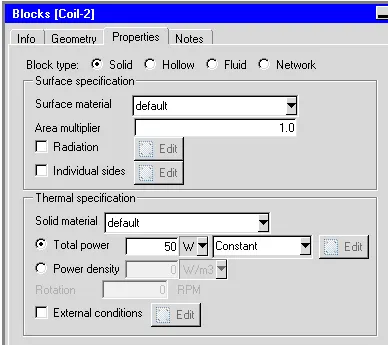

For the heat source, the BGA component will have a power loss of 25 W,for the transformer assume 50 W, and for the capacitors a power loss of 5 W each.

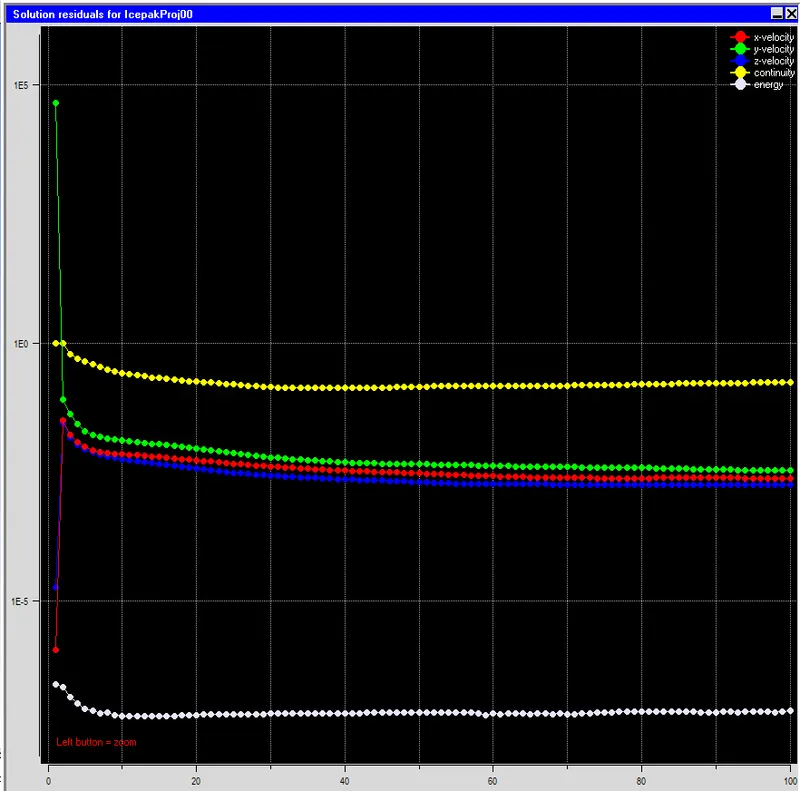

Create monitor points on the BGA component and run the simulation.

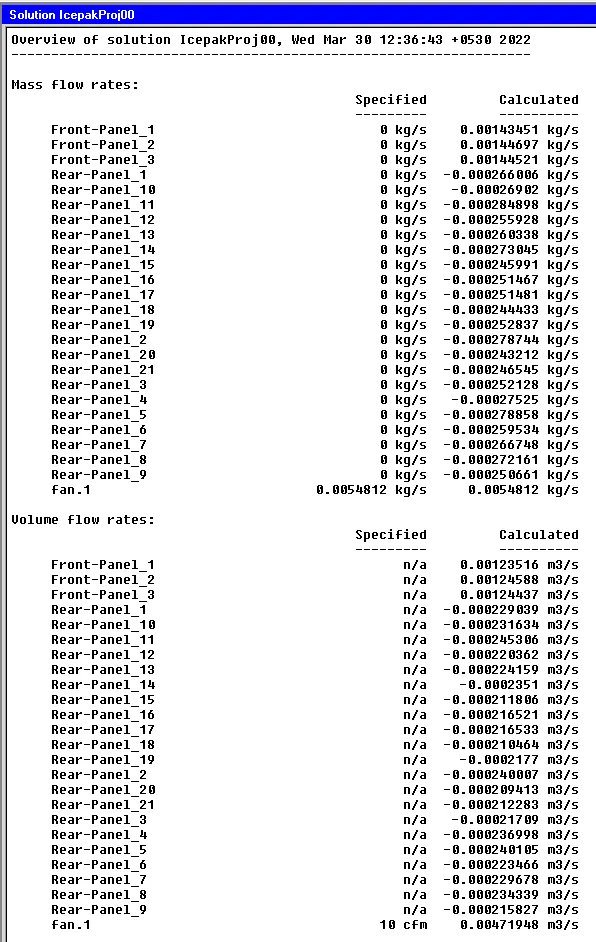

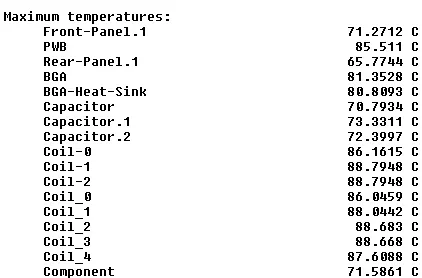

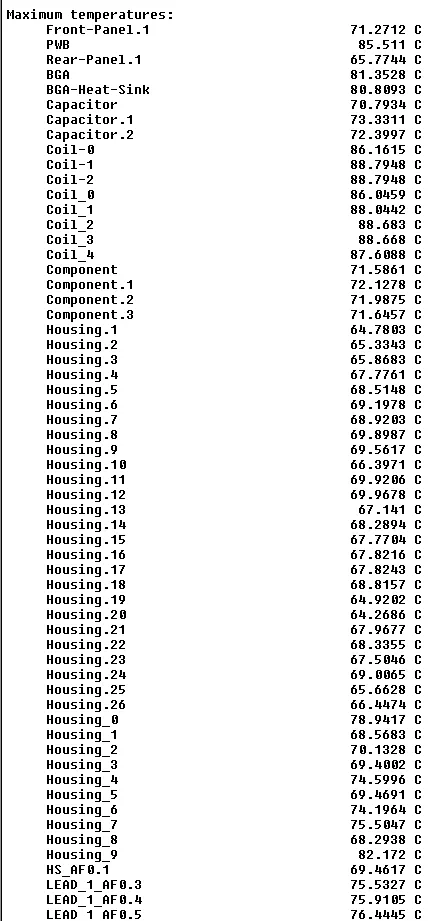

Examine and post-process the results:
- Plane cut
- Vector plot
- Temperature contour
- Object face
