Week 4- Rolling operation

Aim: To calculate stress, strain and deformation of a copper workpiece under rolling

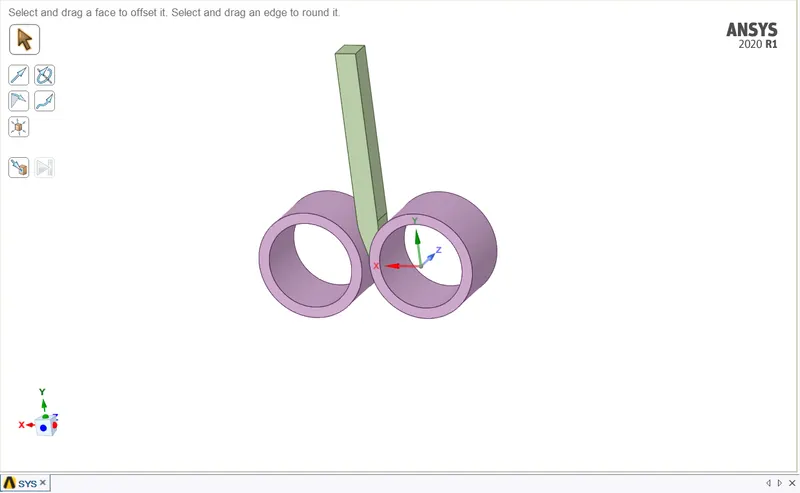

Setup for analysis: The material is imported and made some changes as mentioned in spaceclaim

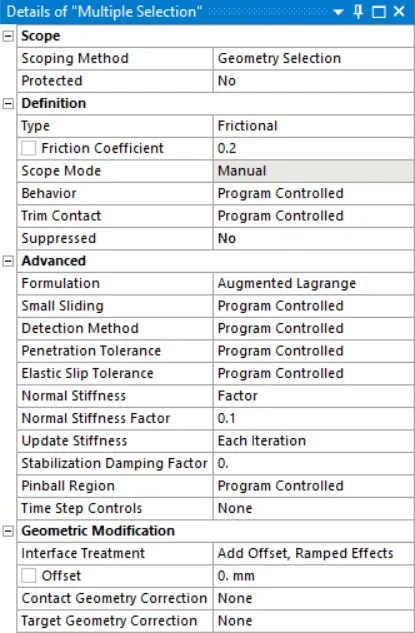

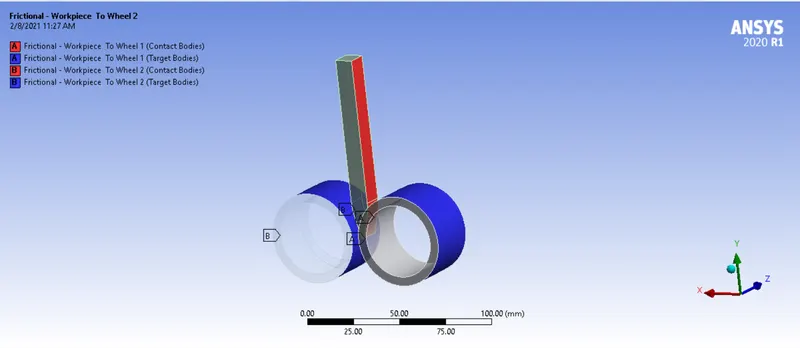

Contacts are created between the rollers and workiece

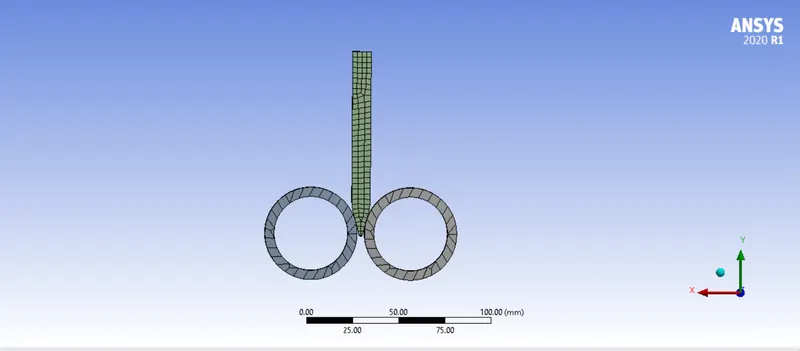

Mesh: The size of the mesh at the contacts is taken as 1.5mm and default at the rest of the area

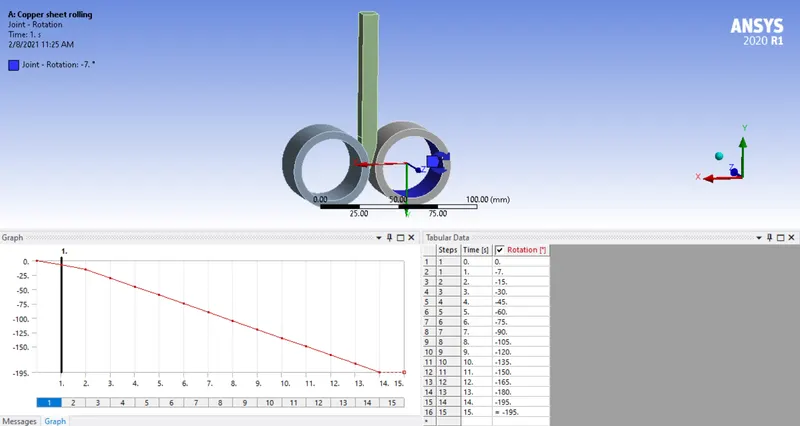

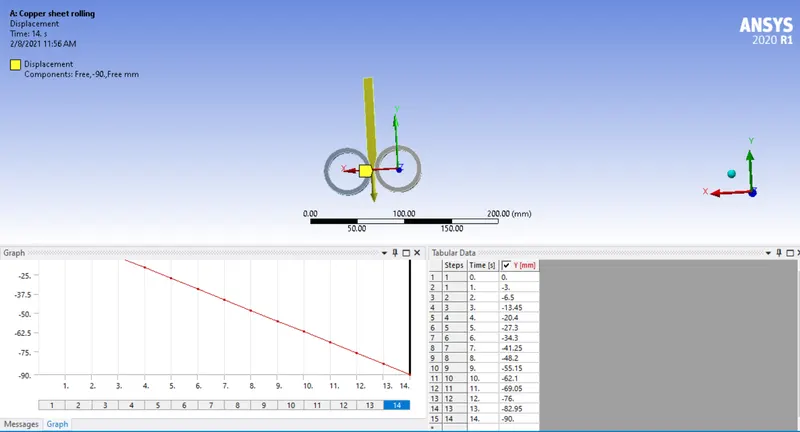

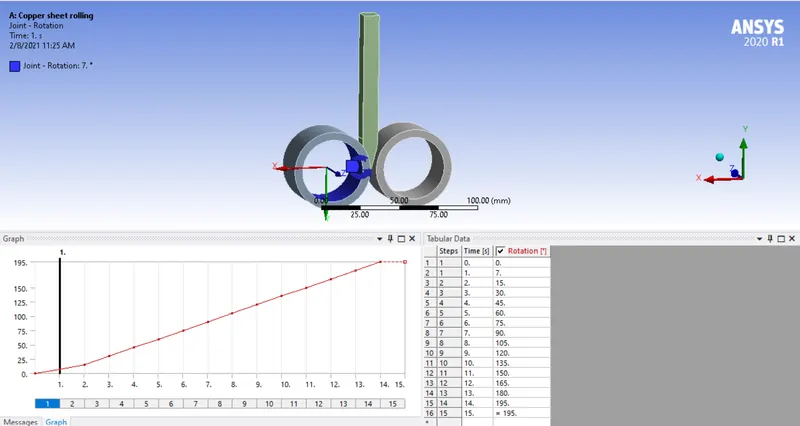

Boundary conditions: The displacement is given to the workpiece in the negative Y direction and rotation to the rollers

Solution:

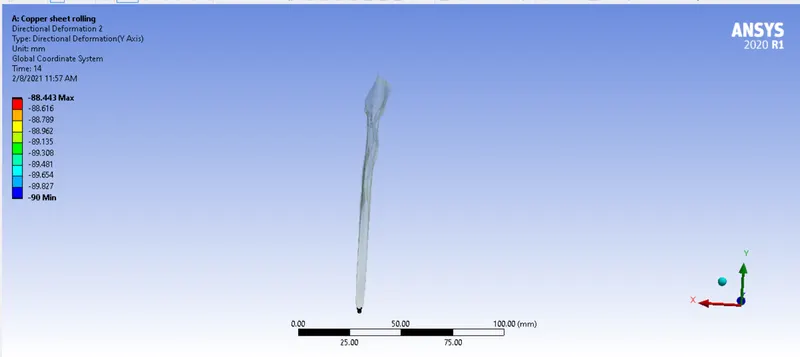

Directional deformation

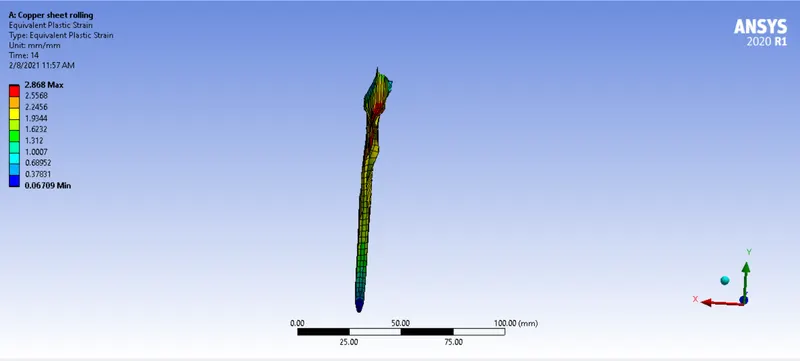

Plastic strain

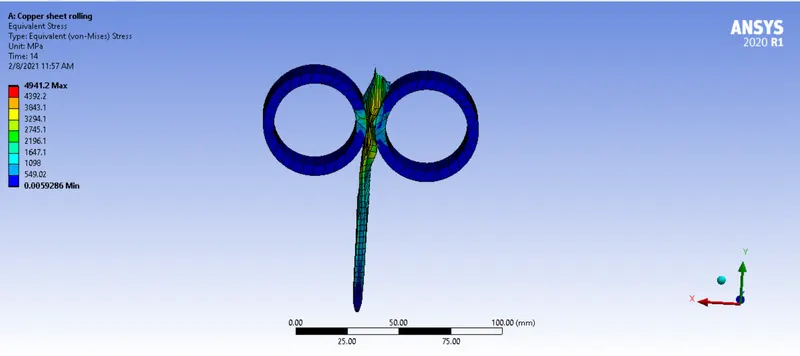

Equivalent stress

Result:

Material	Deformation Y(mm)	Plastic strain(mm/mm)	Equivalent stress (MPa)
Copper NL alloy	90(max) 88.4(min)	2.8(max) 0.6(min)	4941(max) 0.0059(min)

Conclusion:

As mentioned the workpiece was displaced 90mm
