Week 4:- Pin Unit Design Challenge
Week 4 - Pin Unit Design
Considerations for Pin design:

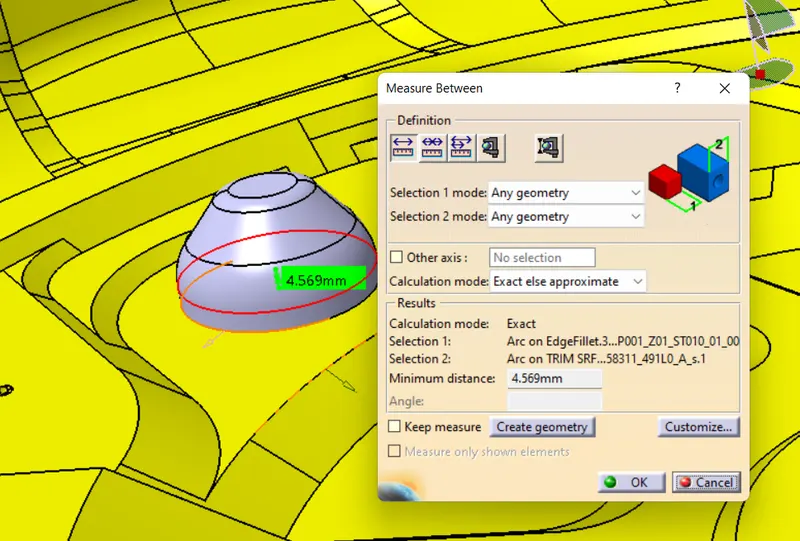

- The pin should engage about 3-5mm above the surface of BIW.
- All Pin units should have 2 adjusting shims.

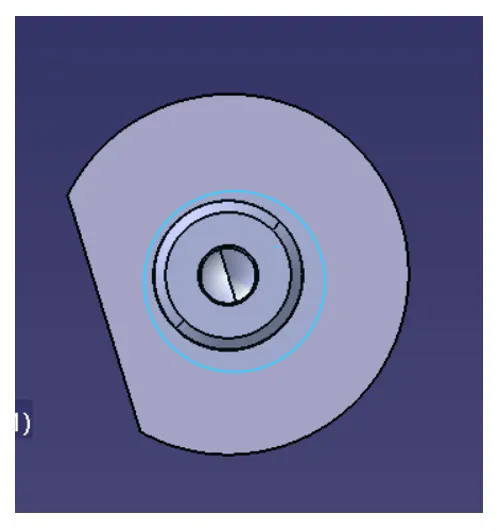

- A cut for restricting the rotation of the pin.
- Threaded hole at the bottom for mounting with retainer block.

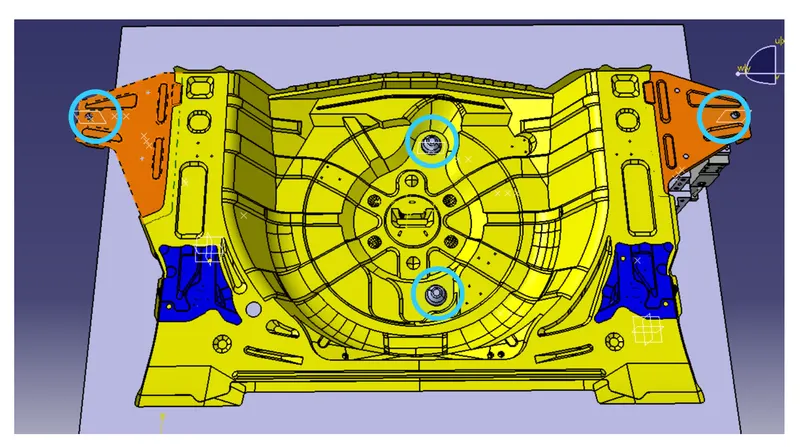

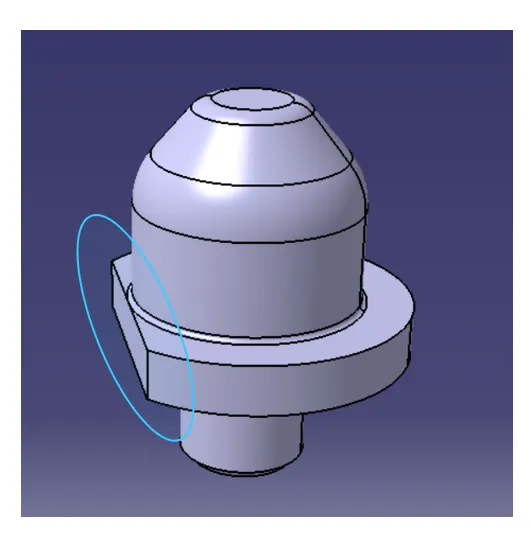

Pin Design:
Similarly, all four pins were designed.
Retainer Block:
The retainer block should have counterbored hole for holding the pin and locking the rotation of the pin.

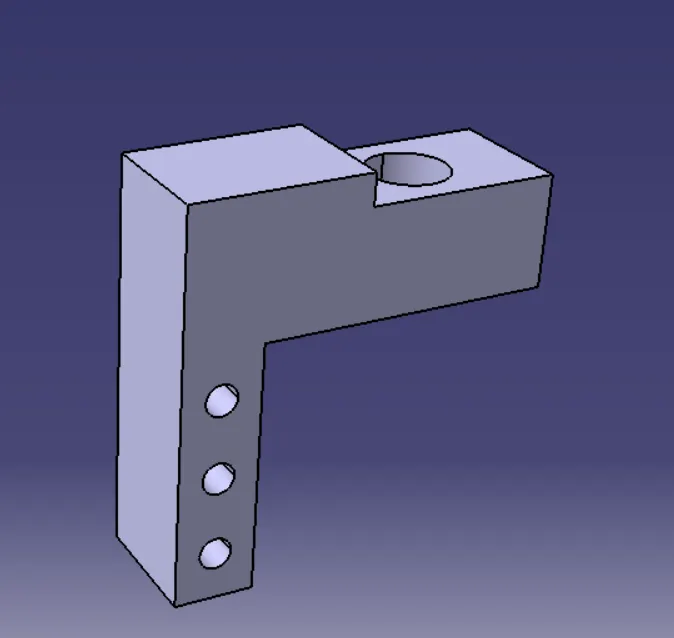

L Block:

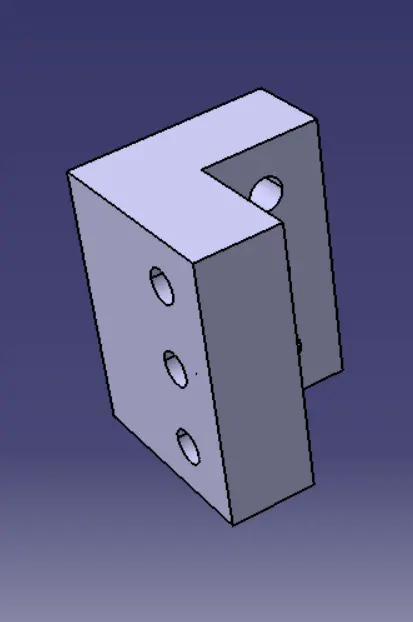

Blade :

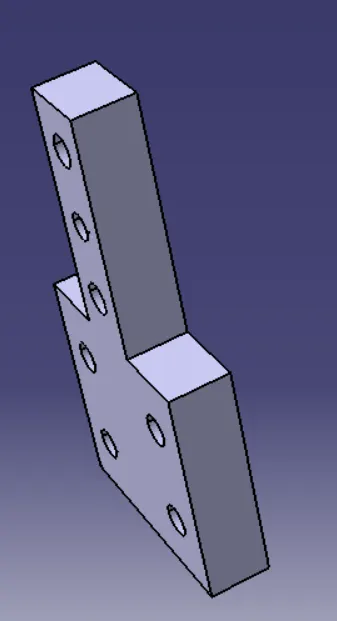

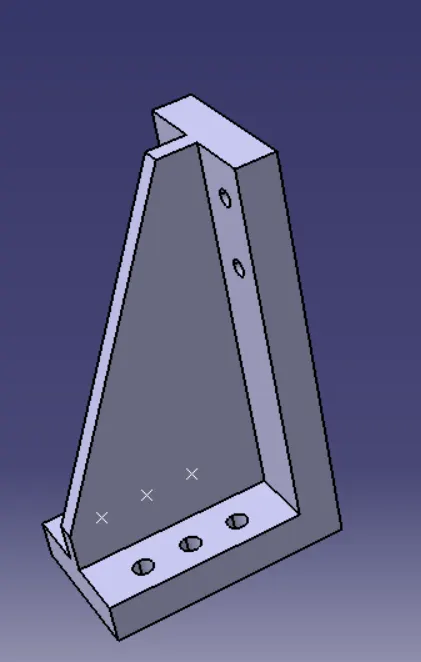

Riser:
Fixed Pin I:

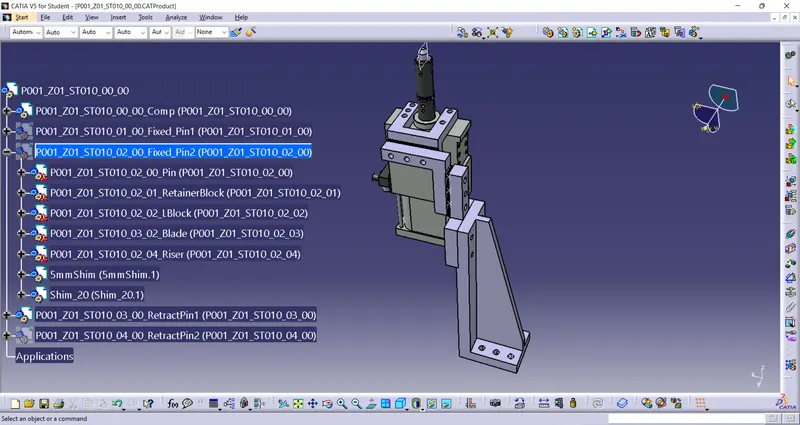

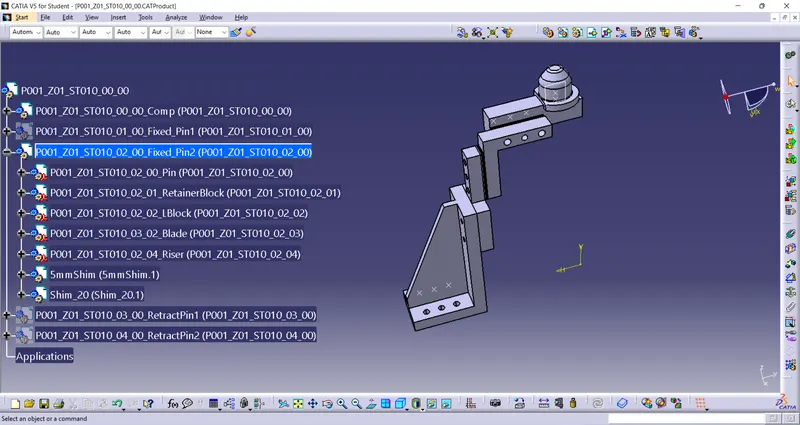

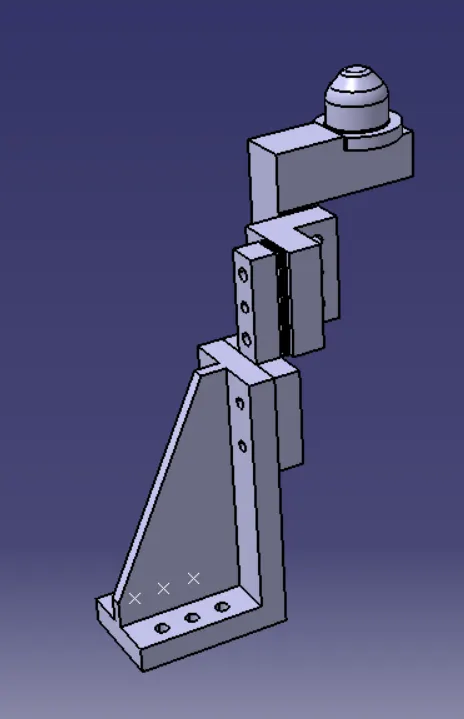

Fixed Pin II:
Retractable Pin I:

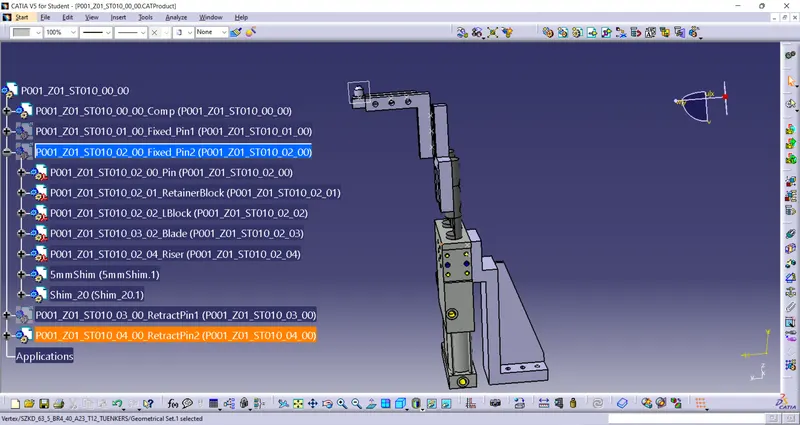

Retractable Pin II:

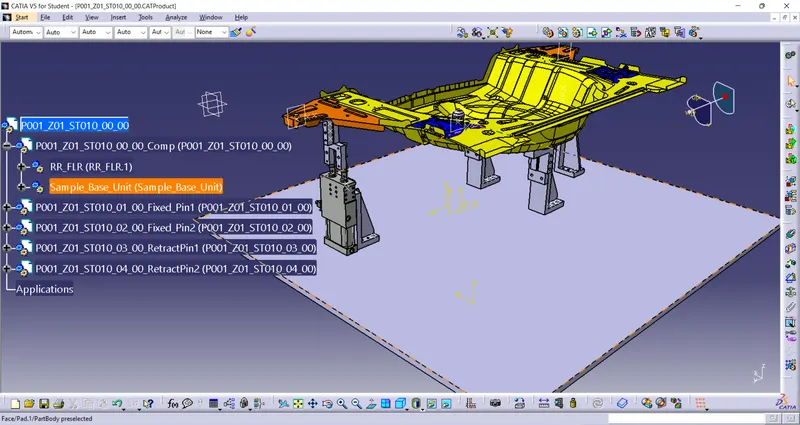

Complete Assembly:
