Week-4 Challenge WOT Condition Part-2
*AIM:-
1. What is the difference between the mapped and dynamic models of engine, motor and generator? How can you change the model type?
2. How does the model calculate miles per gallon? Which factors are considered to model fuel flow?
3. Run the HEV ReferenceApplication with WOT drive cycle. Change the grade and wind velocity in the environment block. Comment on the results.
4. Keeping all other parameters the same, compare the simulated results of hybrid and pure electric powertrains.
*SOLUTION:-
Q1. What is the difference between the mapped and dynamic models of the engine, motor and generator? How can you change the model type?

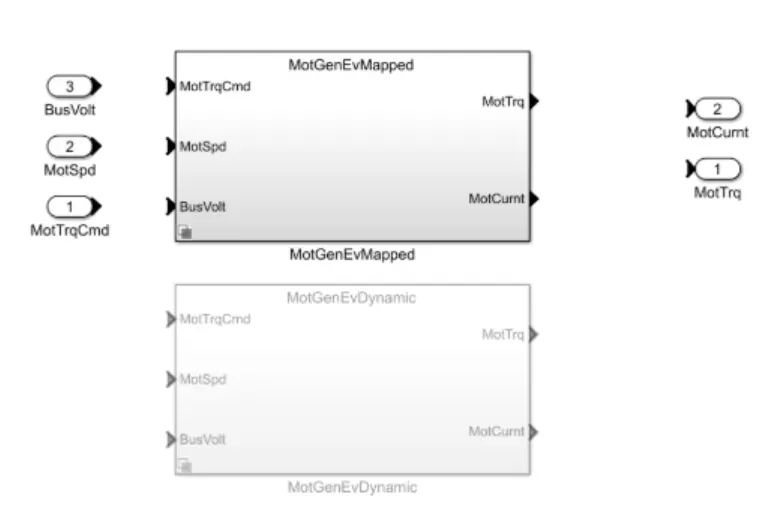

Figure 1
Figure 1 shows the mapped and dynamic model of the motor and generator
>Mapped model
1) In the mapped model data points are pre-assigned in the lookup table which would be configured with the operational parts and the analysis would be formed.
2) Model uses a set of steady-state lookup tables to characterize engine performance.
3) Output values are stored for the given corresponding input values of the motor, generator, and engine
4) The accuracy is low for this system.
5) Run time simulation takes less time because it does not run with real-time simulation.

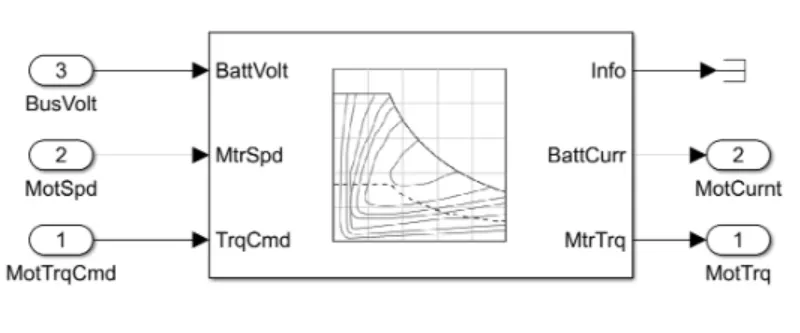

Figure 2
Figure 2 shows the mapped model
>Dynamic model
1) Dynamic model runs by the real-time simulator.
2) Dynamic model uses the combination of output from various subsystems to generate output.
3) The accuracy of the dynamic model is very high.
4) Run time simulation takes more time.

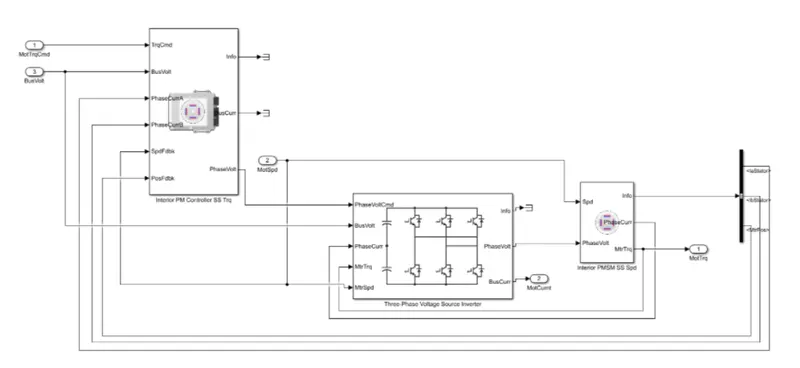

Figure 3
Figure 3 shows the dynamic model
>Steps to change model
1) Select vehicle type in powertrain blockset model.
2) Go to the passenger block in the Simulink model of the Electrical Vehicle motor/Generator.
3) Right-click on the block and go to variance label mode active choice MotorGenEV Mapped or Dynamic.
Q2. How does the model calculate miles per gallon? Which factors are considered to model fuel flow?
In electrical vehicle miles per gallon tells that energy which is equivalent to that of an engine-powered carto propels the car through a distance

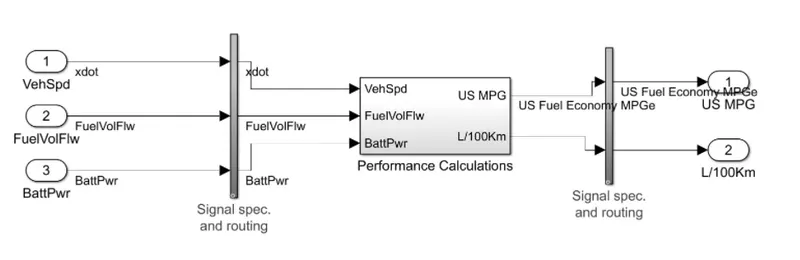

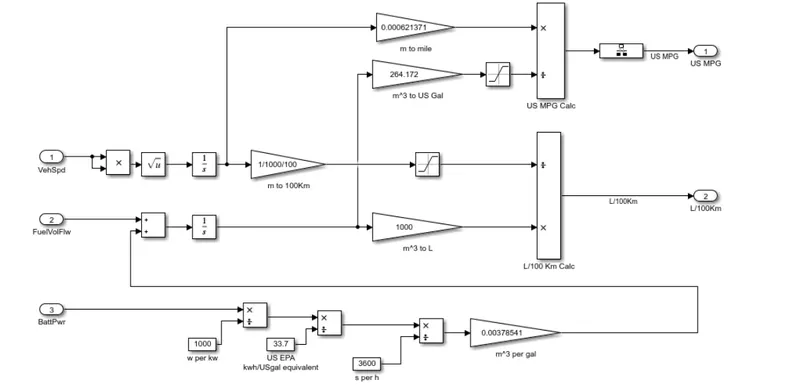

Figure 4
Figure 4 shows the performance calculations of fuel flow
Miles per gallon expressed as the amount of fuel energy required to move an engine-powered car through a distance is determined and then it is compared to the equivalent amount of electric energy required to move the car through the same distance. it has
1) Vehicle speed
2) Battery power
3) Fuel flow
Figure 5
Figure 5 shows the powertrain blocks that take the input of the vehicle speed
>Conversion from Cubic meter to the gallon
1000 liters = 264.17 US gallons
The output is calculated depending on Fuel and battery output and also vehicle speed
Q3. Run the HEV ReferenceApplication with WOT drive cycle. Change the grade and wind velocity in the environment block. Comment on the results.
HEV is a vehicle that runs with a combination of engine and battery

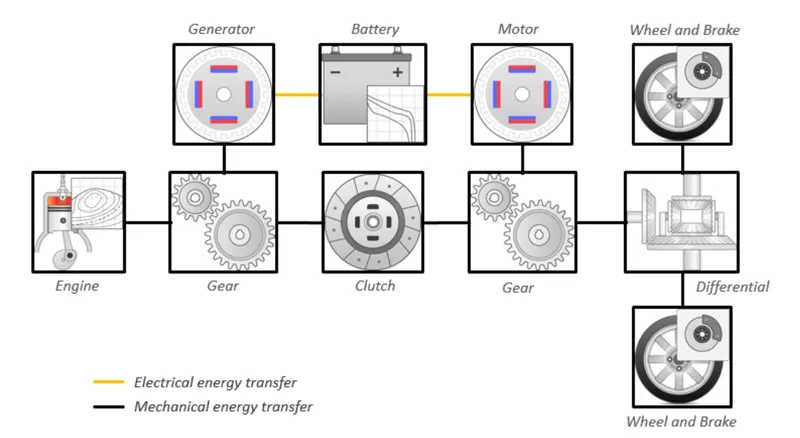

Figure 6
Figure 6 shows the series-parallel connection of HEV

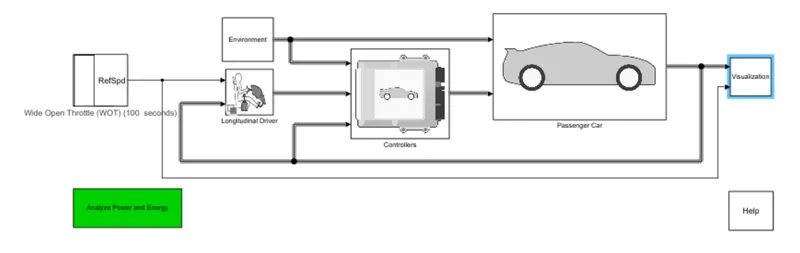

Figure 7
Figure 7 shows the Simulink model of the Hybrid Electrical Vehicle
*Case 1:-
below are the input parameters of the drive cycle source
100 seconds of total cycle time
speed = 80 mph
gread angle 0
wind velocity 0 m/s

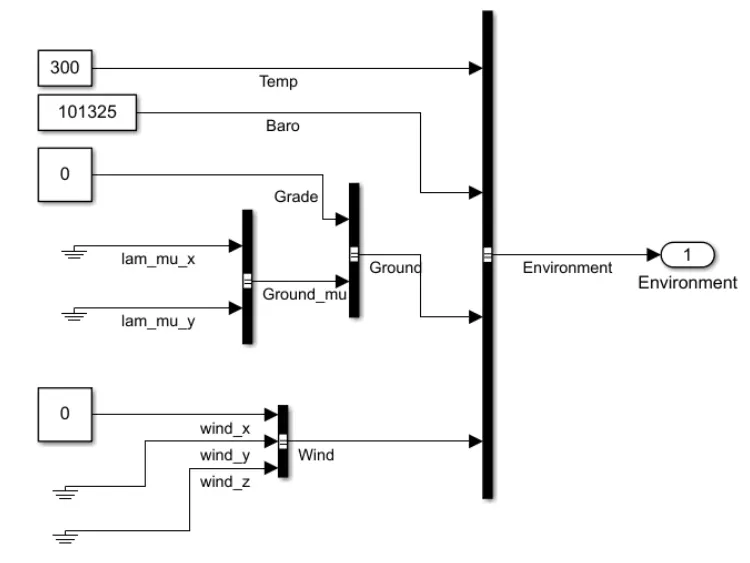

Figure 7
Figure 7 shows the input values

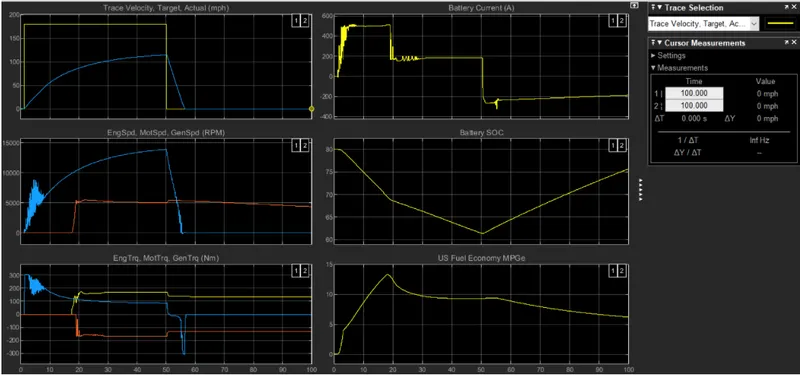

Figure 8
Figure 8 shows the output, based on the input parameters of the drive cycle source
*Observations:-
Plot 1:-
Around 16.5 seconds of time will take to reach maximum speed (80 mph)
Nearly 6.1 seconds of time will take to reach maximum speed (80 mph) to 0 mph
Plot 2:-
Plot 2 shows the speed
the maximum speed of the motor = 9497 rpm
Plot 3:-
plot 3 shows the torque
maximum motor torque = 206 Nm
Plot 4:-
plot 4 shows the current values of the battery vary from 500 to 0 amps in normal mode and varies from 0 to -200 amps in regenerative braking
Plot 5:-
plot 5 shows the battery SOC
SOC decreased from 80 to 62 % increased during the normal condition and from 62 to 76 % during regenerative braking
Plot 6:-
plot 6 shows the fuel economy
maximum fuel economy is 20.45 MPG
minimum fuel economy is 7.18 MPG
>Case 2:-
Cycle time 100 sec
speed 80 mph
gread angle 5
wind velocity 5 m/s

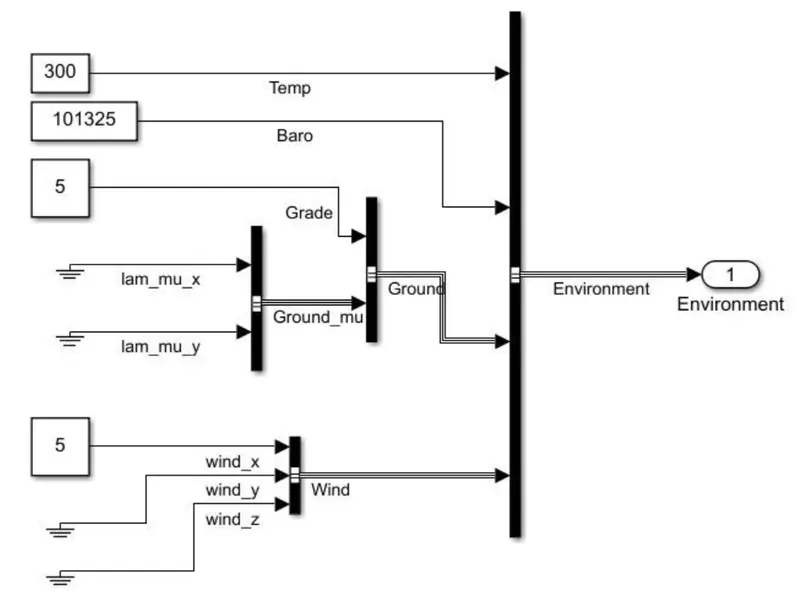

Figure 9
Figure 9 shows the input values

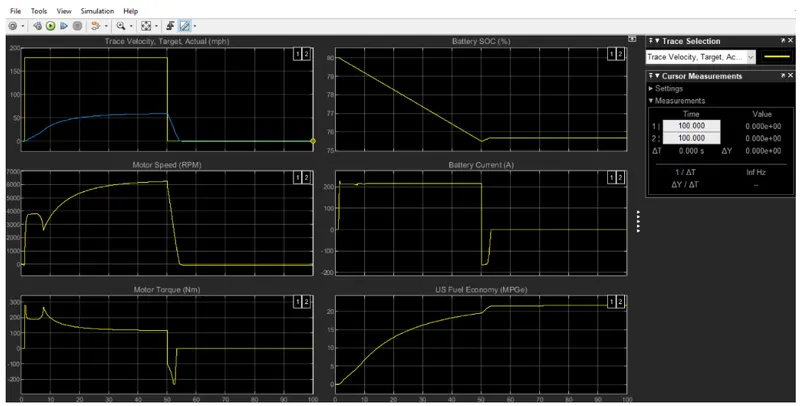

Figure 10
Figure 10 shows the results with the above specifications
Plot 1:-
Maximum 59 mph reached in 49 seconds
maximum to minimum speed reached in 4.6 seconds
plot 2:-
maximum motor speed is 6254 rpm
plot 3:-
maximum motor torque is 280 Nm
plot 4:-
battery SOC for 80 to 75 % in 50 seconds
plot 5:-
battery current remains constant of 200 amps
plot 6:-
maximum fuel economy is 21 MPG
Q4. Keeping all other parameters the same, compare the simulated results of hybrid and pure electric powertrains.

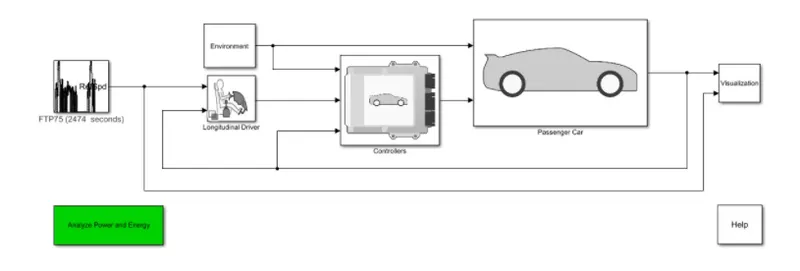

Figure 11
Figure 11 shows the block diagram of a pure Electrical vehicle

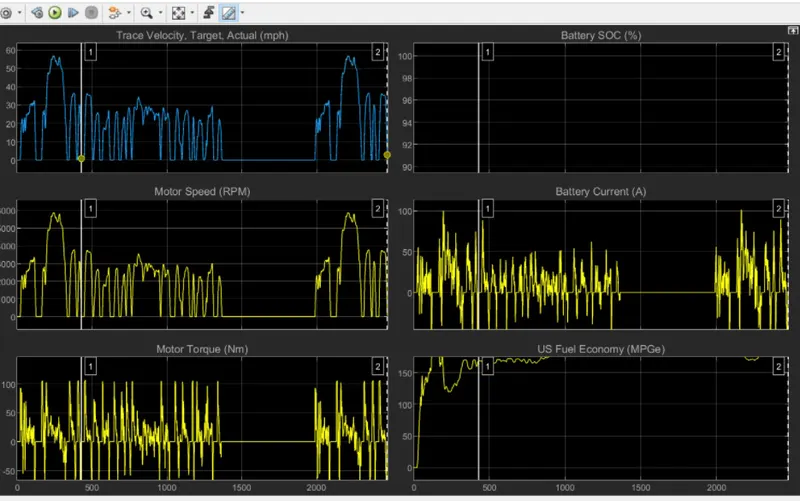

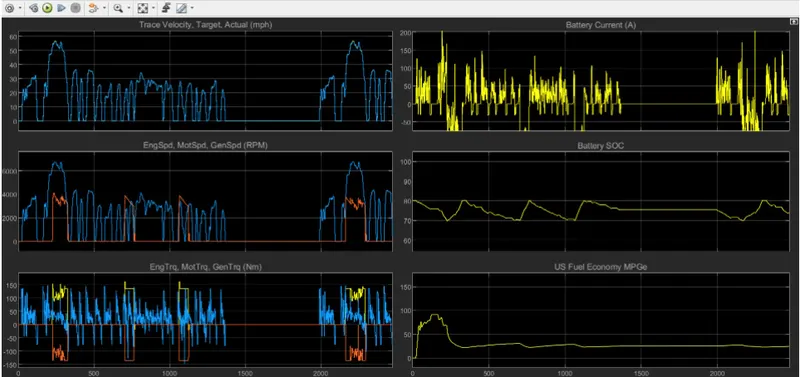

Figure 12
Figure 12 shows the results of pure Electrical Vehicle

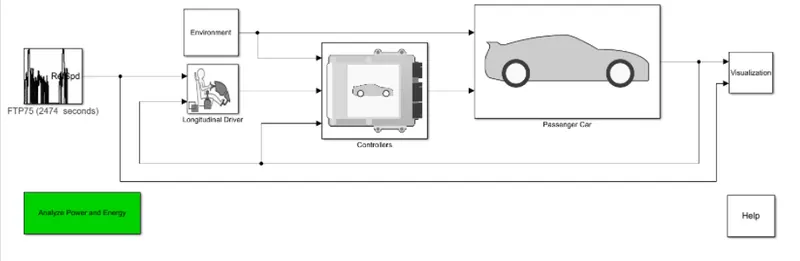

Figure 13
Figure 13 shows the block diagram of HEV
Figure 14
Figure 14 shows the results for HEV
> The difference between EV and HEV is for EV the source is only one i.e. electric source, whereas for HEV there are two sources one fuel and next one is electrical. For both EV and HEV, the results will differ according to figures 12 and 14
