Week-4 Challenge WOT Condition Part-2

1.What is the difference between mapped and dynamic model of engine, motor and generator? How can you change model type

The mapped model :-

the simulation of the powertrain block set model consists of data that is prebuilt in thr lookup table is dealing with mapped data or mapped model the mapped model calculation is very fast

The dynamic model:-

the simulation of the powertarin blockset model consists of data that is not prebuilt but takes the real time data by calculating very small individual like the moment of the vehicle ,drag,sped,velocity,wheel braking etc which is dynamic data or dynamic model for the engine system or motor system or generator system the dynamic model data taken for a very long time for calculating every data

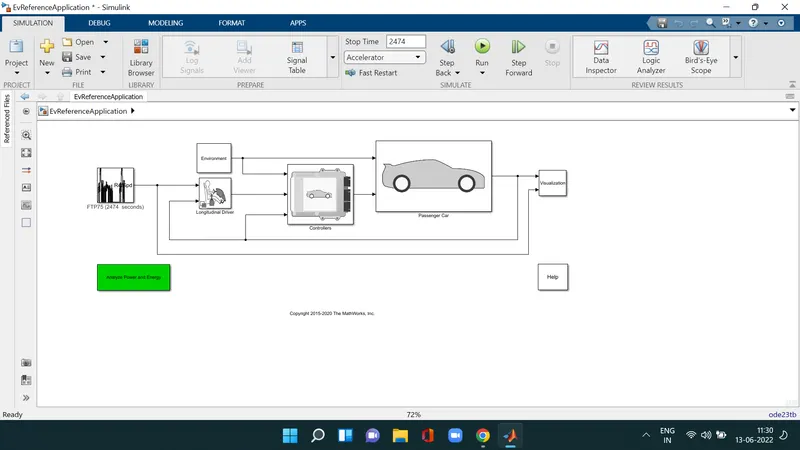

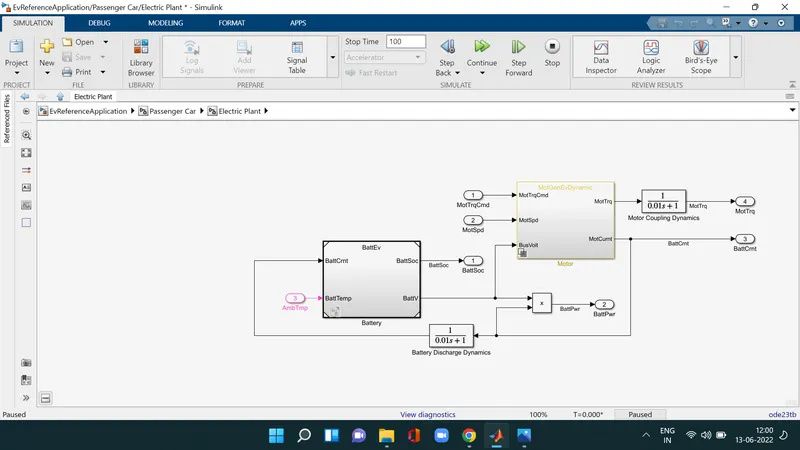

here we are open the passenger car and go to electric plant and open it after that open motor generator subsystem

in the simulation sub system block here the mapped data is activated so it change it into dynamic data

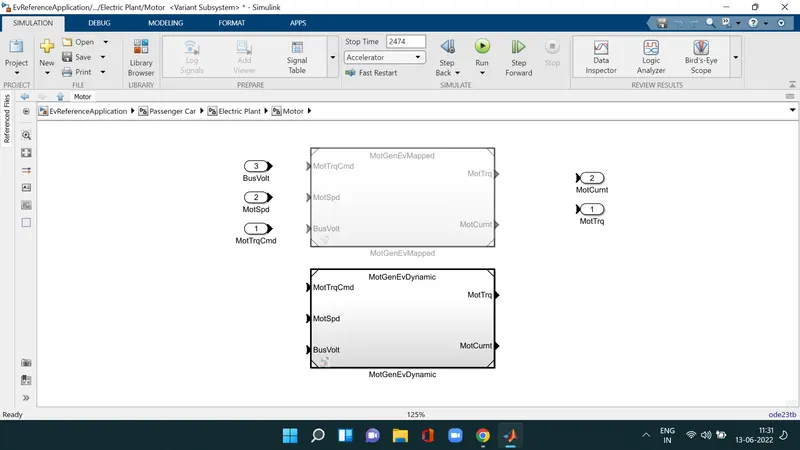

right click the mouse anywhere in the page of the motor generator subsystem and we get the different menu options in the menu like explore ,paste, etc we have to go variant option and open the label model active choice and select dynamic over mapped

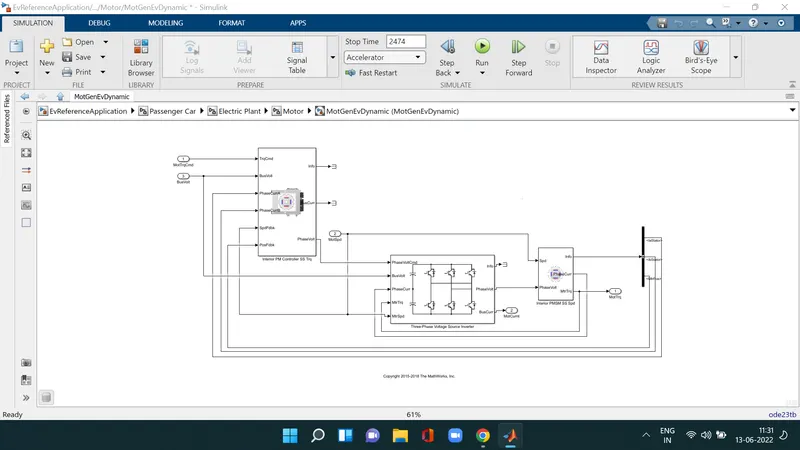

now the mapped subsystem is deactivated and the dynamic subsystem gets activated
