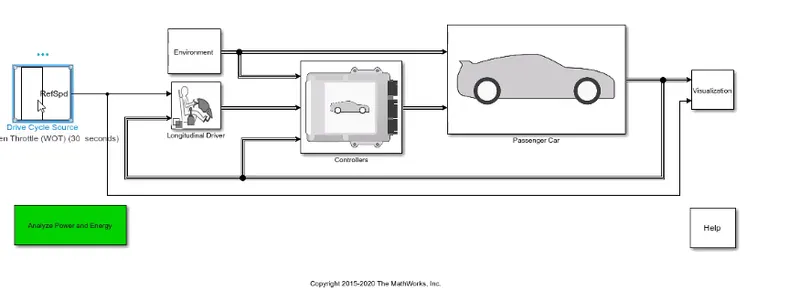

Week-4 Challenge WOT Condition Part-2
1.the difference between mapped and dynamic model of engine, motor and generator
Mapped Model- the data used for the operation and simulation are to be entered in a form of Lookup Table which would be then configured with the operational parts and the analysis would be formed
Advantage-If the detailed specifications /lookup Table data is available with us the simulation becomes easier and it gives the results on the basis of data interpreted Also called as Global Based Model
Disadvantage-More data has to be collated and some assumptions might also have to be taken
Dynamic Model- it understands the behavior of the part/element and then It behaves accordingly. It gives detailed analysis for the variations entered by us in the specifications whereas it simulates according to real and dynamic operations.
Advantage-It operates dynamically depending on the situation of operation detailed data and specifications are not required and the simulation gives the detailed analysis of the components simulated Also called as Real-Time Based Model
Disadvantage- Could not simulate as per our customized specifications
Engine
Engine Performance could be simulated with the Array of data interpreted in the system. Whereas all conditions such as Engine Operations, Power Efficiency could be measured accordingly. Engine performance be simulated as per the original/real engine specifications of the designated vehicle chosen for simulation with real-time detail
Motor
Motor Specifications such as rpm, maximum efficiency, Heat, and such specifications are to be entered for the simulating results. The actual details for the same me would be considered and the results would be obtained
Generator
Specifications for Battery Torque, Battery Current, Motor Torque and others are to be entered for simulation. All the details and specifications would be considered as per the actual and dynamic state the results of the same would be obtained then
2.

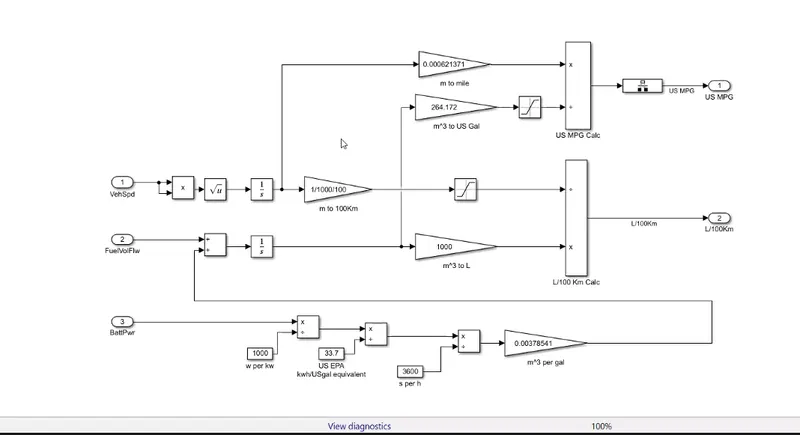

the factors indicating fuel effeciency are vehicle speed,battery power and fuel flow
as 1000L is 264.172USgallons
this model take all this for consideration
