Week 4 Challenge : CFD Meshing for BMW car

AIM:

For the given model, check and solve all geometrical errors on half portion and Assign appropriate PIDs. Perform meshing with the given Target length and element Quality criteria.

PROCUDURE:

STEP1: Deleted the half portion of the model because the model is symmetric.

STEP 2: Checked the errors and solved the single cons and double cons by using topo tool.

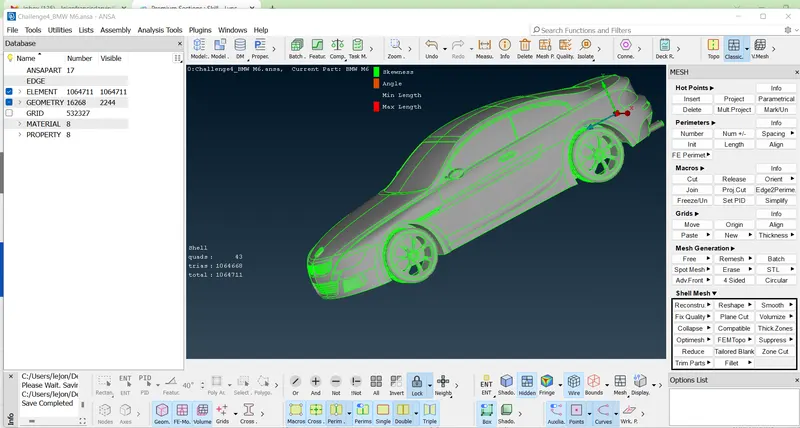

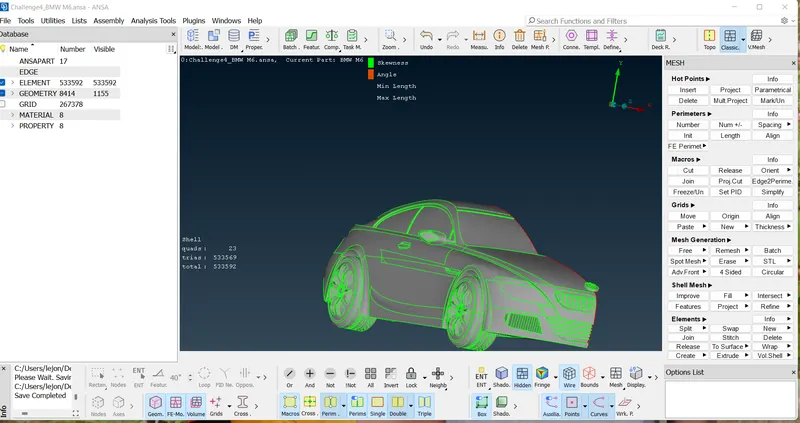

STEP 3: Meshed the given model as per given target and solved the dimentional errors by using mesh tool.

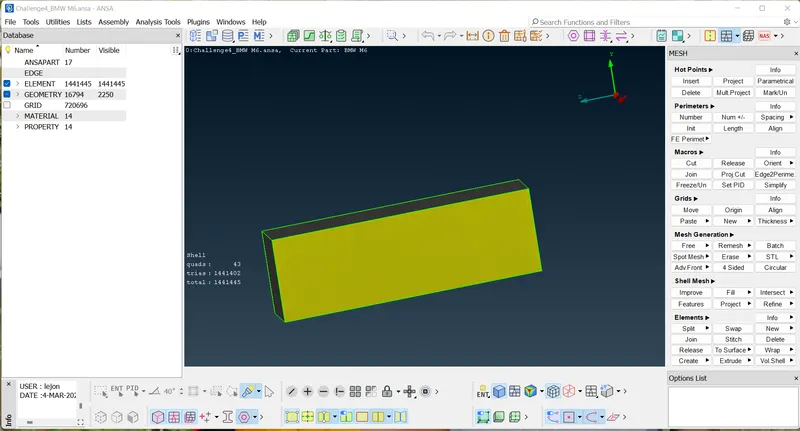

STEP 4: Created rectangular box for the wind tunnel creation.

RESULT:

CFD Meshing is done without any off element and created box for wind tunnel creation and found volume.
