Week 3 Challenge : CFD meshing on Turbocharger

AIM:
To check the grometrical errors for given model to make appropriate volumes.Create and assign PIDS as shown in the video.Perform surface mesh with the given target length as per PID.
PROCUDURE:
STEP1:To check the errors and sort out the errors by using topo tool.
STEP2:After cleaning process Rename the PIDS as the given model part name.

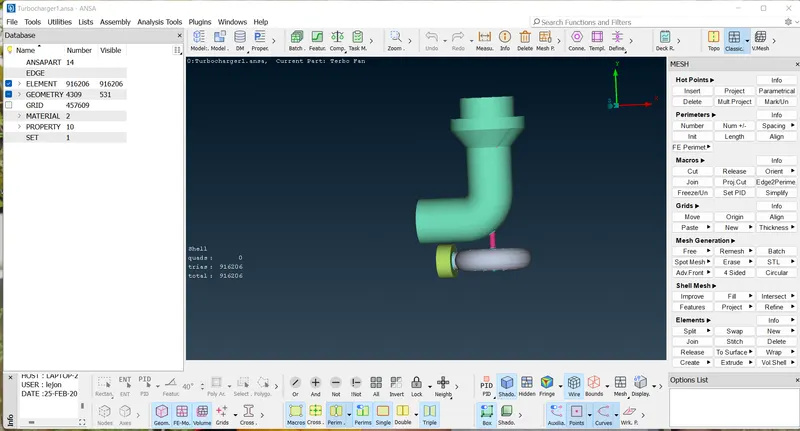

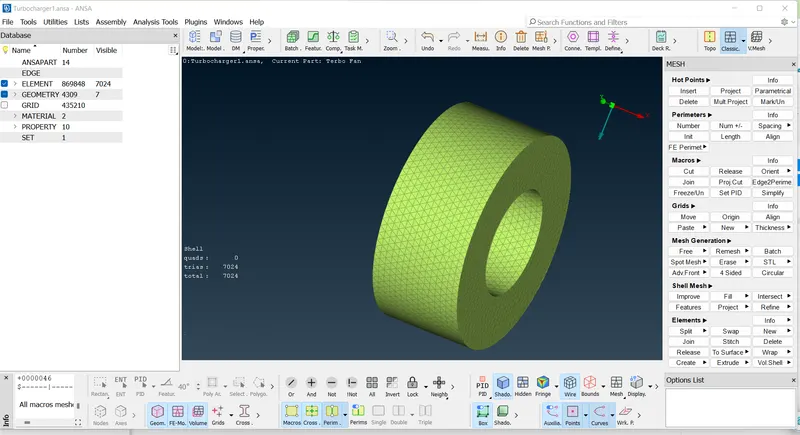

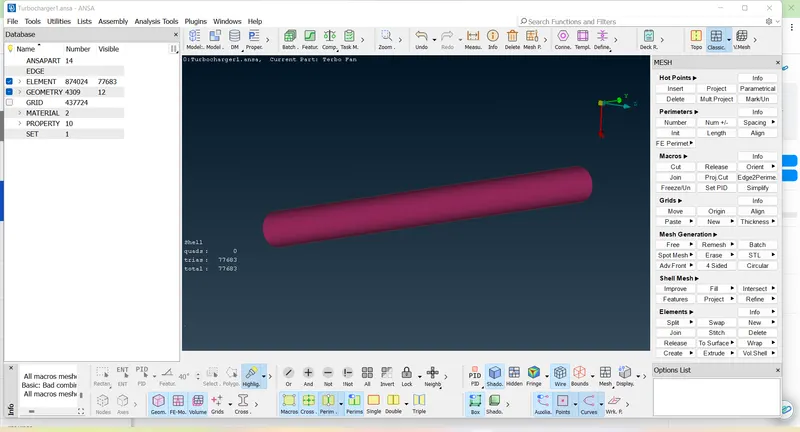

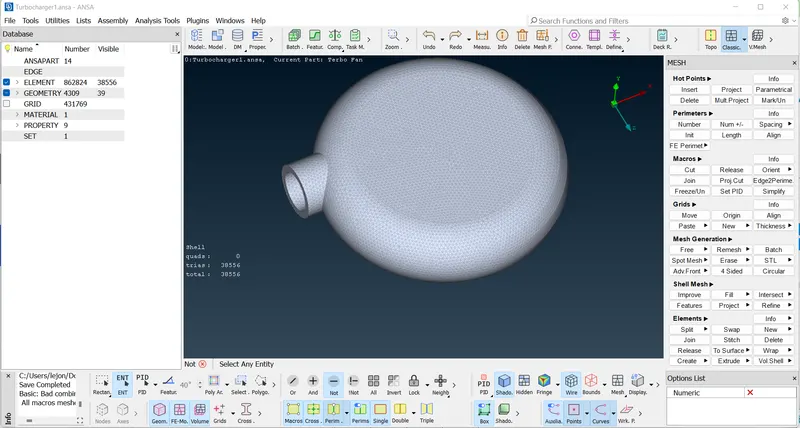

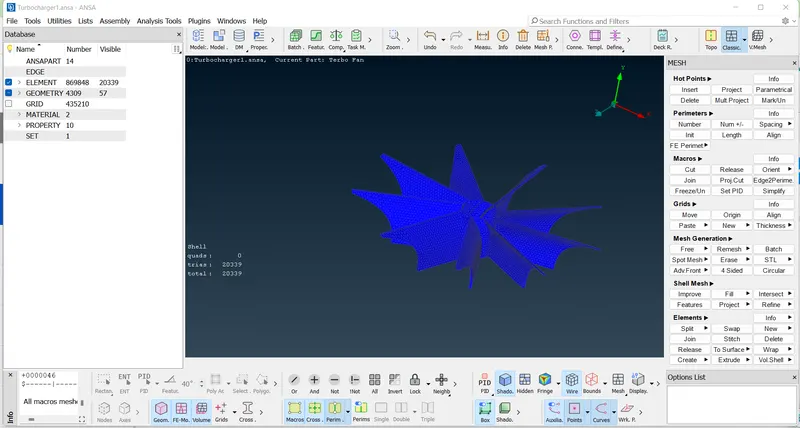

STEP3:Then mesh the model with the given target as per PIDS.

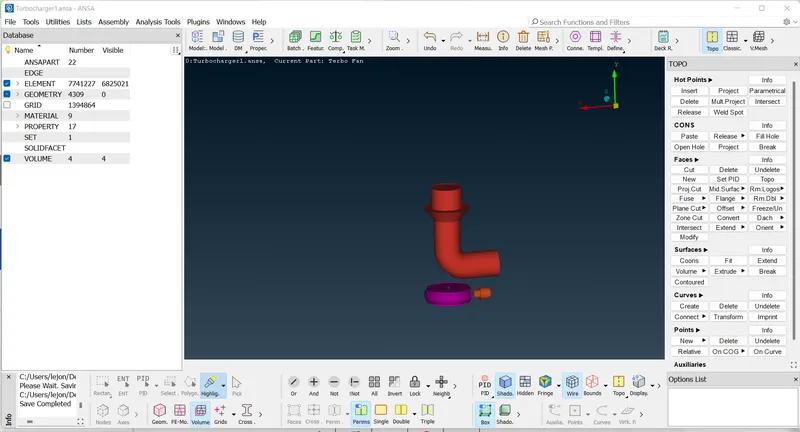

STEP4:then run the v.mesh into the model.

RUSULT:

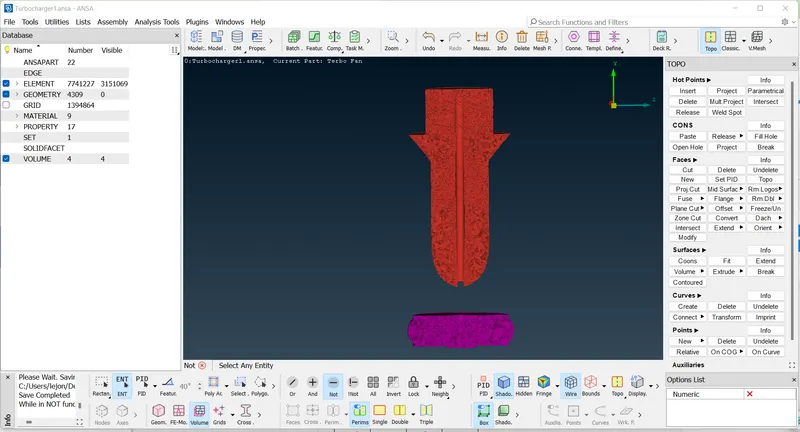

The output shown that the volume of the model formed by the tetra elements.With the help of that we can calculate the given model volume.And the cross section of output solid model shown that the location of the part near by mesh will be small.

https://drive.google.com/file/d/1D_7MZLrblFthZNNjnyPONDbLlYEFj-4m/view?usp=share_link
