TOOLING DIRECTION . TOOLING DIRECTION IS THE DIRECTION WHICH DECIDES THE DIRECTION OF THE COMPONENT TO BE EJECTED FROM THE MOULD. IT WILL SAFEGUARD THE COMPONENT FROM DAMAGE.
3. PARTING LINE IS THE LINE WHICH SEPERATES THE CORE AND THE CAVITY BLOCK.
4.LENS PARTING LINE
REPORT ON CREATING THE PART:

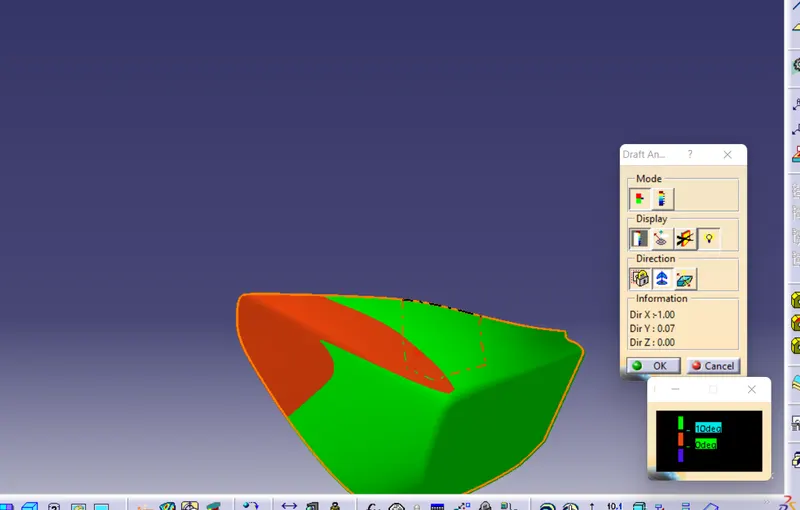

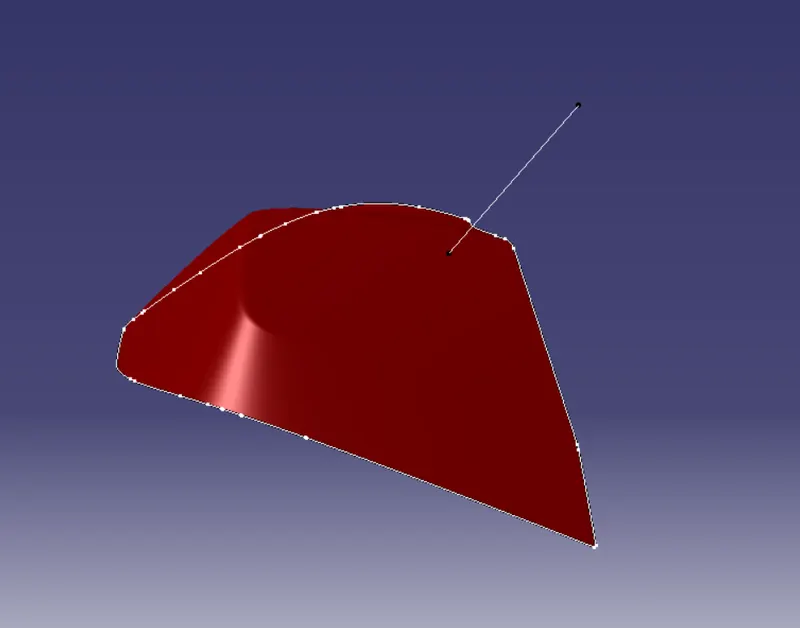

AT FIRST AFTER GETTING THE A SURFACE I HAVE ANALYSED WHETHER THE SURFACE CONTAINS THE UNDERCUT OR NOT. AFTER THAT I HAVE CREATED THE POINT FROM THAT POINT I HAVE CREATED THE CREATED A LINE IN X DIRECTION. THAT IS THE LINE WHICH TOOLING DIRECTION FOR MY COMPONENT. I HAVE GO TO THE OPTION CHECKED DRAFT ANALYSIS. I HAVE CLICKED THAT AXIS BUTTON AND MAKE THAT COORDINATE AXIS PLACING IN MY TOOLING DIRECTION . THEN I HAVE I PUT THE DRAFT ANGLE AS 0.5. TO CHECK THE WHETHER TWO COLOURS APPEARING ON MY GIVEN A SURFACE
. AFTER CONCLUDING THAT DRAFT . I HAVE ANALYSED HOW TO ERADICATE THAT UNDERCUT BY DEVELOPING THE B SURFACE.
.I HAVE OFFSET THE A SURAFCE TO DOWN WARD DIRECTION AT A DISTANCE OF 2.5 MM. IF THE SURFACE IS NOT GOOD . WE WILL GET THE PATCH PROBLEM . IT CAN BE SOLVED BY MULTISURFACE OPTION,BLEND SURAFACE,SURAFCE FILL. THIS ARE THE CAN BE USED TO ERADICATE THE PROBLEM.
.AFTER IMPROVING THE B SURAFACE BY THIS OPTION . I HAVE CLICKED THE BOUNDARY OPTION TO EXTRACT THE BOUNDARY.
.AFTER EXTRACTING I HAVE SPLIT THE BOUNDARY INTO TWO PARTS TO GET FINE SWEEP AT A DEG 3 TO A OUTWARD DIRECTION.THIS 3 DEG IS THE DRAFT DEG WHICH IS USED ALL OVER THE COMPANY TO MAKE A COMPONENT.
. AFTER SWEEPING THIS TWO LIMITS . IHAVE JOIN THEM INTO A SINGLE . AND THE I HAVE EXTRAPOLATE THE B SURFACE IN DIRFFERNET PLACES USES SPLIT COMMAND , TRIM COMMAND TO JOIN THE A SURFACE ,B SURFACE.
. AFTER CREATING THE PART I HAVE CRAETED THE PARTING LINE BY ANALYSING WHICH WILL BE CORE AND CAVITY SIDE PART . AFTER CONCLUDING . I HAVE EXTACTED THE BOUNDARY AND THAT AS MY PARTING LINE . WHICH WILL SEPERATES THE CORE AND CAVITY .
.AFTER THAT I HAVE UNDERGONE DRAFT ANALYSIS WITH THE PART I CREATED . PUT DRAFT DEG AS 0.5 AND CHECKED WHETHER MY TOOLING IS OK OR NOT.
. THIS IS THE PROCEDURE I HAVE FOLLOWED TO CREATE MY TOOLING DIRECTION, PARTINGLINE AND DRAFT ANALYSIS.
