Week 12 Challenge

AIM: To create the mould blocks for the respective models and provide the slider where ever needed and to provide the cooling channels and the ejector bins for the model.

DESCRIPTION:

step 1 : first use the draft analysis command to check the core and cavity region and then whether adequate draft is provided.

step 2 :after analysing the draft provide parting line to the respective model.

step 3: after parting line check whether the mould is seperable into a core and cavity surfaces or else use shutoff surfaces to fill the holes where ever needed to make mould seperable.

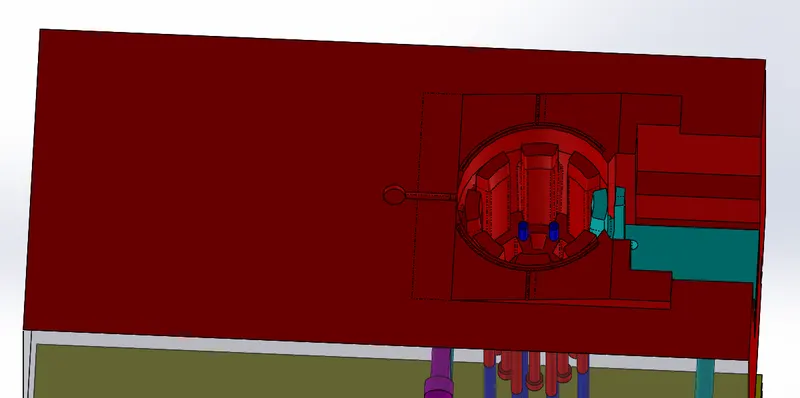

step4 ; if the component is needed slider then insert the component into assembly to seperately to create core and cavity blocks to accomade the sliders and washer in it. add material and subract the material to get the actual profile of the slider'

step5: after creating the slider analyse whether insert is neccessary. orelse go with the normal profile of the component.after this provide the ejector pins in the area where the ejection of the component is complicated. after this provide cooling channels to safe guard the component fram shrinkage and then warpage problems. scale is measured to material properties to save the component from shrinkage.

step 6: This component having two profile .In this case parting line selection should be created in four phase of the component .this will be done by split line command and this will also reduces the undercut and then make that undercuts as normal to the profile.

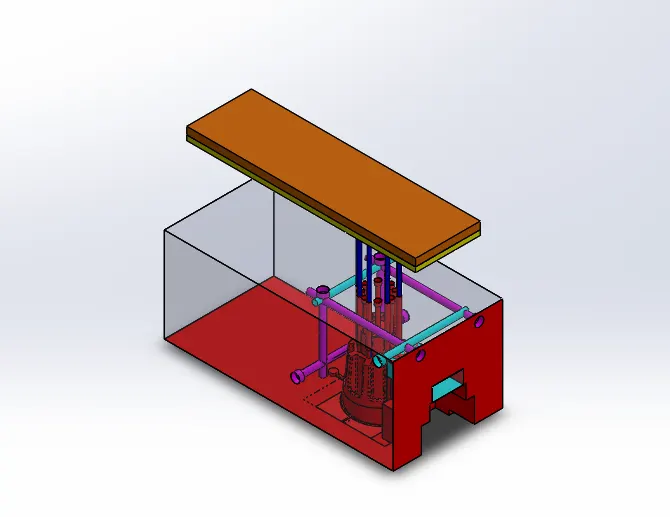

step 7: creation of the ejection system. ejector is used to eject the component after the completion of the mould cycle.ejector is made in the core block .

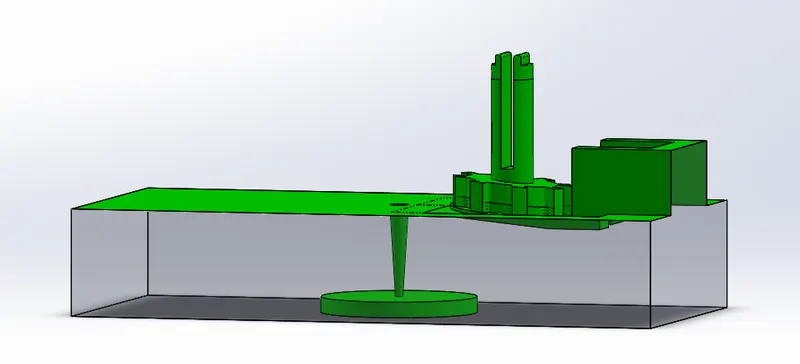

step 8: after creating ejection system . gate and runner is provided to inject the material from the barrel to the mould by using trapezoidal bush and then cut in the cavity which is called as gate.

step 9: after runner system. air vent is provided where ever needed in the mould to exit the trapped air .trapped would cause many faults to the component.

step 10: after air vent. implementing cooling in the mould to control the part defects in the component.

CONCLUSION : Hence the required ejection , cooling , airvent system provided to the mould .And then required gate and the runner cut also provided to the mould.
